Grafix Heidelberg Infrared Lamp 1160mm, 6200W
0.0 ( votes)
Price:
US $
606.06
/ piece

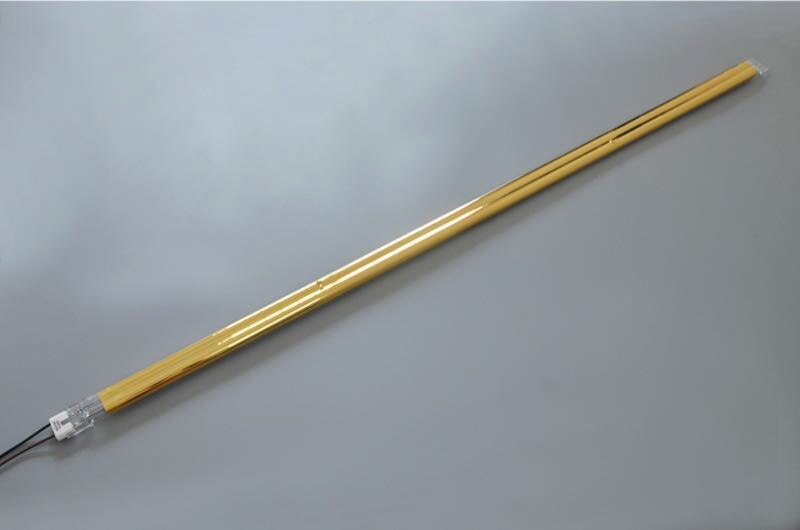

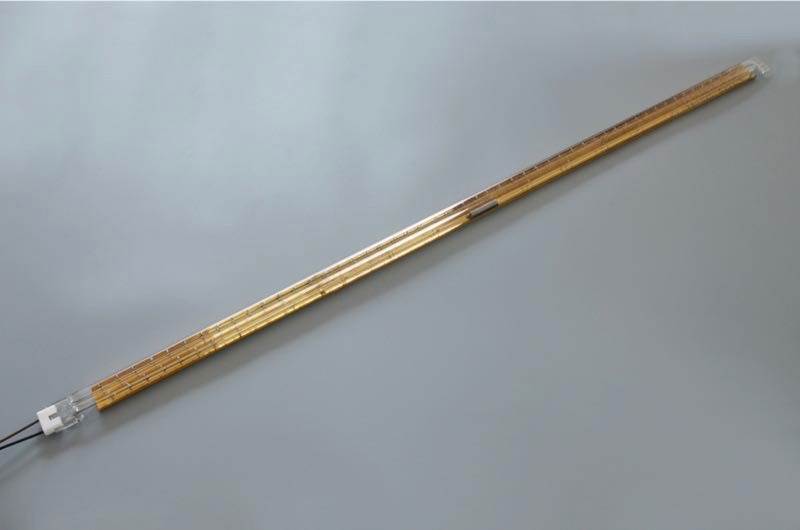

Grafix Heidelberg Infrared Lamp
Wattage：6200W
Total length :1160MM
Twin tube
Golden coating
Warranty life: 5000 hours.
Made in by Chinese factory

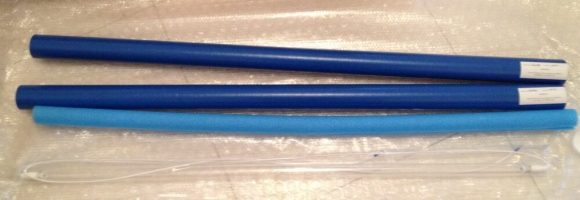

Package: paper tube with carton or Wood box
Ir lamp is very boroken in the express, so we use wood box , We suggest you buy 2 or 4 pcs at least one time .
Lamp CodeL | Volts(v) | Watts(w) | Total Length(mm) |
SM52-SW-A | 415 | 3300 | 740 |
HMO-SW-A | 415 | 3300 | 740 |

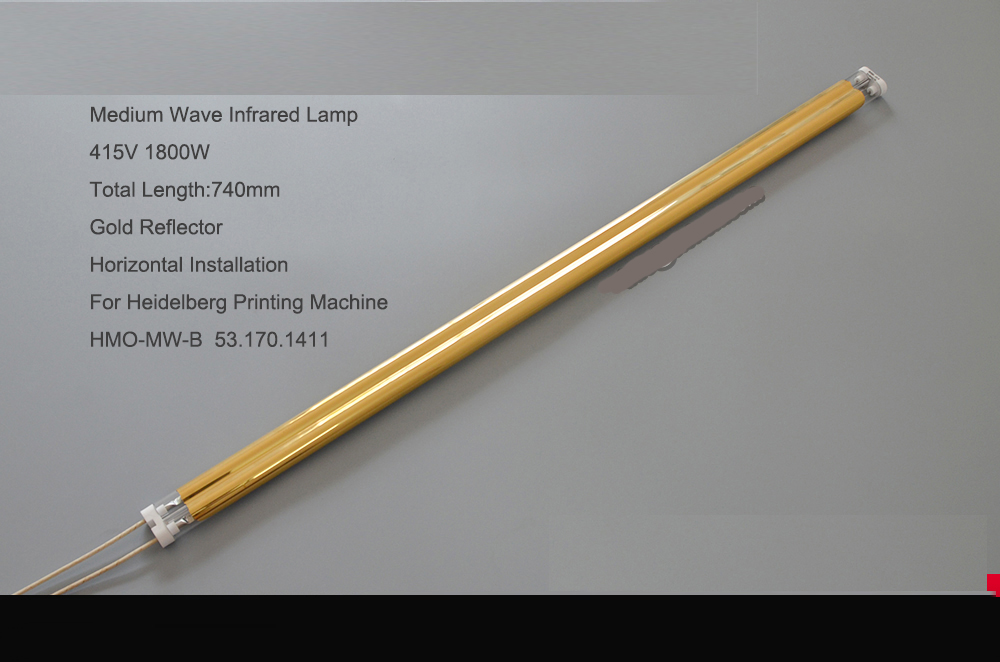

HMO-MW-B | 415 | 1800 | 740 |
SM72-SW-A | 415 | 3500 | 800 |
SM72-MW-B | 415 | 1900 | 800 |

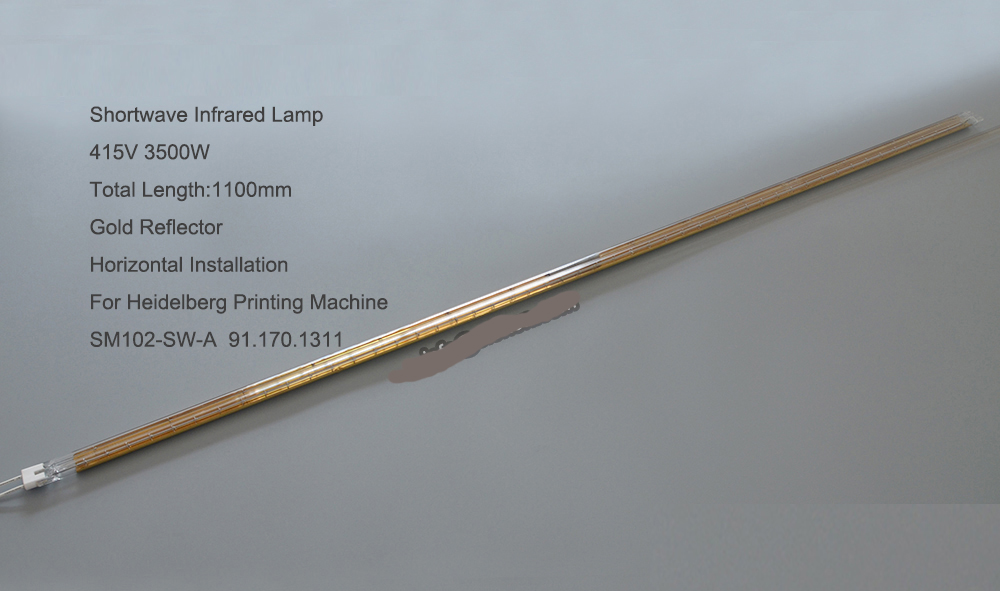

SM102-SW-A | 415 | 3500 | 1100 |
SM102-MV-B | 415 | 2500 | 1100 |
SM74-SW-C | 400 | 6950 | 900 |
SM74-FMW-B | 480 | 4200 | 820 |
MANGS-FMW-B | 415 | 4200 | 820 |
SM102-SW-C | 400 | 5400 | 1200 |
SM102-FMW-B | 480 | 6000 | 1125 |
SM102-FMW-B-3000 | 400 | 6000 | 1160 |
SM105XL-FMW-B | 400 | 6200 | 1160 |
Infrared Radiator Tubes For Heidelberg Parts
Usage
Infrared Radiator tubes(or IR Tubes)are used in DryStar Units of Heidelberg Speedmaster SM52,
SM/CD74,SM/CD102 adn XL105 machines.Inorder to ensure maximum longevity and durability,
We recommend the replacement of IR tubes every 5,000hours.
Quality defines the result.

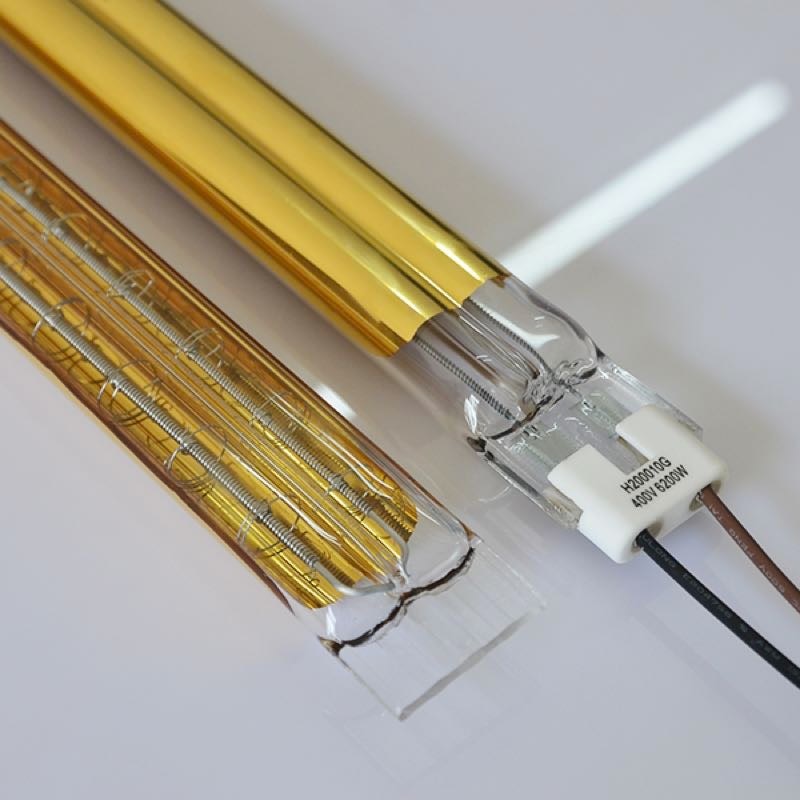

IR Tubes use a unique gold alloy that focuses the IR light onto the paper and prevents overheating in the delivery.
Our IR Tubes meet the highest quality standards,which means they are without any bubbles or brush marks in the glass to avoid the risk machine vibration fractures. All cables are triple-C rated to prevent dryer shutdown due to arcing caused by insulation breakdown.
Additionally,our IR tubes use tantalum disks to reduce the reaction of impurities over the lamp life.
The result is a longer lasting lamp with fewer black deposits commonly seen in competitive products.
Guarantee
The best for your equipment is our IR tubes guarantee and optimal and efficient production. Our IR Parts enable optimal and efficient production.Our parts meet the same precision and quality requirements as origianl Heidelberg/Manroland/Mitsubishi and other printing machine's IR tubes,with competitive prices.
- Voltage: 380V
- Model Number: 6200W, 1160mm
- Brand Name: Uviterno
- Origin: Mainland China
- Certification: NONE
- Item Type: UV GEL Curing Lamps
