Grade A New PPR Welding Machine, Plastic Pipe Welding Machine Water Tube Welder AC 220V 1500W 20-63mm To Use

Shop announcement:
We all goods factory direct sales, with strict quality assurance, please buy commodity product photo withJIANHUA trademark of!

We plant all subterrene can be directly assembled 2 plug, not converted, the direct use!

HG-063

ppr pipe welding machines have been exported to many countries around the world.

This product is with precise temperature control, high reliability, good safety and unique non-stick plastic stripping technology.

Power: 1500W

Voltage: 220V

Frequency: 50HZ

Usage: pipework, PE/ppr/pvc/water gas geothermal pipe welding Machine

Dimensions: 20mm, 25mm, 32mm,40mm,50mm,63mm

Weight: 5kg

Color: Black

Control temperature: 0 to 260

working range: Thick 20mm, 25mm, 32mm,40mm,50mm,63mm

our Feature :
1. fast delivery : we will ship your goods  within 24 hours after comfirm with your  payment .
2. we supply door to door shipping service;
3. we supply 7 days exchange/refund policy;
4. we will follow your items after ship your items every day, our after-sales service is the best.

Our Advantage :
1. our price is reasonable because we have good source.

Your Benifit:
1. trail order is welcomed, you can test our quality first before making large quantity,even though we are wholesales supplier.
2. you can buy what you want with more reasonable price ;
3. you can enjoy big discounting after you become to be our regular client.

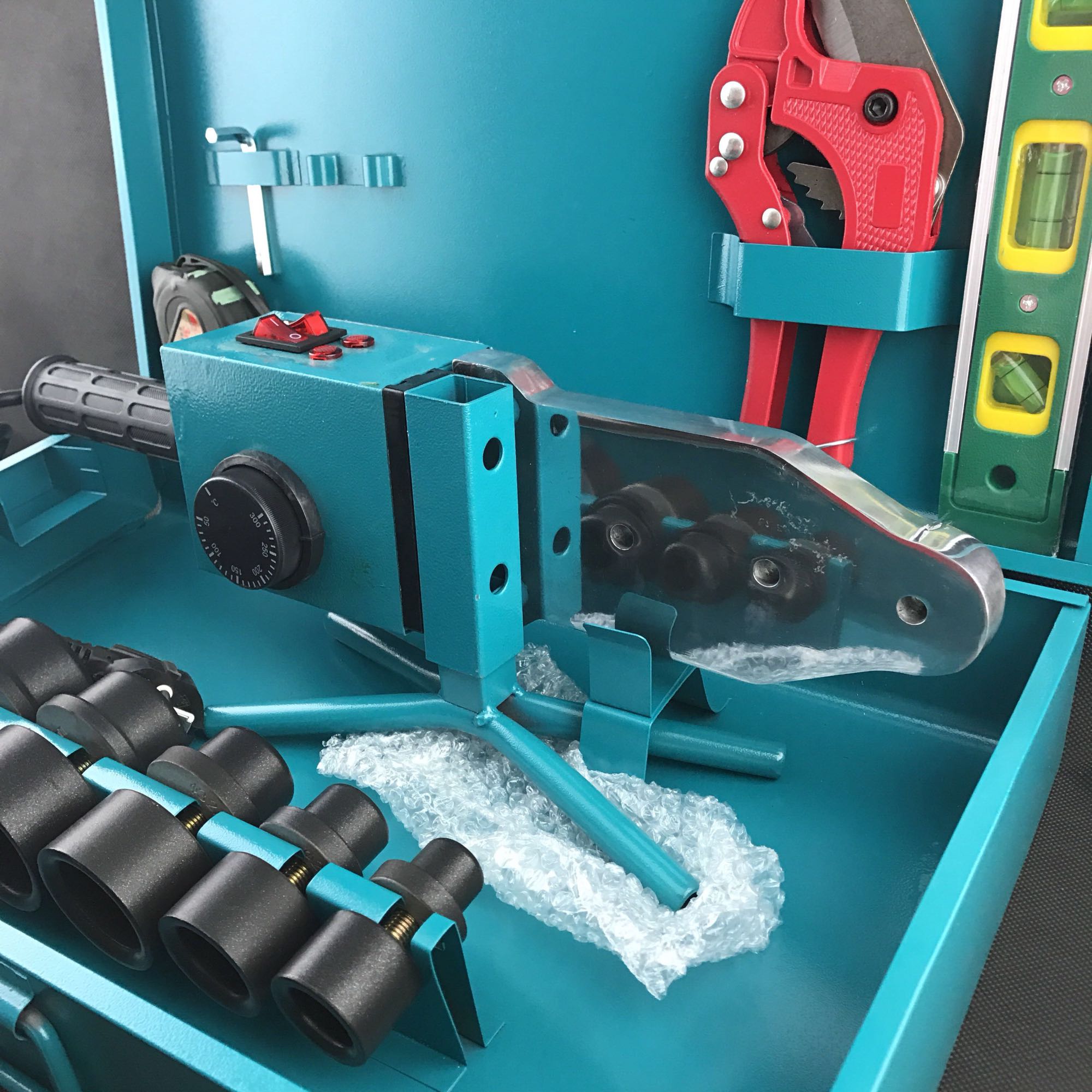

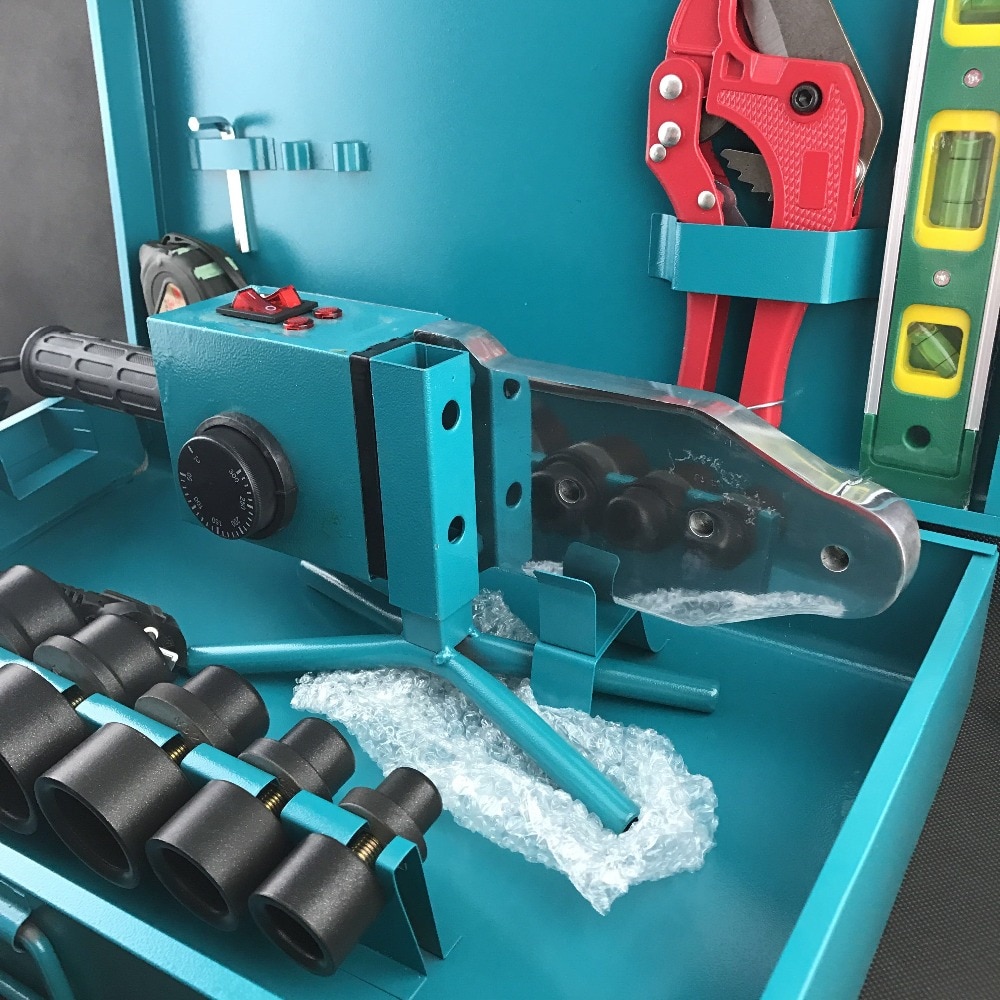

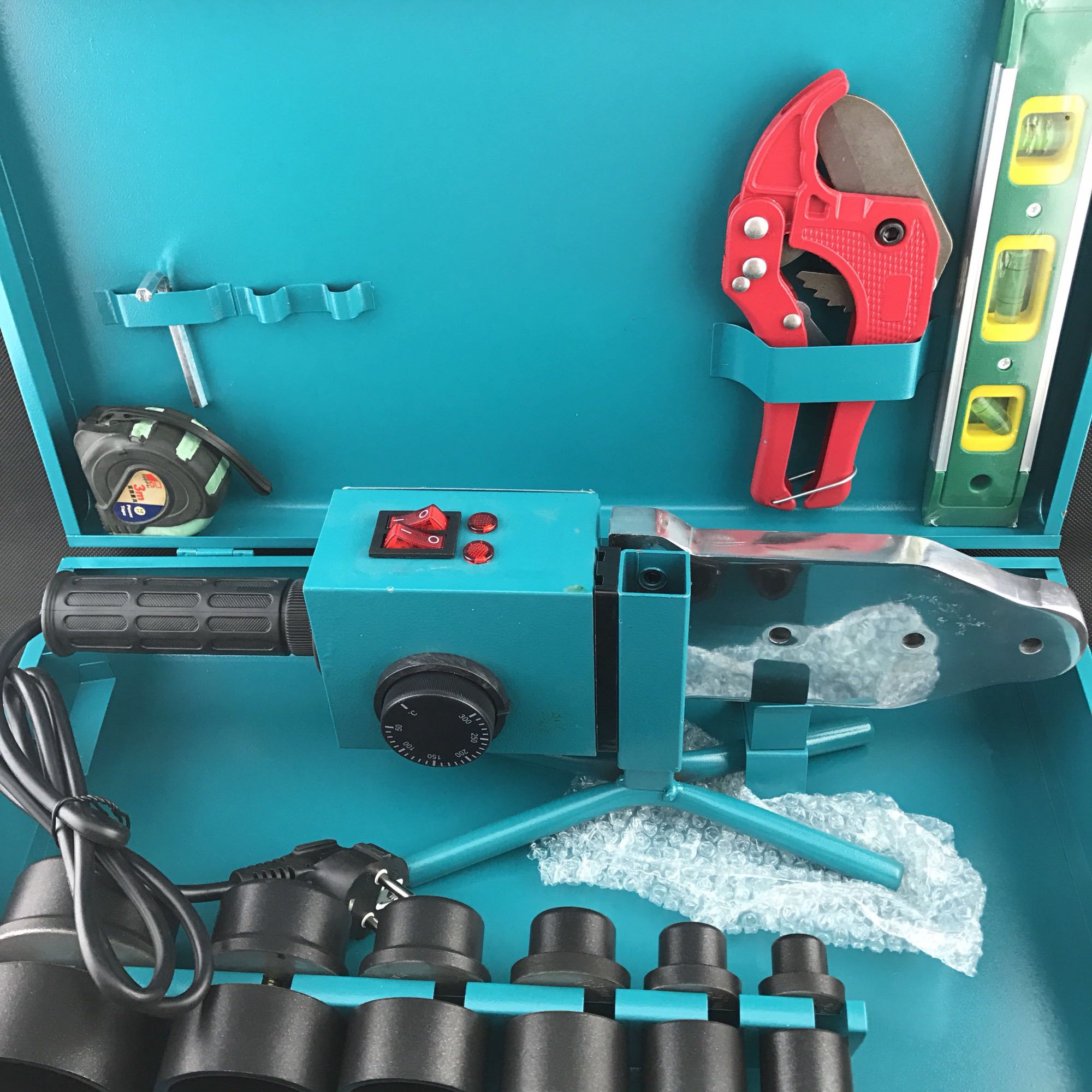

Product picture:

About image:all our products are for my original photograph, because of the difference of light and each electrophoresis coating pigment color difference caused by the problem belongs to the normal situation, please customers understanding, we buy is cheaper to use scissors, the color is only second, at the same time, we promise false a compensate ten! Stolen figure will investigate!

20-63 (20MM, 25MM, 32MM can be hot, 40MM, 50MM, 63MM pipe)
Use: This product is applicable to hot melt welding of thermoplastic plastic pipes such as PP, PP-R, PE, PP-C connection.

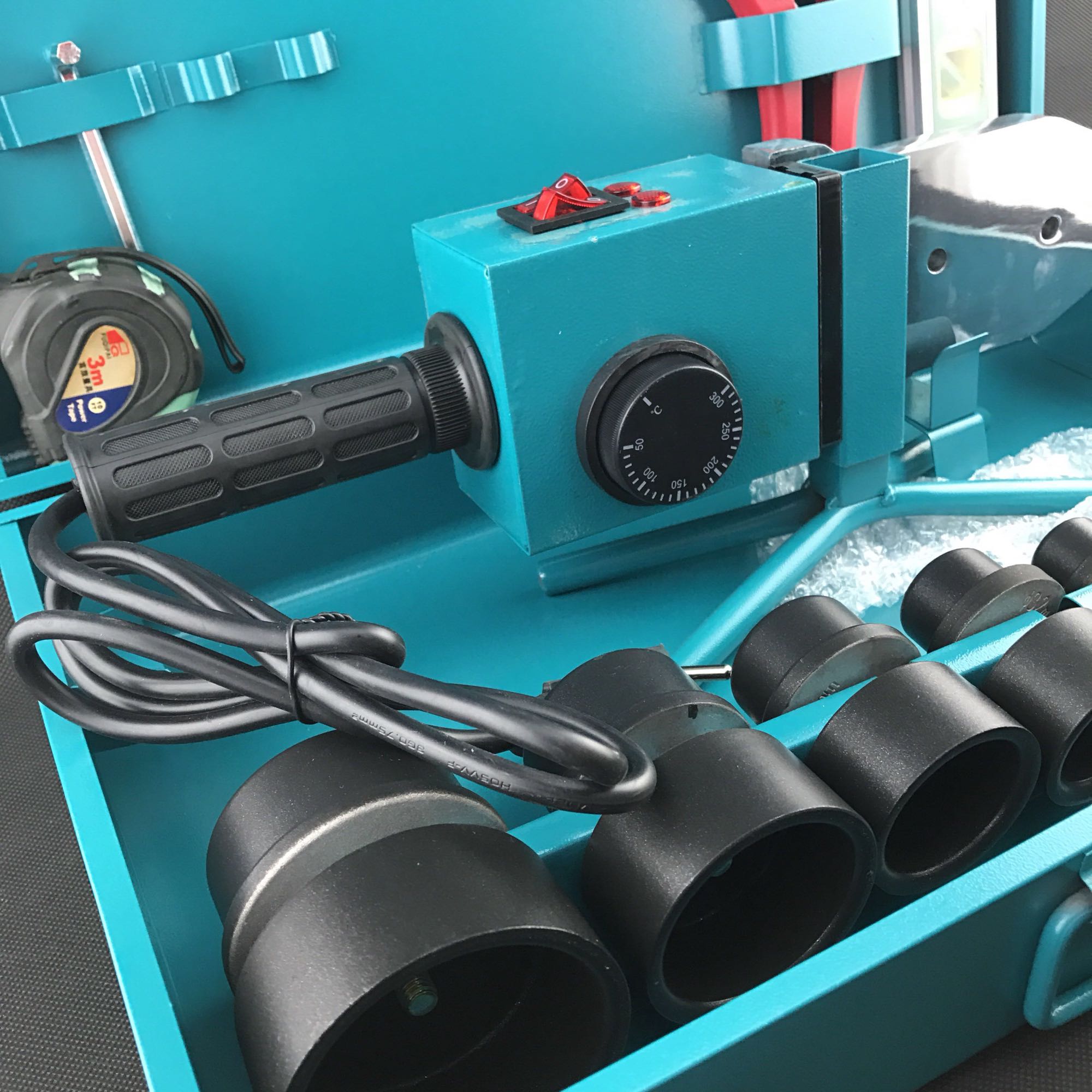

Temperature control type: dual temperature control, (electronic temperature control, or manual temperature control)

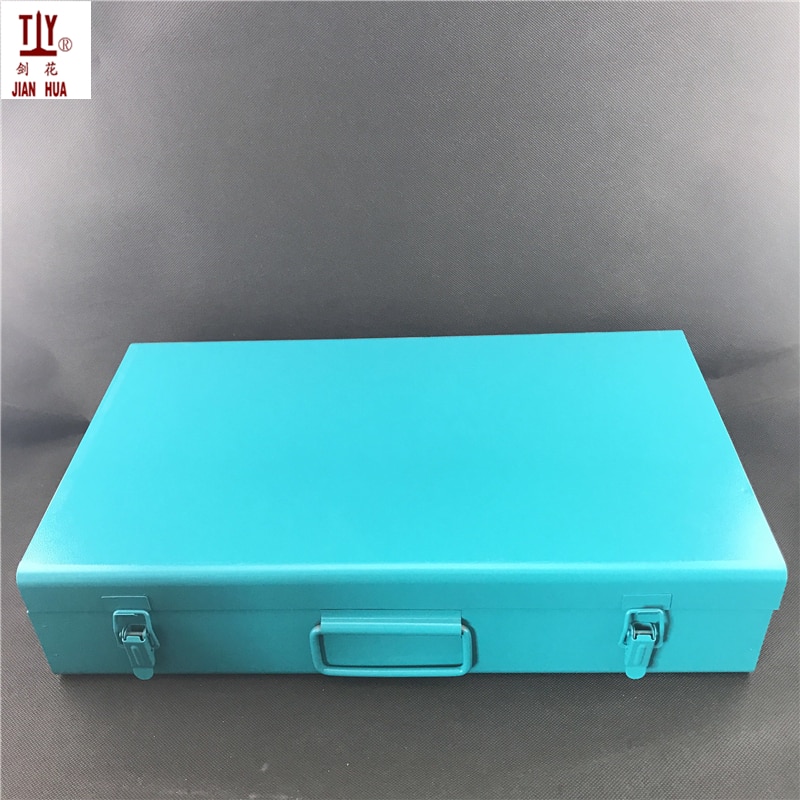

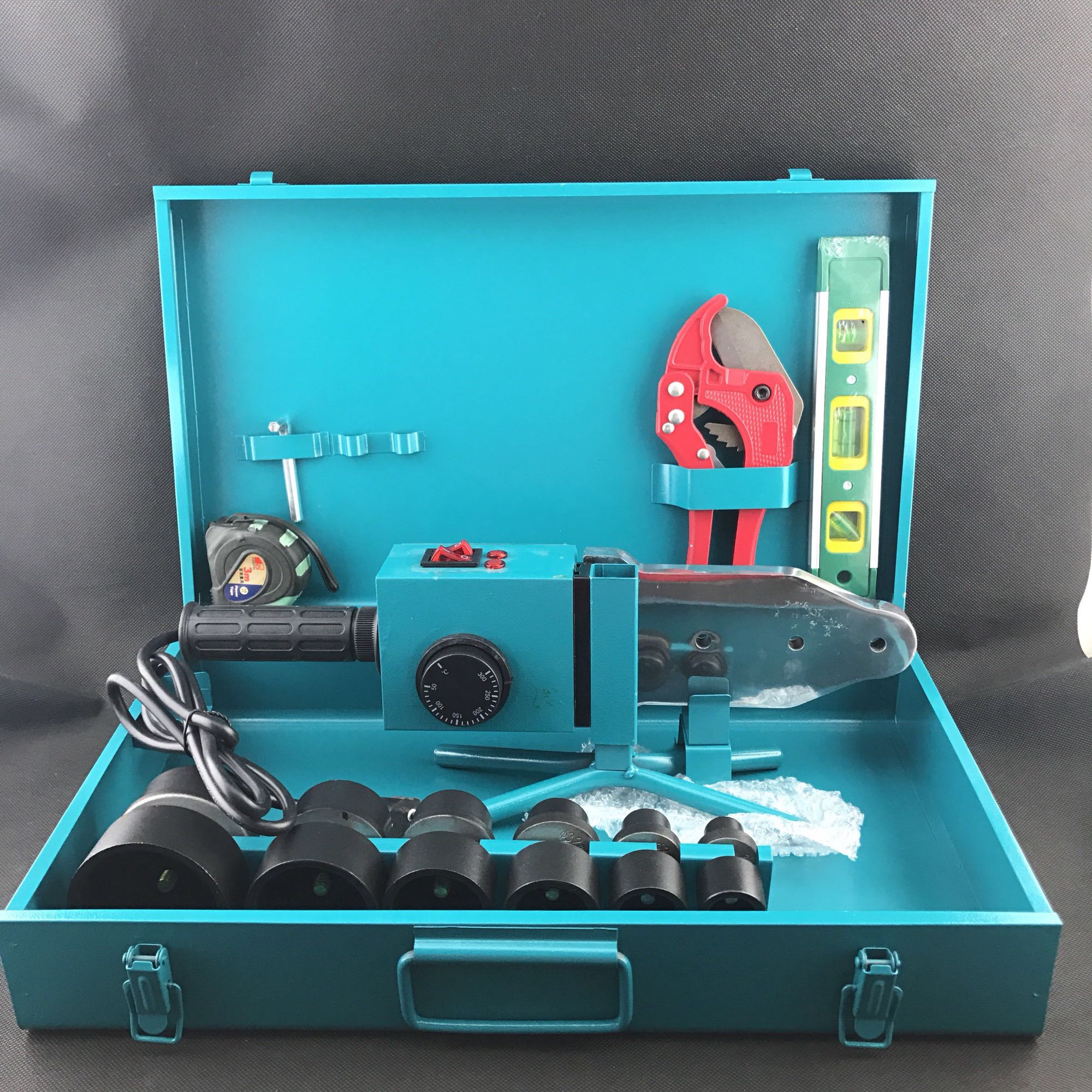

Accessories: thick iron packaging box, the welding device base, inner six angle wrench 1, golden thicker mould head fixing bolts, pipe cutting, working gloves, tape measure, level ruler.
A set of complete machine weight: net weight 5.5kg

Product features:

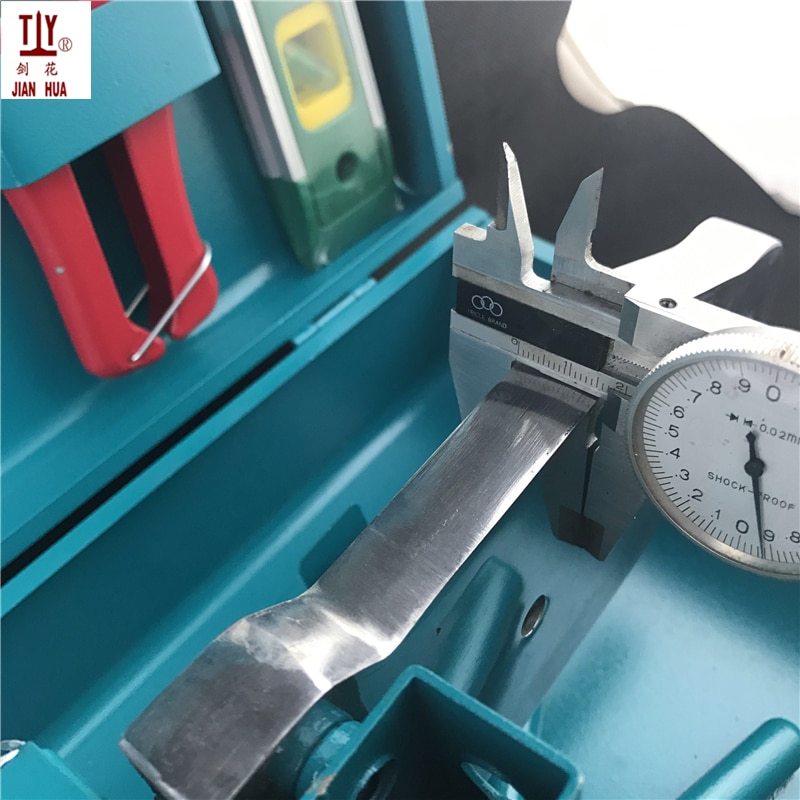

This section of die head not viscose (import paint coating), base thickened, heating plate thickening, thickening type tin. Plumber's ideal choice.
Gifts such as graph in the tube shear, gloves, three meters of tape measure, level ruler.
The main technical indicators
1, conditions of use: an altitude of more than 1000 meters
The environment temperature: -20 degrees ---50 degrees
Relative humidity: 45%---95%
Voltage range: 176V-245V
50 - 1Hz
2, heating head temperature: 260 + 5 C
3, safety index: insulation resistance of not less than 1 mu Omega
Leakage current: less than 5mA (r.m.s)

Method of use:
One, the installation of heating die head:
According to the need of paired mounting die head heating, and use the 8mm inner six angle wrench board tight. (for the first time in the process of heating, the heating die tool should be used to supplement the tightening).

Two, fixed welding machine:
Supporting fixing frame placed on the working table (if necessary with chuck fixed), insert the fusion splicer.

hree, a power switch:
Switch on the power (delta attention to the power, must be grounded) switch, adjusted to the required temperature, five minutes after the start of work. Switch with lamp, heating switches exhibit of lanterns lit, temperature reaches the set value and will be extinguished, so repeated lights off in order to maintain the temperature.

Four, weld pipe:
Vertical pipes are cut by a cutting pipe, need to fly edge or debris removal pipe produced. The pipe and pipe fittings and promote the welding device, then the heated pipe and pipe vertical propulsion, propulsion force should not be too fierce, in order to prevent the pipe head bending.
