Good Quality Single Shaft 25N.M GUANGTAI Magnetic Powder Brake FZ25S for printing machine , bag making machine
0.0 ( votes)
Price:
US $
696.90
/ piece

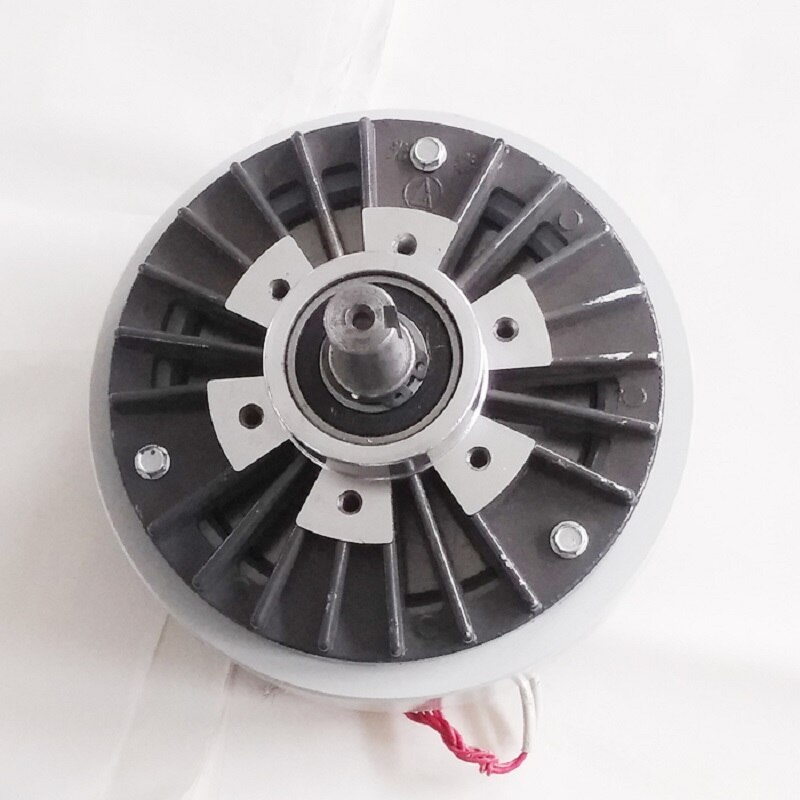

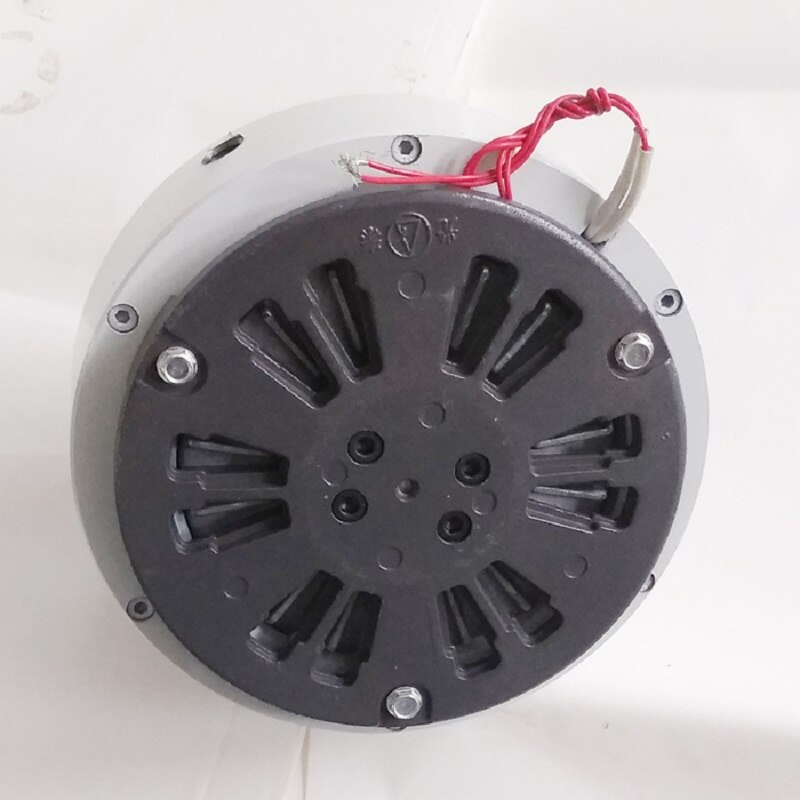

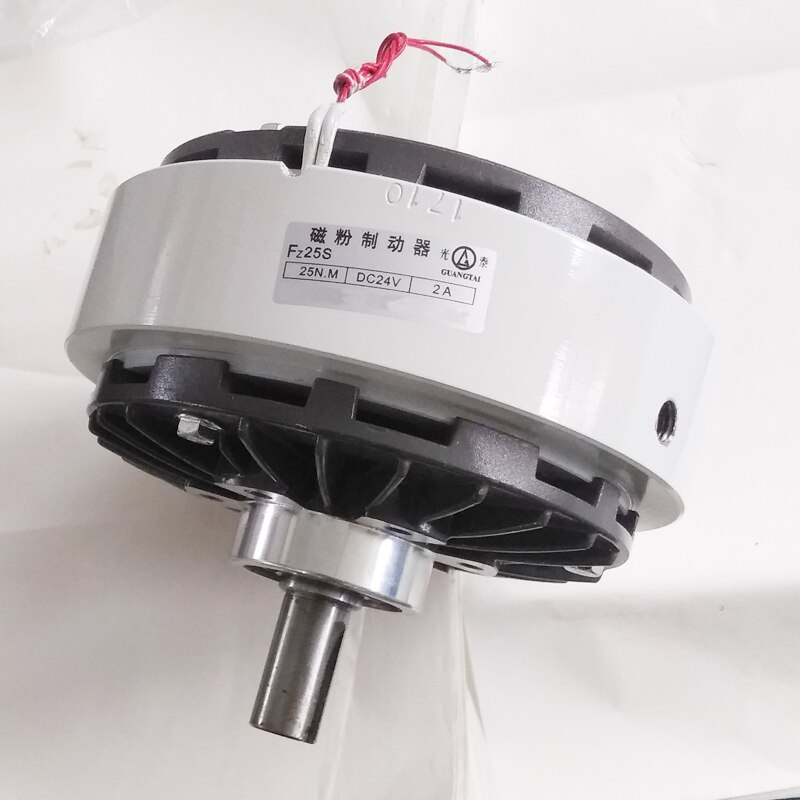

Good Quality Single Shaft 25N.M UANGTAI Magnetic Powder Brake FZ25S for printing machine , bag making machine
model | Torque (N.m) | Voltage (V) | Current (A) | Rotate speed (r/min) | D0 | D1*L1 | D2 | D*L | L2 | L0 | b |
FZ06S | 6 | 24 | 1.0 | 1000 | 120 | 44*10 | 52-M4 | 14*22 | 25 | 100.5 | 4 |
FZ15S | 15 | 24 | 1.0 | 1000 | 155 | 52*15 | 65-M5 | 16*30 | 33 | 127 | 5 |
FZ25S | 25 | 24 | 2.0 | 1000 | 183 | 58*17.5 | 78-M6 | 20*40 | 44.5 | 153 | 6 |
FZ50S | 50 | 24 | 2.0 | 1000 | 218 | 75*18 | 100-M6 | 25*53 | 54.5 | 180 | 8 |
FZ100S | 100 | 24 | 2.0 | 800 | 290 | 90*20 | 120-M8 | 30*70 | 73 | 240 | 8 |
FZ200S | 200 | 24 | 3.0 | 800 | 335 | 110*26 | 140-M10 | 35*75 | 77.5 | 285 | 10 |
FZ400S | 400 | 36 | 5.0 | 600 | 398 | 130*36 | 200-M12 | 45*98 | 100.5 | 340 | 12 |
FZ600S | 600 | 36 | 5.0 | 600 | 460 | 160*40 | 200-M12 | 50*106 | 108.5 | 376.5 | 14 |
Product information:
The magnetic powder brake is an excellent automatic control component, which is a combination of a transmission unit and a driven unit. It uses magnetic powder as the working medium and uses the excitation current as the control means to achieve the purpose of controlling braking or transmitting torque. Its output torque has a good linear relationship with the excitation current, and has the advantages of fast response speed and simple structure. It is suitable for wire, cable, printing, packaging, textile, leather, metal foil strip processing, paper making and paper processing. In the automatic tension control system for the take-up device.
Working principle:
The magnetic powder brake is an excellent automatic control component, which is a combination of a transmission unit and a driven unit. It uses magnetic powder as the working medium and uses the excitation current as the control means to achieve the purpose of controlling braking or transmitting torque. Its output torque has a good linear relationship with the excitation current, and has the advantages of fast response speed and simple structure. It is suitable for wire, cable, printing, packaging, textile, leather, metal foil strip processing, paper making and paper processing. In the automatic tension control system for the take-up device.
Products feature:
It adopts super-alloy magnetic powder with excellent heat resistance, low temperature rise, constant output torque, fast response speed and high frequency operation. The use of high-temperature resistant coils and high-quality bearings makes the operation stable, without vibration, impact and noise during start-up, operation and braking. With overload protection, in the case of torque overload, the automatic slip line acts as an overload protection. Small size, light weight, easy installation and long service life.
- Voltage: 24V
- Material: Cast Iron
- Model Number: FZ25S
- Origin: Mainland China
- Certification: NONE
