GEYA GRD9L 6KA ELCB RCCB Automatic Reclosing Device with RS485 Function Remote Control Circuit Breaker 2P 40A 63A 30mA RCD

4.8 (76 votes) | 328 orders
Price:
US $ 142.08 - 170.94 / piece
Ships From
Poles Number
Rated Current
Quantity




GEYA GRD9L 6KA ELCB RCCB Automatic Reclosing Device circuit Breaker 2P 40A 63A 30mA 100mA 300mA RCD

In case of unwanted tripping after an electrical fault (earth leakage current )

(((This Link is for GRD9L-R type AUTO RECLOSER)))

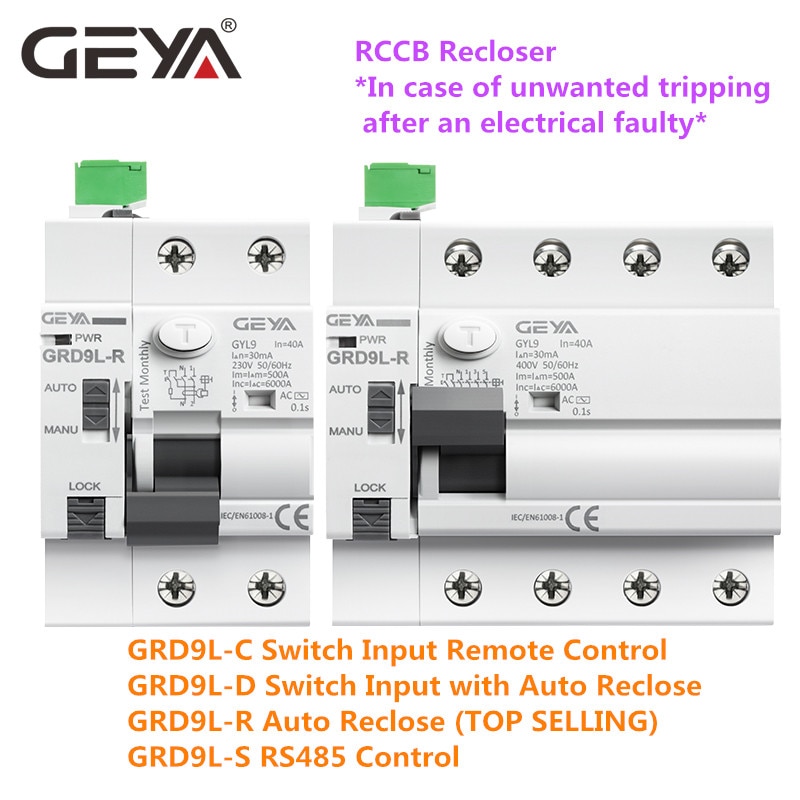

HOW TO CHOOSE RCCB RECLOSER Control Mode?

Recloser 8 type choice:

GRD9L-C-DC= Recloser is Swicth Input Control Mode, DC12V or DC24-48V

GRD9L-C-AC= Recloser is Swicth Input Control Mode, AC220V

(For example: Connect with Relay, as a switch)

GRD9L-D-DC= Recloser is Controlled by switch+Auto Reclosing, DC12V or DC24-48V

GRD9L-D-AC= Recloser is Controlled by switch+Auto Reclosing, AC220V



GRD9L-S-DC= Recloser is RS485 Control Mode, DC12V or DC24-48V

GRD9L-S-AC= Recloser is RS485 Control Mode, AC220V

(Connect with Computer or PLC)

GRD9L-R-DC= Recloser is Auto Reclose Control Mode, DC12V or DC24-48V

GRD9L-R-AC= Recloser is Auto Reclose Control Mode, AC220V

(Autoreclose time 10s, 60s, 300s...)

General

Applications

     - RCCB+RECLOSER Can be widely used in power grid terminal line, such as meter box, new energy circuit management, PV solar control box, smart                 electricity, smart home, new energy vehicle charging pile, and so on.

Function Features of recloser (RD)

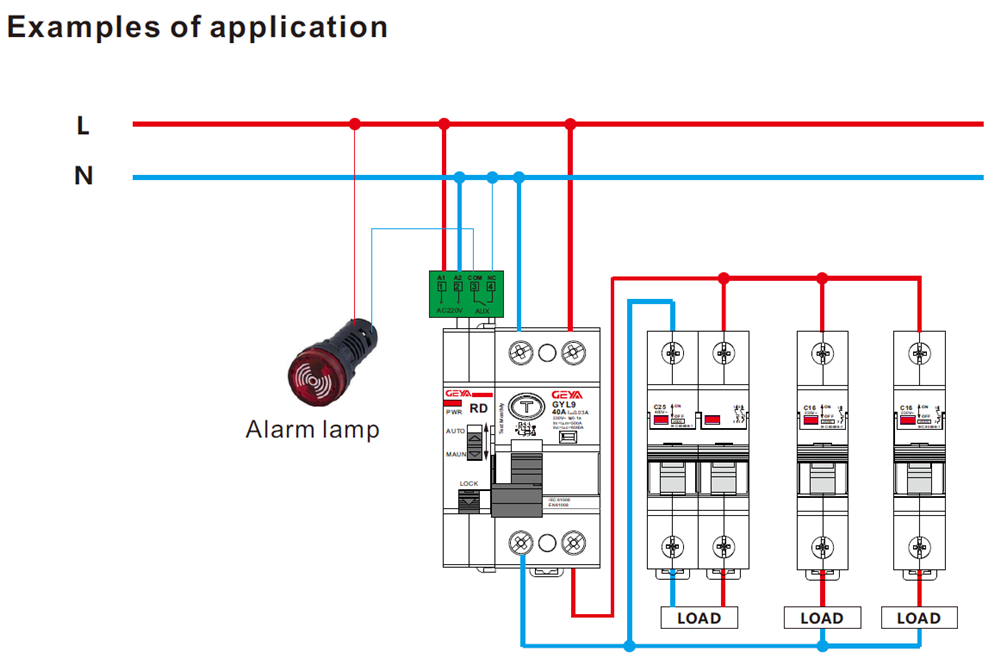

1. It can be matched with circuit breaker / leakage protection switch, and automatically reclose when MCB / RCCB trips unexpectedly,
    No need for manual closing, reduce the cost of manual maintenance, and eliminate faults in time to improve efficiency.

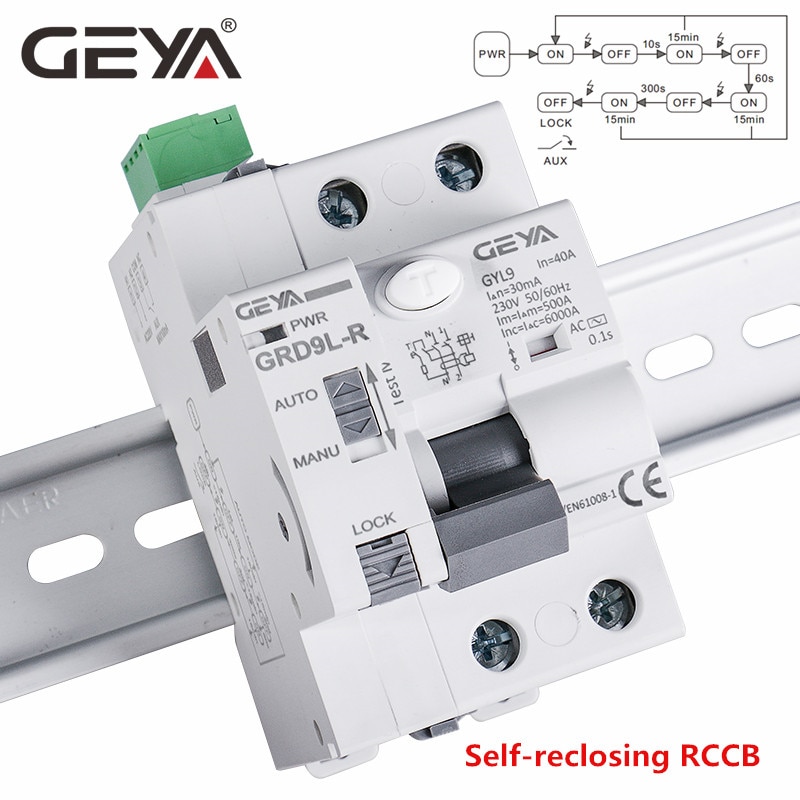

2. built in 3 reclosing times, continuous closing failure within 15 minutes, can send alarm through auxiliary contact.

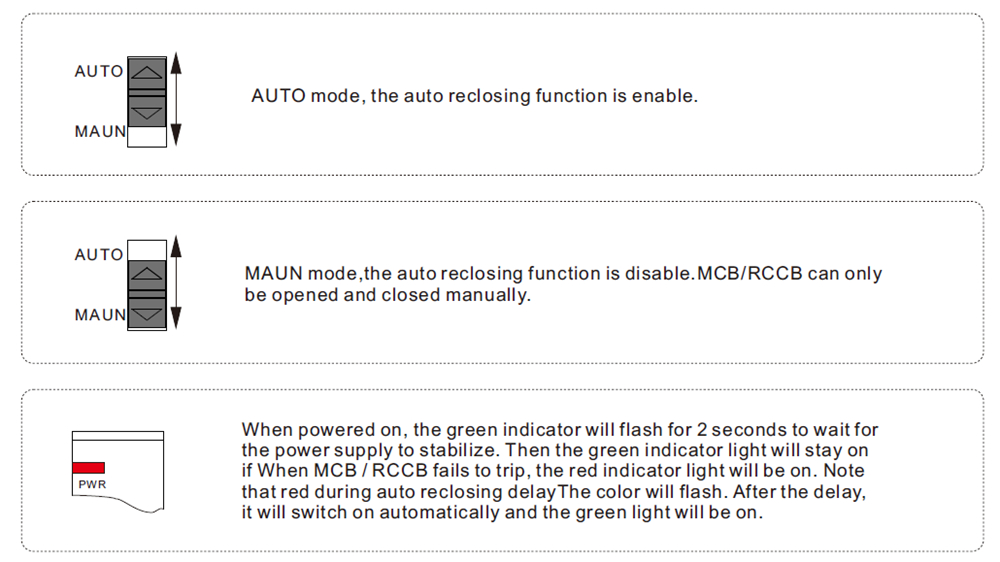

3. With manual / automatic selector switch.
4. With mechanical / electronic double locking function.
5. The shaft transmission mode is more stable and reliable.
6.  Can match other accessories.
7. Work status is indicated by LED.

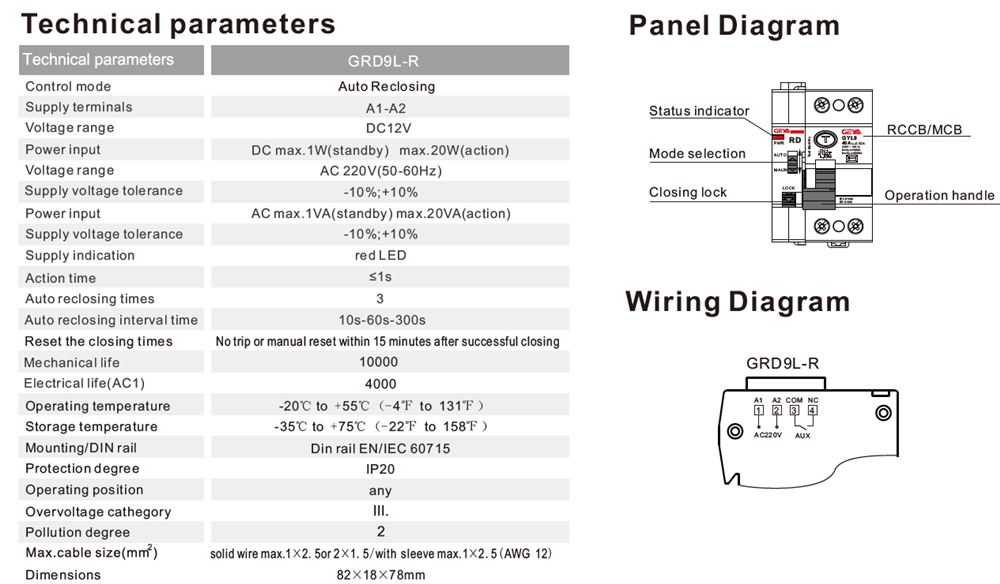

Technical Data OF RCCB RECLOSER







Company Information





  • Rated Voltage: 220/380V
  • Type: RCD
  • Is Smart Device: No
  • is_customized: Yes
  • Model Number: GYL9 RCCB Recloser
  • Type: Earth Leakage
  • Brand Name: GEYA
  • Origin: Mainland China
  • Certification: CE
  • Product Name: RCCB ELCB Recloser
  • Recloser Voltage Range: DC12V OR AC220V OR DC24-48V
  • Control Mode: Auto Recloser
