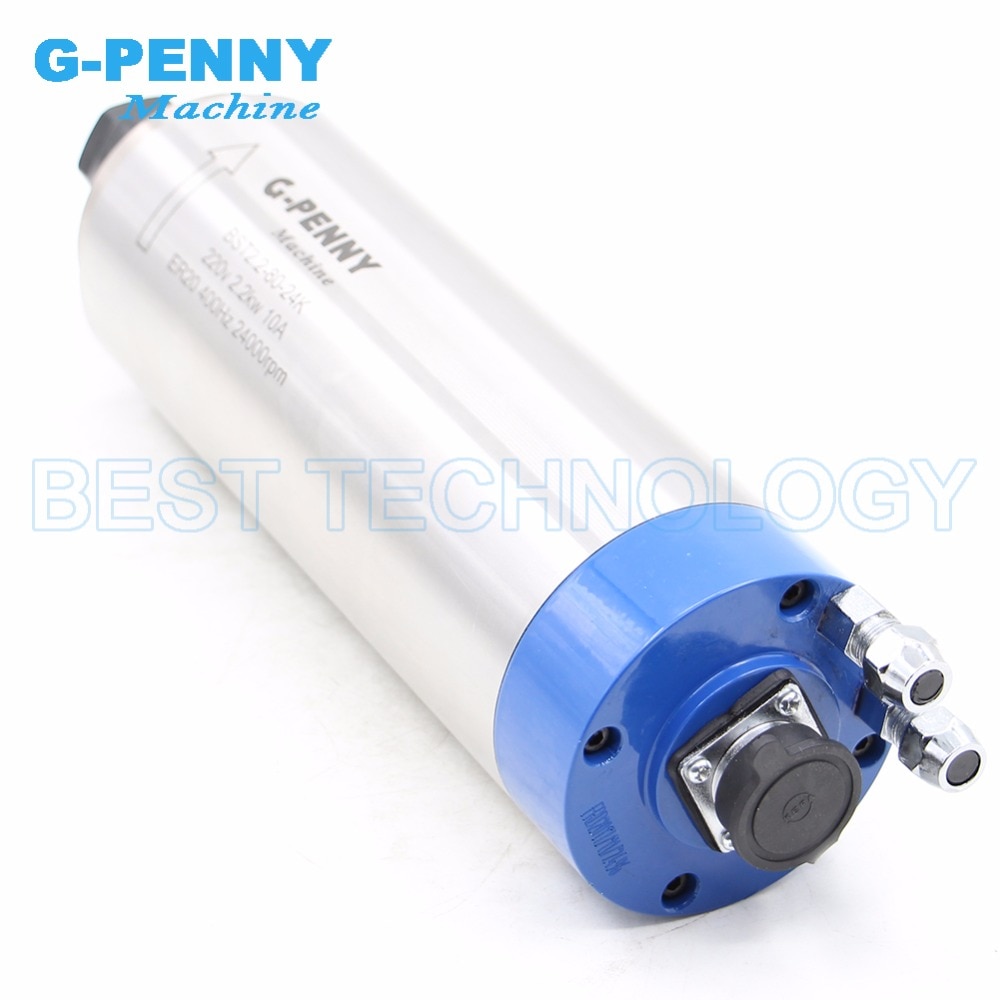

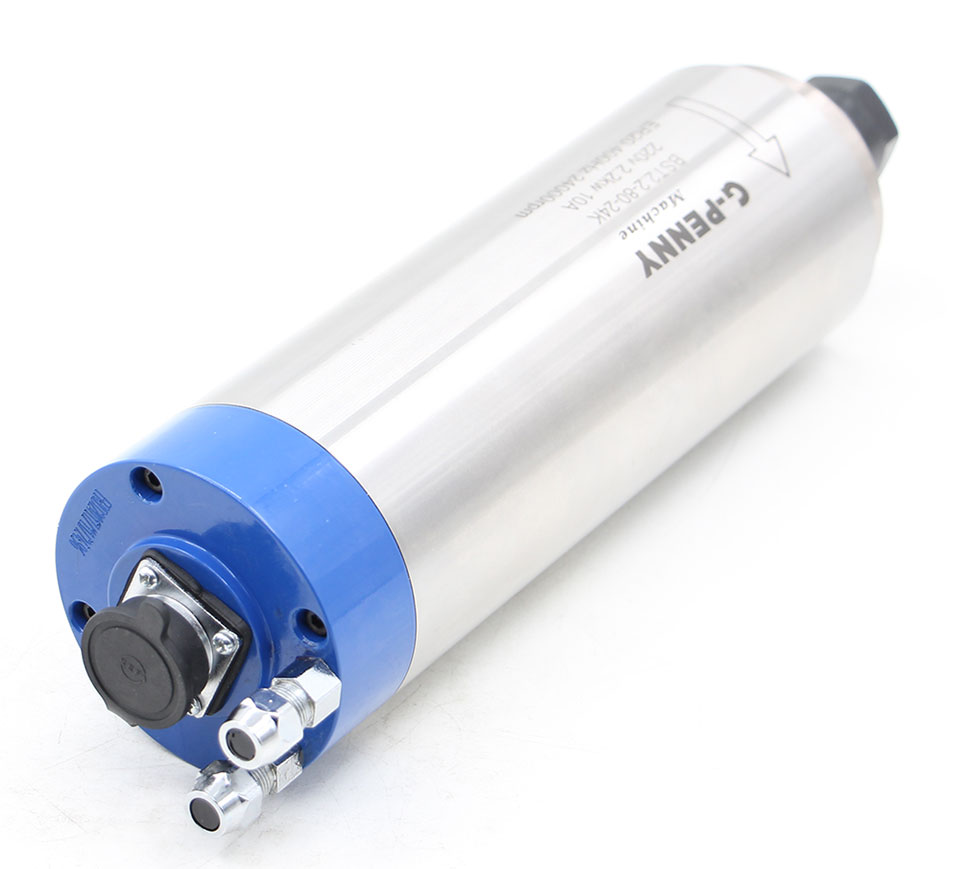

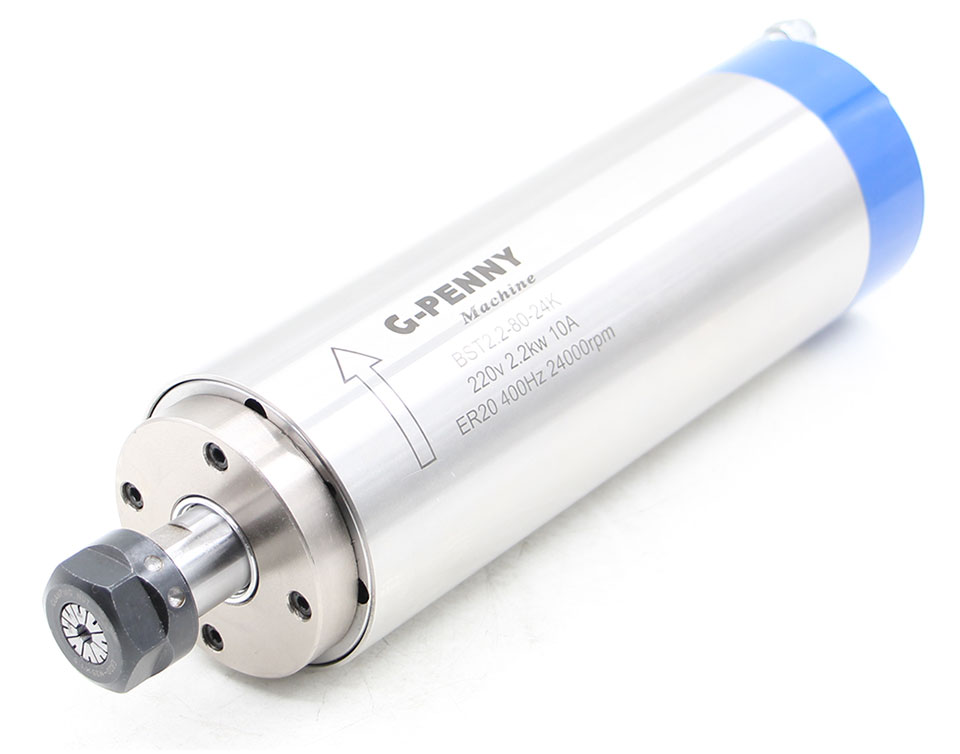

EU ship Quality 2.2KW Waterproof Water Cooled Spindle Motor ER20 220V 4 bearings Carved Metal for CNC Router Milling Machine
695.48 564.49 $
SALE
ID: 11277
Quantity
G-Penny Original 2.2kw ER20 Water Cooled Spindle Motor 80*230mm 220v / 380v 4pcs 7series Ceramic Bearings 0.01mm Longer Type
5.0 (8 votes) | 44 orders
Price:
US $488.24 - 674.76
/ piece
Discount Price:
US $
426.31 -
562.03
/ piece
-13%
- Ships From
1 & 220vAC 2.2kw CNC Water Cooled Spindle Motor engraving milling grinding
80x230mm ER20 4 Pcs 7 Series Bearings

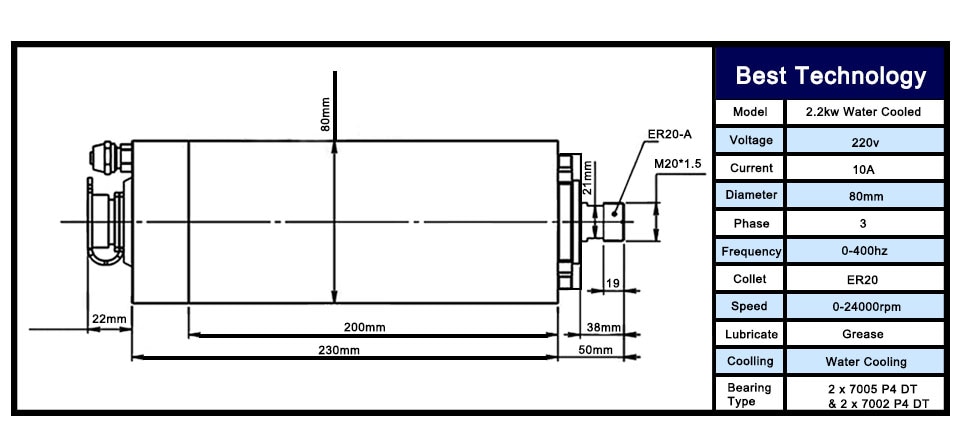

Basic parameters:

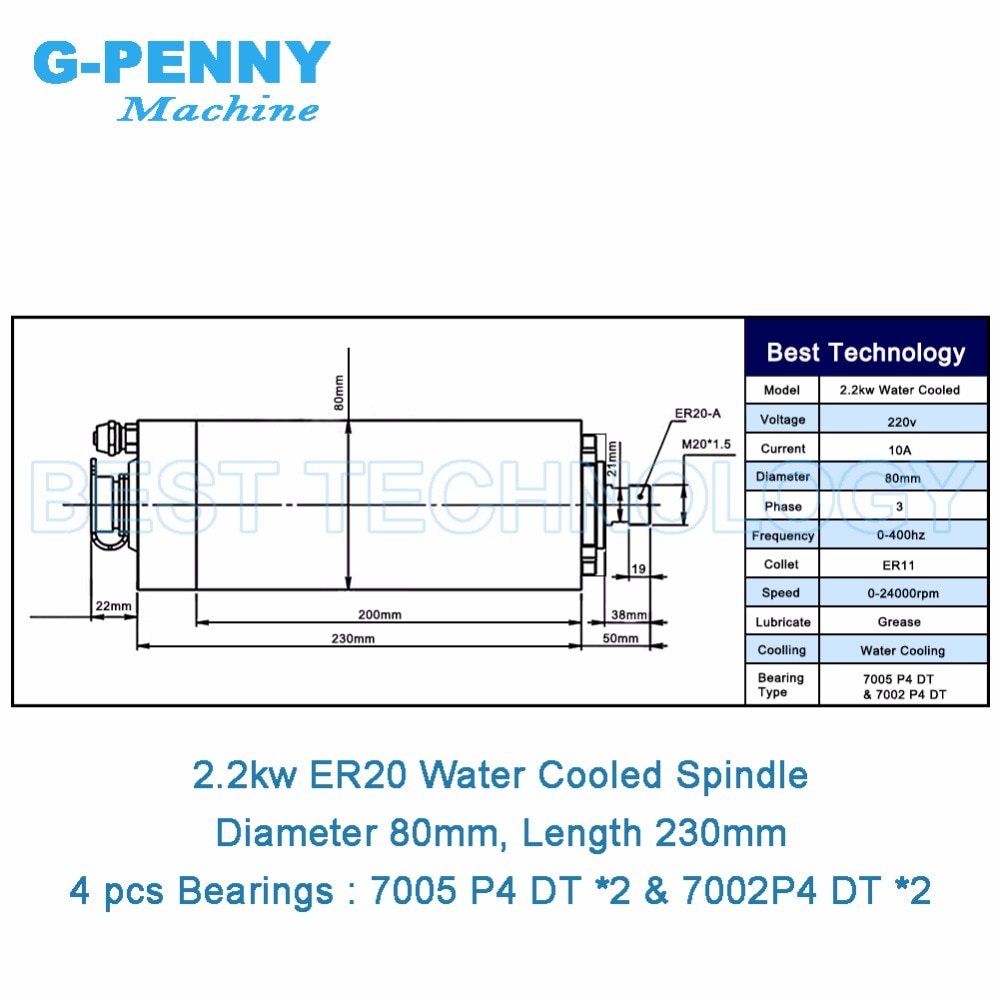

Size:80x230mm (Middle body diameter:80mm; Length:230mm)
Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
Cooling:Water cooling

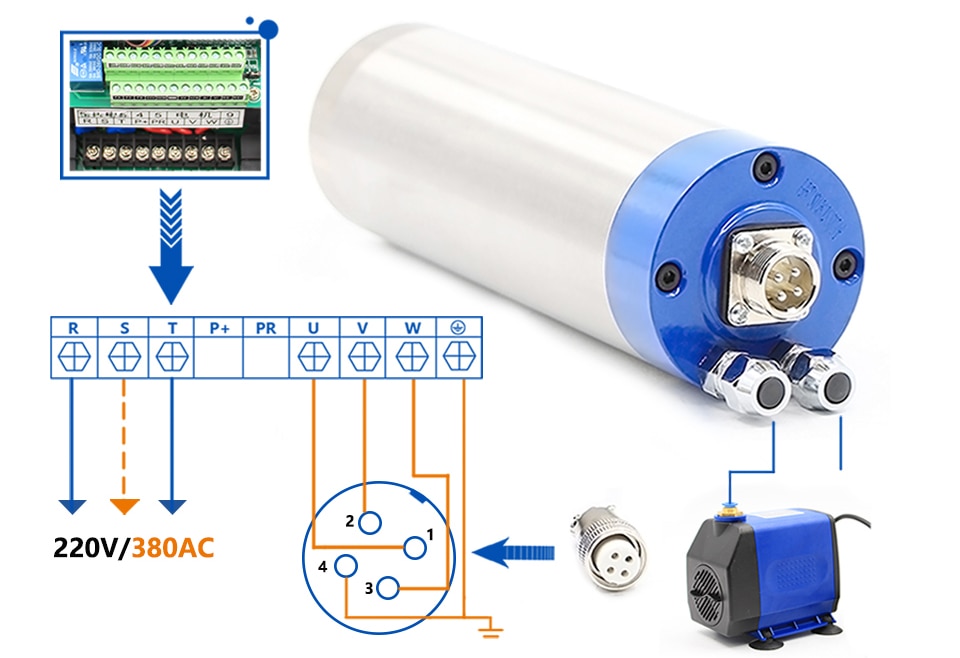

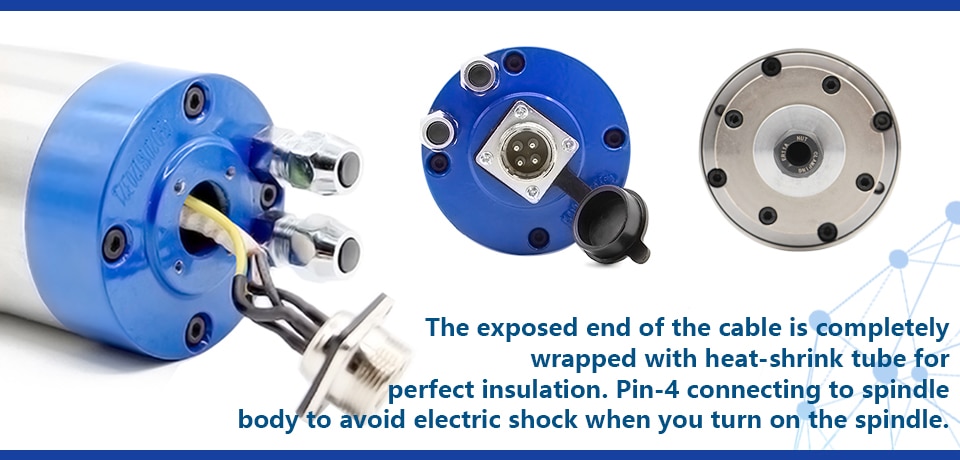

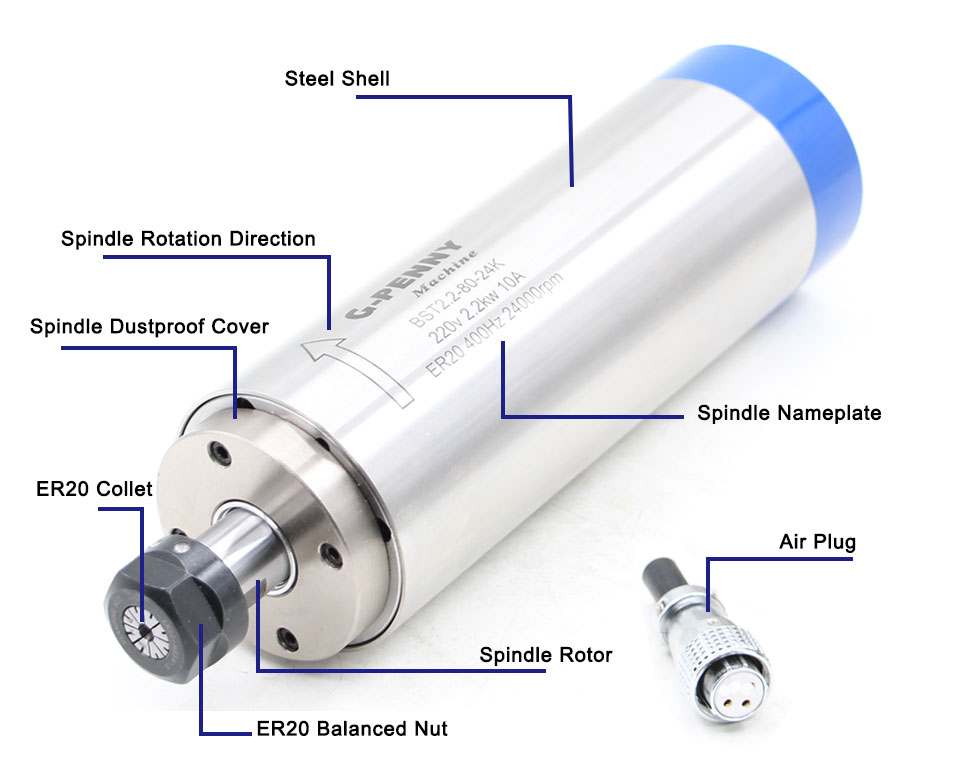

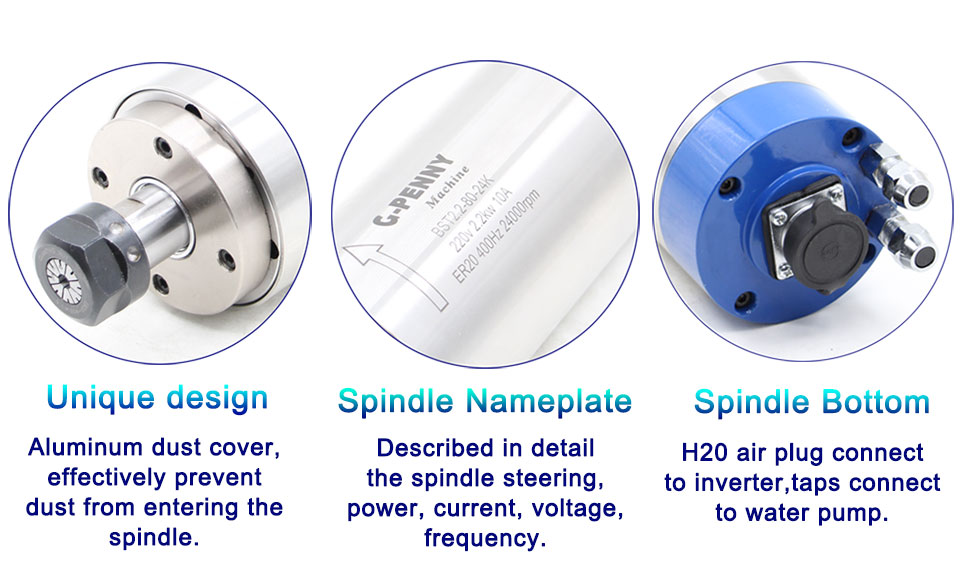

Power Interface:Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.
Power:2.2kw
Voltage:220v
Current:10A
Frequency:0-400Hz
Speed: 0-24000rpm
Runout Off: Less than 0.01mm
Diameter(mm): 80
Bearing Type: 2 x 7005 P4 DT & 2 x 7002 P4 DT
4pcs 7 Series Fully Sealed Angular Contact Bearings

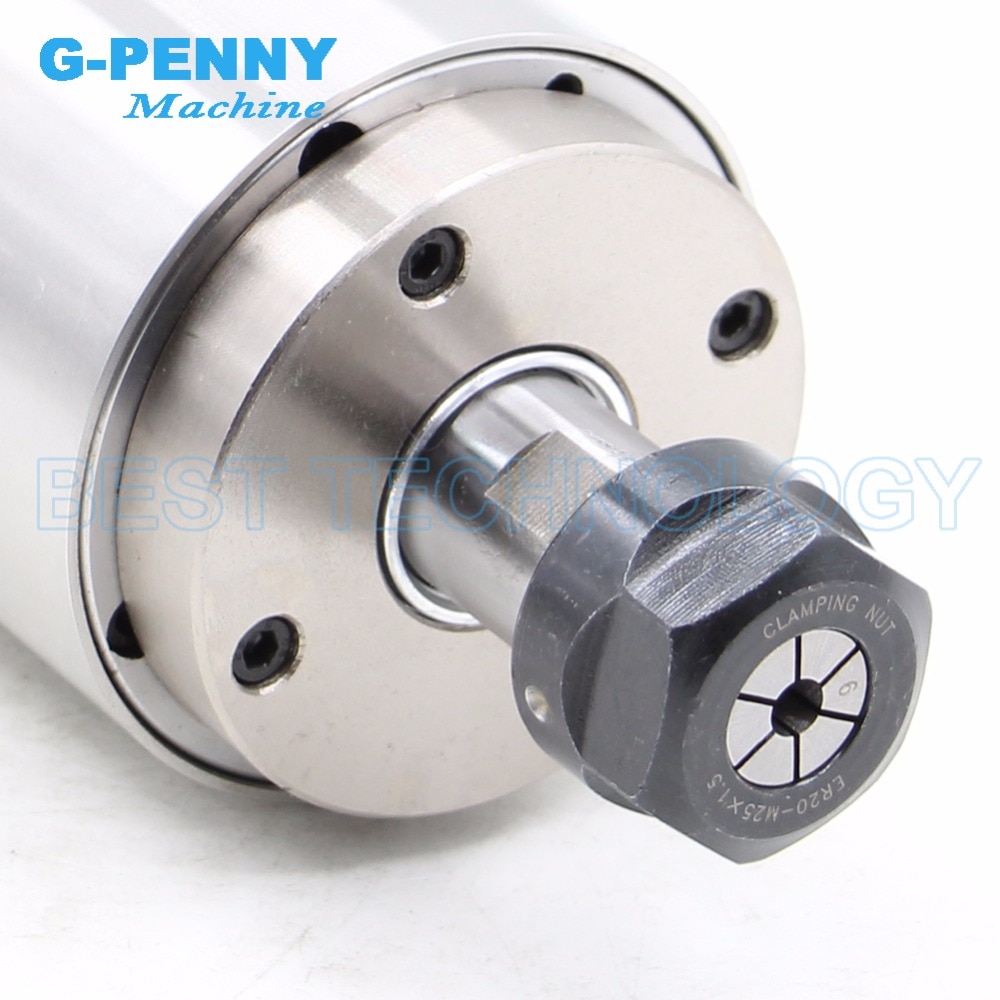

Collet: ER20
Clip Knife Diameter:13mm,12mm,12.7mm,11mm,10mm,9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)
Water Cooling ER20 collet chunk
Grease Lubrication
Main Application:Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working.

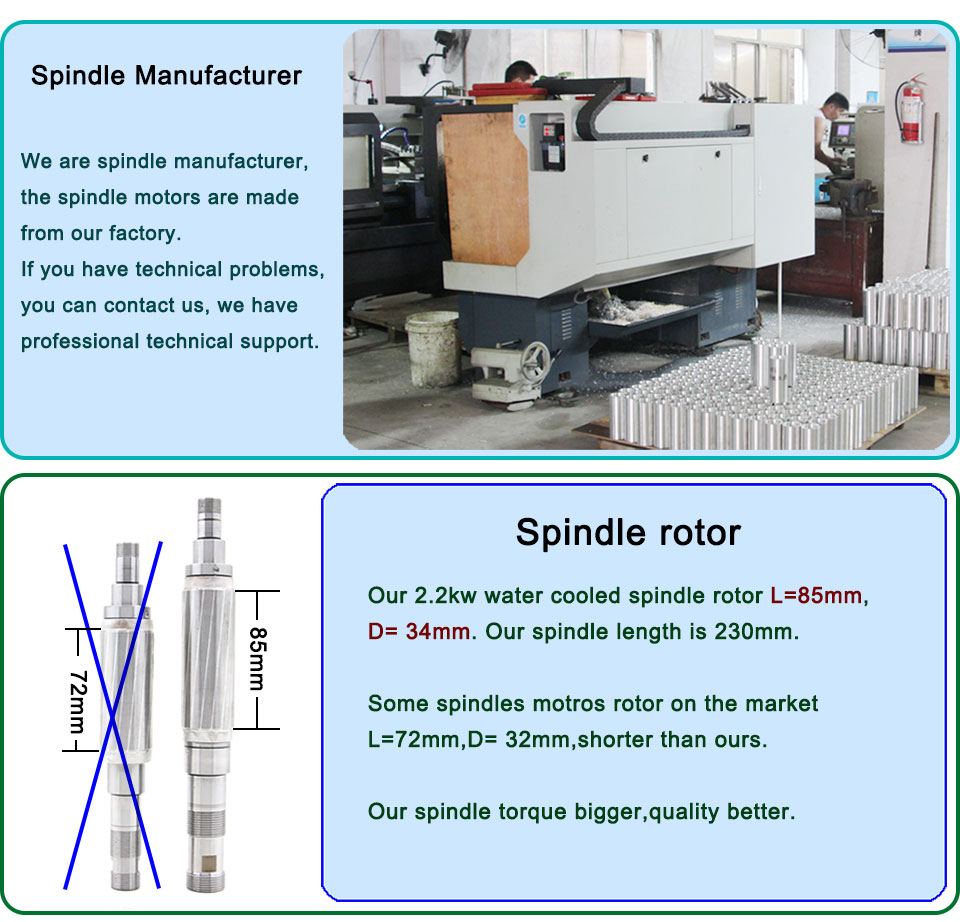

We are the spindle manufacturer,we use better material to produce the spindle.

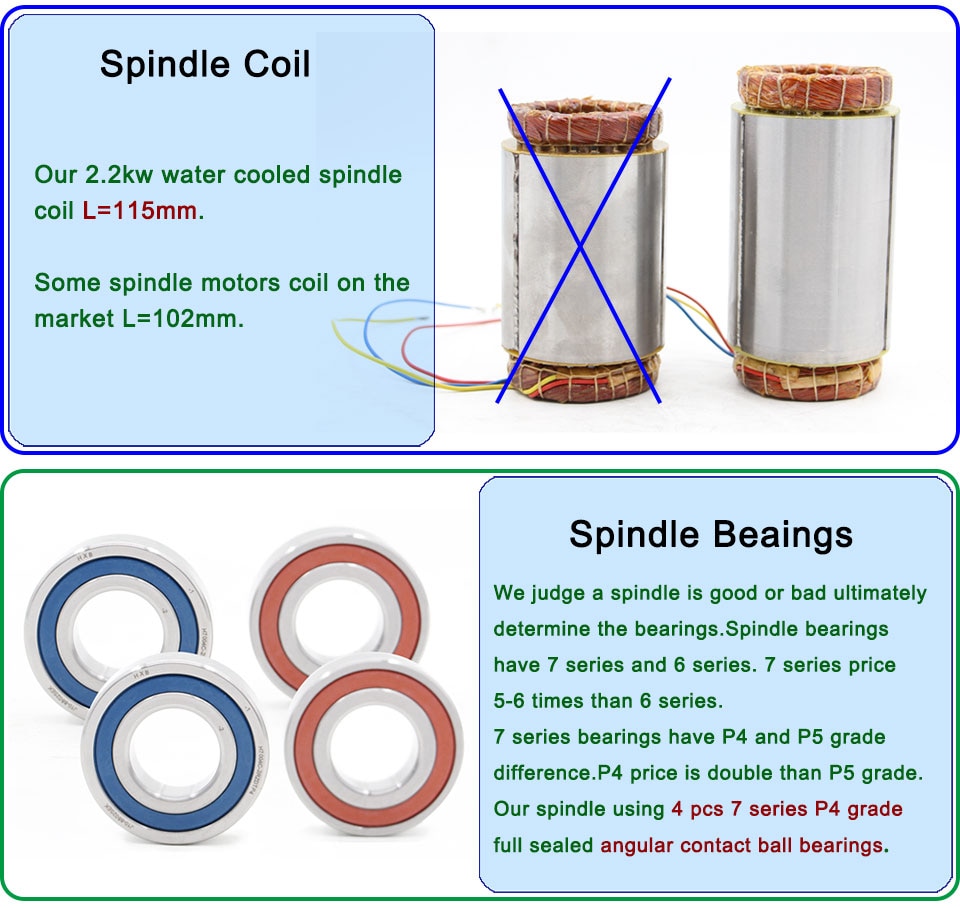

1.We use steel bearings seat,spindle will not morph during the using life.Increase the spindle using life.
2.We use 4 pcs 7 series fully sealed angular contact ball bearings, it quality much better, usually use it 1-2 years without any problems.
3. Full power spindle, stronger shaft and coil,more power in engraving and cutting working.
4. Precision 0.01mm.Coaxial degree less than 0.0025mm,suitable for high accuracy work.
5. Carefull assembly make the spindle more precisional. 3-4 hours testing after assemble, 99.9% pass rate. No worry after ordering.
6. We work with biggest CNC router manufacturer in USA, EU,RU. Strong work partners.
If you order our spindle, it can using 1-2 years without any problems. Saving a lot of cost for replacing the shorter using life spindle.
How to Choose a Good Spindle?
Preparations before using
Spindle working environment temperature is usually -10 ~ 40 .
Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.
Using correctly
Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter's specifications and parameter settings need match spindles parameter.

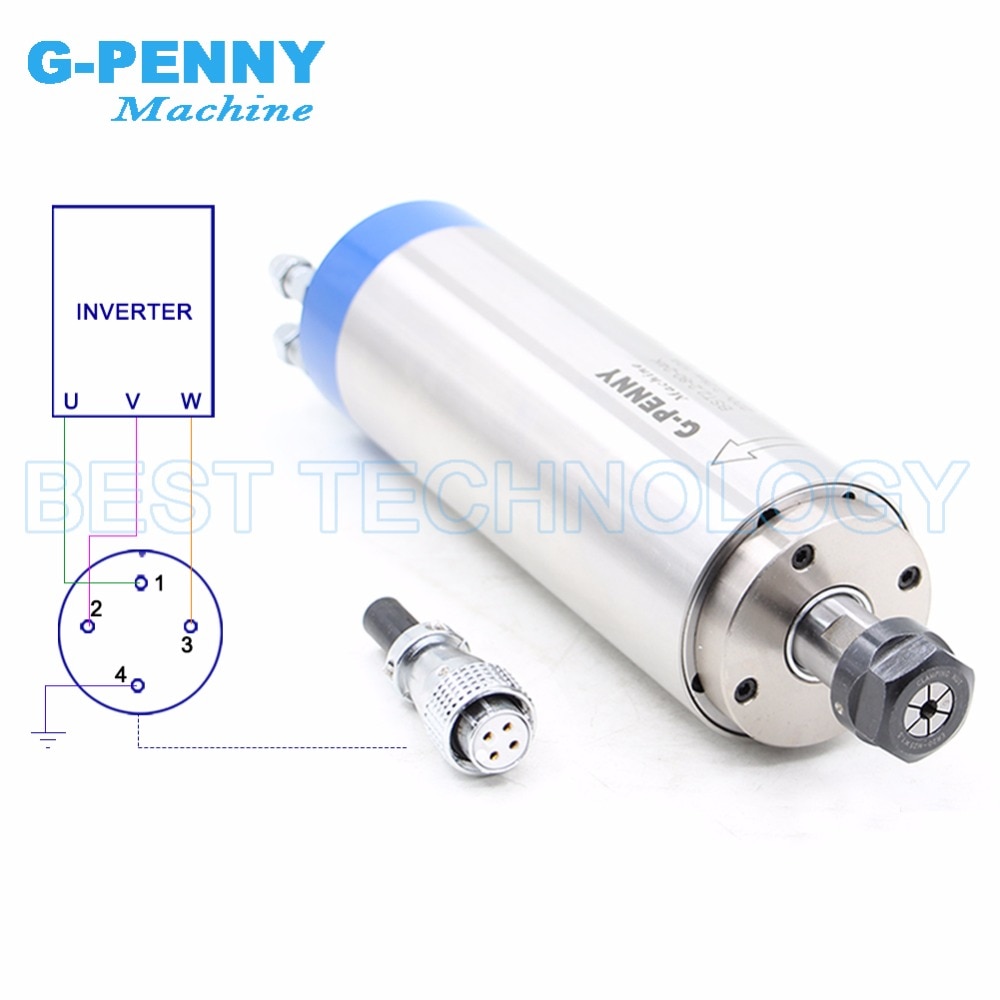

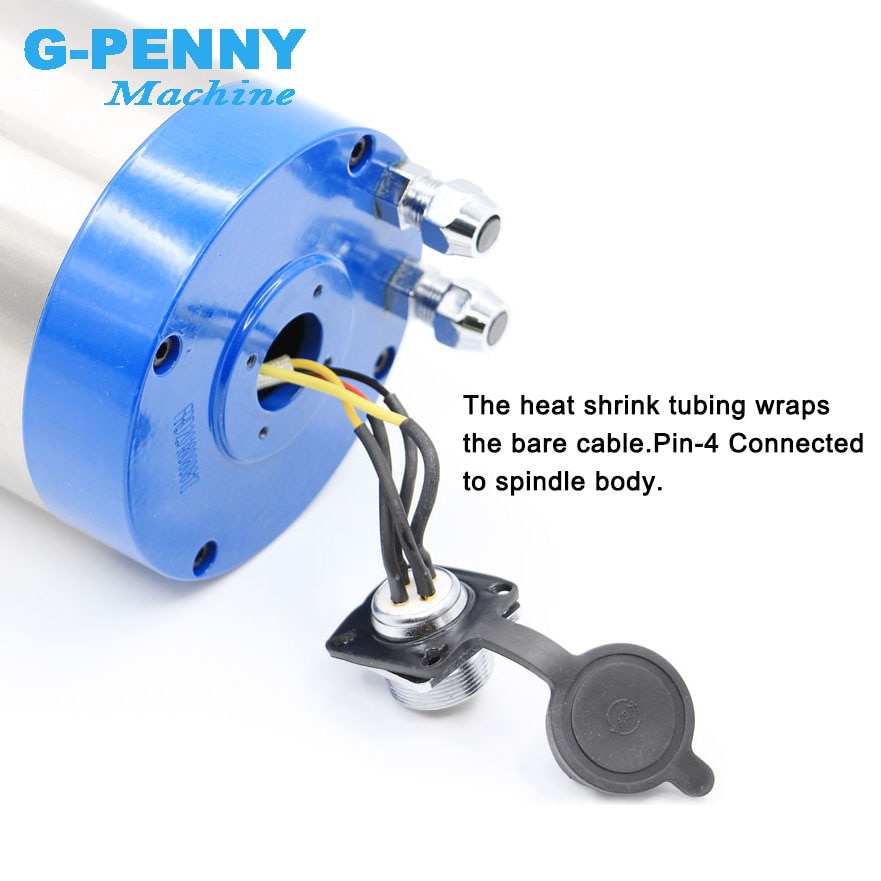

Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.
It should ensure that before use of water-cooled spindle, the cooling system is working properly. Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts ,collets,cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.
Care and maintenance
If the spindle will not be used for a long time, please keep the spindle oil sealed to prevent rust from being unused for a long time.
Before shipping , we did the oil seal to avoid the rust during the long shipment. When you get the spindle, please clearing the oil seal before using. Thank you.
Water cooled spindle MUST be used with water pump. Otherwise the spindle will soon broken.
AC spindle motor MUST use with inverter. The power of inverter need equal or bigger than the spindle power. Before using,please set up the inverter parameters suitable for spindle. Otherwise the spindle and inverter will broken at once.
When you use the spindle,the noise is not same as always,please STOP the spindle at once. You may need to replace the spindle bearings.

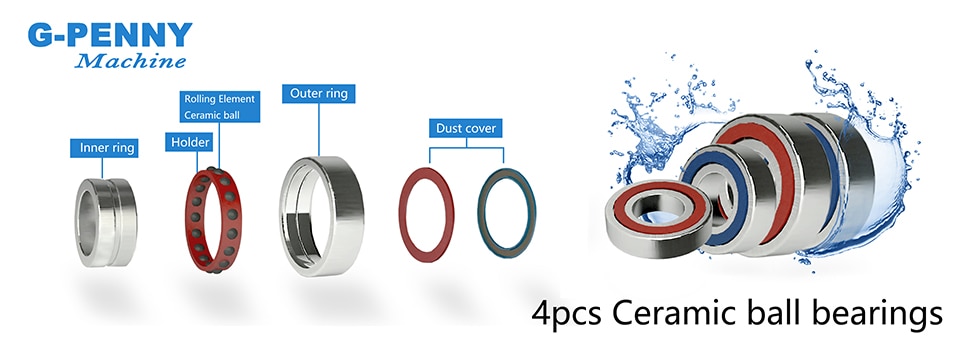

1. Our Ceramic ball bearings spindle use 4 pcs ceramic ball bearings.
2. Ceramic ball bearings are resistant to high temperatures and low heat , usually 3-5 degrees lower than steel ball bearings during using .
3. Ceramic ball bearings have low friction, low noise and long service life.
4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings.
1. Cooling in different ways: water-cooled spindle motor is the use of the water cycle to cool the heat generated after the high-speed rotating spindle, spindle motor with fan-cooled approach to cooling.
2. Noise: Water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very loud.
3. Life aspects: Water-cooled spindle motor pay attention to maintenance, frequently changes the water or the use of industrial water coolers, air-cooled spindle fan mainly by the wind blowing the heat transferred to the heat sink, so as to achieve the cooling effect.
4.If you need use for metal ,hard wood,granite,stone,you can choose metal spindle.Metal spindle much better than wood spindle.
Shipping Cost
Our products are sold worldwide.
If you need many items in the same time, please contact us in advance to confirm shipping cost.
Payment:
We accept paypal credit, bank transfer, western union etc.
Payment must be made within 7days calendar days of the auction end time.
Problem and Feedback:
PLEASE DON'T leave any negative feedback before you contact us.
We are honest and helpful supplier , we will try our best to solve problems with you.
Your satisfaction is very important for our store, so please contact us before you want to leave a negative feedback.
Thanks very much in advance.
Refund:
If you are NOT SATISFIEDwith our package like the products is damage, please do not sign it and contact us immediately.
If it is possible, please take some photos or make a small video about it. It will help us to solve the problems.
Note:
We can produce the product according to our customer's design.
If you need something is very special, please contact us about it.
We are willing to help you about it.
- Operating Speed: 0-24000rpm
- Maximum Torque: 0.8N.m
- Application: Milling
- Model Number: 2.2kw ER20 water cooled spindle
- Drive: Motor
- Brand Name: G-PENNY MACHINE
- Origin: Mainland China
- Certification: CE
- Size: 80x230mm
- Voltage: 220v
- Current: 10A
- Power: 2.2kw (1HP=735w)
- Cooling: Water cooled
- Bearing Type: 2 X 7005C P4 DT and 2X 7002C P4 DT
- Collet: ER20
- Frequency: 400Hz
- Lubrication: Grease
- Collet Range: 1-13mm (Including 1/4,1/8,1/2)
