FM Transmitter Frequency Modulation Wireless Microphone Module DIY Kits Board Parts Simple Electronic Production Suite 88-108MHz

4.8 (205 votes) | 250 orders
Price: US $11.44 / piece
Discount Price:
US $ 9.95 / piece
-13%
Quantity

DIY KITS, need solder yourself

The circuit transmission frequency of about 90MHz,using ordinary FM radio receiving equipment,
adjusting the inductance L to adjust the transmission frequency to avoid the local radio frequency,
the circuit operating voltage: DC 3V-6V,
emitted from the package of about ten to several tens meters,
the distance of the supply voltage, the antenna length and impedance matching,
geographic extent of open, electromagnetic interference, the receiver sensitivity related equipment.

Performance parameters:

Frequency Range: 80MHz-108MHz

Operating voltage: DC3V-6V

TX antenna is connected: You can take a piece of wire as an antenna,

the antenna should not be too long, so as not to affect the frequency stability .

Debugging:

Connect the power and antenna test, the antenna can be used 20-40 cm thick wire
(antenna not too long, so as not to affect the frequency stability),
the package does not provide, you need to bring your own.
FM radio receiving equipment used to adjust the tightness
of the inductor coil on simple wireless microphone,
so the radio signal received by the microphone.

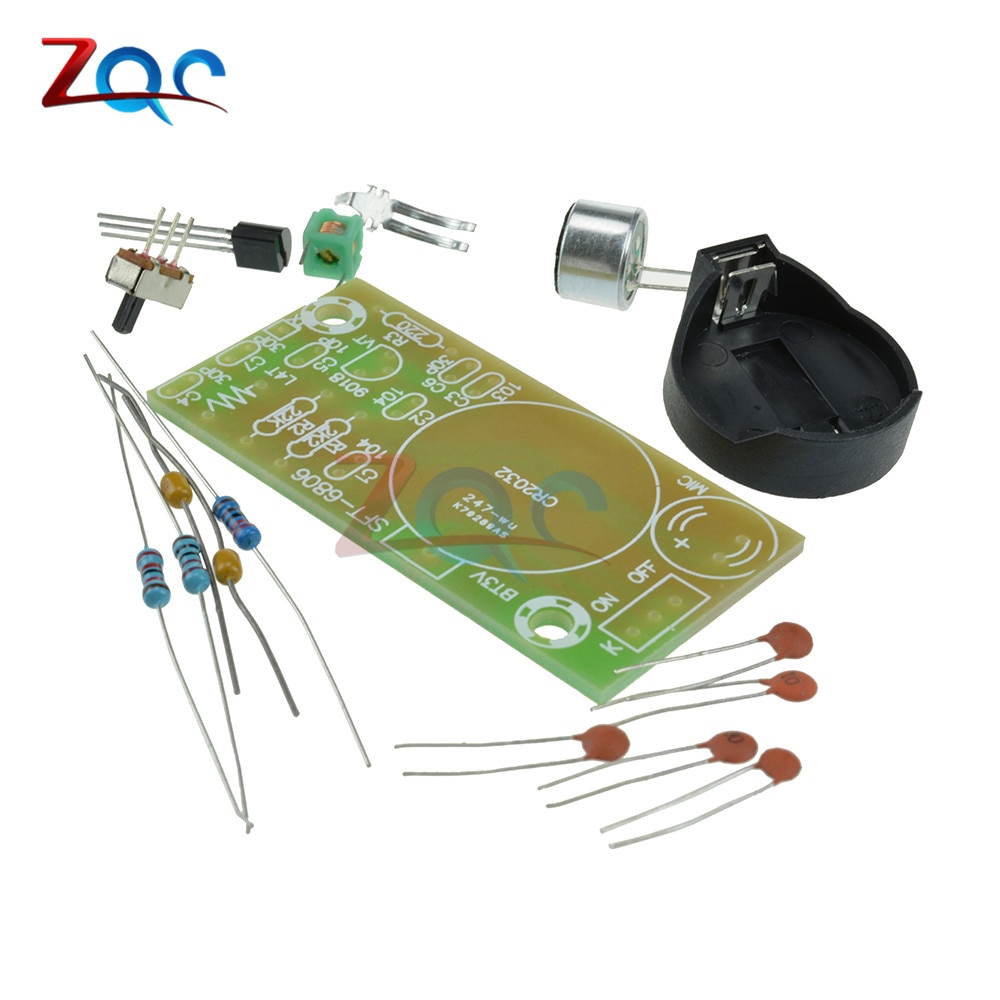

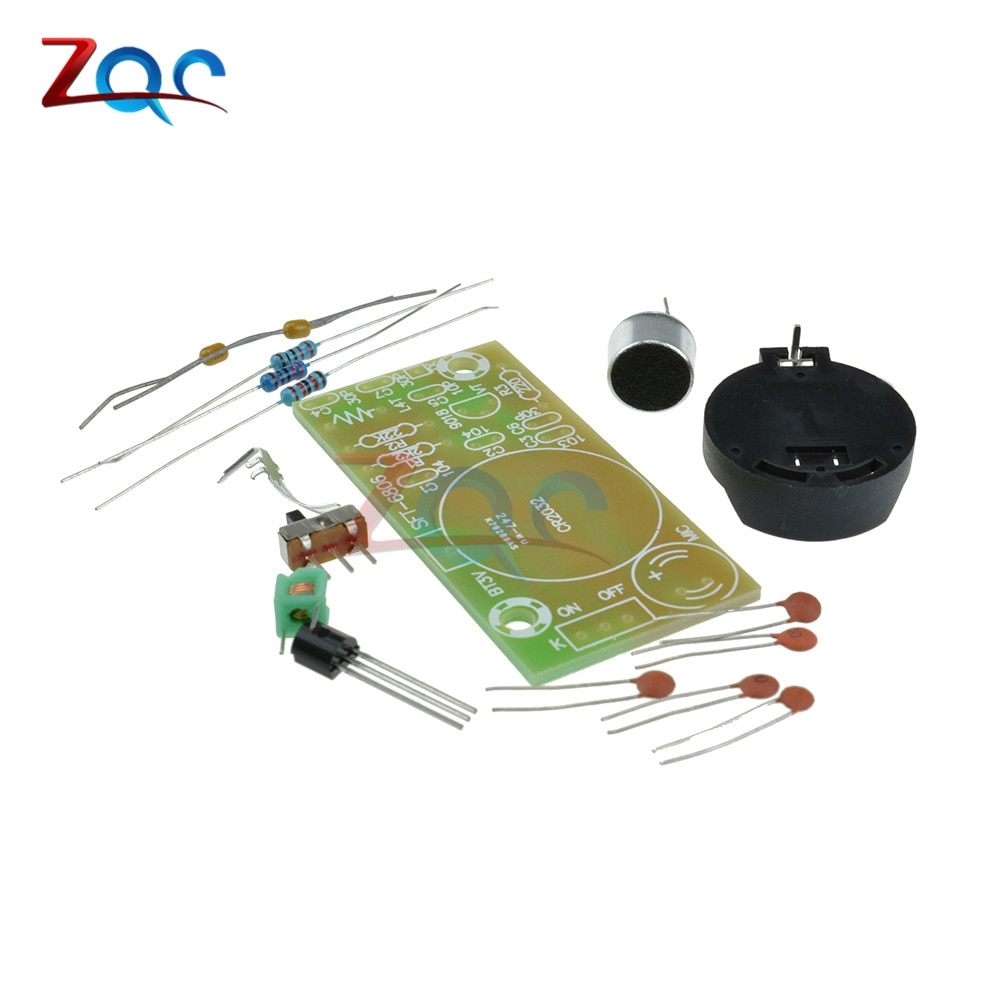

Package including :

R1 resistor 2.2 k 1

R2 resistor 22 k 1

R3 resistance 220 1

C1 C2 ceramics capacitors 104 3

C3 ceramics capacitors 103 1

C6 C7, C4 ceramics capacitors 30 3

C5 ceramics capacitors 10 1

Q triode 9018 1

L inductance 4T 1

1 MIC electret microphone

BT3V CR2032 battery holder 3 v 1

PCB: 26 * 52 mm




  • Size: Electronic modules
  • Type: Diy kit electronics
  • Style: electronic components
  • Output Type: Pls check description
  • Model Number: 88MHz-108MHz
  • DIY Supplies: ELECTRICAL
  • Brand Name: diymore
  • Origin: Mainland China
  • Certification: CE
  • Type 1: diy electronic
