Fluoropolymer Carbon Fiber Heating Cable System 2mm 12K 33Ohm Carbon Fiber Floor Electric Wire Hotline
4.8 (25 votes) | 79 orders
Price:
US $15.97 - 64.75
/ piece
Discount Price:
US $
11.97 -
51.26
/ piece
-25%
- Ships From
- Specification
Product Details:
Product Name: Carbon fiber heating wire
Outer jacket:Fluoropolymer (anti-corrosive and no bad smell)
Temperature: 200 degrees celsius limit
Heating conductor: 12K
High voltage test: 3000V
Leakage current: 0.05mA/m
The product can withstand the power of power: 25W/M
Diameter: 2±0.1 MM
Optional colors: Red
Infrared wavelength: 8UM-18UM
Conductor resistance: 33±10%Ω / M

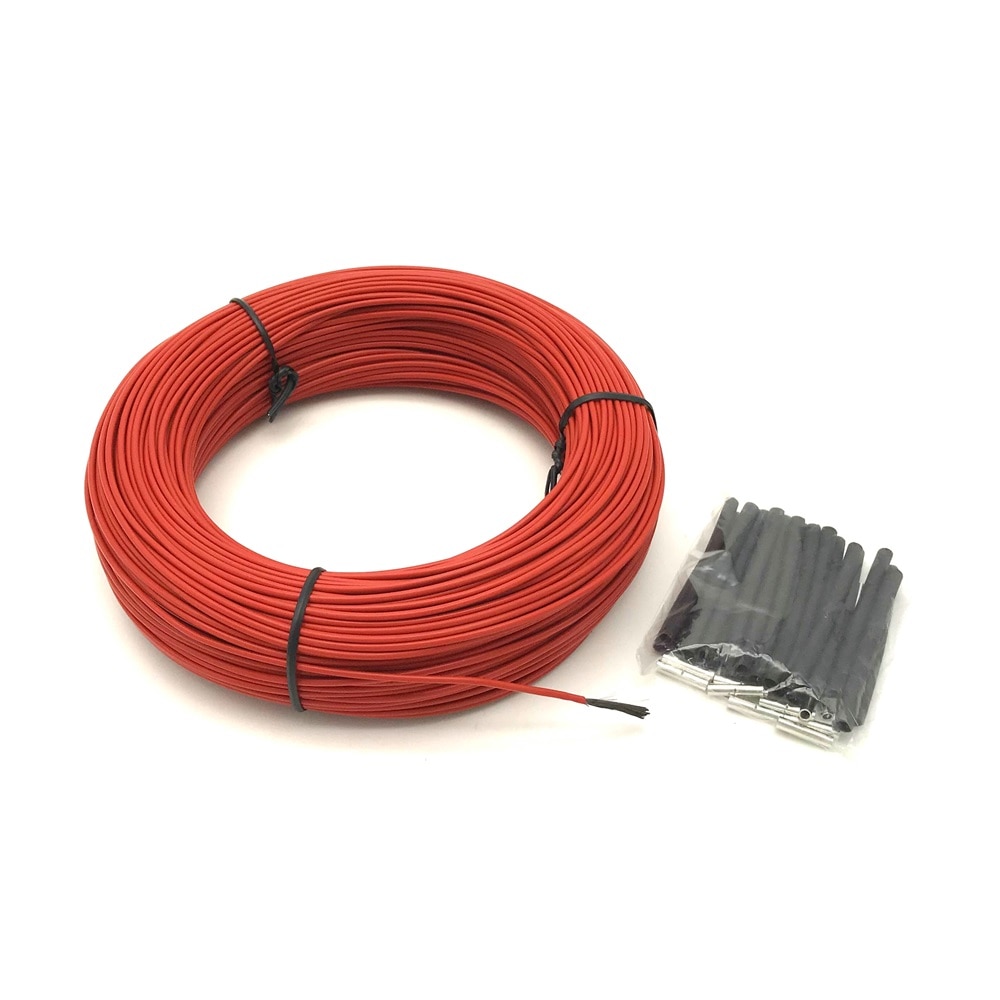

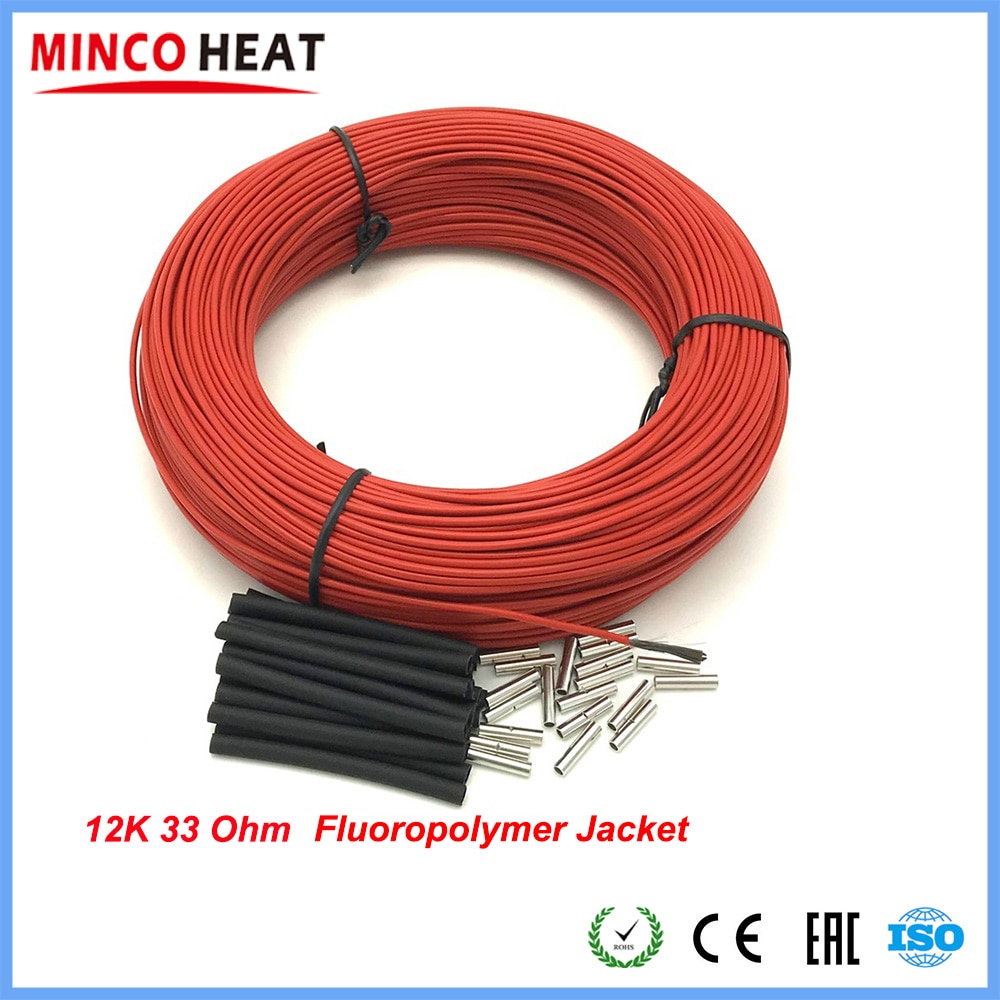

Package Includes:

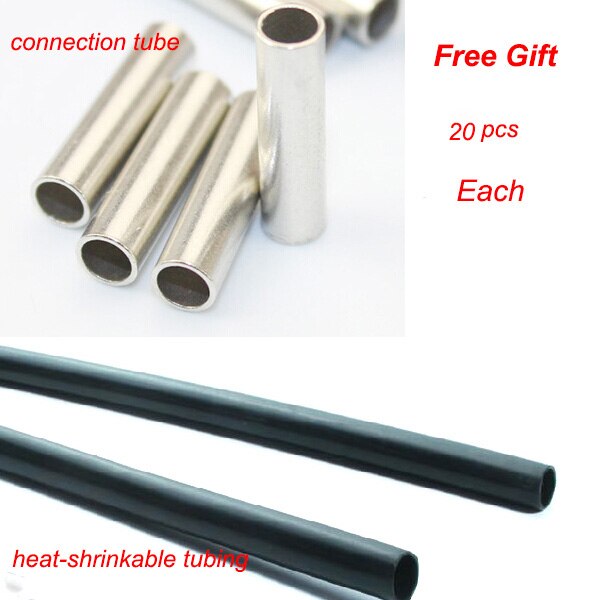

1. Buy 100m = 100m cable + 20 pcs copper tube + 20 pcs sleeves
2. Buy 50m = 50m cable + 10 pcs copper tube + 10 pcs sleeves
3. Buy 30m = 30m cable + 6 pcs copper tube + 6 pcs sleeves
4. Buy 20m = 20m cable + 4 pcs copper tube + 4 pcs sleeves
5. Buy 15m = 15m cable + 4 pcs copper tube + 4 pcs sleeves
6. Buy 10m = 10m cable + 2 pcs copper tube + 2 pcs sleeves
7. Buy 8m = 8m cable + 2 pcs copper tube + 2 pcs sleeves

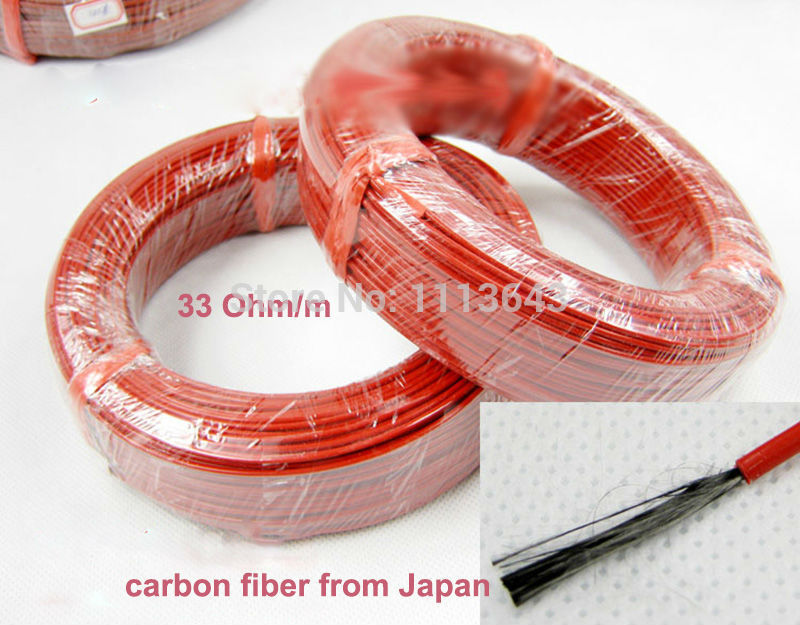

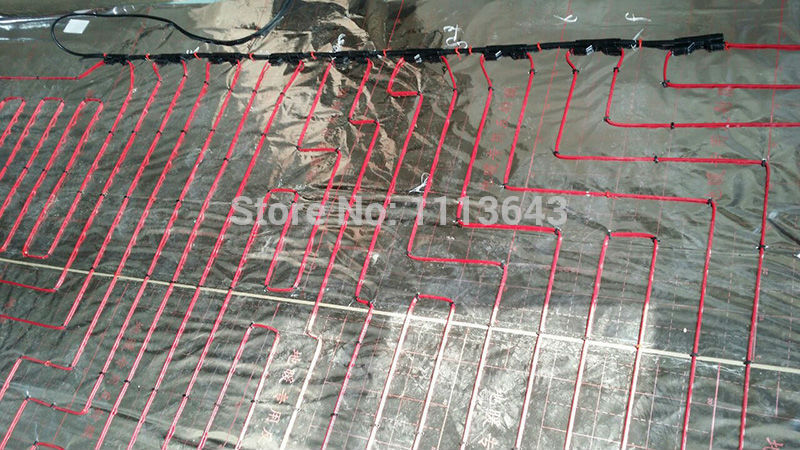

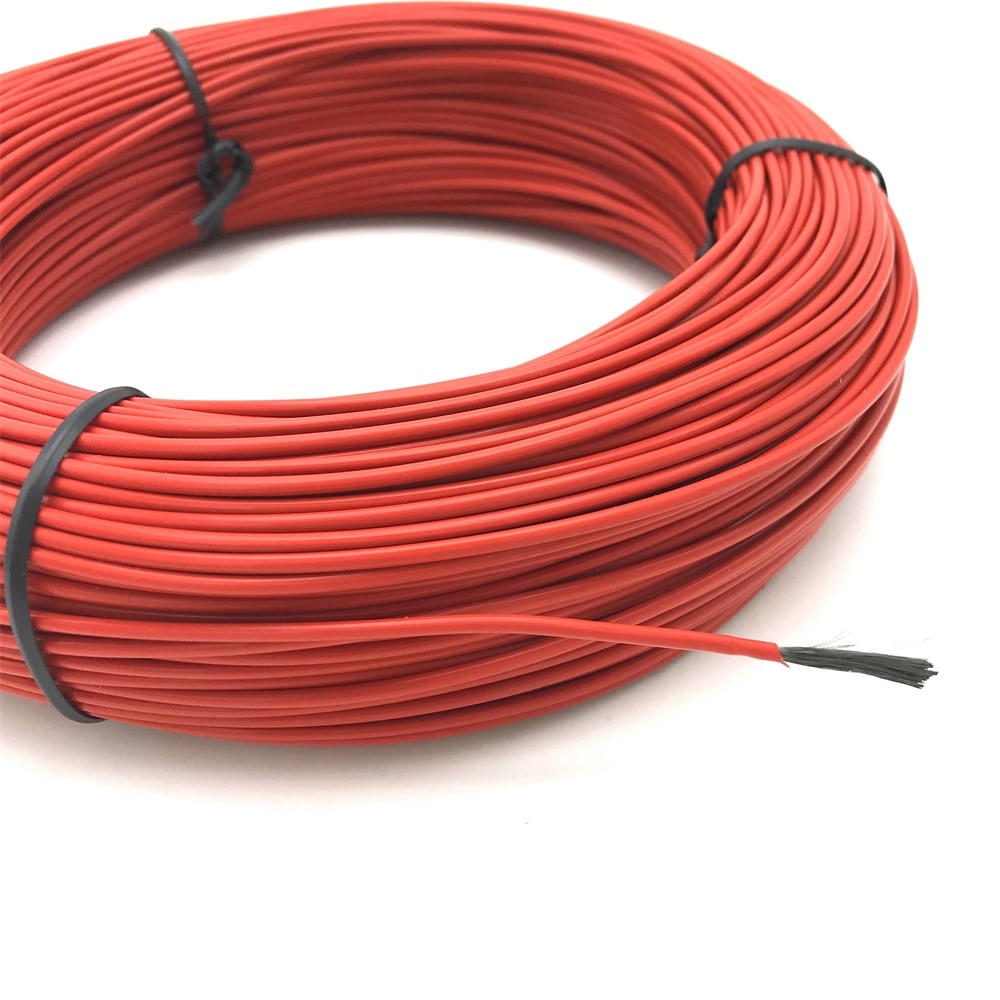

Product Photos:

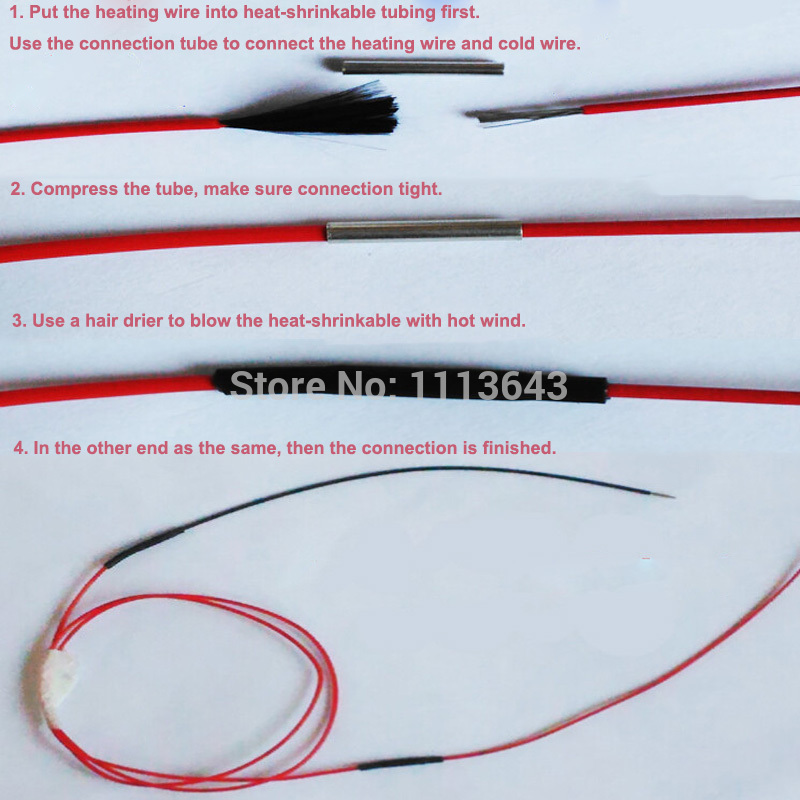

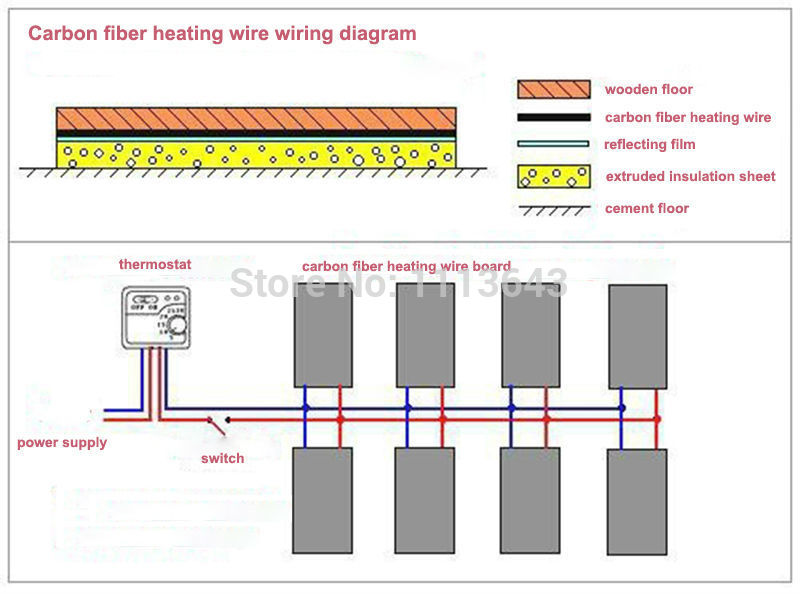

How to wiring?

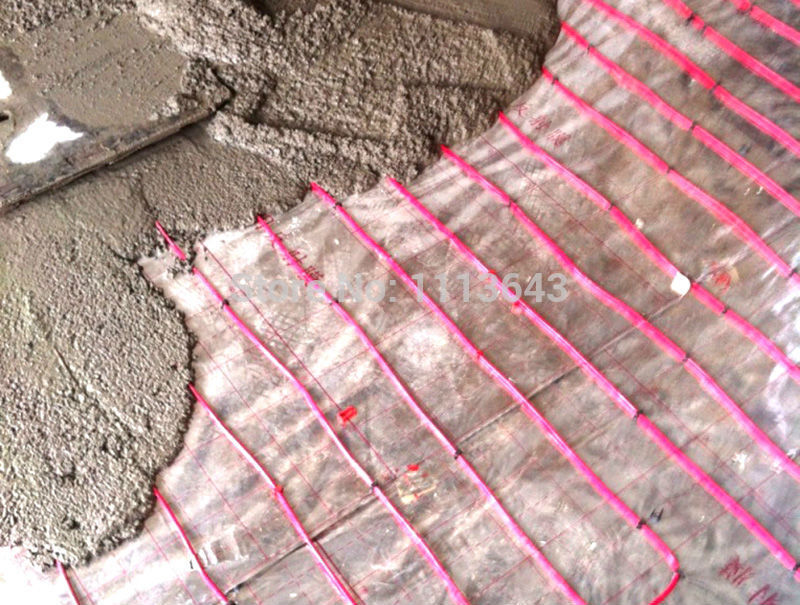

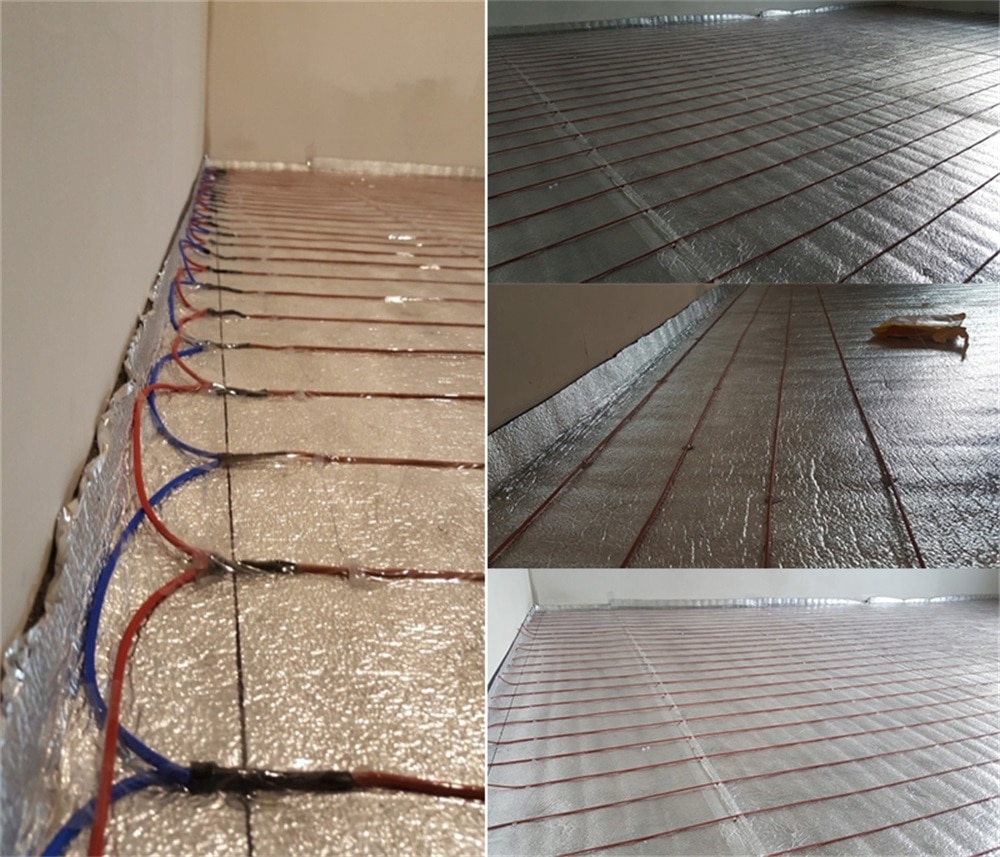

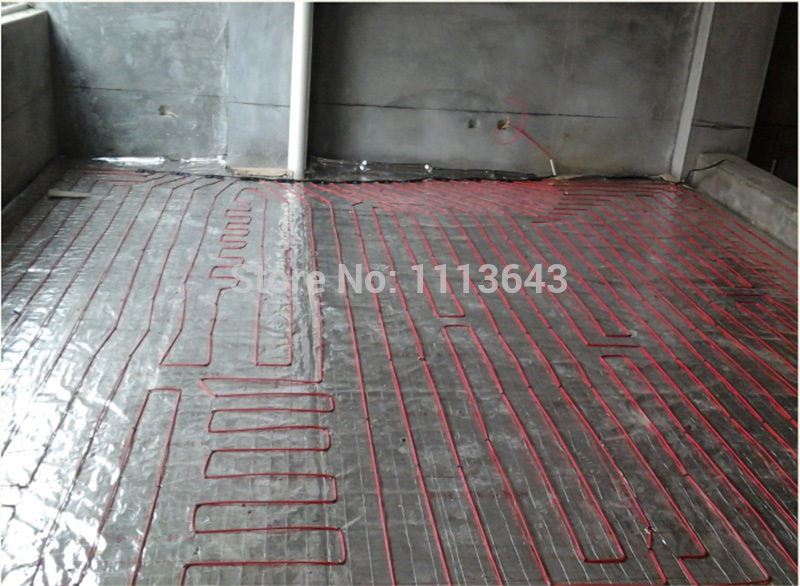

Product Applications:
1. Floor heating for Home and office: Homes, villas, hotels, office buildings, hospitals, shopping malls
2. Floor heating for public areas: Swimming pool, soccer field, gymnasium, museum, memorial hall, the kindergarten
3. Floor heating for large public facilities: Bus terminal, parking lot, airport, highways
4. Floor heating for professional field: Botanical garden, greenhouse, laboratory
And other heating applications..etc...
Product Power Calculation:
Voltage * voltage / total resistance = power
For example: 12K carbon fiber, length of 10 meters
220V × 220V / (10 m x 33 Ohm) =150 watts
For example: 12K carbon fiber length of 15 meters
220V × 220V / (15 m x 33 Ohm) =100 watts
The data shows that the longer heating wire you use and the smaller output power. (The min length of 12K carbon fiber heating wire is 10 meters)
Product Advantages:
1.High energy-efficient: Don't need other transmission medium, the electrothermal conversion efficiency is above 98%.
2.Comfortable and healthy: New infrared floor heating, make the temperature uniformity, promote blood circulation.
3.Easy to install: The carbon fiber heating wire cost a little, and has a long life span, an investment, life-long benefit, low maintenance costs.
And etc...
>>> Related Thermostats (external sensor cables are included):
WiFi Mobile APP Control Thermostat - - - - >>
- is_customized: Yes
- Insulation Material: Fluoroplastic
- Conductor Type: Stranded
- Conductor Material: Other
- Application: Heating
- Type: Insulated
- Model Number: CF-12-F
- Brand Name: MINCO HEAT
- Origin: Mainland China
- Certification: CE,RoHS
- Working voltage: 7~300V
- Resistance: 33 Ohm/m
- Jacket: Fluoropolymer
- Max enduring temperature: 250C degrees
- Diameter: 2.0+-0.1mm
