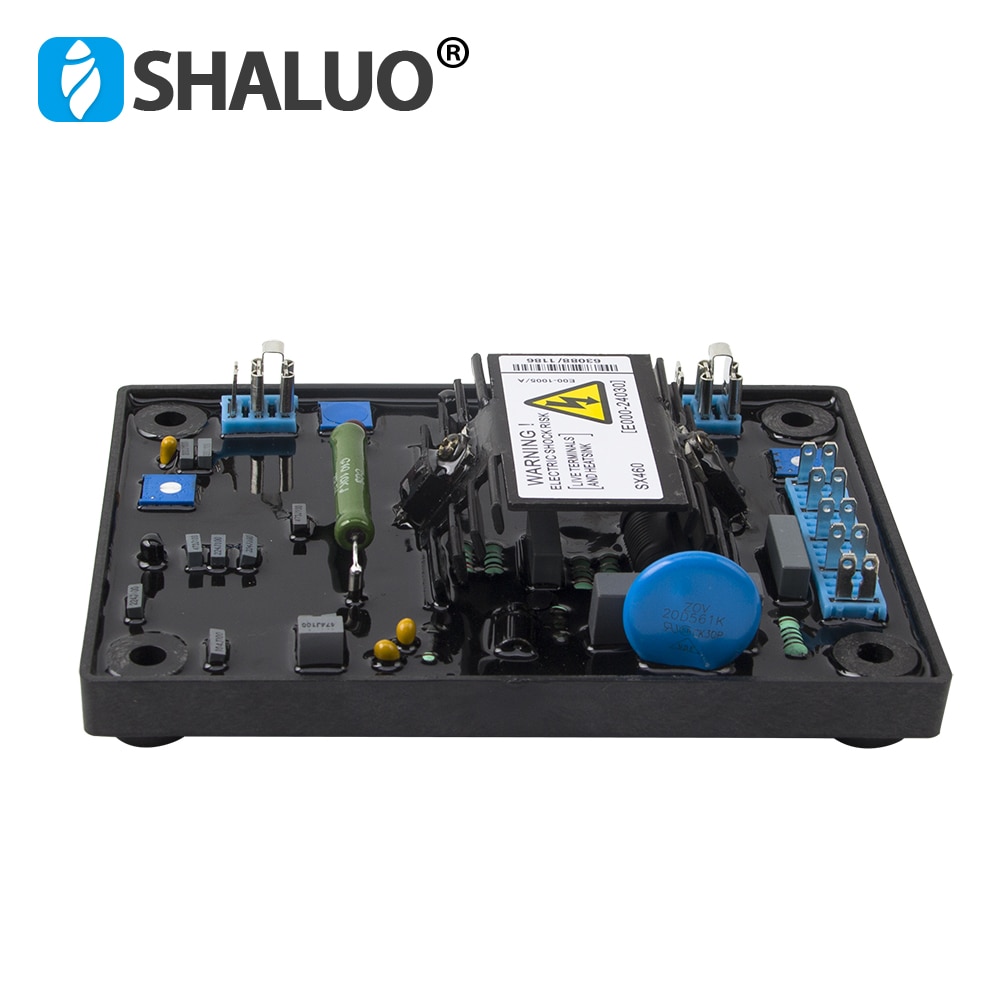

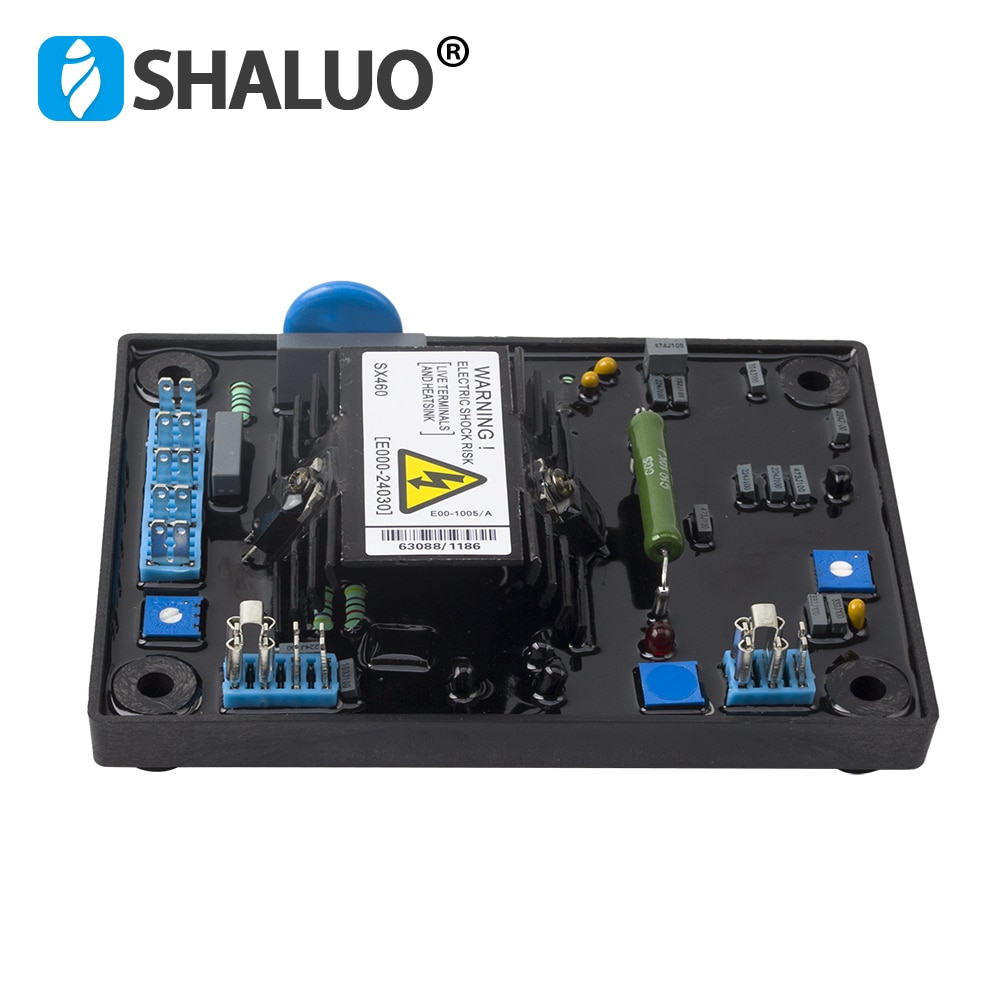

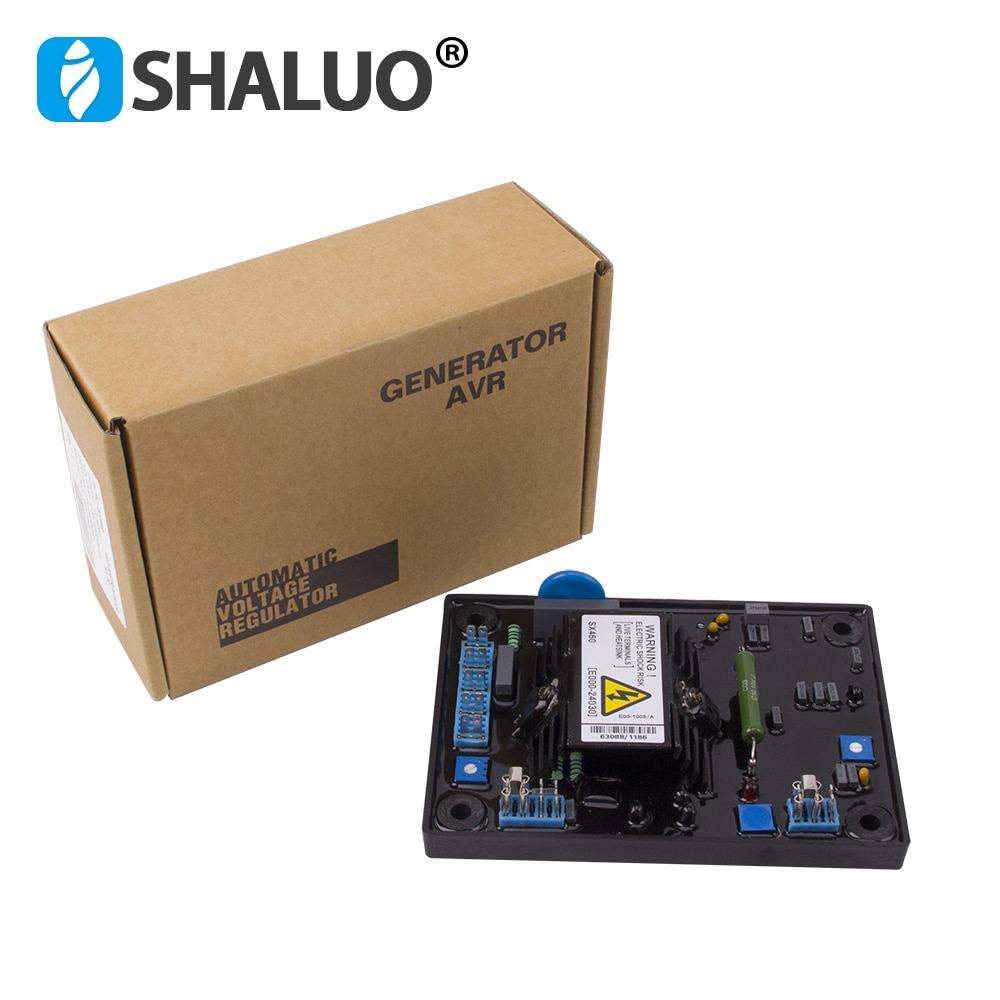

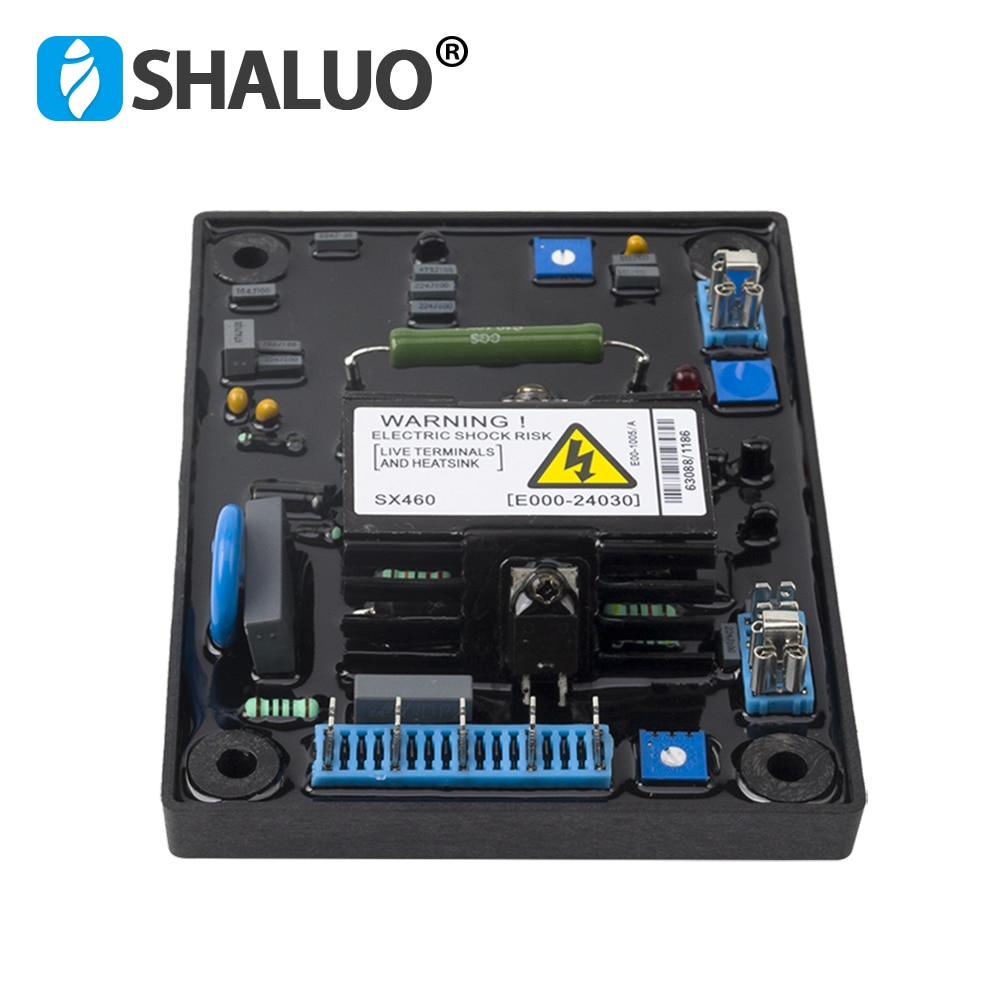

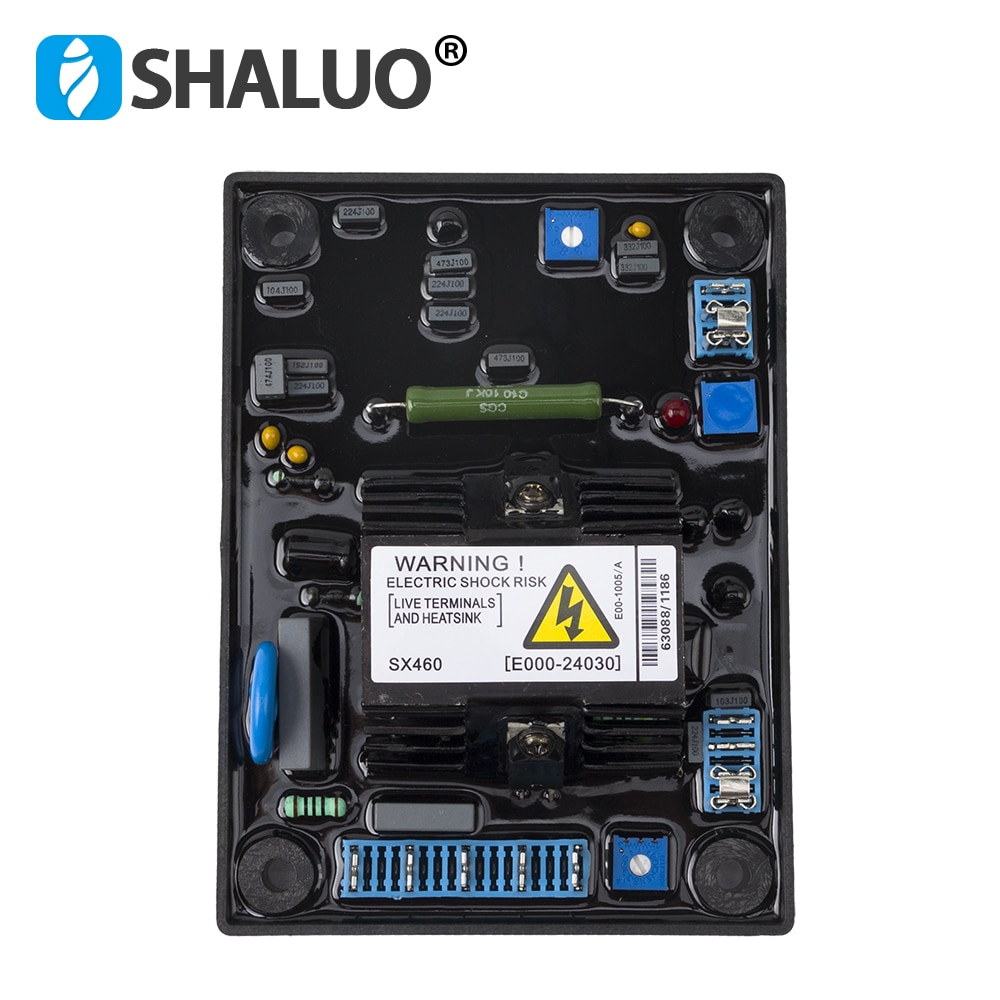

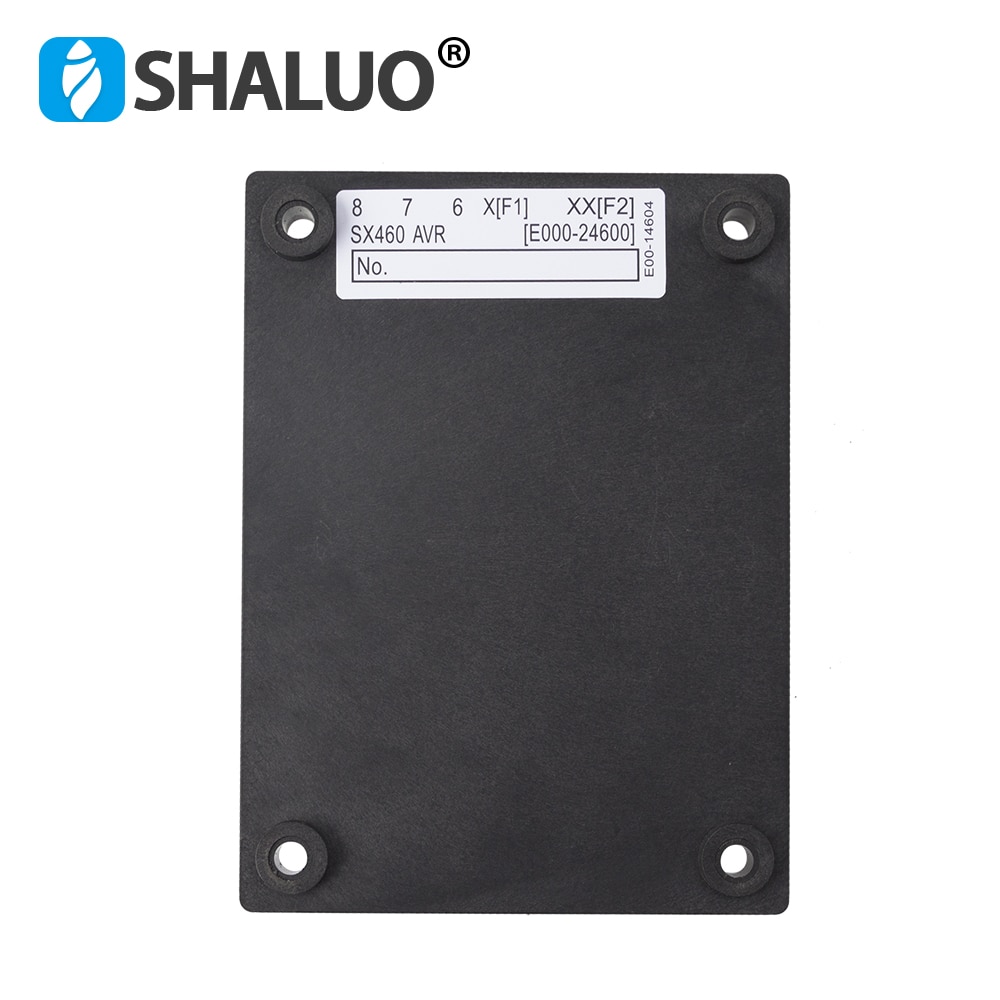

Factory Supply SX460 AVR Generator Automatic Voltage Regulator Stabilizer Diesel Electric Generator Engine Control Voltage Board
5.0 (72 votes) | 399 orders
Price:
US $55.80 - 63.00
/ piece
Discount Price:
US $
24.78 -
27.98
/ piece
-56%
- Color
-
-
Sorry! This item is out of stock
1. INTRODUCTIO
NSensing Input
Voltage:95~132VACor190~264VAC1 phase, jumper selectable
Frequency：50160 Hz, selectable
Output
Voltage：Max. 90 VDC @ 207 VAC
Current：Continuous 4A ，Intermittent 10A for 10 sec.
Resistance：Min.15 ohm
Voltage Regulation
<+ 1.5% ( with 4% engine governing )
Voltage Build-up：Residual voltage at AVR terminal> 5 VAC
Thermal Drift：0.05% per C change in AVR ambient
External Volts Adjustment：7% with 1K ohm 1 watt trimmer
Unit Power Dissipationt：Max.10 watt
Under Frequency Protection：Set point ，95% Hz
( UFRO )： Slope 170% down to 30 Hz
Soft Start Ramp Time：2 sec.
Dimensions：135mmL*100mmW*49mmH
Weight：243g t 2%

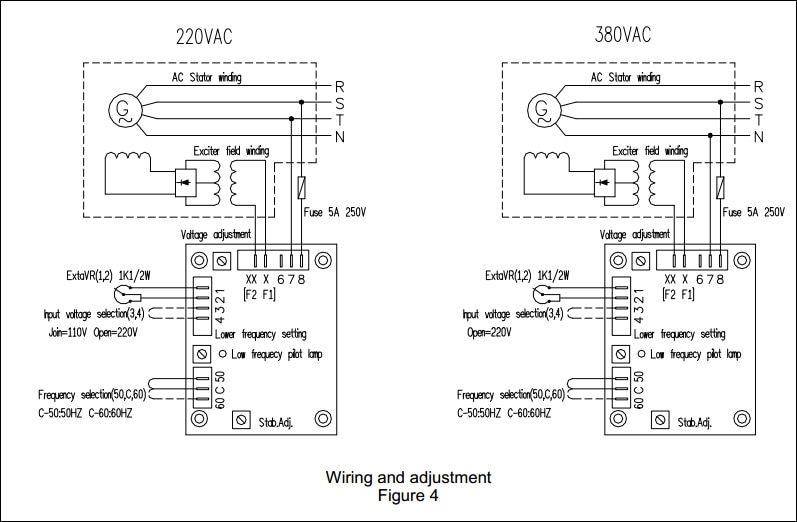

WIRING (Refer to wiring diagram)
1. ConnectF1, F2 to DC output port.
2. Connect the sensing port at 7, 8 (the factory setupis 220V, if 110V is required, please join 3, 4)
3. External voltage regulator is as Figure 4.
4. Connect a jumper from COM to the 50Hz terminal for 50Hz operation.
Note :
please install 5A 250V fuse at power input portas Figure 4
WARNING:
This Automatic Voltage Regulator is not equipped with loss-Sensing
Protection function /Over Excitation Protection. An additional Over-Voltage Protection device for load may be required to avoid possible damage to the equipment or severe personalinjury or death.
- Brand Name: SHALUO
- Origin: Mainland China
- Model Number: sx460 avr
- is_customized: Yes
