Material: ABS plastic

Working voltage: DC 12V

Working current: 1A

Screen: 5-inch 480*854 IPS high-definition color touch screen

Camera: 2 million pixel binocular, support wide dynamic, support intelligent FACE AE

Working frequency: 13.56 MHz

U disk type: support below 32G, format is FAT32 (USB disk not included)

Support U disk upload and download attendance data

User capacity: 1000 faces, 1000 passwords, 1000 RFID cards

Identification method: dynamic face, RFID card, password, NFC.

Waterproof function: IP65

Language: English, Chinese, support voice.

Doorbell button: support wired doorbell

Wiegand interface: WG26/34 input, output

Dynamic face recognition distance: 0.5-2 meters

Working temperature: -30 to +70 degrees Celsius

Product size: 180*82*20mm

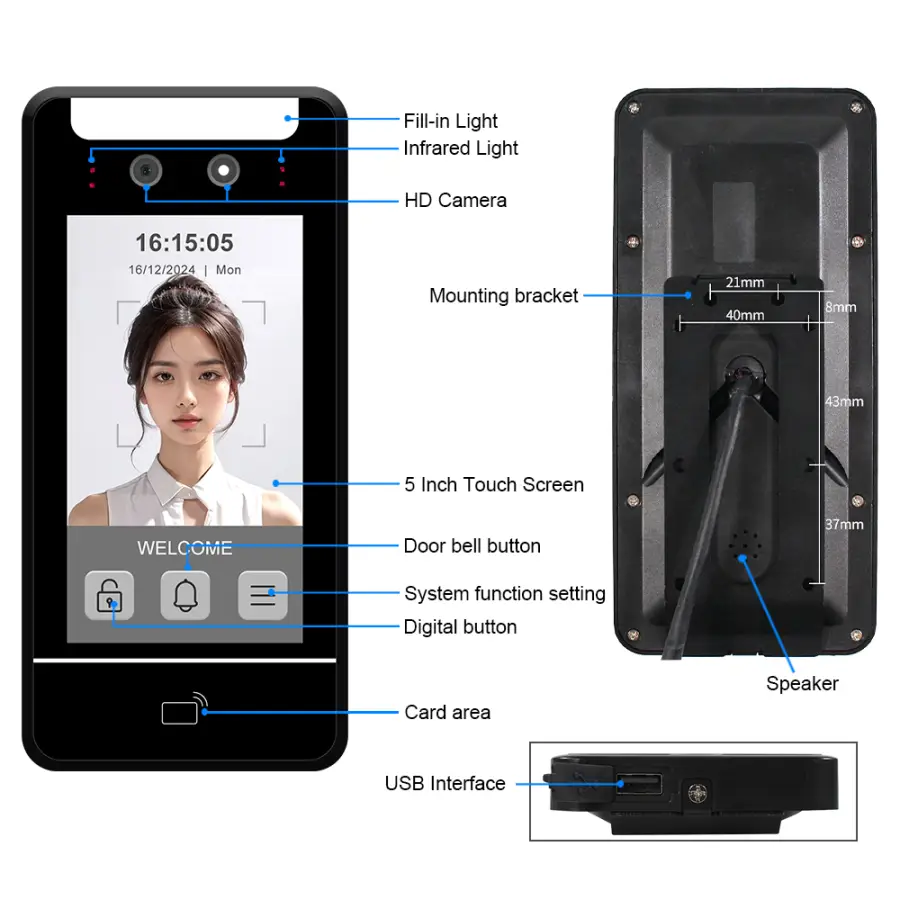

Product Details

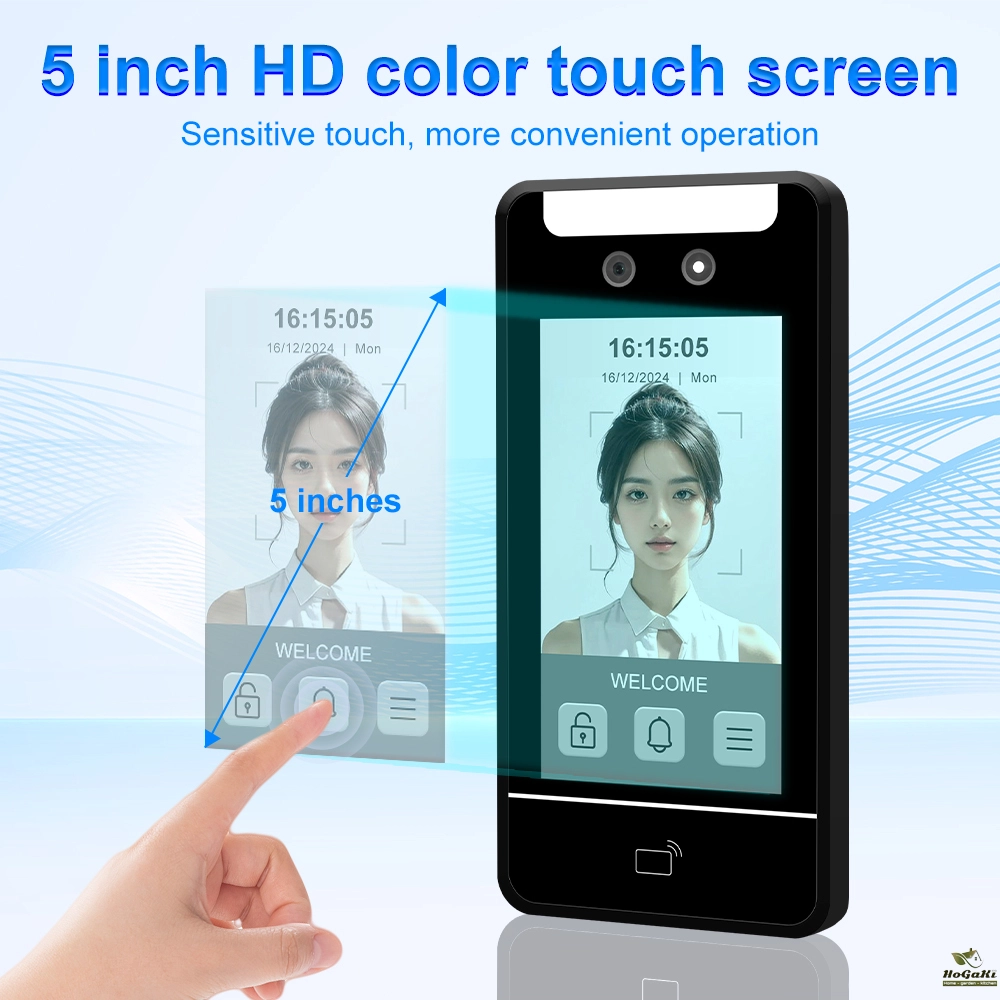

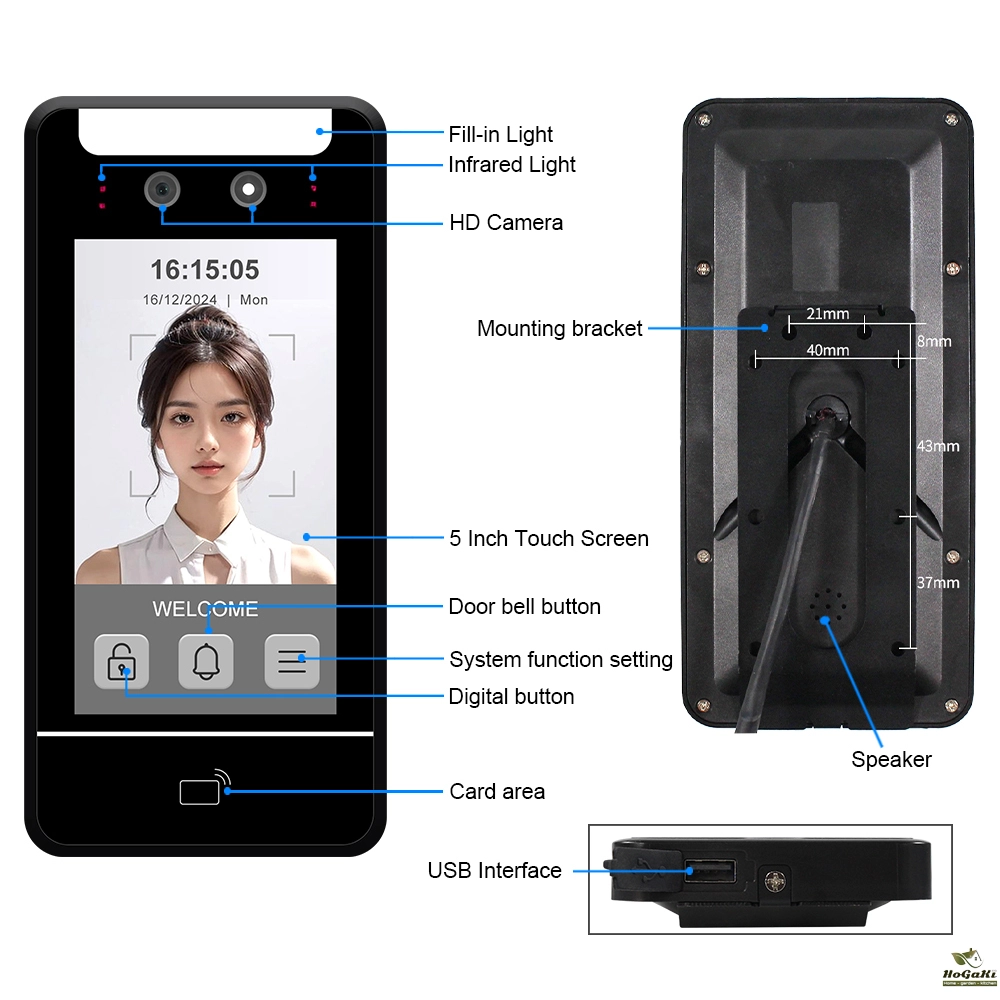

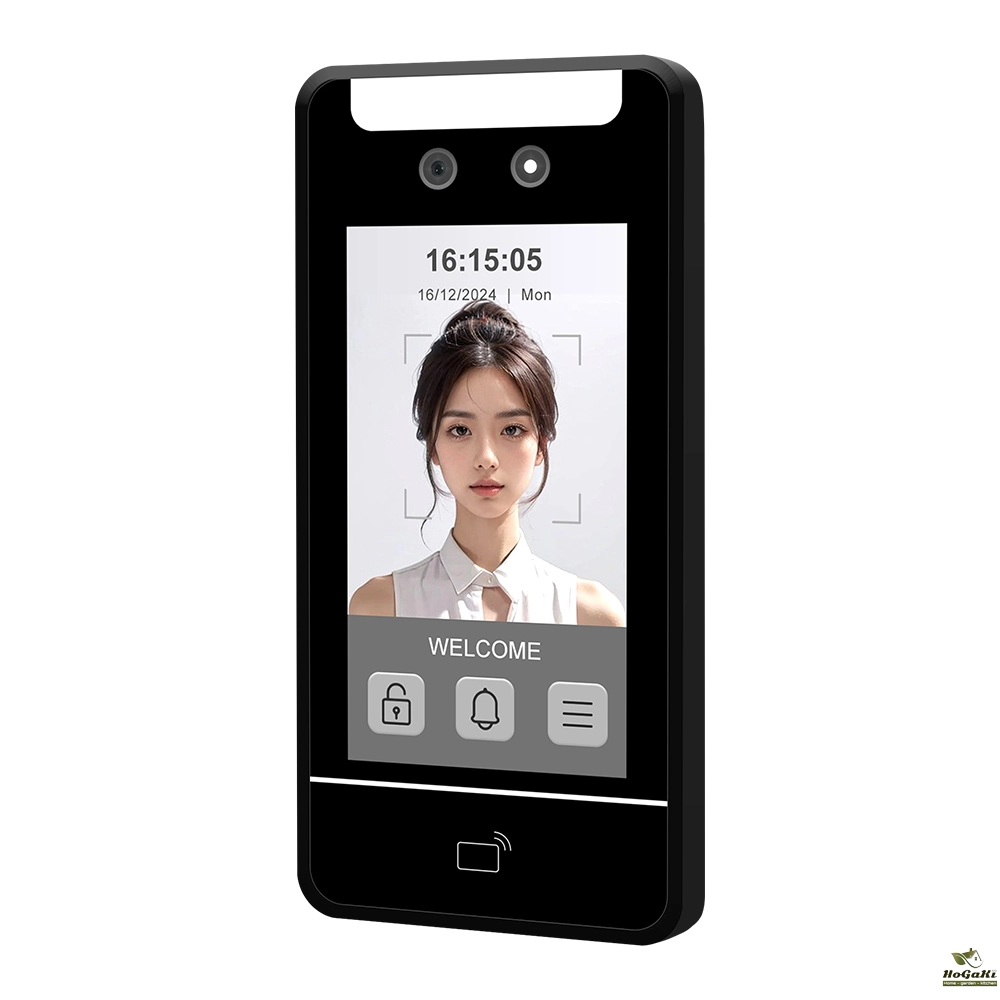

5-inch IPS high-definition color touch screen. The screen is easy to operate.

200W binocular high-definition color camera + infrared light + LED high-light fill light

Equipped with 200W high-definition camera and wide dynamic camera, supporting intelligent FACE AE. Even in strong light, weak light and backlight environments, it can accurately and quickly identify and verify.

Smart facial recognition. Reject fake faces and photos.

It not only prevents employees from using photos or videos, but also intelligently identifies changes in their appearance.

Quickly identify even if they are wearing hats and glasses.

Dynamic facial recognition. Save a lot of time

Dynamic face wide-angle detection, recognition speed is less than 0.1 seconds, and the recognition distance can reach 2 meters.

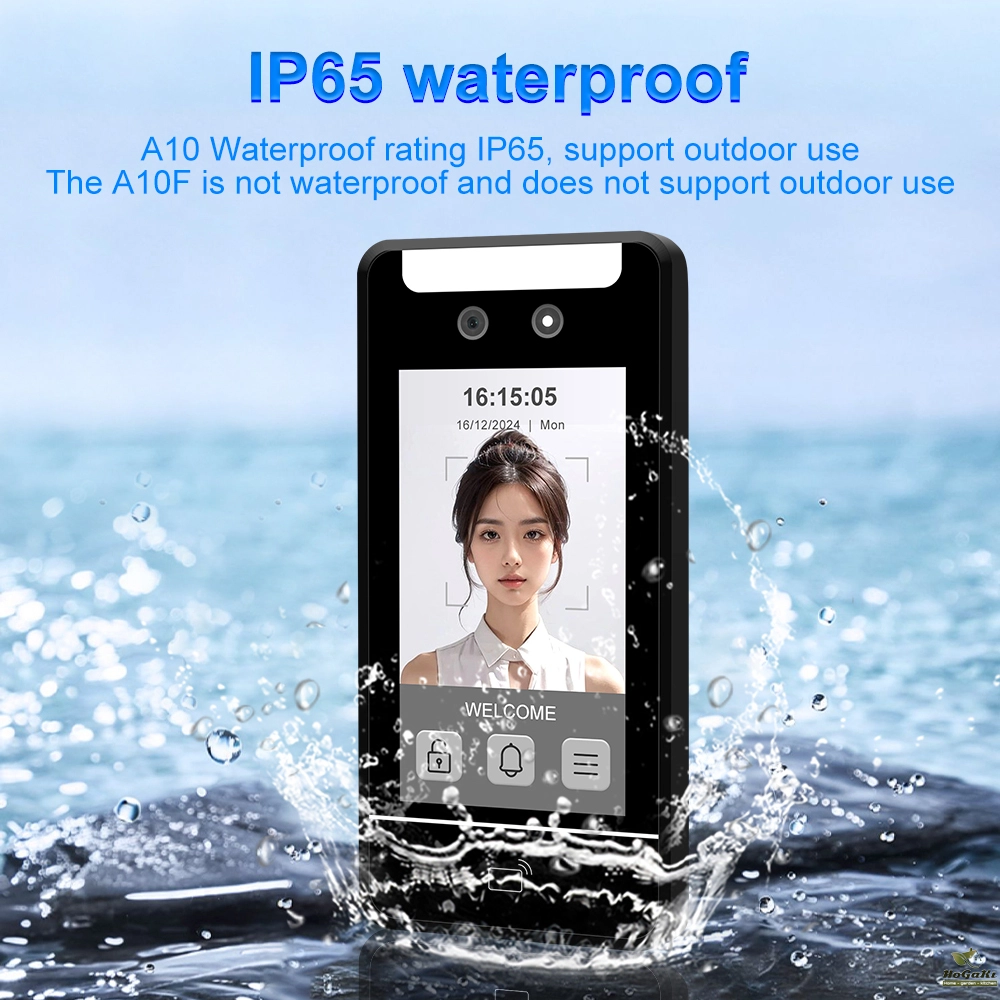

IP65 waterproof. It can be installed outdoors.

Supports face recognition, RFID card, password, and mobile phone NFC to open the door.

Supports 1,000 faces and 1,000 RFID cards

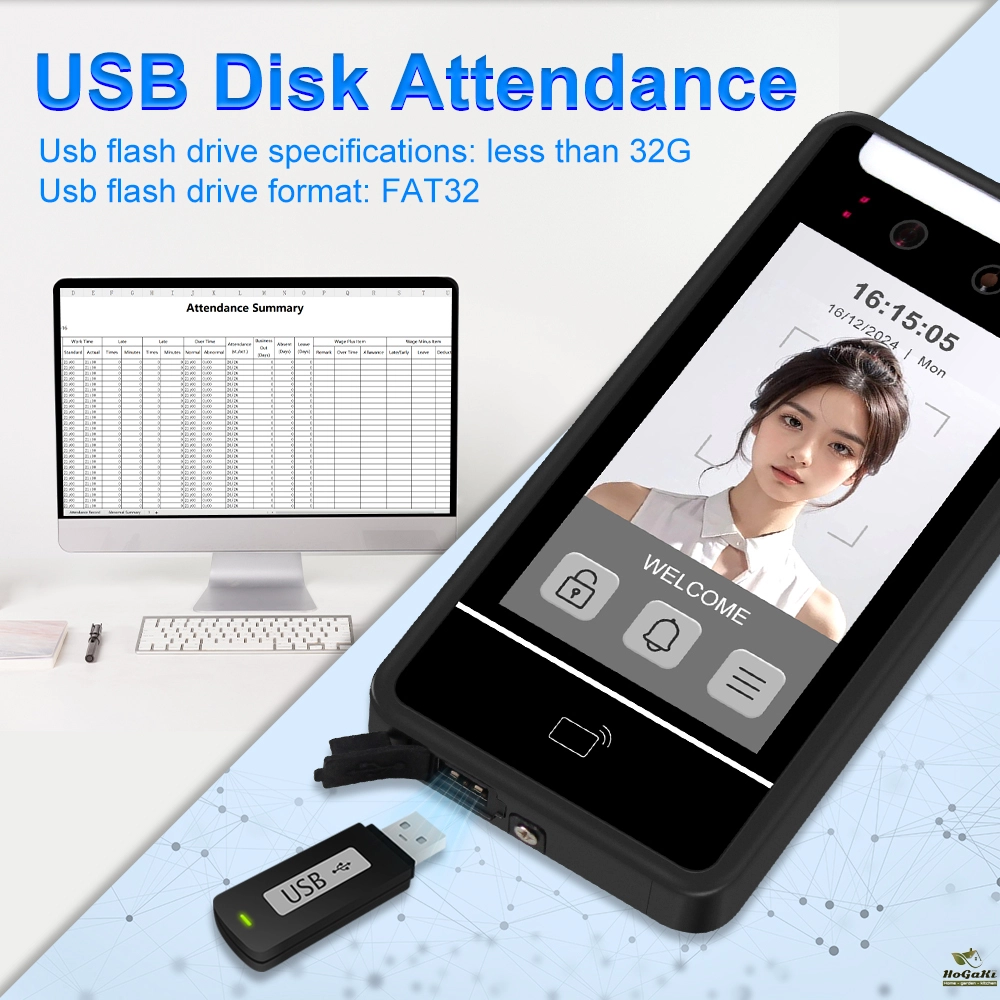

Supports exporting attendance reports via USB flash drive.

You can import/export attendance plan reports (USB disk not included)

USB flash drive must be less than 32G and in FAT32 format，

Easy to install and operate

Based on advanced technology, fast recognition speed and high sensitivity.

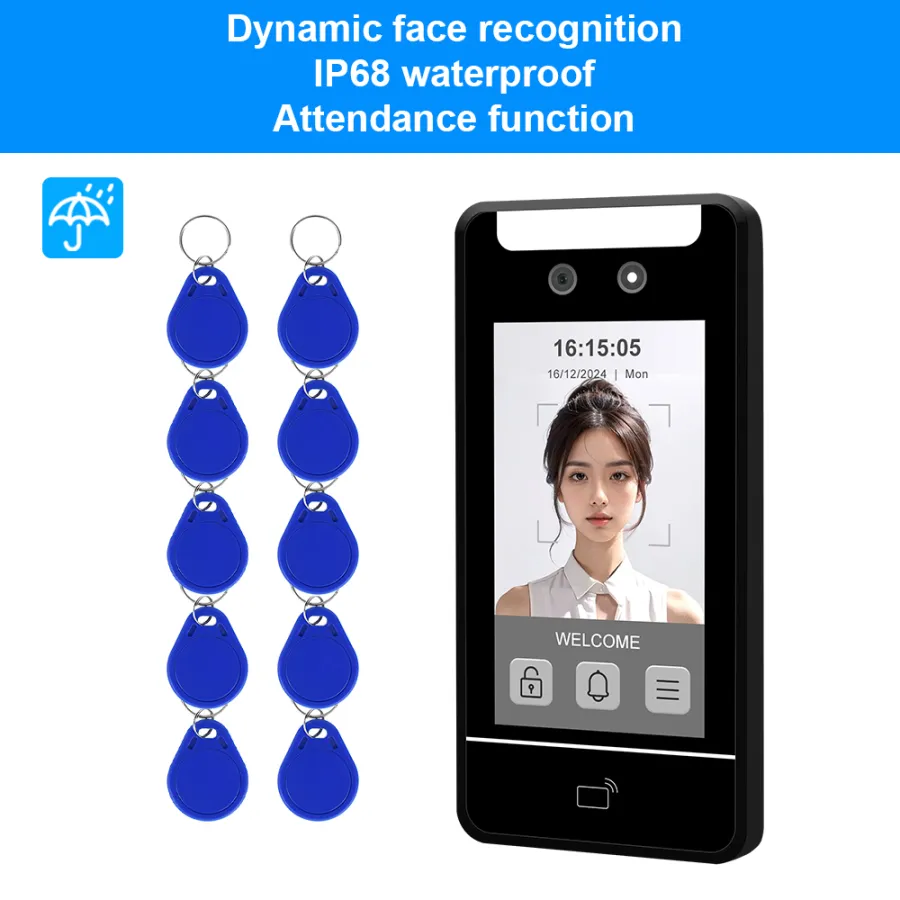

RFID Keychain:

Material: ABS

Operating frequency: 13.56MHz

Detection range: 0-5cm

Each card is pre-programmed and comes with a metal keychain.

Packing List

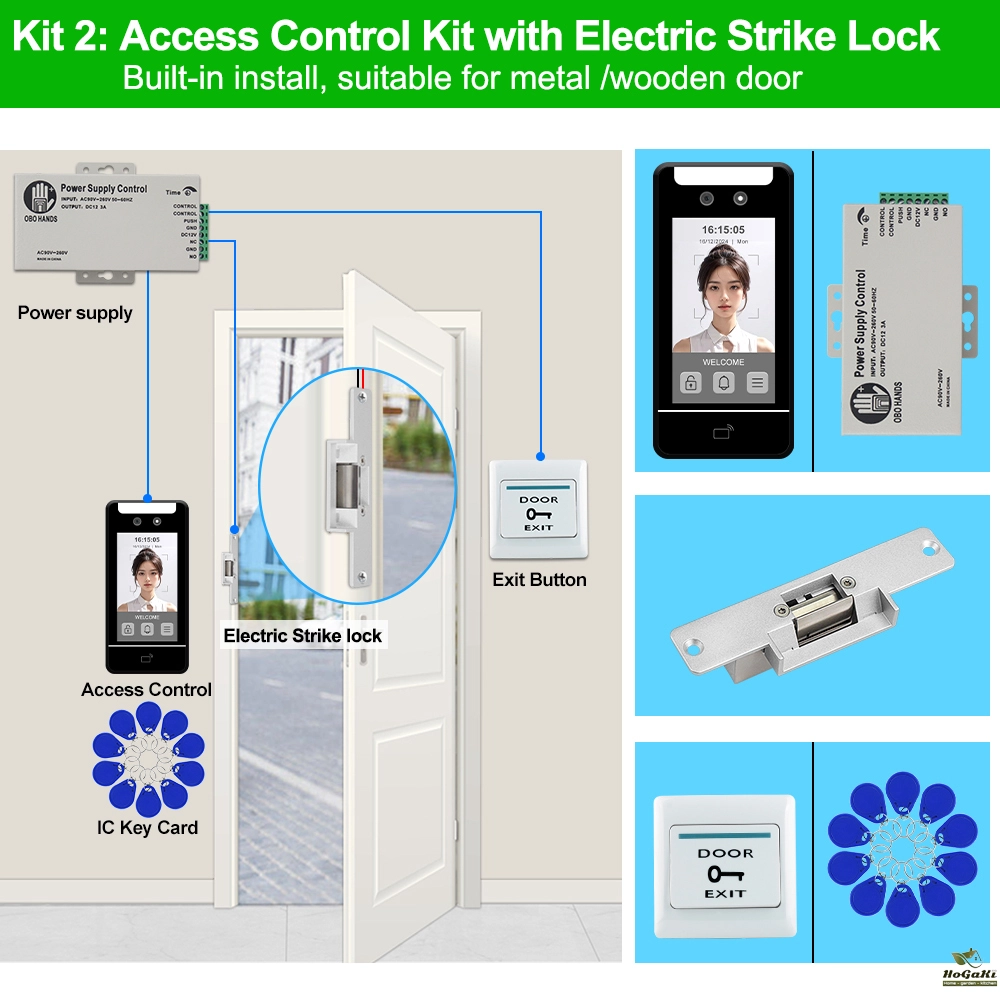

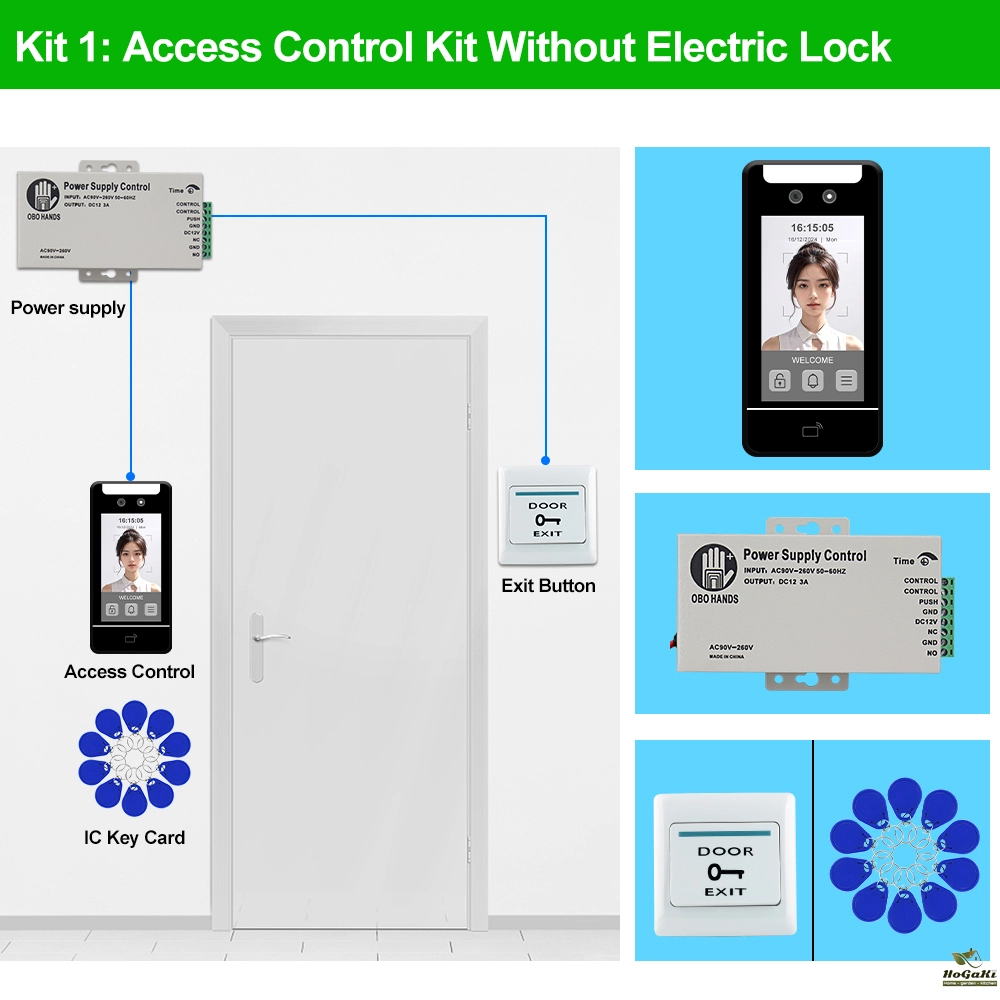

Kit 1: Includes RFID access control keypad + 10 IC keychains + power supply + access control button. Lock not included.

Kit 2: Suitable for wooden doors, metal doors. Convenient and beautiful. No support required.

Set includes: access control keypad + power supply + NC type electric lock + exit button + 10 IC keychains.

About electric lock

Working voltage: 12V ± 10%

Current: 200mA - 450mA

Clamping force: 500kg

Surface temperature: +20 below ambient temperature

Working temperature: -30-+60 degrees Celsius

Features: Fail-safe (NO), Fail-safe (NC)

Material: Stainless steel

NC type touch lock: lock when powered on, unlock when powered off.

Dimensions: 150x28×34mm (length/width/height)

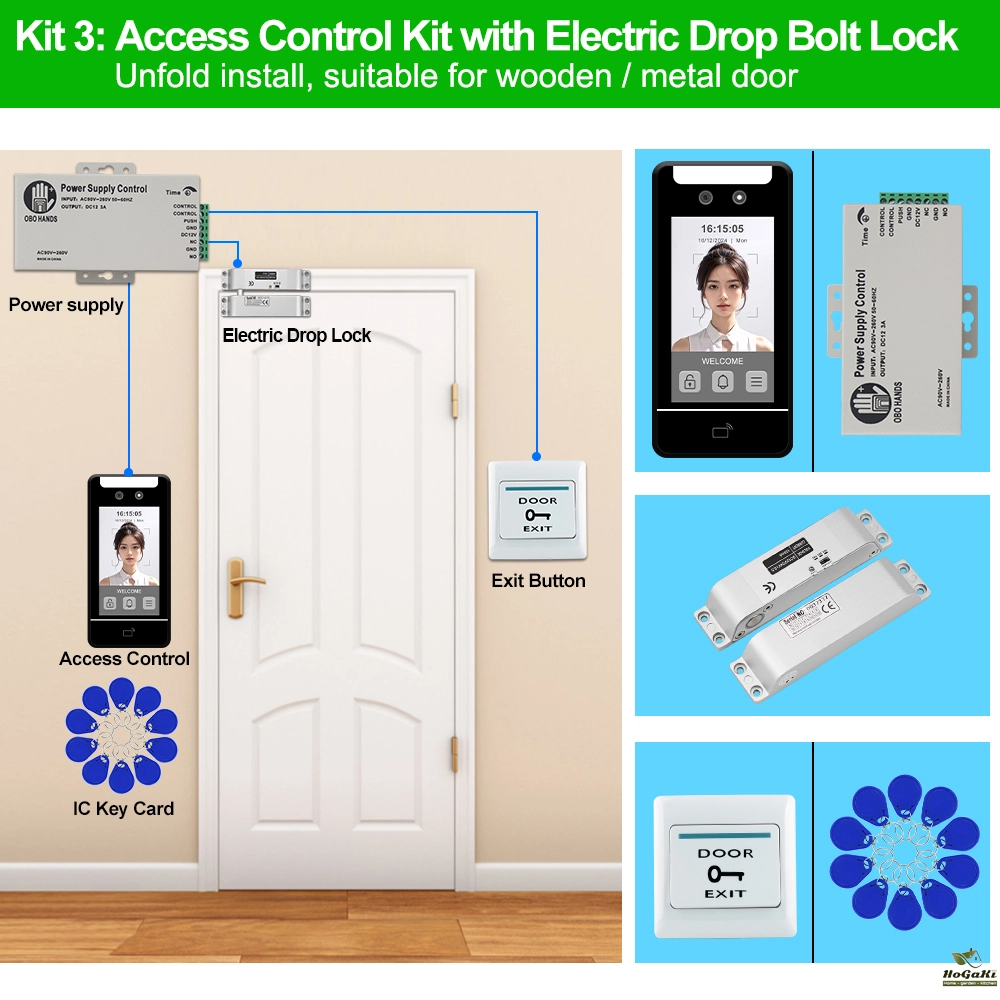

Kit 3: Suitable for wooden doors, metal doors and stainless steel doors. No support required.

Package includes: Access control keypad + power supply + electric bolt lock + exit button + 10 keychains

About electric bolt lock

Working voltage: 12V

Delay time: 0s, 3S, 6s adjustable

Working current: 1.2A in start state; 120mA in continuous state

Coil type: continuous operation

Security type: electric lock, unlock

Lock core: 12.5MM diameter stainless steel coil, extended length 15MM

Locking method: magnetic induction

Unlocking method: anti-tampering fault (power on to lock, power on to unlock) closed)

Dimensions: 150X34X28 (length/width/height)

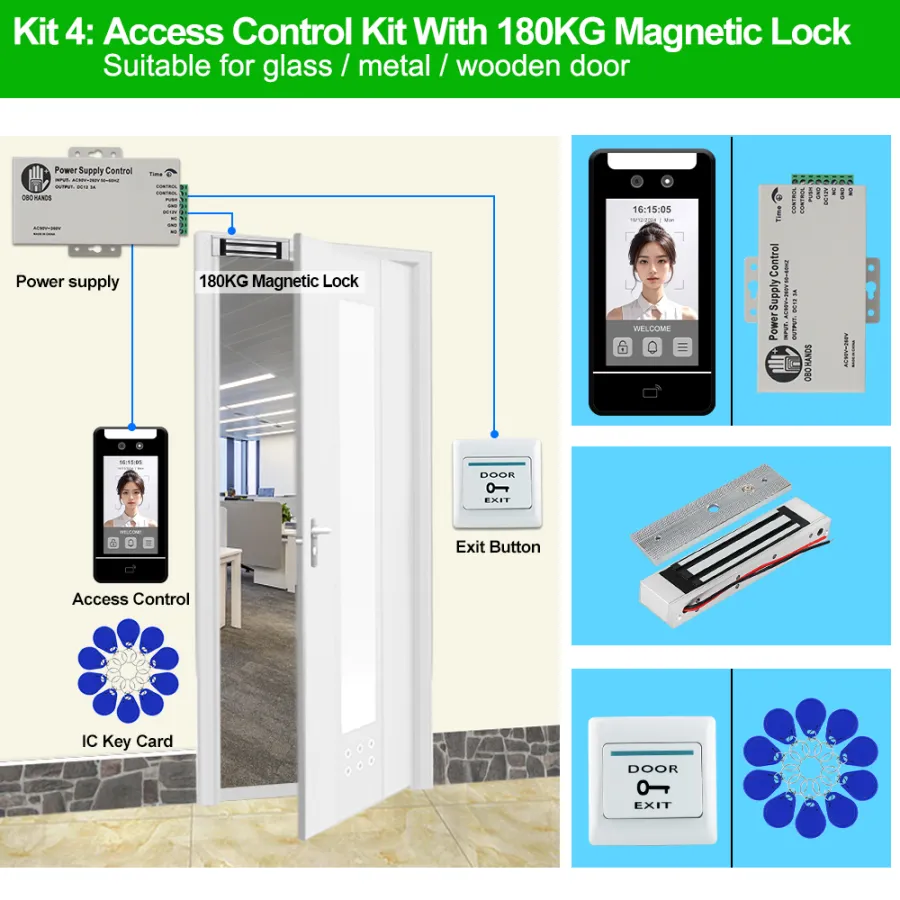

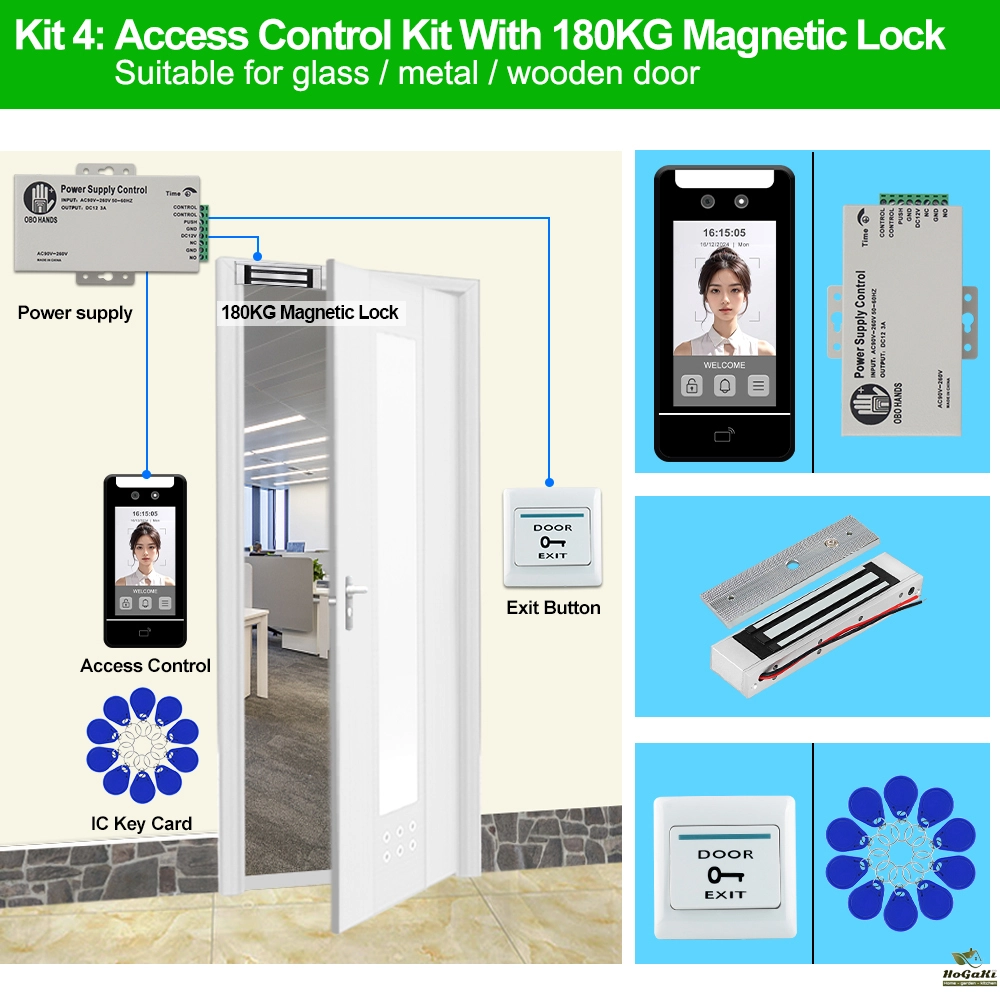

Kit 4: Suitable for doors with wooden, metal and glass frames. No support required.

Package includes: Access keypad + power supply + 180KG electromagnetic lock + exit button + 10 keychains.

About electromagnetic force lock

Material: Aluminum alloy shell + iron plate

Clamping force: 180KG/350lbs

Working voltage: DC12V working

Current: 380-430mA

Humidity: 0 to 95%

Working temperature: -10 to 55 degrees Celsius

Working mode: unlock, close and unlock

Waterproof: Yes. Can be installed outdoors

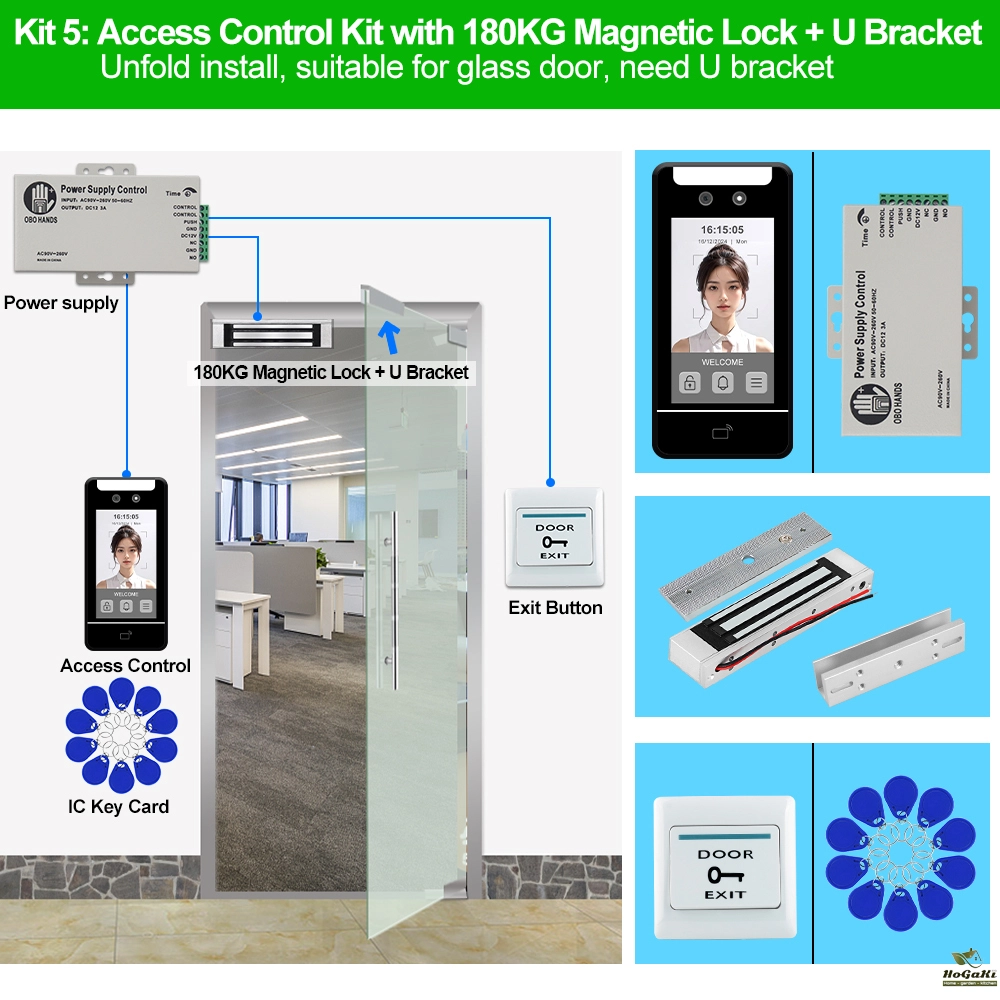

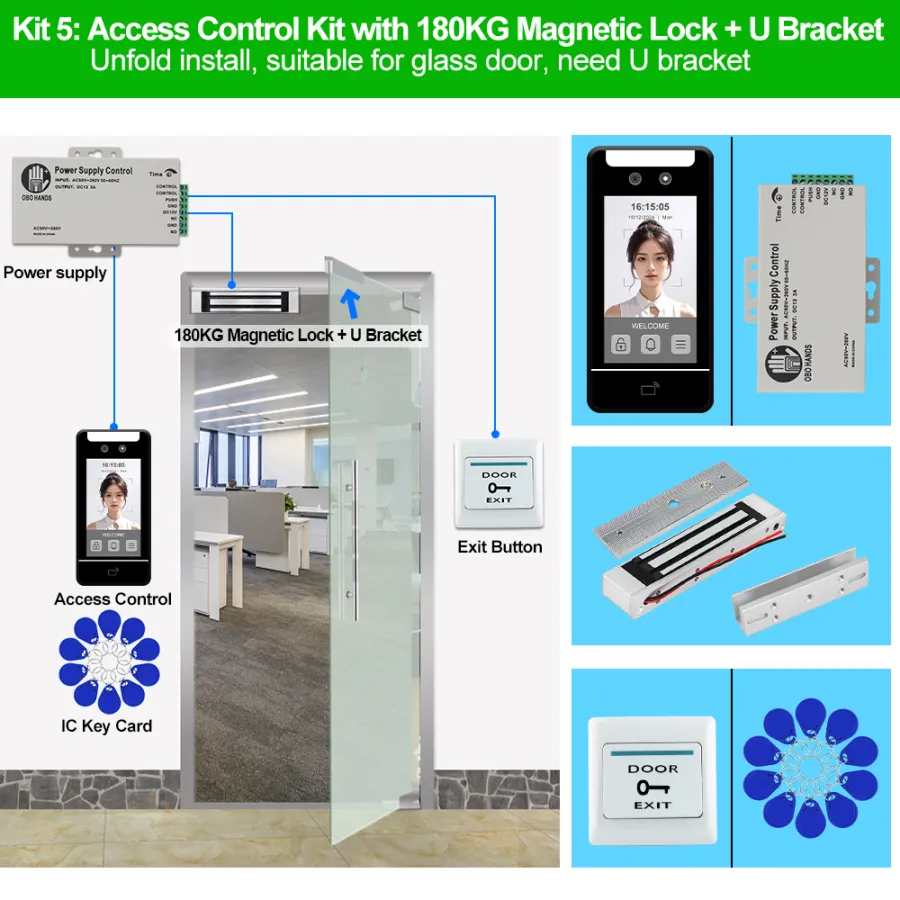

Kit 5: For frameless glass door. Need U support.

Kit includes: access control keypad + power supply + 180KG magnetic lock + U-shaped bracket + exit button + 10 keychains.

If your door is frameless glass, you need U-shaped bracket

U-shaped bracket size: 130*33*26mm (length/width/height)

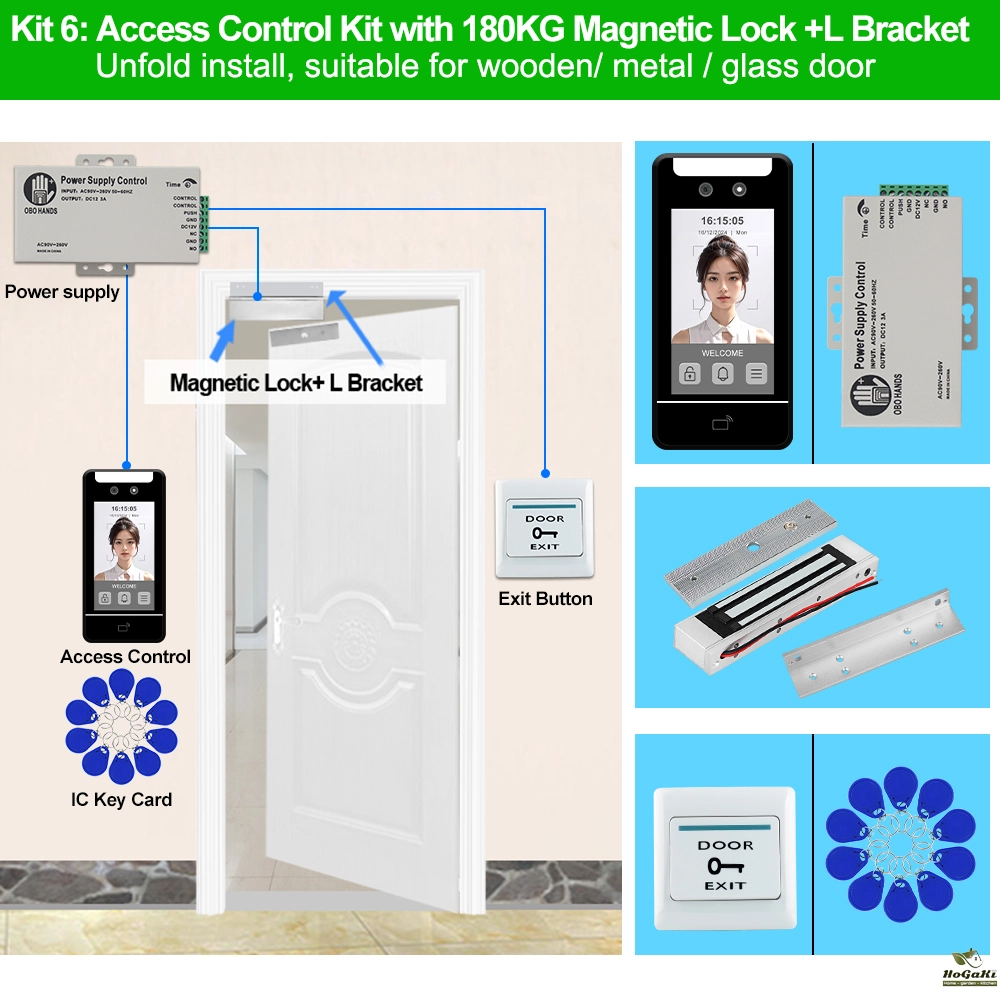

Kit 6: Suitable for wooden and metal doors. L support required.

Packing list: access control keypad + power supply + 180KG magnetic lock + L-shaped bracket + exit button + 10 keychains

Look at the door from the inside, if the door is flat or the distance from the door to the door frame is less than 3cm, you need to add an L-shaped bracket.

L bracket size: 170*34*25mm (length/width/height)

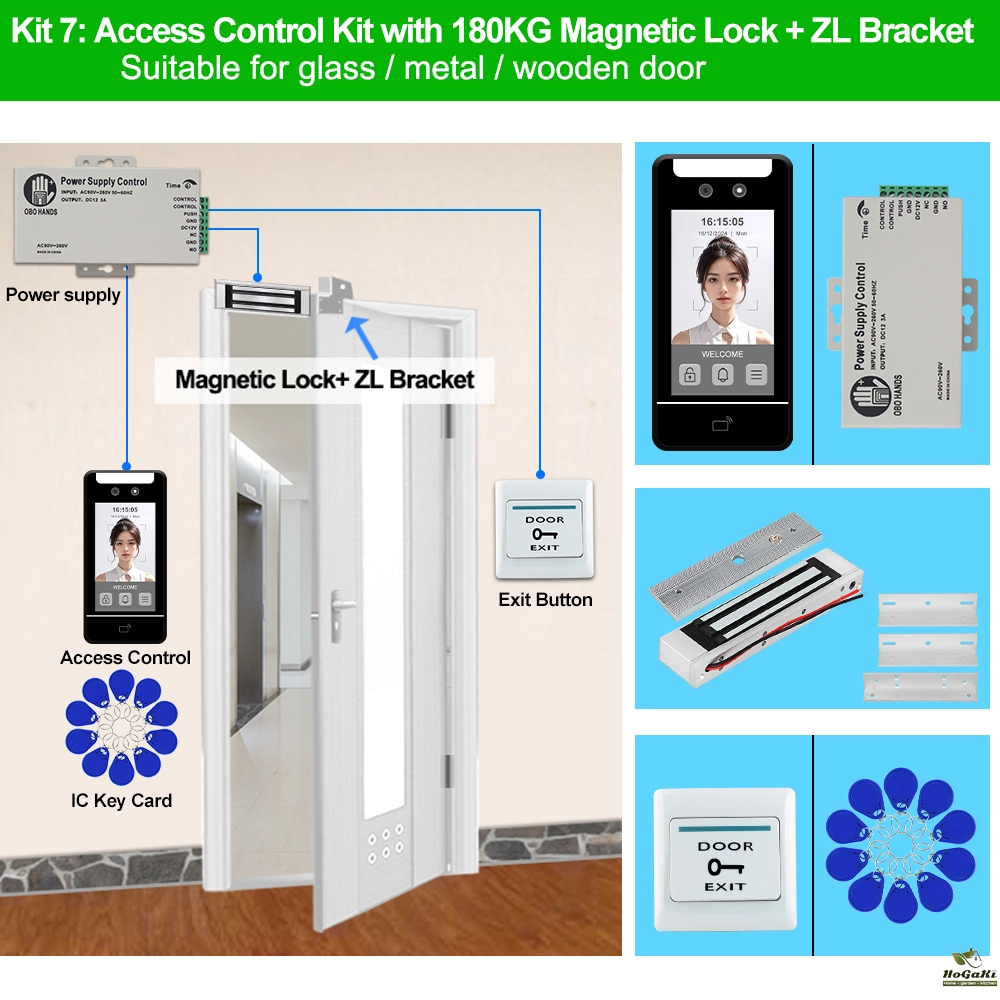

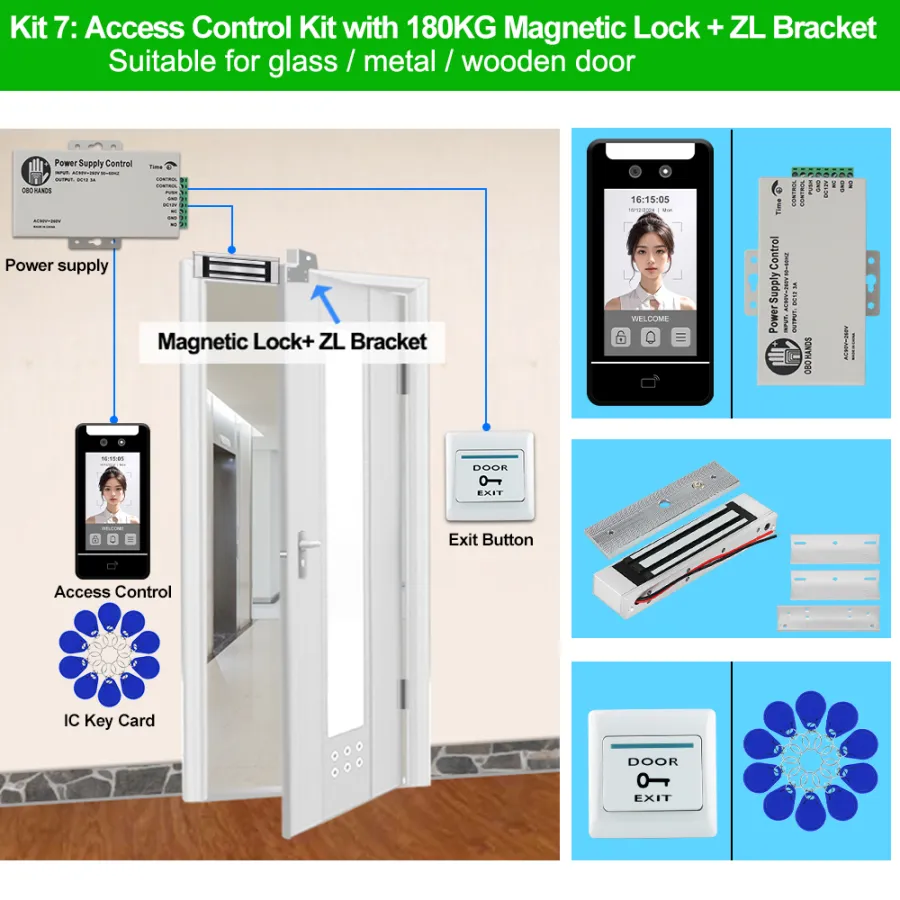

Kit 7: Suitable for wooden doors, metal doors and glass doors. Requires ZL support.

Package includes: access control keypad + power supply + 180KG magnetic lock + ZL bracket + exit button + 10 keychain.

If your door opens from the inside, you need to add ZL bracket.

L bracket size: 170*34*25mm (length/width/height),

Z bracket size: 138*45*45mm (length/width/height)

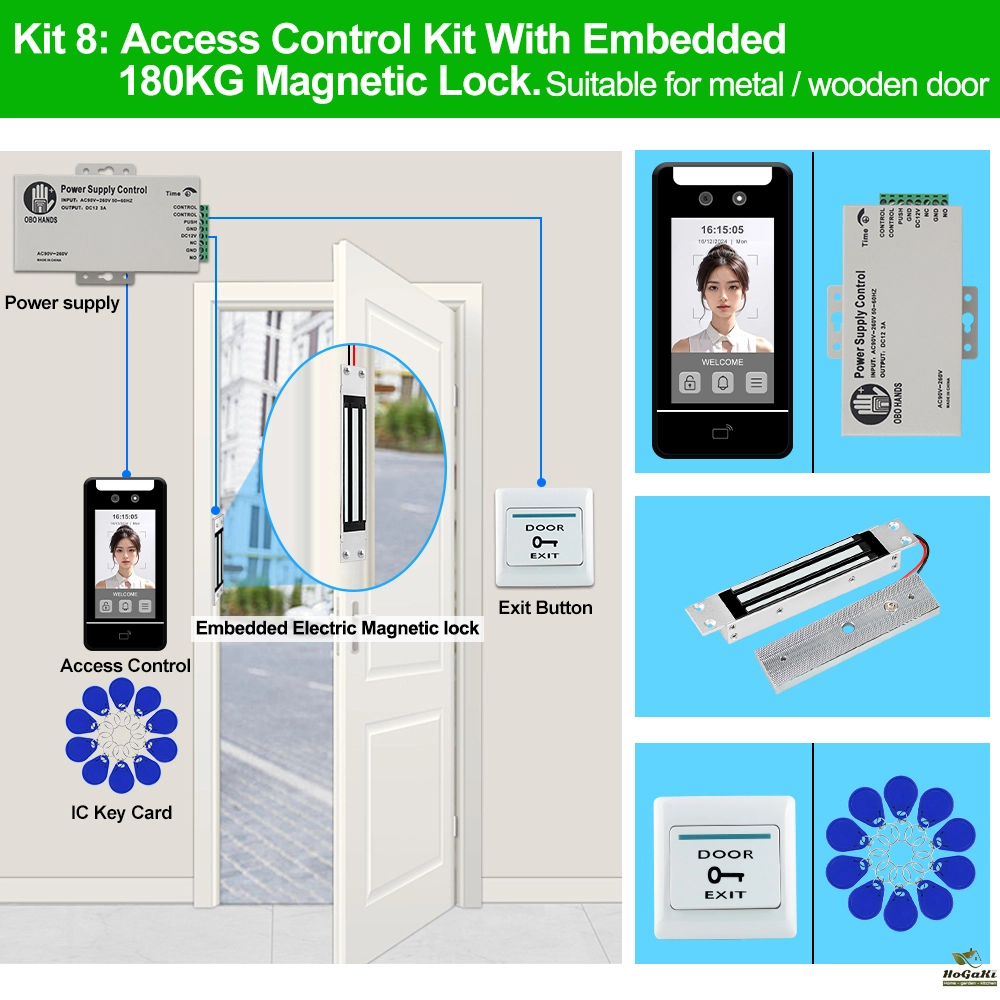

Kit 8: For doors with wood, metal and glass frames. No support required.

Kit includes: Access keypad + power supply + 180KG embedded magnetic lock + exit button + 10 keychains

Lock size: 192Lx33Wx20H(mm)

Armor plate size: 139Lx32x11H(mm)

Clamping force: 180kg(350lbs)

Input voltage: 12VDC

Current: 12V/120mA

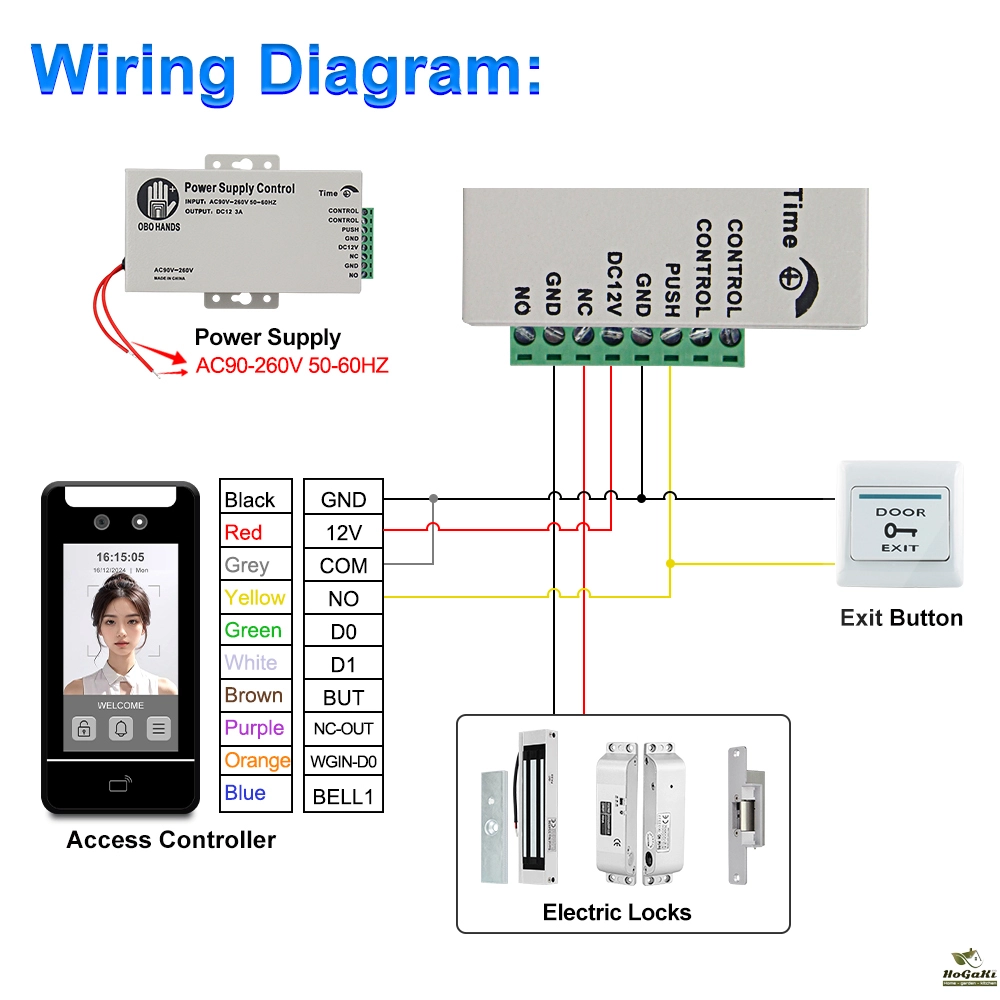

Wiring Diagram

(You need to connect 4 access keypad cables, 2 electric lock cables, and 2 access button cables to the power supply.

If your lock is an electric mortise lock, just connect the red wire to NC and the black wire to GND, and you don't need to connect the yellow or white wires.
