Expandable Braided Cable Sleeve PET Self Closing Insulated Flexible Pipe Hose Wire Wrap Protect

4.9 (69 votes) | 527 orders
Price: US $11.44 - 112.83 / piece
Discount Price:
US $ 9.95 - 63.67 / piece
-13%
Color
Inside Diameter
Quantity

You are buying  woven wrap split braided sleeving  in black.

This is similar to self closing wrap - the out side appearance is different.

It has a 25% overlap for expansion.

The sleeving is split for quick and easy installation.

no need to remove harness or remove plugs.

If you buy 2 or more lengths it will be in 1 piece

Description

WOVEN WRAP SPLIT BRAIDED SLEEVING has been engineered from the ground up to meet the demanding specifications of today's modern wiring harness industry.

WOVEN WRAP
-WW utilizes many of the same characteristics as our original f&6 split braided sleeving including the easy wrap around design and the extra overlap to enclose around important wires in electronic communication and power systems.


The new woven construction provides superior elastic flexibility with unbeatable coverage over any harness assembly. Wire harness professionals will also appreciate the increased abrasion resistance
WOVEN WRAP
-WW will provide to their cable assemblies.

SCS self-woven wrap is a non-expandable sleeving woven from monofilament (weft) and multifilament (warp) polyester yarns. It is lightweight, cost-effective and highly abrasion resistance, the split open design allows easy install on the cable harness which has been assembled.


Application:

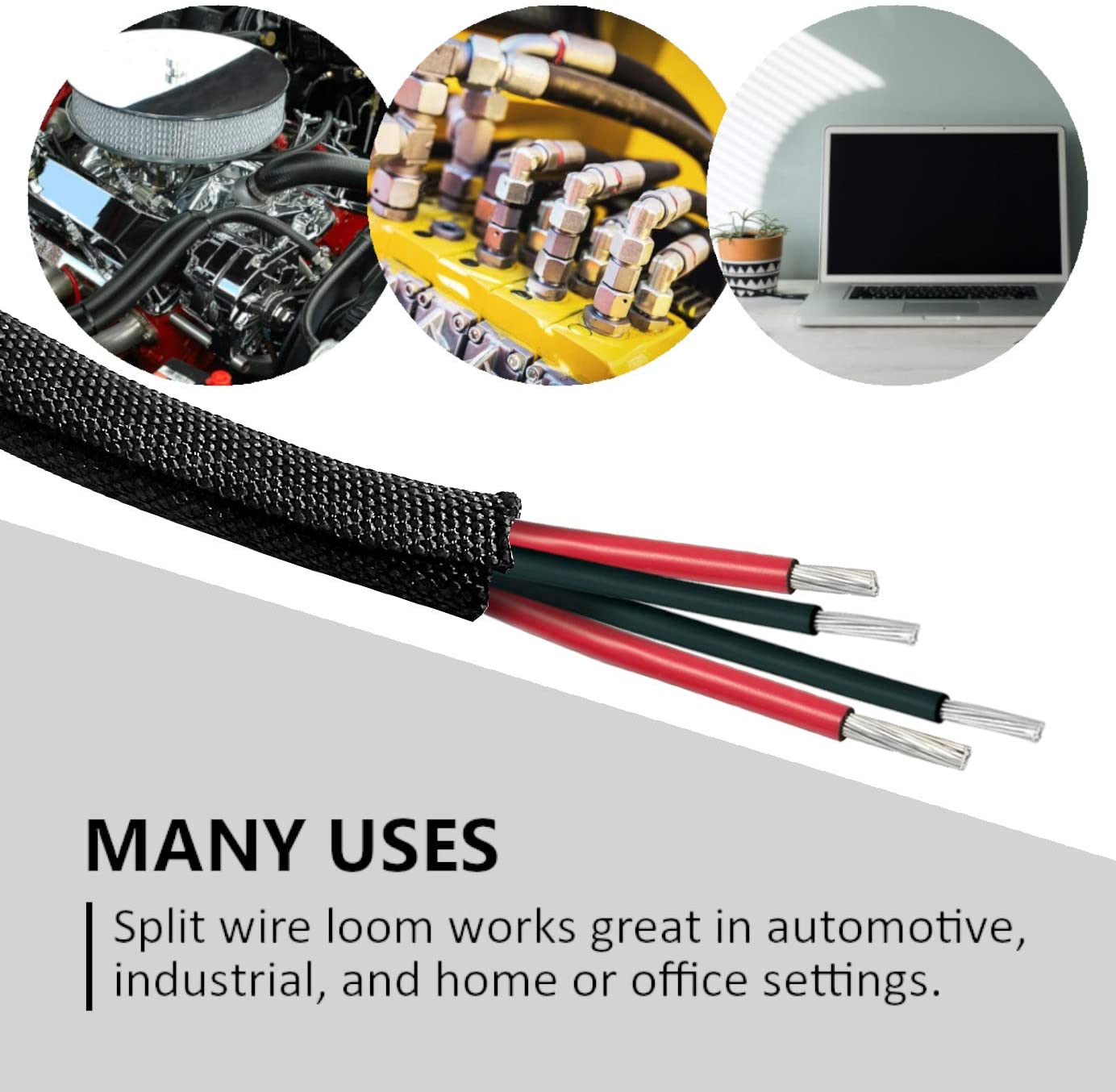

Most commonly used on wire harnesses, cable assemblies, to provide a tough, durable protection in automotive, telecom, automatic equipment, railways and panel boards.

Technical data:

Material: Polyester monofilament and multifilament

Operating range: -50 ~+150 °C

Melt point:240± 10°C

Flammability: DIN5510, BS6853, EN45545 version are available

Approved: RoHS, Halogen free

Standard colours : Black

Cutting tool: Hot knife

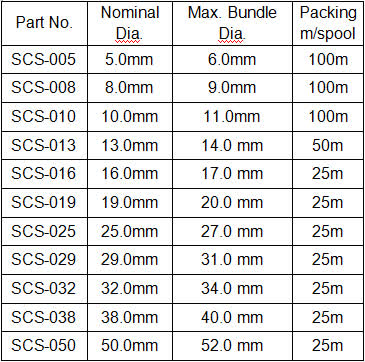

Dimensions:

Unit: mm

Note:

1. Special packing, sizes and colors can be supplied upon request.

2. All numerical data are average or typical values, not including customized sizes




  • is_customized: Yes
  • Material: PE
  • Model Number: SCS
  • Type: Self-closing woven wrap
  • Origin: Mainland China
  • Certification: CE
