Electronic Consumer pos with comprehensive SDK and printer mall NFC Handheld Android Mobile EFT Payment pos Terminal

0.0 ( votes)
Price:
US $ 1480.80 / piece
Quantity

Electronic Consumer pos with comprehensive SDK and  printer mall NFC Handheld Android Mobile EFT Payment pos Terminal

Features

Ø Android 5.1 depth system customization, quad-core high performance + financial grade security, dual CPU design.

Ø Low-power design, support sleep for 100 hours standby, can complete 500 transactions.

Ø Large-capacity lithium-ion battery, 5V mobile phone charging, support 58MM width paper roll high-speed printing.

Ø Concise fashion: 2CM to thin body Build industry benchmarks, bring ultimate comfort grip, customized LOGO, color, boot LOGO screen.

Ø Card type: three-track magnetic card, contact type CPU card, contactless card.

Ø Anti-disassembler function design, support remote firmware update.

Ø EMV / PBOC L1 & L2 certification, non-connected EMV/qPBOC L1 & L2, PCI / UnionPay point-of-sale terminal security certification, 3C, FCC, CE, RoHS certification.

Specification


Operating system

Android 5.1 secure payment system

RAM

RAM: 1GB EMMC: 8GB

CPU

Qualcomm Quad-Core ARM Cortex A7 processor clocked at 1.1GHz

Extended storage

Micro SD card interface

Monitor

5.0 inches, resolution 480*854

Touch screen

Capacitive touch screen, support for electronic signature

Printer

Built-in high-speed thermal printer

Paper roll: 58*30mm

Magnetic card reader

Supports 1/2/3 magnetic card channels, two-way card swiping

IC card reader

Compliance with EMV and PBOC specifications, support for Class A (5.0V), Class B (3.0V) or Class C (1.8V) cards

SAM card holder

2Pcs

SIM card holder

1 Pcs

Contactless reader

Supports ISO/IEC 14443 Type A&B, Mifare cards, compliant with non-connected EMV/qPBOC, specification read status indicator

USB interface

1 Micro USB OTG, compatible with USB2.0 HS standard, 1 serial port

Communication method

2G, 3G and 4G, Wi-Fi,hotspot,Bluetoothcommunication

GPS

Supports built-in GPS

Camera

Rear 500W pixels, front 30W

Optional:front200W

Bar code reader

Supports 1D/2D scanning

Multimedia

Support recording, support voice playback, support video playback / recording

Password keyboard

Built-in password keyboard (virtual keys)

Support DES, 3DES, RSA, SHA-256 and AES algorithms

Battery

Lithium battery: 7.4V 2800mAh

Power Adapter

Input: 110V~240V AC/50~60Hz

Output: 5V DC/2A

Universal Micro USB Interface

Machine size

191.6mm×80.2mm×46mm

Machine weight

424g

Package Size

240mm*162mm*70mm

Package weight

700g

Standard accessories

Power adapter, manual, warranty card, USB charging cable, charger (optional),Leather case (optional), fingerprint (optional)

Certified

EMV L1/L2, PBOC L1/L2, non-connected EMV L1, QUICS, QPBOC L1/L2, UnionPay smart point-of-sale terminal authentication, PCI5.x, 3C, FCC, CE.

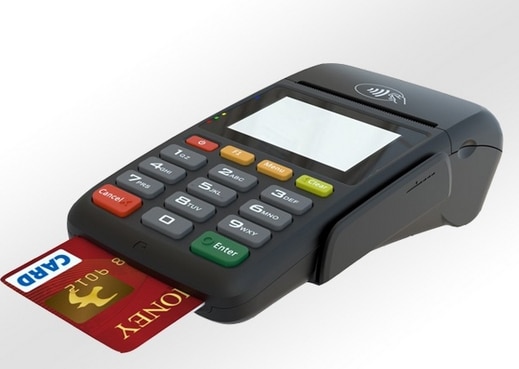

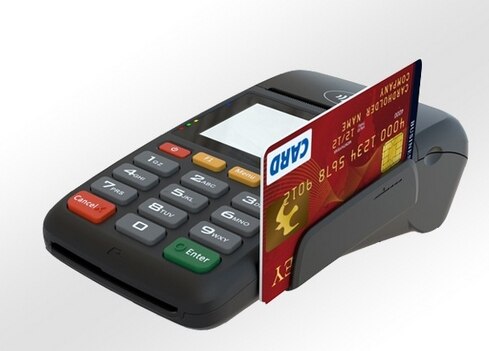

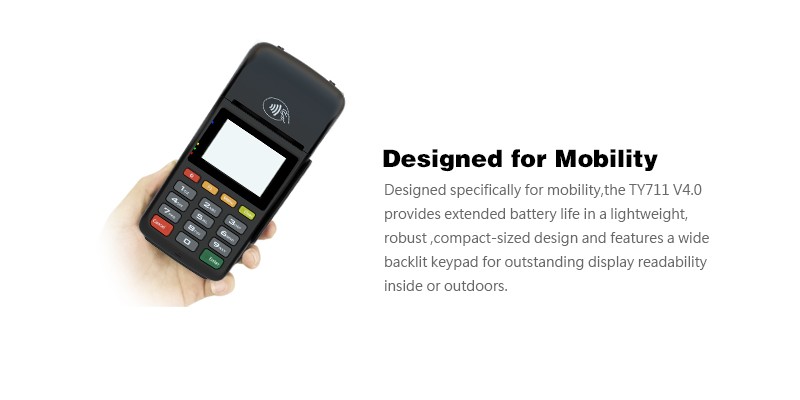

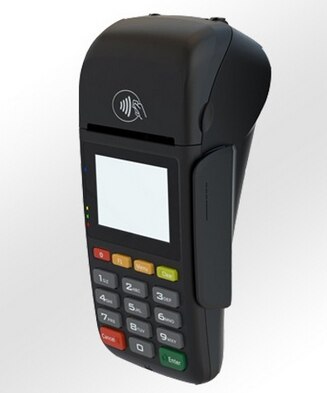

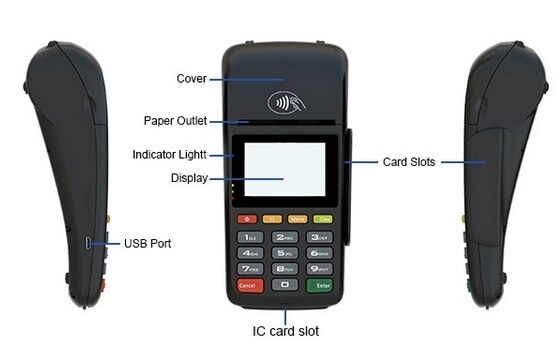

Mobile Payment Terminal

Main CPU

Processor

32-bit ARM

RAM

96KB SRAM

ROM

4MB Flash

Security

 Module

Processor

MAXQ 1850 32-bit ARM

RAM

8KB SRAM

ROM

256KB Flash

Display

LCD

2.8''  128*64 pixels.White Backlit

Payment

Magnetic

Card Reader

Track 1 / 2 / 3, bi-directional

Smart Card Reader

ISO 7816

Printer

Printing Speed

18 lines per second


Paper Width

58mm


Roll Diameter

30mm

Physical
Characteristics

Dimensions

 (LxWxD)

168.9*82.5*53.7mm

Weight

380g

Keyboard

10 numeric / letter keys, 8 function keys
1 Power ON / OFF key

Communication

Wireless

Frequency: GSM/GPRS 900/1800MHz or 850/900/1800/1900MHz(Optional)

SIM Lot

1*SIM

Security

PBOC

UnionPay PBOC approved

PIN Security

UnionPay PIN input Security approved
DUKPT, Master / Session, DES, 3DES
ANSI / ISO9564 format 0, 1, 3
PIN ciphered key algorithm
ANSI X9.9 / X9.19 MAC algorithm

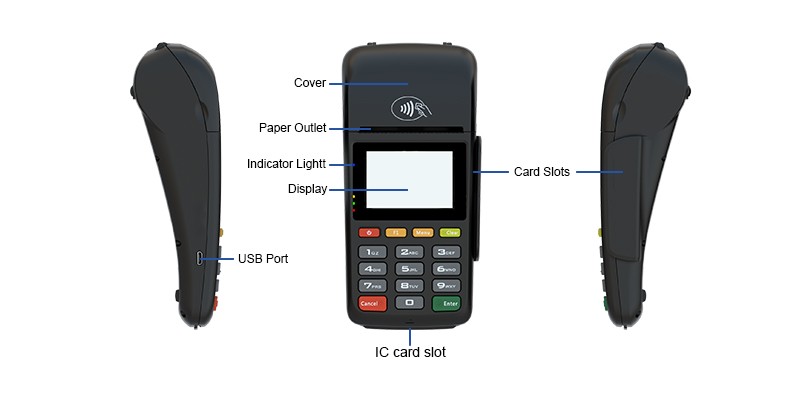

Peripheral

 Ports

Serial Port

RS232

USB Interface

USB 2.0

Power

Battery

Rechargeable li-ion polymer battery (7.4 V/1700 mAh)

Voltage

Input: 100~240VAC, 50Hz / 60Hz, 1.0A
Output: 9VDC, 3A

User Environment

Operating Temp

 0°C to 50°C (32°F to 122°F)

Storage Temp

-20°C to 70° C (-4°F to 158°F)

Humidity

10% to 93% relative humidity, non-condensing

Peripherals  and

Accessories

Expansion

SIM x 1, PSAMx 2 slots

Interfaces

Serial port RS-232 (TTL),USB Client

Regulatory

Certification

CCC, China UnionPay approved

Warranty

1 year factory warranty for main device; 6 months for accessories




Packaging & Shipping

package:gift package

Shipping: 1-3 working days for shipping samples

7-10 working days for shipping product

by air or by sea

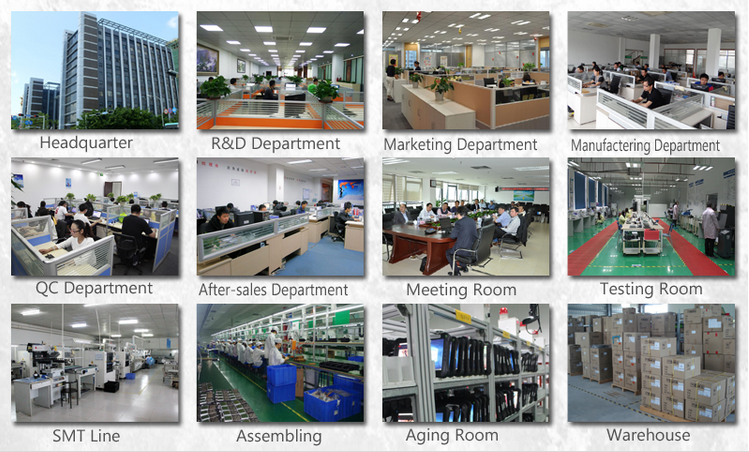

Company Information



Packaging & Shipping

Packing: We use carton box with bubble foam in it well packed. Express, by air, by sea. Delivery may take 3-15 days after receipt of payment.




  • Card Capacity: 60
  • Read-write Distance: 1
  • Read-write Speed: 1212
  • Record Capacity: 9 MB FLASH, 256KB SRAM
  • Power: 100~240VAC,50Hz/60Hz;Out put:5.0VDC,2A
  • Size: 178mm82mm59mm
  • Model Number: 600
  • Display: Single Display
  • Connection Type: Online,Offline,TCP/IP,RS485,WIFI
  • Keyboard: Single Keyboard
  • Waterproof: No
  • Battery: Yes
  • Display Type: LCD
  • Recognition Mode: Contactless IC Card
  • Origin: Mainland China
