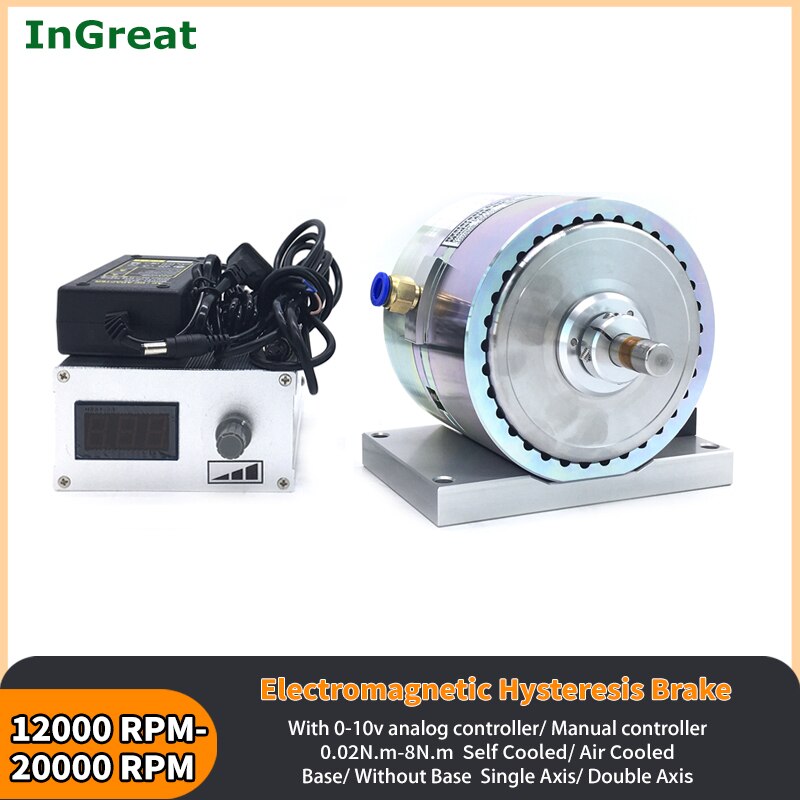

Electromagnetic Hysteresis Brake DC24V Controller Kit Single Shaft Axis 20000RPM Simulates Load Tension Controller Analog 0-10V
0.0 ( votes) | 1 orders
Price:
US $746.40 - 2214.20
/ piece
Discount Price:
US $
509.42 -
1549.94
/ piece
-32%
- Color
-
-

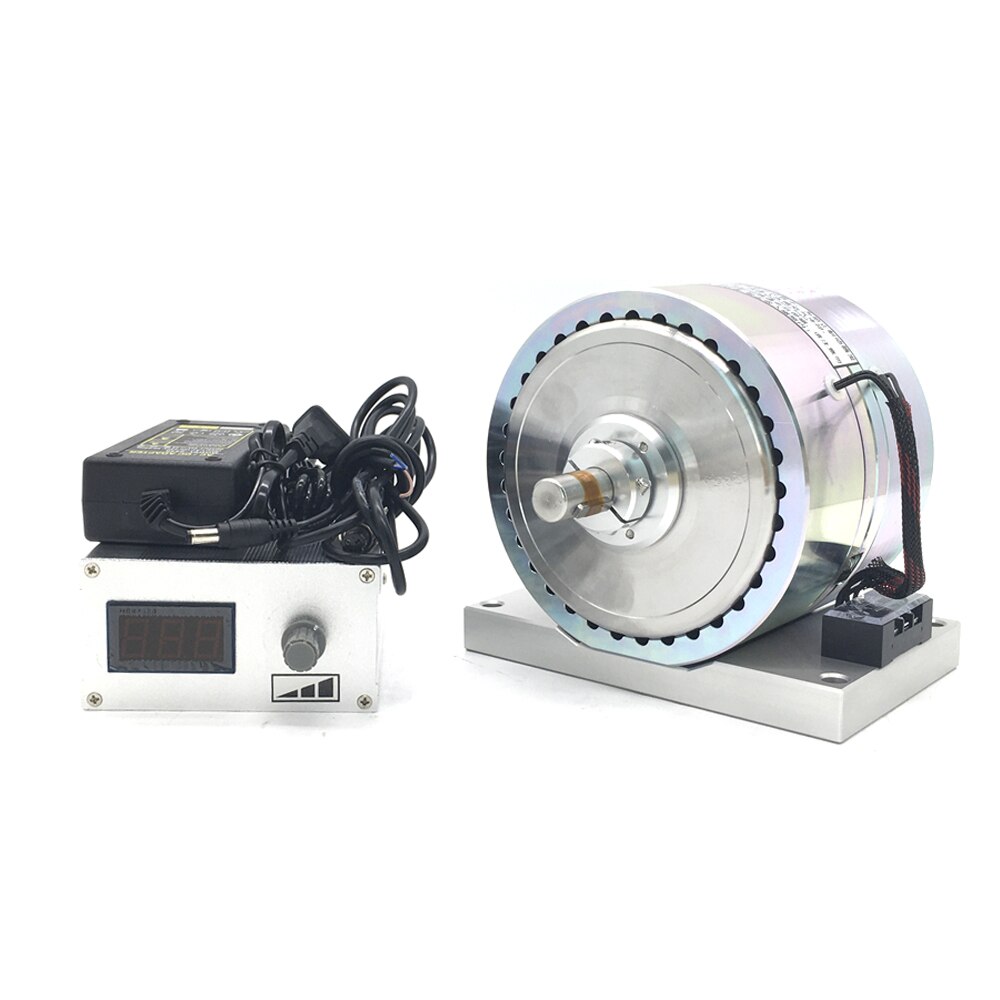

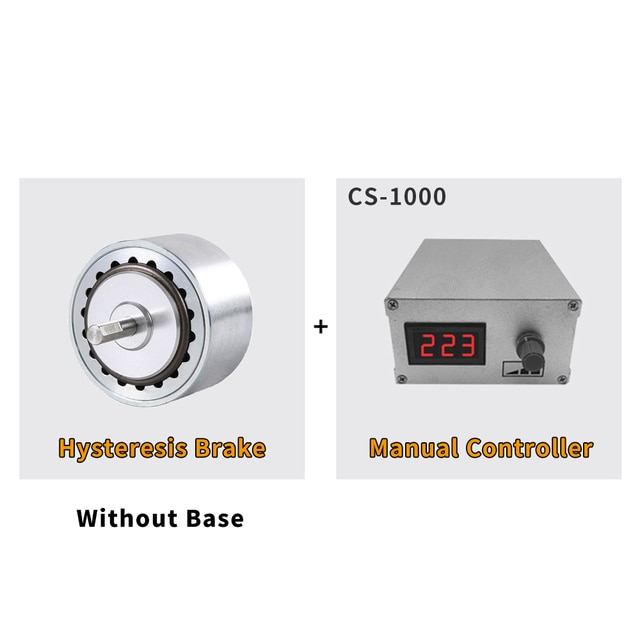

1* Hysteresis Brake
1* Constant current control power supply

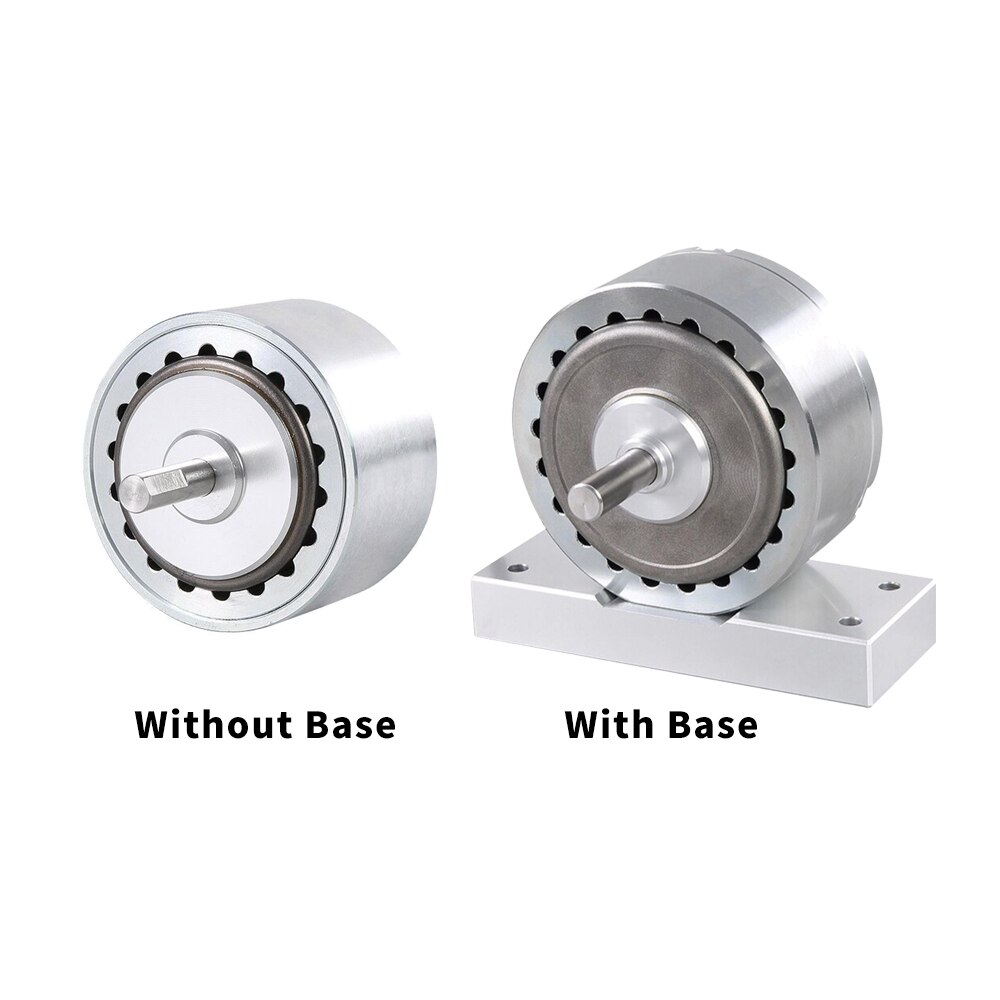

Air cooled hysteresis brake(Fill air for cooling): 0.02Nm/ 0.05Nm/ 0.1Nm

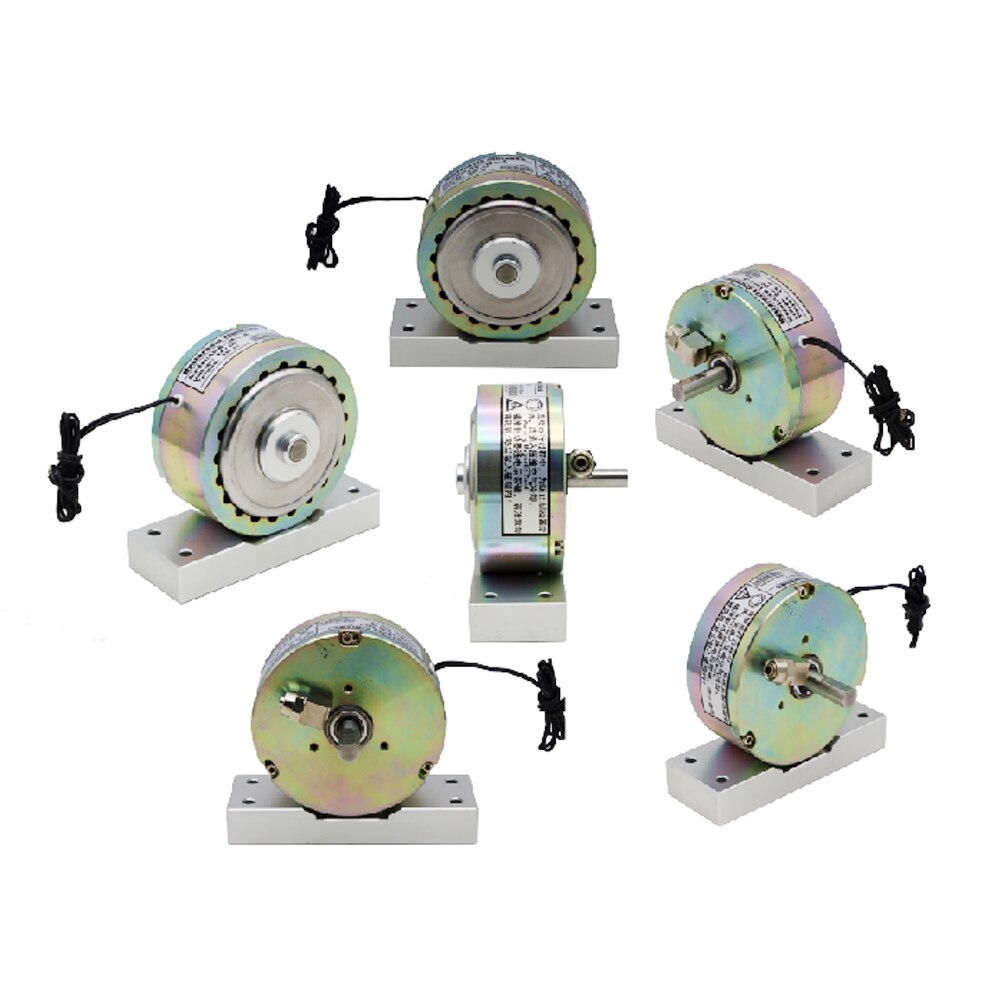

Natural cooled hysteresis brake:0.2Nm-8Nm

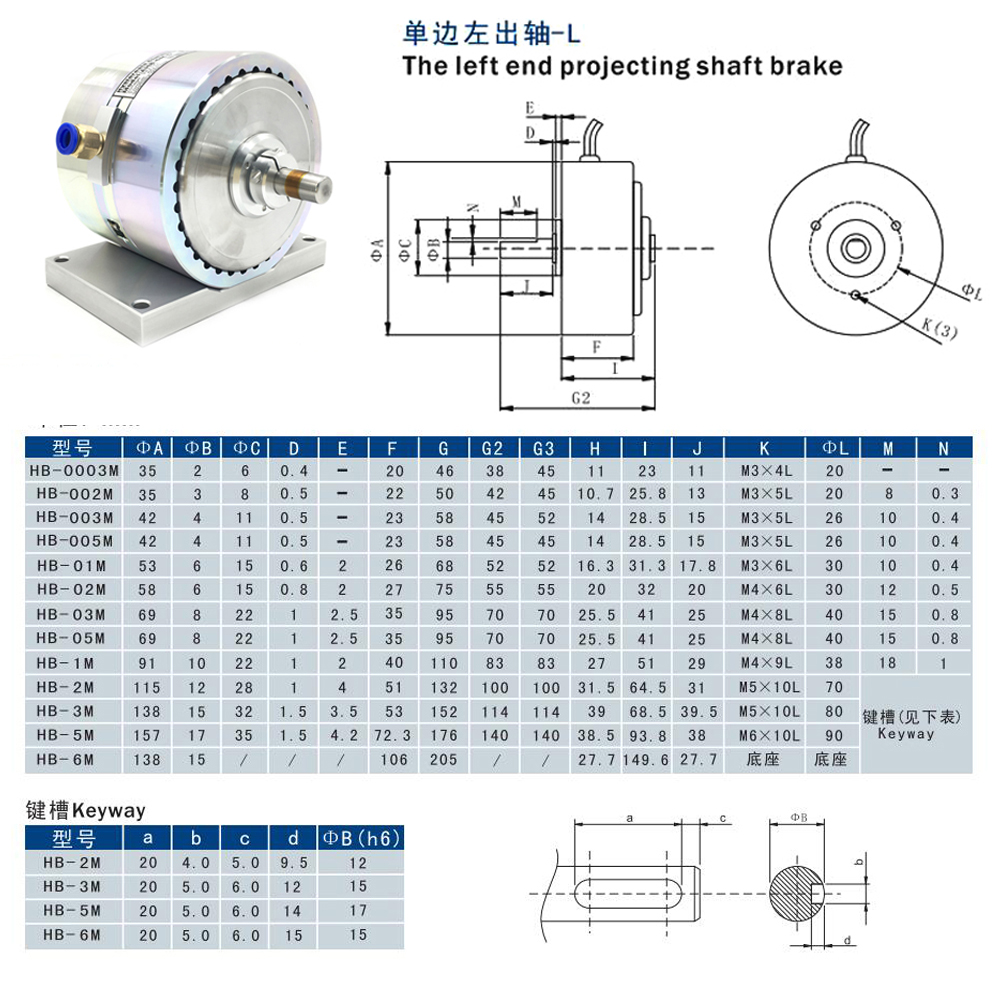

Single output shaft: 0.02Nm-5Nm
Double output shaft: 6Nm-8Nm
We can provide the quotation of 5Nm/6Nm/8Nm hysteresis brake

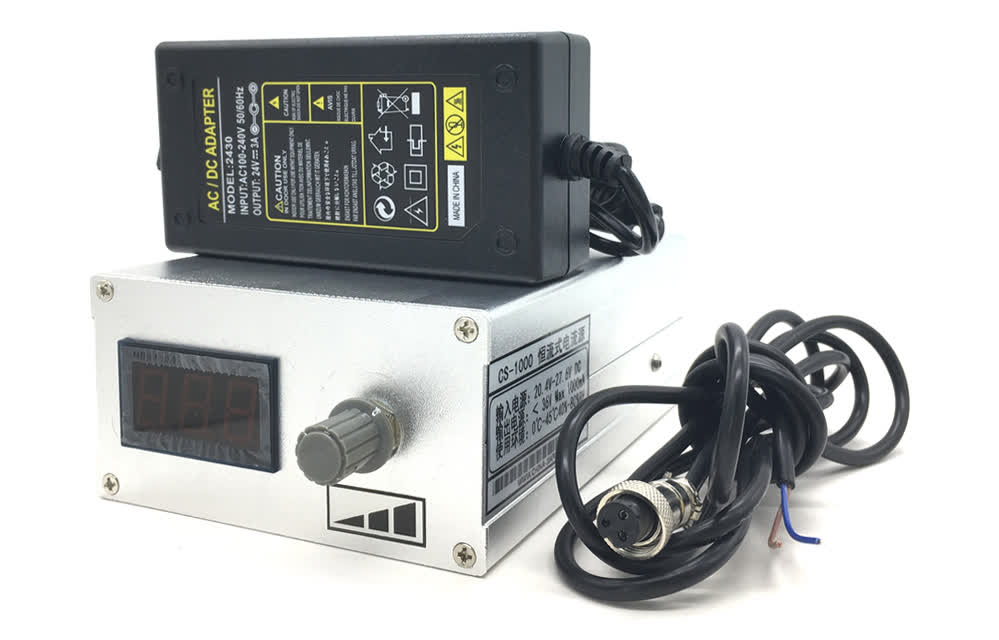

Constant current control power supply

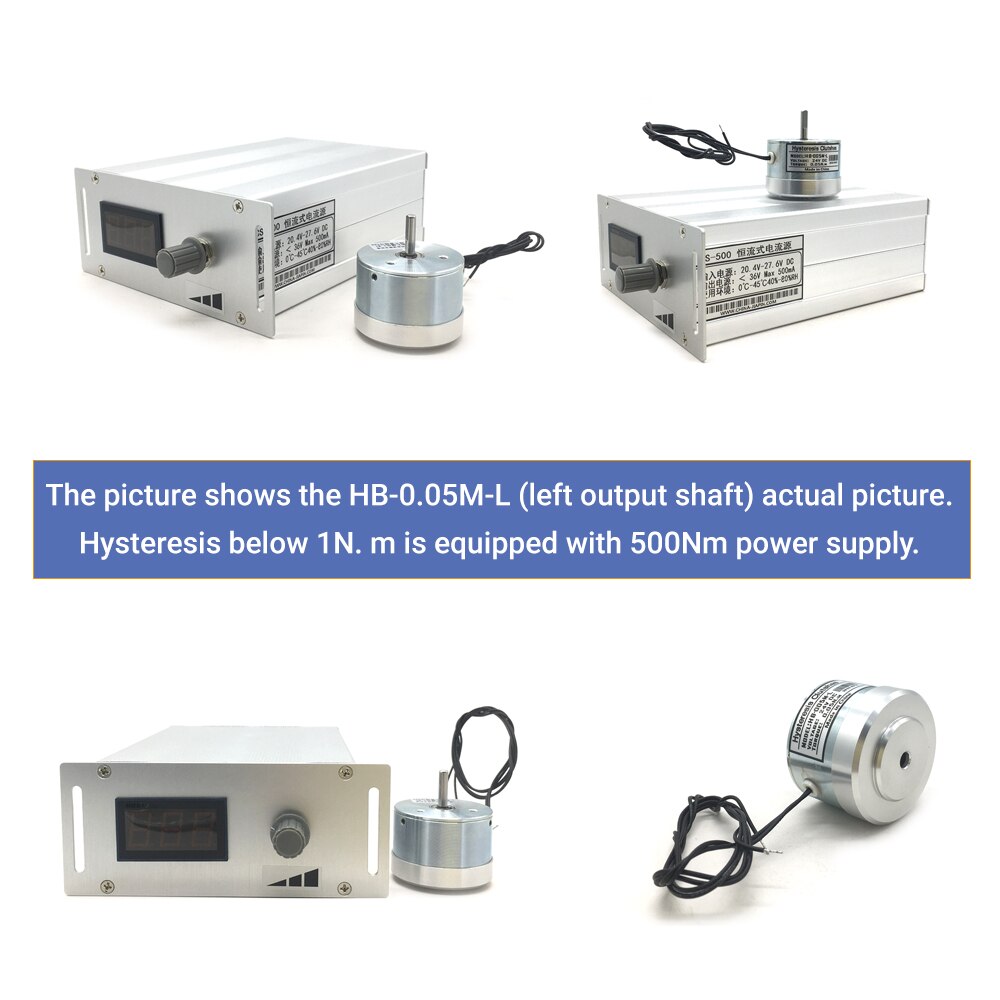

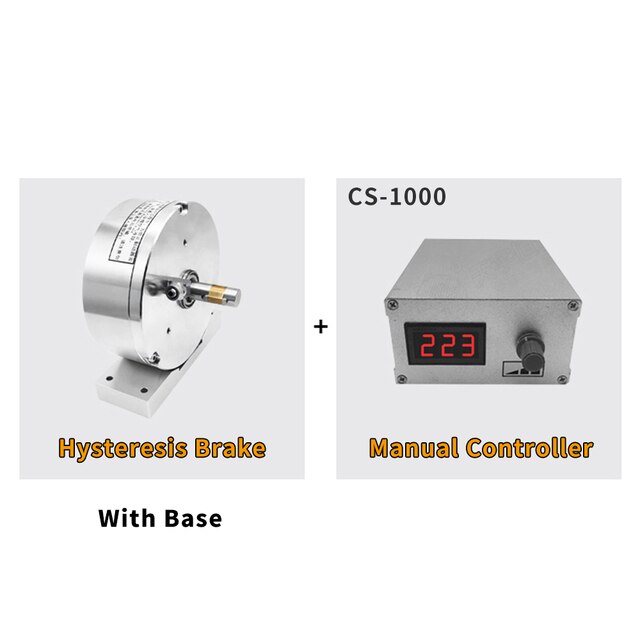

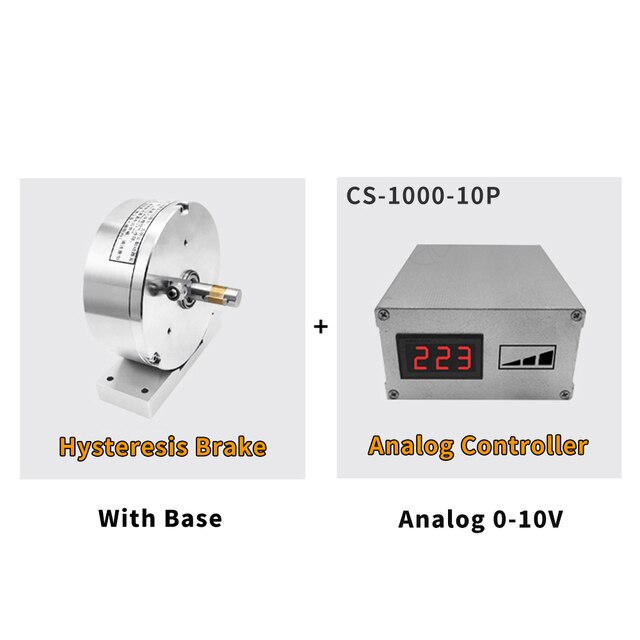

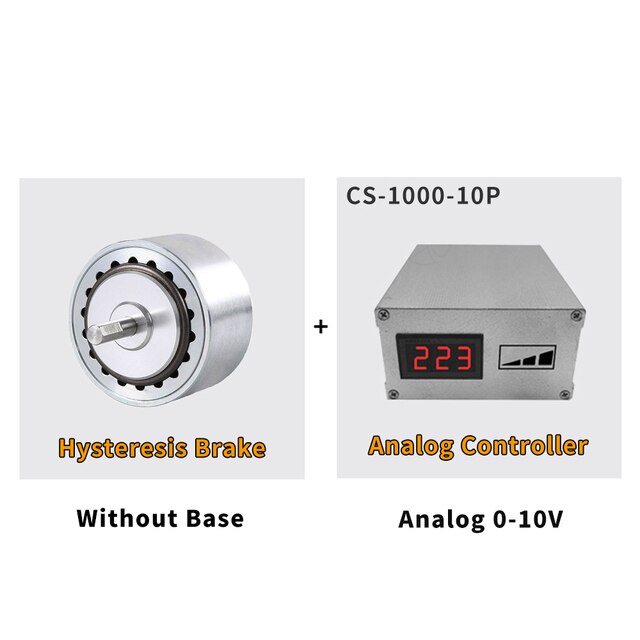

Model: CS-1000 (Manual controller); CS-1000-10P (External analog 0-10V controller)
Input power: 20.4-27.6VDC 20-250mA
Input signal: 20-26VDC; 5-10mA
Output signal: <36V Max 500mA/1000mA
Operating environment: 0 ℃ - 45 ℃ 0% - 80% RH

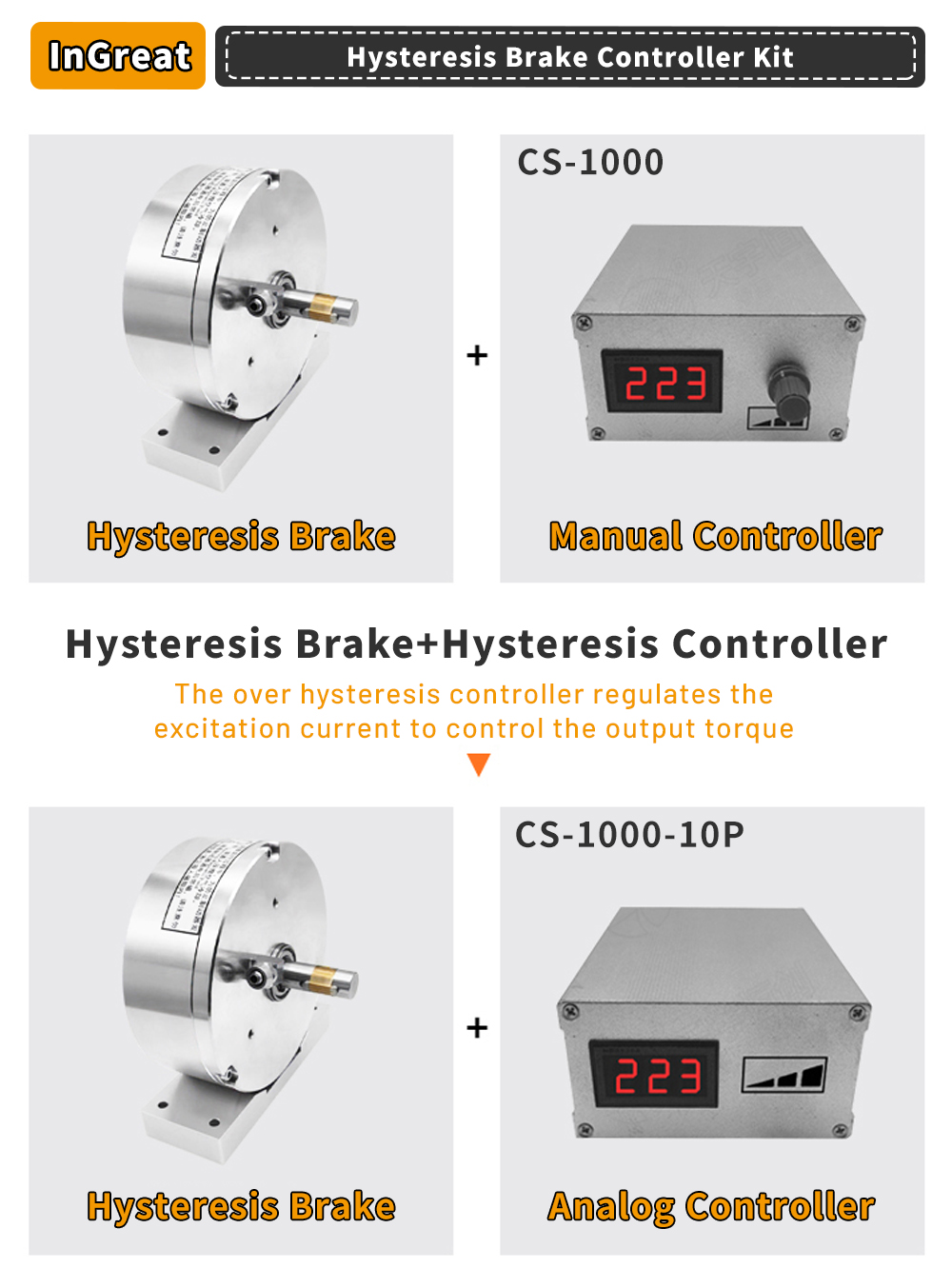

The "CS" power supply regulates and controls the torque of the brake through a 10 turn potentiometer,
which is basically recognized and collocated on the network.

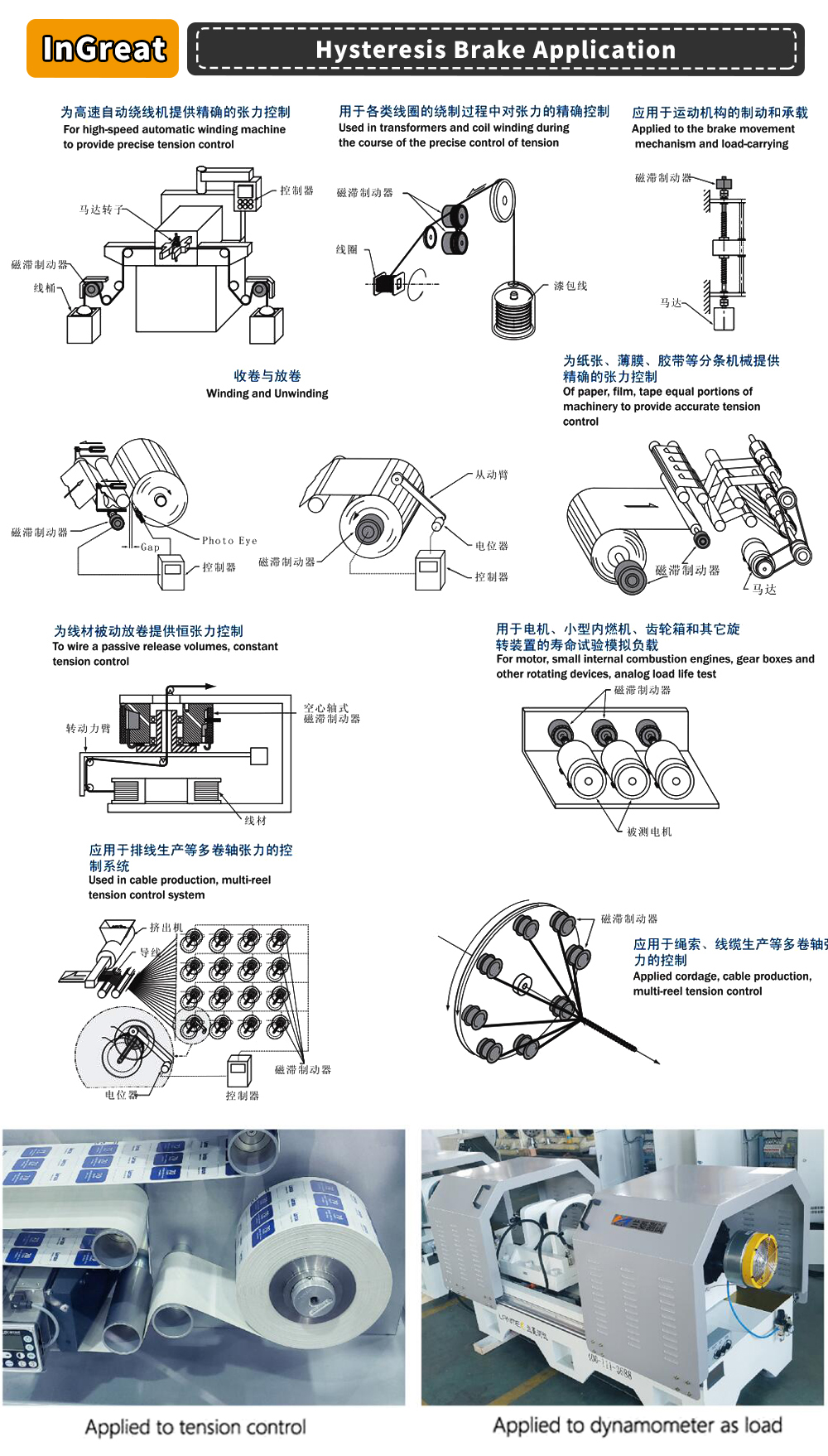

Function:
1.As torque load and power absorption, it is applied to life test of test platform and driver.
2.As a tension control, it is applied to the unwinding and paying off equipment of wire, cable, rope, wire, paper and video tape.
3.It is used as coupling and overload protection during the loading process.
4.Quiet and silent, no friction, maintenance free, long service life.
5.Torque is largely independent of speed.
6.The torque is infinitely adjustable.
7.Wide speed range.

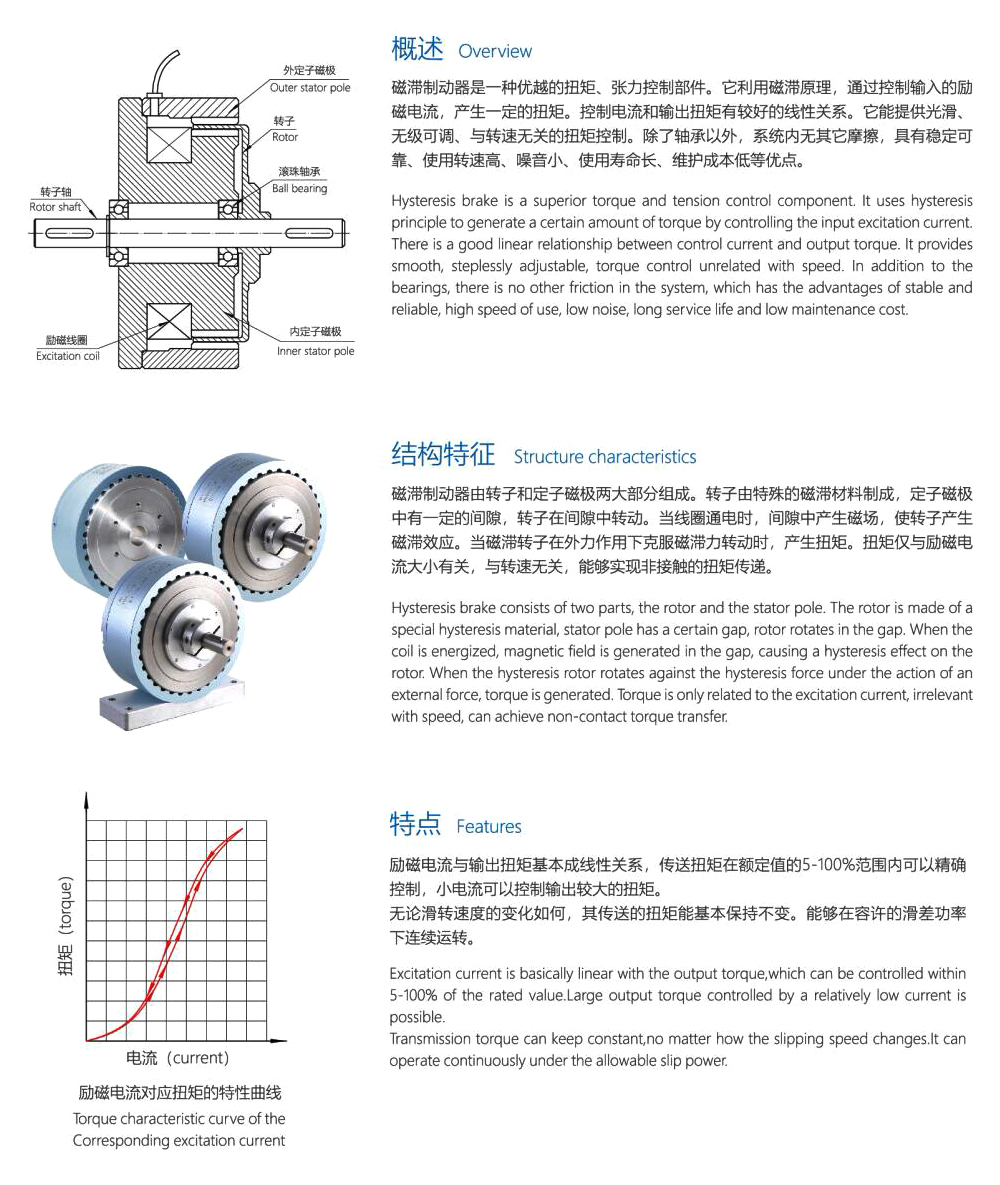

Features:
The excitation current is basically proportional to the output torque. The transmission torque can be controlled within 5-100%
of the rated value, and the output torque is 100% - 135% of the rated torque. Small current can control the output torque.
No matter how the slip speed changes, the transmitted torque can basically remain unchanged.
It can continuously slide under the allowable slip power, and there are no other wearing parts except the bearing.
Contactless torque transmission, smooth operation, wide speed range, maintenance free, long service life.
- Voltage: DC 24V
- Material: Carbon Steel
- Model Number: HB-0.02M-L+CS-1000
- Brand Name: YUN DUAN
- Origin: Mainland China
- Certification: CE
- type: Hysteresis Brake,Electromagnetic Hysteresis Brake,Load Tension Controller,20000RPM Hysteresis Brake
- MAX speed: 12000RPM-20000RPM

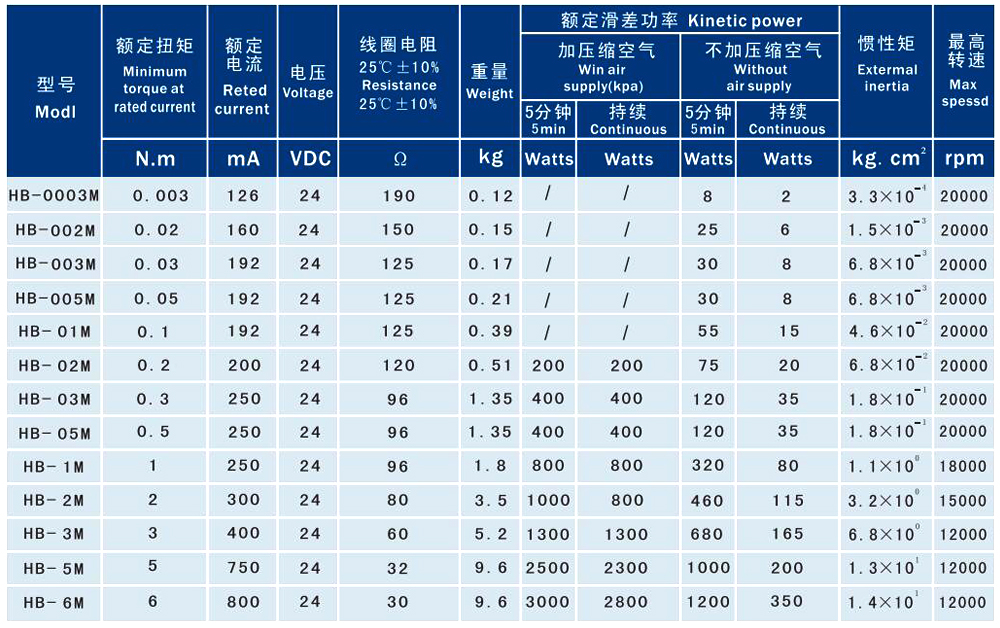

- Rated torque: 0.02Nm-8Nm
