Electromagnet 20/15 DC 6V 12V 24V Cylinder Electric Magnets 3KG/30N Strong Electromagnetic Solenoid Sucker Non-Standard Custom

5.0 (2 votes) | 26 orders
Price: US $10.55 / piece
Discount Price:
US $ 9.77 / piece
-7%
Color
Quantity

Please click"Click Buy"to buy other models whcih you need:


Model

Diameter

Height

Suction


Model

Diameter

Height

Suction


WL-20/15

20mm

15mm

3KG

WL-25/11

25mm

11mm

5KG

WL-25/20

25mm

20mm

5KG

WL-30/22

30mm

22mm

10KG

WL-30/25

30mm

25mm

12KG

WL-34/18

34mm

18mm

18KG

WL-34/25

34mm

25mm

20KG

WL-40/20

40mm

20mm

25KG

WL-40/25

40mm

25mm

30KG

WL-49/21

49mm

21mm

40KG

WL-50/27

50mm

27mm

50KG

WL-50/30

50mm

30mm

60KG

WL-59/34

59mm

34mm

70KG

WL-60/60

60mm

60mm

100KG

WL-65/30

65mm

30mm

80KG

WL-70/9

70mm

9 mm

15KG

WL-70/10

70mm

10mm

20KG

WL-80/10

80mm

10mm

25KG

WL-80/38

80mm

38mm

120KG

WL-100/40

100mm

40mm

150KG

1pcs Wireless Remote Control 70/10

1 pcs 70/10

1 set Control

20KG

2pcs Wireless Remote Control 70/10

2 pcs   70/10

1 set Control

20KG

1. The adsorbed object must be iron;

2. Select the correct voltage and product model;

3. The contact surface is smooth, flat and clean;

4. The surface of the magnet must be closely attached to the adsorbed object without any gap;

5. The area of the adsorbed object shall be greater than or equal to the maximum diameter of the magnet;

6.The object to be sucked must be close, the middle can't be interspersed with objects or gaps  (Contrary to any conditions, suction will be reduced, not the maximum suction.)

Please pay attention when you want to buy.Refused to dispute, at your own risk.

Magnet heating is a normal phenomenon, in the use of the process, coil current heating, but the temperature will not affect other objects.


Notice:(We were unable to synchronize the main image for each product so explain it here)

Due to different production batches, we will use different colors of wires.

The product itself is not different, please feel free to use.

For specific parameters, please refer to the label on the main body of the product.

We will guarantee the quality of the products. Thank you for your understanding.

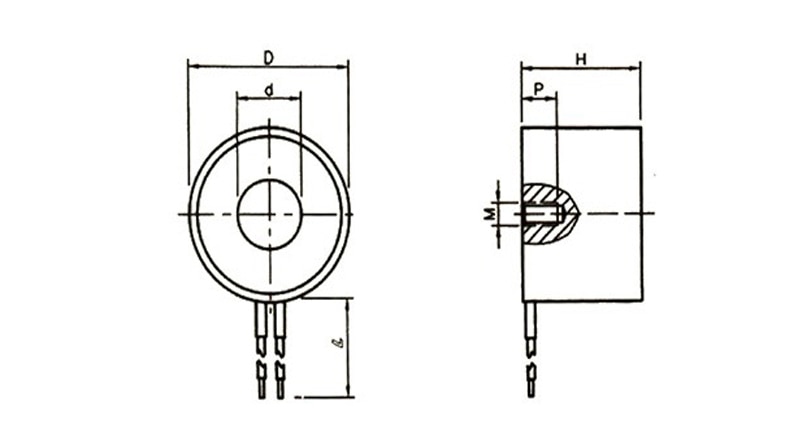

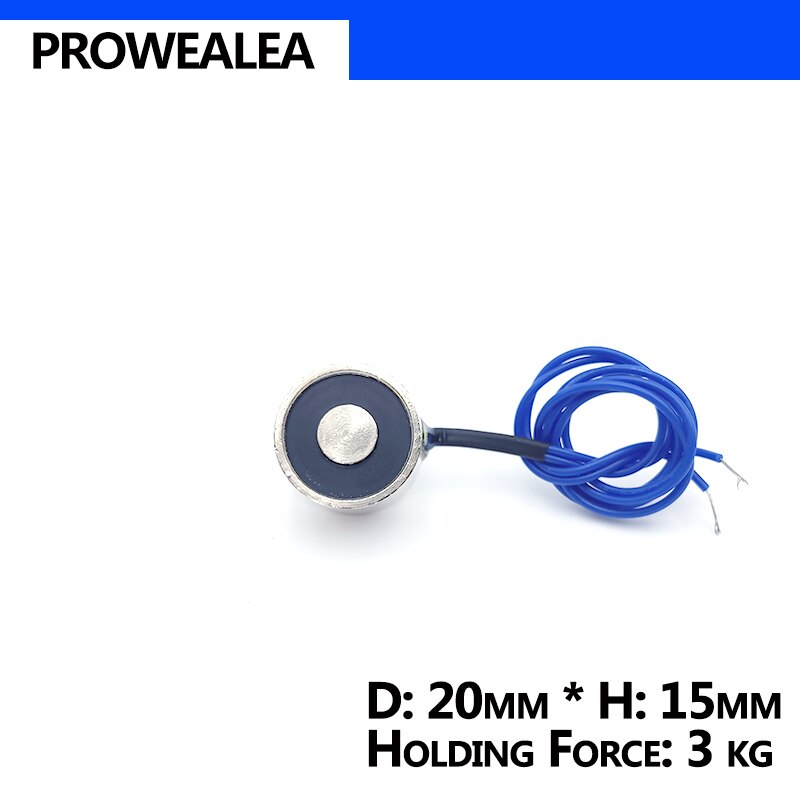

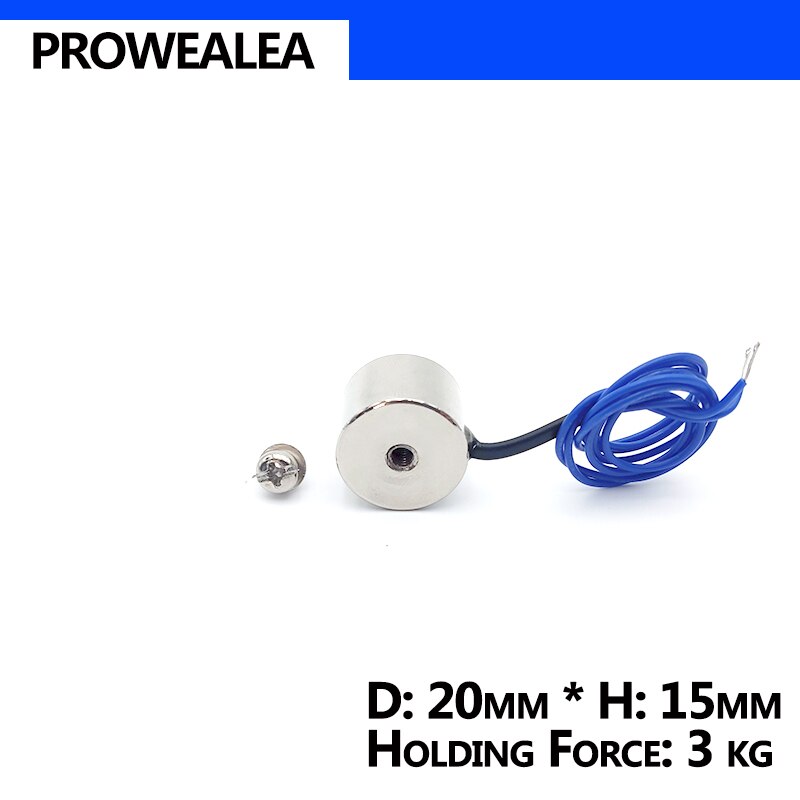

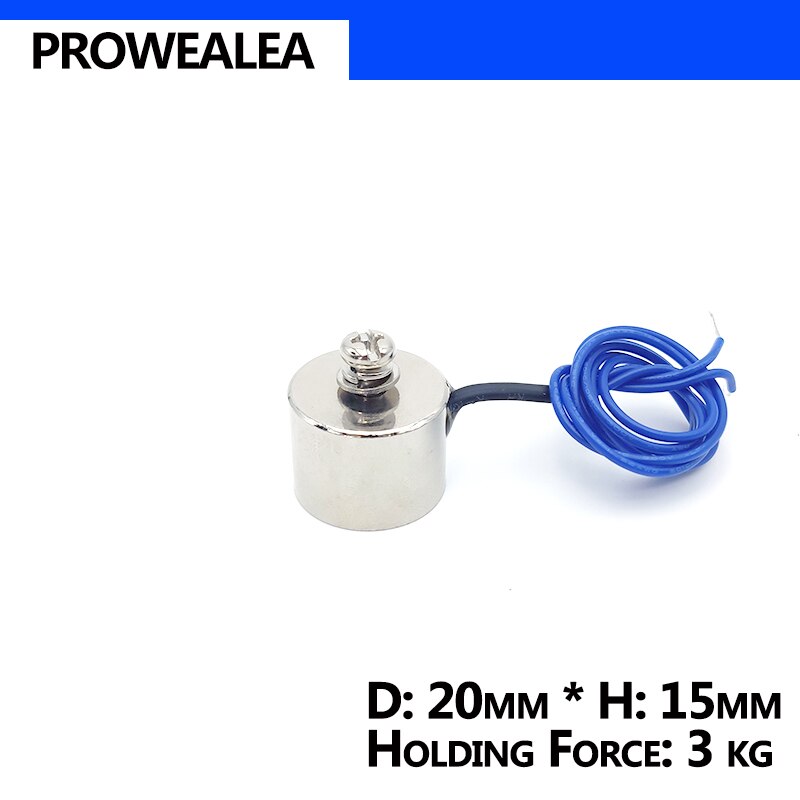

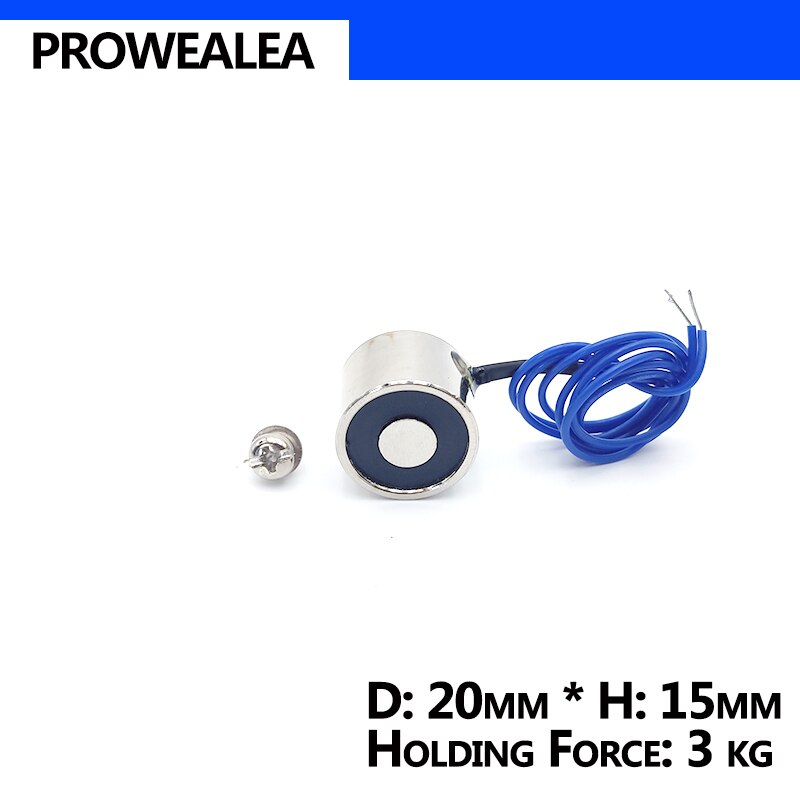

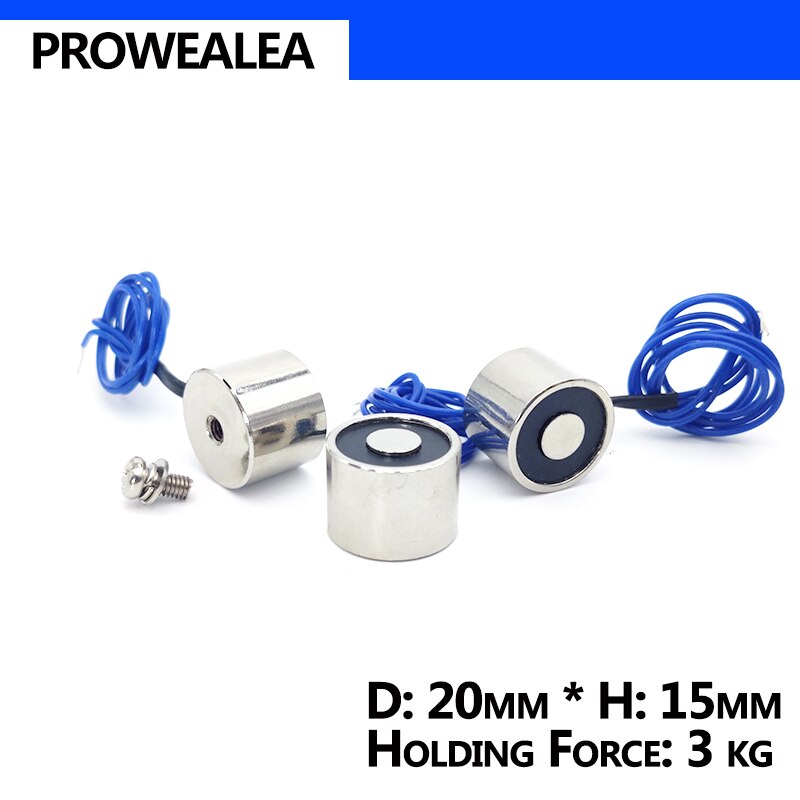

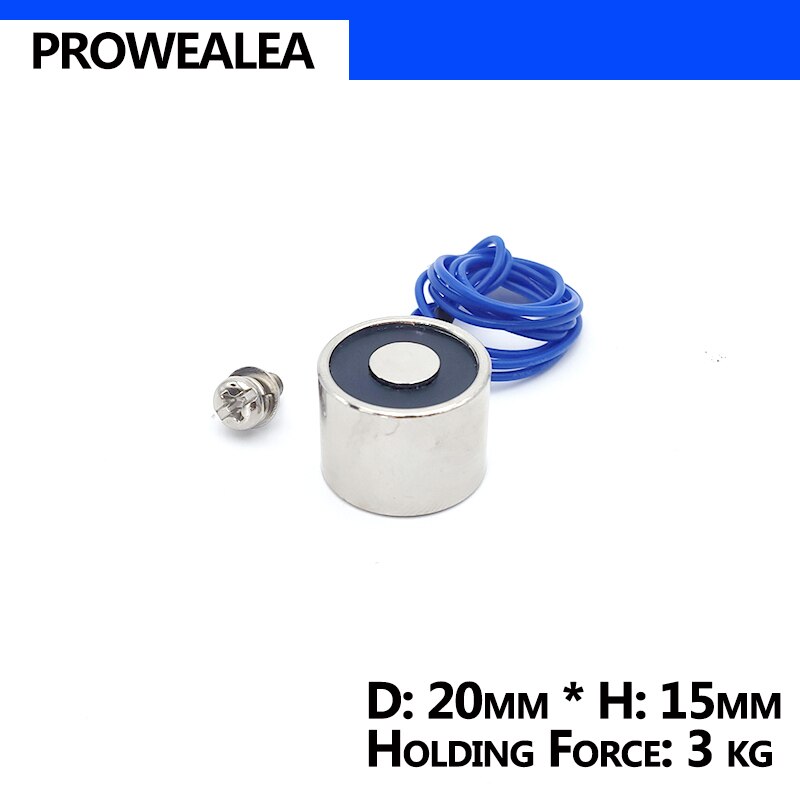

(D) Diameter: 20 mm                 (H)Height: 15mm
Center Diameter: 8 mm

Lead Length: 200 mm

Thread Size: M4

Holding Force: 3KG/30N


Model:WL-20/15

Item:Holding Electric Magnet

Input Voltage: DC 6V 12V 24V 36V(Optional)

Power Consumption: 3W

Material: Metal

Color: Silvery


Payment

We accept Alipay, T/T, PayPal and Visa payment. Except the Alipay, the transform charge is to customer's side. Please pay the order within 3 days, and we will arrange the shipment 1-2 days.

After Service

  1. You have 7 days to contact us and 30 days to return it from the date it was received. If this item is in your possession more than 7 days, it is considered used and WE WILL NOT ISSUE YOU A REFUND OR REPLACEMENT. There are NO EXCEPTIONS! Shipping cost is bear by both seller and buyer in half.

  2. All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your po#.

  3. We will refund YOUR FULL WINNING BID AMOUNT, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER BOTH Buyer and Seller cancel the transaction from Hogaki. OR, you may choose to have a replacement.

  4. We will bear all the shipping cost if the product(s) is (are) not as advertised.

Feedback

Your satisfaction and positive feedback is very important to us.

Please leave positive feedback and 5 stars if you are satisfied with our items and service. If you have any problems, please feel free to contact us firstly before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.




  • With Holes: Yes
  • Application: Industrial Magnet
  • Composite: Rare Earth Magnet
  • Model Number: WL-20/15
  • Shape: Block
  • Type: Solenoid
  • Brand Name: PROWEALEA
  • Origin: Mainland China
  • Certification: CE
  • Color: Silvery
  • Holding Force: 3KG
  • Input Voltage: 6V/12V/24V/36V(Customized)
  • Power Consumption: 3W
  • Size: D:20mm H:15mm
