ID: 75620

EARU TM619 AC 220V 230V 240V Digital LCD Power Timer Programmable Time Switch Relay with UL listed relay 16A, easy wiring.

4.5 (2 votes) | 4 orders
Price: US $25.06 / piece
Discount Price:
US $ 24.92 / piece
-1%
Quantity

MULTIPURPOSE 7 DAYS PROGRMMALBE TIMER SWITCH HAS FIVE FUNCTIONS:


1. CLOCK DISPLAY

2. TIMER (12/24hr FORMAT)

3. COUNTDOWN

4. AUTO TIME DEFLECTION CORRECTION, WEEKLY

5. SLEEP MODE


Usage:

The TM619 timer MODULE can open or close kinds of electrical apparatus and power automatically, according to the preset time,the items can be streetlight, neon light (sign), billboard, electrical appliances, broadcast equipments etc., the digital timer switch is within rechargeable battery, in 1.2V/40Ma, high-accuracy CMOS chip, strongly anti-jamming, easy to use.


Why choose SinoTimer TM619?

1. 15.98 inch big screen LCD display.

2. Excellent load capacity, voltage output. 220VAC INPUT, AND 220V OUTPUT.

3. Easy program, everyone can program it after he reads the manual JUST one time.

4. Stable performance because of professional manufacturing in power saver since 2002.

5. Confirm to CE standard, and with LVD, EMC certificate passed


Characteristics:

* You can use the timer to SWITCH ON/OFF any electrical equipments at a preset timer

* 16 ON/OFF programs per day, 15 combinations to a week.

* 24 hours / 7 days a week programmable.

* Built-in battery for backup the memory (save the programs you set)when power failure

* Auto time error correction +/- 30 sec, weekly

* Repeat programs with 16 on/off settings, and setting on/off manually,

* Easy to read LCD display, LED indicators


Voltage Choice:

6Vdc, 12Vdc,24Vdc,36Vdc, 48Vdc, 110Vac,230Vac


Techanical Data:

Model

TM-619H-2

Temp.range: -20°C+50°C

Ui:220Vac

Power consumption 4.5 VA (MAX)

Display: LCD

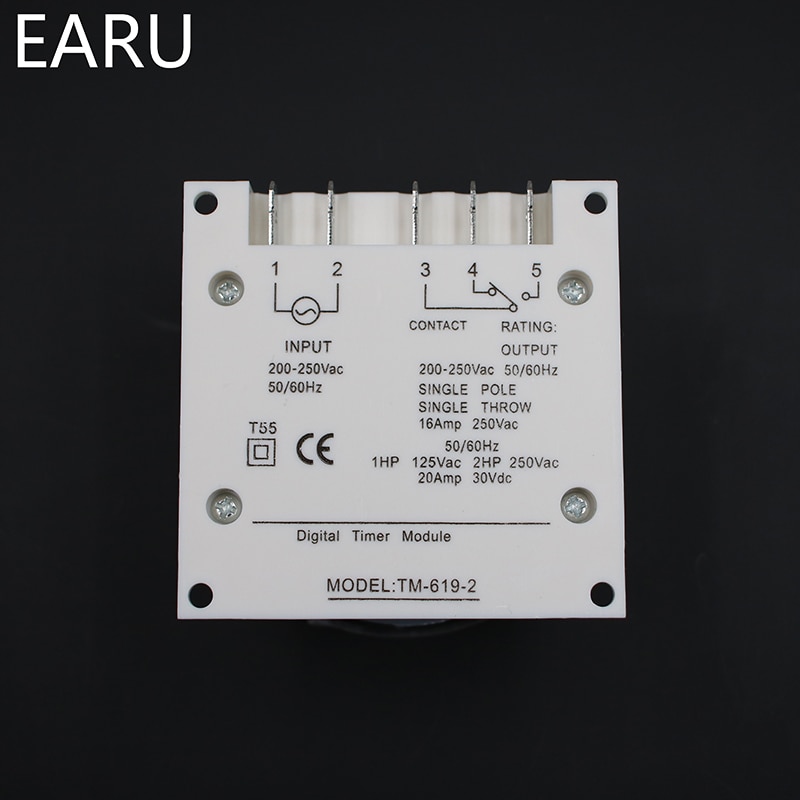

Switching contact: 1 changeover switch

Programs:8(16) on/off each day or week

Hysteresis 2 sec/day (25°C)

Mini interval: 1min

Capacity: 16(8) 250V AC

Black-out: 60 days

Timer range: 1min~168hr

Recharge battery: 1.2V 40Ma

Average error: 1s/24h, 25°C

Weight: 0.15kg



Packaging Details

  • Unit Type: piece
  • Package Weight: 0.15kg (0.33lb.)

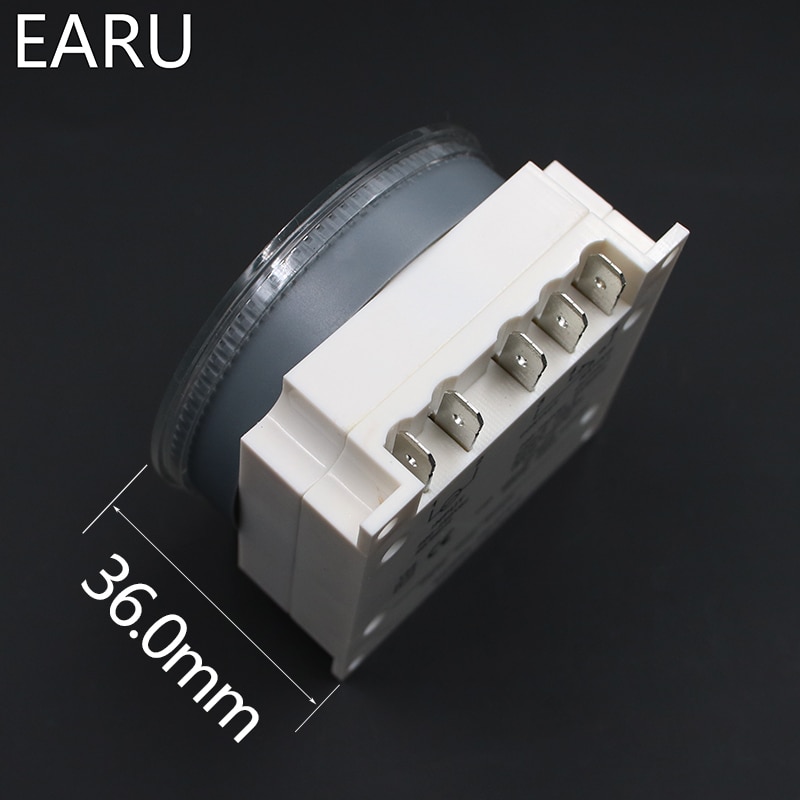

  • Package Size: 6cm x 6cm x 3cm (2.36in x 2.36in x 1.18in)

  • Usage: Timer Switch
  • Theory: Digital
  • Model Number: TM-619H-2
  • Type: Mini
  • Brand Name: EARUELETRIC
  • Origin: Mainland China

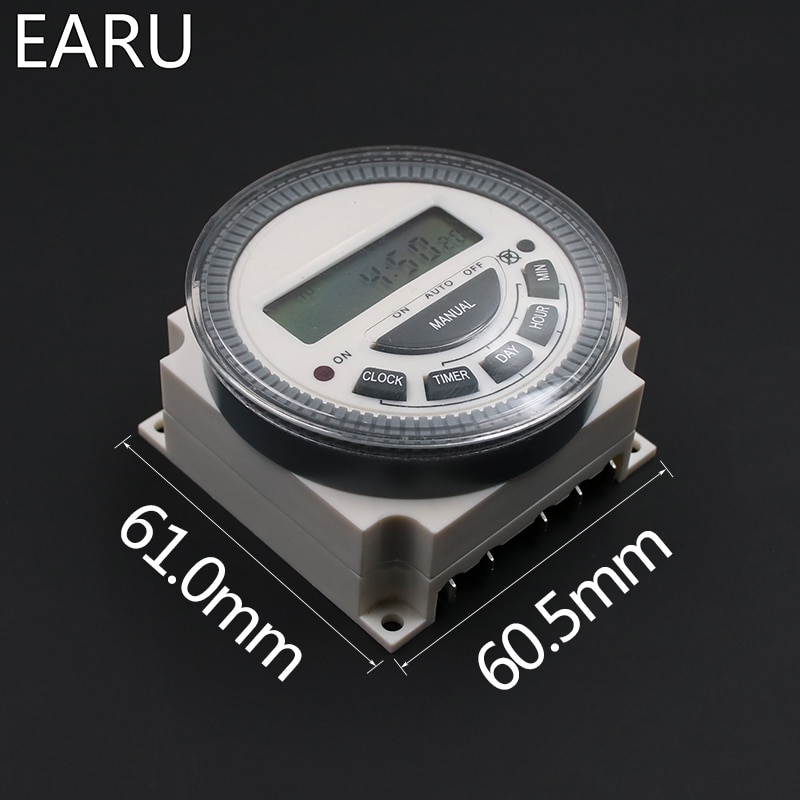

  • DIMENSION: 60*60*30mm
  • POWER SUPPLY: 220~240VAC
  • OUTPUT: Voltage 220V AC
  • COVER: WATERPROOF
  • CERTIFICATES: CE ROHS EMC LVD
  • Unit Type: piece
  • Package Weight: 0.15kg (0.33lb.)
  • Package Size: 6cm x 6cm x 3cm (2.36in x 2.36in x 1.18in)
