DSE7320 7320 Auto generator controller Module Panel can well Replace the DSE 7320MKII some parts from Germany
5.0 (6 votes) | 48 orders
Price:
US $539.39 - 554.01
/ piece
Discount Price:
US $
351.48 -
360.60
/ piece
-35%
- Color

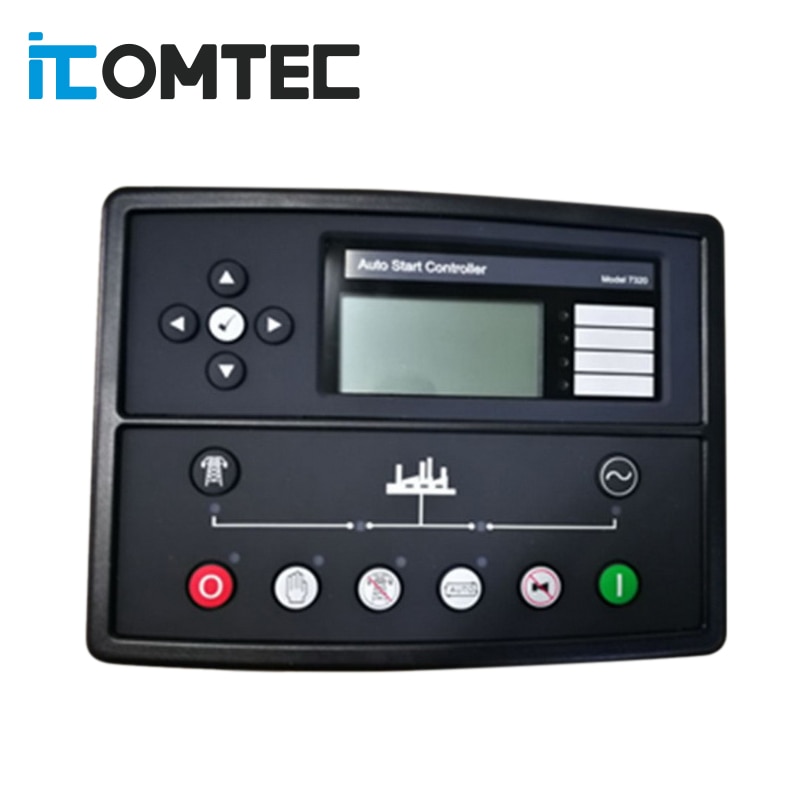

Generator Genset Auto Start Control Module P7320 replace DSE7320
good quality Original software can not be upgraded
high quality Original software can be upgraded
pls noted :the quality is higher than the weight is heavy
Product Description

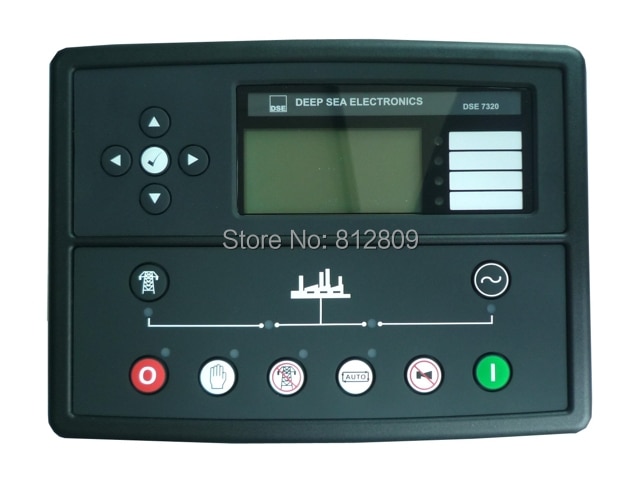

The 7320 is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.
Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs, remote PC and via SMS text alerts (with external modem).

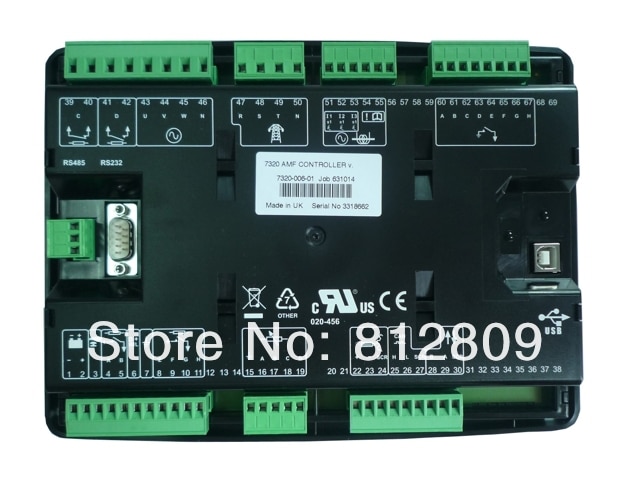

The 7320 will monitor the mains (utility) supply and includes USB, RS232 and RS485 ports as well as dedicated terminals for system expansion.
I.Feature:
4-Line back-lit LCD text display
Five key menu navigation
Front panel editing with PIN protection
LED and LCD alarm indication
Customisable status screens
Power save mode
Support for up to three remote display units
9 configurable inputs
8 configurable outputs
Flexible sender inputs
Configurable timers and alarms
3 configurable maintenance alarms
Multiple date and time scheduler
Configurable event log (250)
Control logic facilities
Easy access diagnostic page
CAN and Magnetic Pick-up/Alt. sensing
Fuel usage monitor and low fuel alarms
Charge alternator failure alarm
Manual speed control (on compatible CAN engines)
Manual fuel pump control
Engine exerciser
?Protections disabled? feature
kW overload protection
Power monitoring (kW h, kV Ar, kV A h, kV Ar h)
Load switching (load shedding and dummy load outputs)
Automatic load transfer
Unbalanced load protection
Independent Earth Fault trip
USB connectivity
Backed up real time clock
Fully configurable via DSE Configuration Suite PC software
Configurable display languages
Remote SCADA monitoring via DSE Configuration Suite PCsoftware
User selectable RS232 and RS485 communications
SMS Messaging (additional external modem required)
Additional display screens to help with modem diagnostics
II.Benefits:
132 x 64 pixel ratio display for clarity
Real-time clock provides accurate event logging
Multiple date and time scheduler
Set maintenance periods can be configured to maintain optimum engine performance
Ethernet communications (via DSE860/865 modules), provides advanced remote monitoring at low cost
Modules can be integrated into building management systems (BMS)
Increased input and output expansion capability via DSENet®
Licence-free PC software
IP65 rating (with supplied gasket) offers increased resistance to water ingres
III.Specification:
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
MAXIMUM OPERATING CURRENT
340 mA at 12 V, 160 mA at 24 V
MAXIMUM STANDBY CURRENT
160 mA at 12 V, 80 mA at 24 V
CHARGE FAIL/EXCITATION RANGE
0 V to 35 V
MAINS (UTILITY)
VOLTAGE RANGE
15 V - 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
OUTPUTS
OUTPUT A (FUEL)
15 A DC at supply voltage
OUTPUT B (START)
15 A DC at supply voltage
OUTPUTS C & D
8 A 250 V (Volt free)
AUXILIARY OUTPUTS E,F,G,H
2 A DC at supply voltage
GENERATOR
VOLTAGE RANGE
15 V - 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
MAGNETIC PICK-UP
VOLTAGE RANGE
+/- 0.5 V to 70 V
FREQUENCY RANGE
10,000 Hz (max)
International Buyers Note:
Return Policy
·If you are not satisfied with your order, you can return/exchange in 14 days with full money refund (except shipping) as long as the products are in the original shape. please do contact us before you ship your order back, we will tell you the return address, After we received the package we'll refund or exchange to you . The returned item has to be in its original condition.
·We are able to refund your money without shipping cost.
Contact US
1. Customer satisfaction is very important to us and our feedback rating reflects this satisfaction.
2. If you have any questions, our Customer Service staffs welcome you to email or call us. We strive to answer all questions and resolve any problems as quickly as possible. If you have any questions please contact us before bidding! Thanks.
3. Please email us before leaving any negative feedback or open any dispute on Hogaki. We care about our valued customers, and will always try to help you. So if you have any problems, please e-mail us immediately.
Good Luck & Have a nice shopping experience! Keep in touch and we hope to see you again soon
- is_customized: Yes
- Model Number: DSE7320
- Brand Name: ICOMTEC
- Origin: Mainland China
- Condition: NEW
- Performance: Excellent
- Place of Origin: Zhejiang, China (Mainland)
