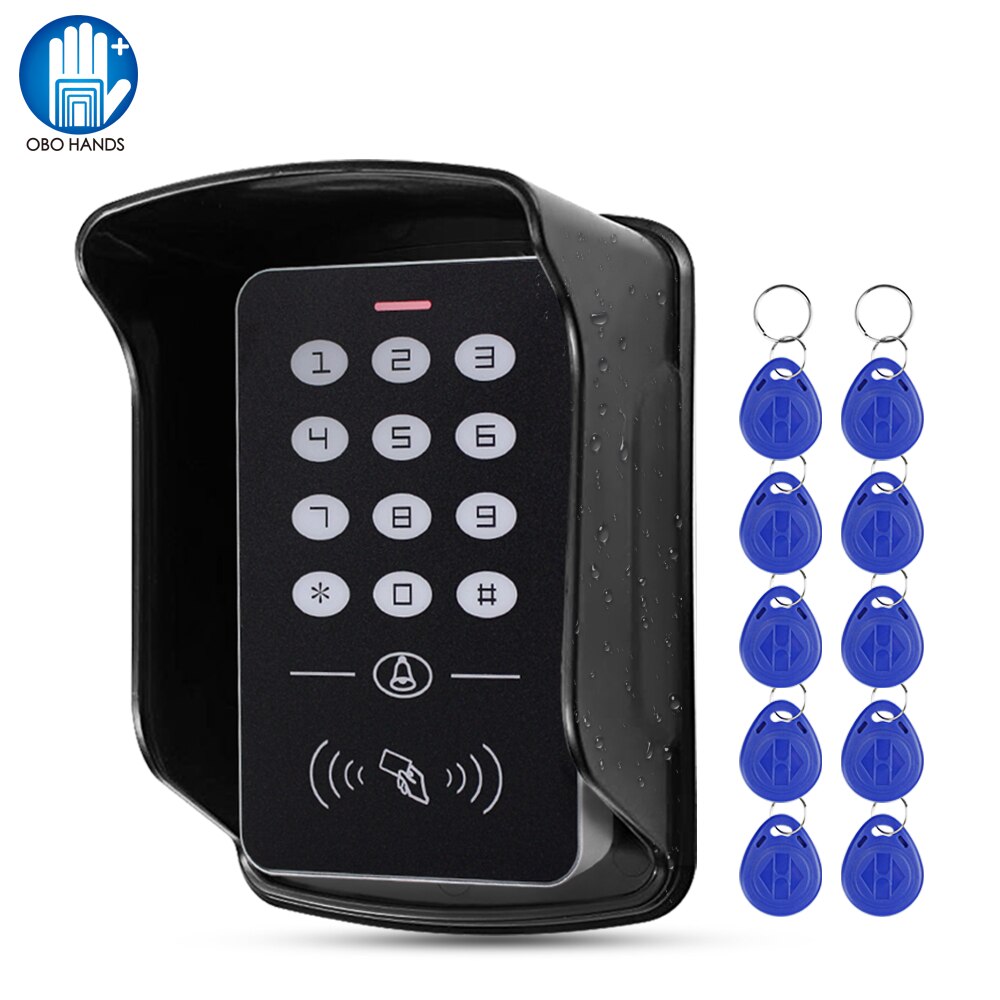

Door Access Control System RFID Keypad Waterproof Outdoor Cover 125KHz Standalone Controller Reader Door Opener 10pcs Keyfobs
4.7 (3 votes) | 63 orders
Price:
US $14.66 - 34.62
/ piece
Discount Price:
US $
12.46 -
29.43
/ piece
-15%
- Color
-
-

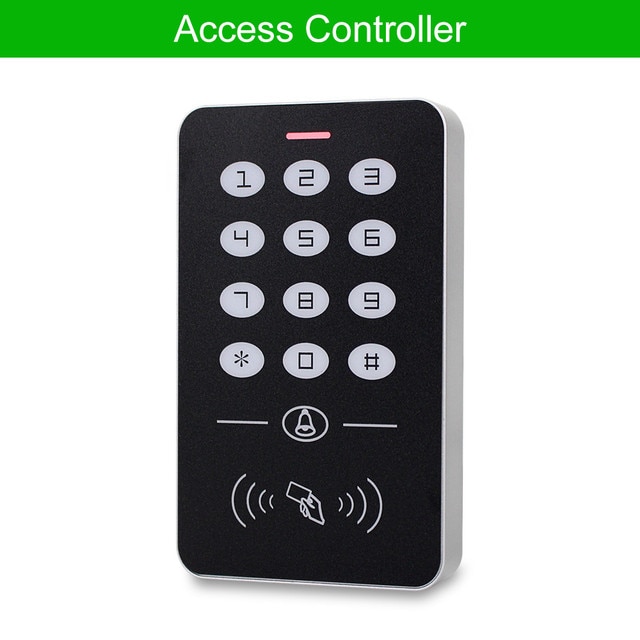

125KHz RFID Standalone Access Control Keypad
High quality / 1000 users capacity / 3 unlock methods
Product Description
High quality and high security.
Sensitively and response quickly.
1000 standard users .

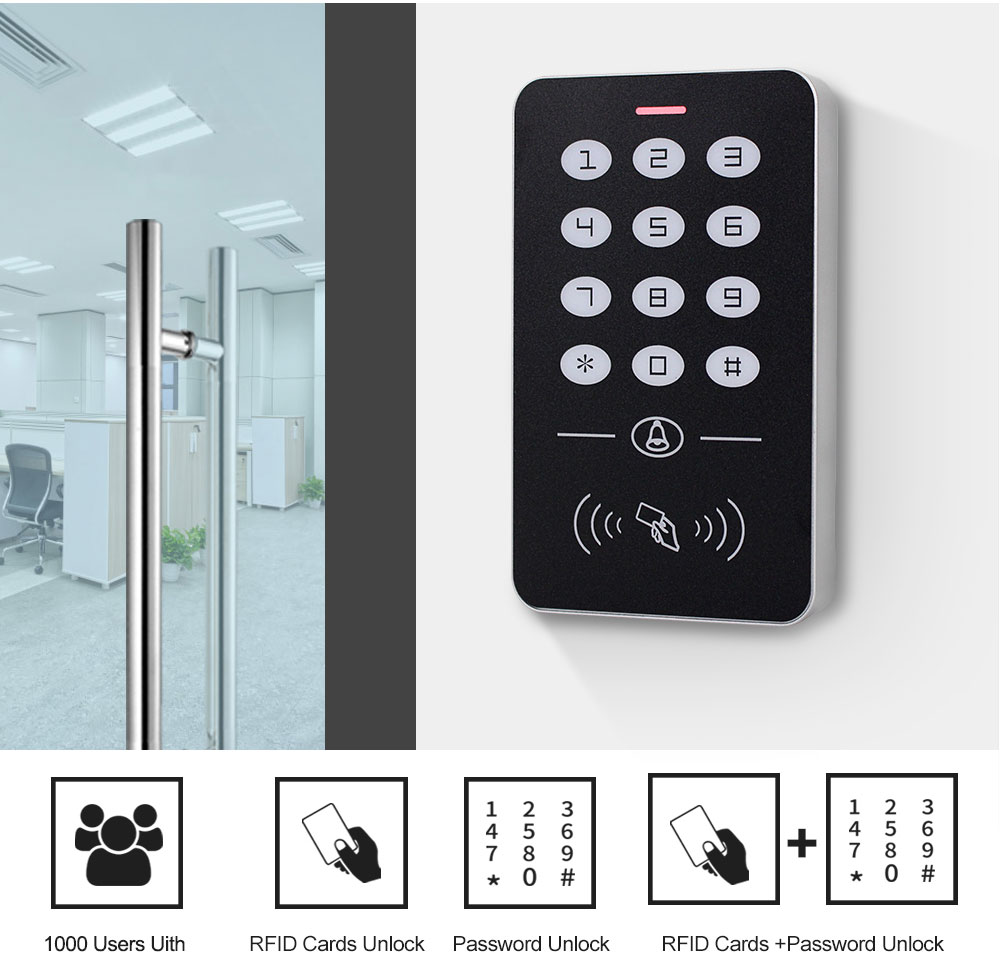

Support card, password, password plus card to open the door.
With door bell button.
Classical Appearance with useful function.
Doesn't need to connect to the computer, can works alone.
Application: Home/ hotel/ office/ department / apartment etc.
Product Specification
User capacity: 1000
Card reading type: EM card
Card reading distance: 0-5CM
Identification method: RFID card, password, RFID card + password
Programming password: 123456
Unlocking time: 5 seconds
Open the door input: all the way to open the button input
Doorbell output: one way wired doorbell output
Can be connected to automatic door or gate
Working voltage: DC 12V ±10%
Working power supply: 100mA

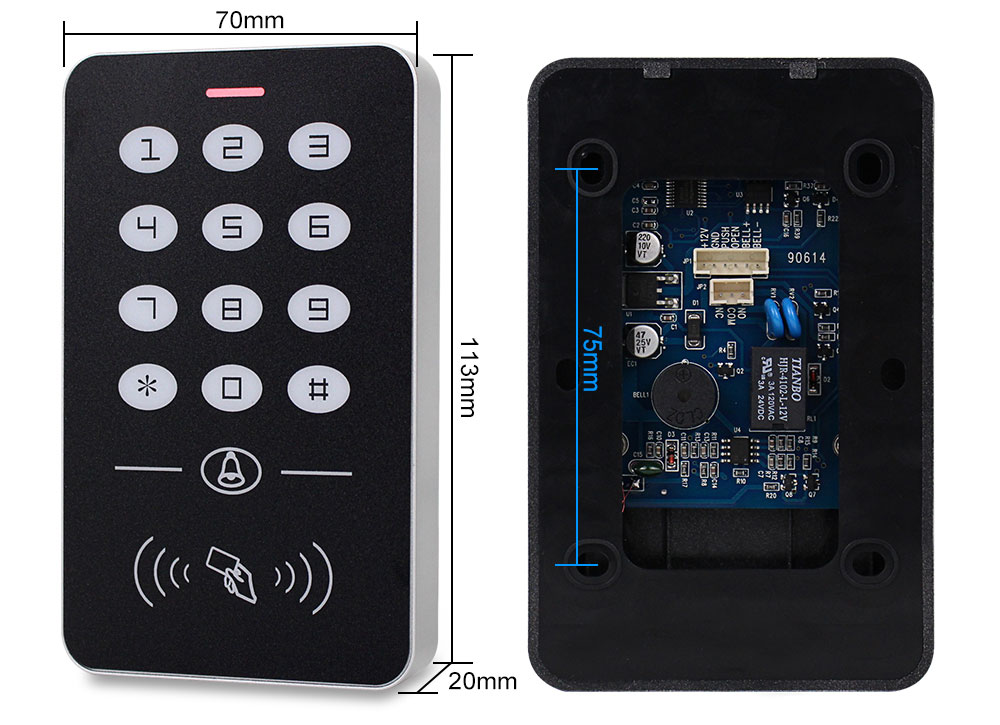

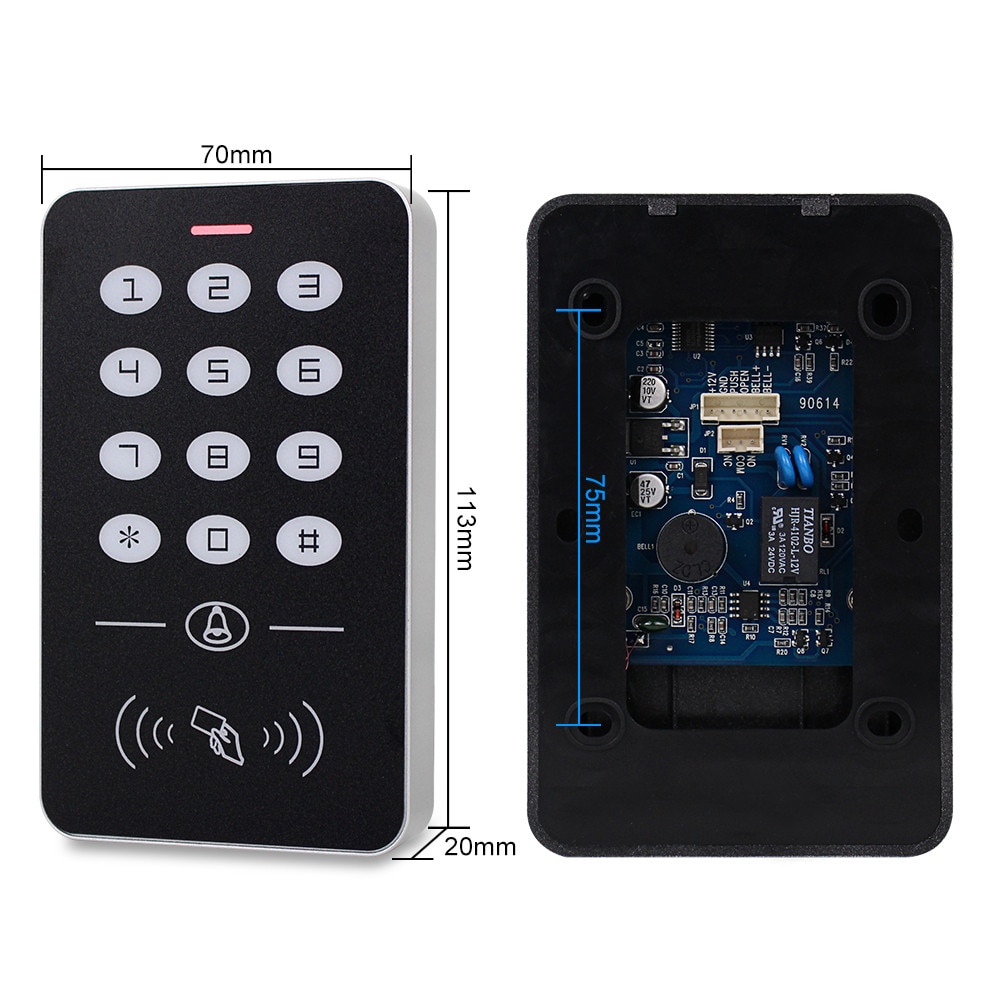

Size : 113*70*20mm
This Keypad is Not IP65 waterproof, can not be used under the rain directly

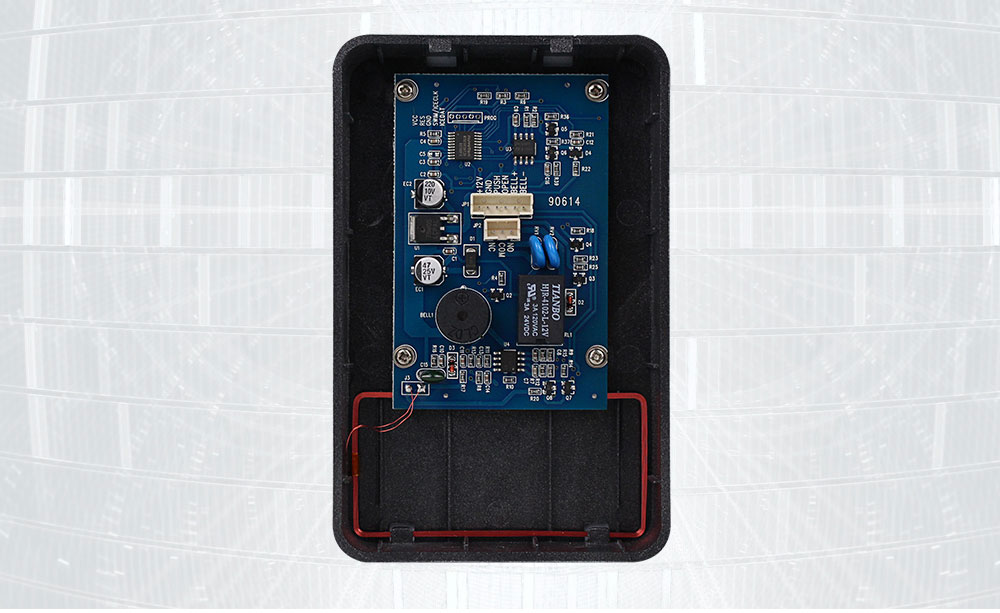

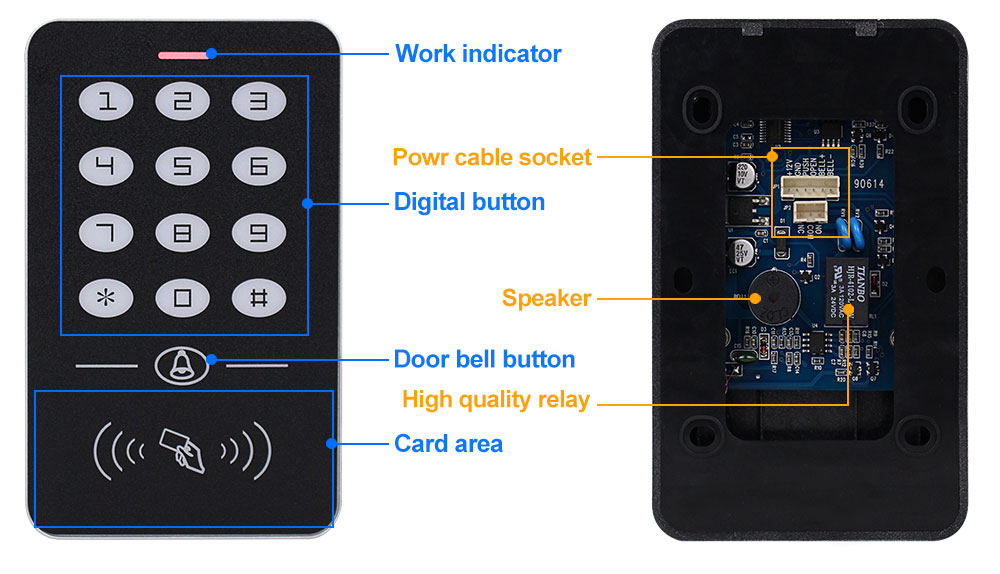

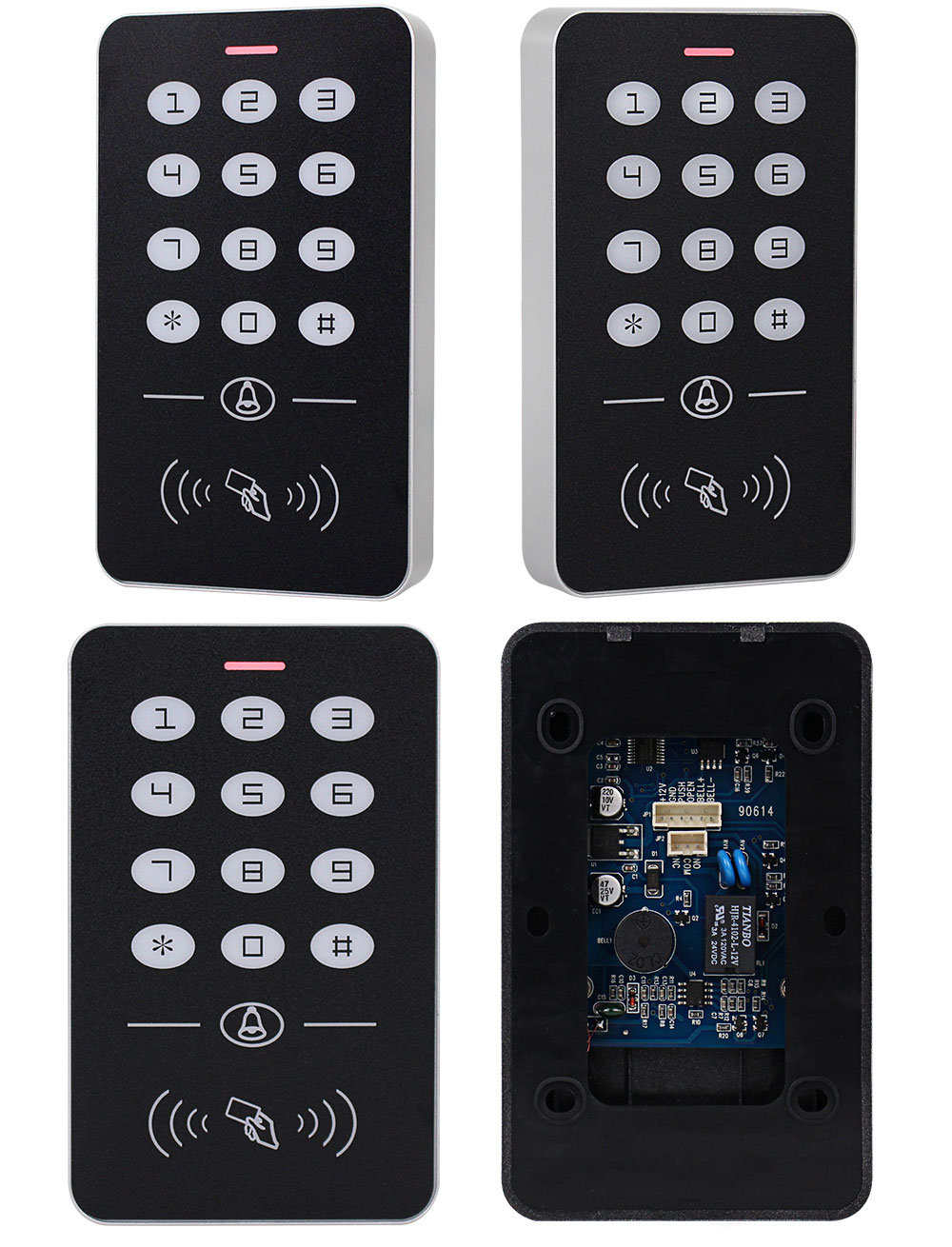

Product Details

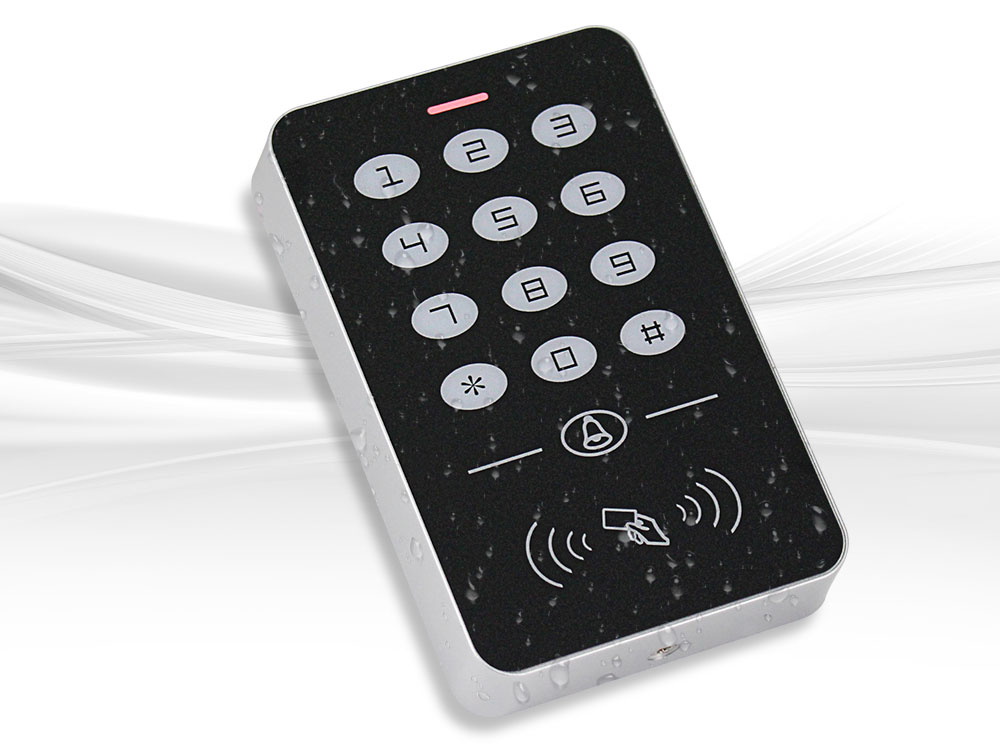

Made of High quality material, safe and durable
ABS fireproof material, make the product more secure and durable, anti-vandal, anti-tamper, suitable for different environmental installation. (This keypad is not IP65 waterproof, can't be used under the rain directly)

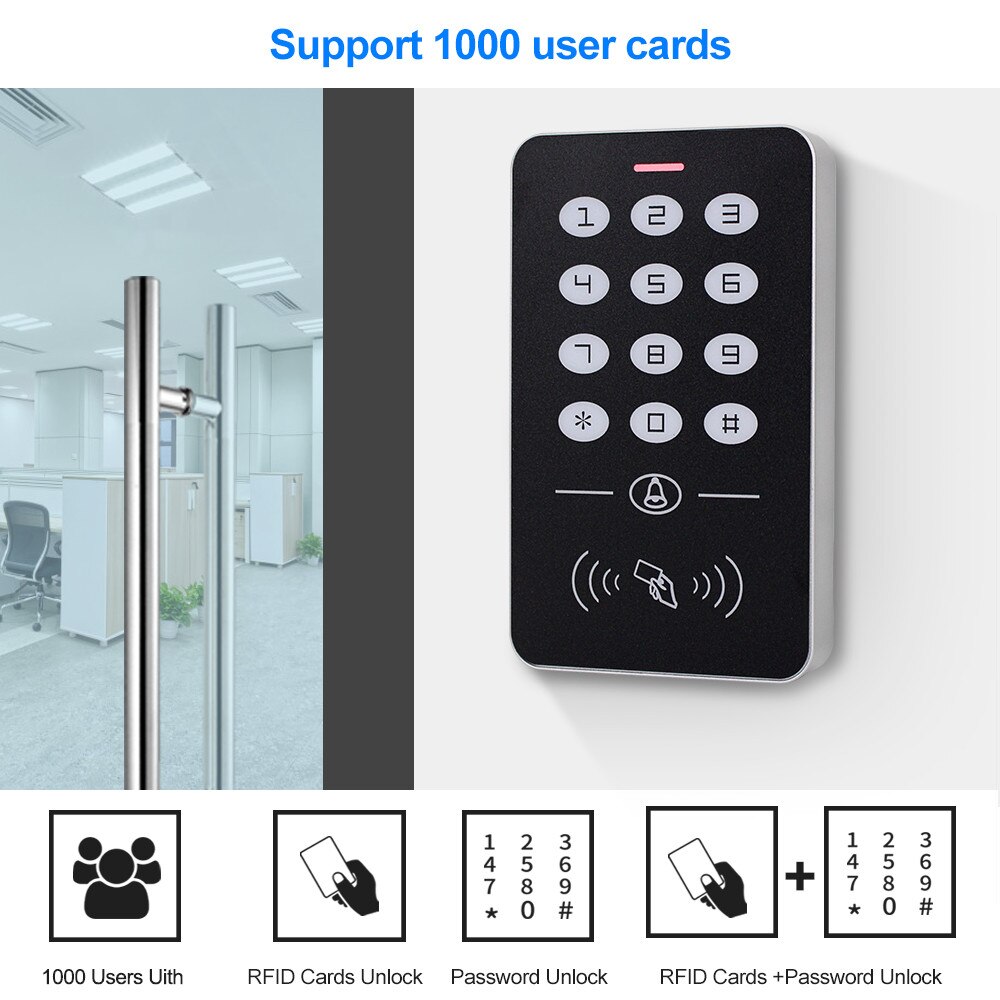

Support 1000 user cards. and 3-6 digits password. Has 3 different unlock methods.
( unlock with rfid card, password, rfid card + password)
Easy installation and operation
Based on advanced technology, fast recognition speed, high sensitivity. Suitable for most major access
control solution.

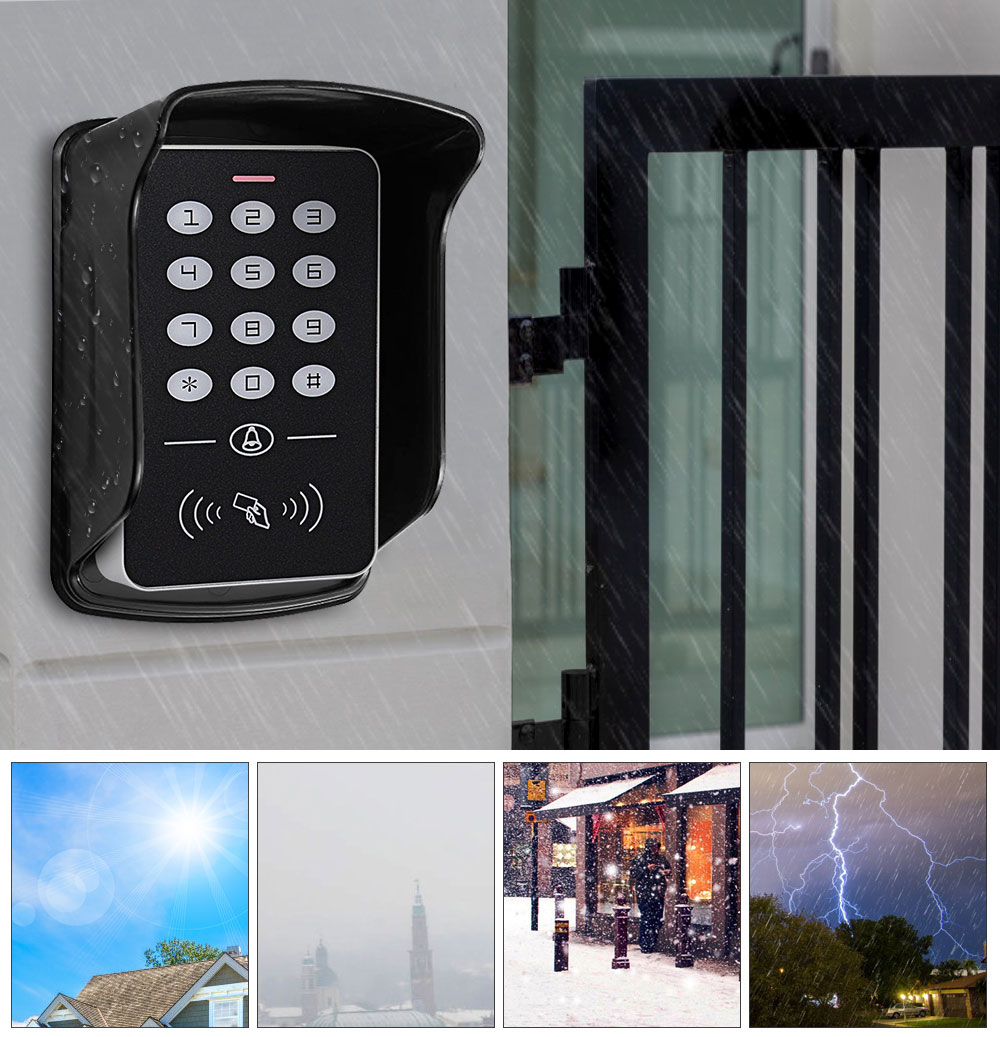

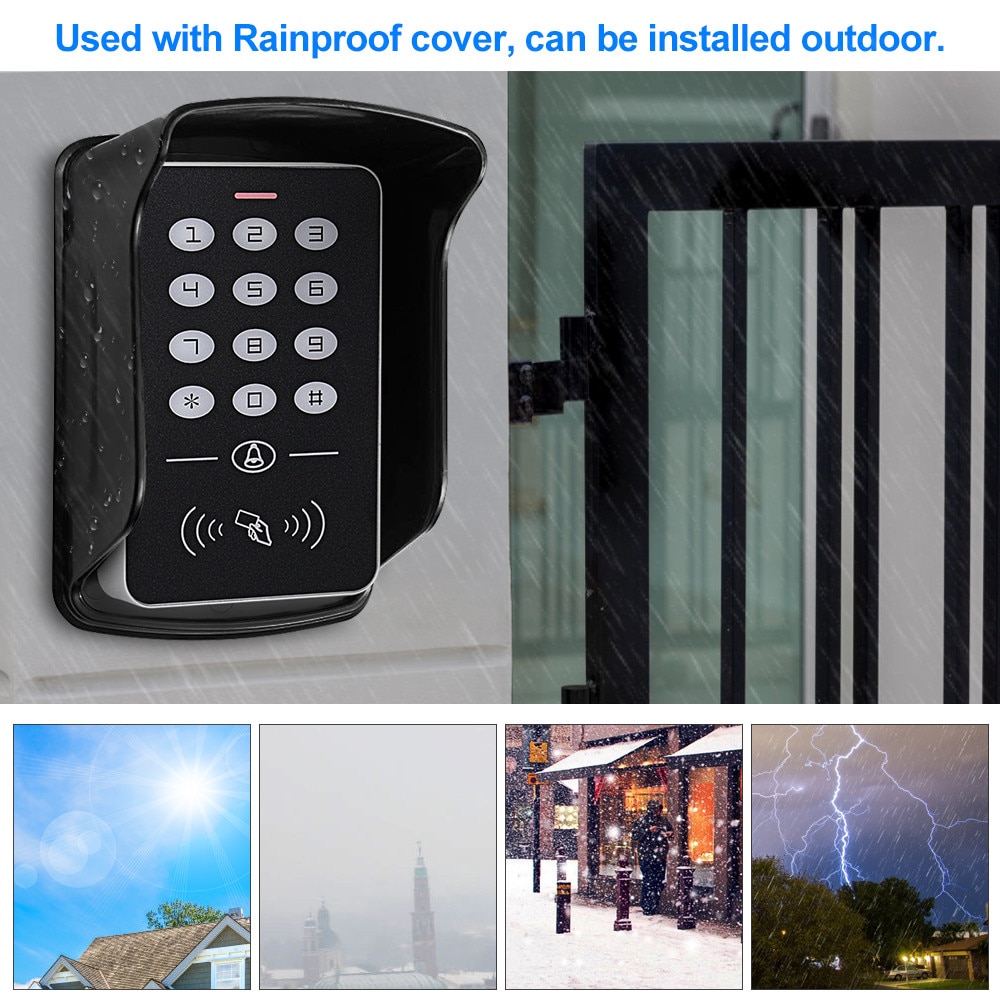

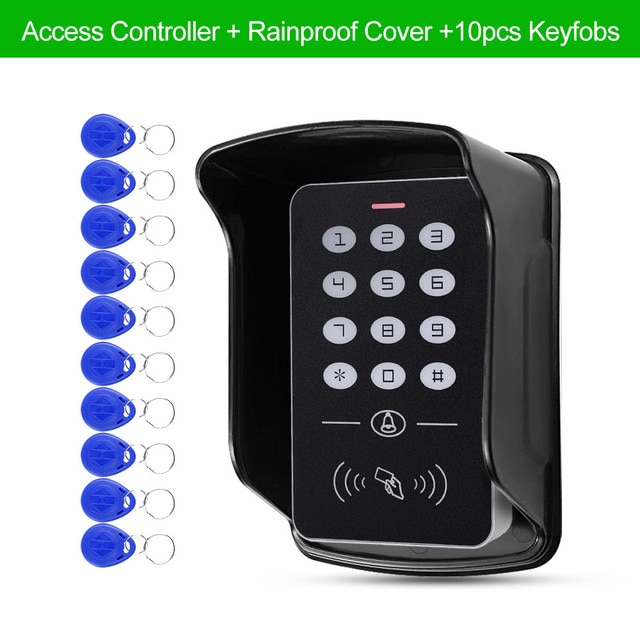

Used with Rainproof cover, can be installed outdoor.

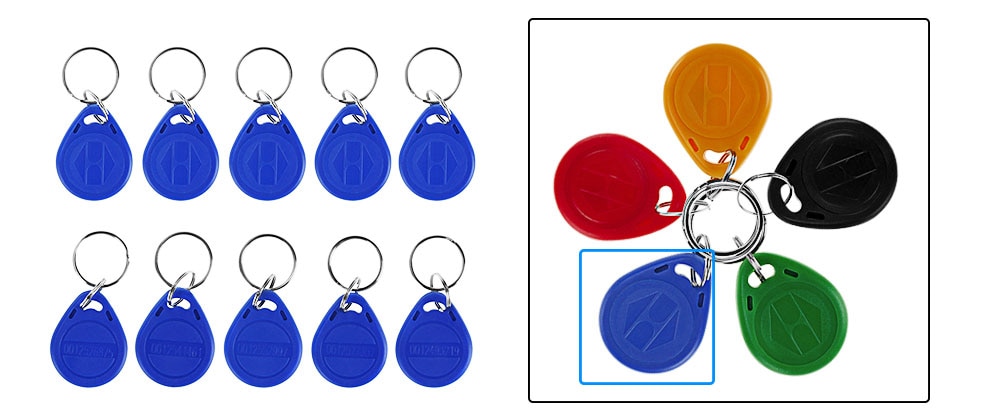

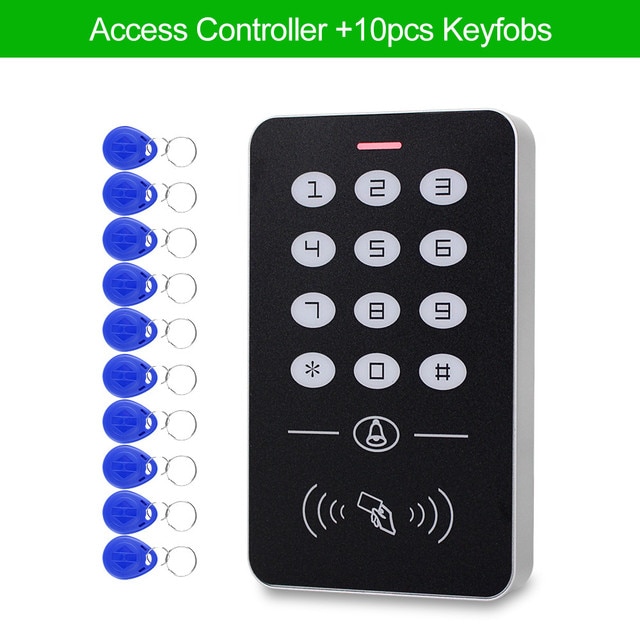

RFID Keyfobs (blue)
You can read these keys on the access controller keypad to open the door conveniently.
Only the key finished programed with our instruction then can be open the door.
Working Frequency: 125KHz
With ABS high quality.
Each one has unique ID number on it.
Reading Range: 0-10cm
Color: Red, Blue, Yellow, Green, Black (We will send 10pcs BLUE color by default, if you want other color, please leave us a message.)
Quantity: 10pcs ( If you want more, please contact us. )

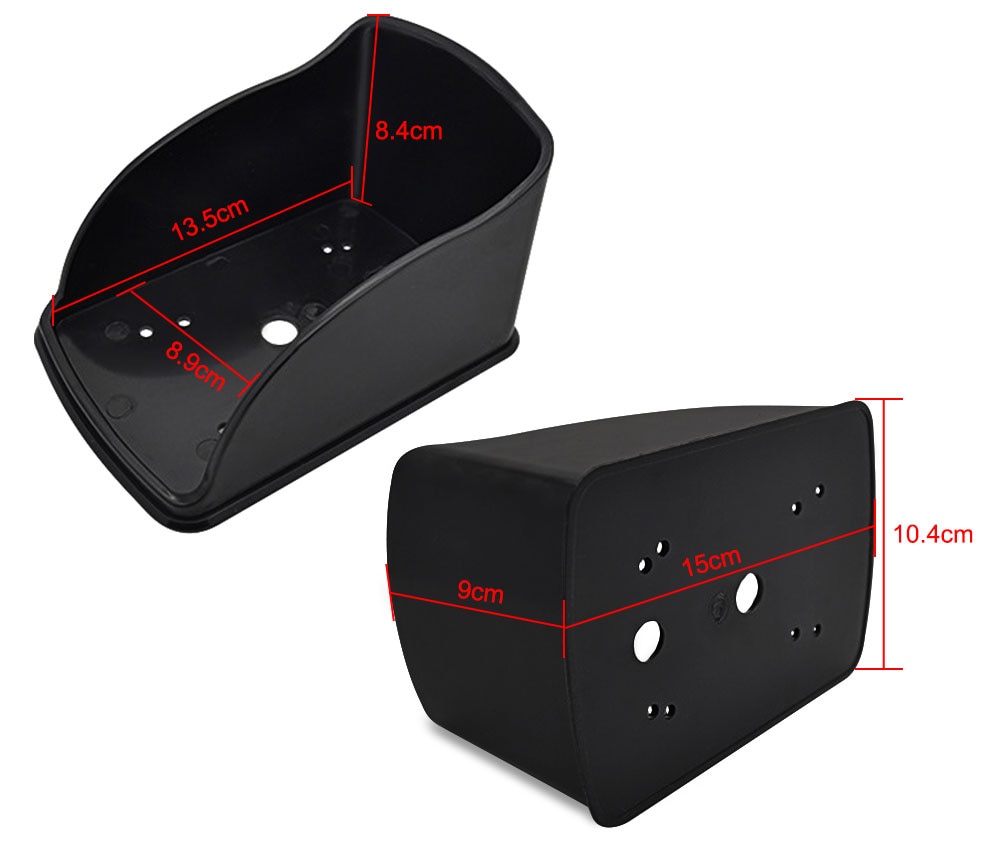

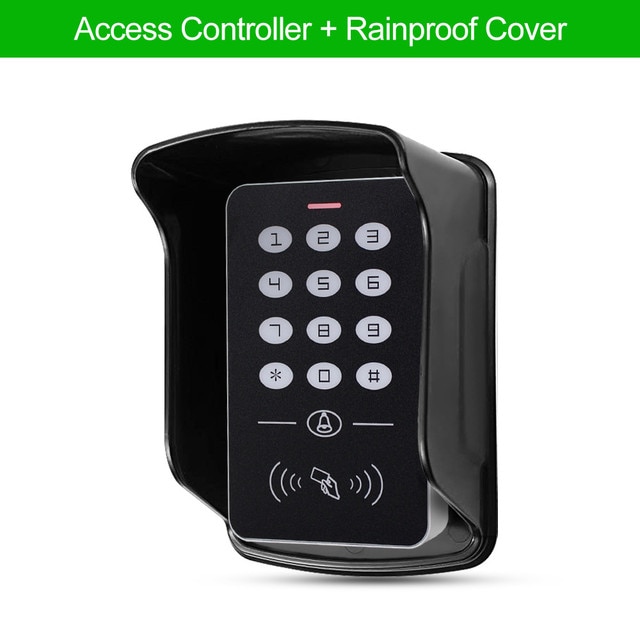

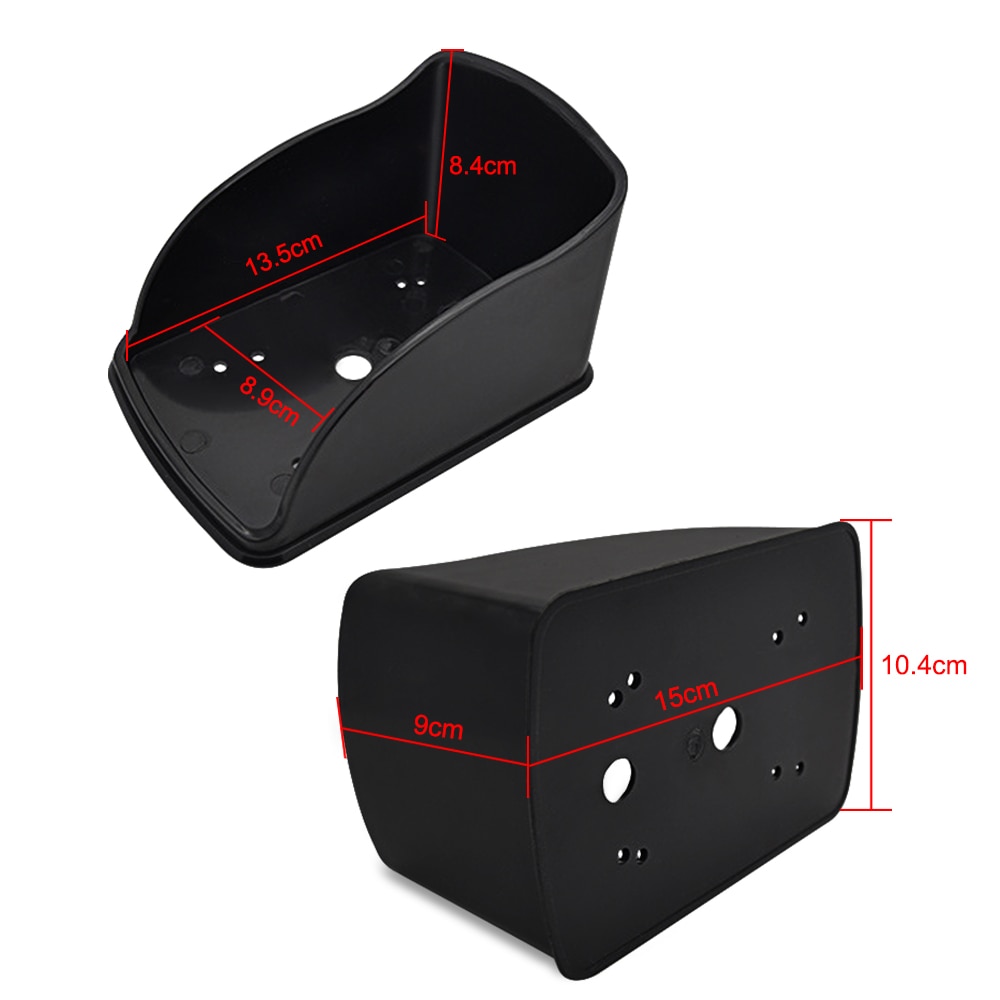

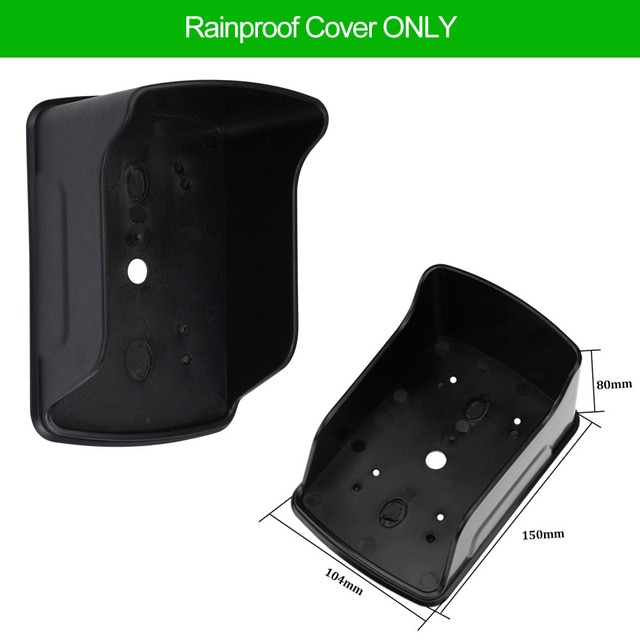

Rainproof Cover
This waterproof shell is suitable for fingerprint device, access controller, standalone rfid door access controller, which length is less than 13cm, width is less than 8cm.
Dimension:
Outside: 15cm*10.4cm*9cm (L*W*H)
Inside: 13.5cm*8.9cm*8.4cm (L*W*H)
( The 7612 model access control is still working when there are some water on the surface,but can't be used in rain directly.If you want to install the item outside, please buy this rainproof cover to protect it. )

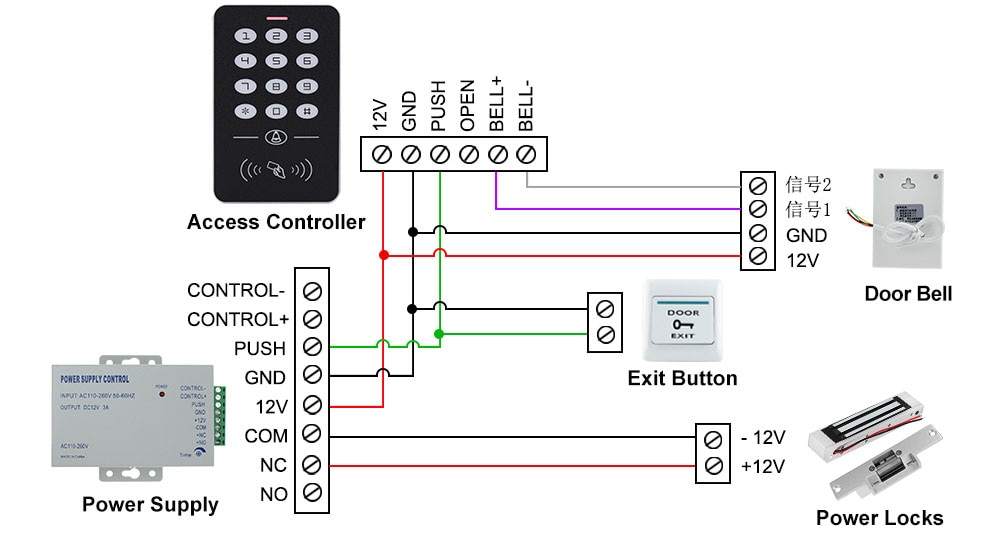

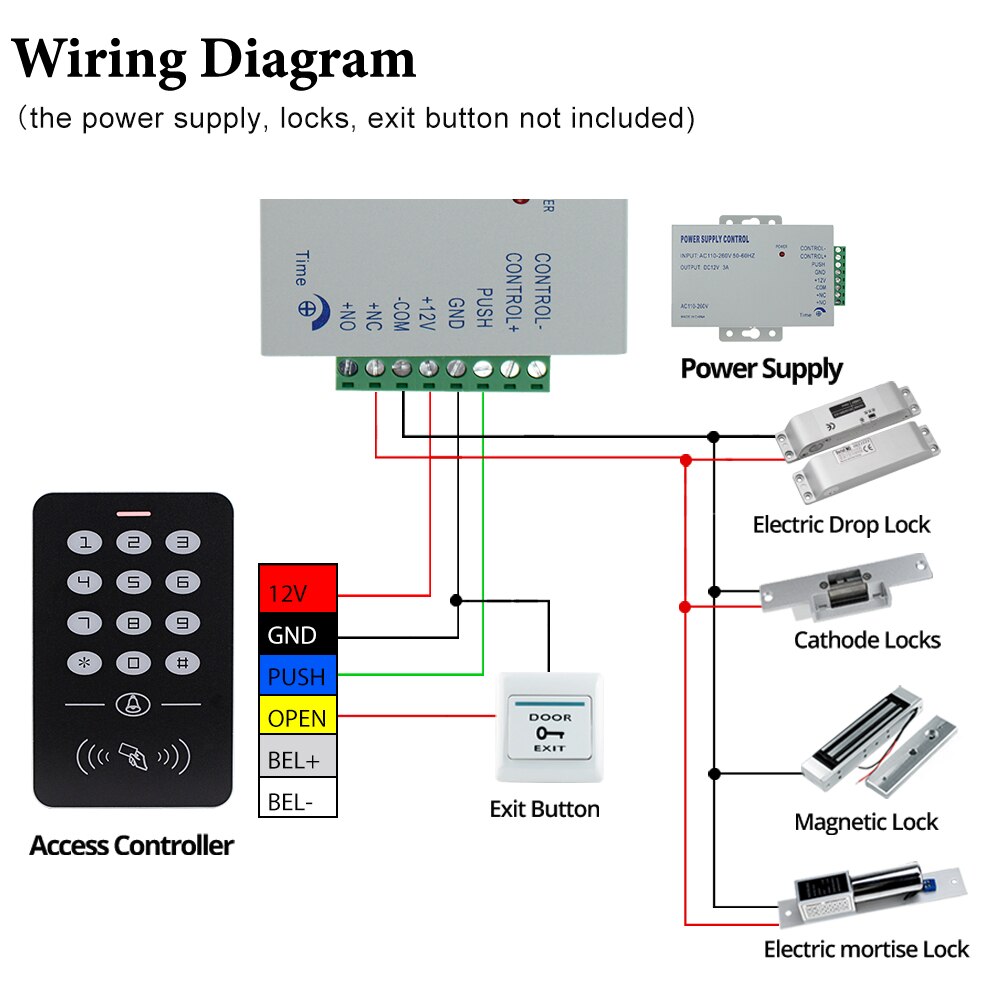

Wiring Diagram
This Access Control Keypad is no need to connect to the computer. You just connect it to the DC12V power supply, electric lock, exit button, Then finished.
The power supply, electric lock, exit button, and door bell are not included in the package, if you need these, please contact us. Thank you!
- Model Number: A1+10+FYG
- Suitable for: Door Access control System
- Working frequency: 125KHz
- Working Voltage: DC12V
- Access control keypad model: A1
- RFID keyfobs chip: EM4100
- Unlock method: RFID card, password, rfid card+password
- Usual Capacity: 1000 user cards
- Door bell function: Support
- Backlight function: Support
- Rainproof cover: Waterproof
