DN15/DN20/DN25 Electric Motorized Brass Ball Valve DN20 AC 220V 2 Way 3-Wire with Actuator

0.0 (8 votes) | 6 orders
Price: US $56.94 - 70.79 / piece
Discount Price:
US $ 43.28 - 56.79 / piece
-24%
Specification
Quantity












picture has been update









Features:


Straight flow, large flow, no blocking by the slag


Good waterproof and dirt-proof function (IP65)


Actuator is easily disassembled and assembled.


Actuator can be installed after the equipment and pipes are installed, so as to improve efficiency.


LED indicates when switch on/off the valve, to detect whether the valve is wholly on/off.


Highly energy saving, long life design.


closed tightly due to high pressure when closing


Actuator can be assembled in two directions





Specifications:


Medium: Cold/hot water, 60% Ethylene Glycol


Material: Brass


Power Supply: AC 220V


Model: DN15(G 1/2")


Model: DN20(G 3/4")


Model: DN25(G 1")


Structure Forms: Two Ways


Operation Mode: Three Floating Point (24V AC) or ON/OFF


Power: 6W (Only when the valves open and close)


Running Time: 5-15 Seconds


Nominal Pressure: 1.6MPa


Medium Temperature: 2°~95°


Maximum Differential Pressure: 1.0MPa


Protection Class: IP65


Connection Mode: ZG Internal Thread

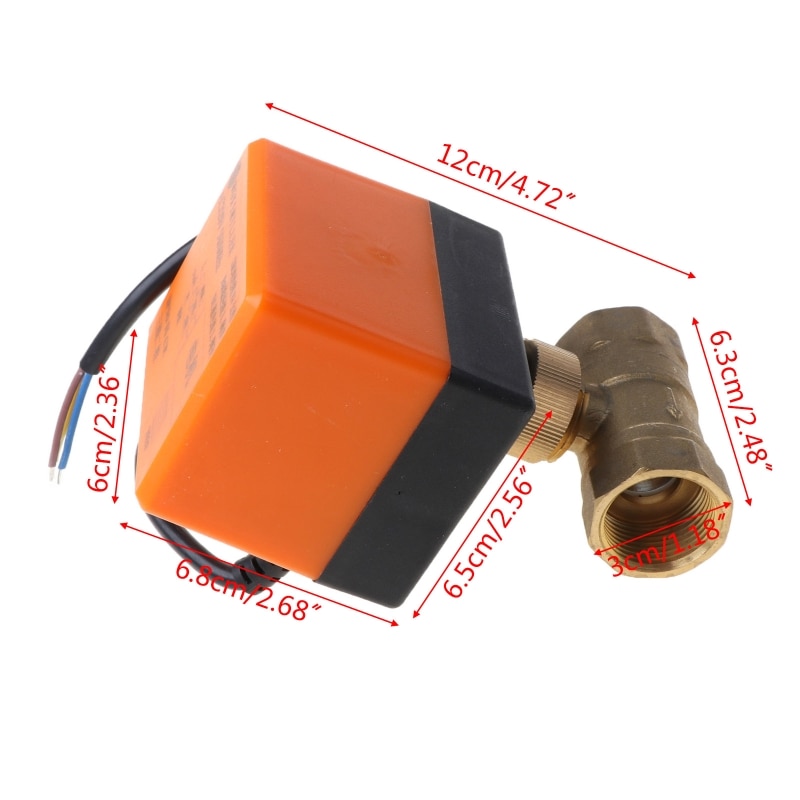

Overall Size: 6.8x6x11.5cm/2.68x2.36x4.53"


Overall Size: 6.8x6x12cm/2.68x2.36x4.72"


Overall Size: 6.8x6x12.8cm/2.68x2.36x5.04"





Quantity: 1 Pc


Note:


Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid


Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!





Package Contents:


1 x Ball Valve


1 x User Manual




































  • Is Smart Device: No
  • Power Source: AC
  • Port Size: G1/2" G 3/4" G 1"
  • Media: Water
  • Temperature of Media: Normal Temperature
  • Standard or Nonstandard: Standard
  • Model Number: FZ06589
  • Power: Other
  • Pressure: Other
  • Material: BRASS
  • Structure: Pressure Reducing
  • Origin: Mainland China
  • Certification: NONE
  • DN15: G1/2"
  • DN20: G 3/4"
  • DN25: G 1"
