Features:

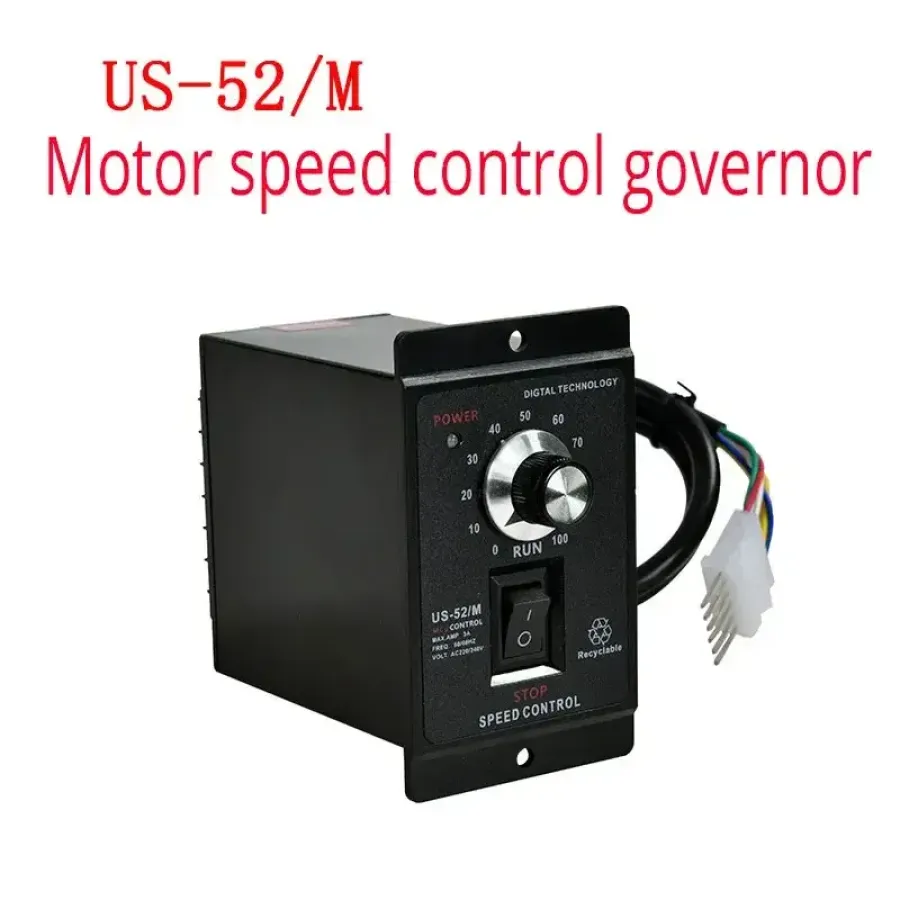

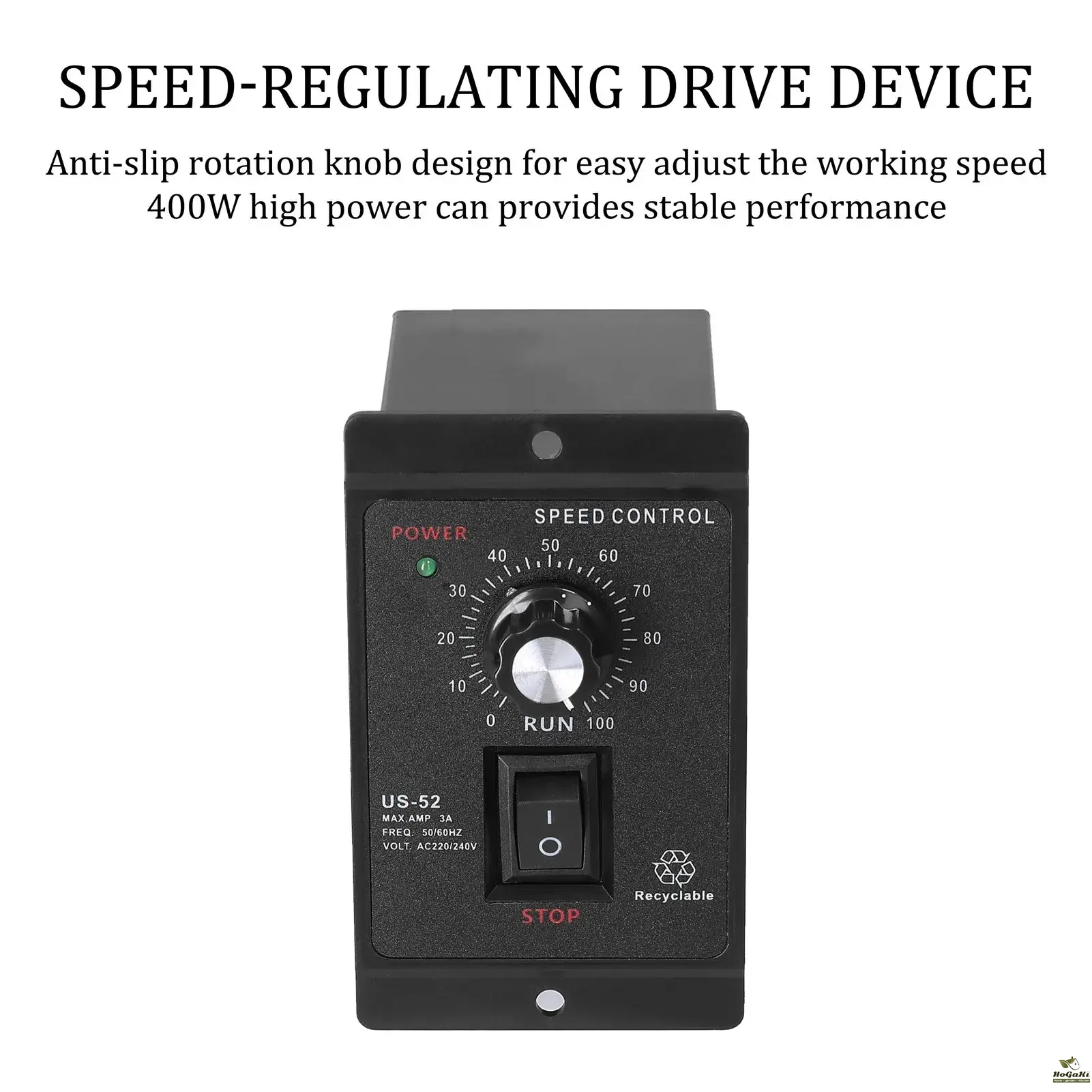

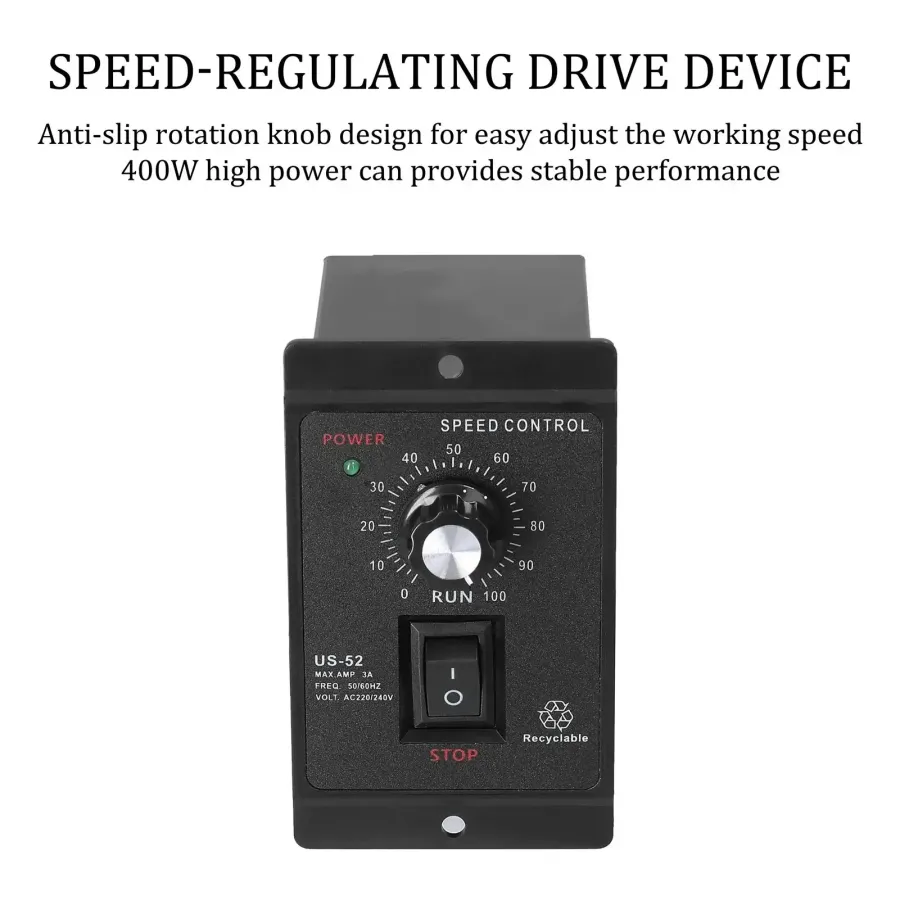

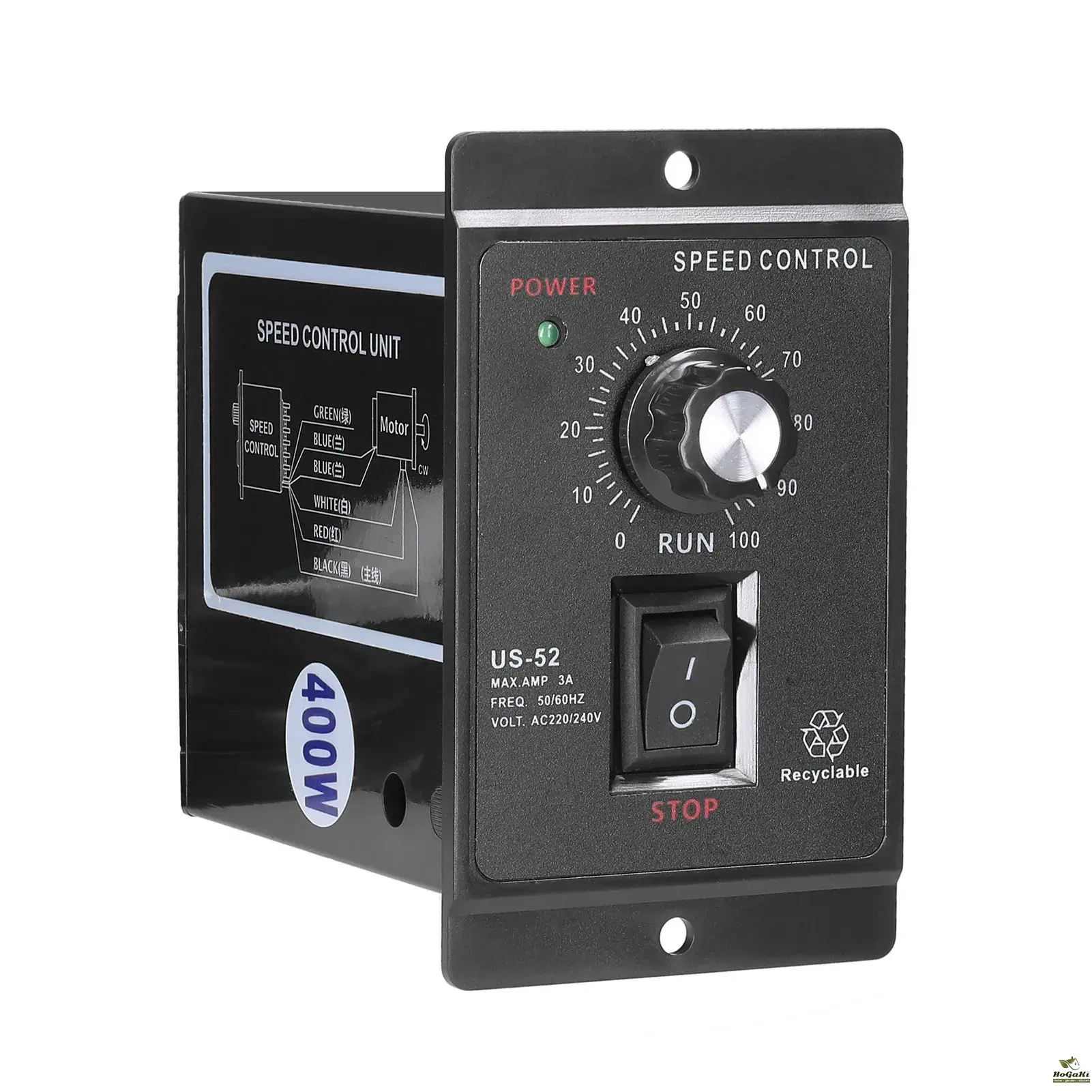

1. The motor speed controller is suitable for AC 220 / 240V 50 / 60HZ motors.
2. The speed adjustment range is 90-1400r/min 50Hz, 90-1700r/min 60Hz.
3. It is suitable for the speed regulating device of the production line in the packaging, printing, food, electronics, instrumentation, medical equipment, and clothing industries.
4. The controller uses high-quality electronic circuits and integrated components to improve durability.
5. Small size, high precision, wide speed range and long service life.
Parameter:
Power frequency: 50Hz/60Hz
Speed adjustment range: 50Hz90~1400RPM 60Hz90~1700RPM
Working temperature range: -10℃~50℃
Starting capacitor: AC220V use withstand voltage 450V capacitor
Instructions:

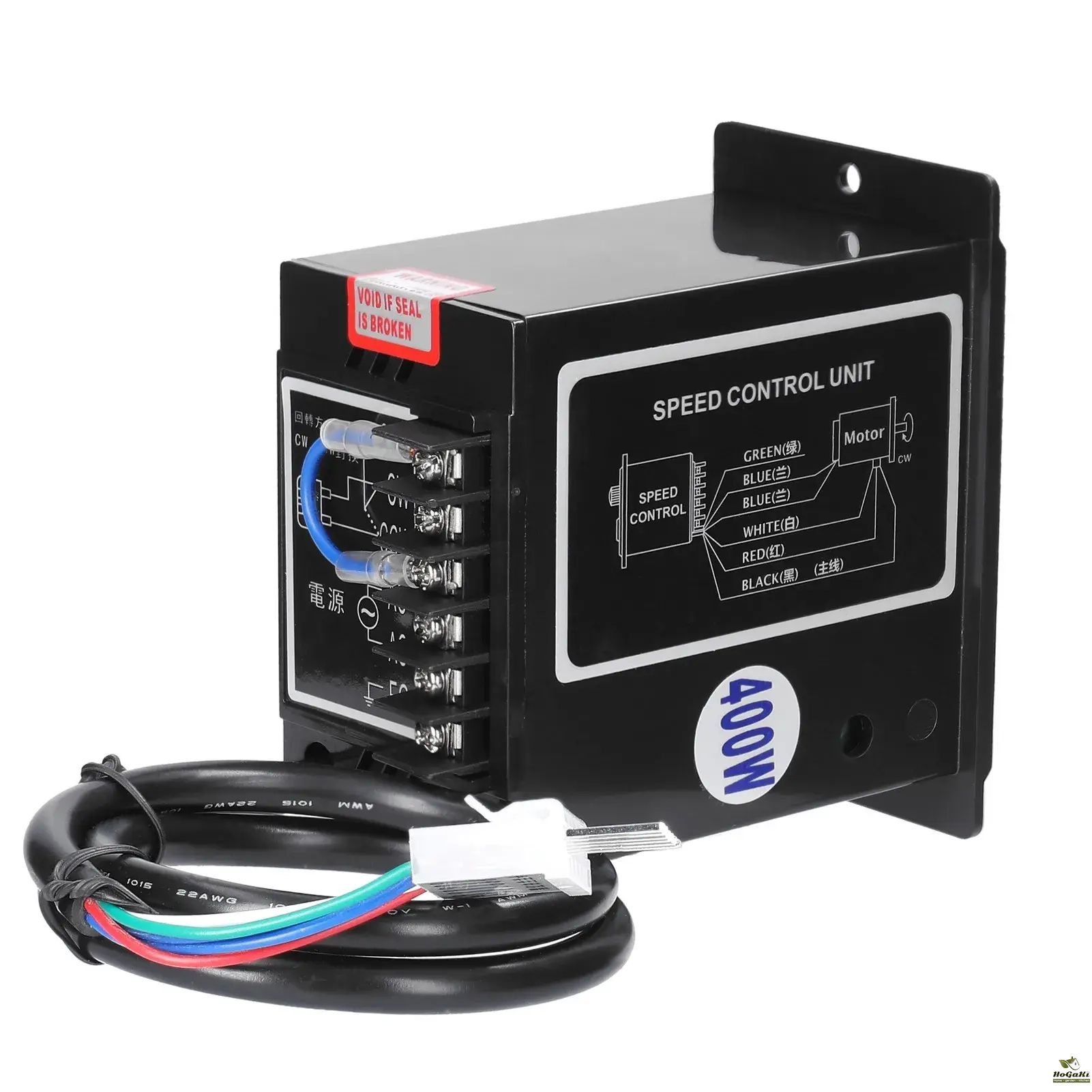

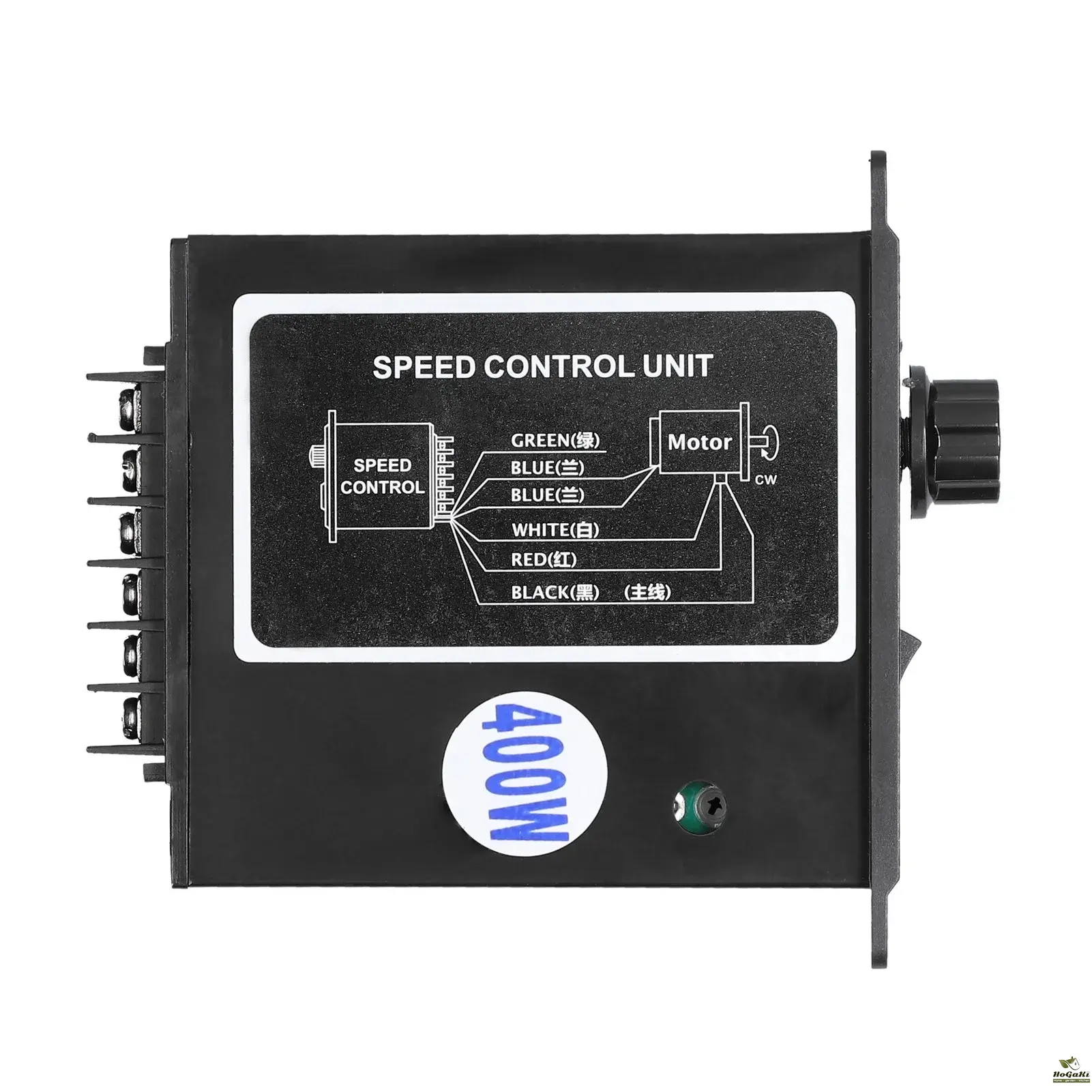

1. Turn off the power and wire according to the wiring diagram to ensure that the wiring is correct.
2. Fix the controller and adjust the speed to the lowest "0" to avoid sudden high current and permanent damage when starting the power supply.

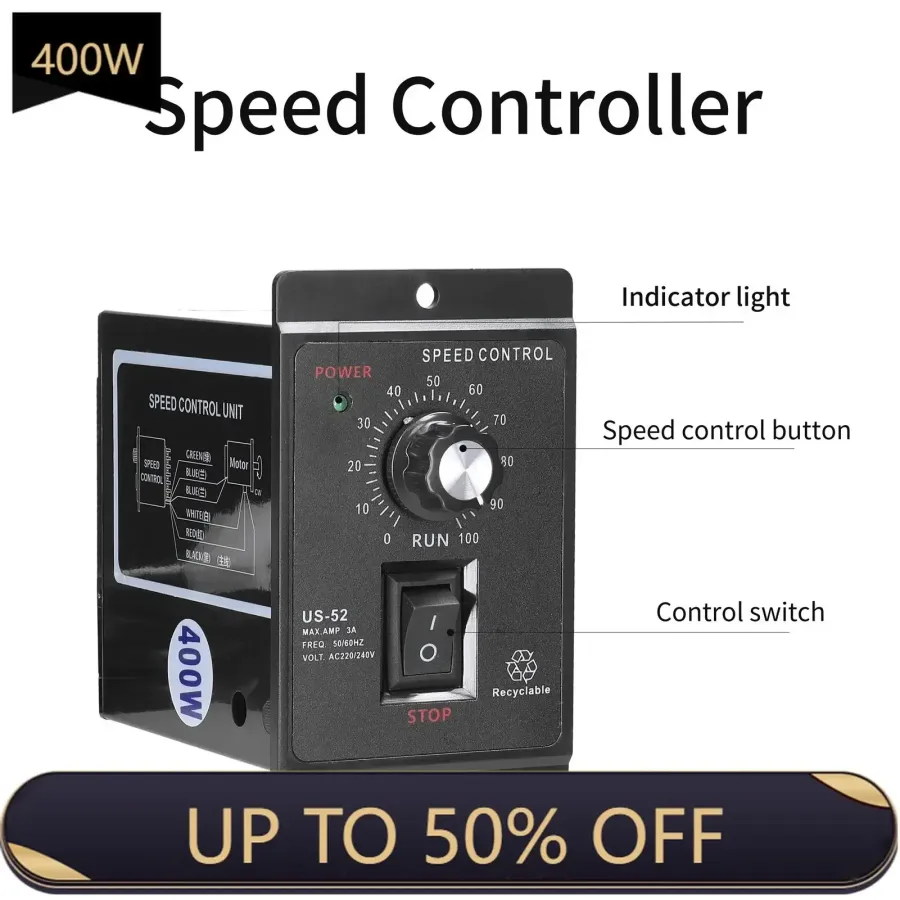

3. Then turn on the power and adjust the speed knob to the desired position. Turn off the power when not needed.
4. The regulator is connected to the motor. If the torque or speed does not meet the requirements, adjust the trim pot on the side of the product.
5. To change the running direction of the motor, just replace the "CCW" and "CW" jumpers on the back of the controller.
6. Choose to short-circuit COM and CW, and the motor will rotate clockwise.
7. Choose to short-circuit COM and CCW, and the motor will rotate counterclockwise.
Package list:
1x Speed controller
Packaging Details
- Unit Type:
- Package Weight: 0.314
- Package Size: 14x9x15
- Brand Name: NoEnName_Null
- Motor: AC Motor
- Hign-concerned Chemical: None
- Origin: Mainland China
- Model Number: Motor Speed Controller 400W AC 220V Motor Speed Pinpoint Regulator Co
- Certification: None
- Motor Type: AC Motor
- Choice: yes
