Heart Shaped 4-Digit DIY Clock Kits with LED Lights Date/Time/Temperature/Week Alarm Clock Soldering Suite for Christmas Gifts
24.08 $
ID: 153591
Quantity
DIN Rail Digital 40 Groups School or Factory Automatic Bell Timer Controller 1~99 Seconds Interval Auto Ring Time Switch AC 220V
4.1 (11 votes) | 71 orders
Price:
US $
30.27
TM624 TIME SWITCH turn on or off the circuit with a predetermined program, for example: As a school, factory bell controller.
Functions:
1.School Bell Timer Switch
2.Clock display
Parameters:
Model number: TM624
Power supply: 220V AC 50/60Hz
Load:16ASetting groups: 40 ON/OFF per day
Time control range: 1s~99s
Battery for saving programs: Inside,rechargeable
Power consumption: <2W
Time error: <1s/day
Mechanical life: >30,000 times
Electric endurance: >10,000 times
Installation: Device installed,35mm DIN rail
Wiring diagram:

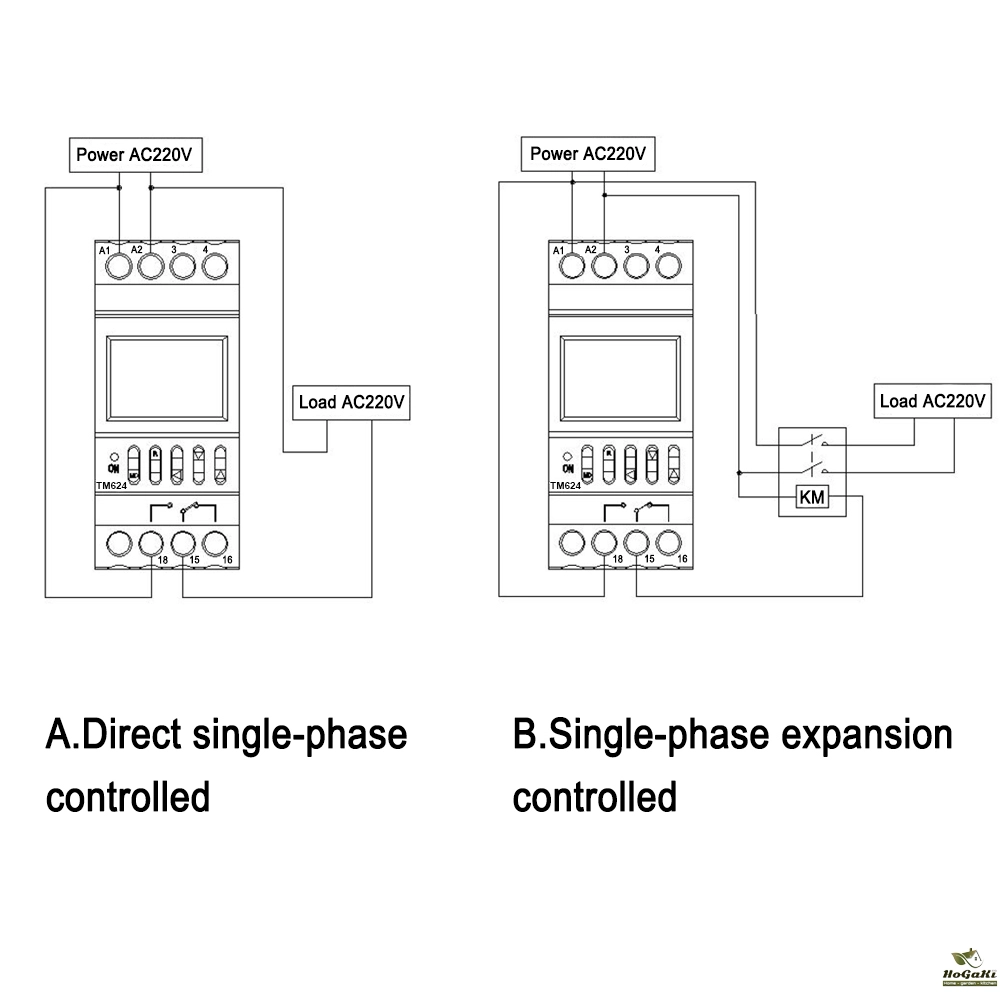

1.Single phase
The controlled appliance is power supplied in single-phase,of which the working current exceeds the rated value of this switch,please adopt AC contactor expansion contol method.

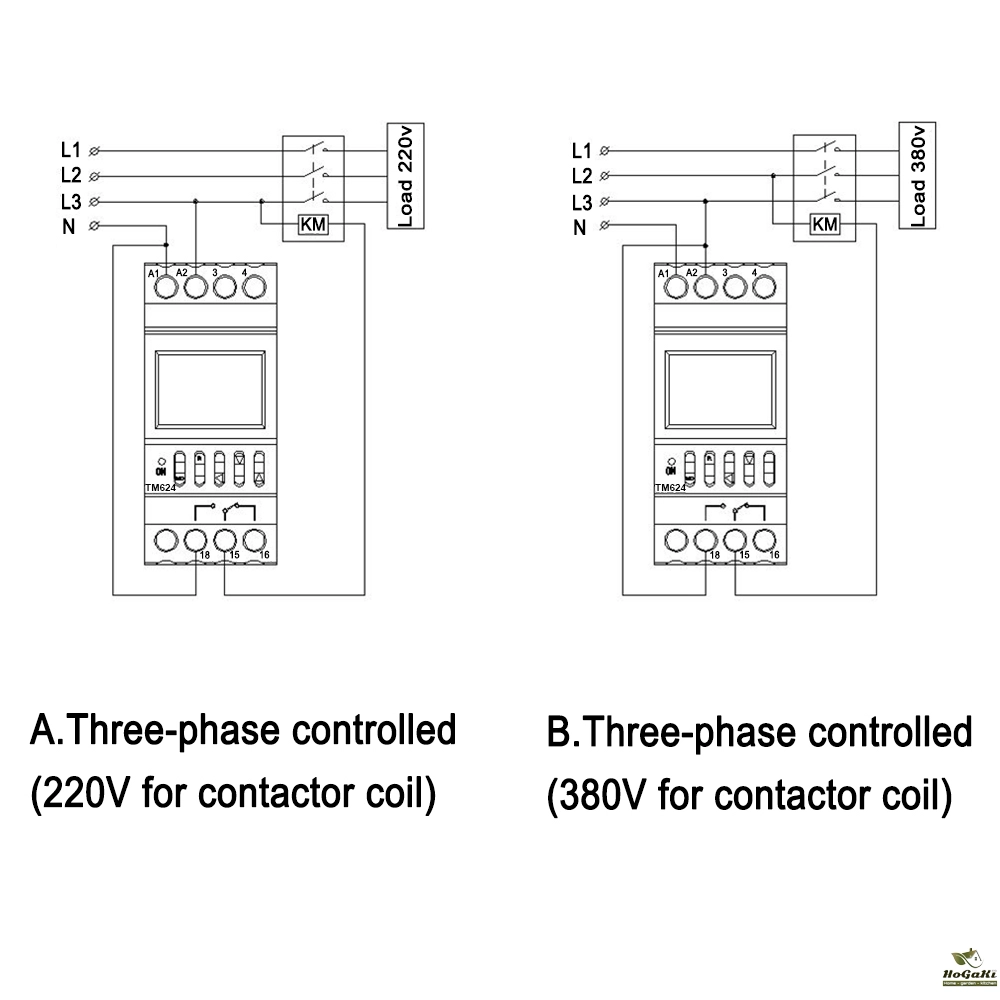

2.Three phases Power of the controlled appliance is supplied in three-phase,so external AC contactor is required hereof.
Other items from our Store:
Other items from our Store:Packaging Details
- Unit Type:
- Package Weight: 0.125
- Package Size: 8x9x5
- Brand Name: SINOTIMER
- Sinotimer Model: TM624
- Battery Included: Yes
- Hign-concerned Chemical: None
- Origin: Mainland China
- Model Number: TM624
- Theory: Digital
- Certification: CE
- Certification: RoHS
- Use: Timer Switch
- Type: Mini
- Power supply: AC 220V 50/60Hz
- Load: 16A
- Usage: Factory or School Bell
- Bell set: 40 groups
- Belling time: 1s~99s
- Built-in Battery: Battery for saving programs
- Power consumption: <2 W

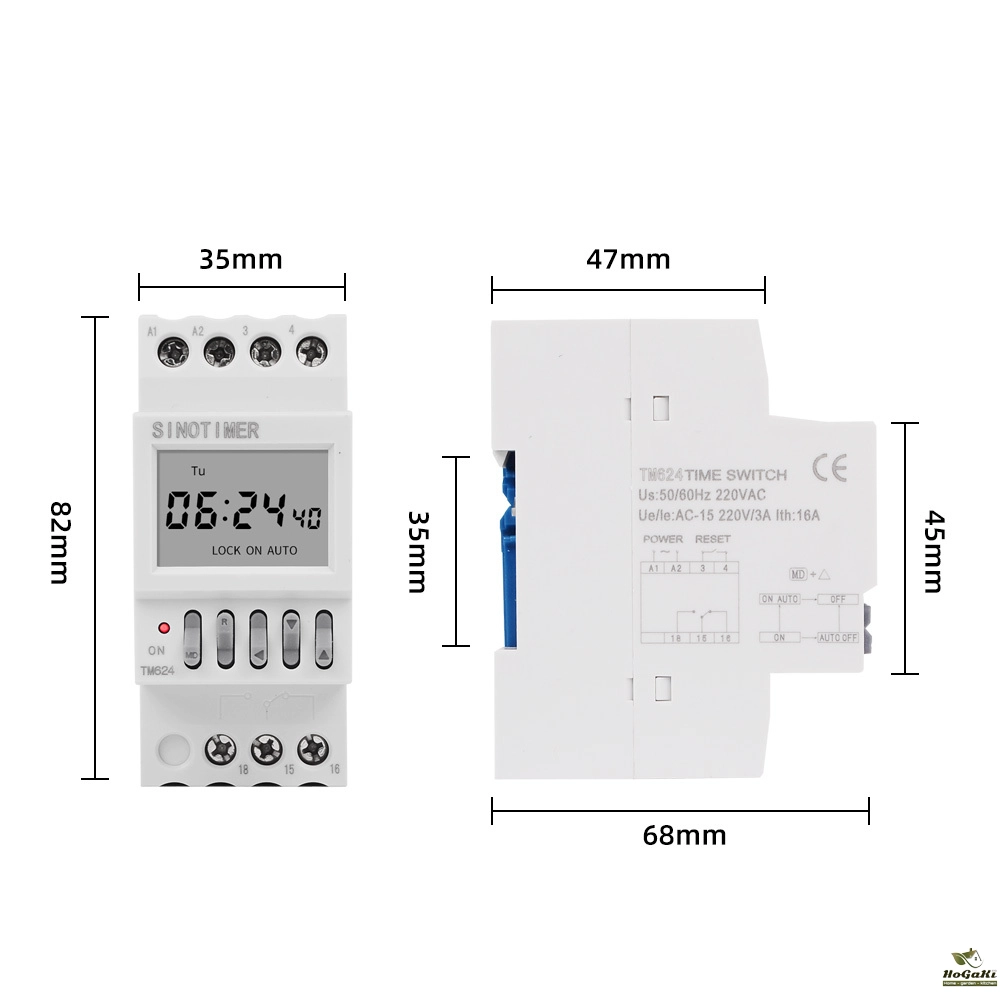

- Dimensions: 36*68*82 mm
- Installation: 35mm DIN rail
