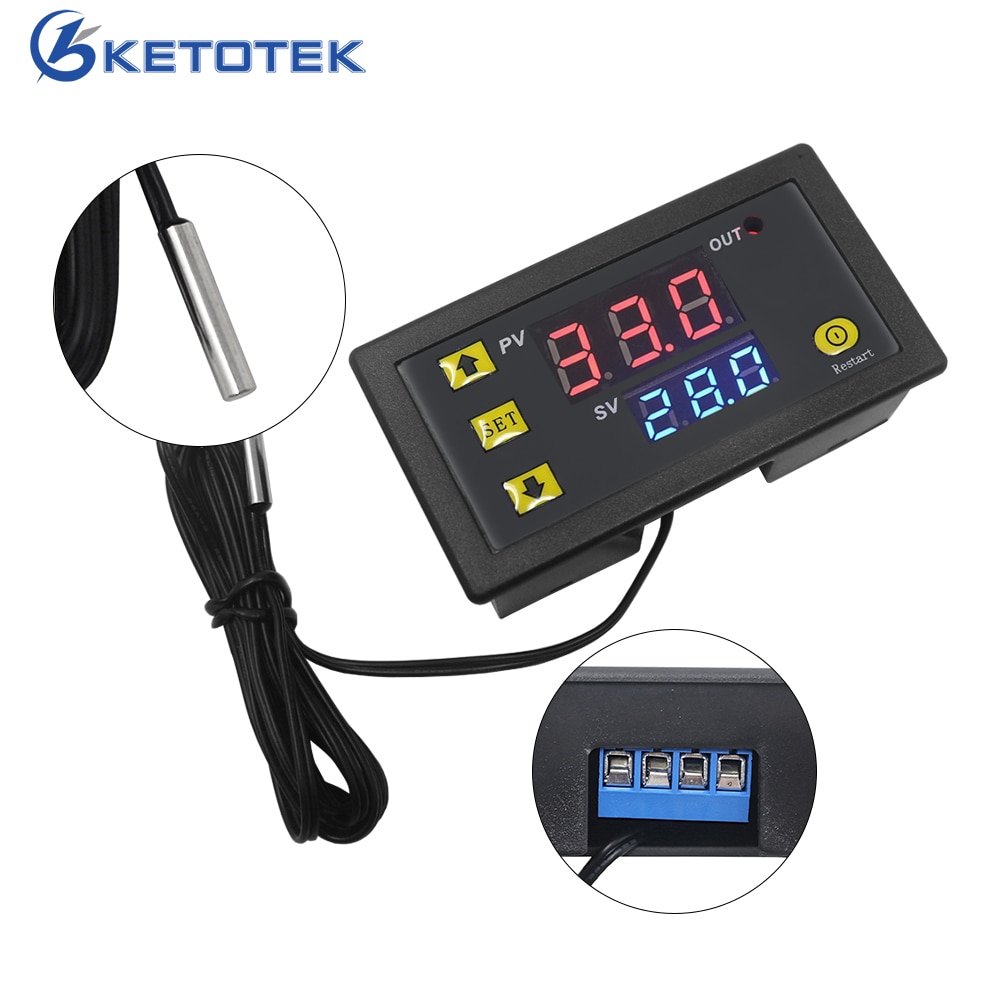

Digital Temperature Controller Thermostat W3230 DC 12V 24V AC110V-220V LED Display Heating Cooling White Black Waterproof Probe

4.9 (15 votes) | 142 orders
Price: US $10.53 - 19.52 / piece
Discount Price:
US $ 9.95 - 18.39 / piece
-6%
Ships From
Color
Quantity


LED Digital Temperature Controller 12V 24V 110-220V Thermoregulator Relay Thermostat With Heating/Cooling Control Black White can be choose





  • Mini temperature controller.
  • With clear LED display for better readability.

  • Wide temperature measuring range.
  • Heating or cooling control.
  • All parameters setting can be saved after short circuit.
  • Relay output.
  • High Control precision 0.1 centigrade

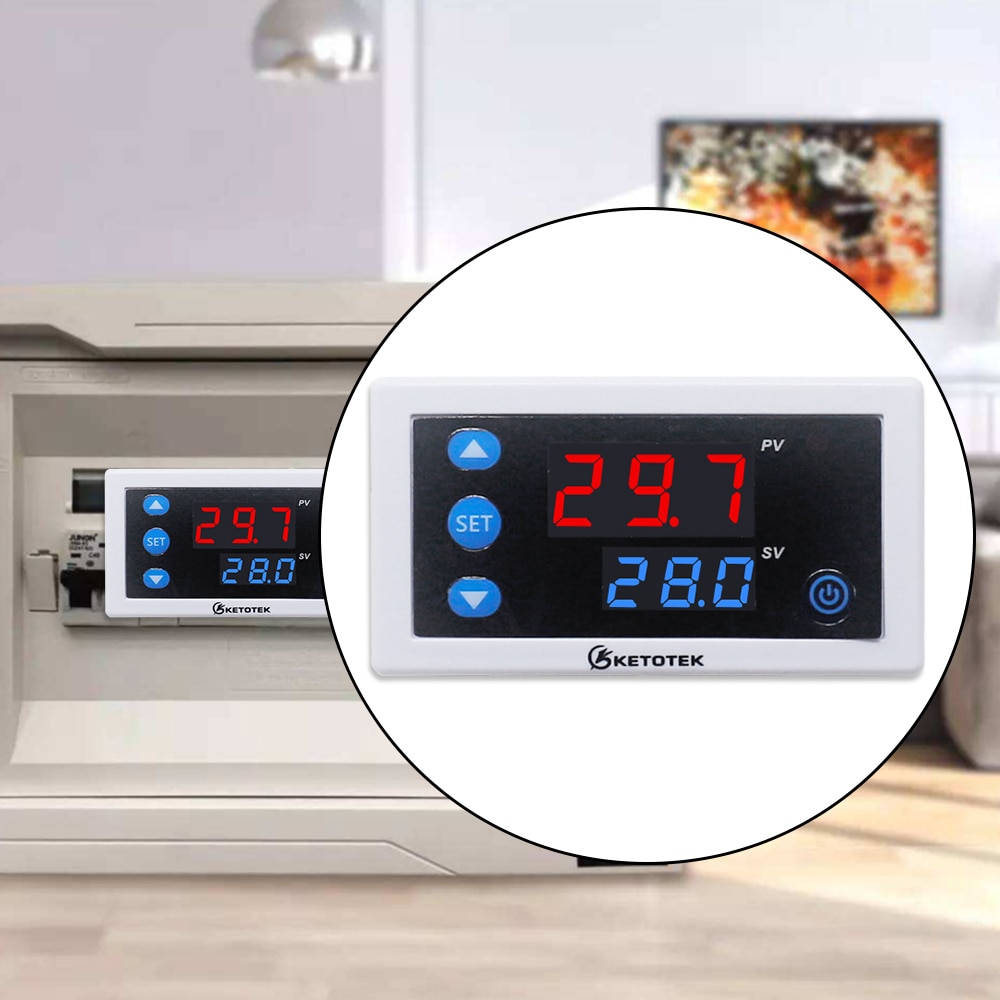

  • Can be used for domestic freezer, water tanks, refrigerator,
  • industrial chiller, steamer, industrial equipment and other
  • temperature-controlled system.


  • Power Supply:12VDC、24VDC、110-220VAC
  • Temperature Control Range:-55° C-120° C
  • Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other range)
  • Color of Displaying: red/blue
  • Measurement accuracy: ±0.1°C
  • Control accuracy: 0.1°C
  • Color: White or Black can be choosed (choose the color and voltage when you place order)

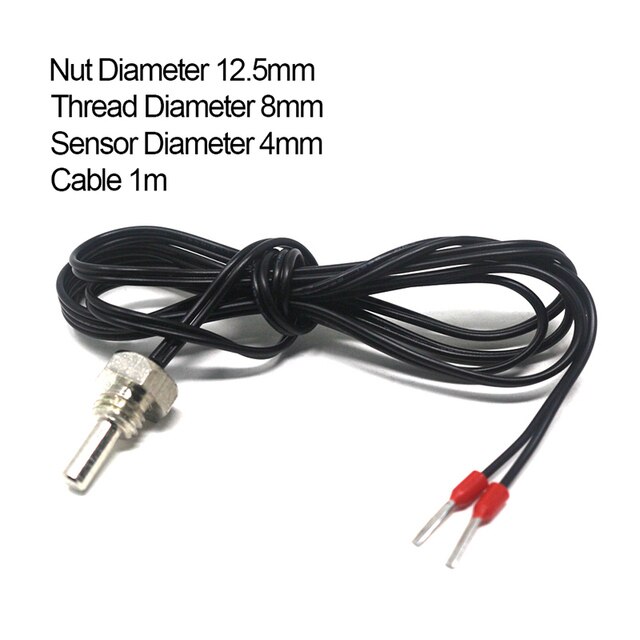

  • Sensor: NTC10K Waterproof sensor
  • Output: Relay Contact Capacity 10A/220V/20A 12V
  • Environmental requirements: -10-60°C , humidity 20%-85%RH

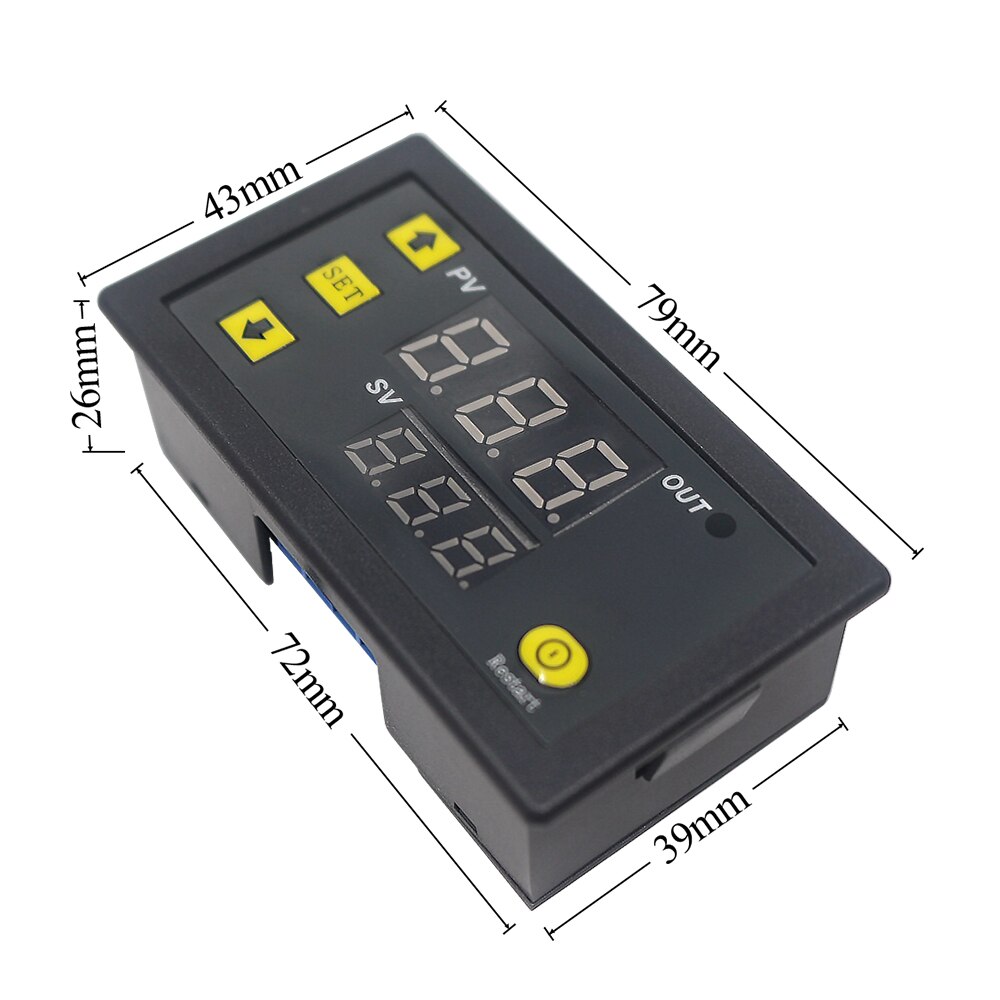

  • Dimension:79mm *43mm*26mm
  • Cutting Size:73mm*39mm

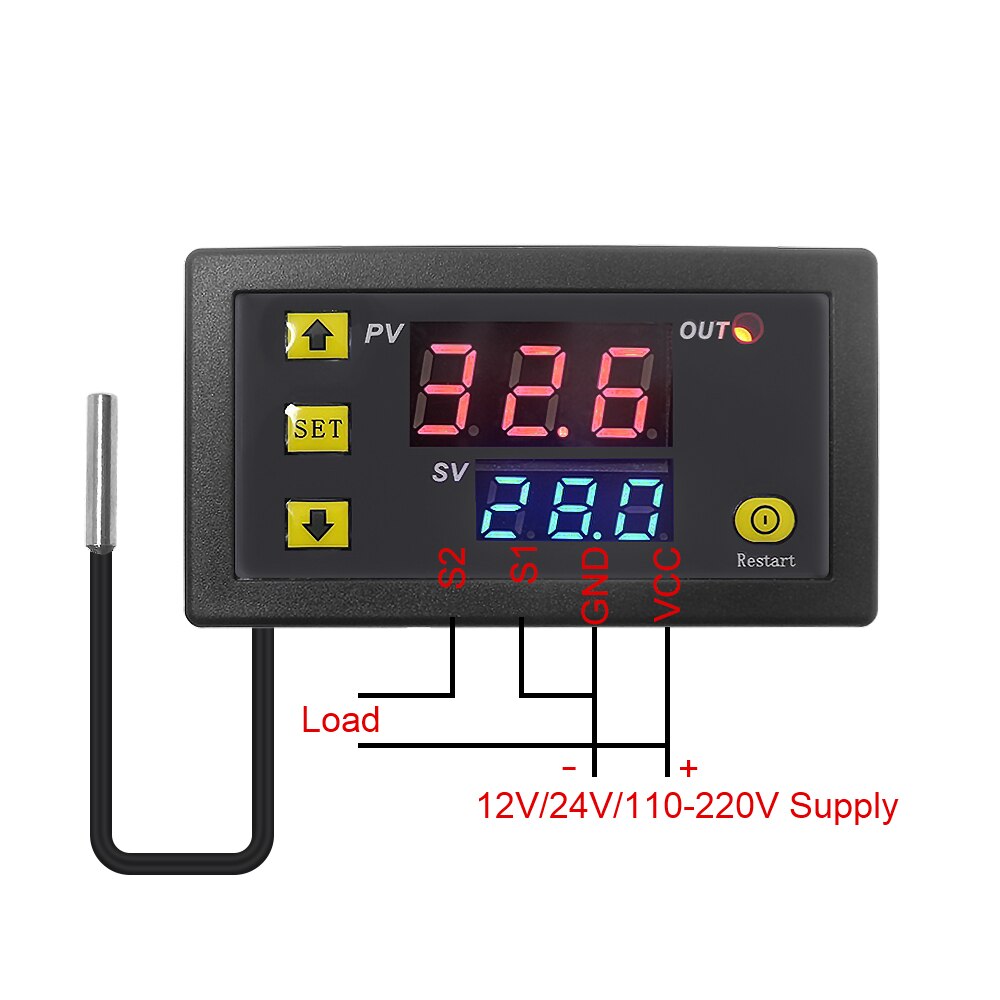

110V-220V wire connection



12V Wire connection



Manu function P0-P5




Code




Function




Set Range




Default




P0




Heating/Cooling




H/C




C




P1




Return Difference




0.1-30




2.0




P2




Setting limits to the manimum




120




120




P3




Setting limits to the minimum




-55




-55




P4




Temp. Correction




-10-10




0




P5




Delay Start




0-10min




0

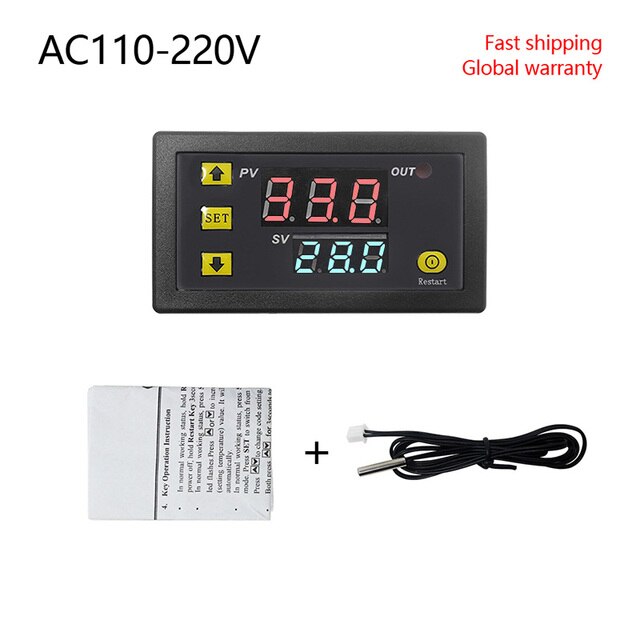

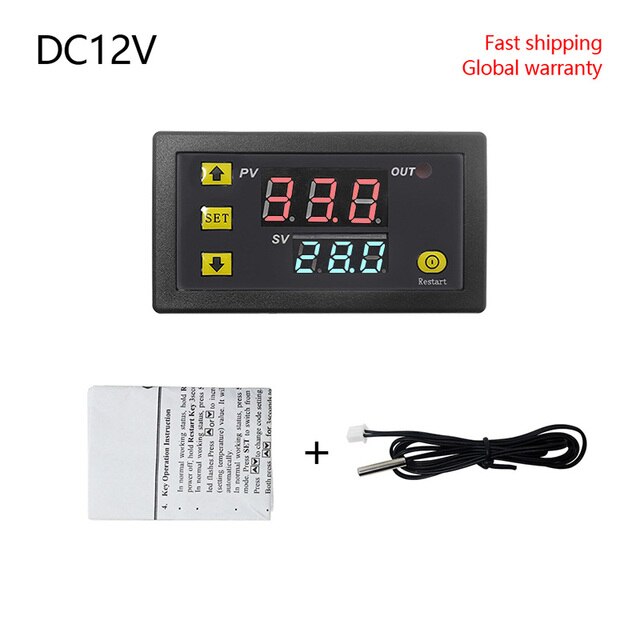

  • 1 x Temperature controller
  • 1 x Temperature sensor

  • 1 x English Manual





















KT3003  White 10A 12V 24V 220VAC Digital Thermostat Regulator Temperature Controller -55~120C Heating/Cooling Switch Thermostat NTC Sensor









>>
>>More recommend




  • We Ship to Worlwide, except APO/FPO

  • Items are shipped from China using Airmail, reach most of the countries within 15 to 25 business days

  • Delivery time depends on destination and other factors, it may takes up to 30 business day

  • We accept Alipay and Paypal, Credit Card, Money Booker, T/T, Western Union,here

  • All major credit cards are accepted through secure payment processor ESCROW.



  • 12 Months Warranty . Buy with confidence

  • If you are not satisfied when you receive your item,please return it within 14 days for a replacement or money back, Please contact us before you return it.

  • If item is defective in 3 months, we will send you a relacement without extra charge, Or offer refund after we receive the defective item.

  • If item is defective after 3 months, you can still send it back to us.  We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee.



  • We depend on customers' satisfaction to succeed, your positive feedback of 5 stars is very important to us, if you are satisfied with our product, please leave us a positive feedback ( 5 stars )

  • Please do not leave us a negative feedback before contacting with us, we will try our best to solve the problem, please help us to improve



  • We are not responsible for any custom duty or import tax.

  • All emails will be answered within 1 business day,  If you do not receive our reply, please kindly re-send your email and we will reply to you as soon as possible.

  • Serious Buyer Only! Please place bid only if you agree with all the items

  • Now if you purchase our products, leave us 5 stars feedback and share it to your social network, such like Facebook, Twitter, VK, Instagram and etc. Send the screenshot to us, you will get an extra discount. Happy shopping online.


  • Q: Is there any Tracking Number for my item?

   A: If you want the parcel to be tracked , please choose the China post air mail, Singapore post, or Express

  • Q: Does this product come with retail package?

   A: We have declared the packing detail on the description of each product, please check it, Thank you !

  • Q: I am a reseller, I would like to buy many pieces of your item, what's the wholesale price?

   A: If you would like to buy large quantity, please send email to us, we will give you the best price, thanks!




  • Is Smart Device: No
  • Measure Type: K
  • Cable Length: 1M
  • Type: K
  • Theory: Temperature Controller
  • Usage: Household
  • Model Number: W3230 KT3003
  • Max Measuring Temperature: 100°C - 119°C
  • Display Type: DIGITAL
  • Power Type: 110-220V 12V
  • Display Size: 1.9 Inches & Under
  • Style: Embedded
  • Brand Name: KETOTEK
  • Origin: Mainland China
  • Certification: NONE
