Digital Temperature Controller Thermostat Thermoregulator 10A Heater And Cooler Control STC-1000 STC 1000 12V 24V 110V 220V
5.0 (2 votes) | 13 orders
Price:
US $18.53 - 19.11
/ piece
Discount Price:
US $
13.88 -
14.33
/ piece
-25%
- Color
-
-

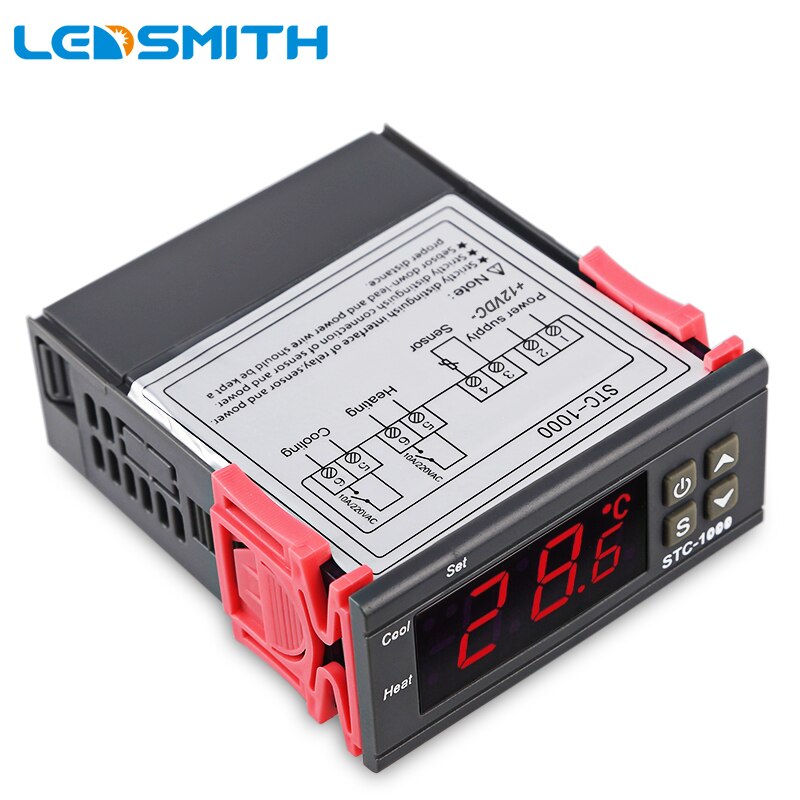

LEDSMITH STC-1000 LED Digital Temperature Controller Thermostat Thermoregulator for incubator Heater And Cooling Control Switch DC 12V 24V AC 110-220V power supply
·Automatic conversion of refrigeration and heating mode;Control mode of return difference
·Refrigerating control output delay protection
·Multiple alarm mode selection,alarm when temperature exceeds temperature limit or when sensor error
·Support temperature correction and support save the parameters setting when power off
·Application range is like home temperature control, farm, various cold storage, greenhouse, aquarium, etc
Specifications:
STC-1000 | |
Display Type | Digital |
Display | ° C |
Temperature measuring range | -50 ° C ~ 99 ° C |
Return difference Value: | 0.3~10.0°C |
Resolution | 0.1 ° C |
Accuracy | ±1° C |
Power supply | 110-220VAC 50/60Hz, 12V DC , 24V DC |
Power Consumpption | <3W |
Storage temperature | -30 ° C ~ 75 ° C |
Relative humidity | 20% ~ 85% (No condensate) |

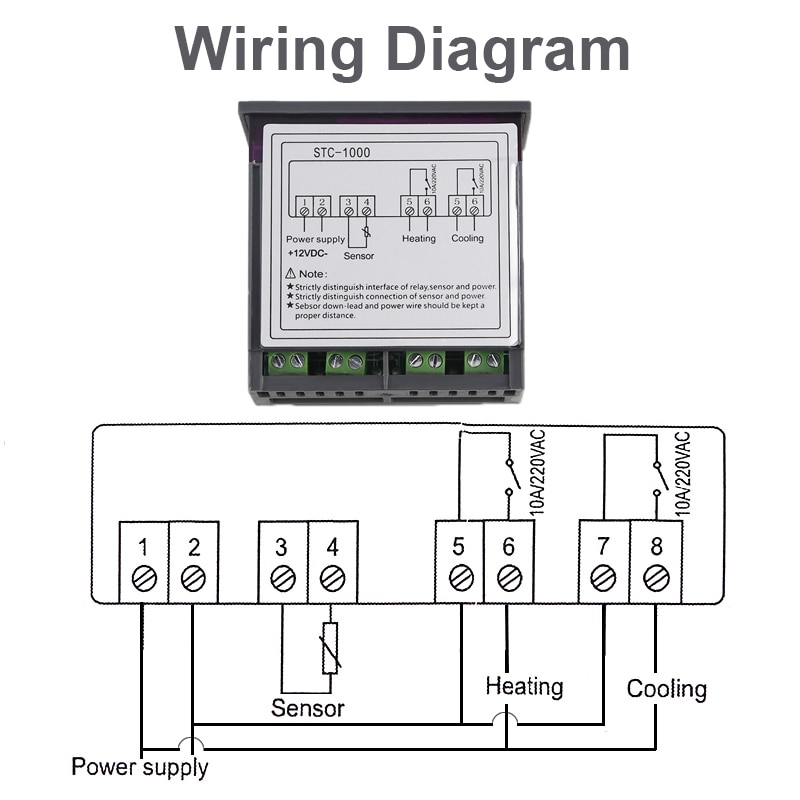

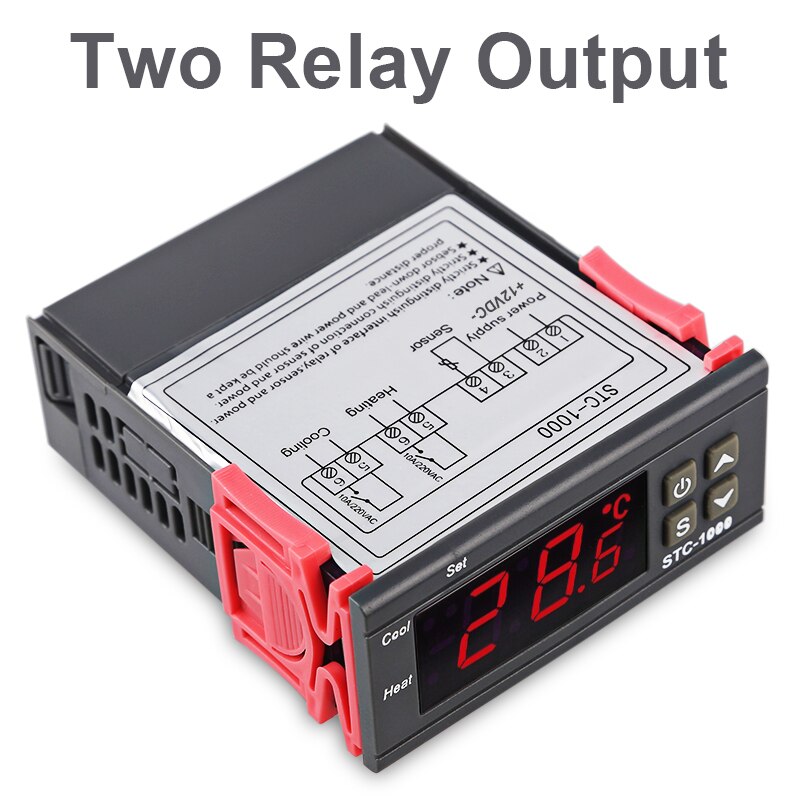

Relay contact capacity | Two Relay Cool 10A/220VAC; Heat 10A/220VAC |
Temperature sensor | NTC 10K |
Senor length | 1.0m |
Size | 75x34.5x85 mm |
Mounting Size | 71x29mm |
Code | Function | Set Range | Default |
F1 | Temperature set value | -50.0~99.9°C | 10.0°C |
F2 | Difference set value | 0.3~10.0°C | 0.5°C |
F3 | Compressor delay time | 1~10 min | 3 min |
F4 | Temperature calibration value | -10.0°C~10.0°C | 0°C |
Tips:If you need extra Temperature Sensor. Please click here ( ).

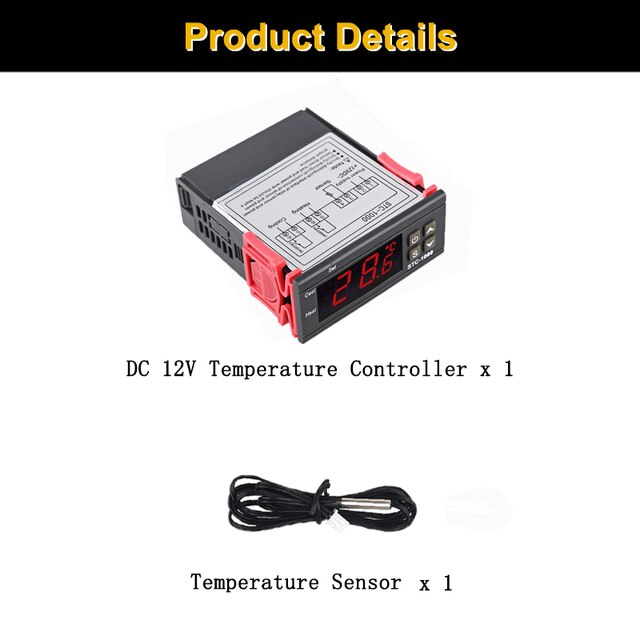

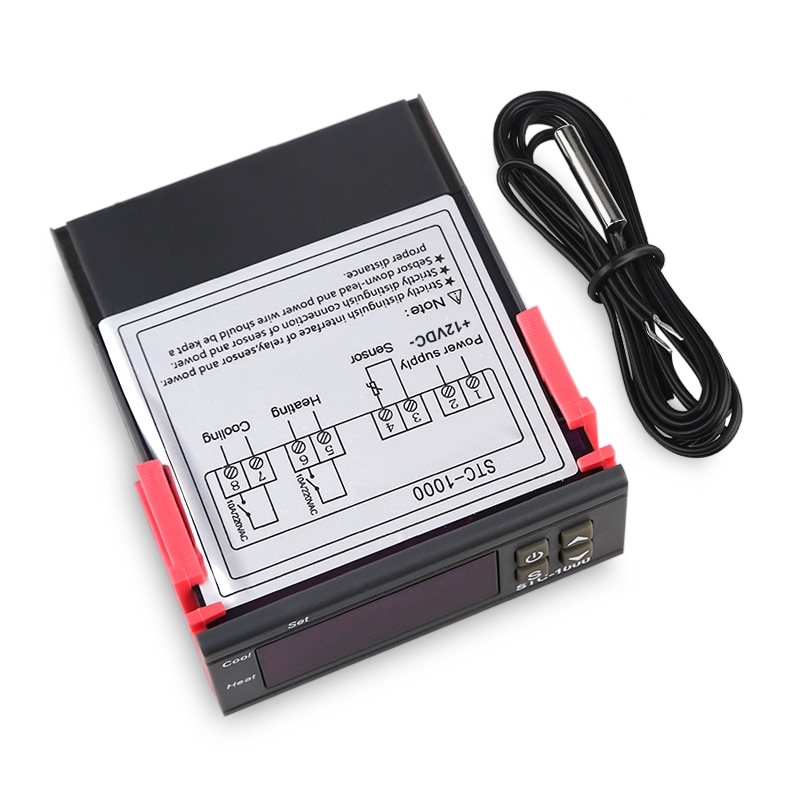

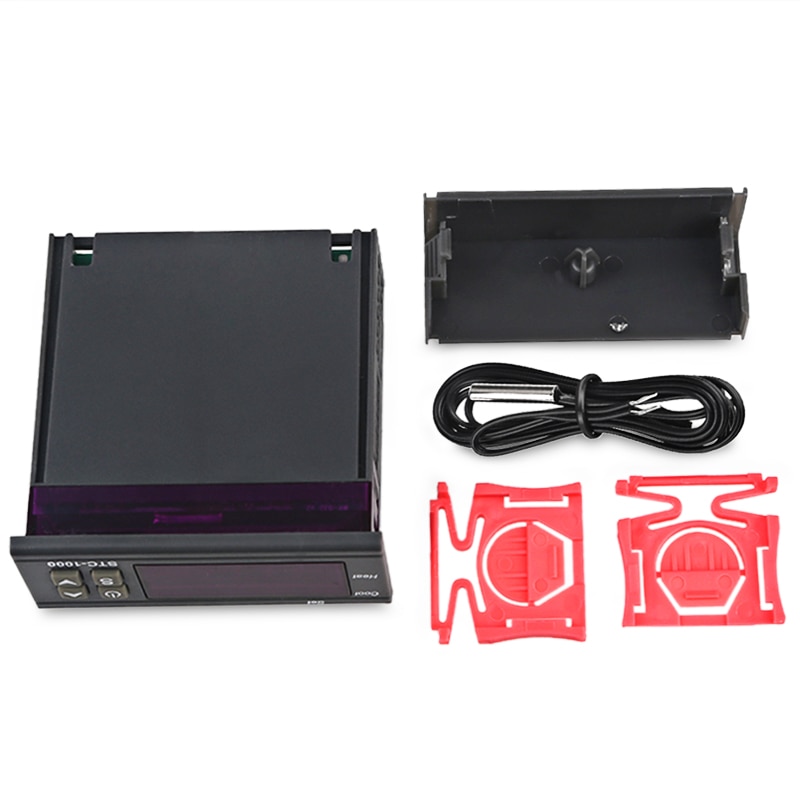

Package:
1X Temperature Controller
1X Waterproof Sensor
1X English Manual
Notes: There is no voltage output directly, you need to use additional power supply for the load.

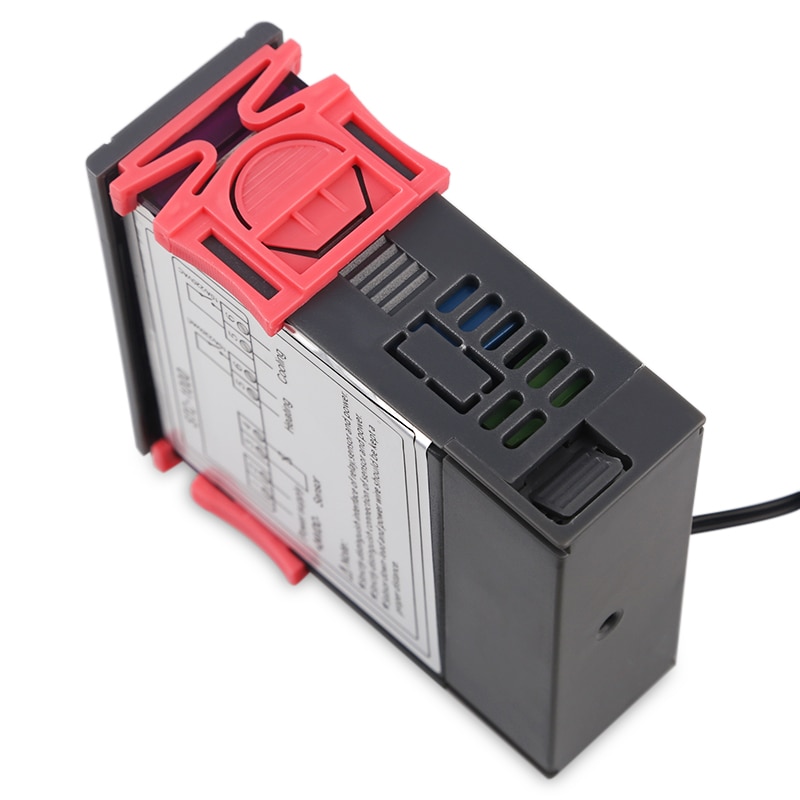

Embedded installation:
Front Panel Size: 75x34.5mm ; Product Size: 75x34.5x85 mm ; Mounting Size: 71x29mm

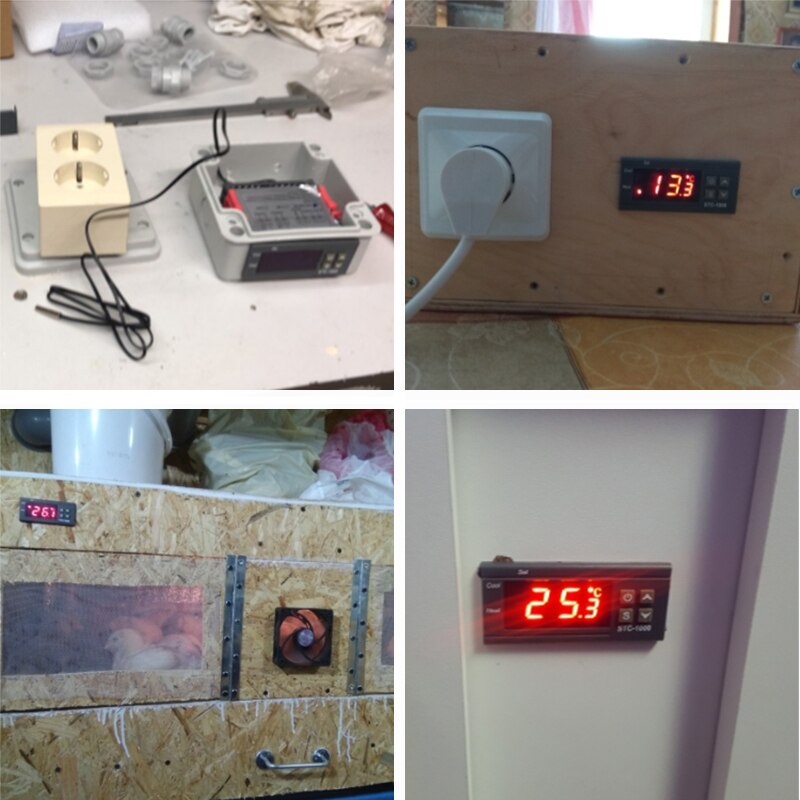

Part of usage from customers:
- Theory: Temperature Controller
- Usage: Household
- Model Number: Temperature Controller
- Max Measuring Temperature: 70°C- 99°C
- Display Type: DIGITAL
- Power Type: Charger
- Display Size: 1.9 Inches & Under
- Style: Standing Station
- Brand Name: LEDSMITH
- Origin: Mainland China
- Temperature measuring range: -50℃-99℃
- Resolution: 0.1 ° C
- Accuracy: ±1° C
