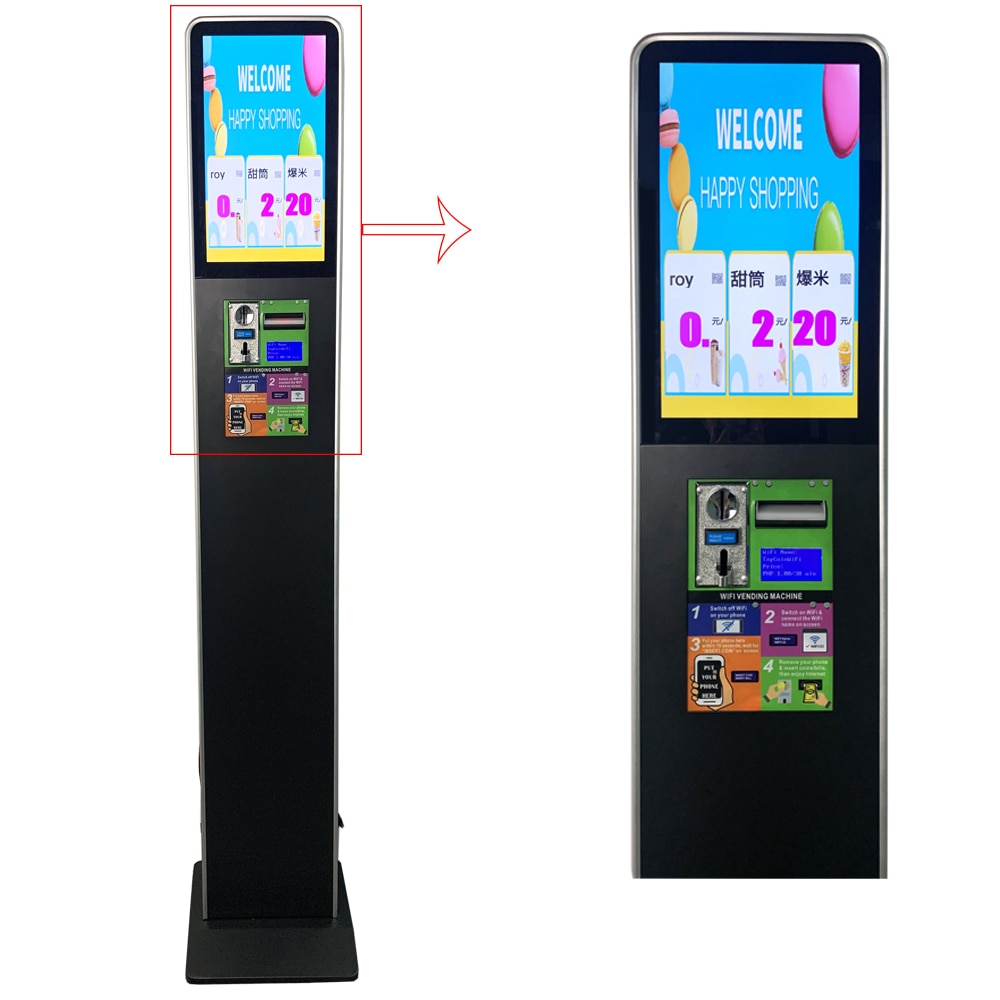

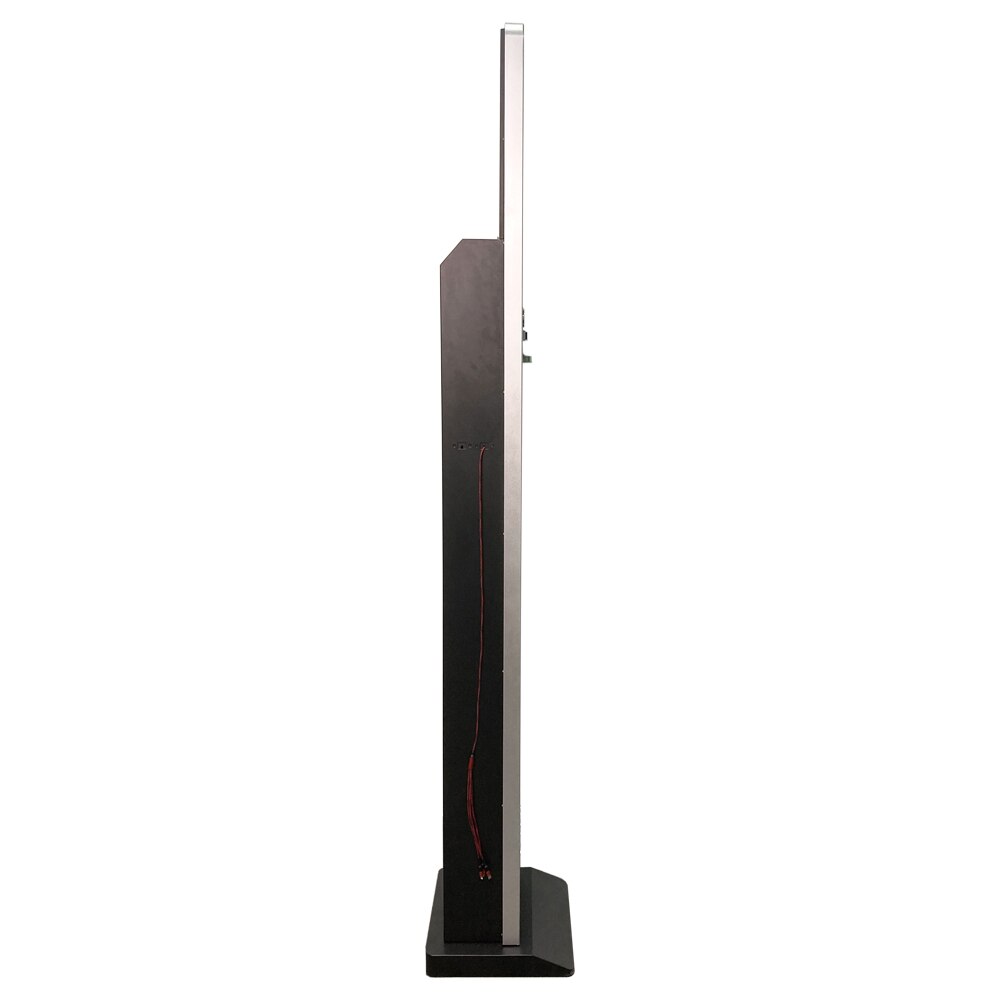

Hot Selling 2022 Outdoor 4G WiFi Service Coin Banknote Operated Steel Plate Vending Machine
1,402.76 $
ID: 98710
Quantity
Digital Advertising Screen Outdoor 18.5 Inch 4G WiFi Charging Payment Vending Machine Business Network Service Information Kiosk
0.0 ( votes)
Price:
US $
4508.28
/ piece
- Ships From
Dear Buyer:
This product is a customized product. Place contact customer service to confirm the price, delivery date and shipping method before placing an order.
Thank you!
OVERVIEW

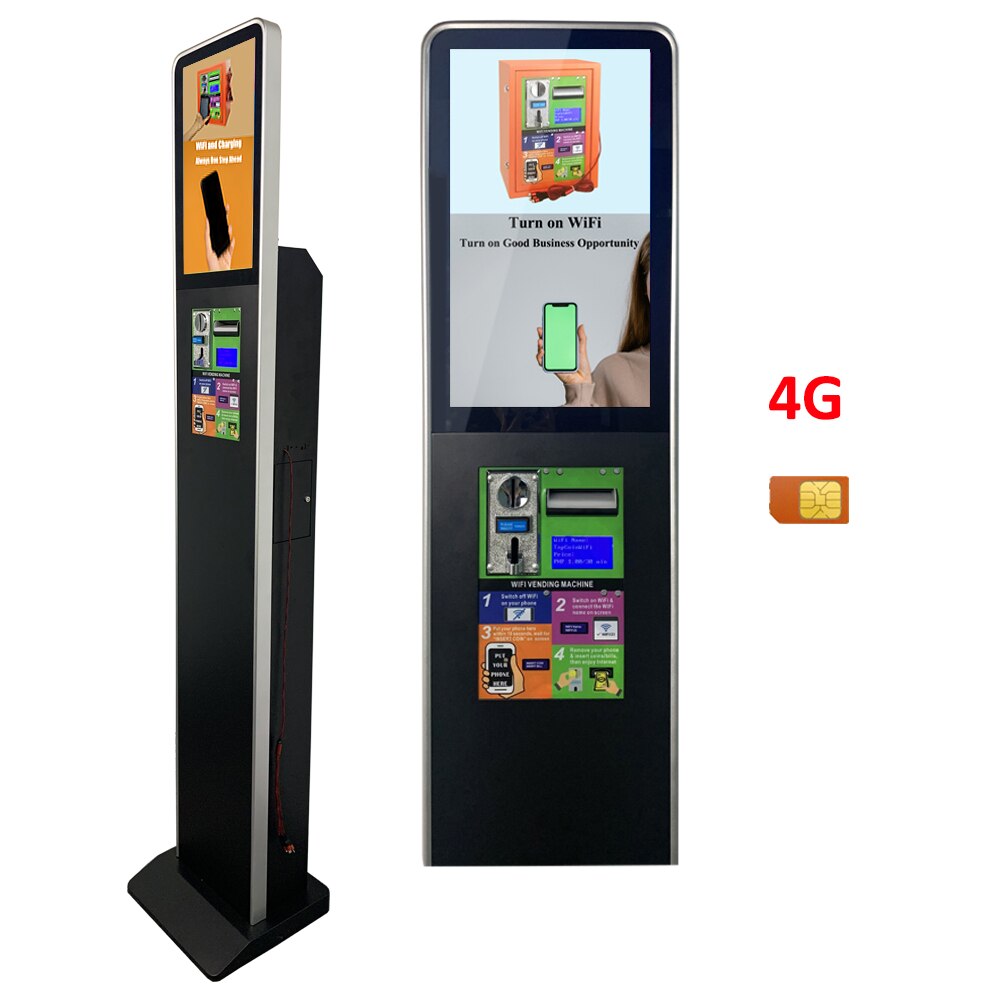

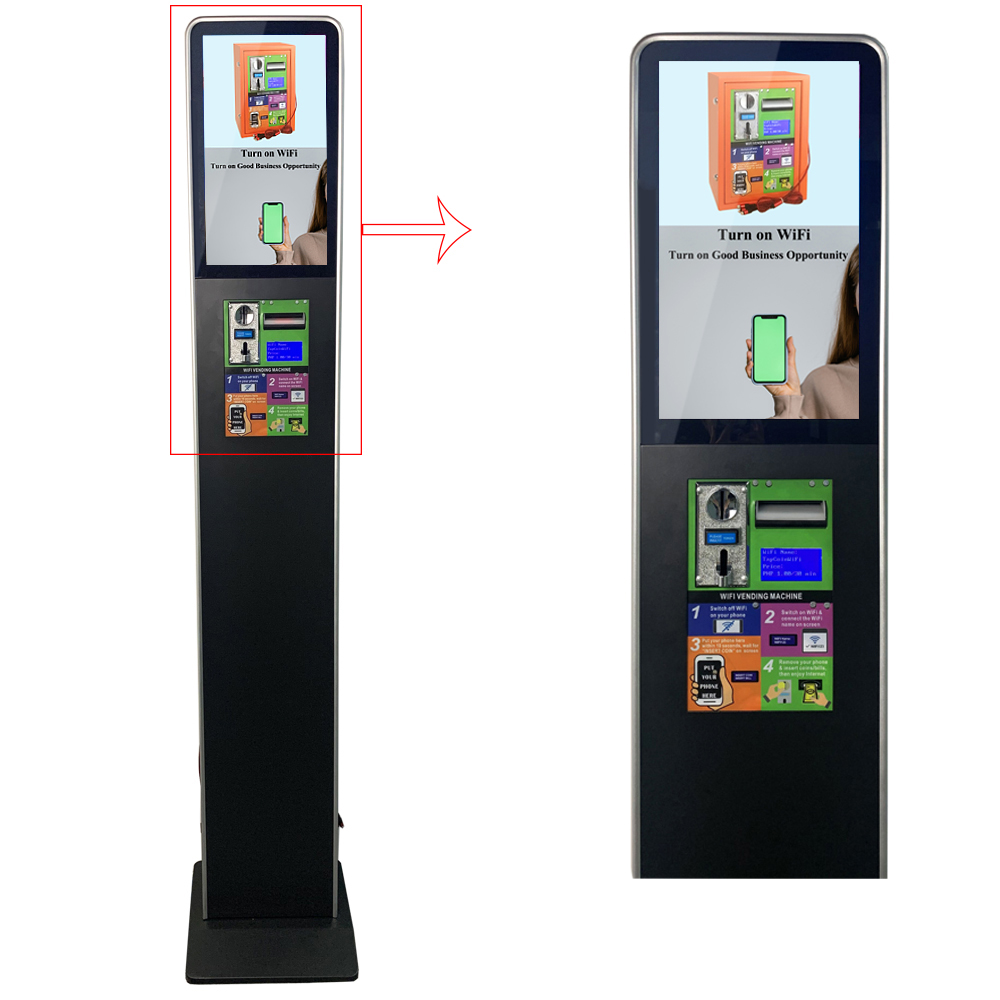

Coin/Banknote-Operated WiFi Charging Advertising Player consists of two parts: Coin/Banknote-Operated WiFi Charging Vending Machine and 18.5 inch advertising player.
Coin/Banknote-Operated WiFi Charging Vending Machine brings a brand-new vending business into public market. It provides visitors an immediate WiFi Internet hotspot service charged by time or traffic data. It also provides visitors a fast charging service.
Everyone has a smartphone, but not everywhere have WiFi. WiFi Vending Machine can fill this huge gap between WiFi needs and WiFi Coverage, and offer you a new way to gain revenue easily.
The machine is plug-&-play and easy to install. And the best part is all investment can be returned in 3 months.
FUNCTIONS

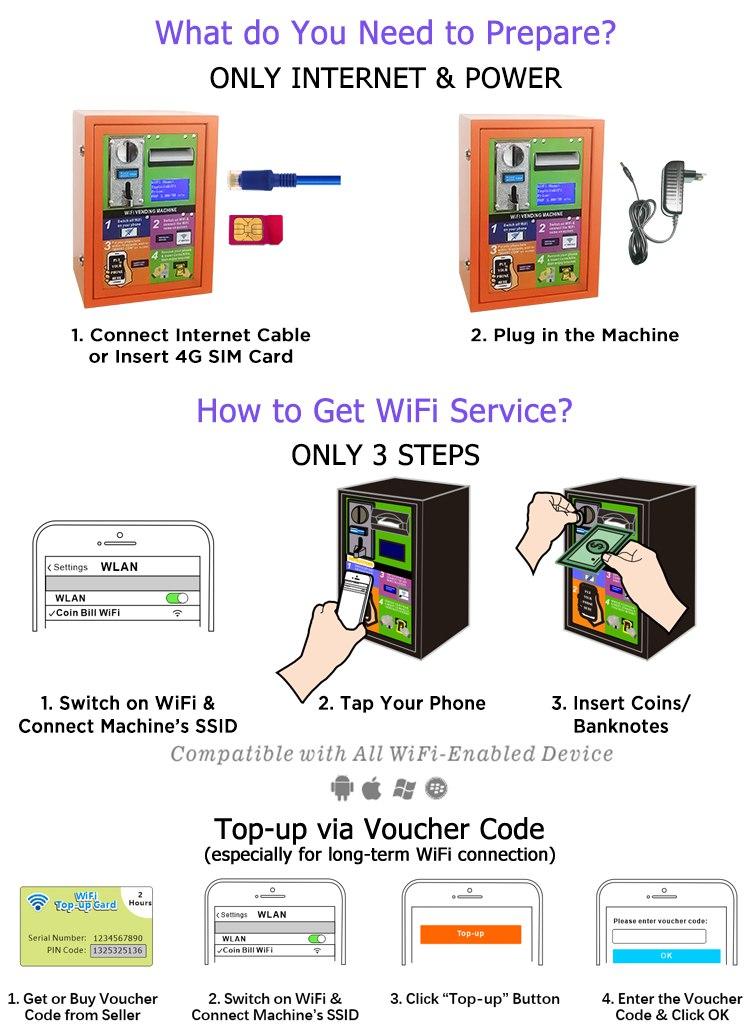

No inquiry, no username, and no password are required; just tap the phone, insert
coins and/or banknotes, and get WiFi.
Provide big WiFi signal range (around 100 meters for outdoor / 30 meters for indoor).
Support around 50 concurrent users (depending on the bandwidth of Internet access) and optional high-end version can support up to 500 concurrent users.
No need for supervision. Self-service working method to save labor cost.
Provide user-friendly pop-up instruction page to tell end users how to get WiFi service.
Offer cloud-based NMS (Network Management System) to monitor all online machines remotely.
Support account roaming between different machines to help end users enjoy your WiFi service in multiple sites.
FEATURES
Coin/Banknote-Operated WiFi Charging Vending Machine Features:
Advertising Player Features:
BENEFITS
Venue owners can get extra revenue by providing WiFi hotspot service and attract more visitors which is good for his original business;
Venue owners can display advertisements for their products on the login page for better promotion, or show ads for other shops to get income;
No WiFi squatteror hacker to stole Internet because no username and password is required;
Travelers can get quick and cheap Internet access without paying expensive charge for data roaming or new SIM card;
Visitors can check/send email, browse websites, and watch videos from any WiFi-enabled smart mobile phone, tablet, laptop, or handheld device.

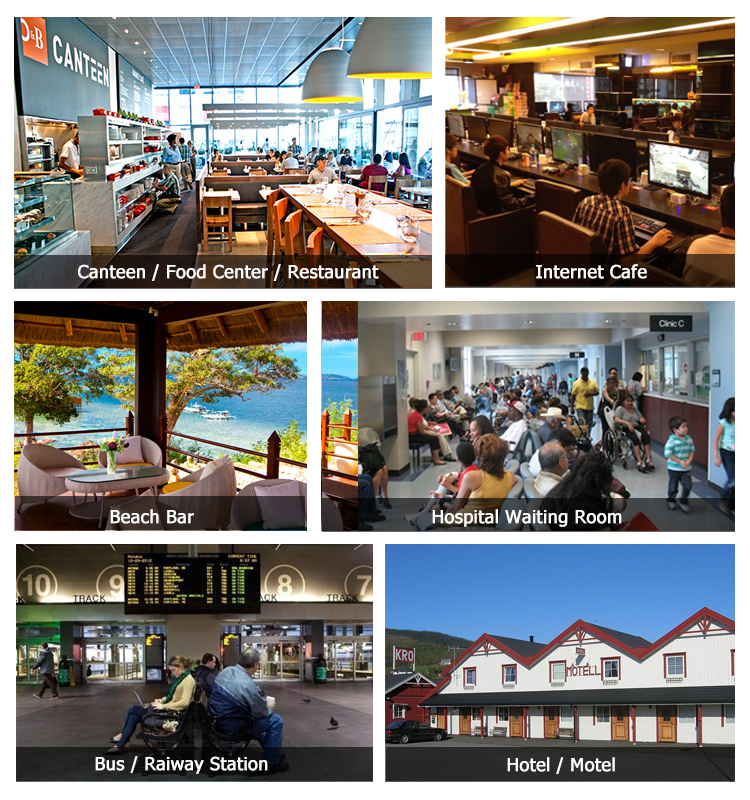

APPLICATIONS
Suited for indoor, outdoor or storefront public environment, such as:
Long-stay place: dormitories, apartments, hotels, hospitals;
Crowed public place: stations, food centers, restaurants, coffee shops, pubs, lounge bars, Karaoke bars, beauty salons, chain shops, lobby of banks/hotels;
Sports area and recreation centers: gyms, bowling, billiards,swimming pools;
Tourism place: international airports, beaches, parks, plazas, exhibition and convention sites.
TECHNICAL SPECIFICATIONS

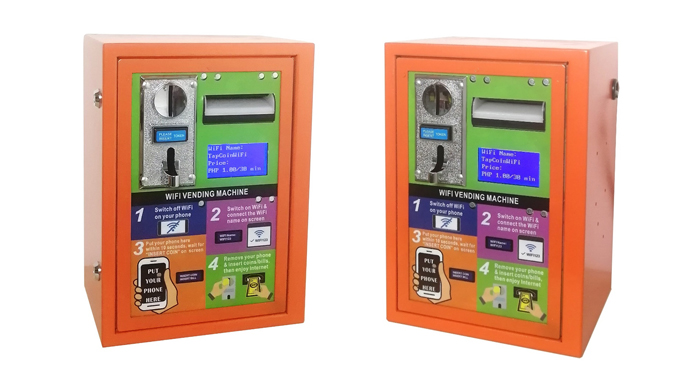

Coin/Banknote-Operated WiFi Charging Vending Machine:
Environmental Conditions | - Temperature: 5°C to 45°C (operation) / -10°C to 60°C (storage) - Humidity: 10% ~ 85% non-condensing - Shall work in bright environment |
Power Requirement | - External adaptor (input: 100~240 VAC, 50/60 Hz/output:12~24V DC,0.8A) - Power consumption: 6 watts - Support solar power supply |
WiFi Operation Range | Radius up to 100 meters (outdoor) / 30 meters (indoor) |
WiFi Frequency Range | BAND 2.412 to 2.484 GHz and 5.150 to 5.875 GHz |
Supported 4G Frequency Bands (optional) | LTE FDD:700/800/850/900/1700/1800/1900/2100/2600MHz |
Supported Max. 4G Data Speed (optional) | LTE FDD: Cat4 Download: 150Mbps / Upload: 50Mbps @20M BW |
Supported Device for Tapping | Any WiFi-enabled mobile phone, tablet, laptop, PSP, PDA, etc. |
Networking | - IEEE 802.11 b/g/n and 802.11 a/n/acWireless LAN - Zero end-user configurations |
Authentication | Built-in user authentication and accounting |
Remote Management via NMS (optional) | - Setting of WiFi name, WiFi service price, data speed limit - Revenue records of WiFi Internet service - Offer voucher codes for long-term wifi service - Supervision on running status of each machine |
About Coins | - Coin Acceptance: 6 different types - Usable Coins: Diameter: 15mm ~ 29mm, Thickness: 1.8mm ~ 3. 0mm |
About Banknote Acceptor | - Can accept most bills in the world - With LED at front to indicate status - Do not support giving changes |
Supported Language | English/Spanish/French/Portuguese are available (other languages can be customized) |
Structural | - Housing Material: steel plate - WAN Interface: 1x RJ45 port or 4G module (optional) - Antennas: 1x WiFi (internal, 2.4GHz+5GHz dual-band) or 1x 4G (external, optional) - Capacity of Coin/Banknote Container: 1.4 liters |

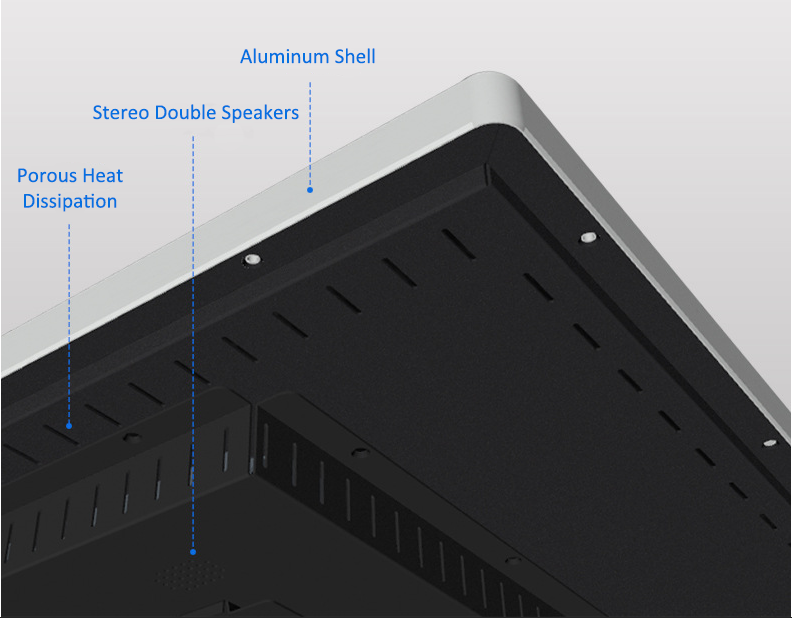

Advertising Player:
LCD Panel | - Pixel: 0.08265*0.24795mm - Display Area: 409*230mm - Service Time: More than 50,000 hours |
Motherboard Configuration | - CPU: Allwinner A40, quad-core ARM Cortex-A7 architecture, mai n frequency 1.5GHZ - Memory expansion: Supports up to 32GB SD card expansion an d SATA hard drive expansion - Network support: Ethernet, WiFi |
File System | - operating system: Android4.4.2 - Language: Simplified Chinese, Traditional Chinese, English, Fre nch, German, Italian, Japanese, Korean, Russian, Spanish, Poli sh, Czech and other languages |
Internet Functions | - Browser: UCWeb, Google and other browsers - Online entertainment: Support online video, TV, movie, music, ra dio - Office Software: WORD,EXCEL,POWERPOINT,PDF,TXT - Game: Built-in 3D acceleration, can perfectly support games with 3D effects |
Power | - Input voltage: AC110-240V - Working power consumption: ≤25W - Standby power consumption: <3W |
Environmental Conditions | - Temperature: 0-50 ℃ - Humidity: 10%~85% - Storage temperature: -20-60 ℃ - Storage humidity: 10%~85% |
Basic Interface | - USB2.0 interface: X2 - UART expansion port: X2 - HDMI: X1 - AV input: ×4 - Audio output: Amplifier output, can directly drive 2*5W/8Ω speak ers - SD card: 1 standard SD card slot - MicroPhone: X1 |
OPTIONAL ADD-ONS

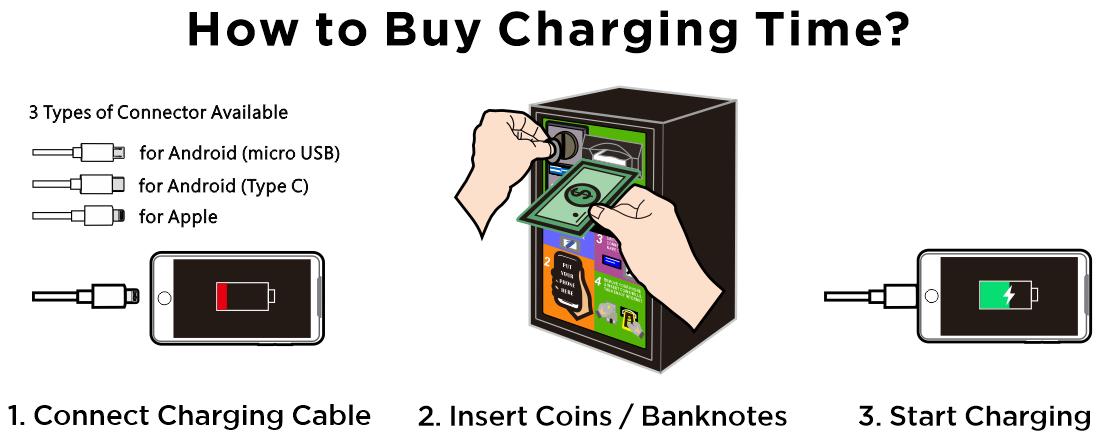

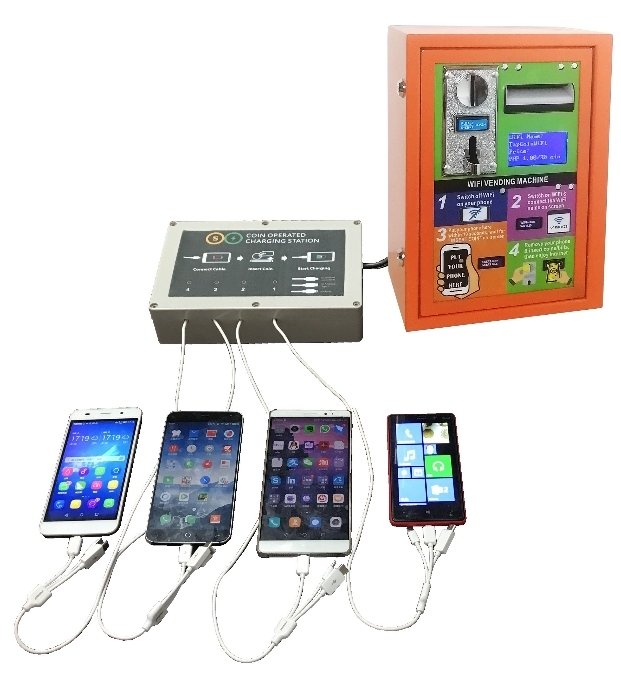

Cellphone Charging Box | |
| - Can get extra income by selling power charging service - Input Voltage: AC100~240V 50/60Hz - Output Voltage: DC5V - Output Current: 2A - Charging Cable: 4 x 1 meter - Connector Type: IOS + Micro USB + Type C, 3 in 1 - Casing Material: ABS plastic - Dimensions: 222mm (L) x 146mm (W) x 56 mm (H) - Weight: 0.9 kg |
| |

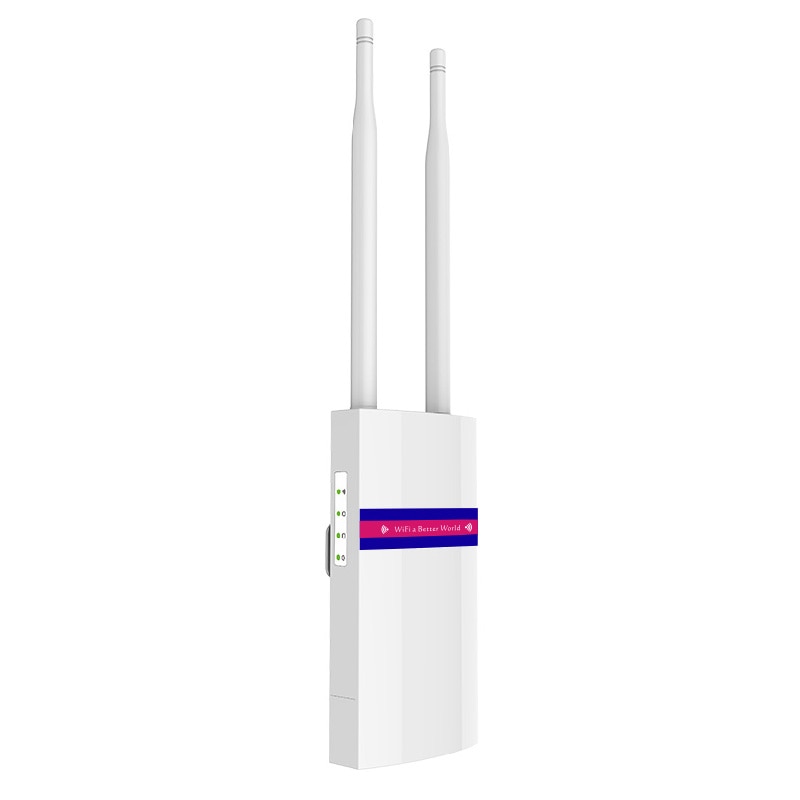

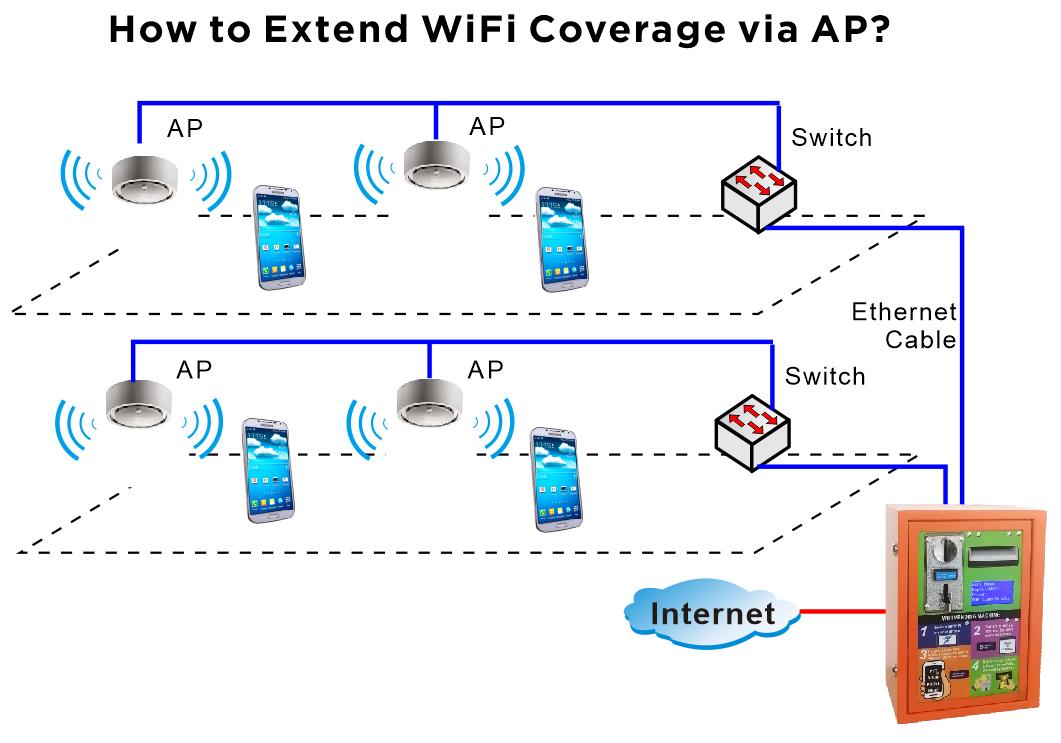

Access Point (WiFi Extender) | |
| - Can extend the wifi signal range to attract more users - Work in dual-band: 2.4 & 5 GHz - Support PoE in - Provided with waterproof casing - Shall connect to machine via Ethernet cable - Approximate extended range: around 120 meters (outdoor) / 50 meters (indoor) - Dimensions: 358mm (H) x 85 mm (W) x 45mm (D) - Weight: 0.2 kg |
| |
FAQ
Q: How does the Coin+Banknote WiFi get Internet?
A: You need to connect the Coin+Banknote WiFi to a DSL/Cable/Fiber Optic modem or a router via an Ethernet cable. For the 4G version, you can also insert a 4G/LTE SIM card inside the machine to make it have backup 4G connection.
Q: Can I add my company name and logo on the Coin+Banknote WiFi?
A: Yes, we can provide OEM service based on batch orders.
Q: Can the Coin+Banknote WiFi support more than 50 concurrent users?
A: Yes, we have high-end version which can support 200, 300 or 500 concurrent users with different price.
Q: Can I set the price for Coin+Banknote WiFi? Is it based on time duration or bytes usage?
A: Yes, you can set the price in the cloud-based NMS (Network Management System). Either time-based or data-based is supported.
PACKAGING & SHIPPING
Our product will be packed in a carton after careful testing and inspection.
FAST DELIVERY
We have strong cooperation with DHL, UPS, FedEX, EMS and TNT.
You can also choose your own forwarder.
Sample order will be delivered within 3 work days.
Batch order up to 1000 units will be delivered within 30 work days.
OUR SERVICE
Any inquiry of our products will be replied within 1 work day.
OEM is available for batch orders:
Silkscreen printing on casing
Brand Label on casing
Package carton printing
Product feature
Warranty and after-sales service:
Have a 1-year warranty and during the warranty we will provide free-of-cost technical support
We will provide online support service via email, instant messenger, instruction document and video
ABOUT US
- Size: 194*39*25cm
- Model Number: WiFi-A900BC
- Display: Double Display
- Keyboard: None
- Waterproof: No
- Battery: No
- Display Type: LCD
- Origin: Mainland China
- Application: Outdoor, Indoor
- Warranty Period: 1 Year
- Input Voltage: AC110-240V
- Type: TFT
- Viewing Angle: 89 /89 /89 /89 (L/R/U/D)
- Brightness Value: 450cd/m2
- Contrast Value: 4000:1
- Response Time: 5ms
- Panel Size: 18.5''
- Max Resolution: 1366 X 768
- Housing Material: Steel Plate
- Advertising Player Size: 458*281*20 mm
- Color: Black
- Product Name: Digital Advertising Screen Outdoor 18.5 Inch 4G WiFi Charging Payment Vending Machine Business Network Service Information Kiosk
- WiFi Standard: Wireless,2.4G & 5G,802.11ac/b/g/n
- WAN Interface: 1x RJ45 port or 4G module (optional)
- Installation: Plug and play
- Benefits: Get extra revenue;display advertisements;any WiFi-enabled;Charging.
- Functions: Big WiFi signal range;cloud-based NMS;Self-service;Play ads,etc.
- WiFi Supported Device: Any WiFi-enabled mobile phone, tablet, laptop, PSP, PDA, etc.
