Tuya ZigBee/WiFi PIR Motion Sensor Wireless Infrared Detector Security Burglar Alarm Sensor Smart life APP Control Compatible
16.28 13.36 $
SALE
ID: 10625
Diffuse reflective photoelectric sensor induction switch waterproof road gate car washing machine with 0-7 meters distance adjus
5.0 (1 votes) | 11 orders
Price:
US $35.02
/ piece
Discount Price:
US $
34.07
/ piece
-3%
Sorry! This item is out of stock
Packaging & Delivery
according to your order
For output type:
NPN, PNP, normally open, normally closed selection, select the option according to the use, explain the output type as follows:
Normally open and normally closed, mainly based on the state of the sensor's contacts when there is no induction.
Normally open type: When the proximity switch sensor is not operating (when no object is sensed), the contact is open and closed when the proximity switch sensor senses an object. Normally open, the signal output is off in the normal state. When the object is sensed, the contact is closed and the signal is output.
Normally closed type: When the proximity switch sensor is not operating, the contact is closed and is disconnected when the proximity switch sensor senses an object. Normally closed is the signal output in the normal state, the signal is continuously output, the contact is disconnected when the object is sensed, and the output is off.
NPN: After installation, when there is no induction, the output is low (example: input DC24V, output 0V). When there is object induction, the output is high potential negative signal (example: input DC24V, output DC24V, signal line is negative), trigger The signal is output for inspection purposes.
PNP: After installation, when there is no induction, the output is low (such as input 24V, output 0V or so), when there is object induction, output high potential positive signal (example: input DC24V, output DC24V, signal line is positive), trigger output Signals
Remarks:
1.In order to avoid effects from environment and voltage, please set detection distance within 2/3 of the maximum detection distance.
2.High-voltage wire and power wire may cause interference with sensor wire. The sensor wire should be installed separately.
3.Power must be cut off when wiring. Electrical connection should strictly refer to the instructions.
4.If maintenance is required, please contact the professionals.
Attention: Refer to the instructions before installation!

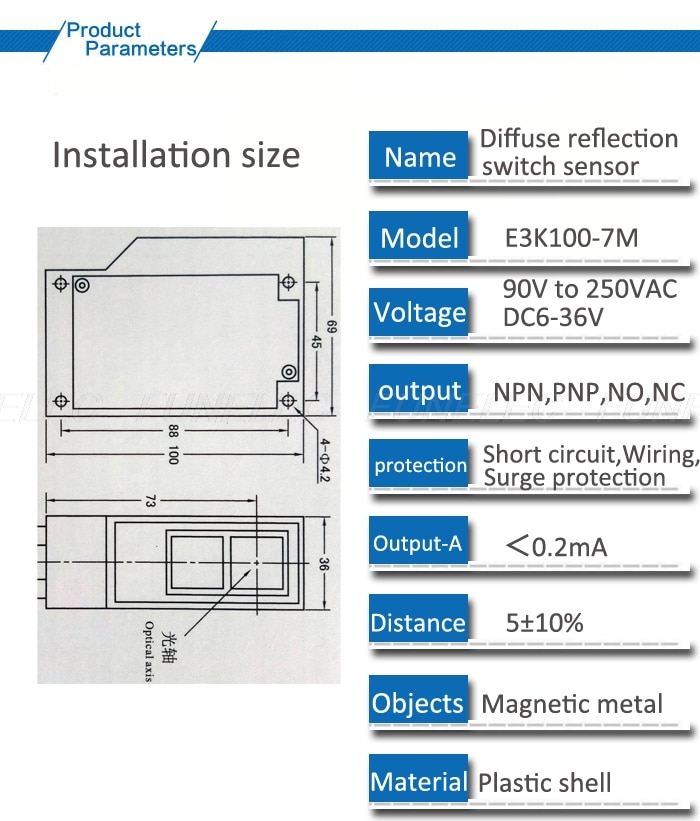

Technical Parameters
Product Name:E3K100-7M Diffuse-reflective Sensor
Power supply: 6-36V DC
Current consumption: 1A 125VAC, 2A 30VDC
Max. detection distance:0-7m，Distance can be adjusted
Object detection:Any non-transparent object
Response Protective level:IP67 (IEC Specifications)
Time: 0.2s
Detection angle: 3~20 °
Working temperature:-10 ~ +60°C
Shell material:ABS

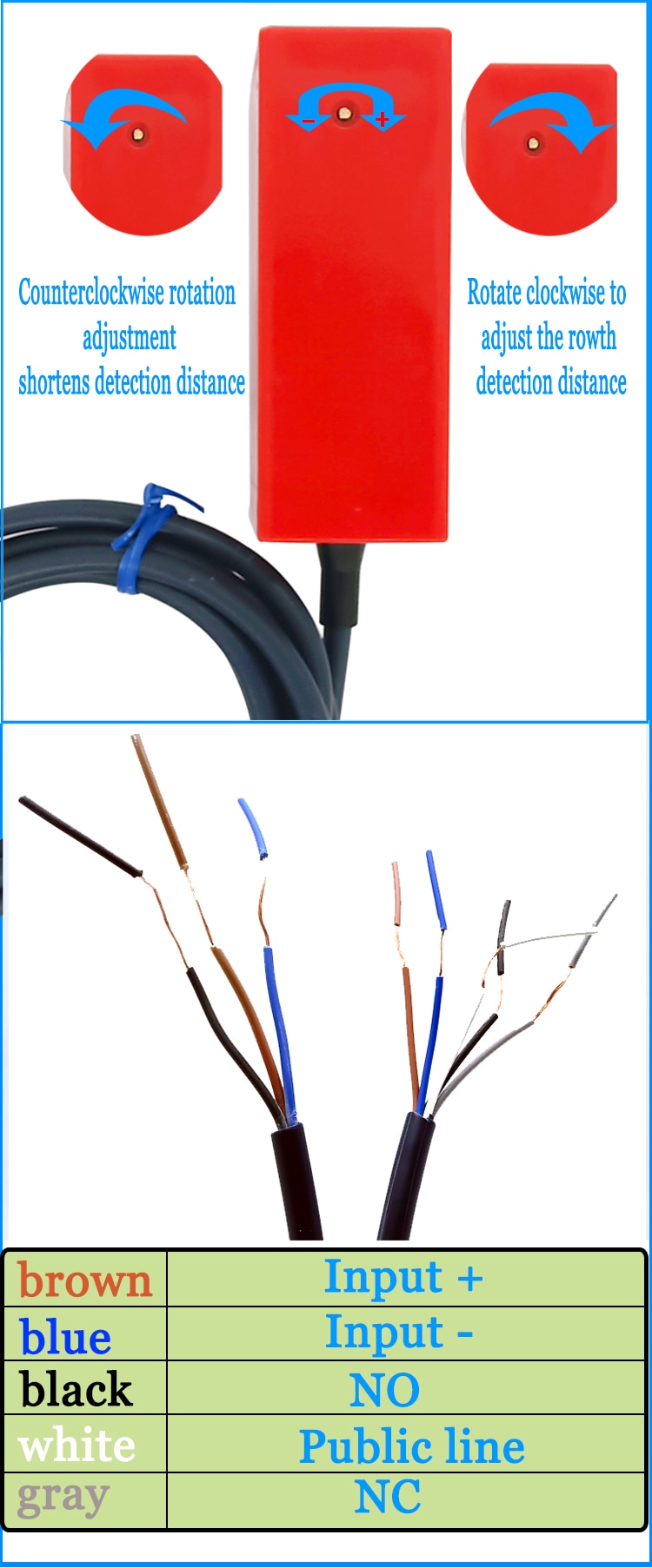

Distance can be adjusted
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Diffuse reflective photoelectric sensor induction switch waterproof road gate car washing machine with 0-7 meters distance adjus
- Brand Name: FUNELEC
- Certification: CE
- Origin: Mainland China
- Model Number: E3K100-7M
- Detection Range: 0-7M
- Power supply: 6-36VDC
- Response time: 0.2S
