Diese 433Mhz wireless Wall Switch rf 86 wall panel transmitter Safety Switch and AC 110V 220V relay interruptor for Light Lamp

4.8 (458 votes) | 4145 orders
Price: US $16.69 - 68.33 / Set
Discount Price:
US $ 9.95 - 38.95 / Set
-40%
Color
Ships From
Quantity

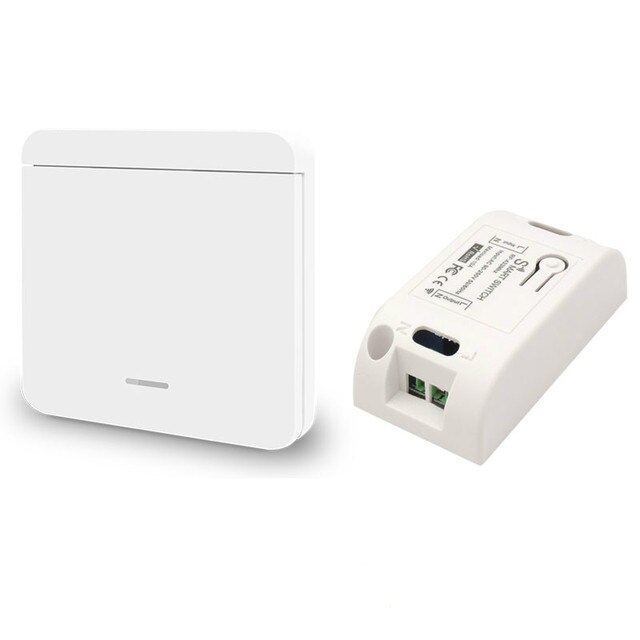

Diese 433Mhz wireless Wall Switch rf 86 wall panel transmitter Safety Switch and AC 110V 220V relay interruptor for Light Lamp



RF Output of Good Stability

Wide Availability
Simple to Use

Strong Signal Transmission

Perfect Craft & Detail Control

Excellent Detail Design


Product Detail
Working voltage  :  AC 90V~250V
Quiescent Current  :  <5MA
Max current  :  10A
Max load  :  2200W

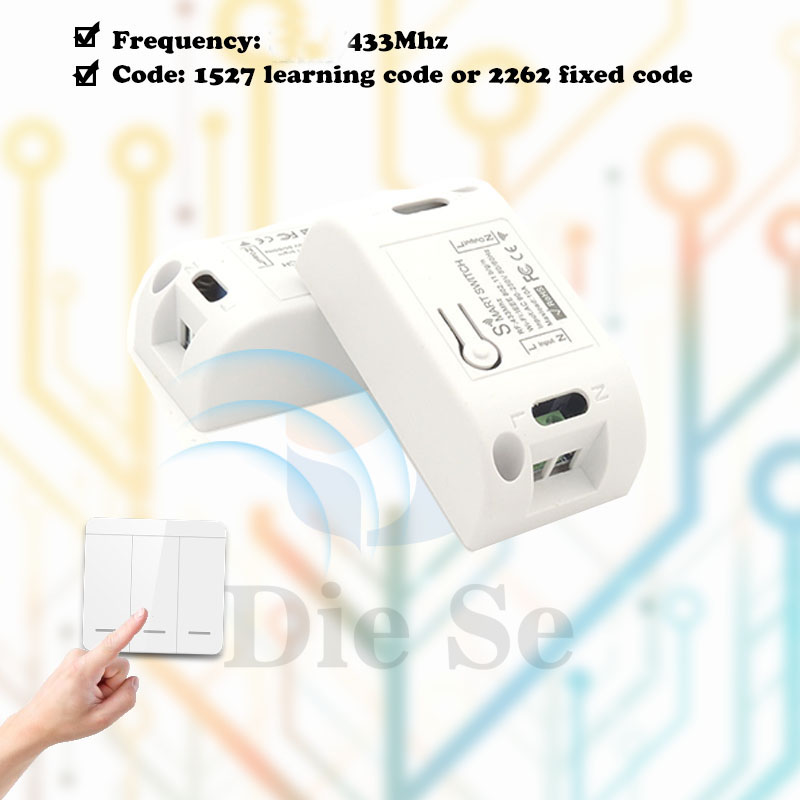

RF frequency  :  433MHz
Working temperature  :  -30~+80
Receiving Sensitivity  :  >97dbm
Amount of storage remote controls  :  25 pieces
Support encoding  :  1527 Leaning code,2262 fixed code
RF Operating mode  :  ASK superheterodyne wireless reception
Receiving range  :  Open space is more than 50 meters

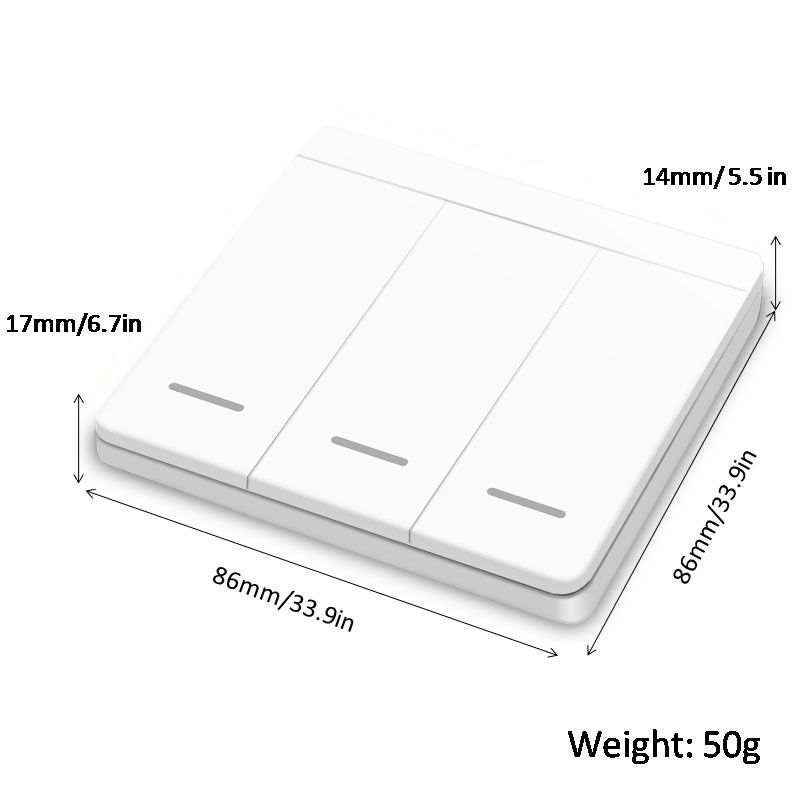

Wall switch size: 86standard size

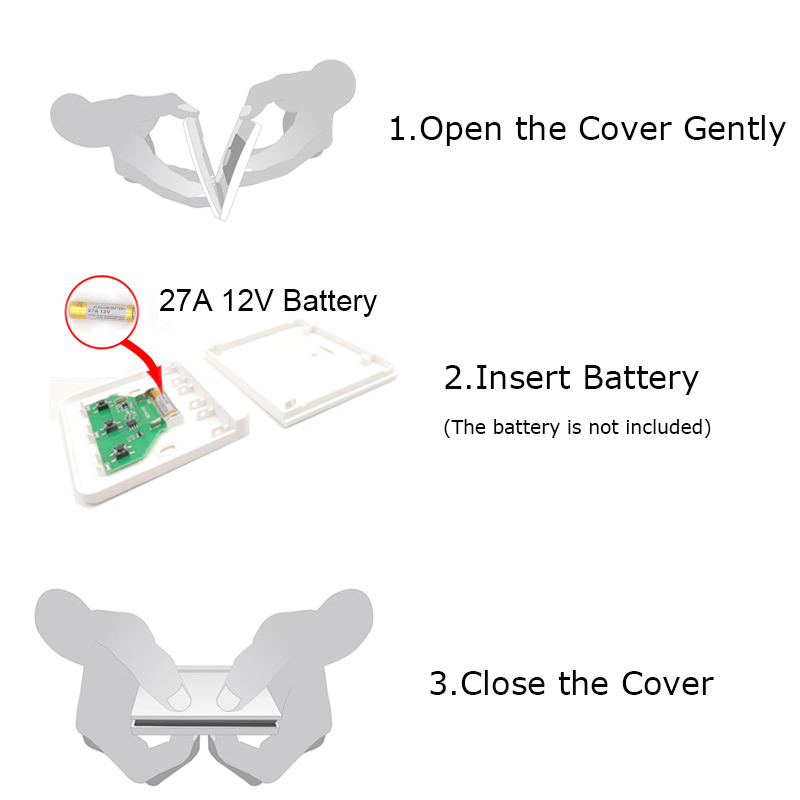

Switch battery :  1  27A 12V battery (Not include)

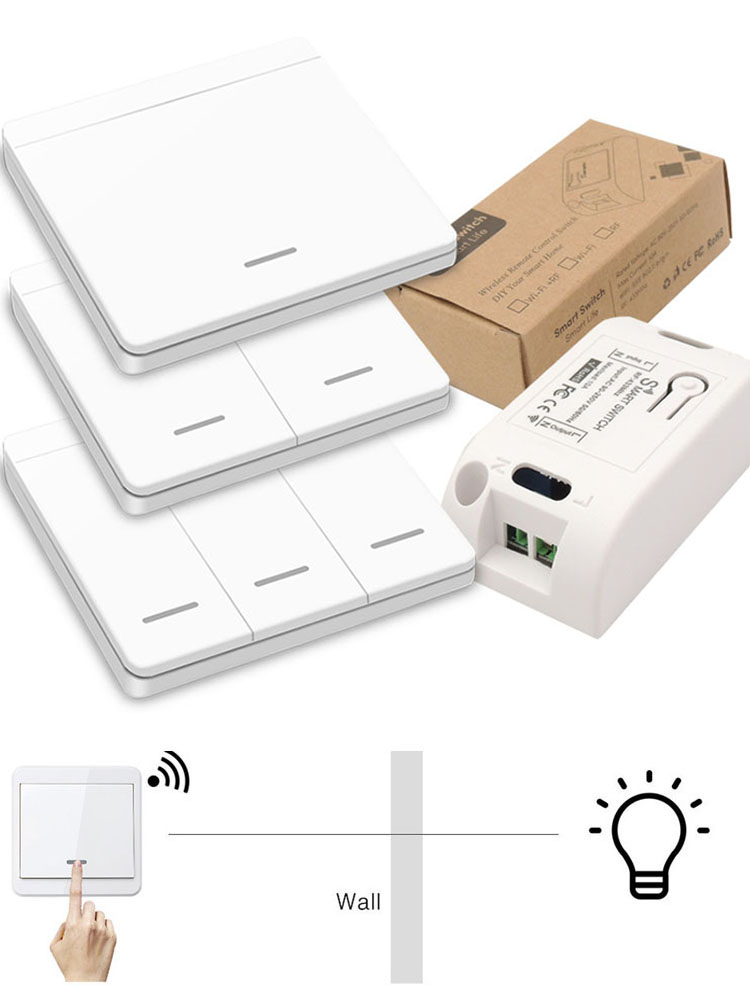

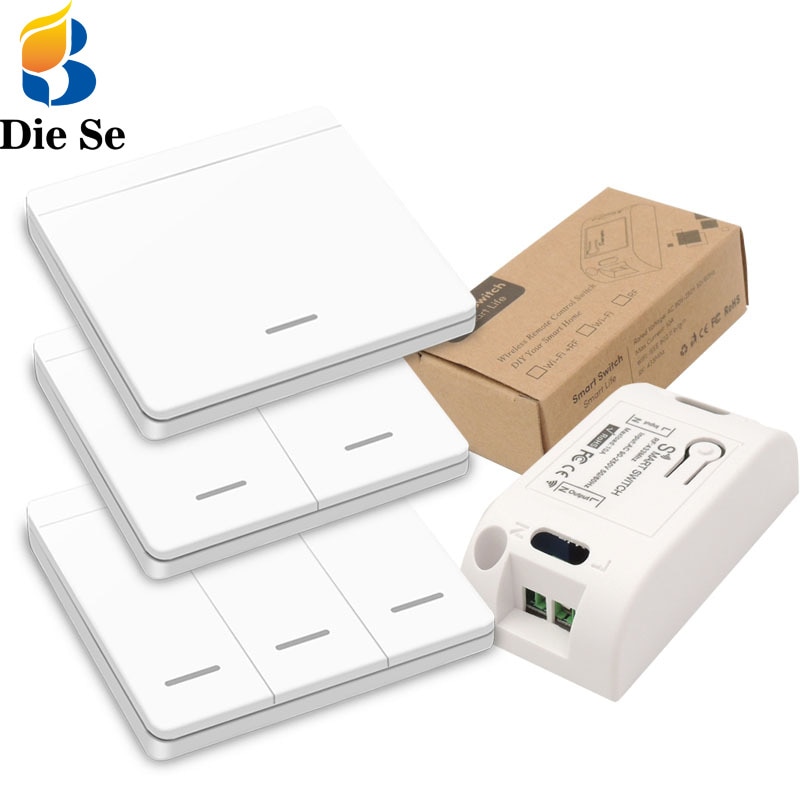

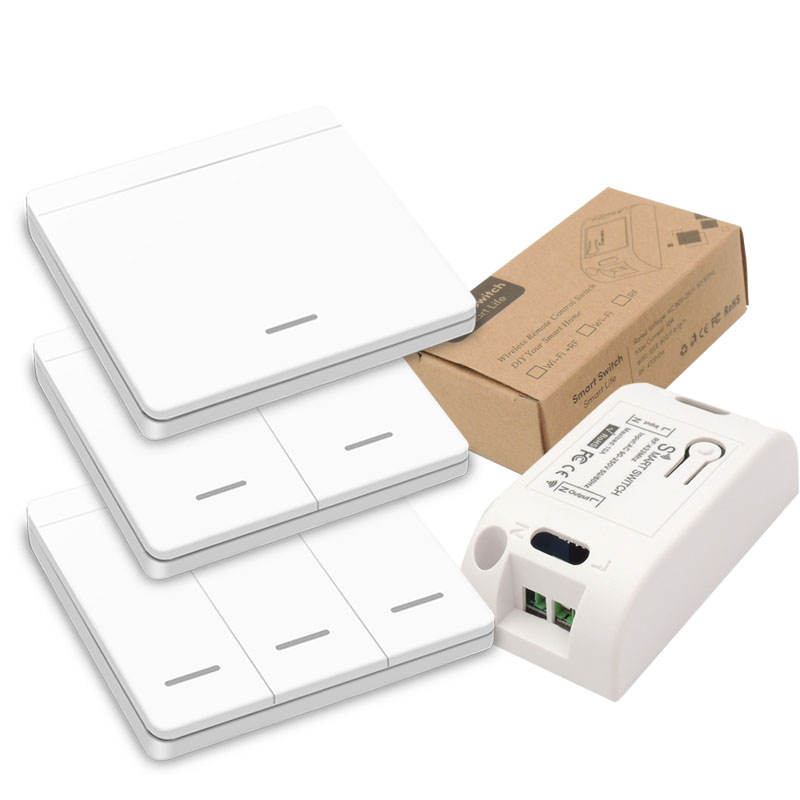

Package include

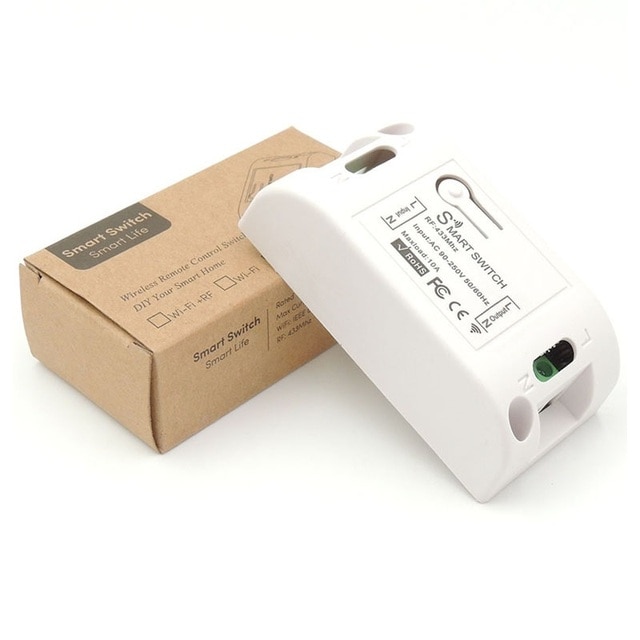

Receiver module ( include Shell )

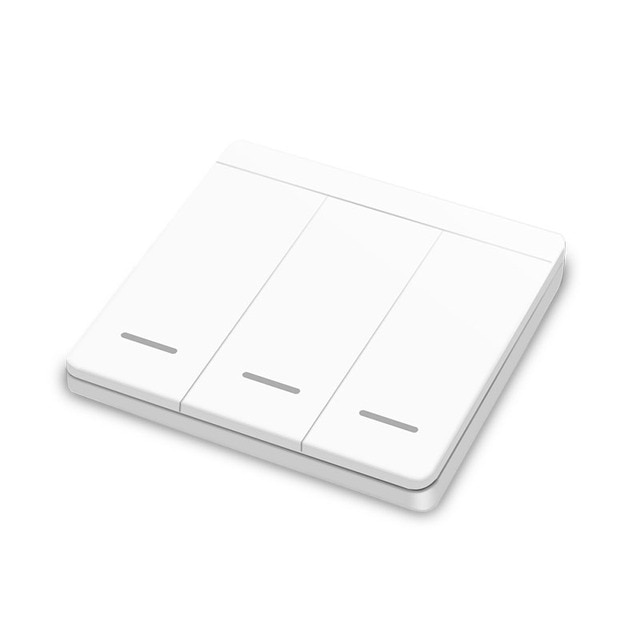

Wall switch (Not include battery )
double-sided tape

The Quantity depends on the option you choose

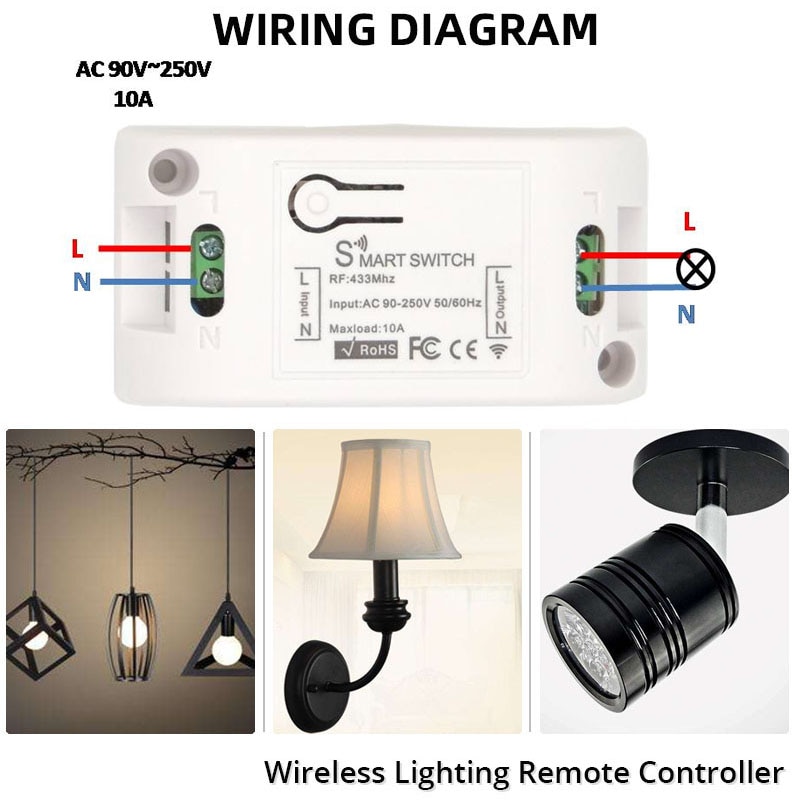

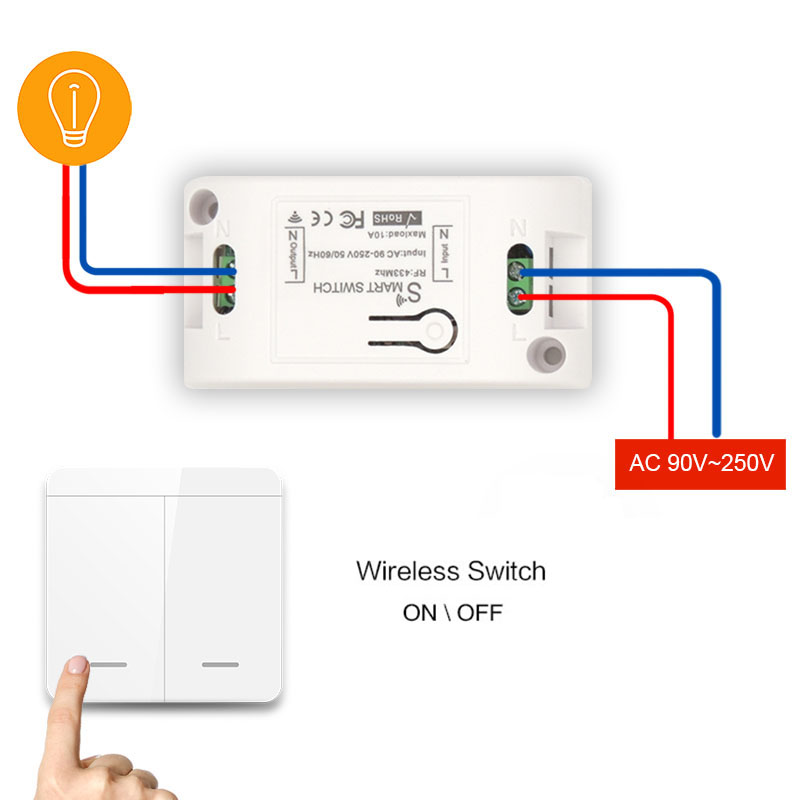

Wiring Diagram


Operating Mode


Set up



1. Press the learning button(on the Receiver)twice. Wait for 3 seconds;

2. Press one button on the wall switch. Wait for 3 seconds. Succeed.


Reset
Press the learning button (on the Receiver) 8 times. The existing data will be deleted succeed.



Q & A
Q : C anone receiver be controled by diffrent wall switch?
A : Yes, each receiver can add about 25wall switch.

Q : Canonewall Switch control 2 receivers individually ?
A : Yes, wall switch with 2 buttons can control 2 receivers ,wall switch with 3 buttons can control 3 receivers.

Q : Can 1 button on wall switchcontrol 2 receivers at the same time?
A : Yes , You can program it by yourself. For example, matched Button "1" with receiver "1",and then matched Button "1" with receiver "2" too. This Button "1" can control receiver "1" and receiver "2" at the same time.

On this product detailed page, there is a demonstration video for your reference.

*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*





  • Is Smart Device: No
  • Current: 10A
  • Material: Plastic
  • Features: 433Mhz rf Wireless Remote Control Switch can be pasted
  • Model Number: 2201D+WP07 Wireless RF Wall Switch Lighting Controller Switch Panel
  • Switch Type: Push Button Switch
  • Warranty: 1 Year
  • Certification: CCC,ce,ROHS
  • Brand Name: Diese
  • Origin: Mainland China
  • Item Type: Switches
  • Voltage: AC 90V-250V
  • Max Current: 10A
  • Max Load: 2200W
  • Specialfication: 86 Panel Wall Switch
  • Remote Distance: More than 50 meters in open area
  • Connection Method: Wireless remote control
  • Battery: 12V 27A (Not include)
  • Double-side Tape: Include
  • Application: Light, Bulb, LED,Lamps, Fan, Door, Gate, Pump and so on
  • Application scenario: Home, Farm, Factory, Office, Supermarkets and so on
  • Code: Learning Code EV1527
