Dia 10mm Full Color LED Lights Board DC 5V Individually Addressable WS2812B RGB IC 5050 SMD Pixel Lamps Beads 2812B WS2812 2812
4.4 (8 votes) | 91 orders
Price:
US $11.44 - 11.60
Discount Price:
US $
9.95 -
11.37
-13%
- Color
-
-

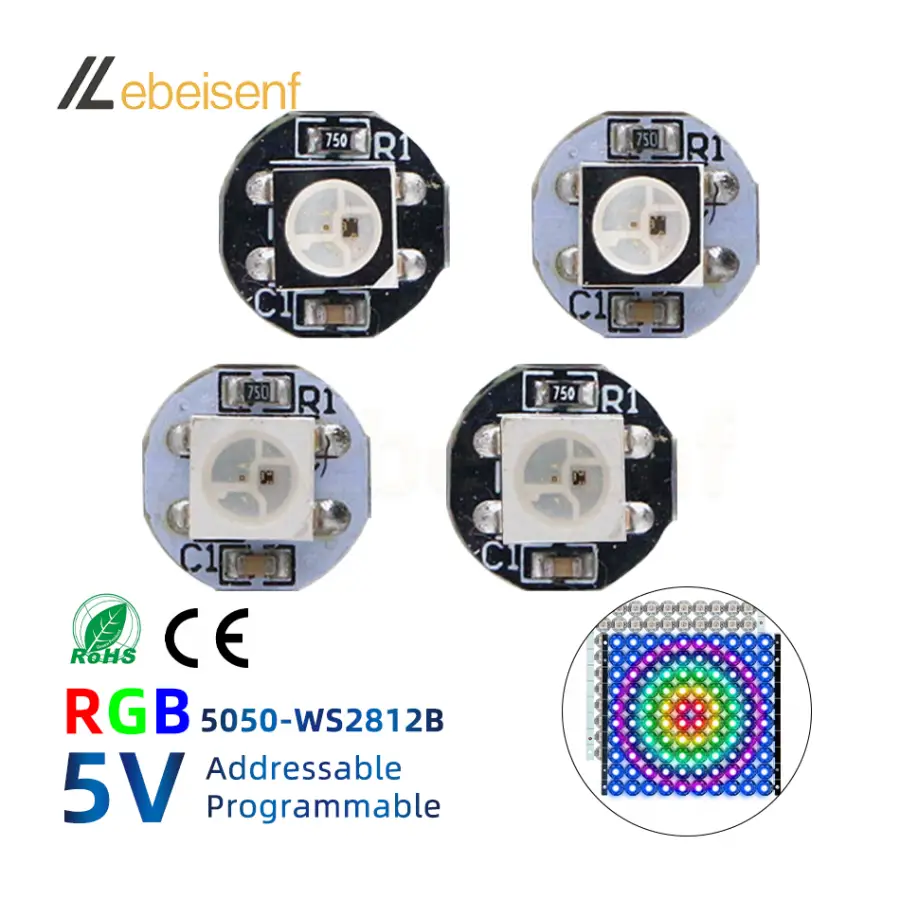

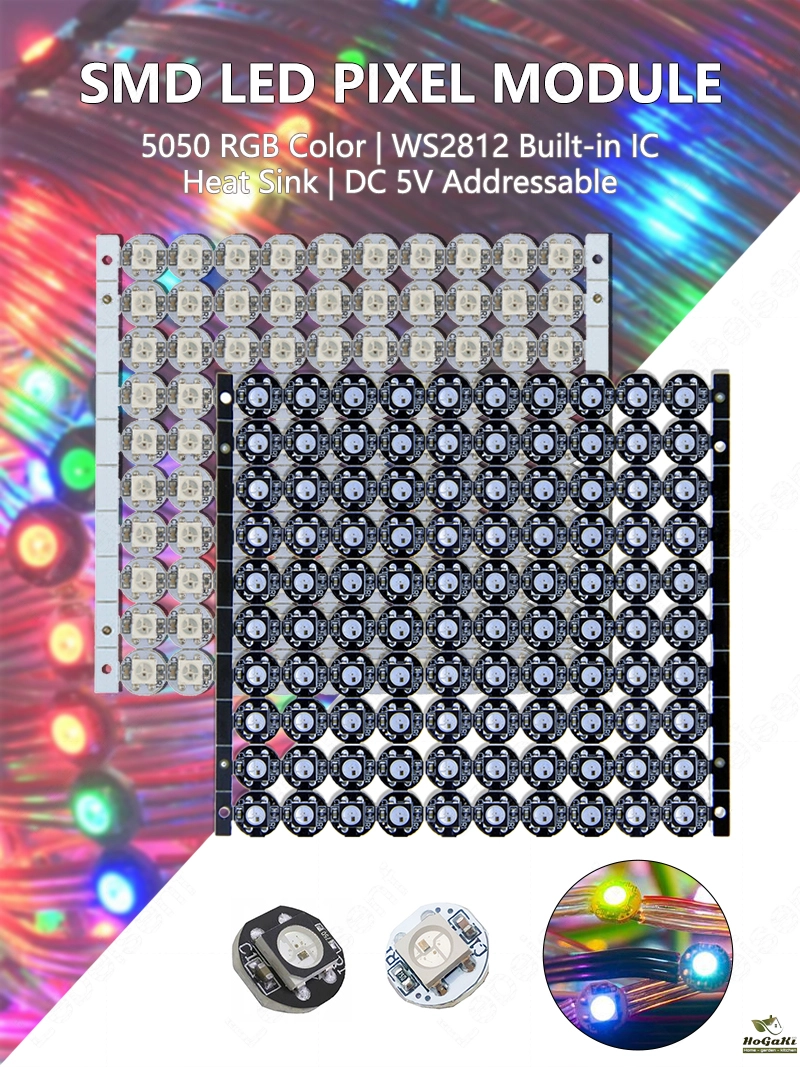

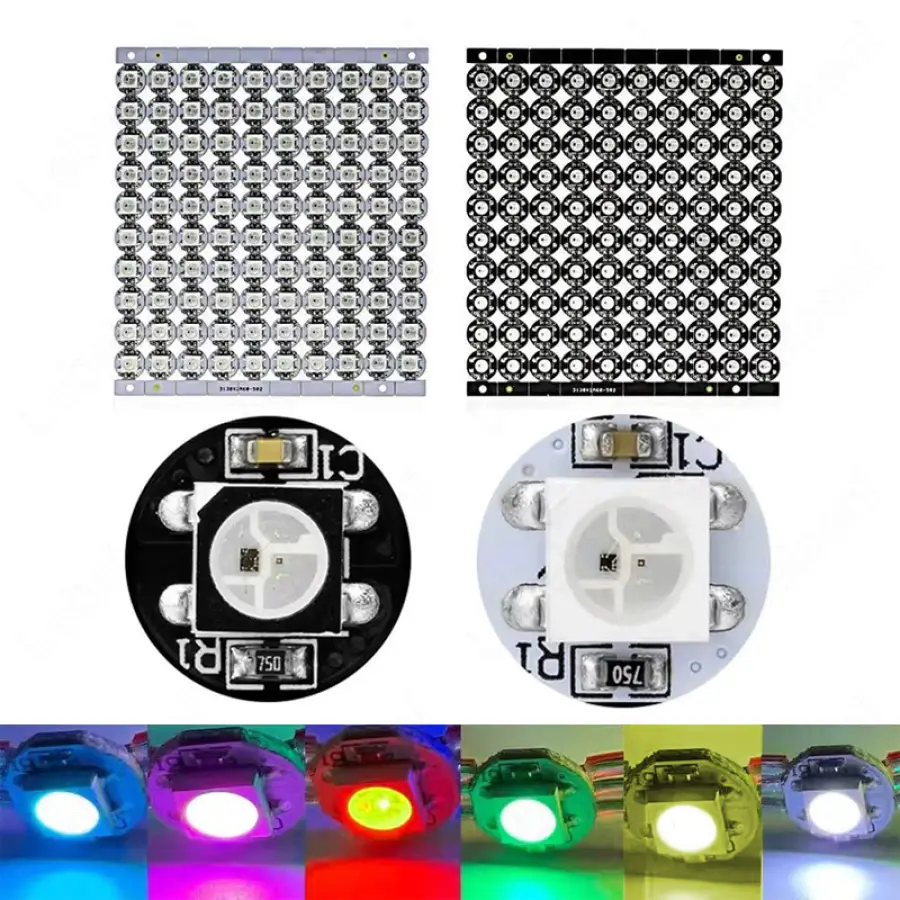

DC5V WS2812B LED Pixel Lamp Module Small Round Board Heat Sink Magic Color String Light SMD 5050 RGB Built-in 2812 Addressable IC Black or White PCB Aluminum Plate
For DIY Point Light Source String Lights
Feature function:
Intelligent reverse connect protection, the power supply reverse connection does not damage the IC.
The control circuit and the LED share the only power source.

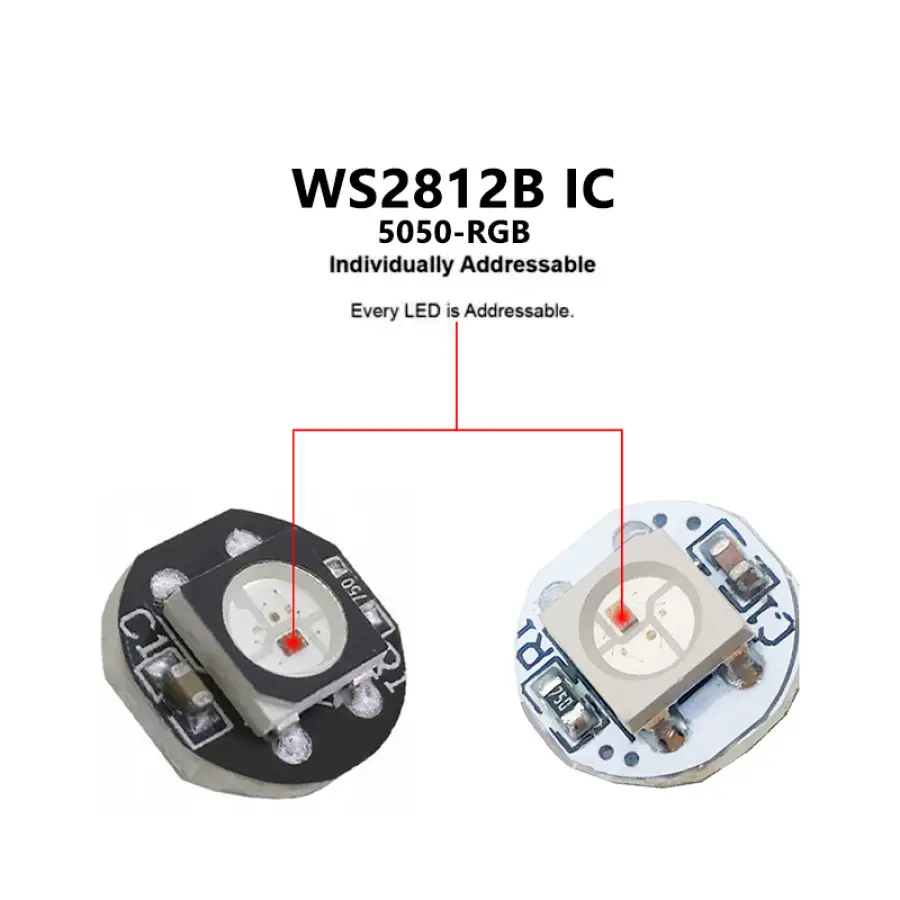

Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point.
Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.
Built-in electric reset circuit and power lost reset circuit.
Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full color display, and scan frequency not less than 400Hz/s.
Cascading port transmission signal by single line.
Any two point the distance more than 5m transmission signal without any increase circuit.
When the refresh rate is 30fps, cascade number are not less than1024 points.
Send data at speeds of 800Kbps.
The color of the light were highly consistent, cost-effective..
Product Specification:
IC Model: WS2812B
the gray level: 256
Beam angle: 180 °
Color order :GRB (NOT RGB)
Power: 0.3W ± 0.01%(1LEDs)
plate: aluminum plate

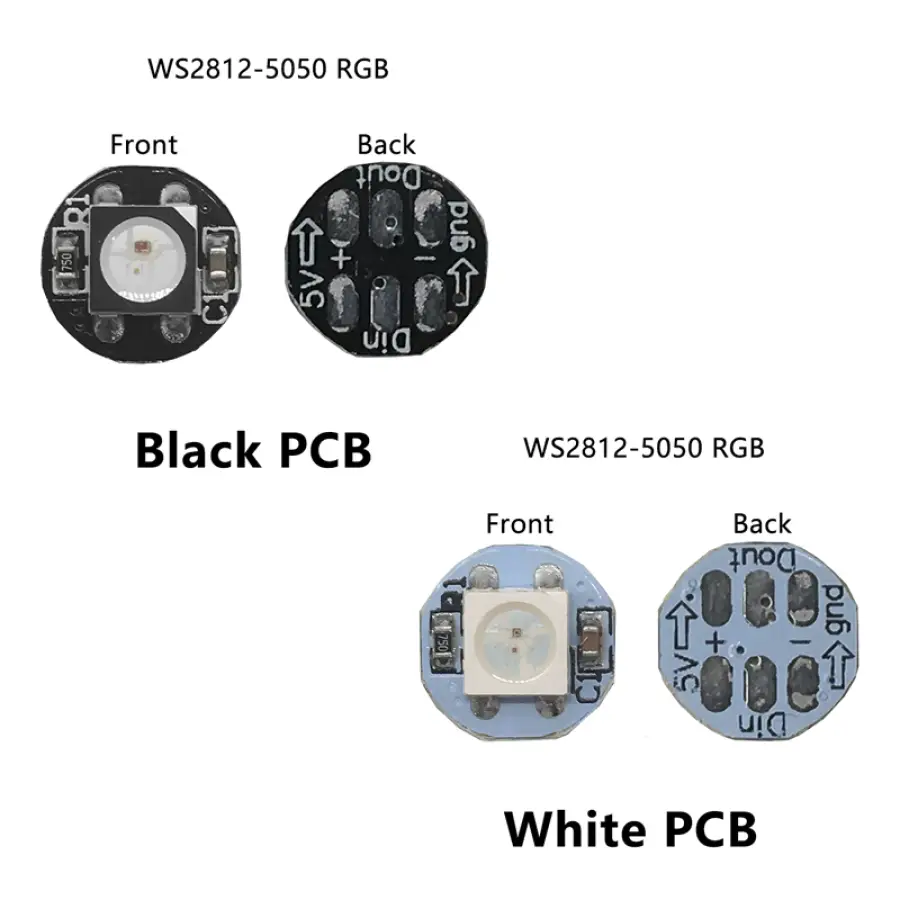

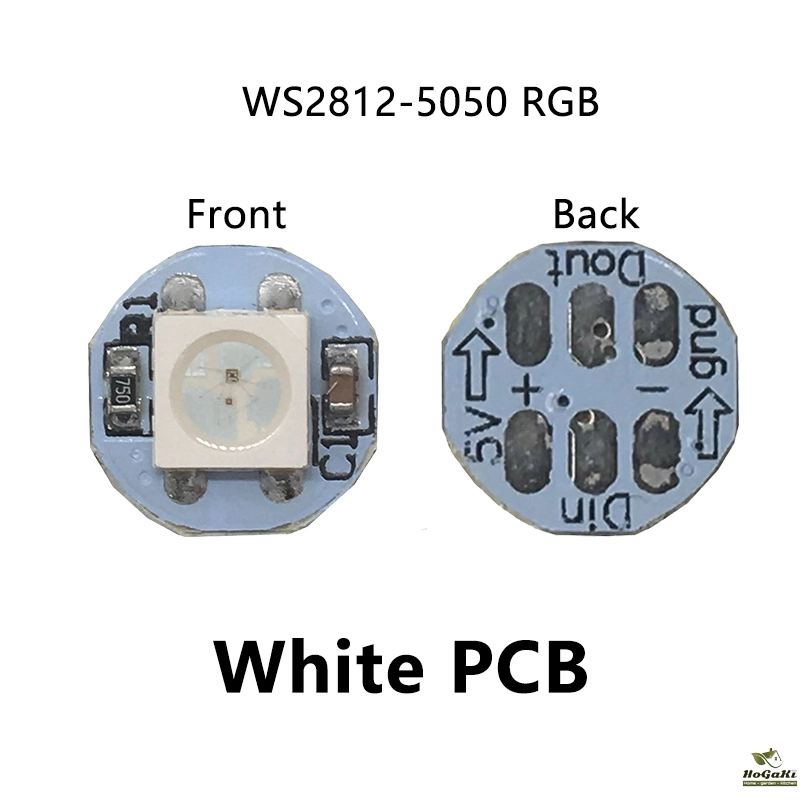

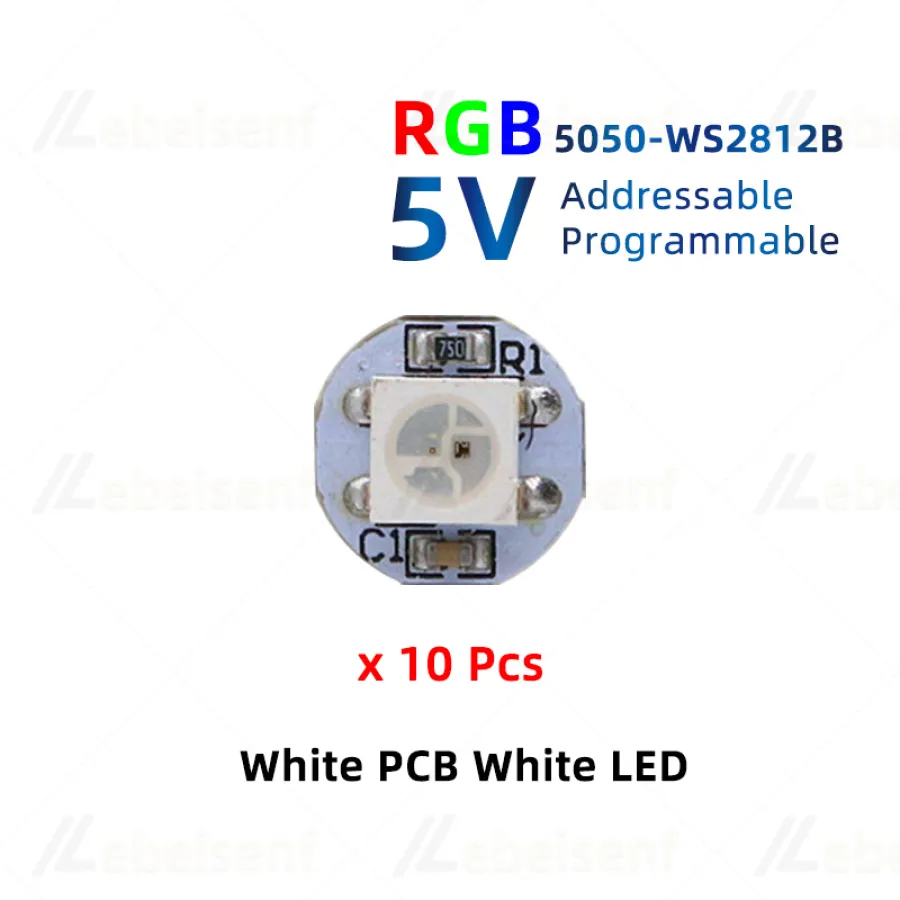

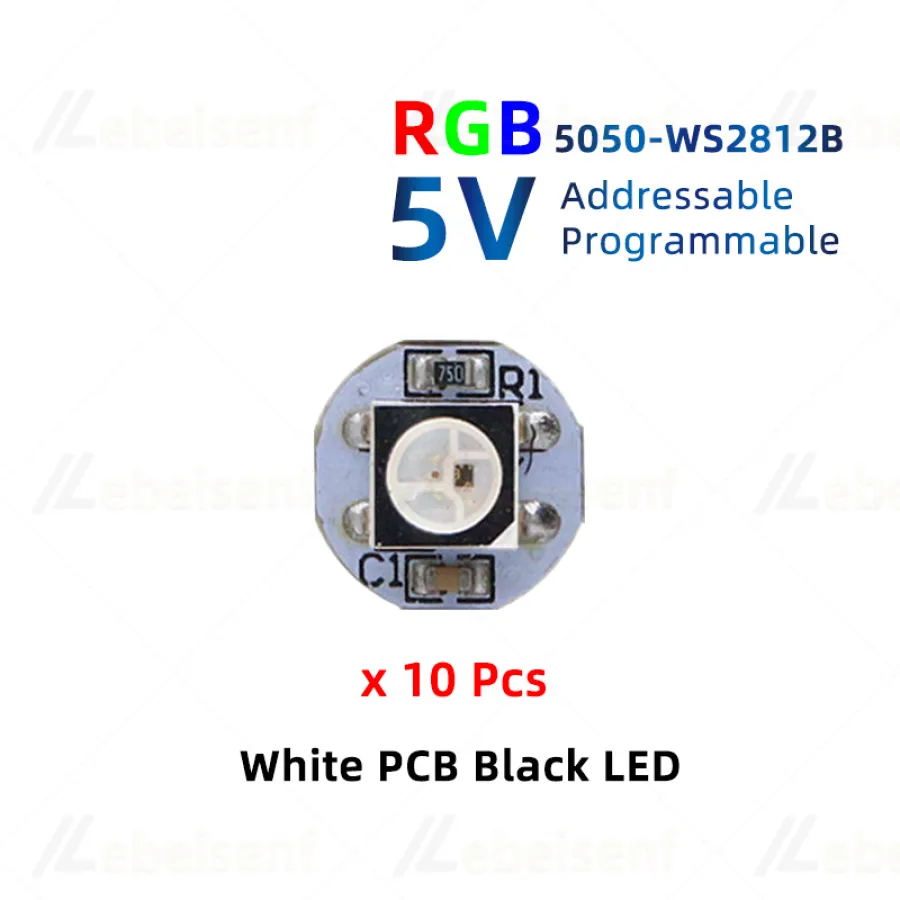

FPCB board color: White/Black
Waterproof: IP30 non-waterproof
The standard operating voltage: DC 5V

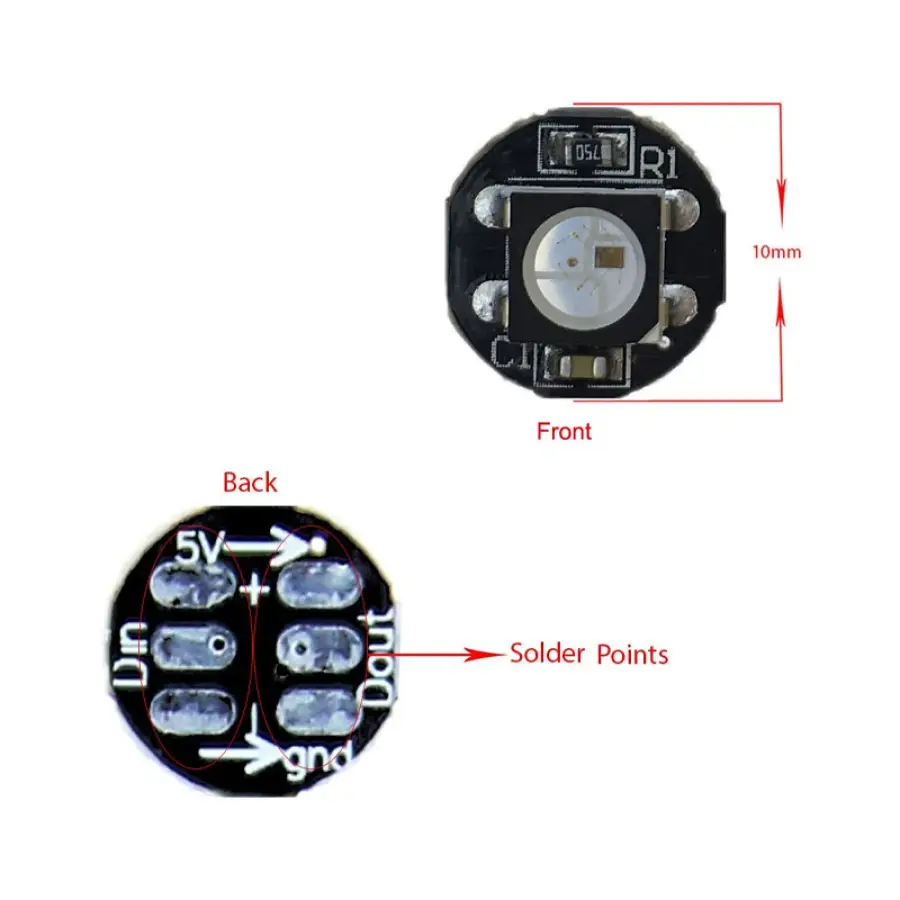

PCB board size: Width: 10 mm, thickness: 3mm
Model: WS2812 pixel board light source: SMD 5050 RGB
Color: full color, can be adjusted by the controller as follows: white, red, yellow, blue, green, etc.
Product Wrap:

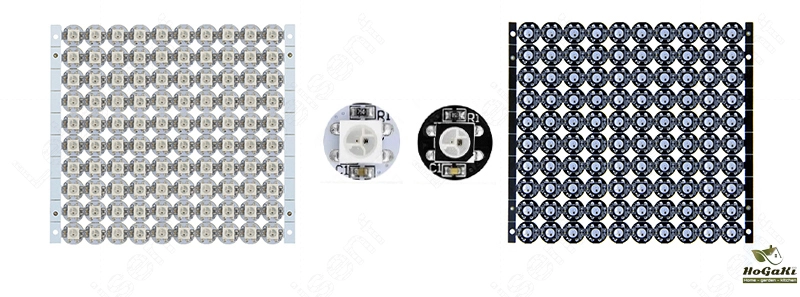

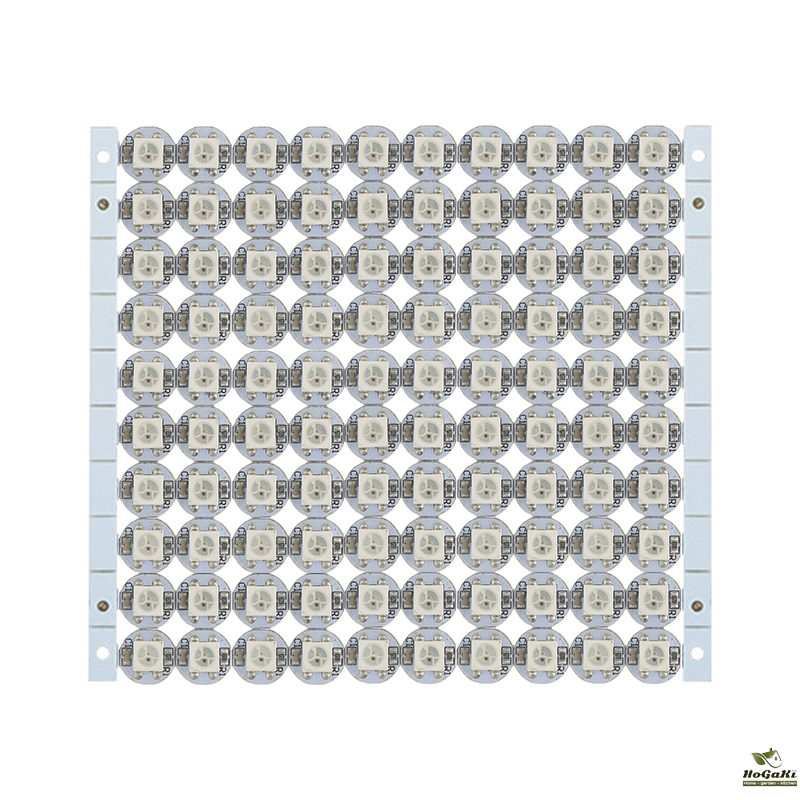

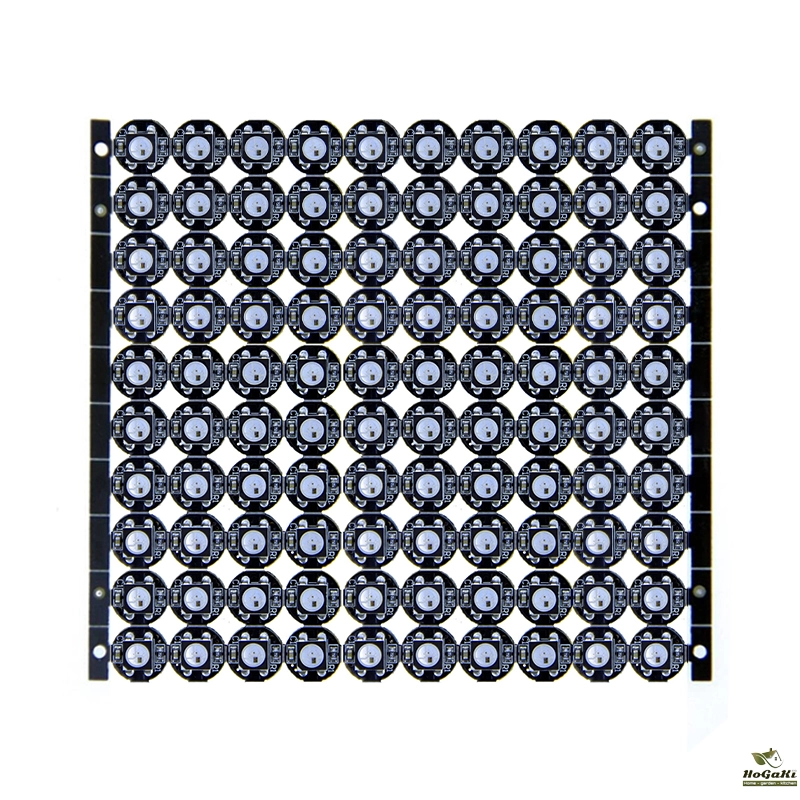

1 lot = 10 Pcs LED Light Board Beads

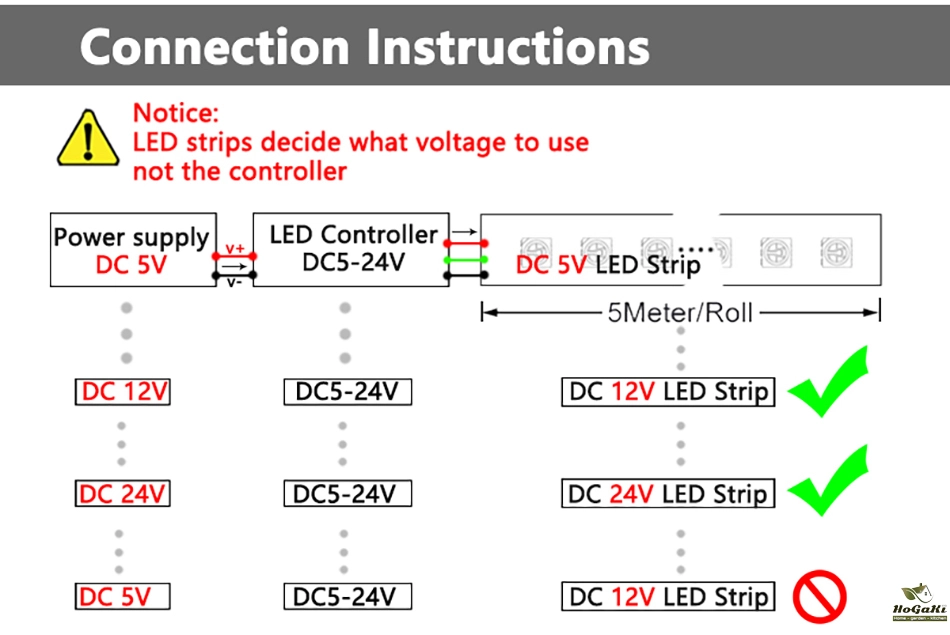

Voltage instructions
Please choose the power supply of the same voltage according to the voltage of LED lights. Not the controller
Packaging Details
- Unit Type:
- Package Weight: 0.020
- Package Size: 9x2x13
- Product name: LED Pixel Module Lights
- Application: Point light,DIY

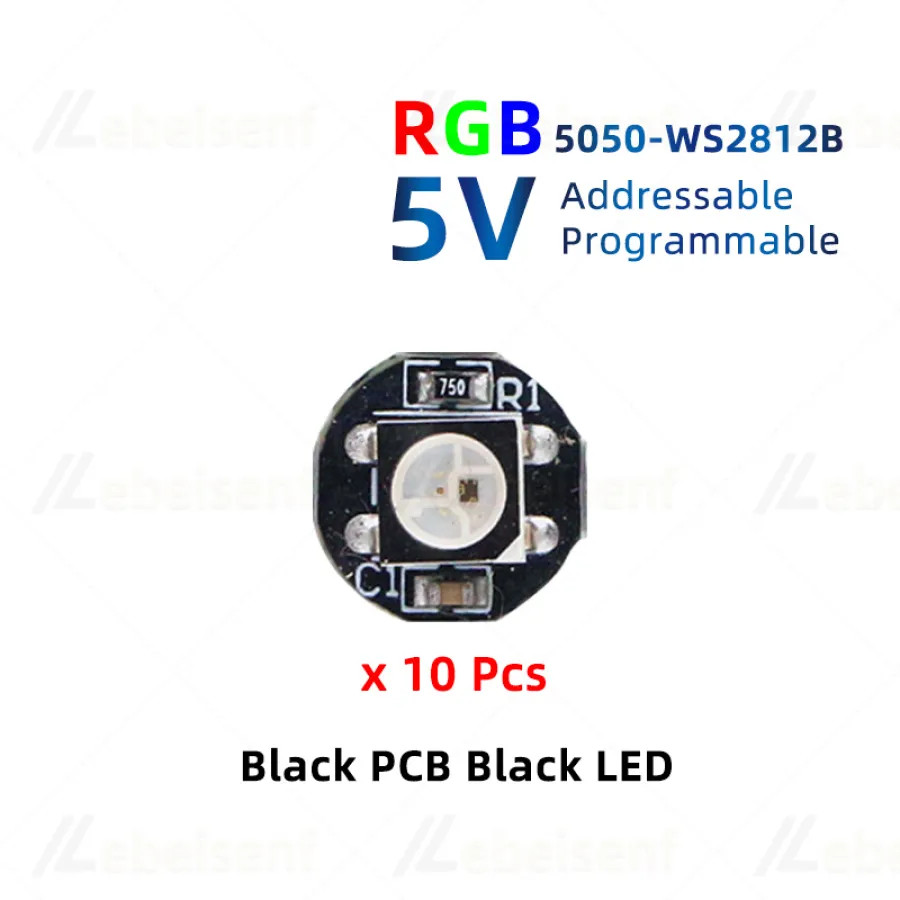

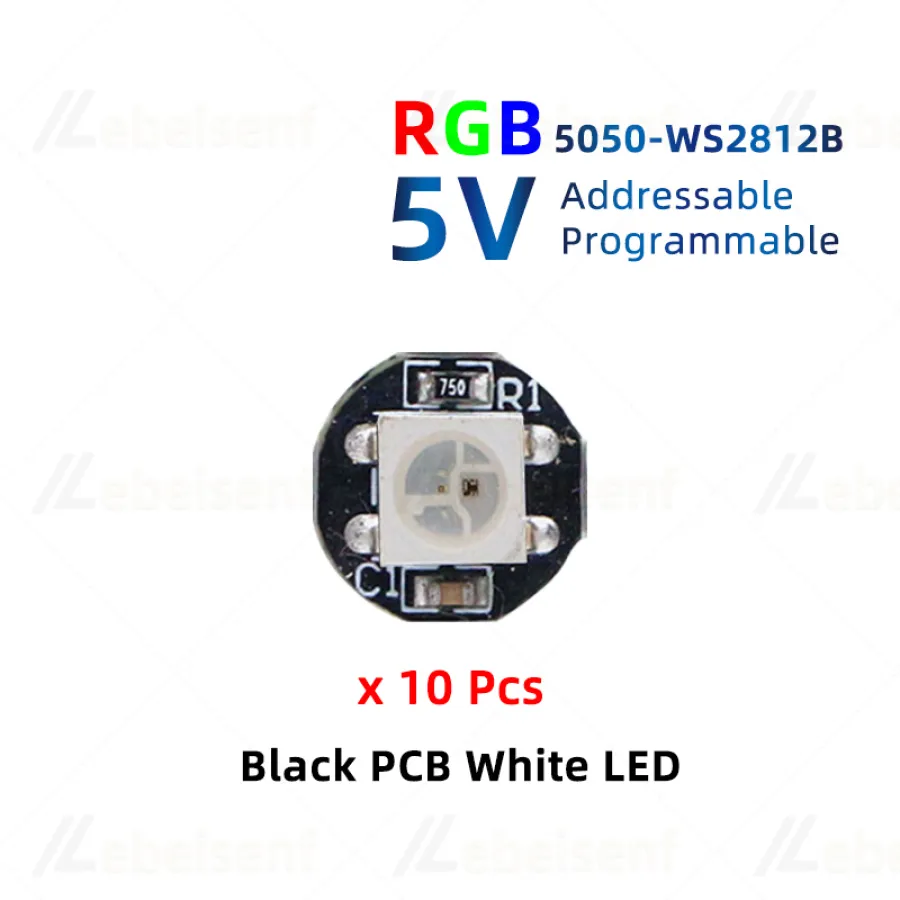

- PCB Color: Black or white
- LED Type: SMD 5050 RGB(Built-in IC)
- Material: Aluminum PCB
- IC Type: WS2812B
- LED color: RGB ( changeable )
- IP Grade: IP30
- Power Source: DC
- Luminous Flux: <60
- Brand Name: lebeisenf
- Item Type: LED Modules
- Certification: ce
- Certification: ROHS
- Certification: UL
- Model Number: XYB-2812-5050RGB-5V
- Voltage: DC 5V
- Width: 10MM
- Hign-concerned Chemical: None
- Features: Addressable
- Height: 3MM
- Origin: Mainland China
- Is Bulbs Included: Yes
- Certification: UL
- Certification: RoHS
- Certification: CE
- Length: 10MM
- Is Batteries Included: No
- Choice: yes
- semi_Choice: yes
