Retaining ring Stop screw type Retaining ring shaft retainer locator SCCAW aluminum alloy with screws
10.02 9.87 $
SALE
ID: 87123
Quantity
Deep groove ball подшипники 6010 6011 6012 6013 6014 6015 6016 6017 6200 6201 6202 6203 6204 6205 6206 6207 6208 ZZ 2RS 베어링
4.9 (427 votes) | 1544 orders
Price:
US $10.34 - 39.08
/ piece
Discount Price:
US $
8.99 -
31.27
/ piece
-13%
- Outer Diameter
-
- 6010 2RS 50x80x16
- 6011 2RS 55x90x18
- 6012 2RS 60x95x18
- 6013 2RS 65x100x18
- 6209 ZZ 45x85x19
- 6210 ZZ 50x90x20
- 6211 ZZ 55x100x21
- 6212 2RS 60x110x22
- 6214 2RS 70x125x24
- 6200 2RS 10x30x9
- 6201 2RS 12x32x10
- 6202 2RS 15x35x11
- 6203 2RS 17x40x12
- 6204 2RS 20x47x14
- 6205 2RS 25x52x15
- 6206 2RS 30x62x16
- 6207 2RS 35x72x17
- 6208 2RS 40x80x18
- 6200 ZZ 10x30x9
- 6201 ZZ 12x32x10
- 6202 ZZ 15x35x11
- 6203 ZZ 17x40x12
- 6204 ZZ 20x47x14
- 6205 ZZ 25x52x15
- 6206 ZZ 30x62x16
- 6207 ZZ 35x72x17
- 6208 ZZ 40x80x18

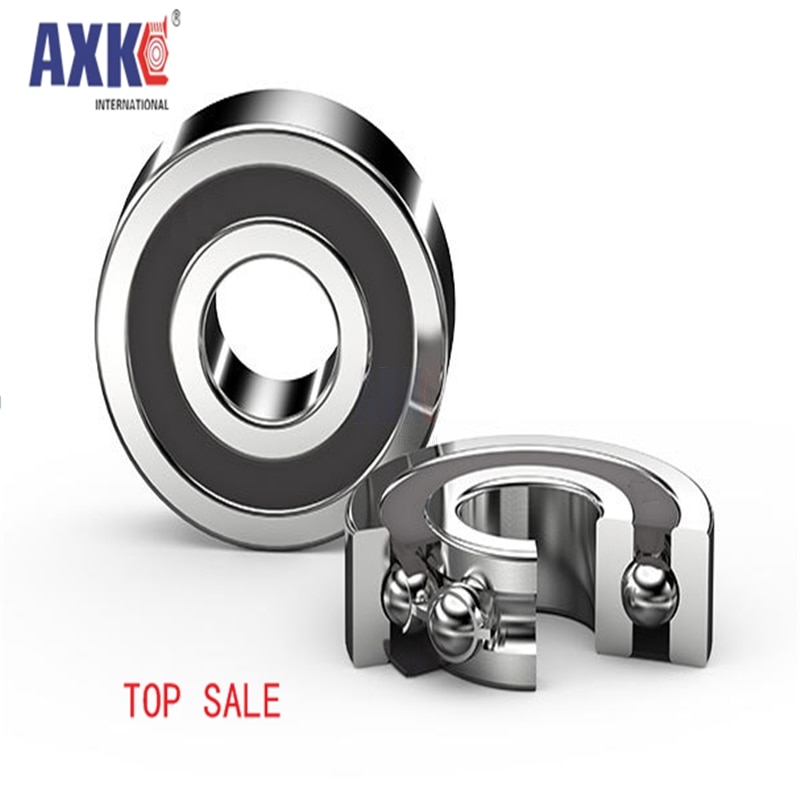

Deep Groove Ball Bearings

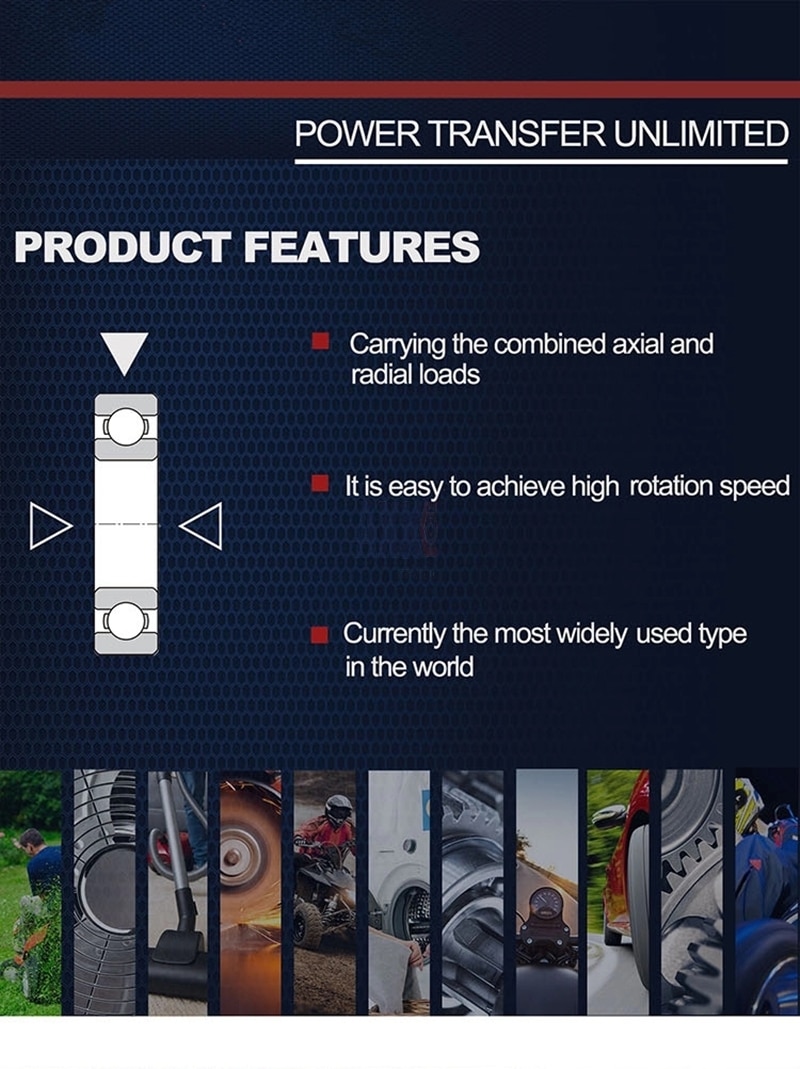

Deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from XIKE in many designs, variants and sizes.
Other Designs and Variants Type
Single row deep groove ball bearings
*Most widely used.
Stainless steel deep groove ball bearings
*Resistant to oxidation and corrosion.
Double row deep groove ball bearings
*Considerably higher load carrying capacity.
Plastic deep groove ball bearings
*Food machinery, underwater equipment and more.
High temperature resistance deep groove ball bearings
*High temperature applications
Electrical insulation deep groove ball bearings
*Marine, offshore and more applications
Exterior Designs
Open | Without seal | ■ | ||
2RS | Contact seal, NBR, on one or both sides | ■ | ||
ZZ | Shield on one or both sides | ■ | ||
N | Snap ring groove in the outer ring | ■ | ||
NR | Snap ring groove in the outer ring, with snap ring | ■ | ||
F | Flanged outer ring | ■ | ||
Black coating | Prevent premature corrosion | ■ | ||
Insulation coating | Coating to prevent electrostatic contact | ■ | ||
Cage Type
NO | Stamped steel | ■ |
M | Machined brass cage | ■ |
EN | Enhance nylon | ■ |
ER | Enhance resin | ■ |
FB | Full ball, no cage | ■ |
Interior Design, Precision Grade and Other
Clearance | C2 C3 C4 C5 | ■ |
Precision grade | P0 P6 P5 P4 or ABEC-1 ABEC-3 ABEC-5 ABEC-7 | ■ |
Matched bearings | DB DF DT | ■ |
Grease | Low temperature, High temperature and Universal | ■ |
The above data and information are for reference only, we have the right to change without notice.
1, Surface Special finish/processing to be waterproof/antirust:
Zinc plated, nickel plated, Chrome plated, Rubber casting, Plastic coated, etc.
2, Other waterproof/antirust bearings:
Ceramic bearings
Plastic bearings
Hybrid bearings
Polyester resinbearing
Stainless steel bearings
Precision Rating | |||||
Standard | Rating | ||||
ISO | P0 | P6 | P5 | P4 | P2 |
SKF | P0 | P6 | P5 | P4 | P2 |
DIN | P0 | P6 | P5 | P4 | P2 |
ANSI | ABEC-1 | ABEC-3 | ABEC-5 | ABEC-7 | ABEC-9 |
AFBMA | RBEC-1 | RBEC-3 | RBEC-5 | RBEC-7 | RBEC-9 |
JIS | P0 | P6 | P5 | P4 | P2 |
GB307-84 | G | E | D | C | / |
GB/T307-94 | P0 | P6 | P5 | P4 | P2 |
Colors of rubber seal shields can be:Black, Blue, Red, Yellow, Orange....
The same size can be made of different materials, including:
Stainless Steel Bearings
Chrome Steel Bearings
Carbon Steel Bearings
Ceramic Bearings
window.adminAccountId=236930978;
- is_customized: Yes
- Material: Bearing Steel
- Model Number: 6014
- Brand Name: AXK
- Origin: Mainland China
- Certification: CE
