DC5V 12V 0-80V Micro Hydro Generator Water Flow Pump Turbine Hydroelectric Power Energy Generators Mini Water Turbinen Generator
ID: 151488

DC5V 12V 0-80V Micro Hydro Generator Water Flow Pump Turbine Hydroelectric Power Energy Generators Mini Water Turbinen Generator

5.0 (1 votes) | 16 orders
Price: US $32.64 - 33.08
Discount Price:
US $ 29.66 - 30.02
-9%
Color
Quantity

Buy Now
Add to Cart


Feature:

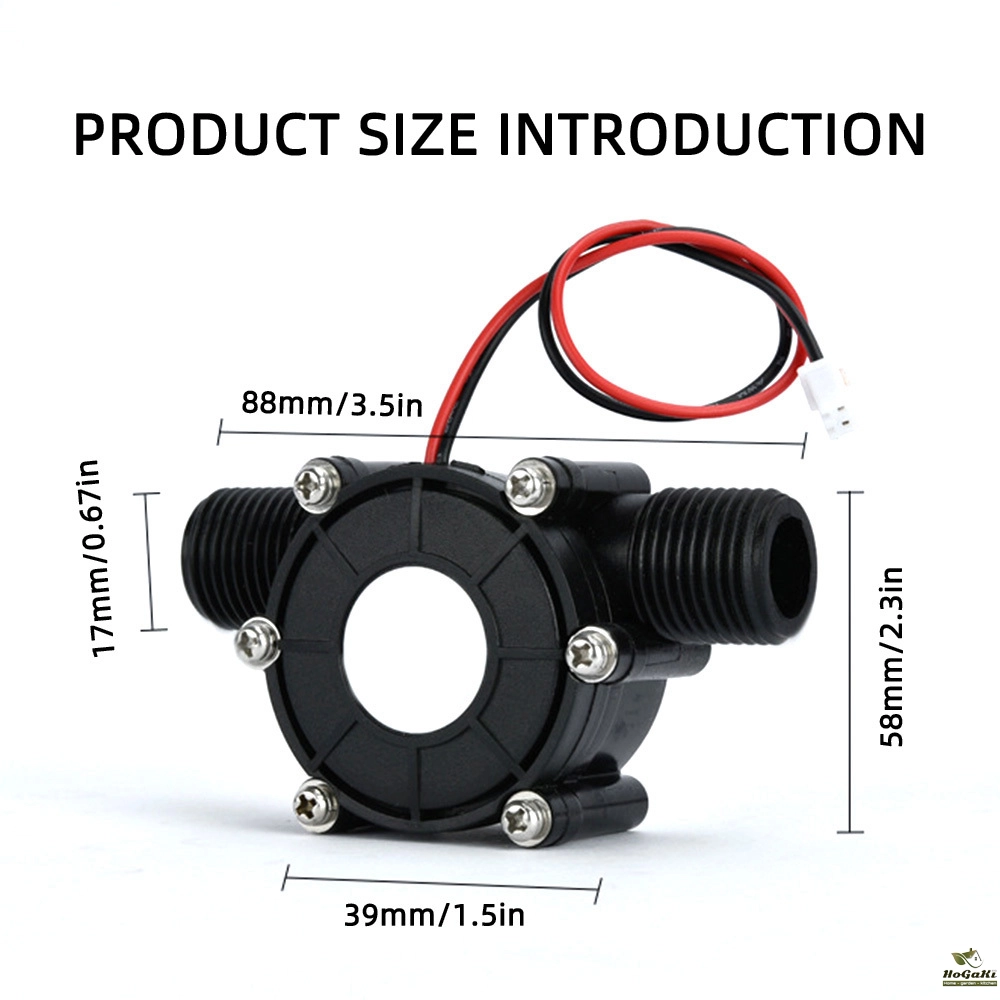

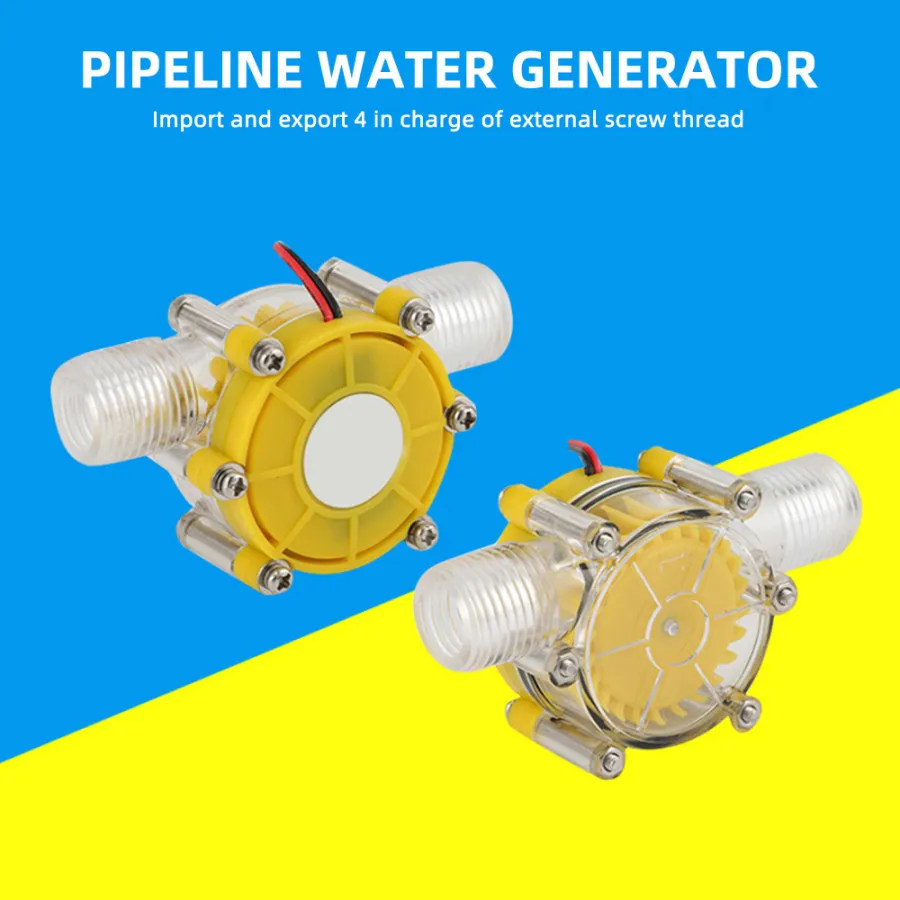

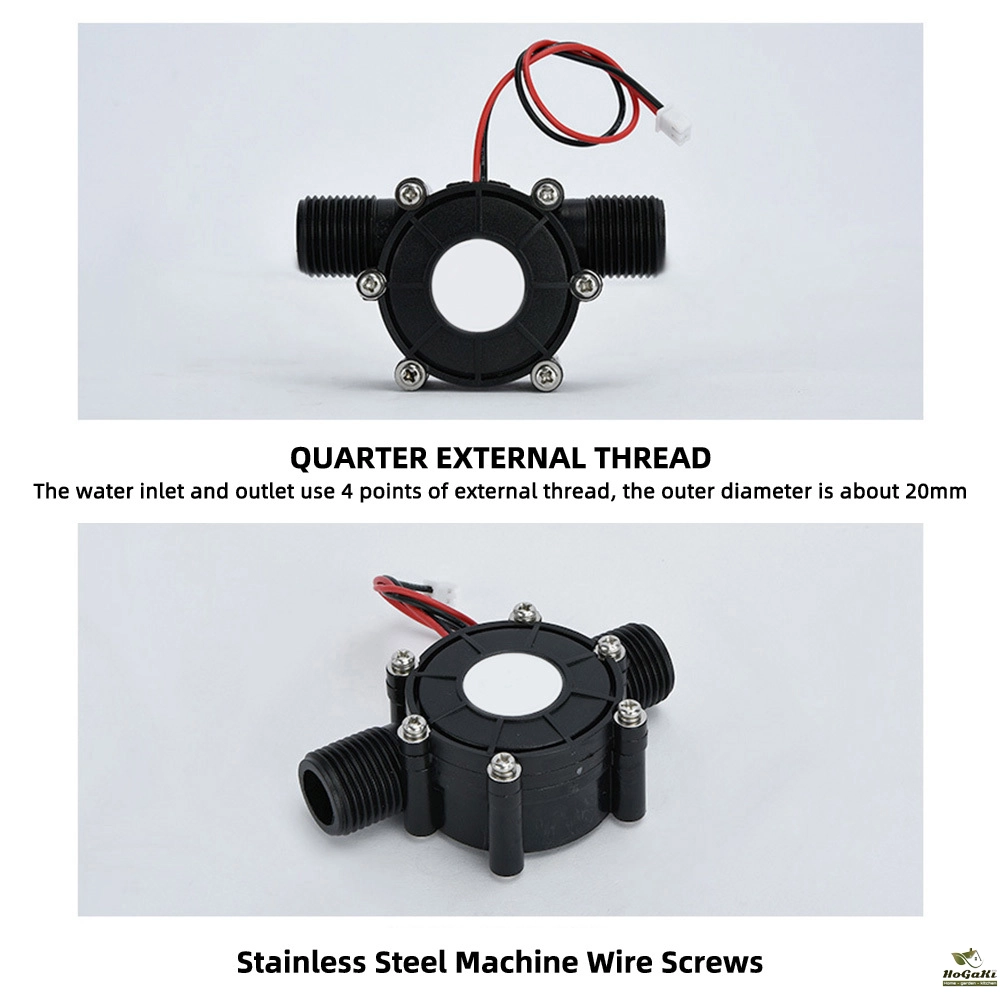

1. Four-point external screw: the inlet and outlet are all using 4-point external screw, with an outer diameter of about 20mm
2. Stainless steel wire screws, choose better materials, create more durable products, the pursuit of excellence

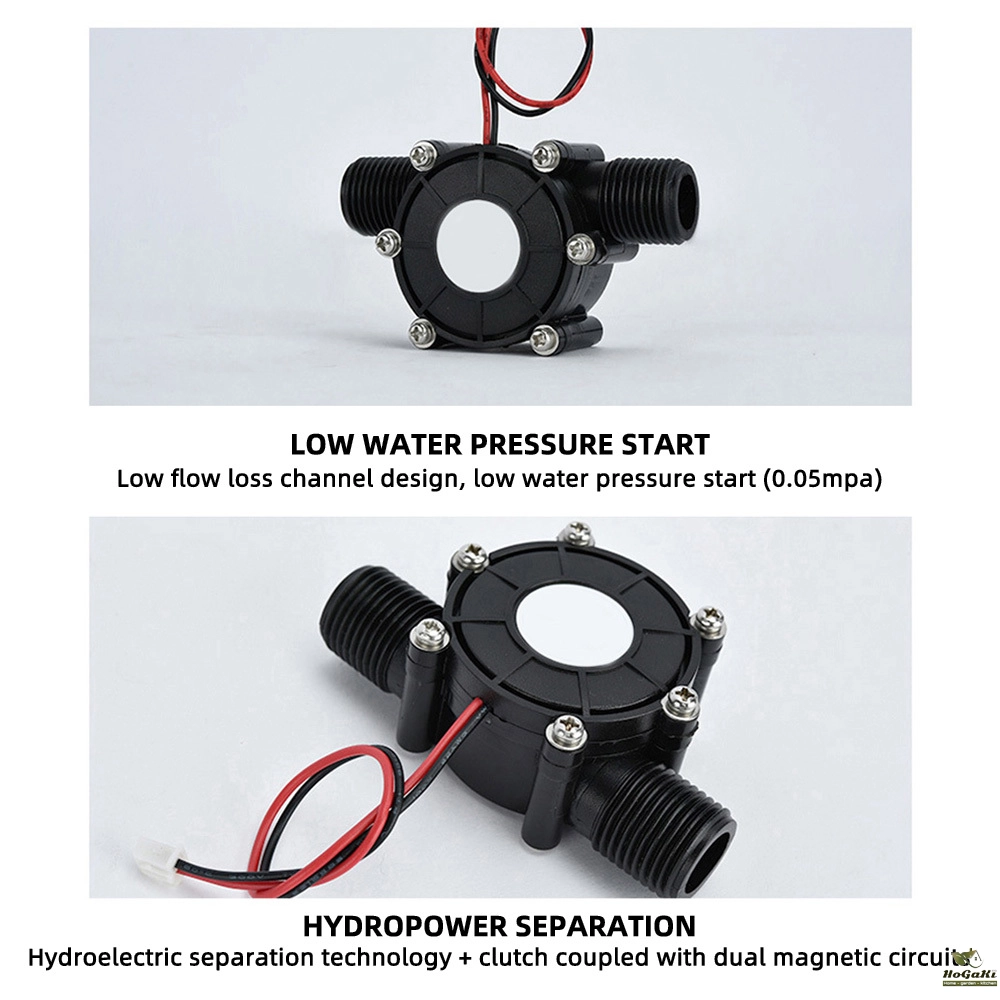

3. Water channel design with low water pressure starting and low flow loss, low water pressure starting (0.05mpa)
4. Water and electricity separation, water and electricity separation technology + double magnetic coupling clutch
5. Increase the vortex impeller, greatly improve the power generation efficiency, and add bearings to reduce wear
6. Chin iron boron strong magnetic, the use of chin iron boron strong magnetic, greatly improve the power generation capacity

Technical conditions:
Output peak voltage: 80V (1.2Mpa)
Output peak current: ≥220mA (12V)
Interline resistance: 10.5±0.5Ω
Insulation resistance: 10MΩ(DC100 megohm meter)
Water outlet closed peak pressure: 0.6Mpa
Peak open pressure of water outlet: 1.2Mpa
Starting water pressure: 0.05Mpa
Terminal: 2pin

Model corresponding to power output type:
0-80V: Dc 0-80V output, the generator does not have a voltage regulator circuit, the peak voltage reaches 80V, you can directly 3-12V about 10W LED lights, you can directly charge the small battery, the charging peak current is about 220mA, because the power emitted during charging is used away in a timely way, so the voltage will automatically remain at about 14V, And maintain the appropriate voltage so that all the electricity generated is used in the charging of the small battery.
5V: DC 5V voltage regulator output, you can charge the phone, you can also charge the lithium battery with a charge management chip.
12V: DC 12V voltage regulated output, can supply 12V radio, charge, power to LED lights.


Mechanical characteristics and operating environment:
(1) Appearance: clean surface, no rust, no time scratches, solid structure.
(2) Axial clearance: 0.2-1.0mm
(3) Mechanical noise: ≤55dB
(4) Generator single quantity: about 90g
(5) Generator life: ≥3000h
(6) Output characteristics: The output voltage without a voltage regulator is proportional to the water pressure

Package included:

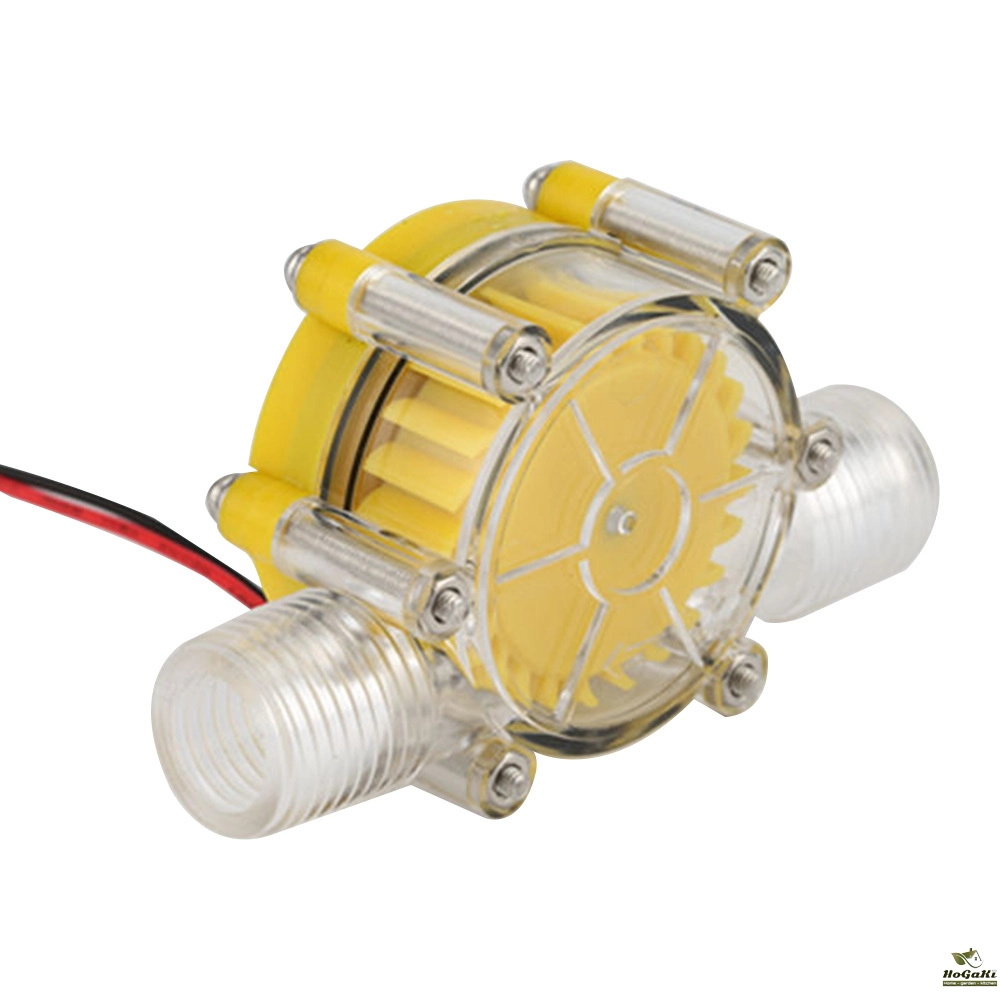

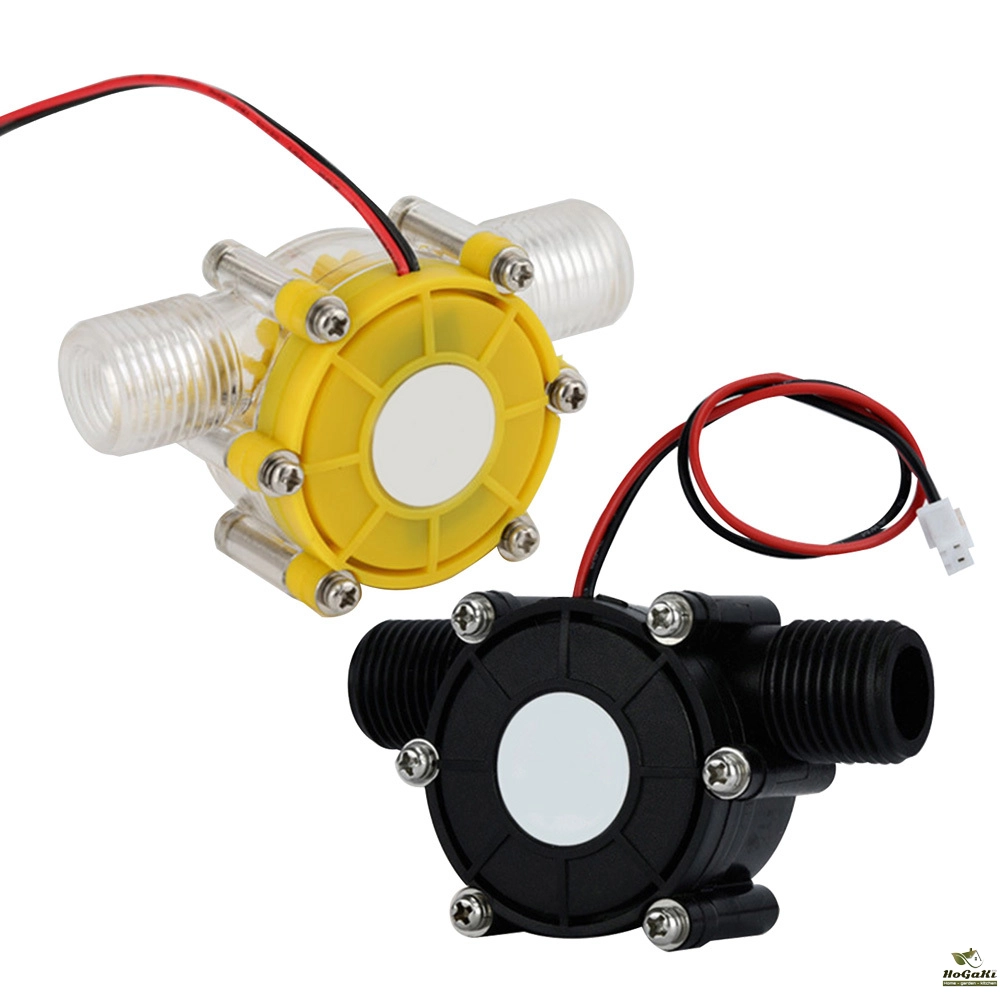

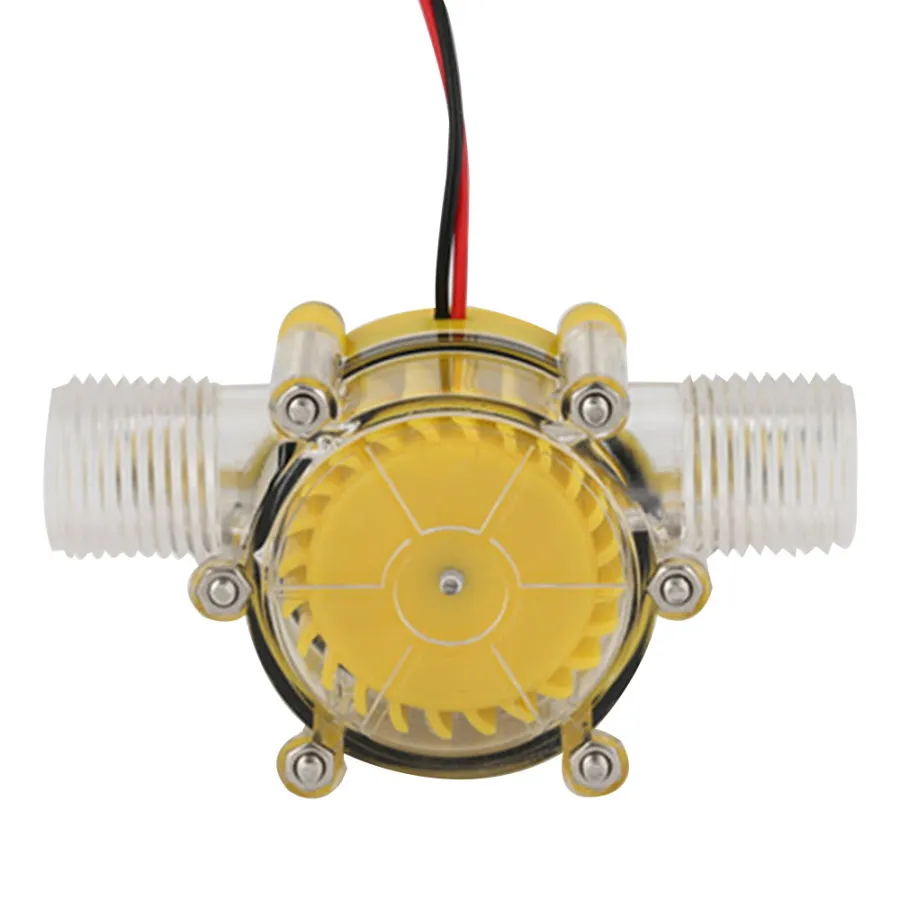

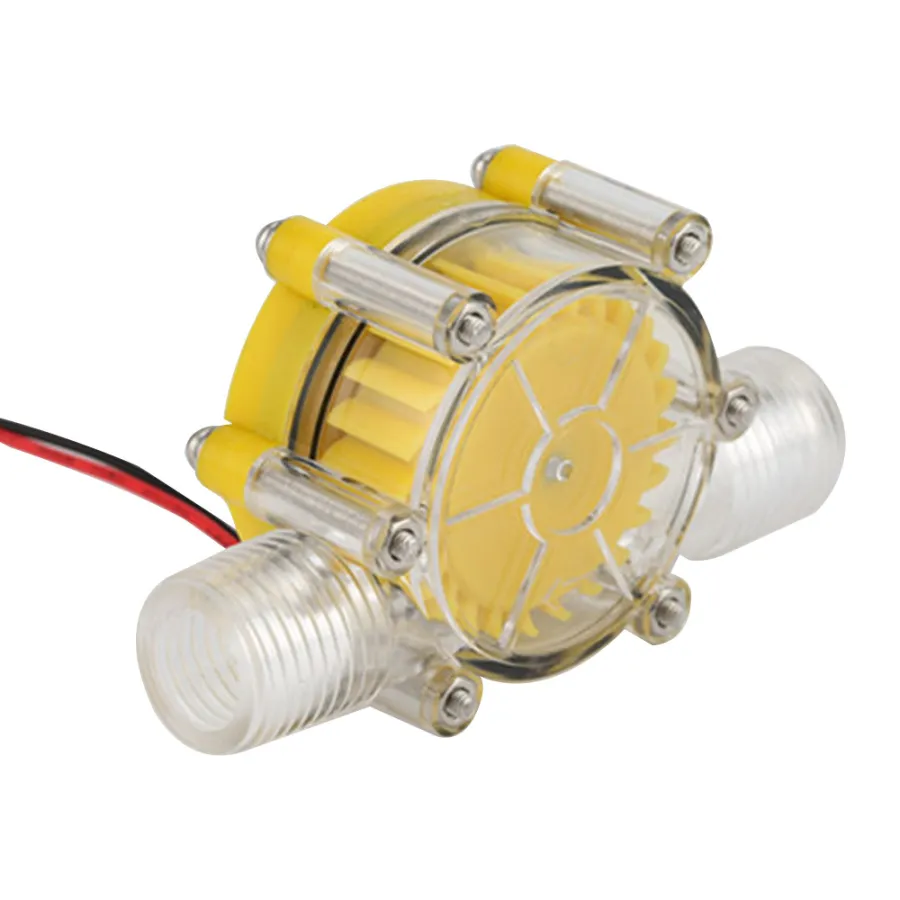

Type A: 0-80V yellow water phase generator without voltage regulation *1

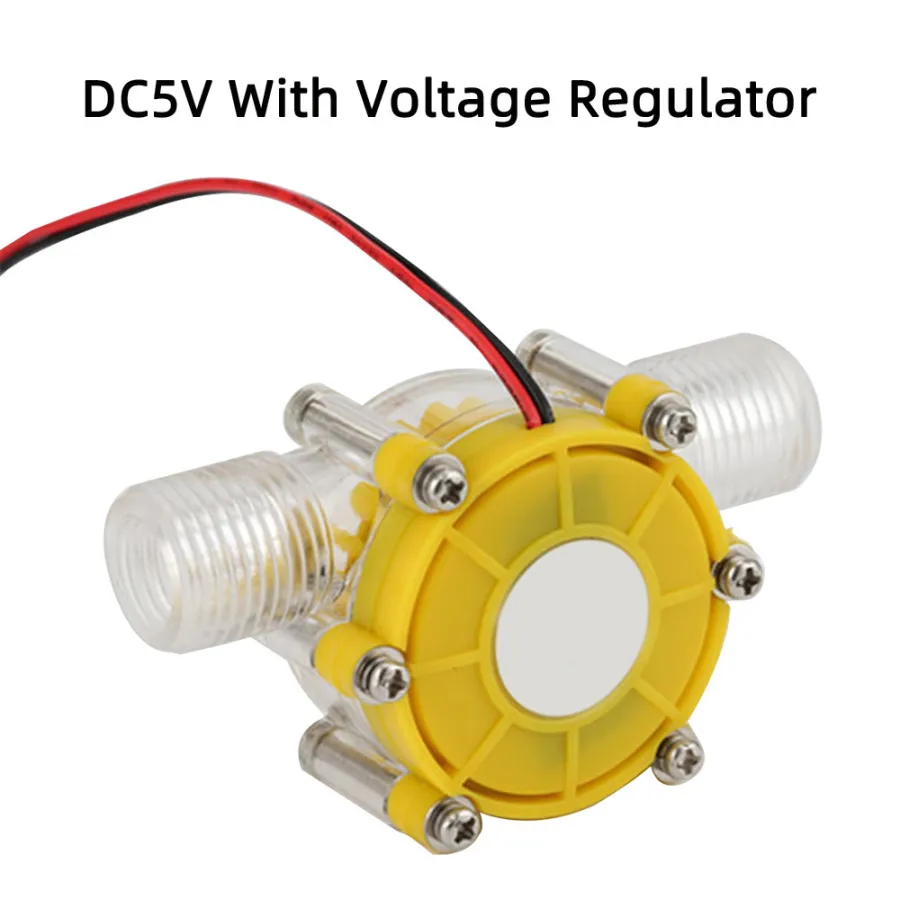

Type B: 5V yellow water phase generator *1
Type C: 12V yellow water phase generator *1

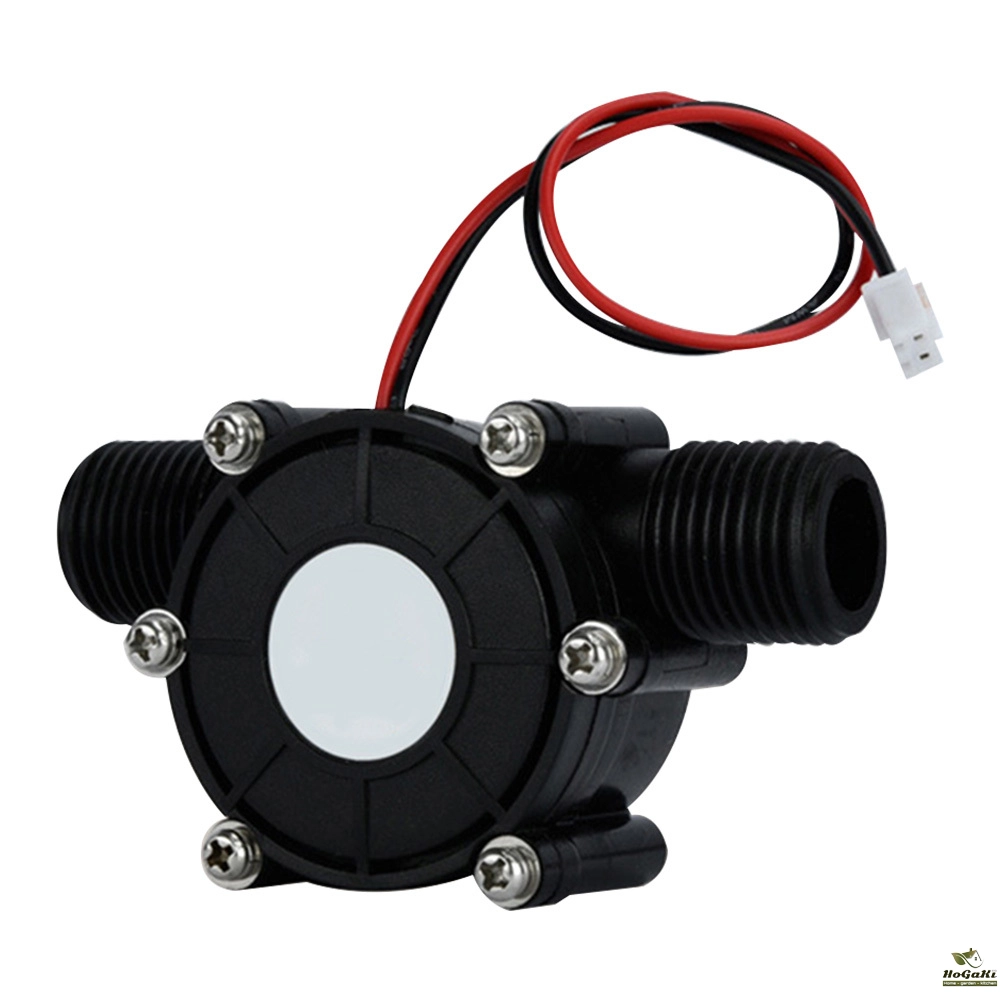

Type D: 0-80V black water phase generator without voltage regulation *1

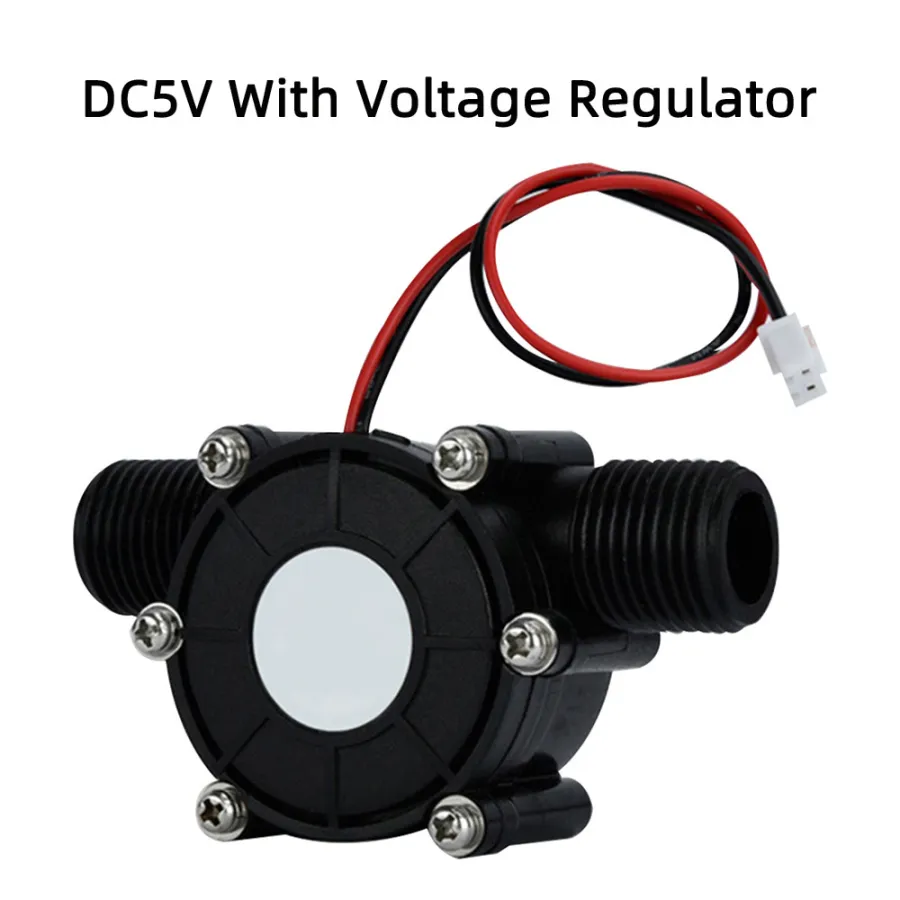

Type E: 5V black water phase generator *1
Type F: 12V black water phase generator *1



Packaging Details

  • Unit Type:
  • Package Weight: 0.100
  • Package Size: 2x2x2

  • Brand Name: NoEnName_Null
  • Hign-concerned Chemical: None
  • Origin: Mainland China
  • Installation Method: Self-Contained
  • is_customized: Yes
  • Type: Wind Power Generator
  • Mounting Base: With Mounting Base
  • Model Number: Micro Hydro Generator
  • Output peak voltage: 80V (1.2Mpa)
  • Output peak current: ≥220mA (12V)
  • Interline resistance: 10.5±0.5Ω
  • Insulation resistance: 10MΩ(DC100 megohm meter)
  • Water outlet closed peak pressure: 0.6Mpa
  • Peak open pressure of water outlet: 1.2Mpa
  • Starting water pressure: 0.05Mpa
