DC3V 3.7V 0408,412,610,612,615,617.716,720,816,8520,1020,8523 Ultrahigh Speed Coreless Motor RC Drone CW CCW Propeller

4.8 (525 votes) | 1354 orders
Price: US $11.44 / piece
Discount Price:
US $ 9.95 / piece
-13%
Quantity

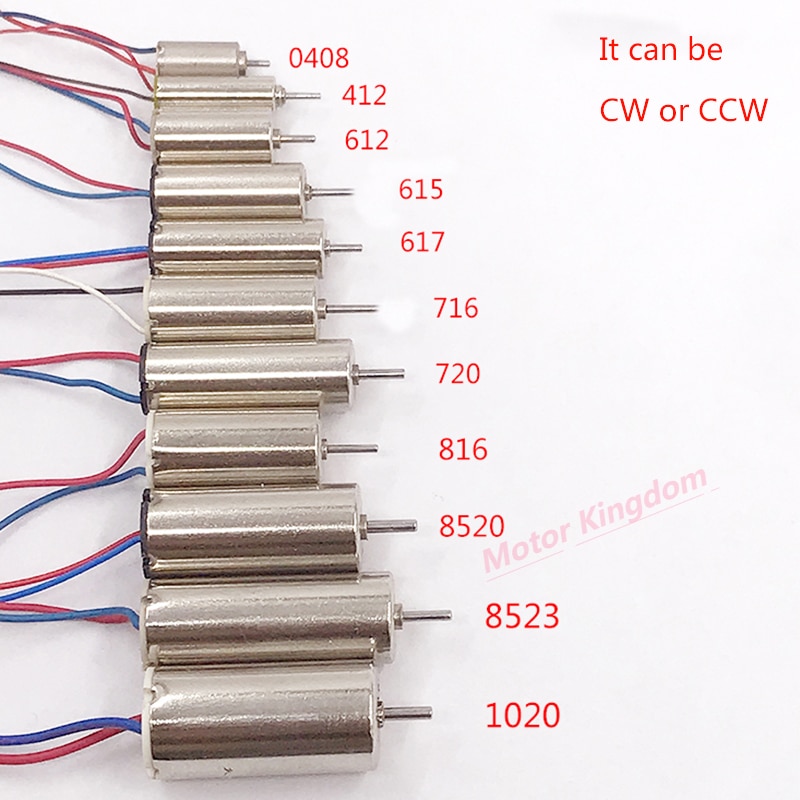

Tips1:The numbers of different models represent different sizes of motors;

for example, 412 is 4mm * 12mm, 8520 is 8.5mm * 20mm


Type A is a red and blue line, and type B is a black and white line.

All motors can be CW or CCW.

Tips2:

Propeller is a pair of sales, CW+CCW



Model: 0408 Out of stock

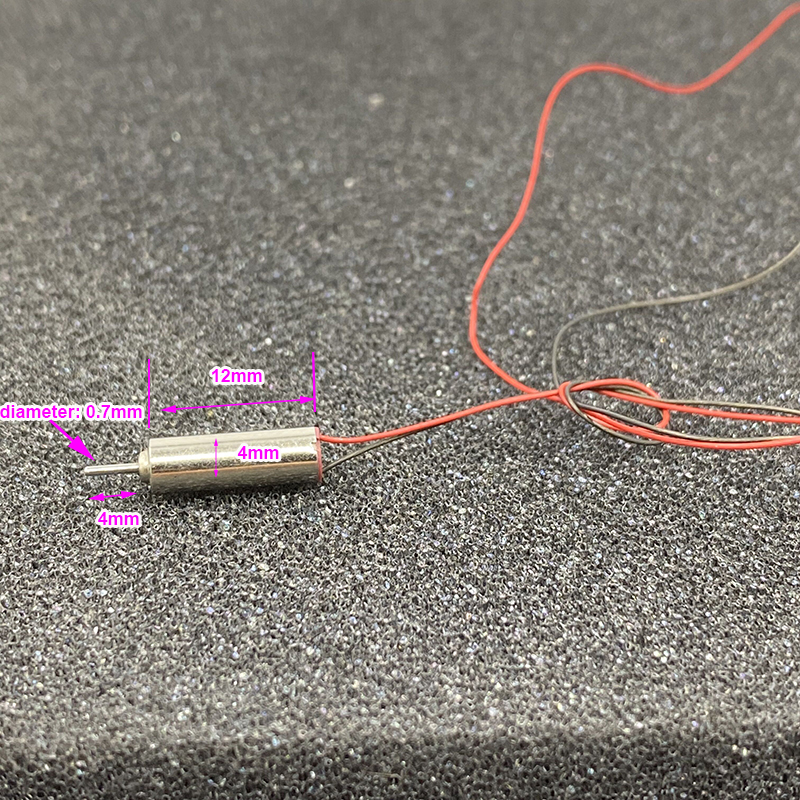

Model: 412
Output shaft: 4 mm
Radial shaft: 0.7 mm
Lead length: about 180mm
Voltage: 3.7V
Current: 30 ma
Speed: about 60000 RPM




Model: 610
[Rated voltage] DC 7.4V
[No-load current] 40mA
[No-load speed] 60000 rpm
[Line length] 4cm
[Weight] 1g



Model: 612

Output shaft: 0.8 MM
Output shaft length: 5.5 MM
Weight: 1.4 g
Voltage: 3.7 V
Speed: about 50000 RPM



Model: 615

Output shaft: 0.8 mm
Output shaft length: 5mm
Line length:  65mm
Weight: 2 g
Voltage: 3.7 V
Speed: around 45000 RPM

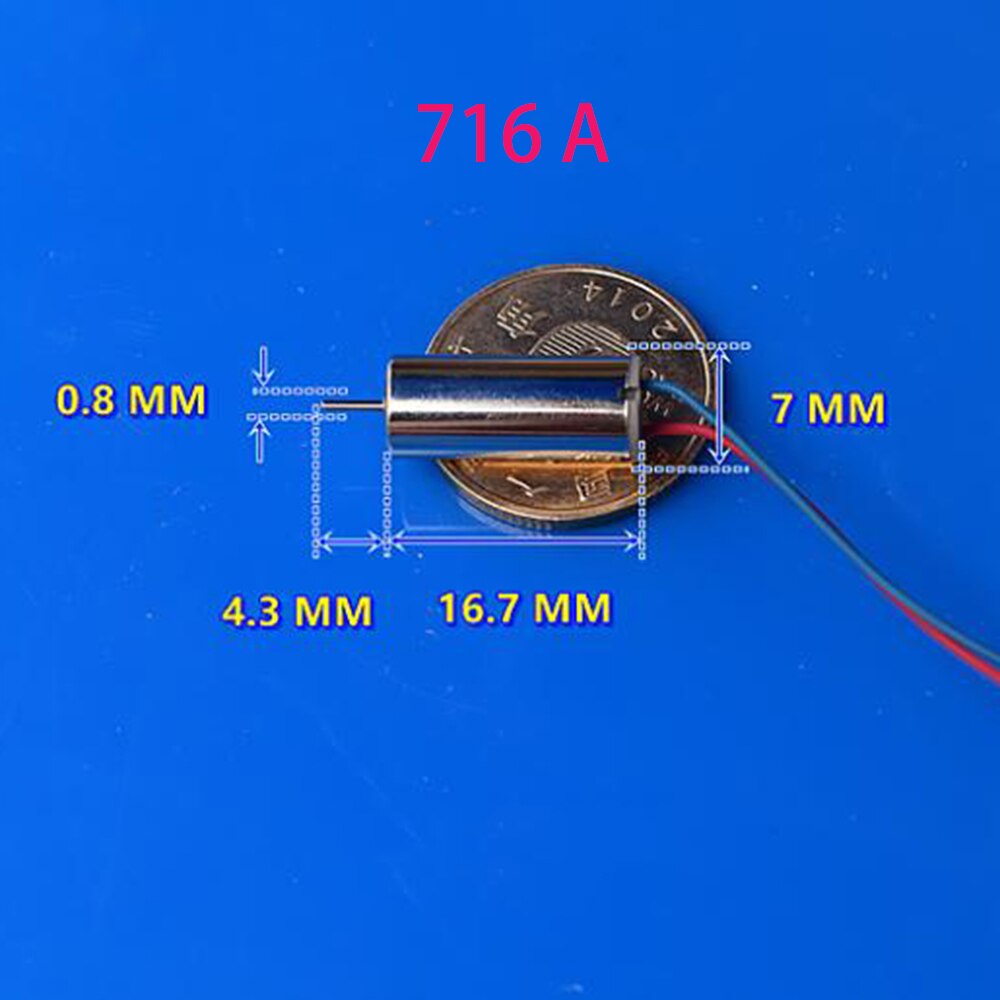

Model: 716A,716B
( 716A is Red&Blue wires; 716B is Black&White wires.)

716 motor parameters are as follows:

Motor outer diameter :7 MM

Length of motor: 16.7mm

Motor axle diameter: 0.8mm

Output shaft length: 4.3mm

Motor weight: about 3 grams

Line length: about 75 MM

Voltage: DC3.7 V

No load current :60 MA (locked-rotor current 2.8A)

No load speed: 47,000 RPM

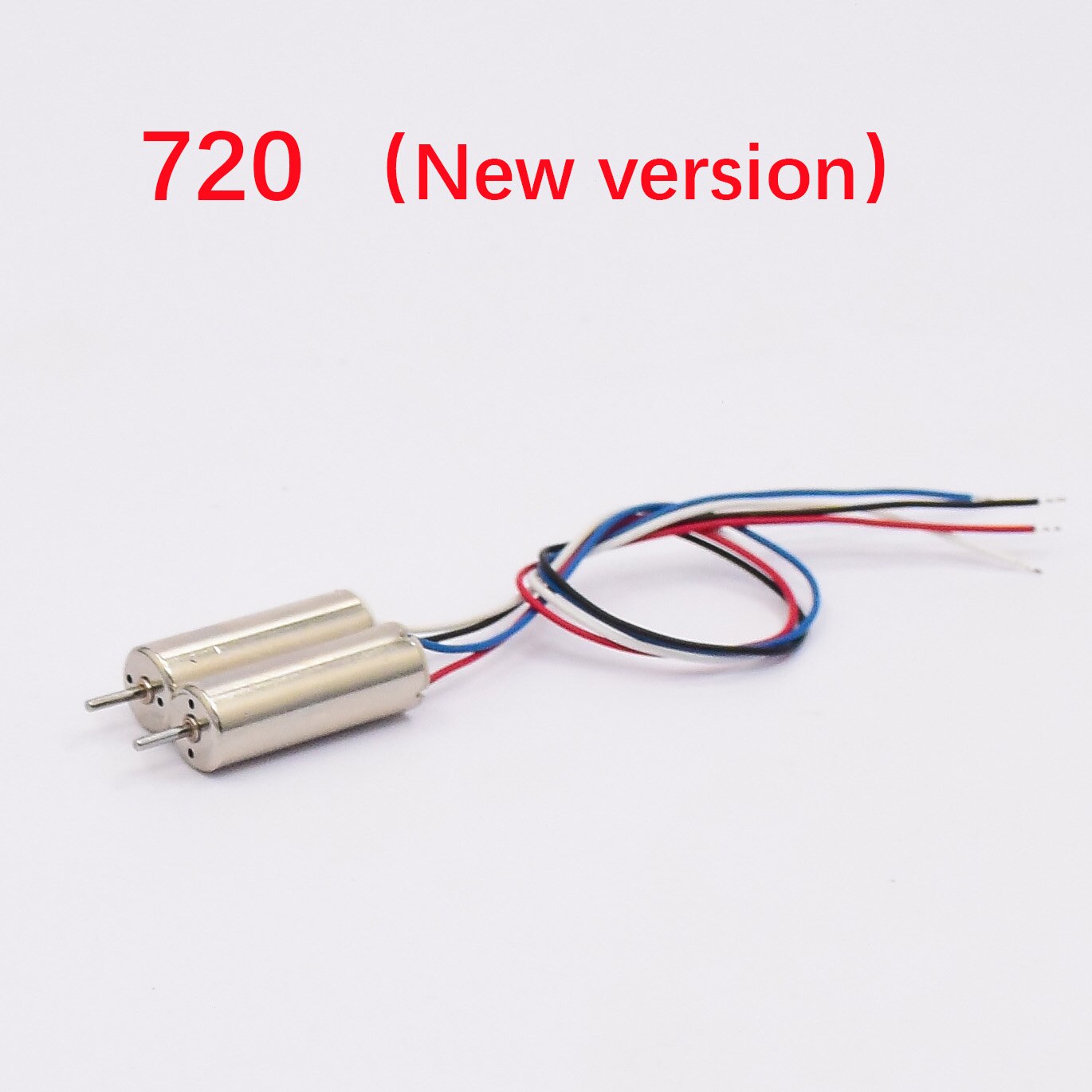

Model: 720A,720B (New version)
( 720A is Red&Blue wires; 720B is Black&White wires.)




1.Motor diameter: 7mm

2.Motor length: 20mm

3.Output shaft diameter: 1.0mm

4.Output shaft length: 5.2mm

5.Cable length: 125mm

6.Weight: 5 grams

7.Suitable voltage: DC 1.5V-4.2V



Test data:

Voltage:3.0V Current:80mA Speed:4000RPM

Voltage:3.7V Current:100mA Speed:50000RPM

Voltage:4.2V Current:120mA Speed:55000RPM



Model: 816

[Size]: 8 mm * 16.5 mm

[Voltage]: 3.7V

[Shaft diameter]: 1 mm
【Shaft Length】: 5 mm

[Line length]: 130mm

[Weight]: 4.2 grams

【Current】: about 150 ma

[Speed]: No-load 50000 rpm

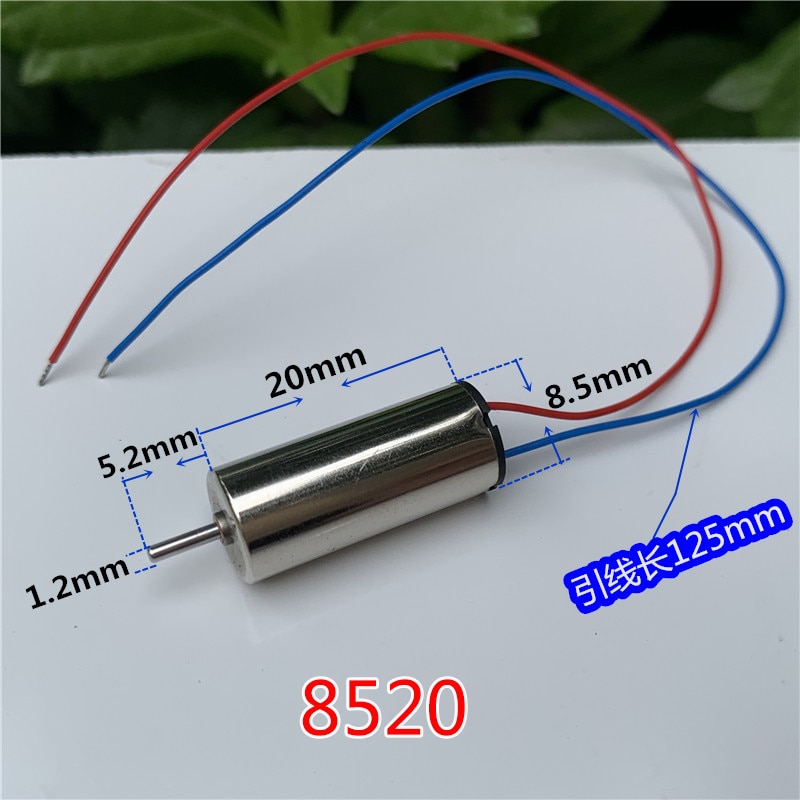

Model: 8520

Weight: 5.2 g

Voltage: 3.4 V

No-load current: 240ma

Speed: about 52000 rpm


Model: 1020 ( Change new style)

Size: 10mm * 20mm

Diameter: 1 mm

Shaft length: 5 mm

Voltage: 3.7 V

Speed: about 40000rpm

Lead wire:  150mm

Weight: 7.6g




Motor parameter: 8523
1.Motor diameter: 8.5MM
2.Motor length: 23MM
3.Output shaft diameter: 1.2MM
4.Output shaft length: 5.5MM
5.Cable length: 75MM
6.Weight: 6g
7.Voltage: 7.4V
8.Speed: 40000RPM

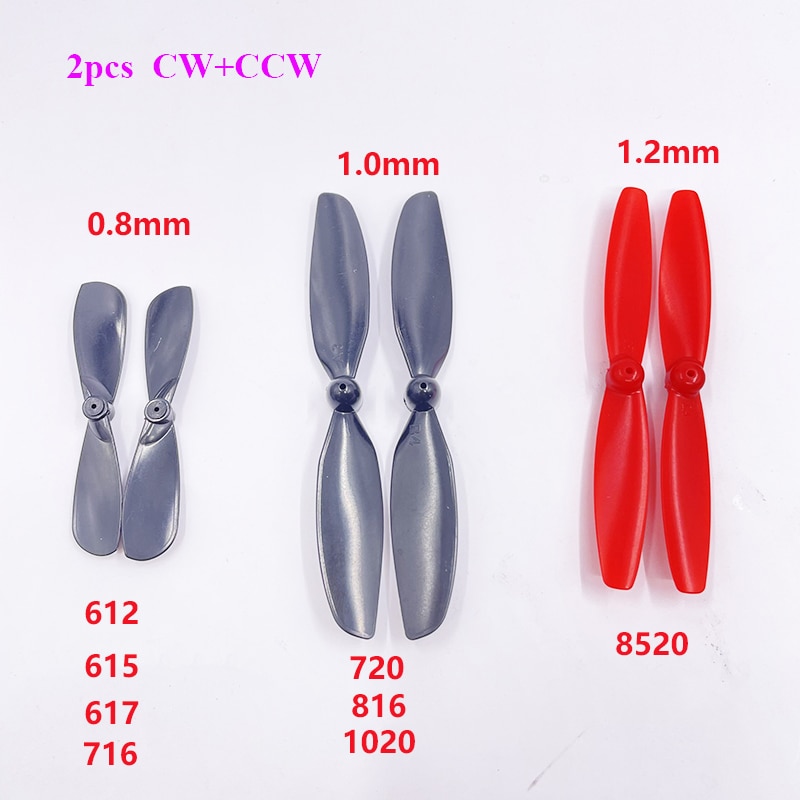

Specification】: 0.8mm propeller

Aperture: 0.75MM

Full length: 45MM

Tight fit: 0.8MM

With 610 612 613 614 615 716 (0.8MM shaft) and other 0.8MM shaft diameter coreless motors
【Specification】: 1MM
Aperture: 0.75MM


Specification】: 1mm propeller
【Size】: 75mm propeller (1mm)

【Aperture】: 0.97mm

【Material】: ABS

【Process】: Injection

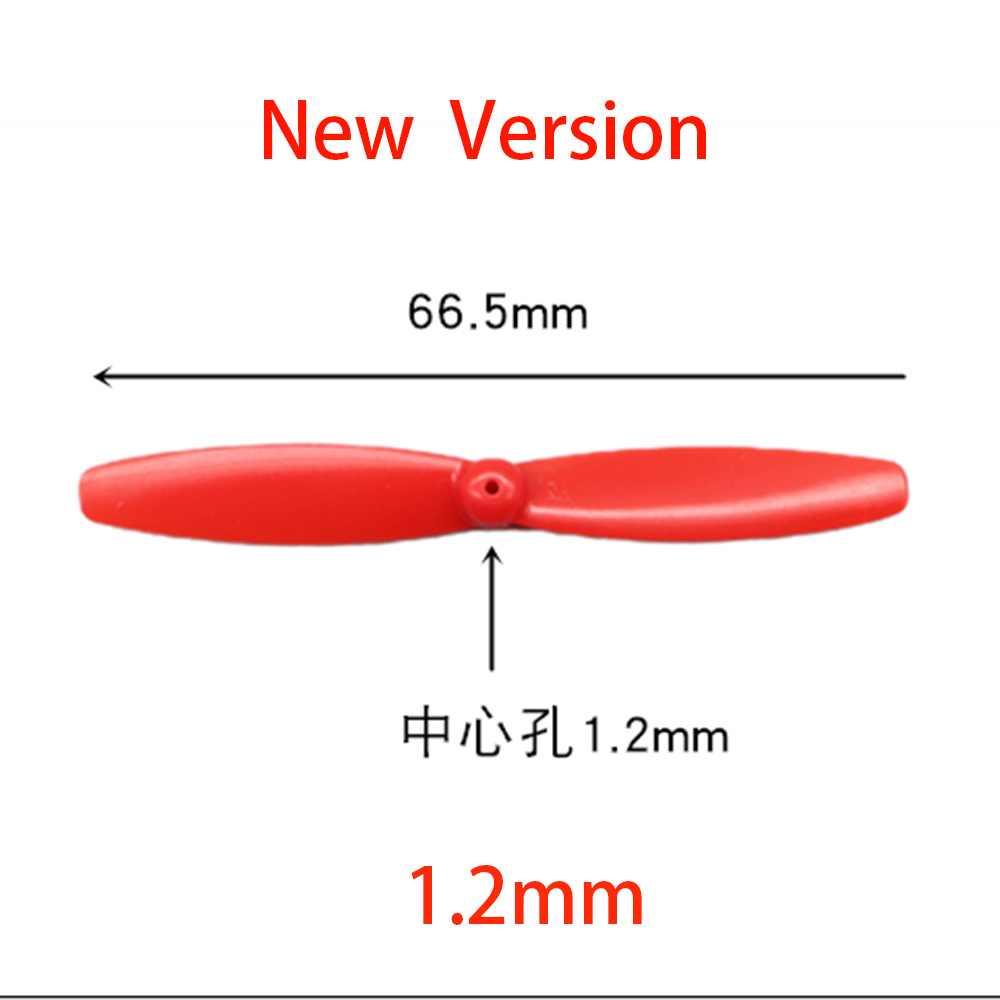

Specification】: 1.2mm propeller
      The red propeller is on sale now.



Package Include:



Motor * 1pcs or 2pcs propeller










  • Torque: not clear
  • Usage: Home Appliance
  • Model Number: coreless motor
  • Output Power: not clear
  • Continuous Current(A): not clear
  • Protect Feature: Totally Enclosed
  • Commutation: Brush
  • Construction: Permanent Magnet
  • Efficiency: IE 1
  • Type: Micro Motor
  • Certification: NONE
  • Brand Name: MDUG
  • Origin: Mainland China
