DC24V 0.8-1.0mm SSJ-29A Wire Feed Assembly Wire Feeder Motor MIG MAG Welding Machine Welder Euro Connector MIG-160 Wire Feeder
SALE
NEW
ID: 13528

DC24V 0.8-1.0mm SSJ-29A Wire Feed Assembly Wire Feeder Motor MIG MAG Welding Machine Welder Euro Connector MIG-160 Wire Feeder

4.9 (32 votes) | 50 orders
Price: US $80.83 / Set
Discount Price:
US $73.36 / Set
-9%
Ships From:
Quantity

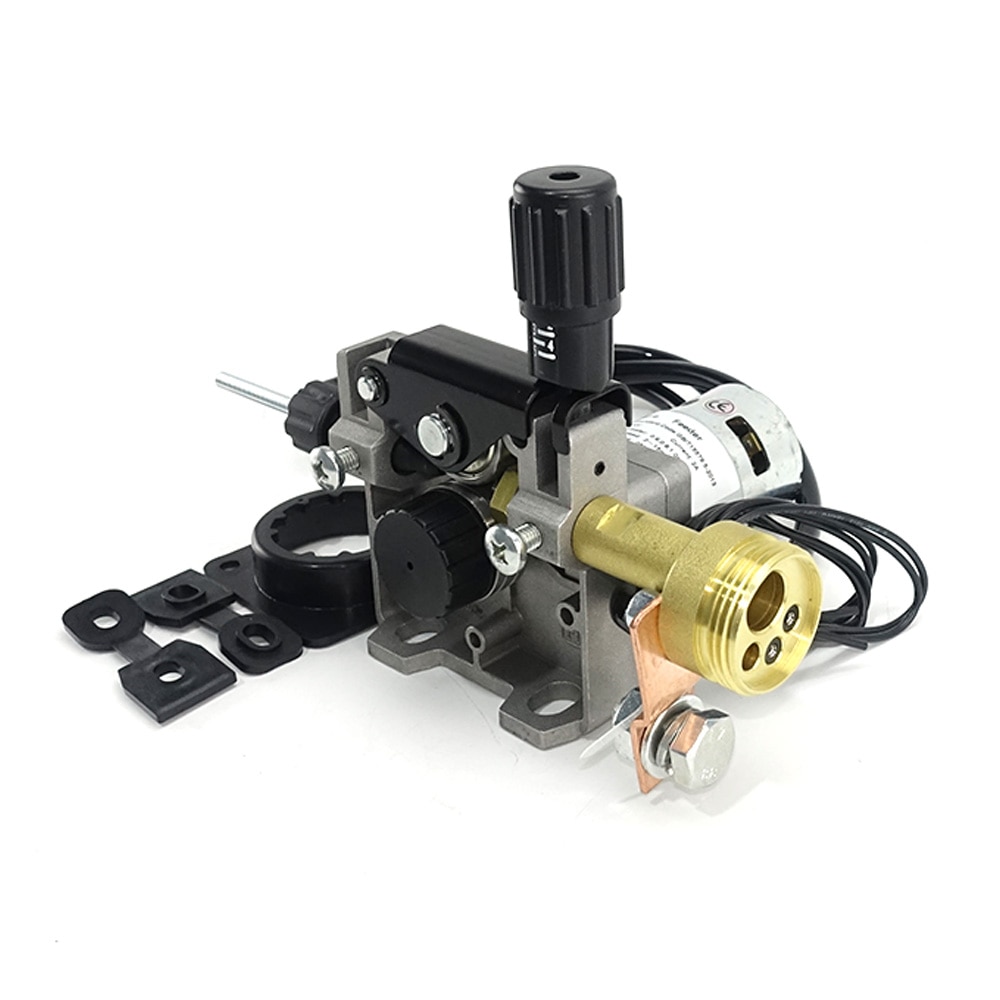

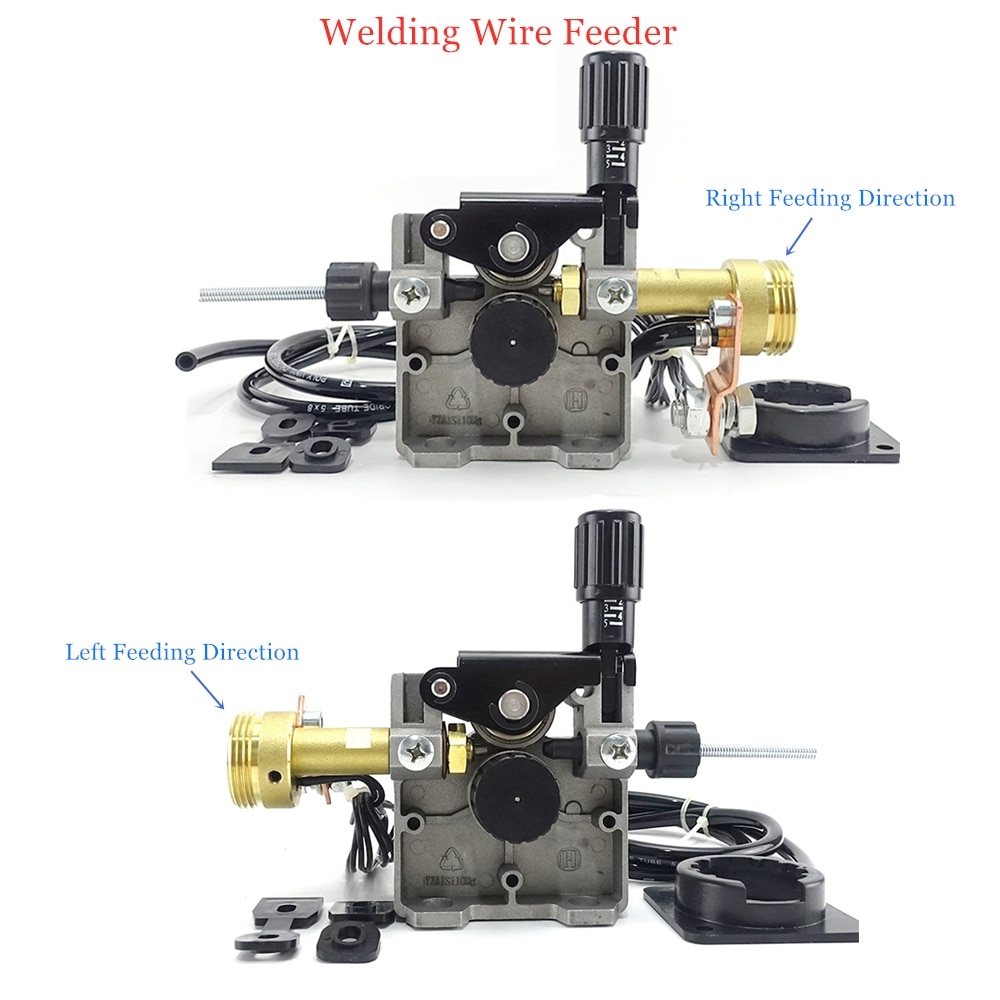

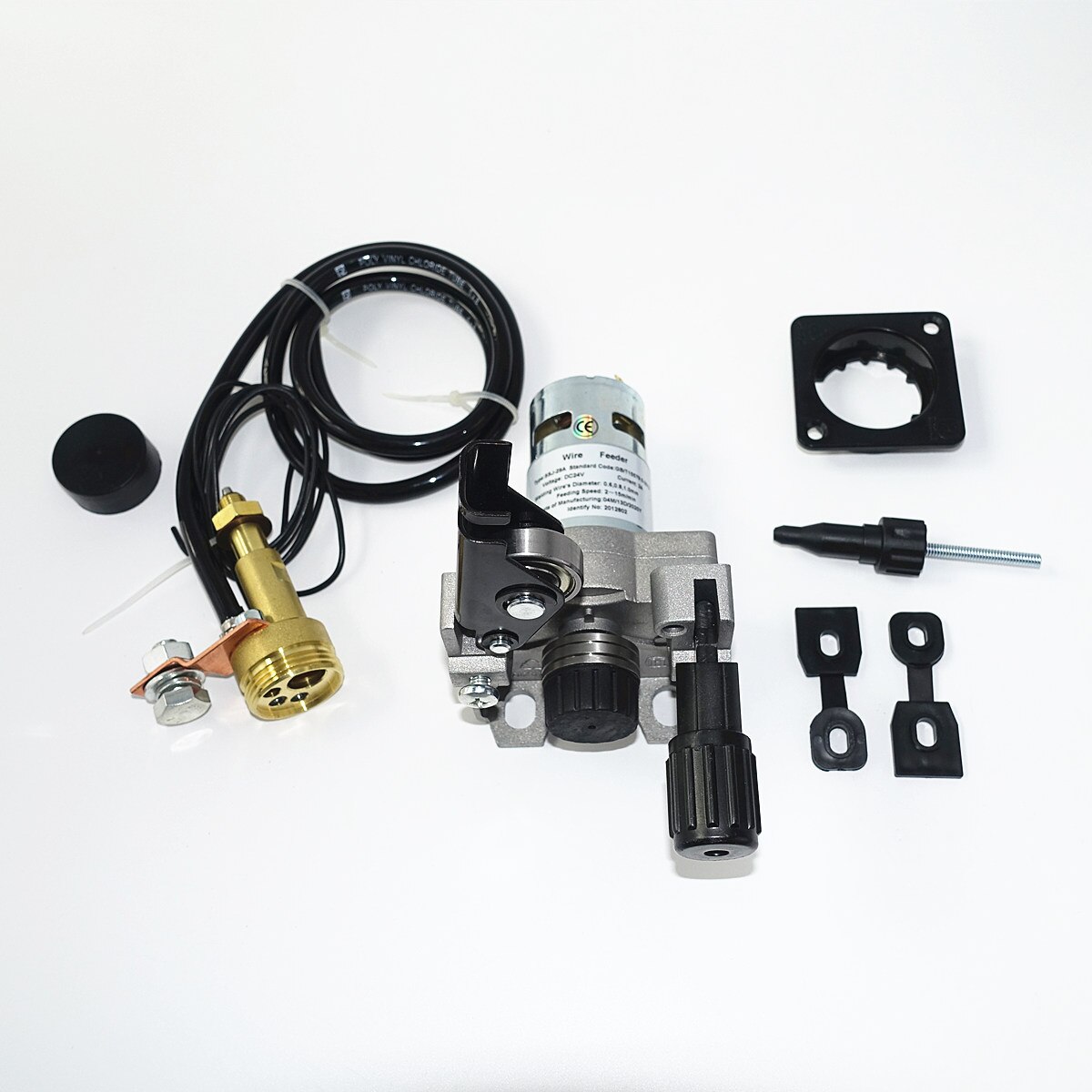

24v 0.8-1.0mm wire feed assembly wire feeder motor mig mag welding machine welder euro connector mig-160

the wire feeder assembly are widely used on mig/mag welding machines.
including many of the top international brands, i.e. lin*******, e**b.

the producer is the best welding wire feeder factory in china, they are only focusing on the welding wire feeder system.

the quality is very stable, because they are widely tested and approved by many international brands.

standard meets: en60974-5, gb15579.5.

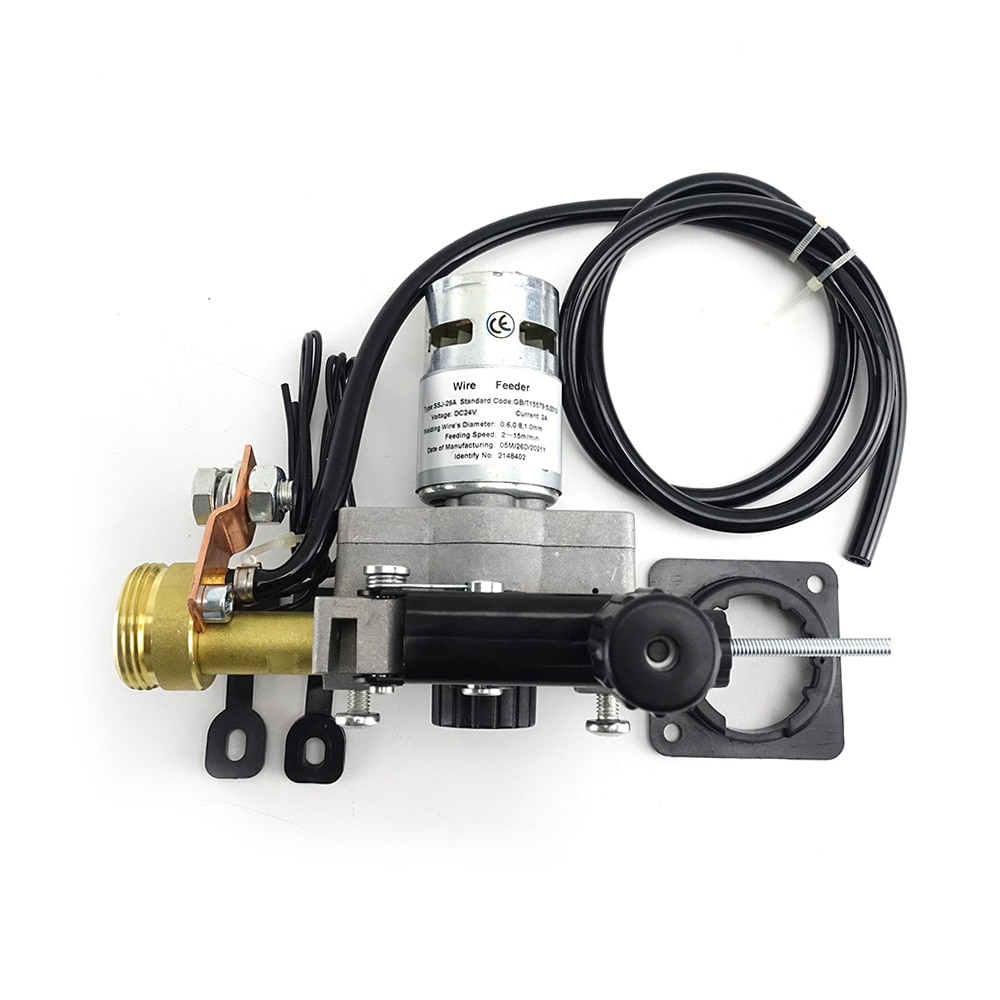

it is using high quality dc 12v/24v motor, yzalsi10mg body.

img_20180612_101928_1_img_20180612_102022_1_img_20180612_102038_1_img_20180612_102054_img_20180612_102105_1__img_20180612_102120_1_img_20180612_102032_10__



dc 24v version:

the feeding speed is 2-15m/min.

motor rated input current: 2a.

motor input voltage: dc 24v.

moto rated power: 25w.

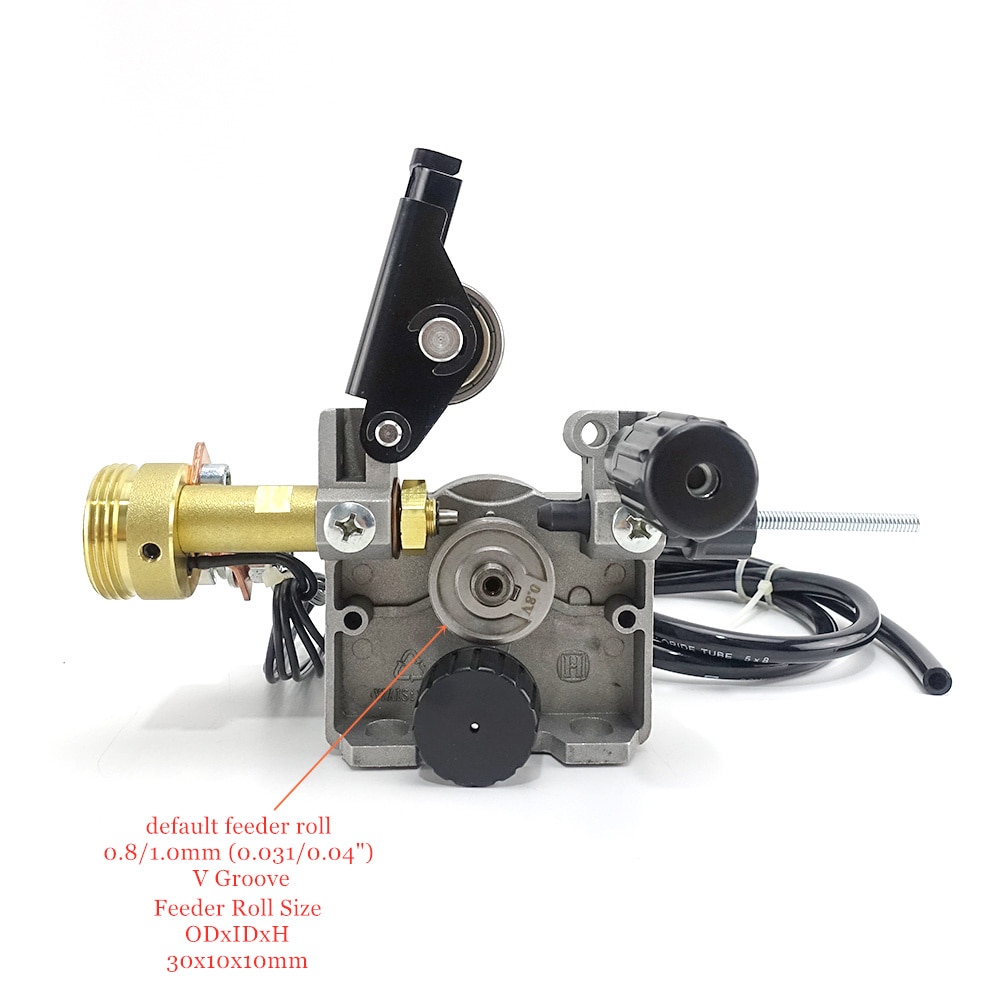

the wire feeding capability is 0.6mm to 1.0mm (0.024"-0.04"), the default feeding roll is 0.8/1.0mm (0.031/0.04").

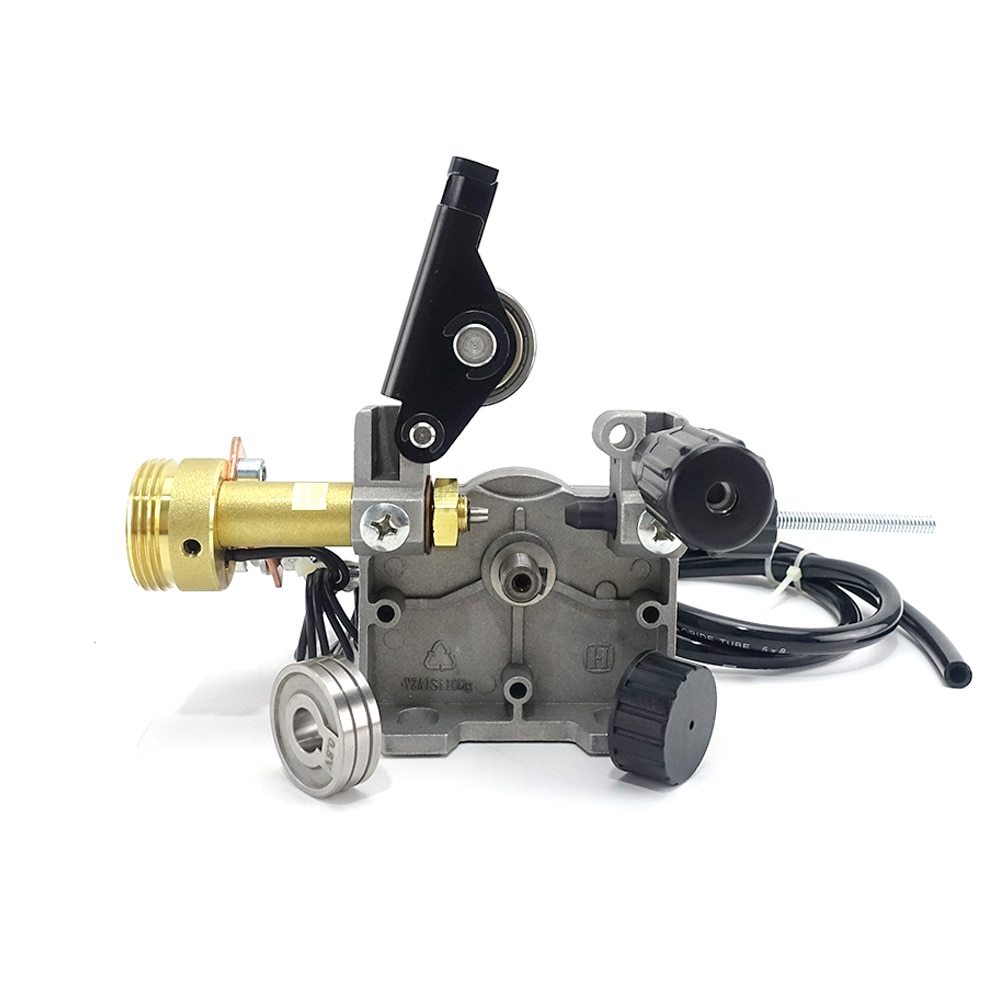

1 feeder roll, and 1 press roll.

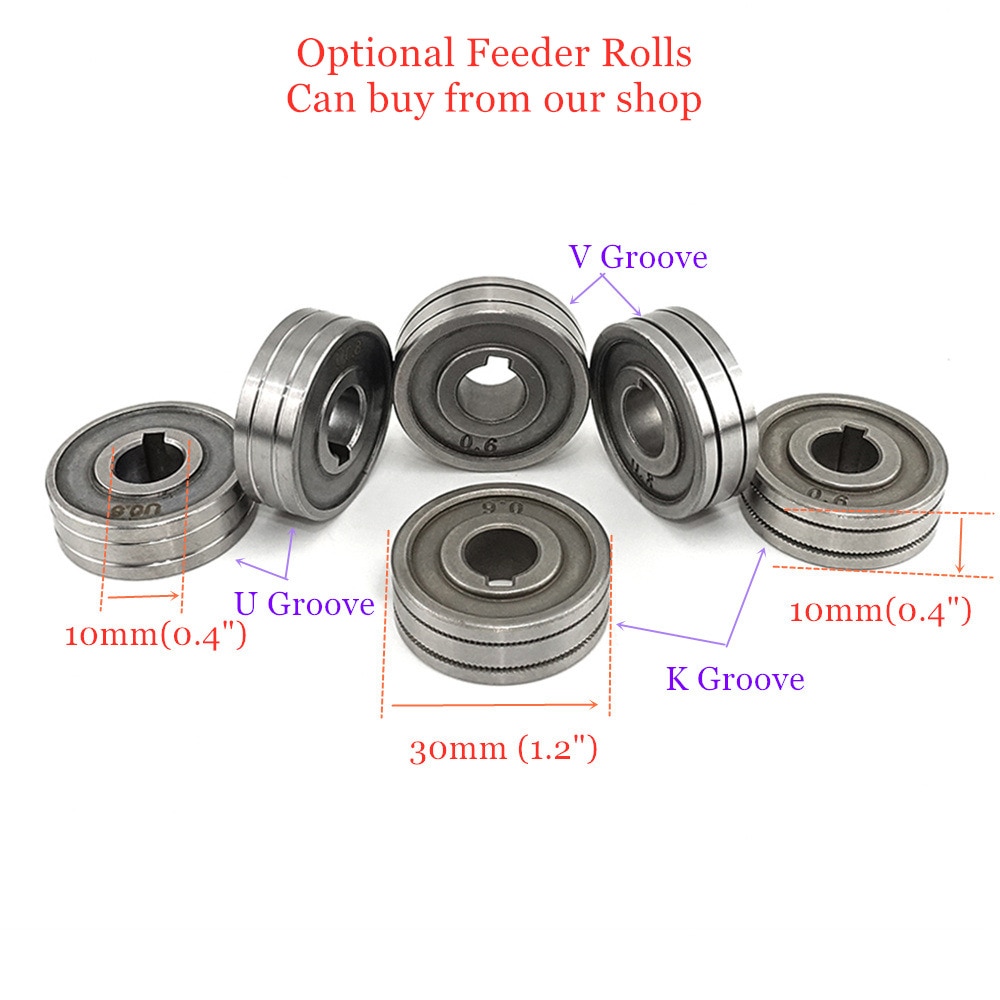

​the feeder roll size is (od*id*h): 30*10*10mm.

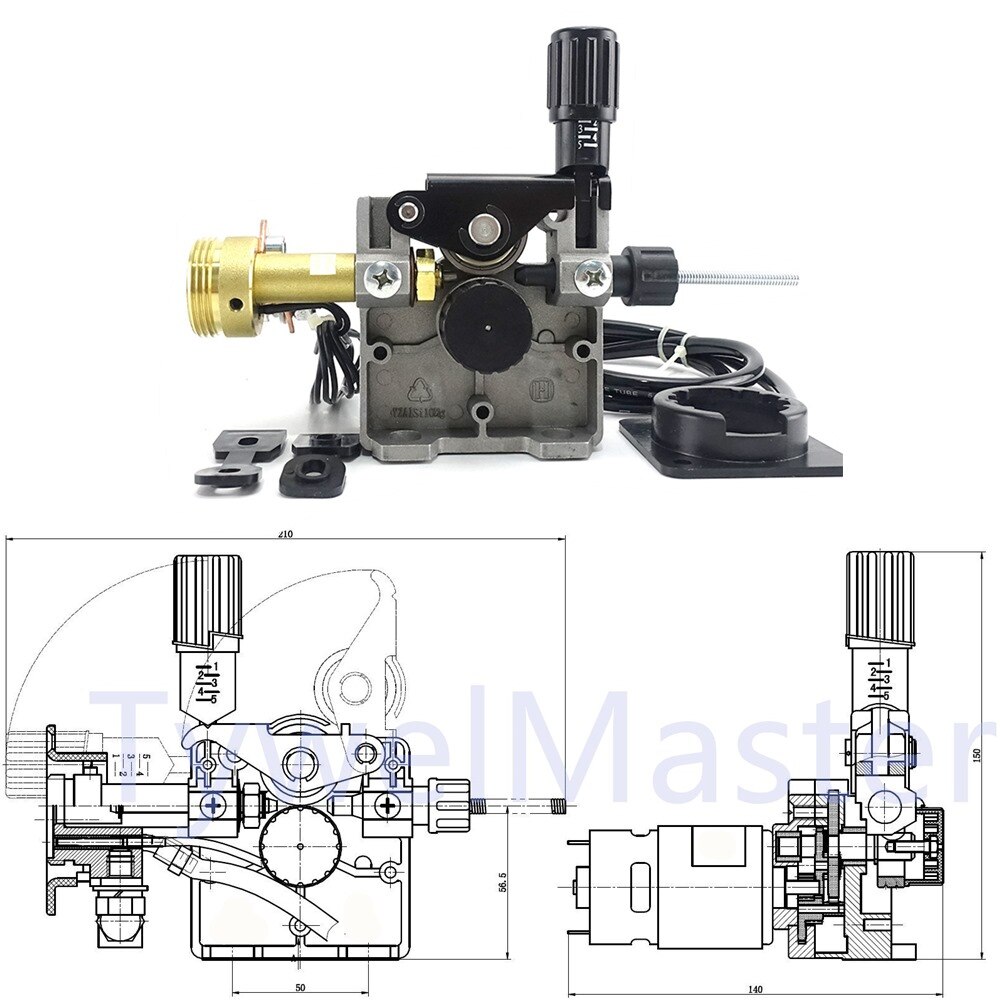

the wire feeder assembly outer dimension is: 210*140*150mm.

net weight: about 850g.

package:

1set.

additional offer:

we are providing full range professional welding & cutting products, check our shop for more options.



Packaging Details

  • Unit Type: Set
  • Package Weight: 1.4kg (3.09lb.)
  • Package Size: 31cm x 20cm x 19cm (12.20in x 7.87in x 7.48in)

  • Model Number: SSJ-29A
  • Wire Feeding Speed: 2-15m/min
  • Dimensions: 140x150x210mm(overall dimension)
  • Weight: about 1.3kg
  • Usage: MIG/MAG welding wire feeding
  • Brand Name: TywelMaster
  • Terminal Type: European Type
  • Terminal Body Material: Copper
  • Wire Feeder Frame Material: YZAlSi10Mg
  • Motor Input Voltage: DC 24V
  • Motor input Current: 2A
  • Default Feeder Roll: 0.8/1.0mm (0.031/0.04")
