DC 5V 12V 24V 1 2 4 6 8 Channel Relay Module Board Shield with Optocoupler / High and Low Level Trigger for arduino Raspberry Pi
4.8 (124 votes) | 900 orders
Price:
US $11.44 - 116.85
Discount Price:
US $
9.95 -
113.53
-13%
- Size

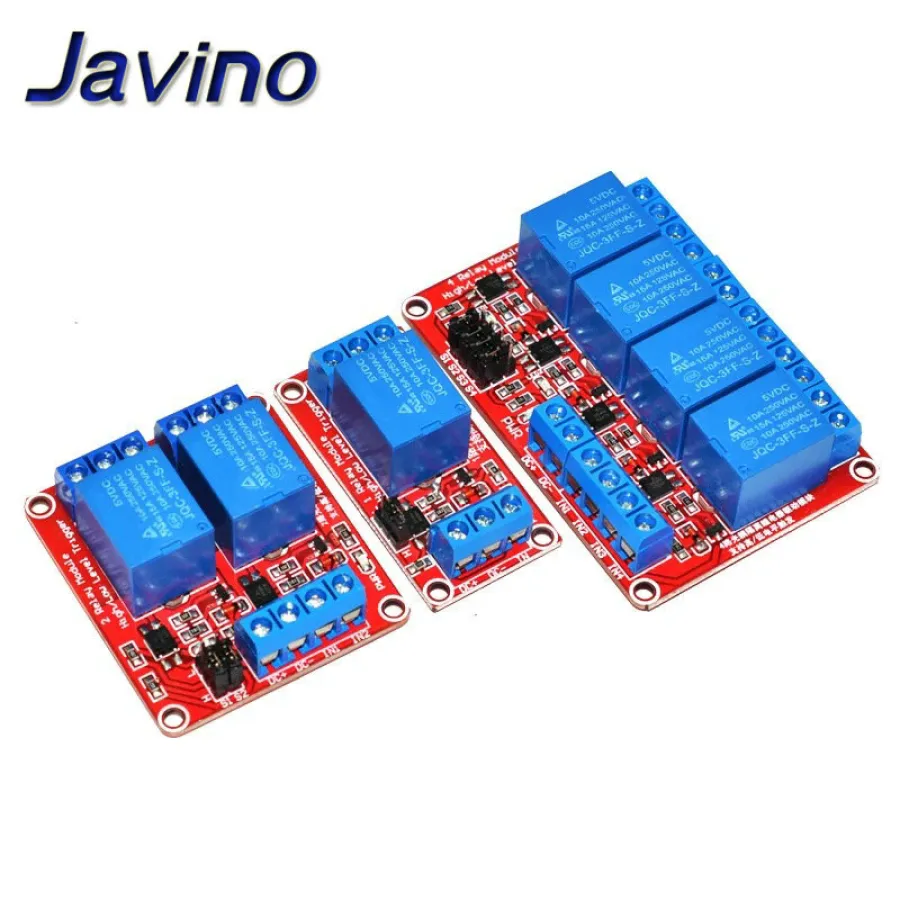

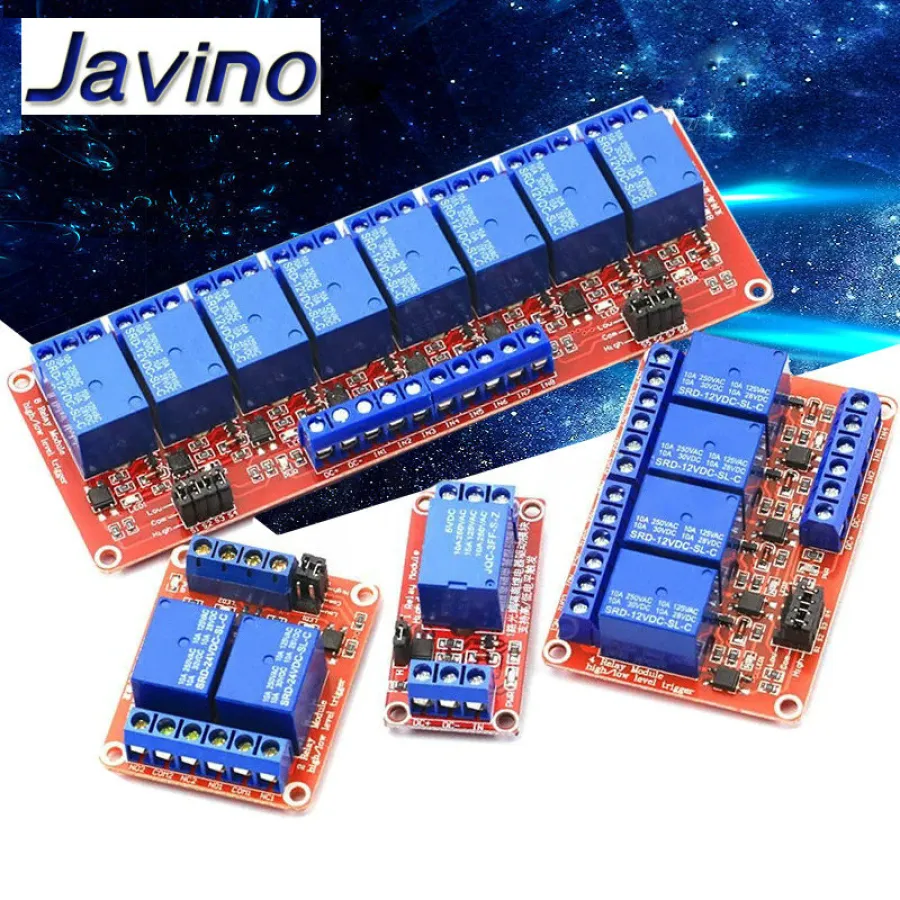

DC 5V 12V 24V 1 2 4 6 8 Channel Relay Module Board Shield with Optocoupler / High and Low Level Trigger for arduino Raspberry Pi
Module description:
1. the module uses genuine quality relay,normally open interfaces Maximum load: AC 250V/10A,DC 30V/10A;
2. using SMD optocoupler isolation,driving ability,stable performance; trigger current 5mA;
3. the module Operating voltage 5V 12V 24V ;
4. the module can be high or low by a jumper setting trigger;
5. fault-tolerant design,even if the control line is broken,the relay will not operate;
6. the power indicator (green),the relay status indicator (red)
7. the interface design of human nature,all interfaces are available through a direct connection terminal leads,very convenient
8. module size: 50mm*26mm*18.5mm (L*W*H)

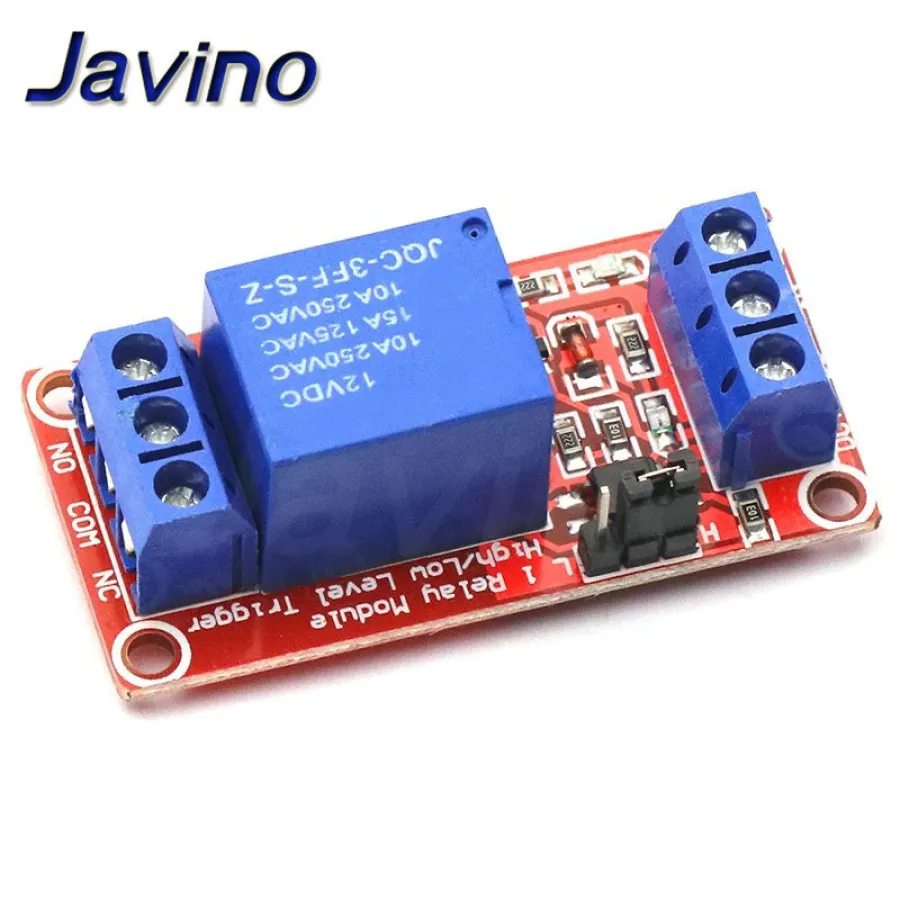

Module interface:
1. DC+: positive power supply (VCC)
2. DC-: negative power supply (GND)
3. IN: can be high or low level control relay
Relay outputs:
NO or NOx: load access terminal,normally open
COM or COMx: load access,common
NC or NCx: load access terminal,normally closed
High and low level trigger options:
It is low level trigger when jumper connect to LOW pin
It is high level trigger when jumper connect to HIGH pin
1. the module uses genuine quality relay,normally open interfaces Maximum load: AC 250V/10A,DC 30V/10A;
2. using SMD optocoupler isolation,driving ability,stable performance; trigger current 5mA;
3. the module Operating voltage 5V 12V 24V ;
4. the module can be high or low by a jumper setting trigger;
5. fault-tolerant design,even if the control line is broken,the relay will not operate;
6. the power indicator (green),the relay status indicator (red)
7. the interface design of human nature,all interfaces are available through a direct connection terminal leads,very convenient
8. module size: 50mm*26mm*18.5mm (L*W*H)
Module interface:
1. DC+: positive power supply (VCC)
2. DC-: negative power supply (GND)
3. IN: can be high or low level control relay
Relay outputs:
NO or NOx: load access terminal,normally open
COM or COMx: load access,common
NC or NCx: load access terminal,normally closed
High and low level trigger options:
It is low level trigger when jumper connect to LOW pin
It is high level trigger when jumper connect to HIGH pin
Packaging Details
- Unit Type:
- Package Weight: 0.200
- Package Size: 11x4x11
- Brand Name: Javino
- Voltage: 5V
- Model Number: 1 2 4 8-way 5V relay module
- Theory: Solid State Relay
- Protect Feature: Sealed
- Hign-concerned Chemical: None
- Use: General Purpose
- Contact Load: High Power
- Origin: Mainland China
- Power Source: DC
- is_customized: Yes
- Certification: None
- Choice: yes
- semi_Choice: yes
