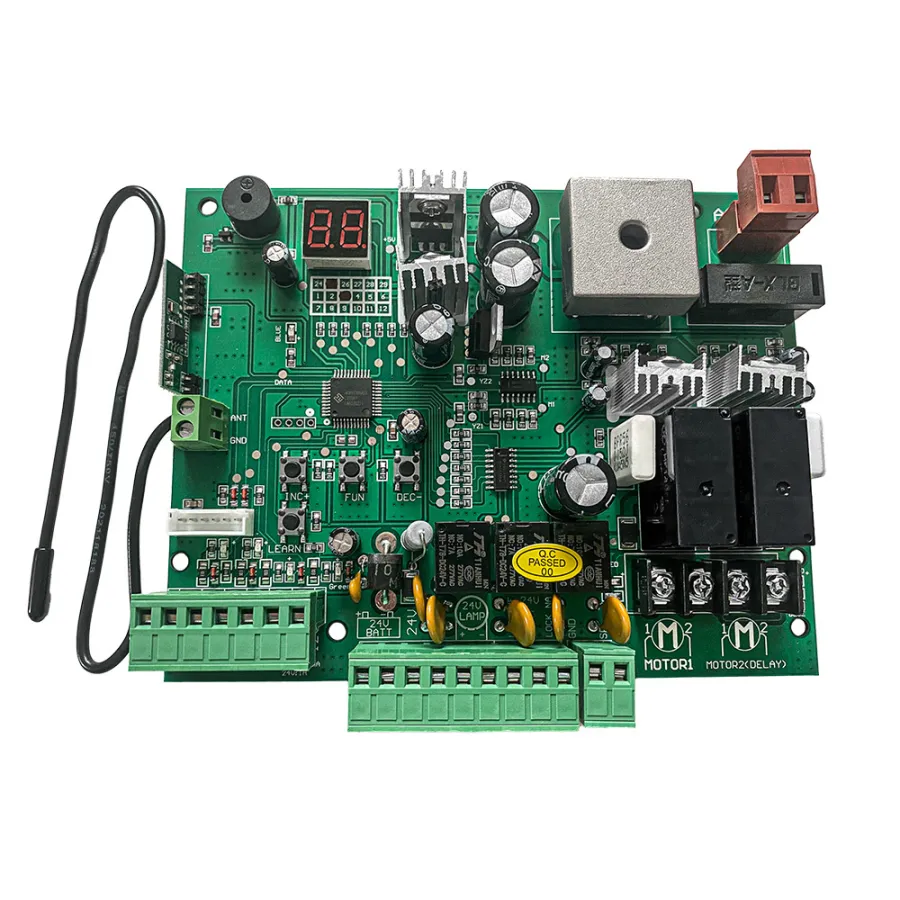

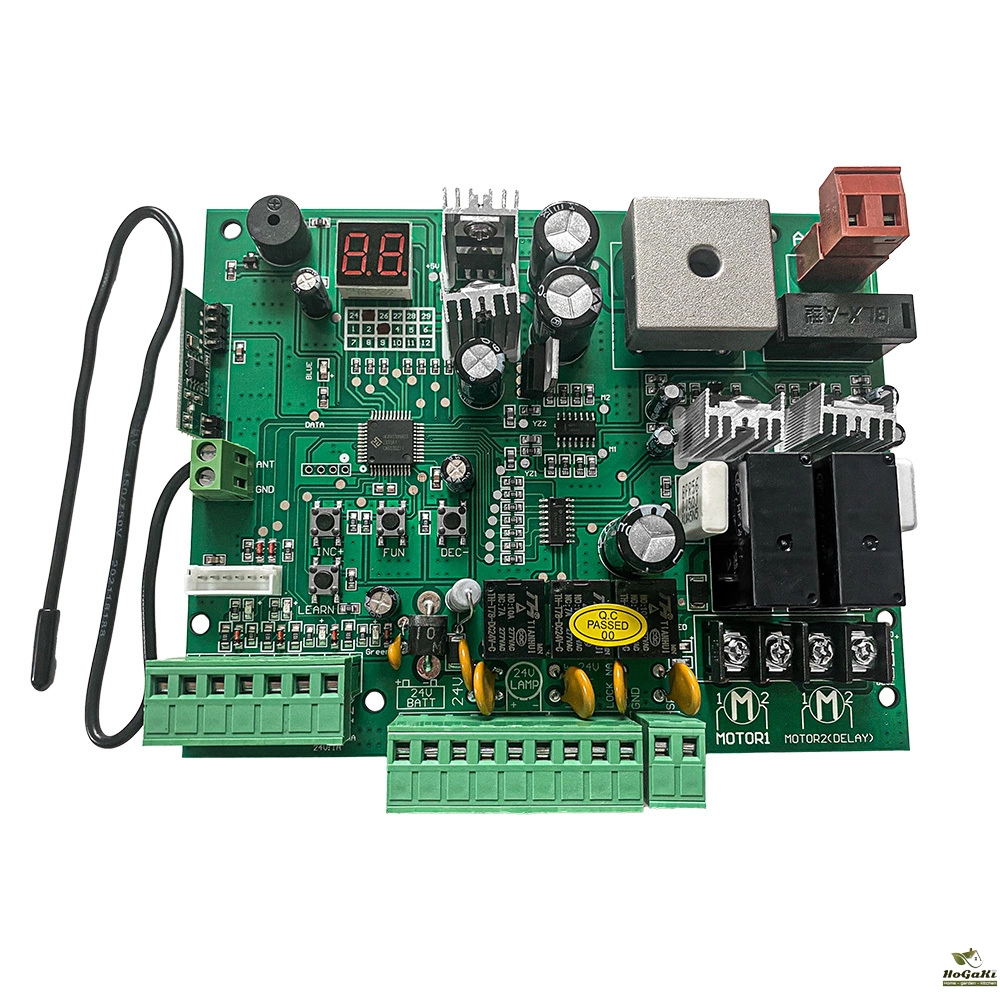

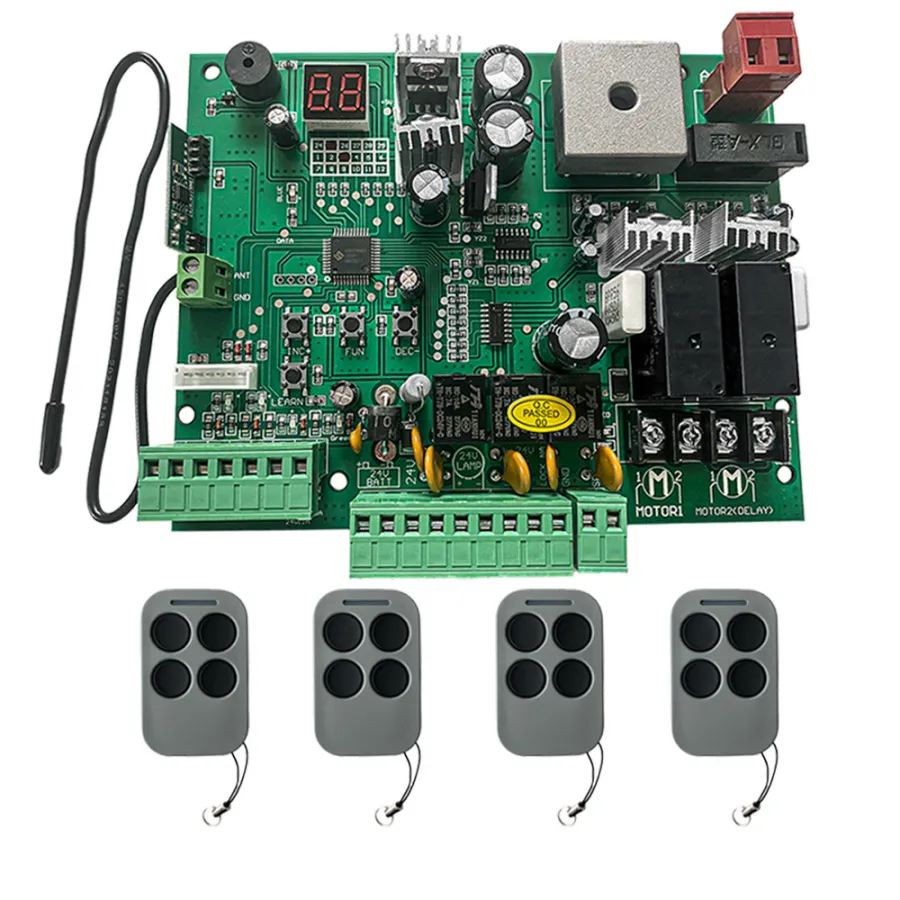

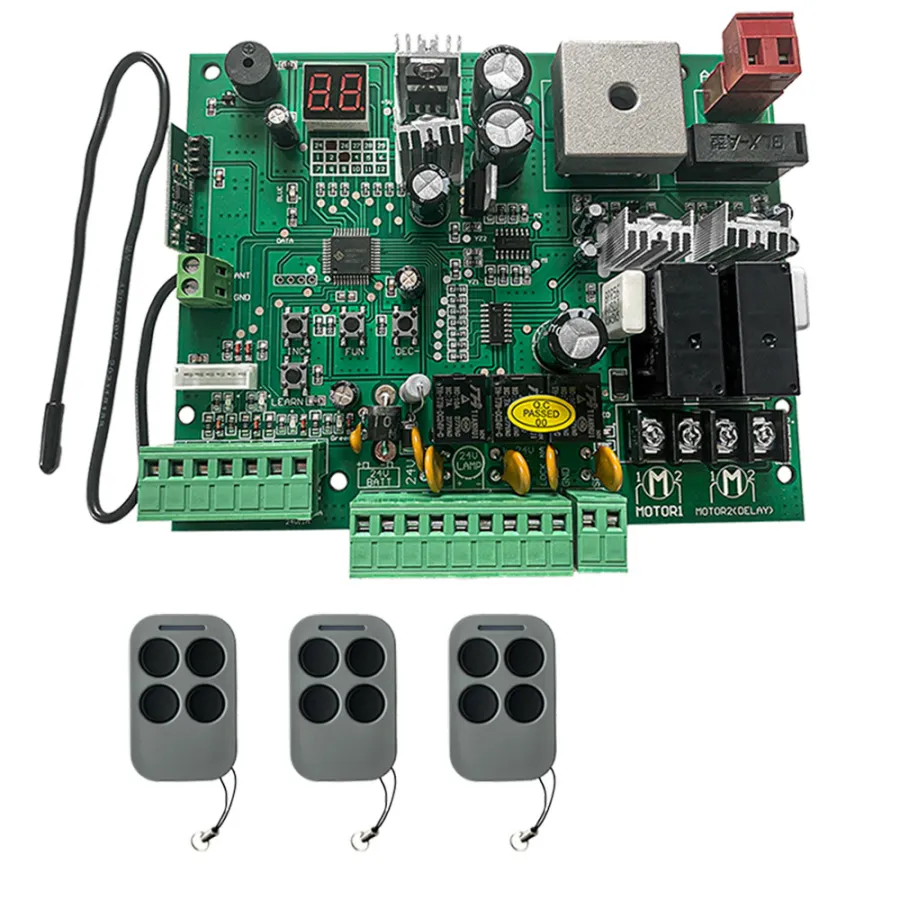

DC 24V PCB Board for Automatic Double Arms Swing Gate Opener Control Board Panel Smart Control Center System Replace Fittings
4.6 (41 votes) | 257 orders
Price:
US $206.00 - 332.56
Discount Price:
US $
94.26 -
150.94
-54%
- Color
-
-
Please note

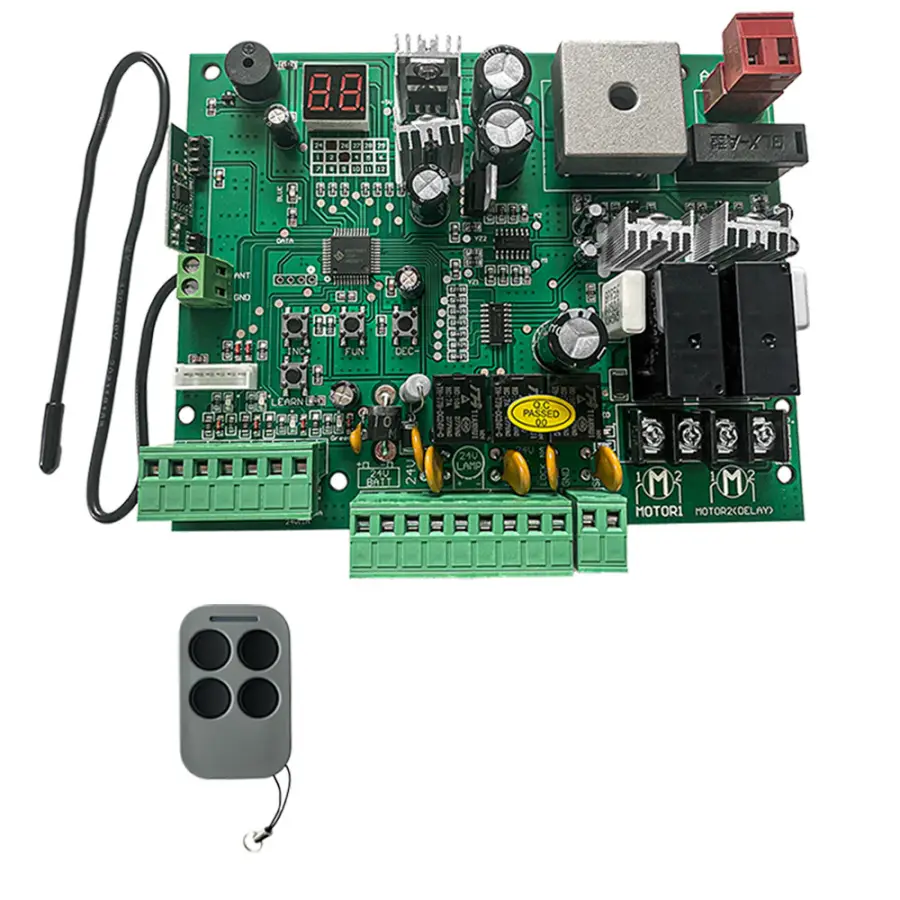

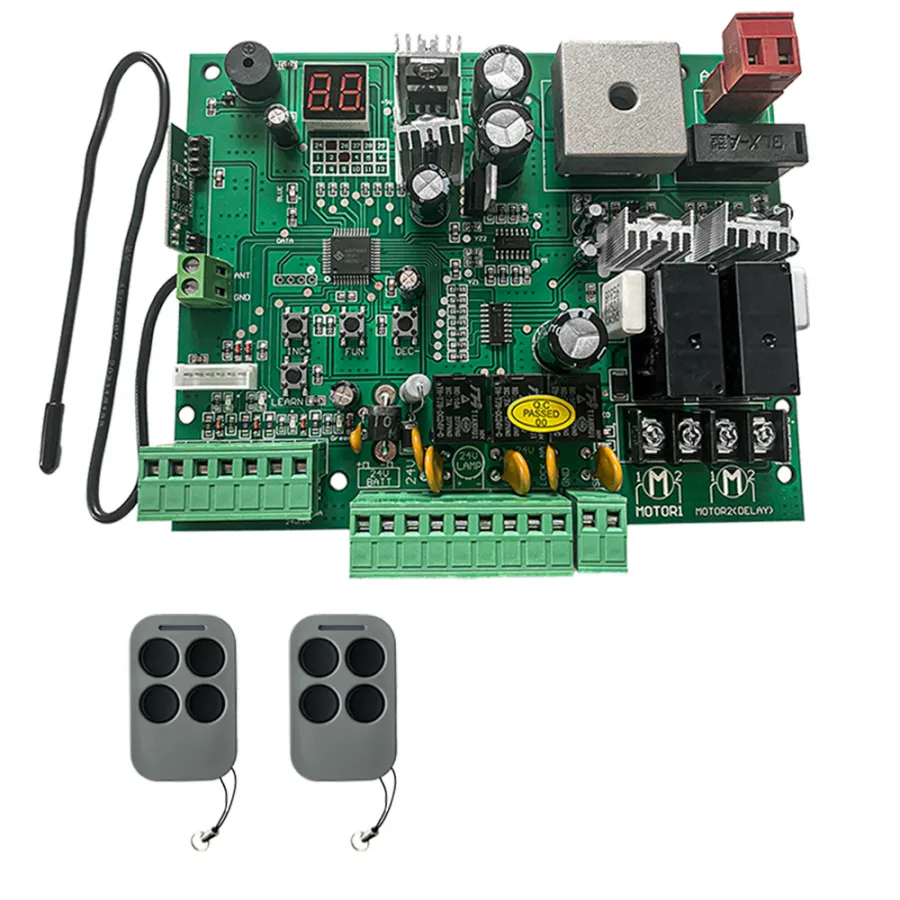

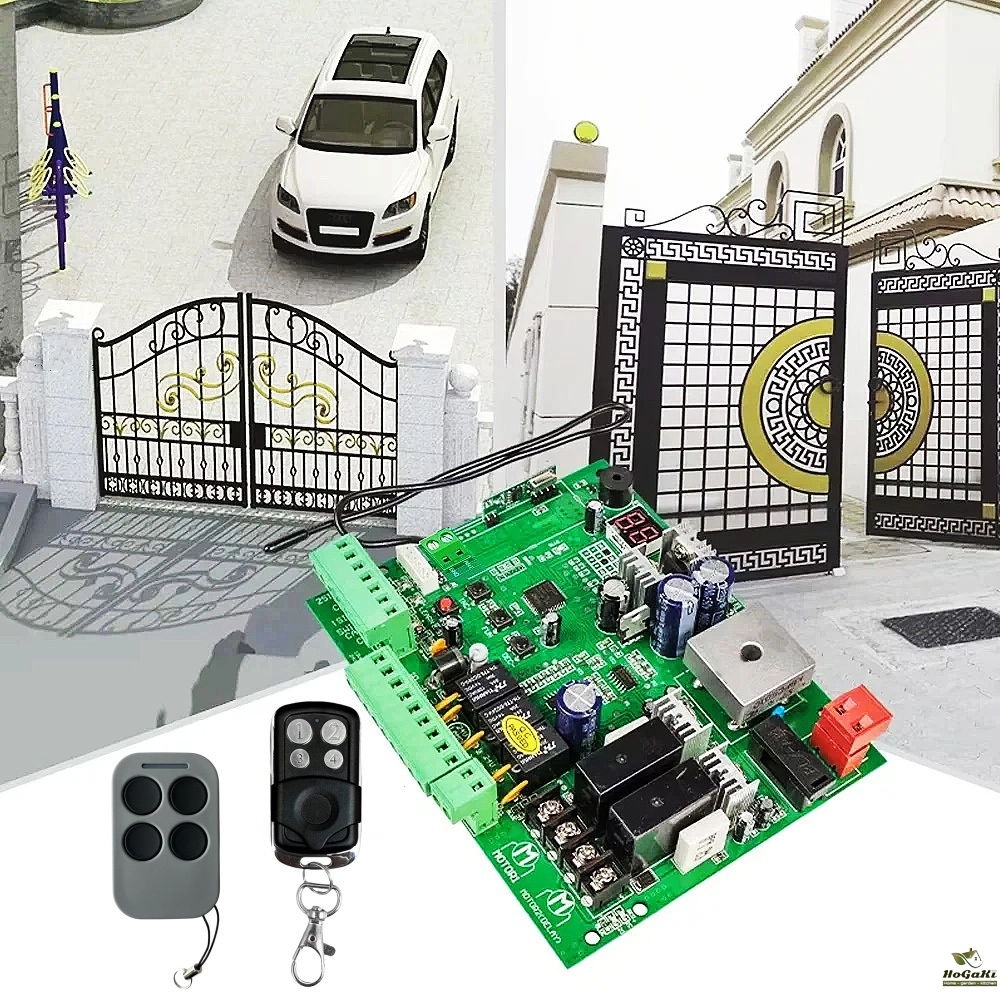

This PCB control board can only use the remote control in our photo, it cannot be used with other remote controls
Product sellpoints

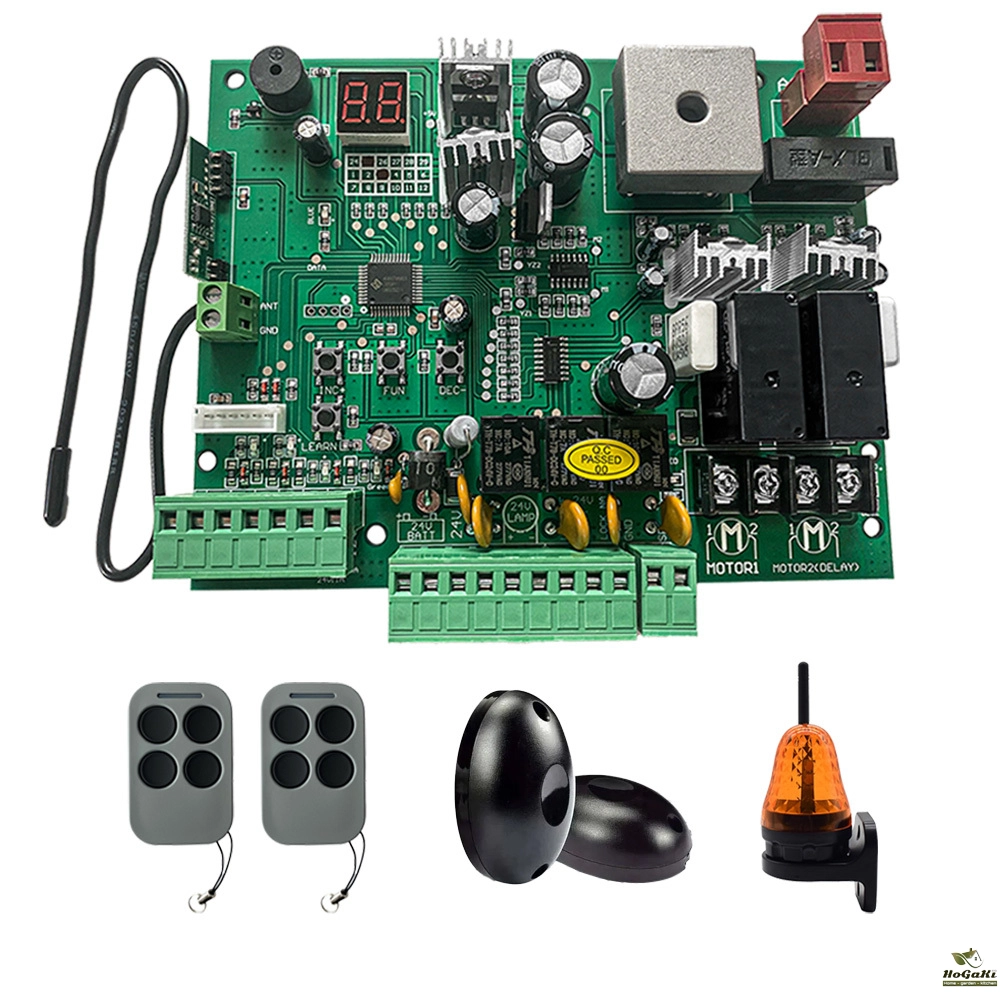

Extensive Accessory Support:Includes terminals for various accessories like loop detectors, photocells, and keypads for comprehensive gate management.
Advanced Security Features:Equipped with fail-secure with signal mode and custom rolling code for enhanced gate security.
Garage Door Wall Control Replacement|Vertical Gate Opener|Universal Type 24V PCB Board:Versatile 24V PCB board compatible with a wide range of swing gate openers, ensuring easy integration.
Customizable Functions:Offers DIY customization, allowing for tailored gate control and integration with other automated systems.
Digital LED Menu & Plug & Play:User-friendly digital LED menu for easy setup, plus plug and play functionality for swift installation.
Support DIY other functions. If you need to use it in other automated systems, please confirm the functions with the seller in advance, because the product contains difficult technicalities and there is no definite purchase, and the seller does not bear any responsibility.

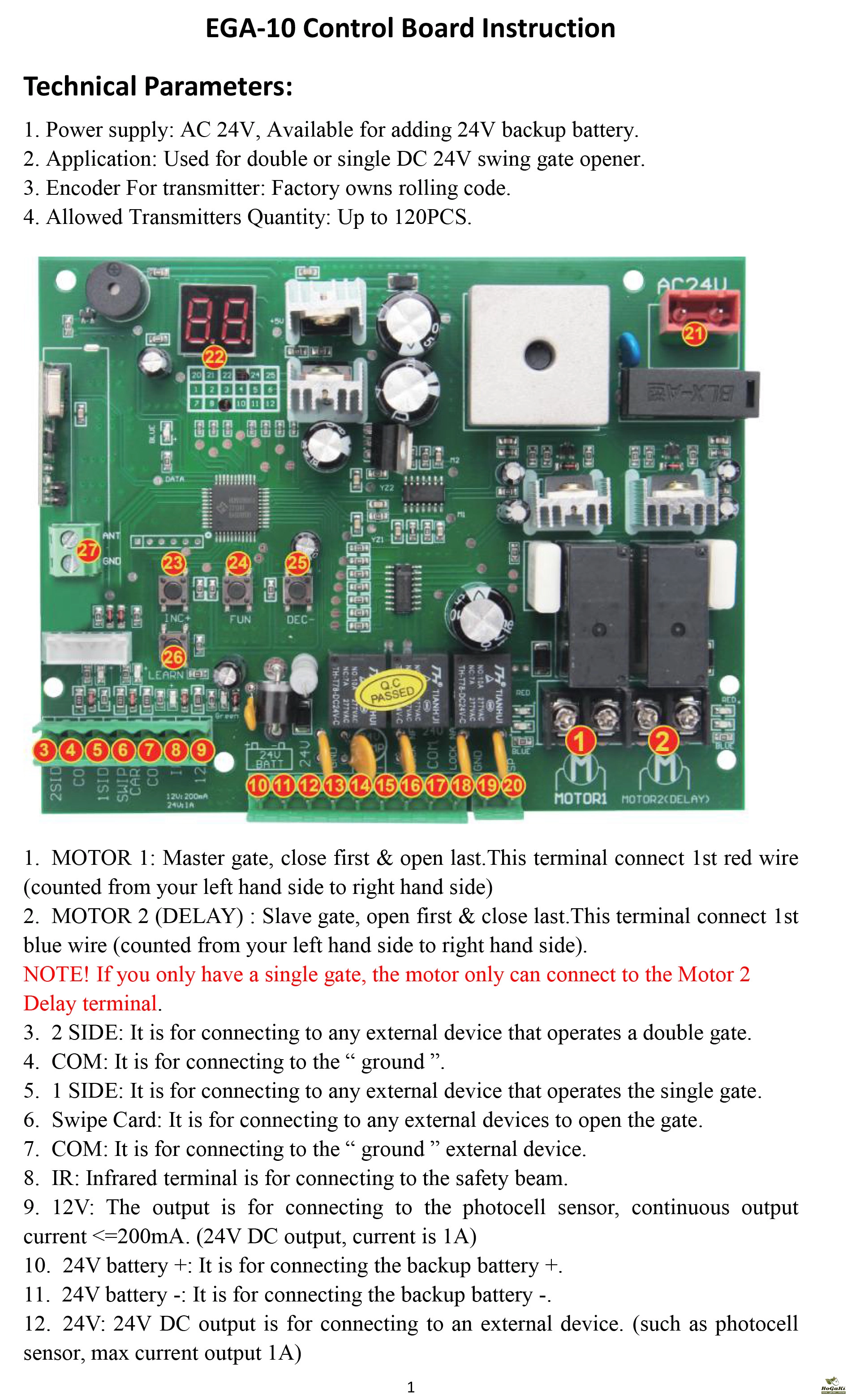

Note: Both EG-22A and EGA-10 are of the same.If you purchase the control board separately, please be sure to contact us to ensure the compatibility of your remote control and our control board, because the same controller or remote control may have different frequencies in different countries.
Features

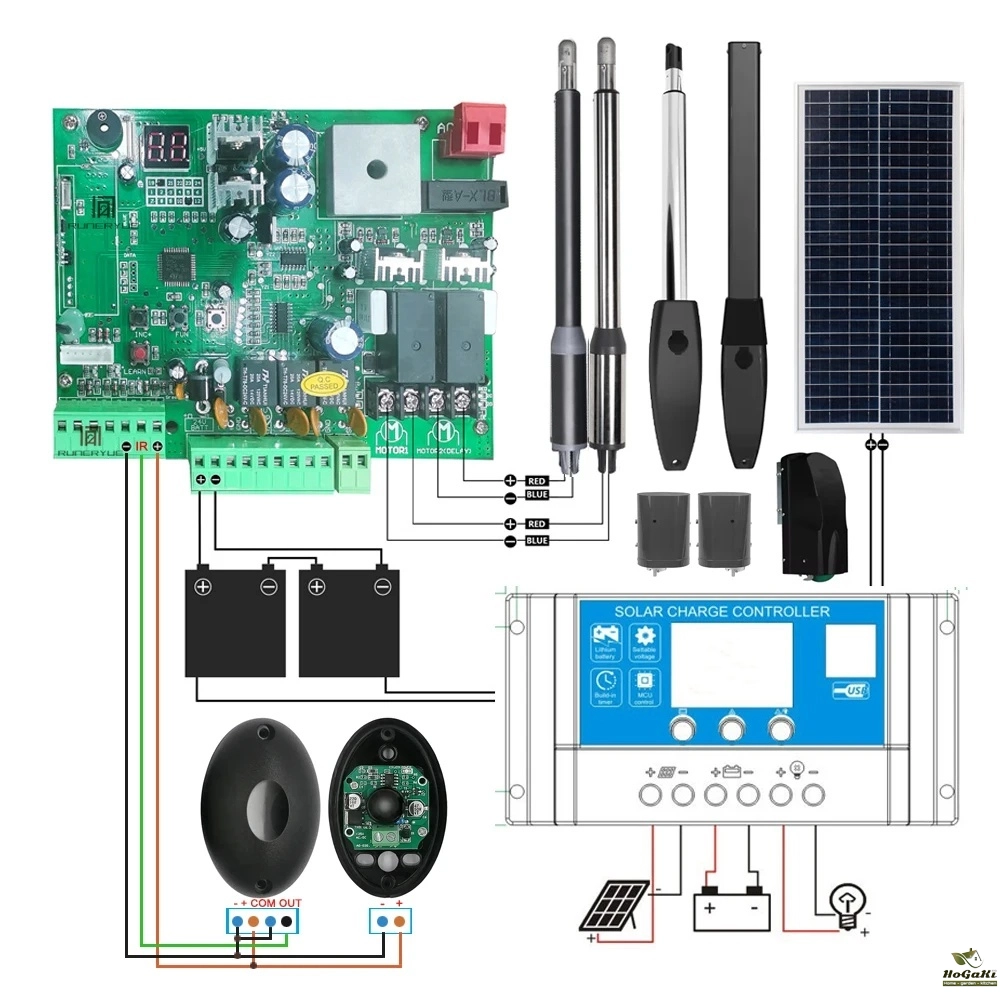

1.Control panel voltage input: 24VDCAC. Can connect 2PCS 12V 9AH back up battery.

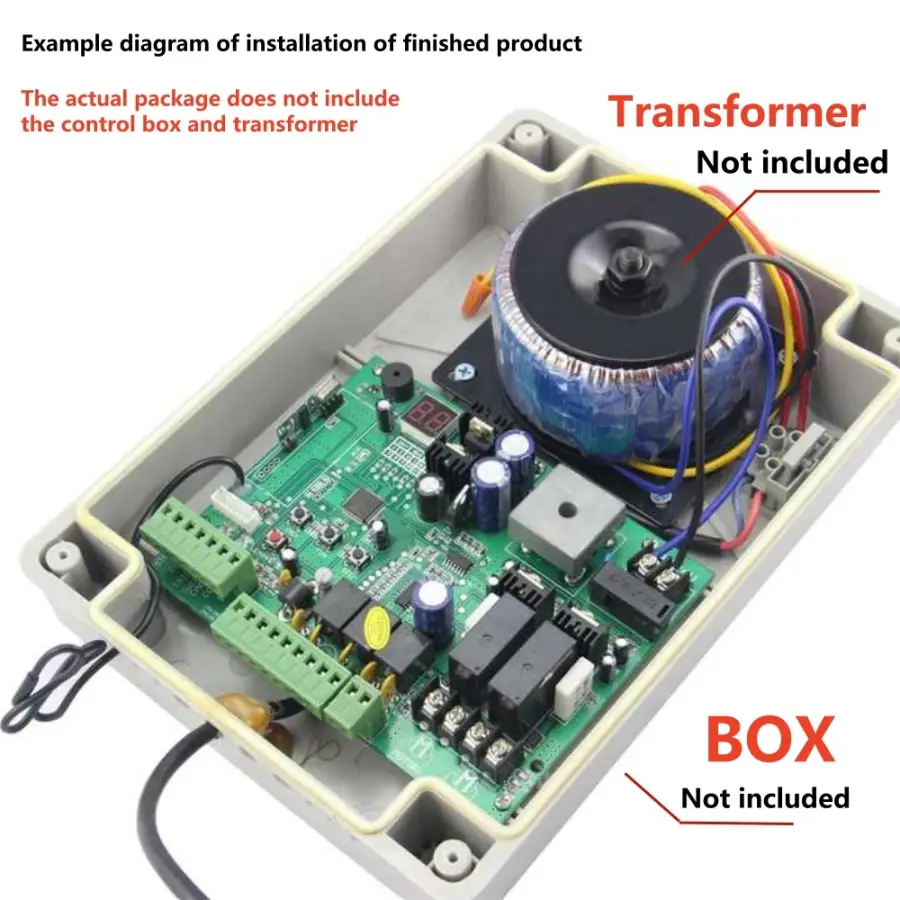

Note that the control board purchased separately needs to be used with a transformer, and cannot be directly 100-250V AC.
2.Motor's voltage: 12-24VDC support.The input of the control board is 24V, and the output is 12-24V.
3.Encoder for transmitter: Use our own customized rolling code.(Encrypted code, no copying and non-branding of our products )
4.Range of application: Suit for our double arms swing gate openers.
*The Linear Spiral 24V Straight Brush Arm is supported, but only fully works with our products, and is not covered by the warranty if tested on a non-ours product.

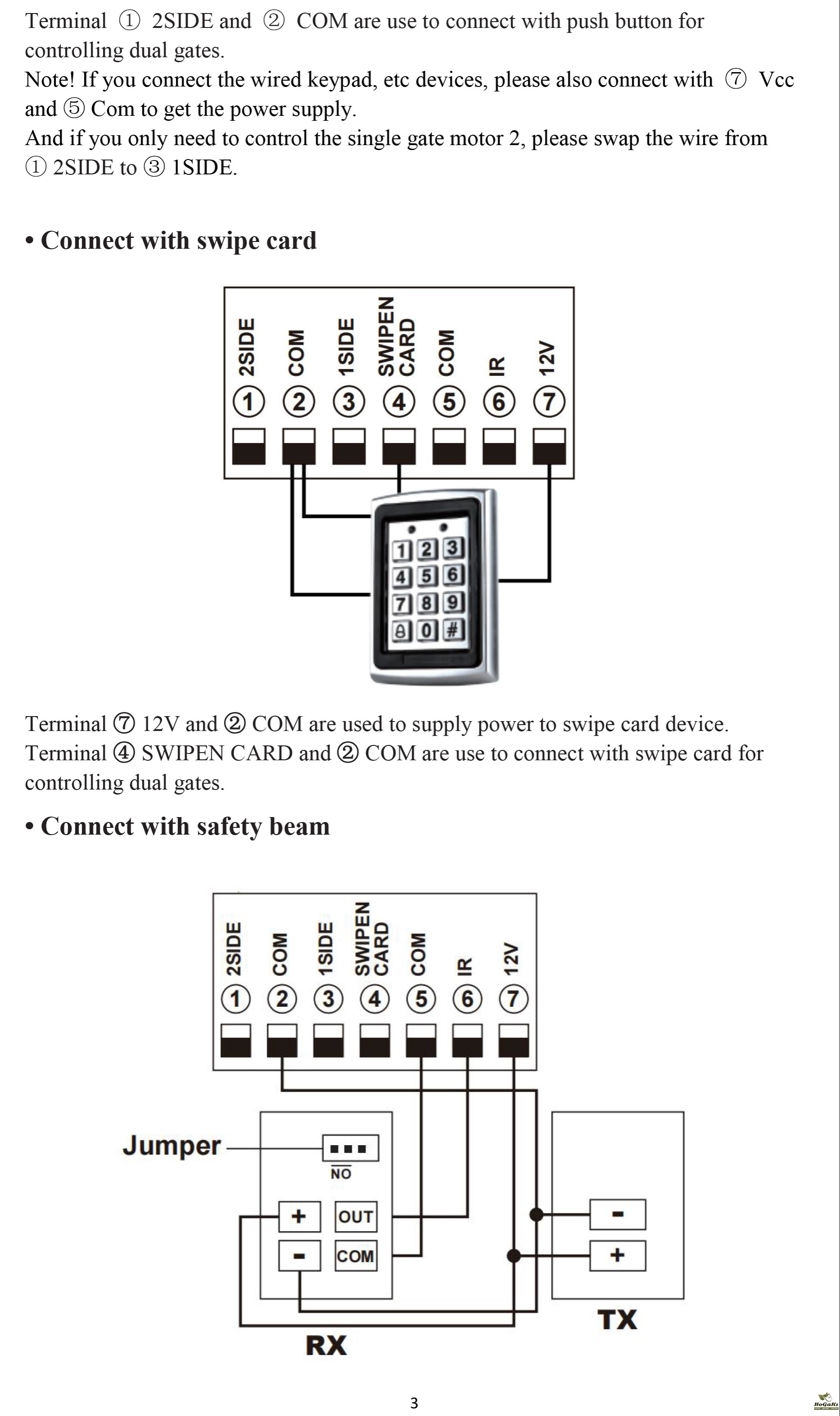

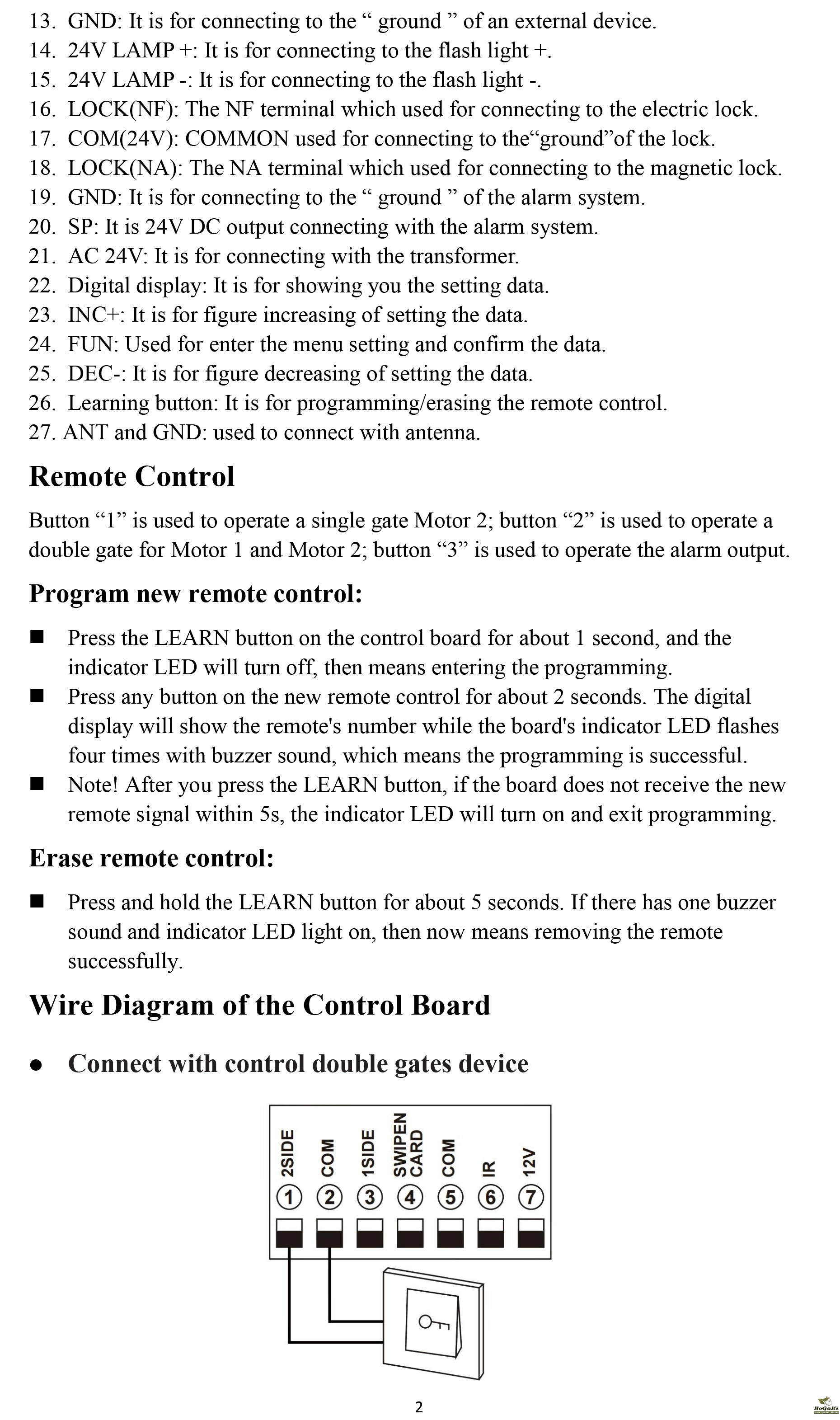

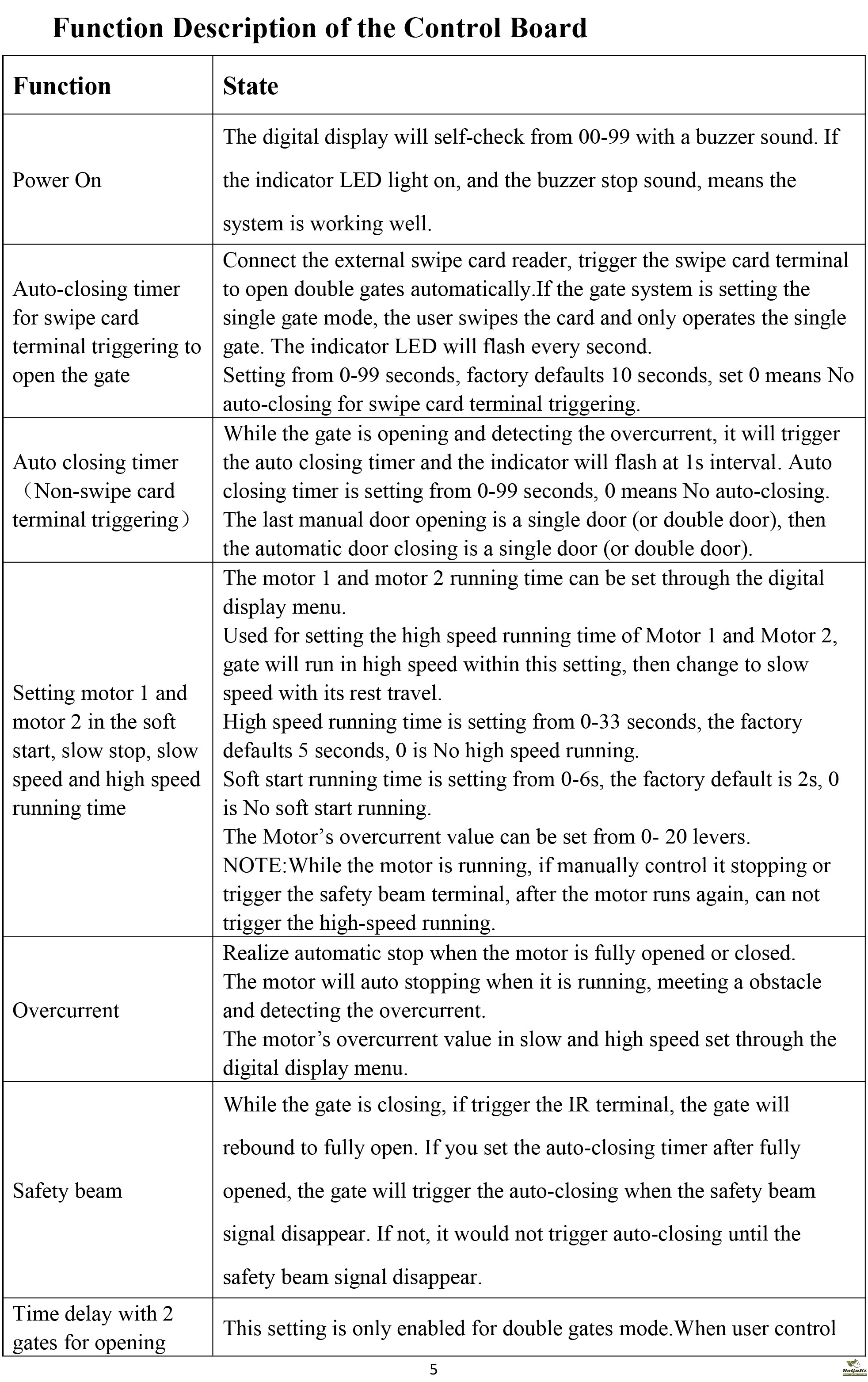

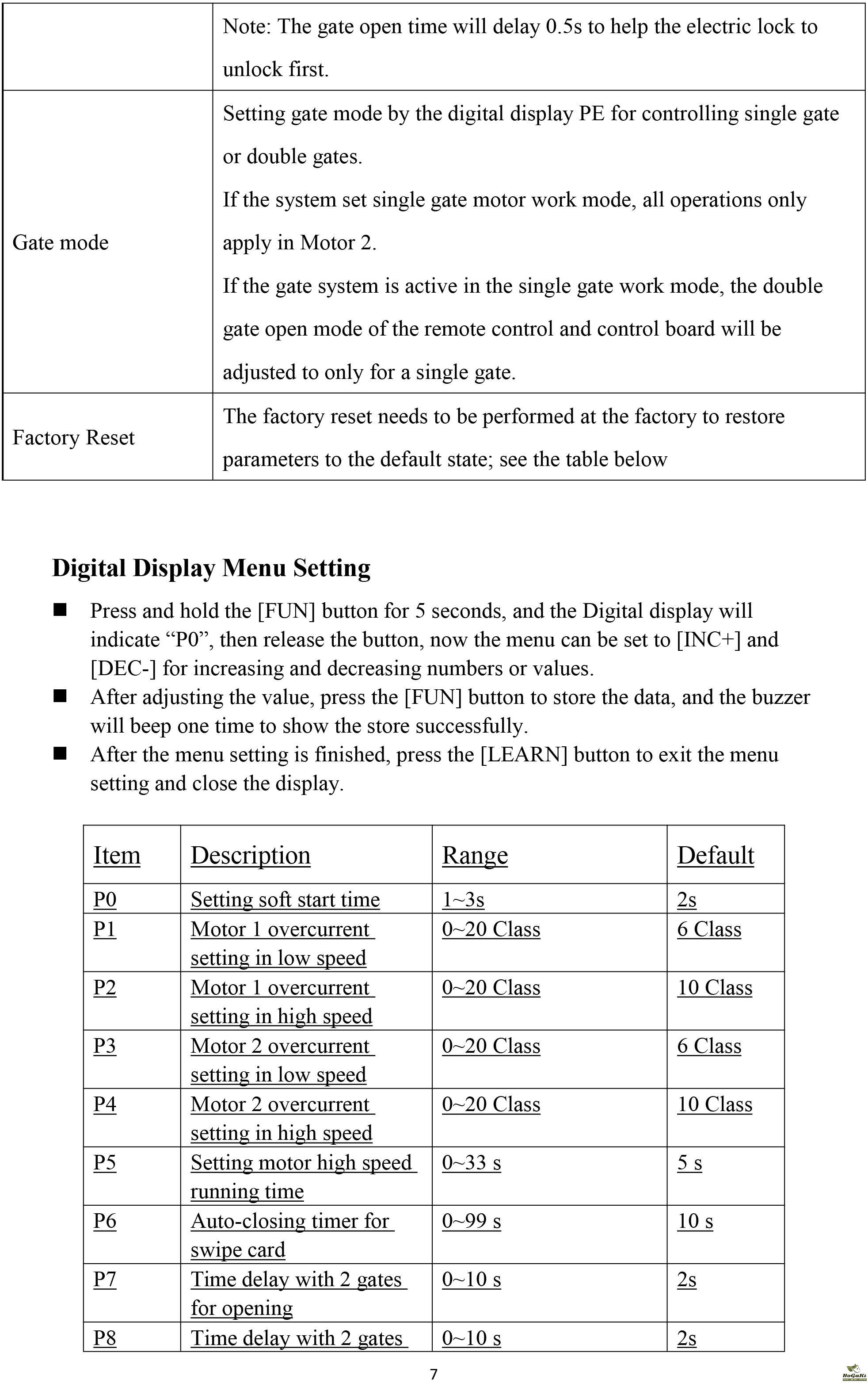

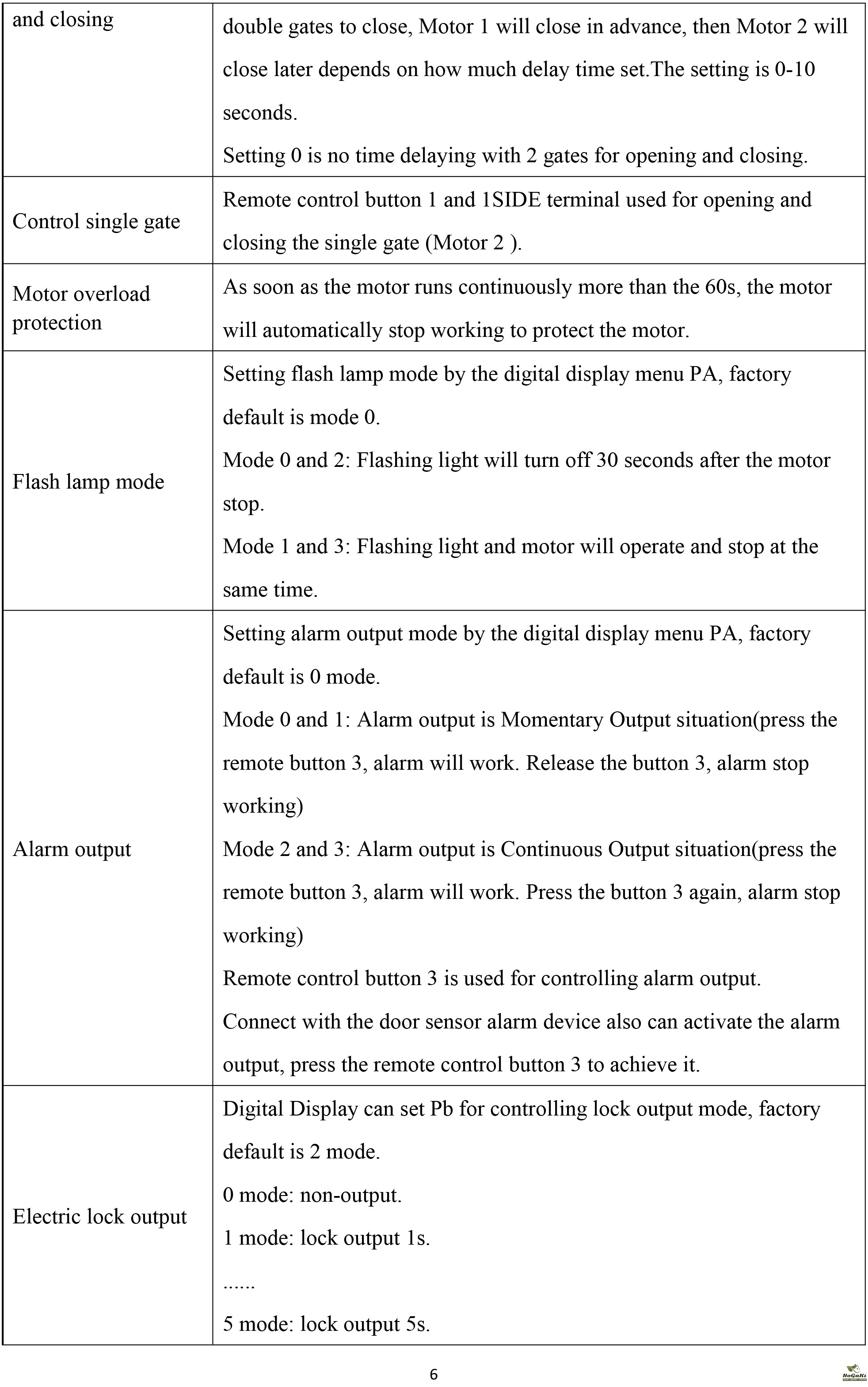

Functions and testing:
Packaging Details
- Unit Type:
- Package Weight: 0.431

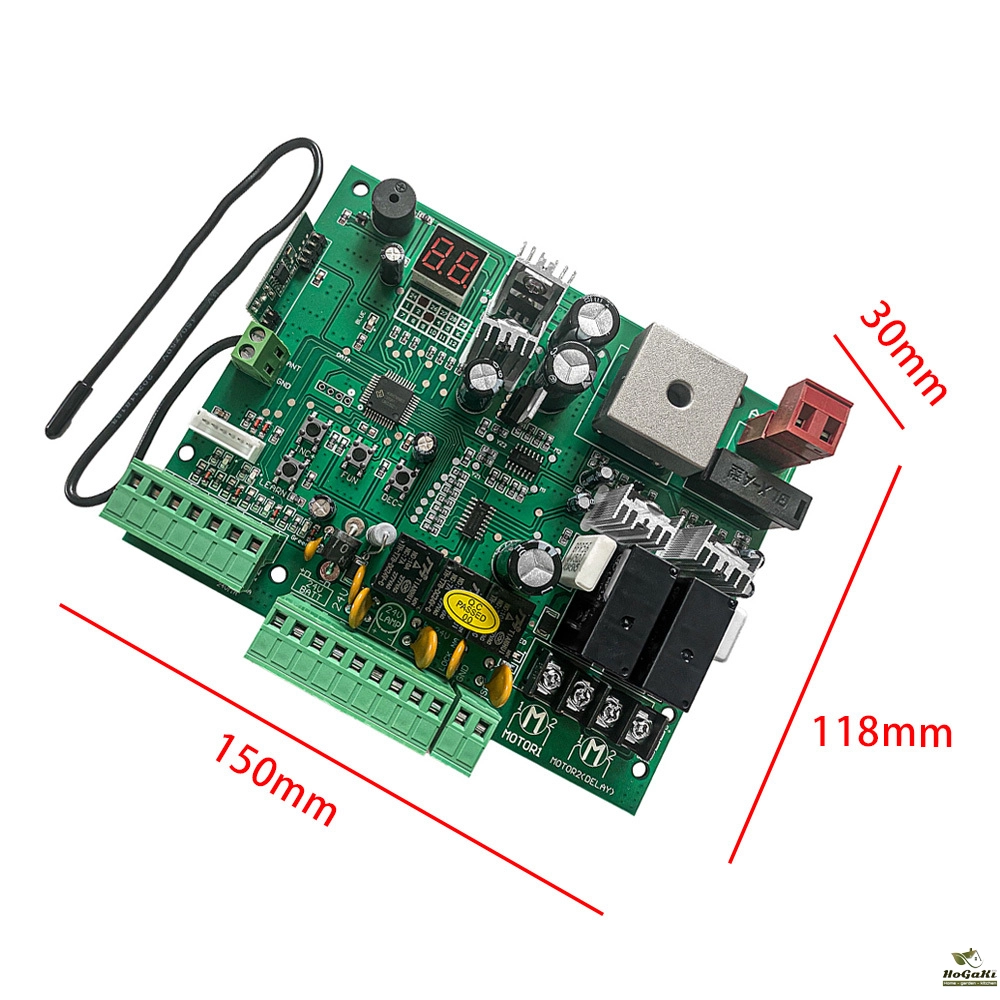

- Package Size: 18x6x21
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Hign-concerned Chemical: None
- Smart home platform: None
- Model Number: Swing gate control board
- Certification: CE
- Function: Swing gate opener motor control
- Power supply: AC 24V
- Frequency: 433.92Mhz
- Application: Used for double or single DC 24V swing gate opener
- Allowed Transmitters Quantity: Up to 120PCS.
- Choice: yes
