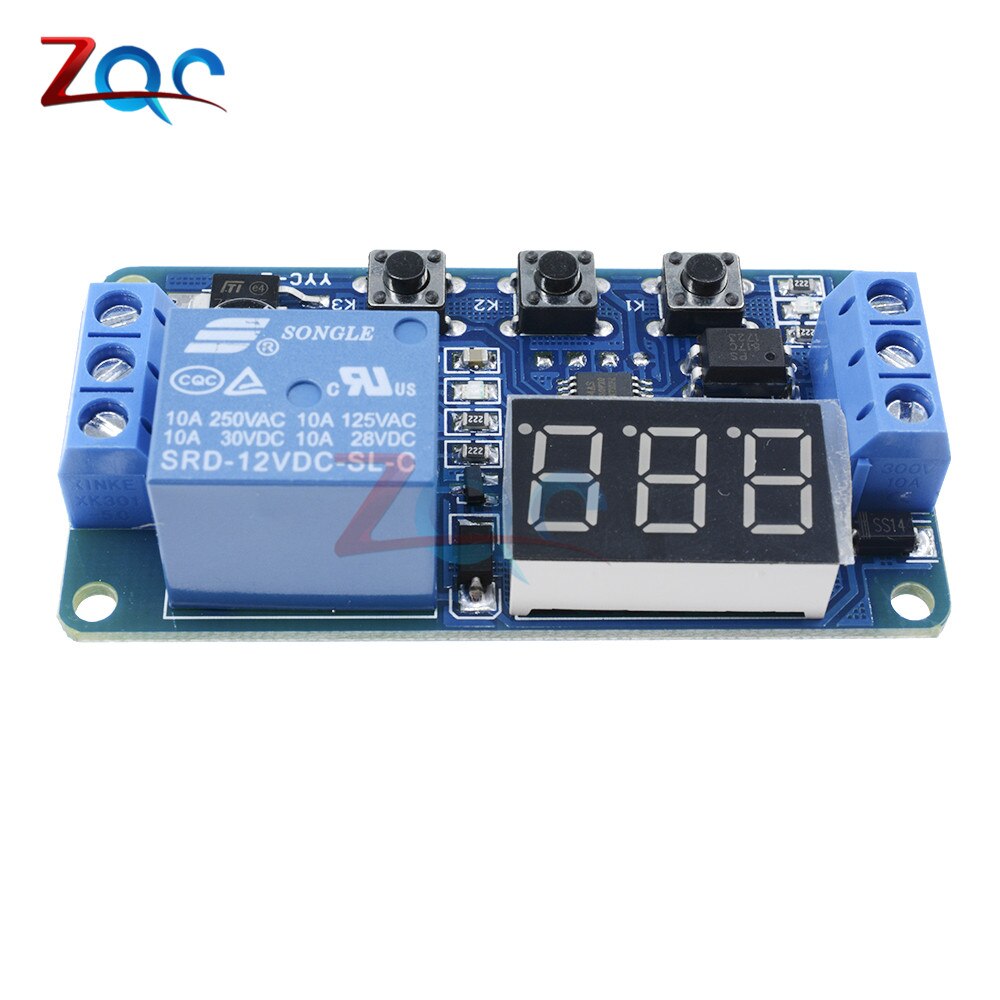

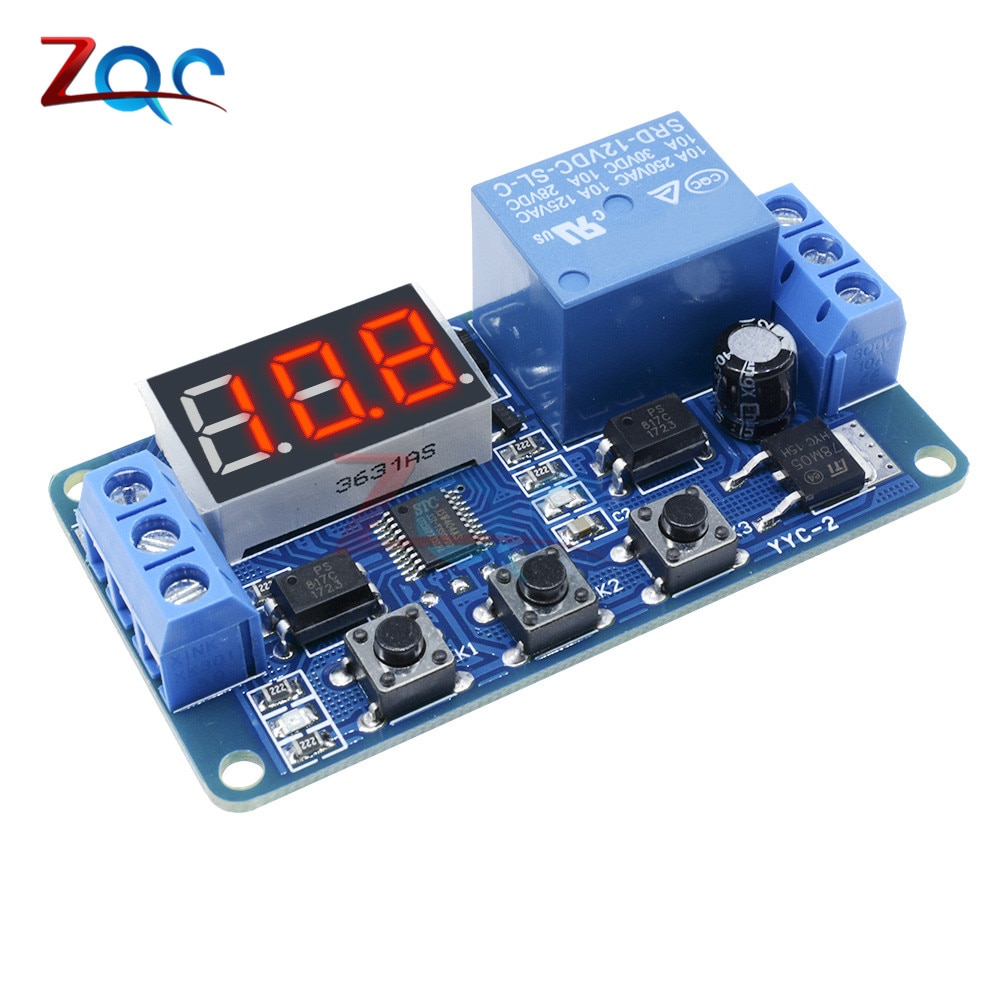

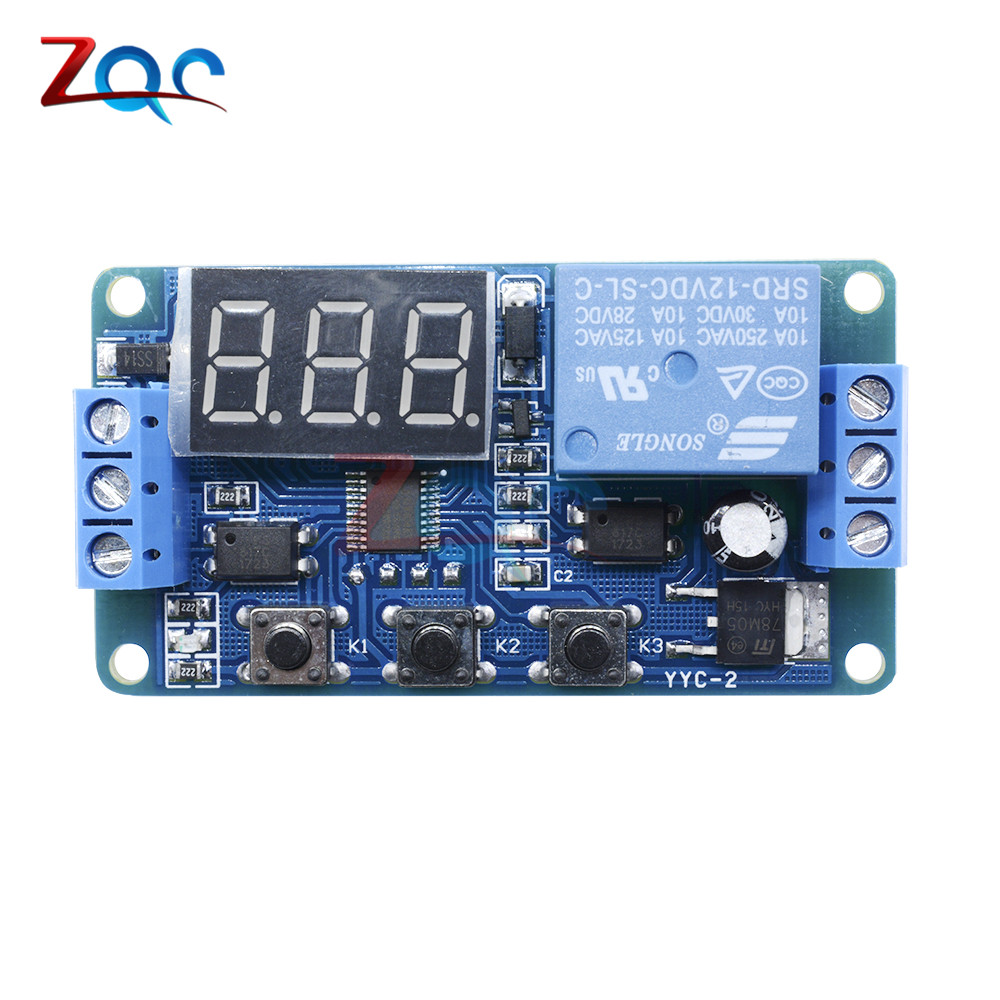

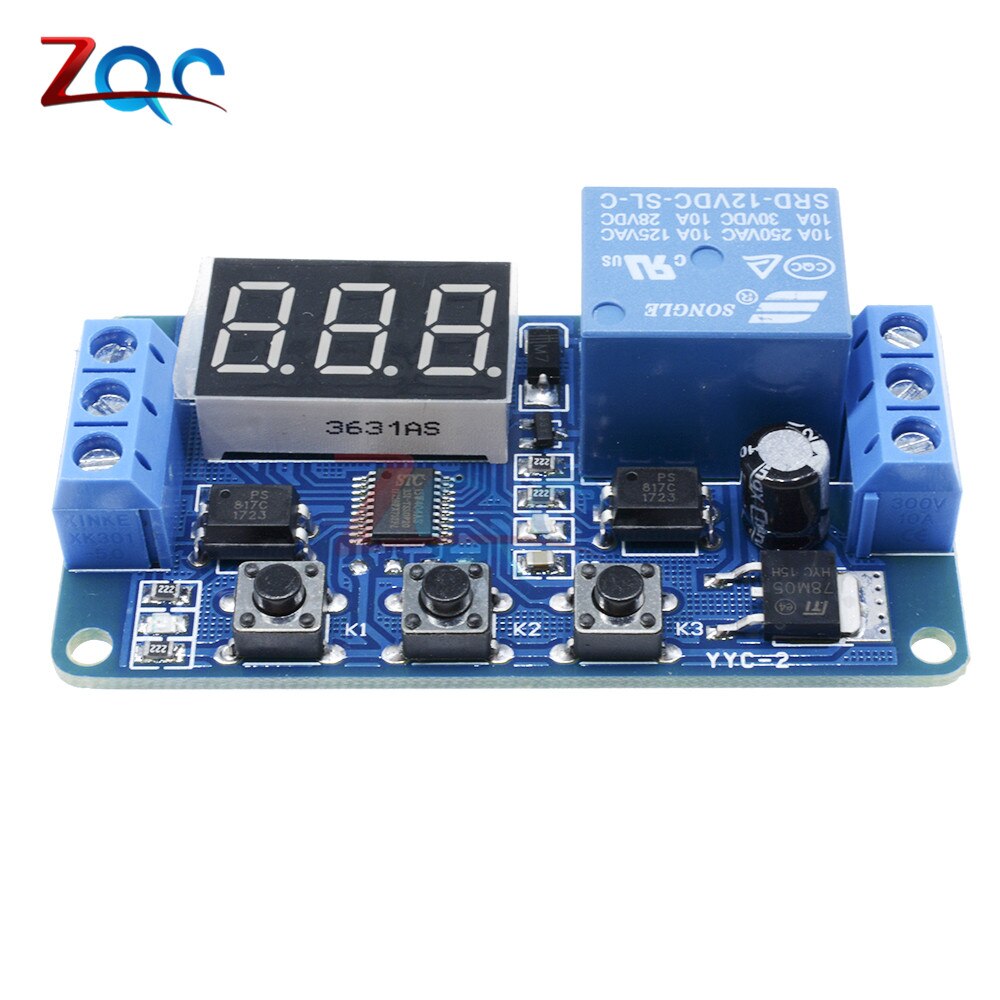

DC 12V LED Digital Display Home Automation Delay Relay Trigger Time Circuit Timer Control Cycle Adjustable Switch Relay Module
5.0 (2 votes) | 8 orders
Price:
US $15.05
/ piece
Discount Price:
US $
13.98
/ piece
-7%
Description:
Increase the supply anti-reversefunction.
The use of opto isolated input and output,enhanced anti-jamming capabilit consumption.
Set parameter after power for ever memories.
Signal terminal voltage signal can be maintained for a longtime to ensure stability, industrial grade board, class PLC.
Parameter:
Size: 64.2mm*34.8mm*18.5mm.
Relay Specification: AC 220V 10A or DC 30V 10A.
Quiescent Current: 20mA
Operating Current: 50mA
Working voltage: DC 10 -16V (if other ranges can be customized)
Signal voltage: DC 4V -20V (if other ranges can be customized)
Life: about 100,000times
Working temperature: -40 -85℃

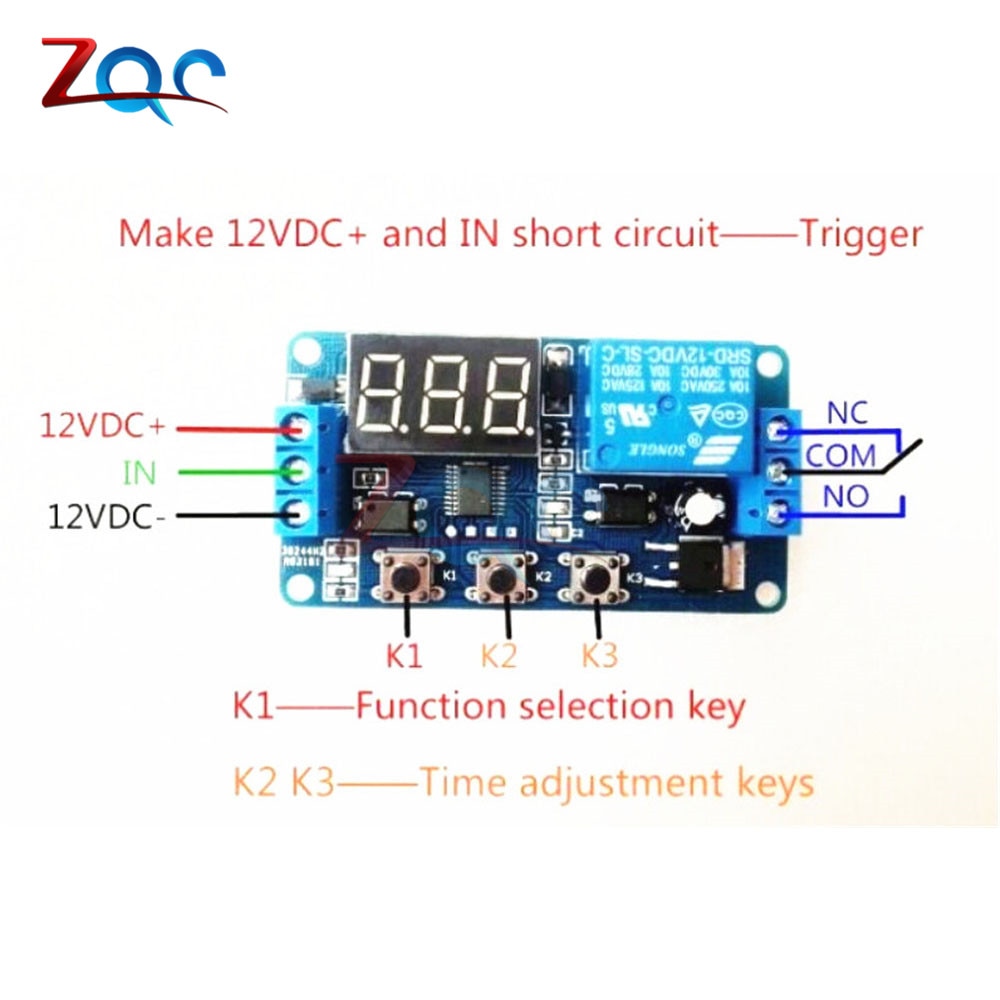

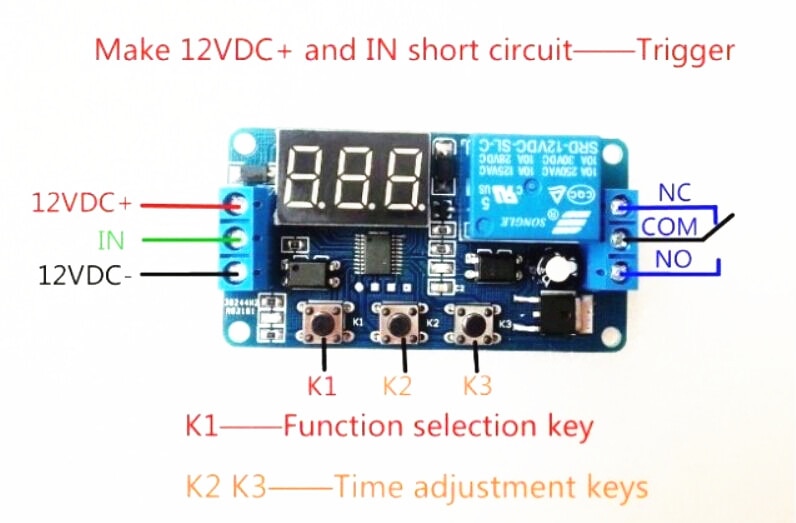

Selection: After power on,long press K12 seconds later into the select function mode,P1-1 to P1-4for choose.
P1-1 operating modes:a signal to trigger relay, time is up, the relay disconnect users. You can set relay time T, click K2 the hundred digital tube starts flashing, then press K3, the hundred digital change. Click K2
ten digital tube starts flashing, then press K3, ten digit changes. Click K2 bit digital tube starts flashing, then press K3, single-digit change. Then click K2, digital pipe does not blink, then press the K3, shifting the decimal point, the decimal point in a bit indicates 0-999 minutes in ten represents 0 to 99.9 seconds without decimal point represents 0-999 seconds. Good choice, bringing the time setting is completed. Short press
K1, enter function off line-tuning settings, trigger the default delay period is invalid, press K1, during the delay trigger active(re-timing), click on the K1, during the delay reset (timer turned off, the relay reset) press
again to repeat the default settings for the first time.
P1-2 operating modes: A signal trigger ,digital countdown begins, X seconds after, there lay open Y seconds, then close. Users can set the relay time X,Y. P1-1 different time settings similar to the blue lights that set
the relay time, blue light indicates setting relay off time. Short press K1, enter function offine-tuning the set, the default trigger is invalid during the delay, press K1, during the delay trigger active(re-timing), then click
the first repeat default settings.
P1-3 operating modes: Open X seconds, disconnect Y seconds, infinite loop.Users can set the relay time X,Y. Time setting similar to P1-2. Short press K1, enter function off line-tuning set. The default function is: set up
an electric circuit the relay first open, press the K1, there lay first close.Press again to repeat the default functionality.
P1-4 operating modes:a signal to trigger the relay open but do not start the timer, when the trigger signal disappears, digital count down begins, X time after, the relay close. During the delay, again to the signal, digital count down canceled, stays energized, the signal disappears, restart count down. (equivalent to release the button to start timing, commonly usedi n power-off delay). Users can set the relay time X; time setting similar to P1-1.
Package Included :
1PCS x DC12V Delay Timer Control Switch Module
- Power Source: DC
- Voltage: 12V
- is_customized: Yes
- Usage: General Purpose
- Model Number: delay relay
- Contact Load: Low Power
- Protect Feature: Sealed
- Theory: Time Relay
- Brand Name: diymore
- Origin: Mainland China
