DC 12V LED Digital Display Home Automation Delay Relay Trigger Time Circuit Timer Control Cycle Adjustable Switch Relay Module
15.05 13.98 $
SALE
ID: 27235
Quantity
DC 12V 24V AC 110V 220V Digital Cycle Timer Delay Relay Module Dual LED Display Time Controller adjustable Timing Relay Switch
4.8 (98 votes) | 322 orders
Price:
US $324.29 - 463.57
/ piece
Discount Price:
US $
279.72 -
399.28
/ piece
-14%
- Size
-
-
Product Comparison: | ||
Model | Type1 | Type2 |
Picture |
|
|
Working Voltage | AC110V~220V/DC12V/DC24V | DC12V/DC24V/AC110V~220V |
Timing mode | Countdown Timer | |
Timing unit | Seconds + hours; seconds + minutes; seconds + seconds | Hours + hours; minutes + minutes; seconds + seconds |

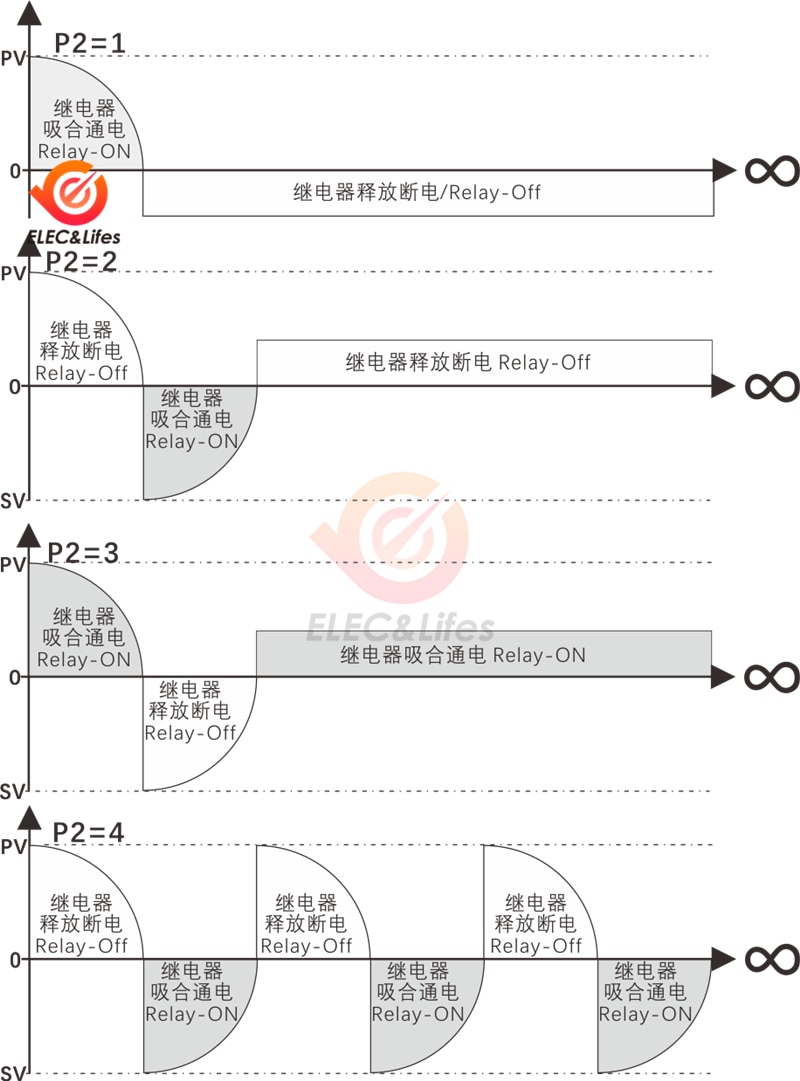

Cycle mode | Timing on; timing off; first off and then on and then off (no cycle); first on and off and then on (no cycle); first off and then on (cycle); first on and then off (cycle) | |
Working combination mode | 54 types | 18 types |
Display | 1.37“LCD | 0.4“LED+0.28"LED |
Display Method | 00: 00 ~ 99: 59 (hours, minutes) | 000 ~ 999 (seconds, minutes, hours) |
Power supply Method | Working power = control power | Working power ≠ control power |
Pause | Yes | No |
Restart | YES | |
Relay status indication | ON / OFF (character indication) | Light instructions |
Data storage | Automatically save the last setting parameters by default | |
working trigger | Automatic operation after power on | |

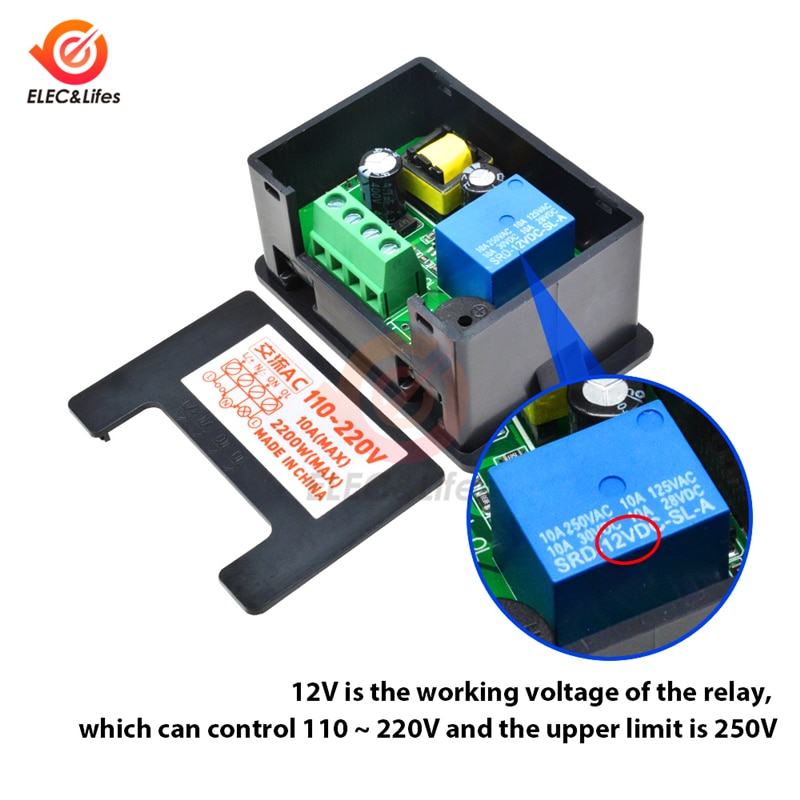

Control power | AC110~220V 10A（max） | 1500W（P=U*I I＜20A） |
Installation method | Embedded installation, need opening, no screws | |
crystal | Independent crystal | Integrated crystal |

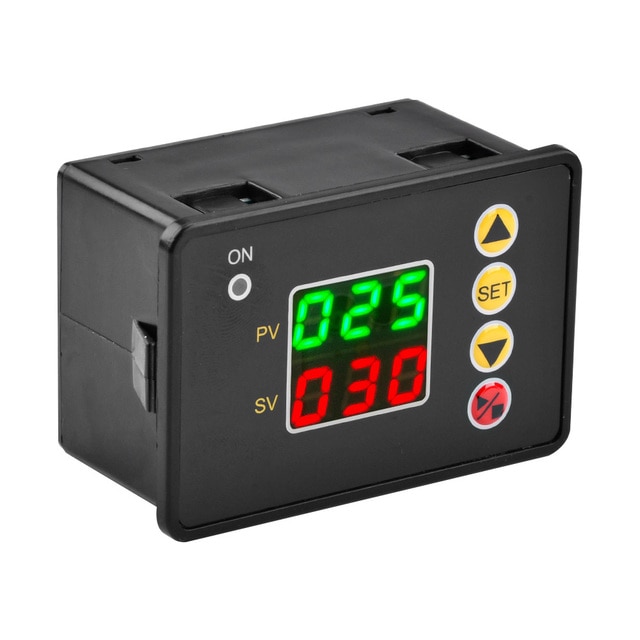

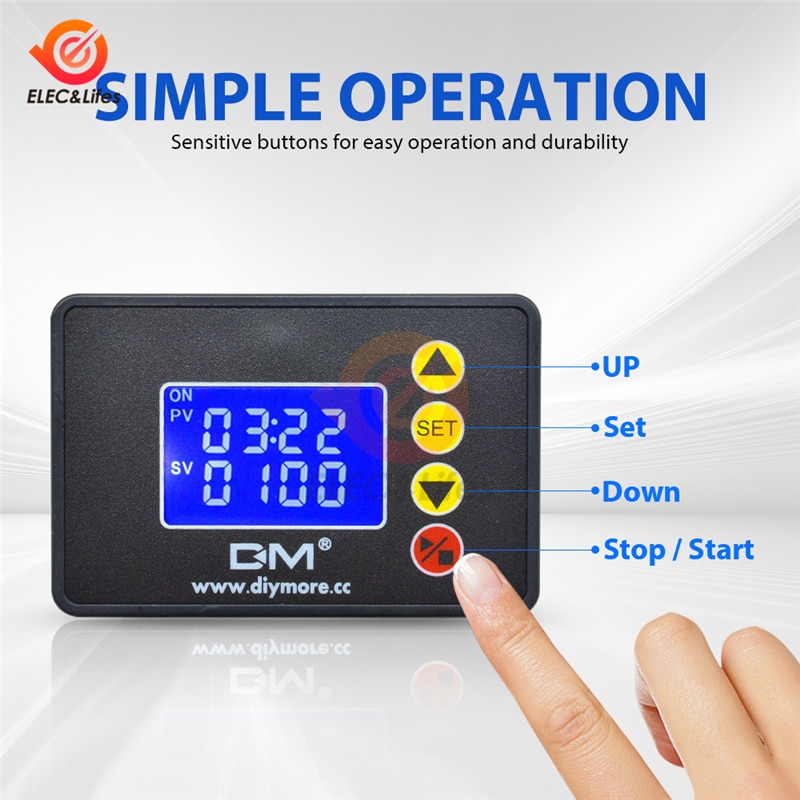

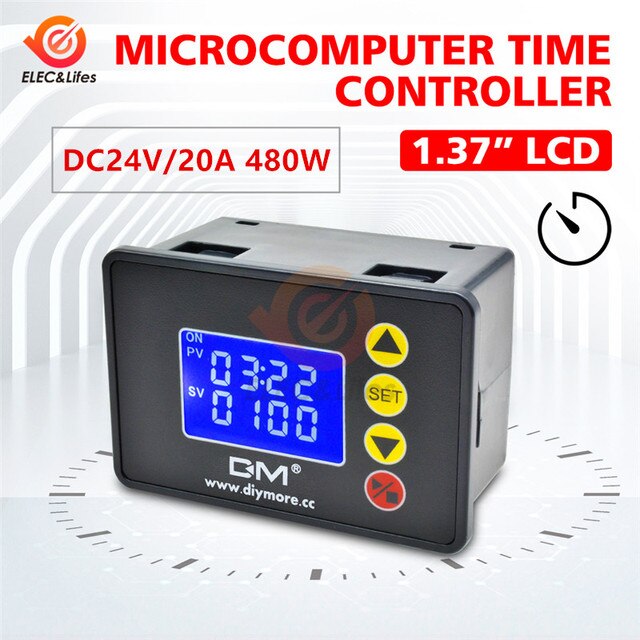

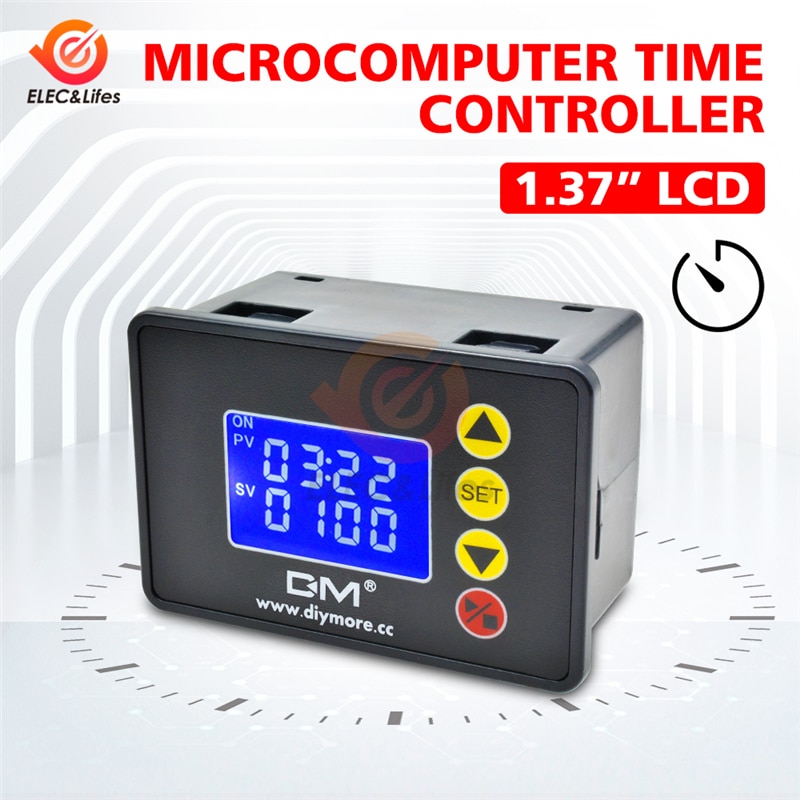

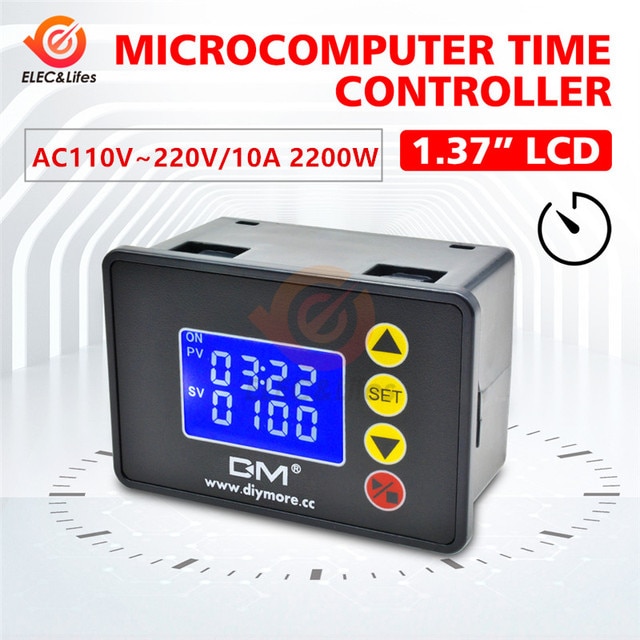

Type1 Descripition:
Microcomputer time controller
Timing range: 00:00~99:59 0000~9999 S
Power : AC110V~220V /10A/2200W (Max);DC12V/20A /240W (Max) DC24V/20A/480W (Max)
Product size: 67×45×34mm
Hole size: 63×42mm
Product weight:63g(110~220V)
Package content:
1Pcs * AC 110-220V/DC12V/DC24V Time Controller

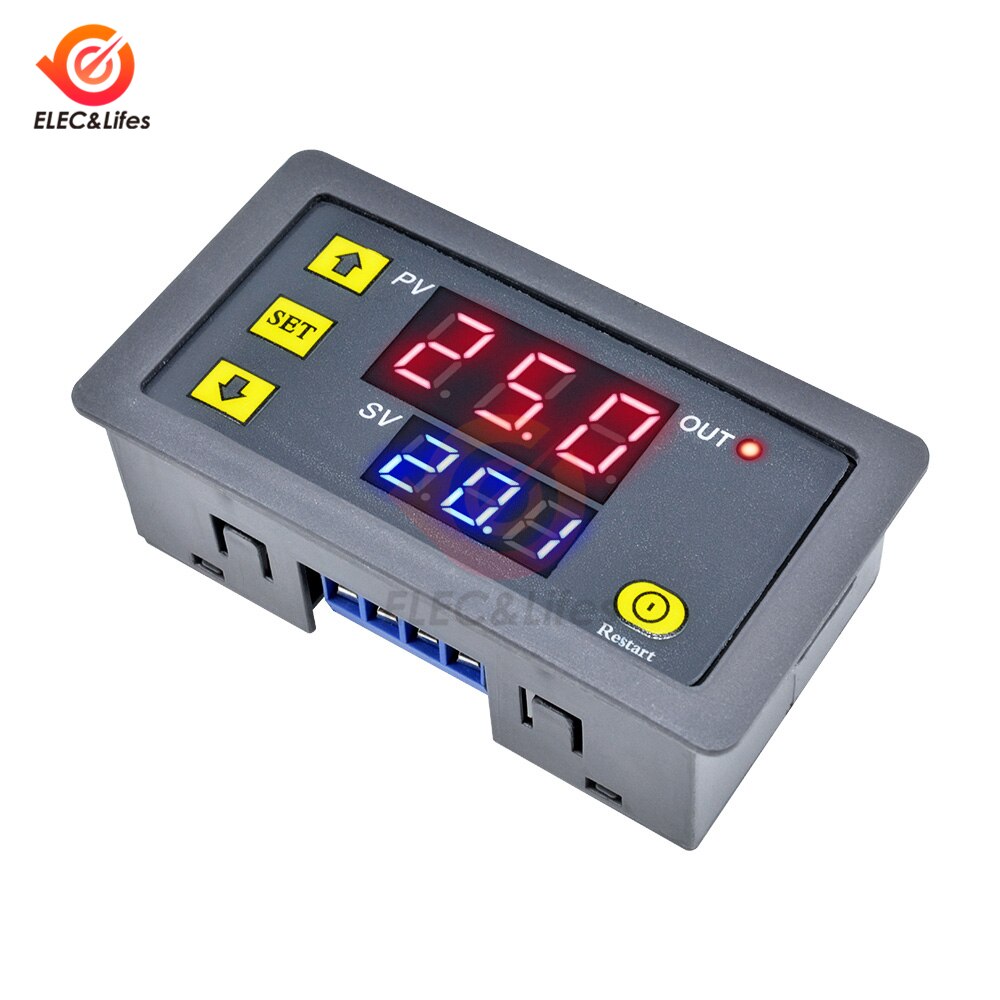

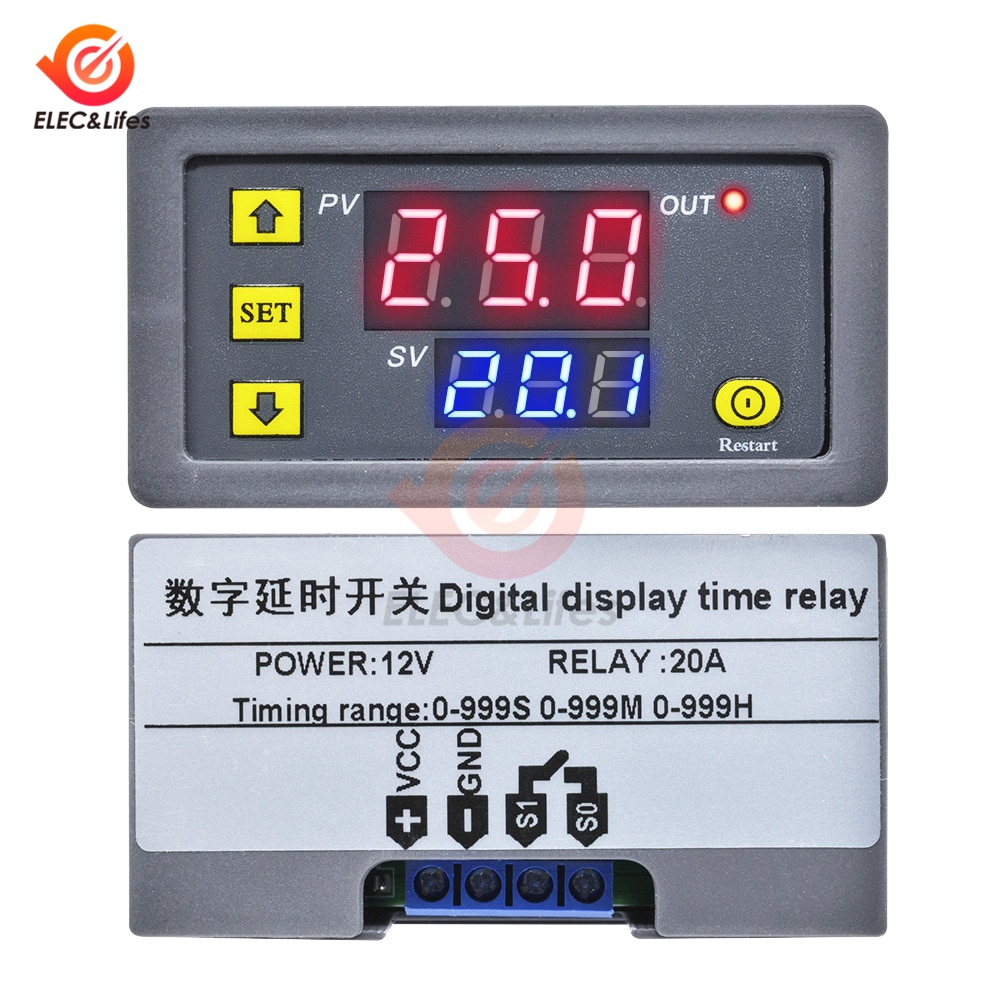

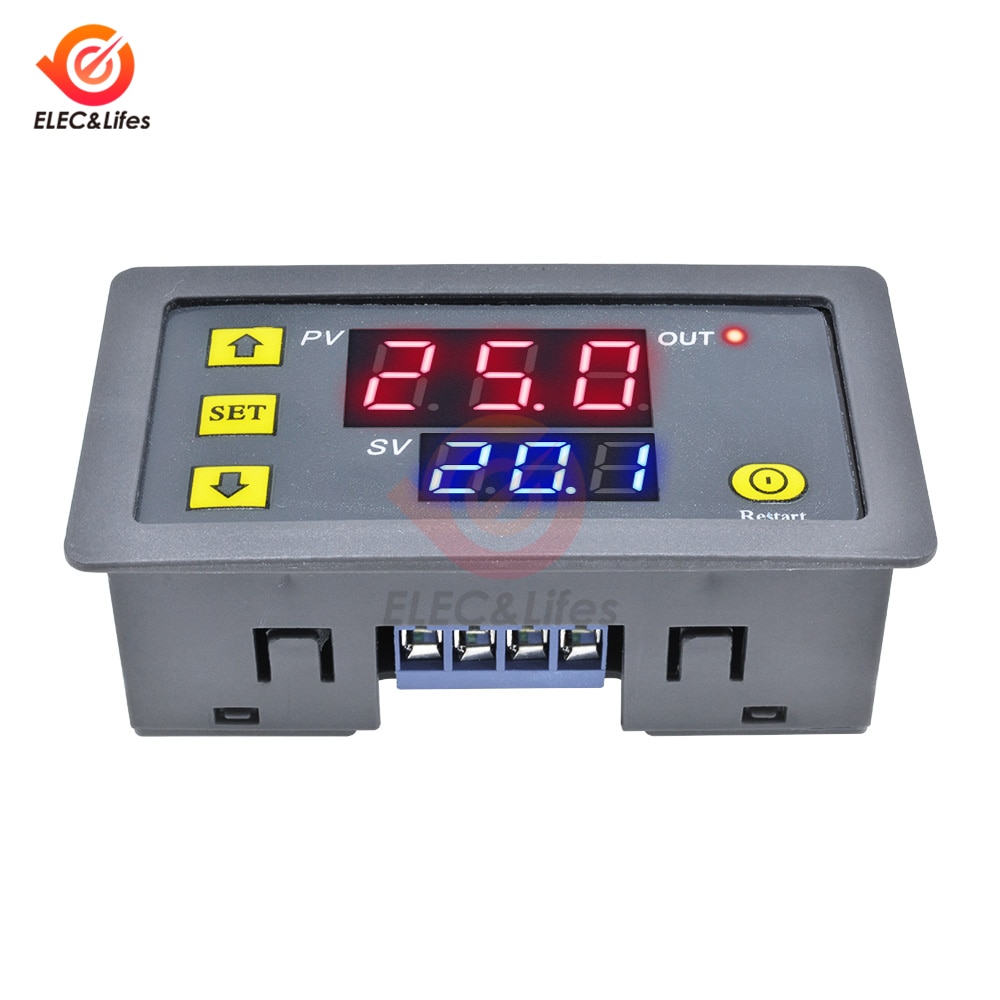

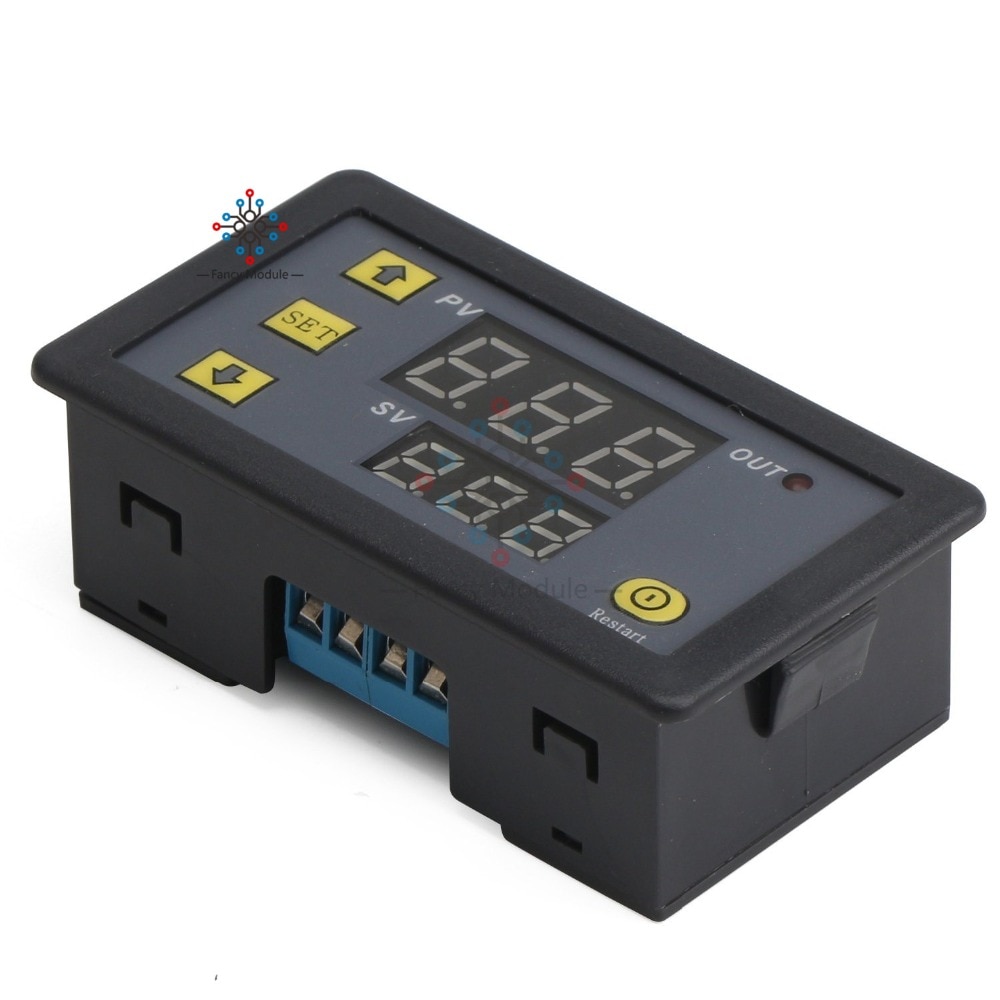

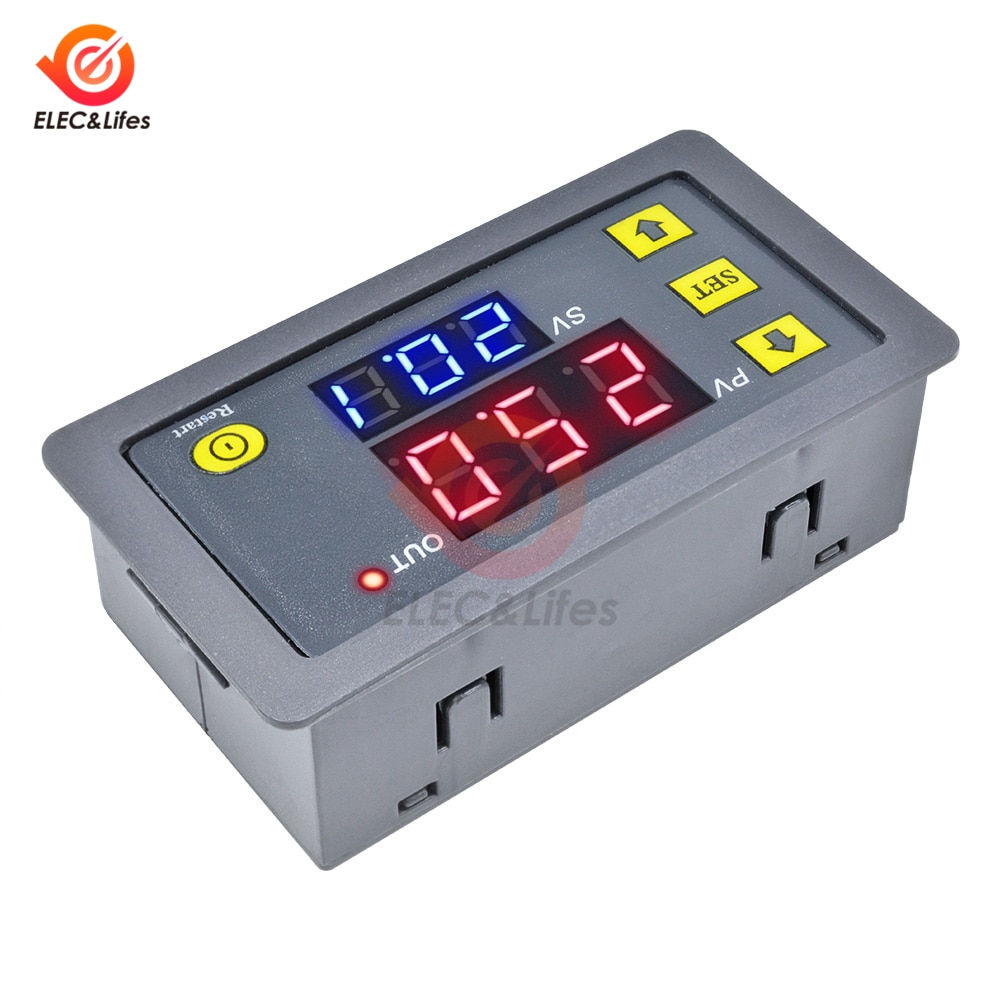

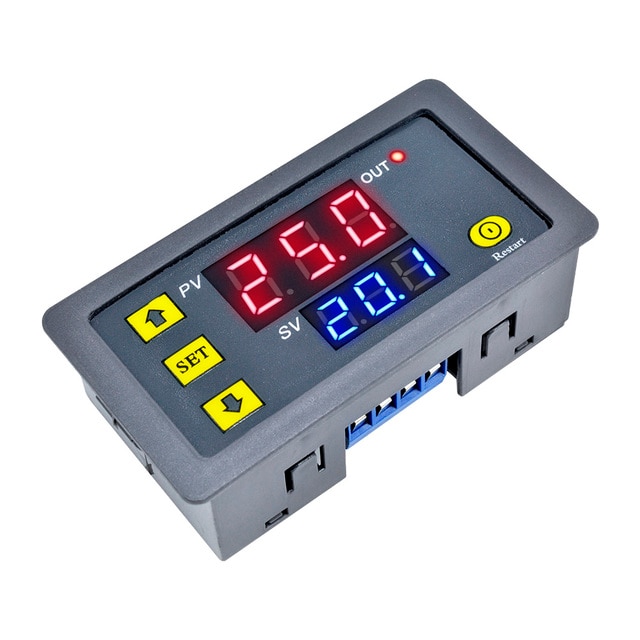

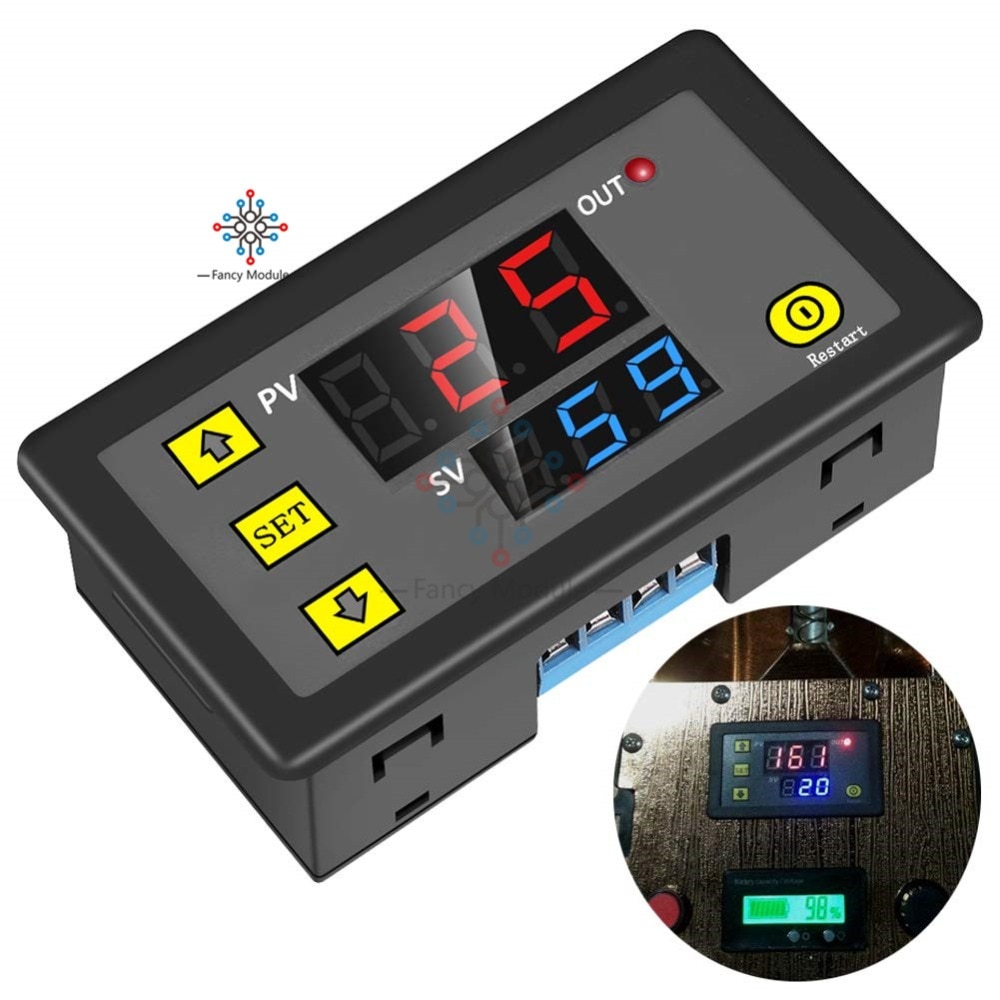

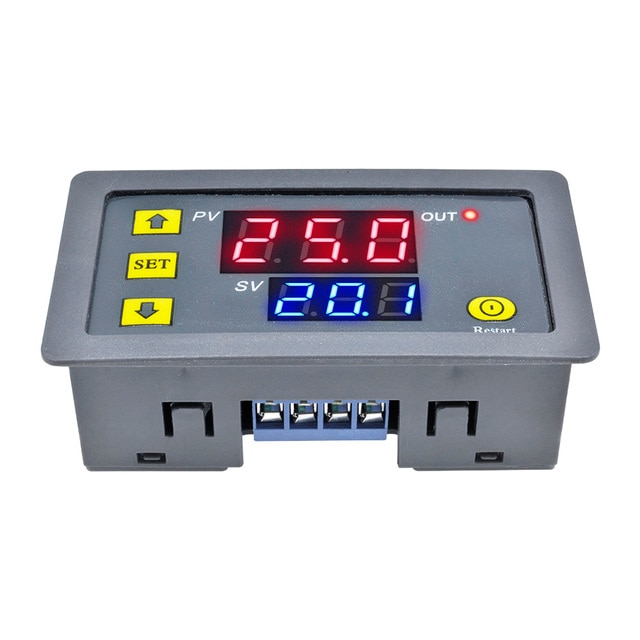

Type2 Descripition:
Specifications:

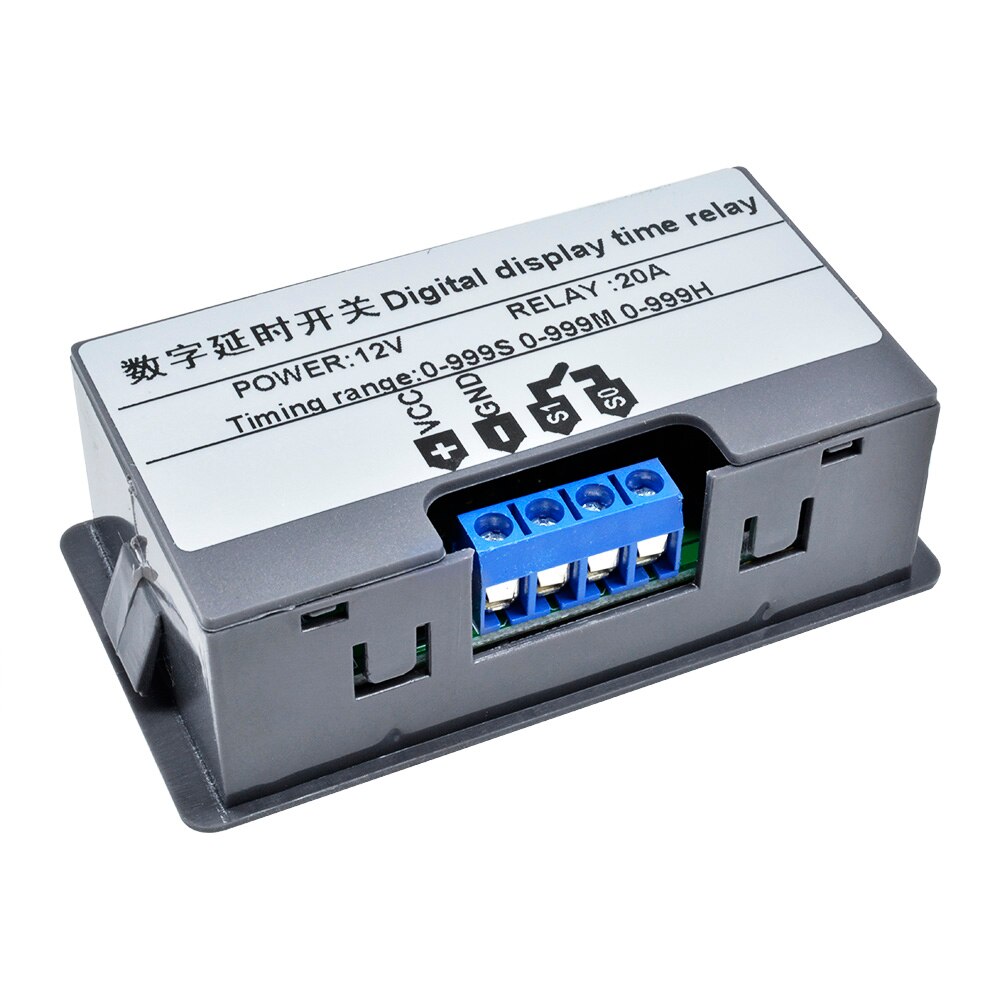

Model: Time Delay Relay
Timing range: 0-999s,0-999m,0-999h
Power supply voltage: AC 110V-220V
LED Display: Red + Blue Dual Display
Size: 79 x 26 x 43mm
Hole size: 72 x 40mm
Instruction Manual:
Before use, first remind the user to pay attention. After setting the data, you must wait for 6s. After 6s, the module will automatically save the memory setting data. ...

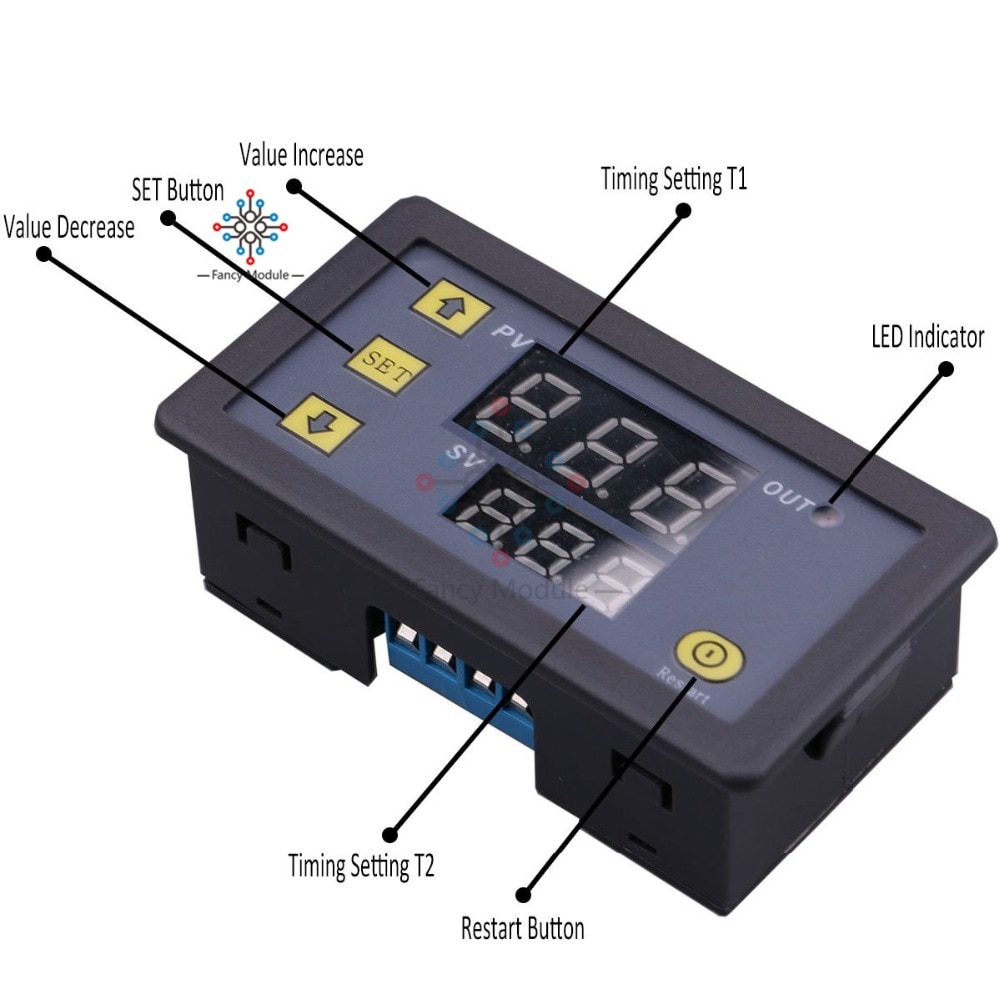

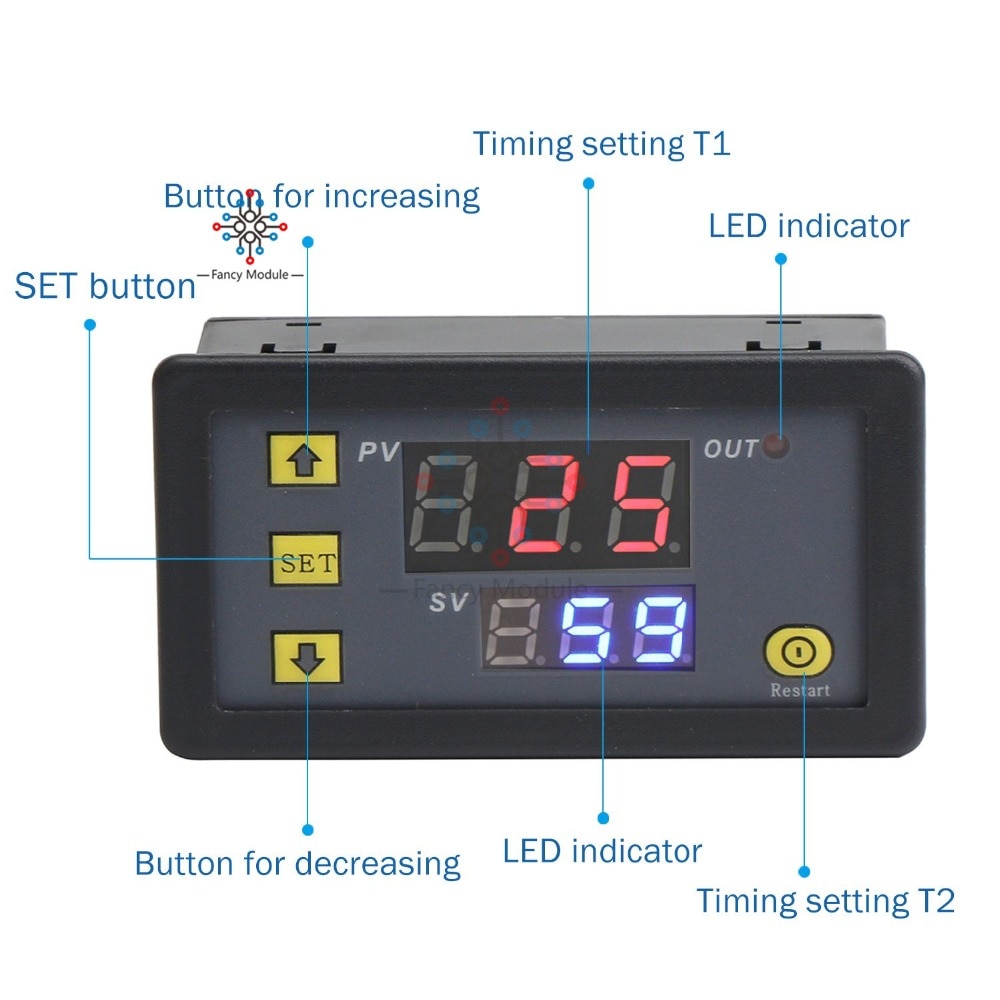

Short press the SET button once to enter the time setting mode. The red digital tube flashes, adjust the timing time T1 by pressing the button plus or the button minus. After T1 is set, press the SET button again, and the green digital tube flashes. Set the timing by pressing the button plus or minus. After the time T2 and T2 are set, short press the SET button again, the system will automatically save the memory setting time or wait for 6s, the module will automatically save the data after 6s.

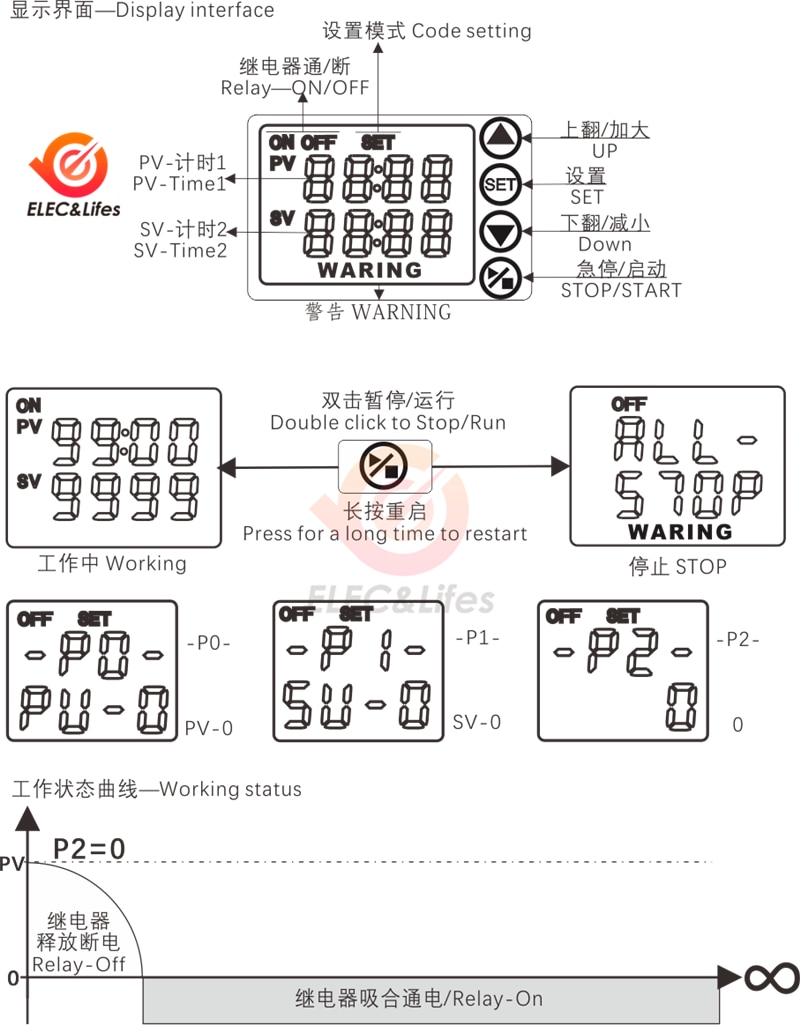

Long press SET to enter the parameter setting mode. There are two sets of parameters for users to choose P0 and P1. In the current mode, short press SET to switch between P0 and P1. Under the P0 parameter, you can set the timing mode that suits you by pressing the button plus or minus. Under the P1 parameter, the working mode can be set by adding or subtracting buttons.
P0--0: T1 timing time mode is seconds
P0--1: T1 timing time mode is minute
P0--2: T1 timing time mode is when
P1--0: The relay is closed after delaying T1 time (T1 timing)
P1--1: The relay is released after delaying T1 time (T1 timing)
P1--2: After a delay of T1, the relay is closed (T1 timing), and after a delay of T2, the relay is released (T2 timing), and it ends.
P1--3: After a delay of T1, the relay is released (T1 timing), and after a delay of T2, the relay is closed (T2 timing), and it ends.
P1--4: The relay is closed after a delay of T1 time (T1 timing), and after a delay of T2, the relay is released (T2 timing), and the cycle repeats.
P1--5: The relay is released after a delay of T1 time (T1 timing), and then after a delay of T2, the relay is closed (T2 timing), and the cycle repeats.
Example: For example, a customer needs to turn on for 10 seconds and turn off for 20 seconds, and the cycle continues. The setting method is as follows:
T1 setting time 10, T2 setting time 20
P0-0 (T1 timing range is seconds)
P1-5 (The timer working mode is to work first and then stop and keep looping)

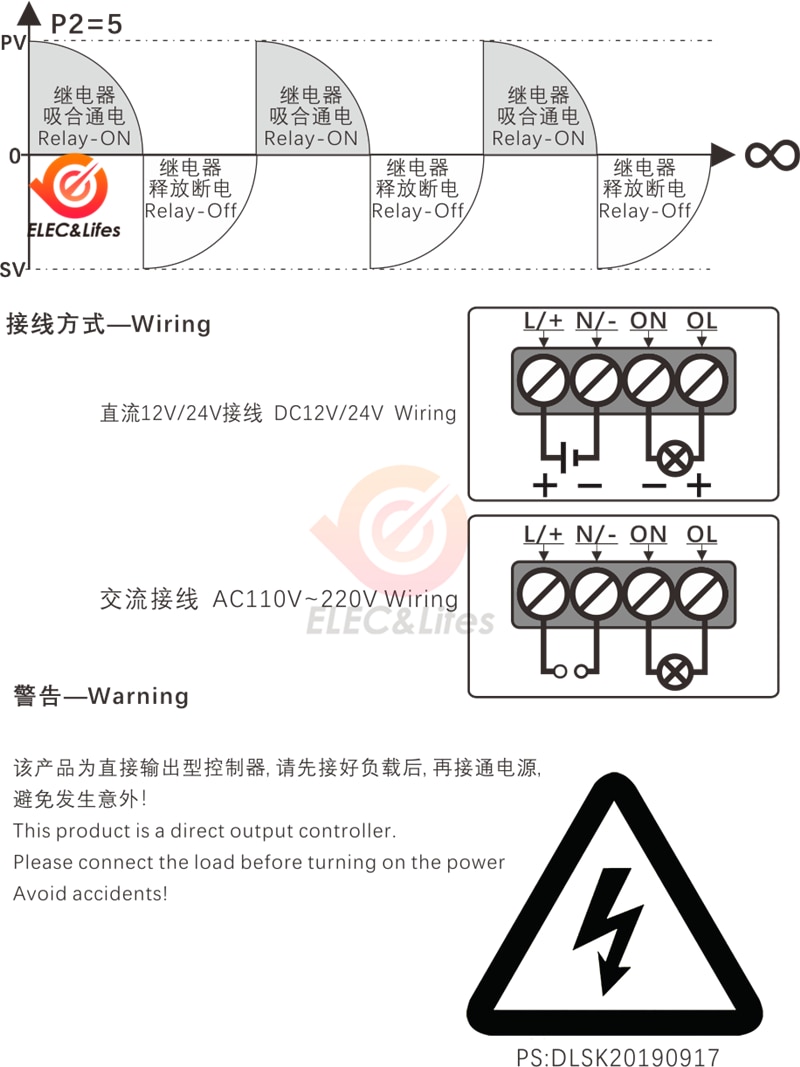

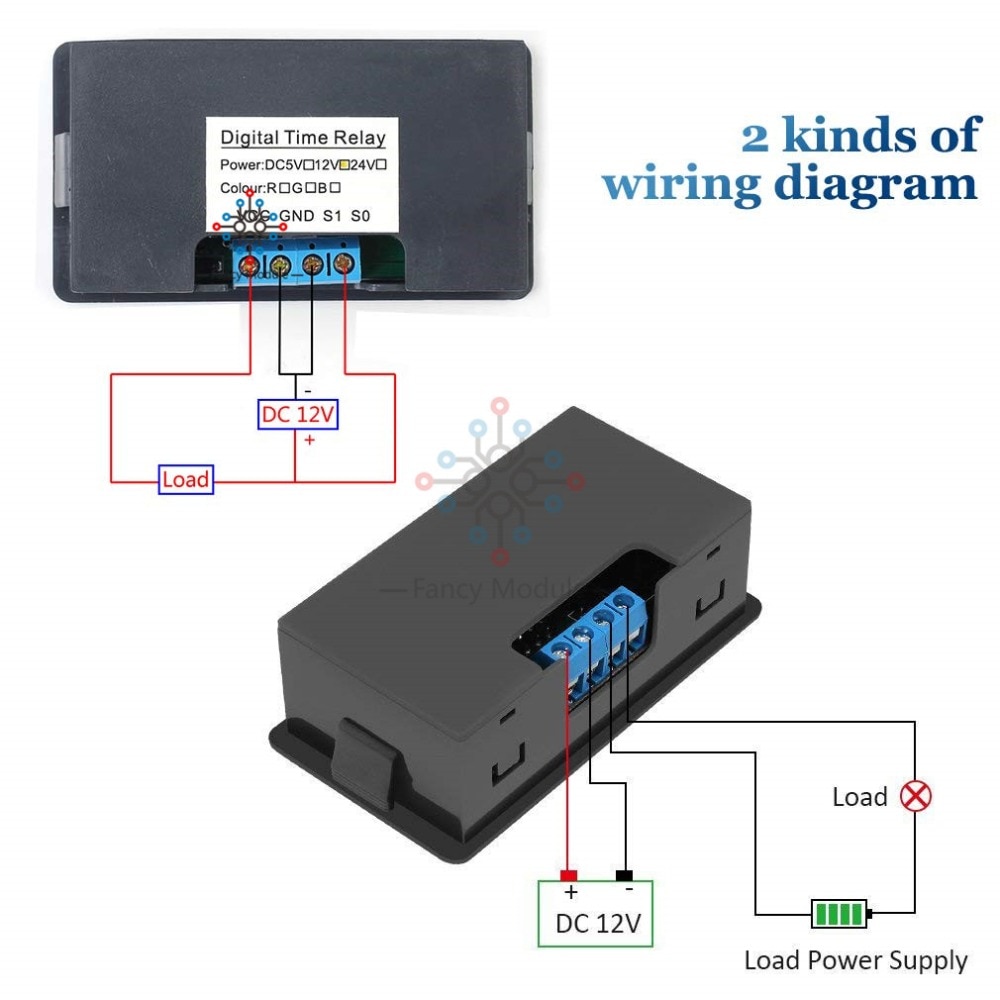

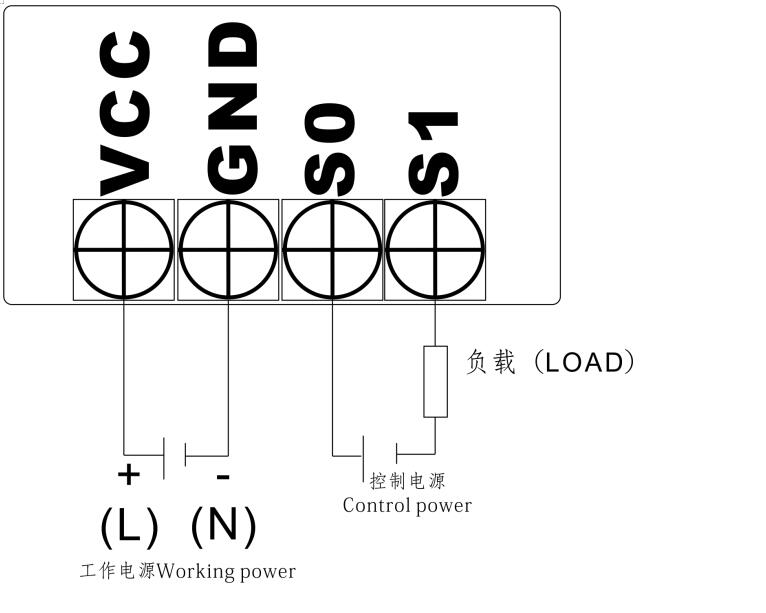

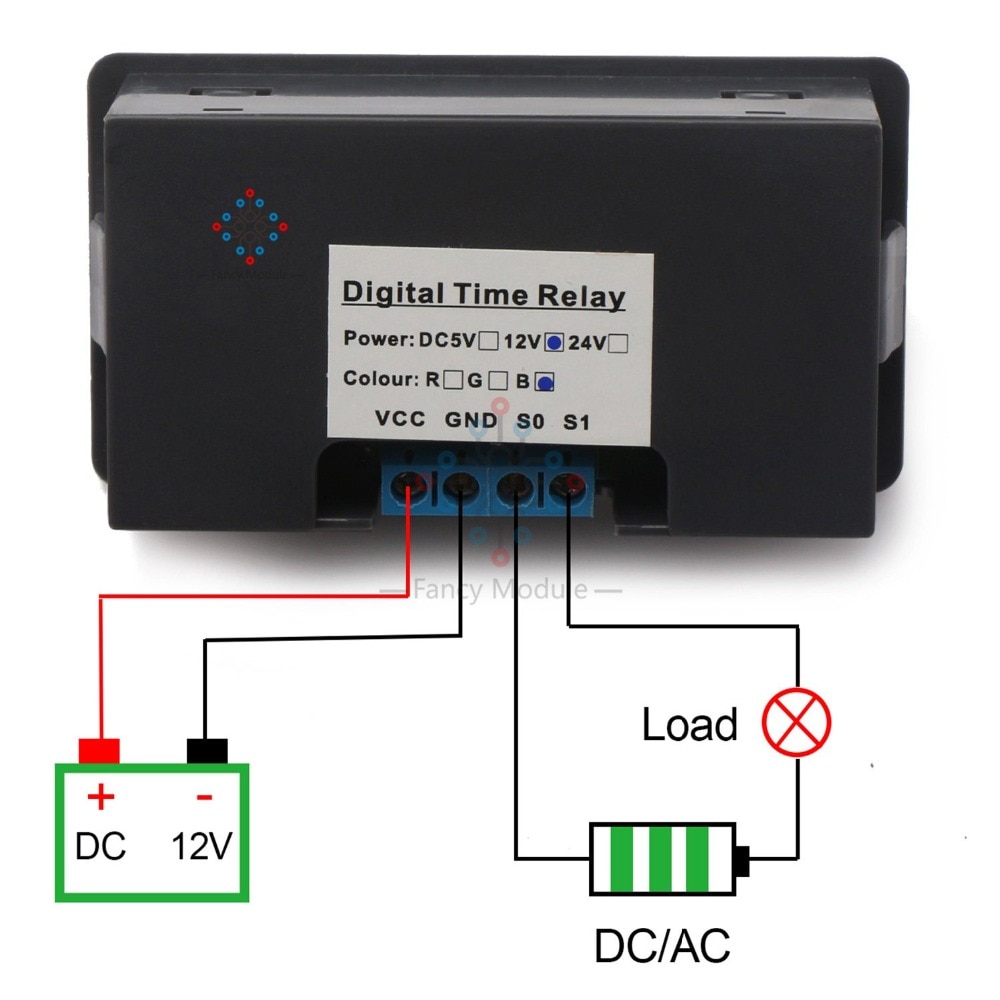

Wiring Method:
- Power Source: DC
- Voltage: 220V
- is_customized: Yes
- Usage: General Purpose
- Model Number: Digital Timer Delay Relay
- Contact Load: High Power
- Protect Feature: Sealed
- Theory: Time Relay
- Brand Name: Aideepen
- Origin: Mainland China
- Certification: CE,RoHS
- Work: DC 12V/24V or AC 110V~220V
- Timing Range: 0-999s,0-999min,0-999h
- Function: Timer,Delay,Cycle,
- Max Current: 10A

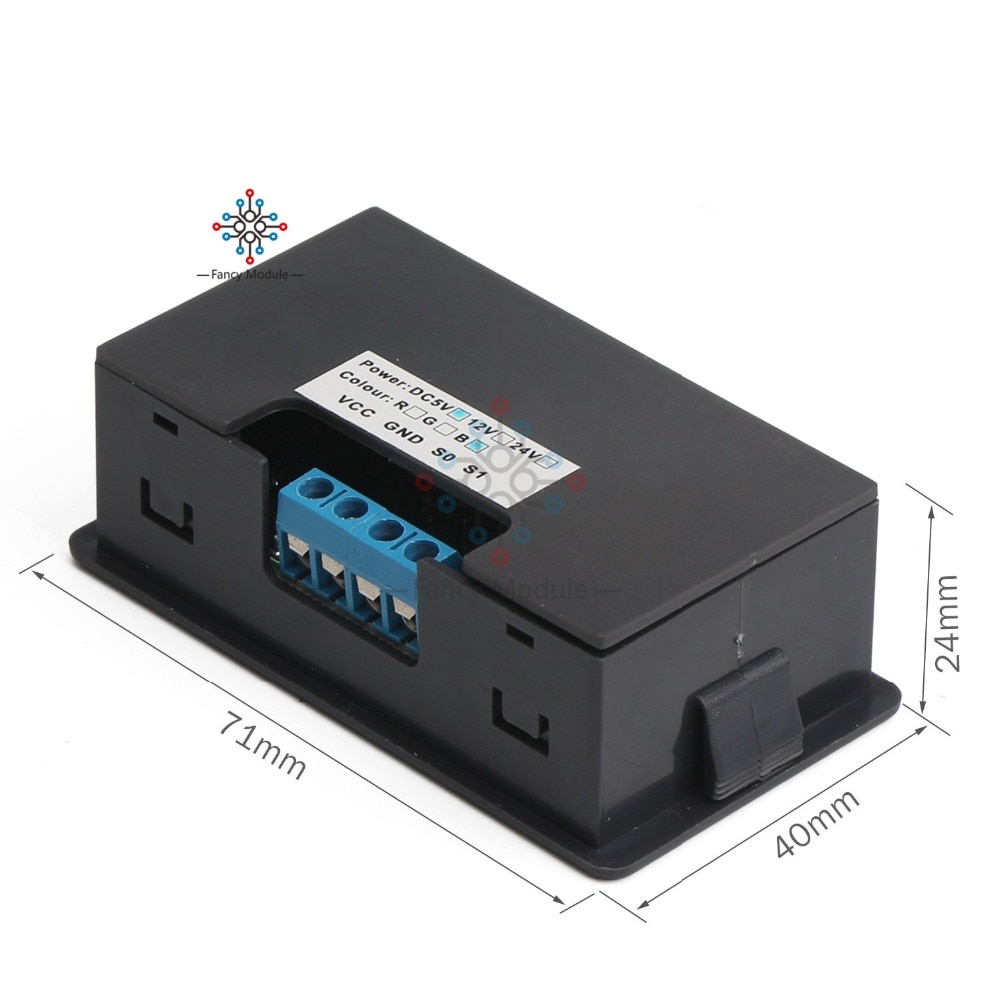

- Size: 71*40*24mm
