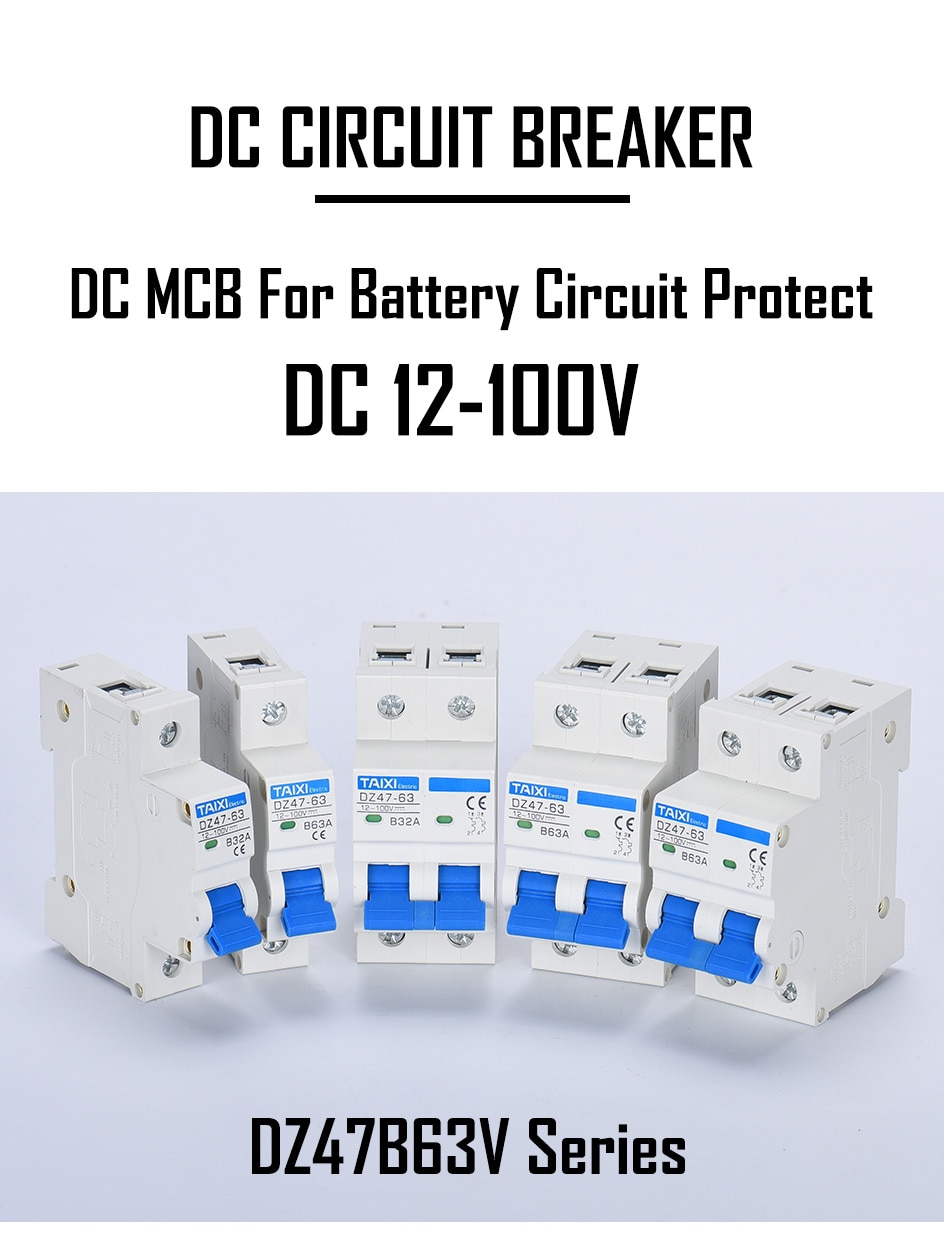

DC 12V 24V 48V 54V 72V 100V MCB 1P 2Poles Circuit Breaker Electric Car 6A 20A 40A 63A Battery Protector DIN Rail Switch
5.0 (21 votes) | 147 orders
Price:
US $13.42 - 23.36
/ piece
Discount Price:
US $
12.44 -
20.40
/ piece
-7%
Technical Parameters
● Rated voltage: DC 12V, 24V, 36V, 48V, 72V, 96V, 100V etc
● Rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
● Breaking capacity: 6KA
● Trip characteristics: B (3-5)In
● Polar number: 1P (1 Pole), 2P (1 Poles), 1P+1P (Dual power switch with lock function), 2P+2P (Dual power switch with lock function)
● Current limit level: 3
● Quick closing
● Electrical life: 10,000 times
● Mechanical life: 20,000 times
● Operating ambient temperature:-30 °C to +70 °C
● Conform to standard: GB10963/ IEC60898
● Warraty: 18th Month
● Rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
● Breaking capacity: 6KA
● Trip characteristics: B (3-5)In
● Polar number: 1P (1 Pole), 2P (1 Poles), 1P+1P (Dual power switch with lock function), 2P+2P (Dual power switch with lock function)
● Current limit level: 3
● Quick closing
● Electrical life: 10,000 times
● Mechanical life: 20,000 times
● Operating ambient temperature:-30 °C to +70 °C
● Conform to standard: GB10963/ IEC60898
● Warraty: 18th Month

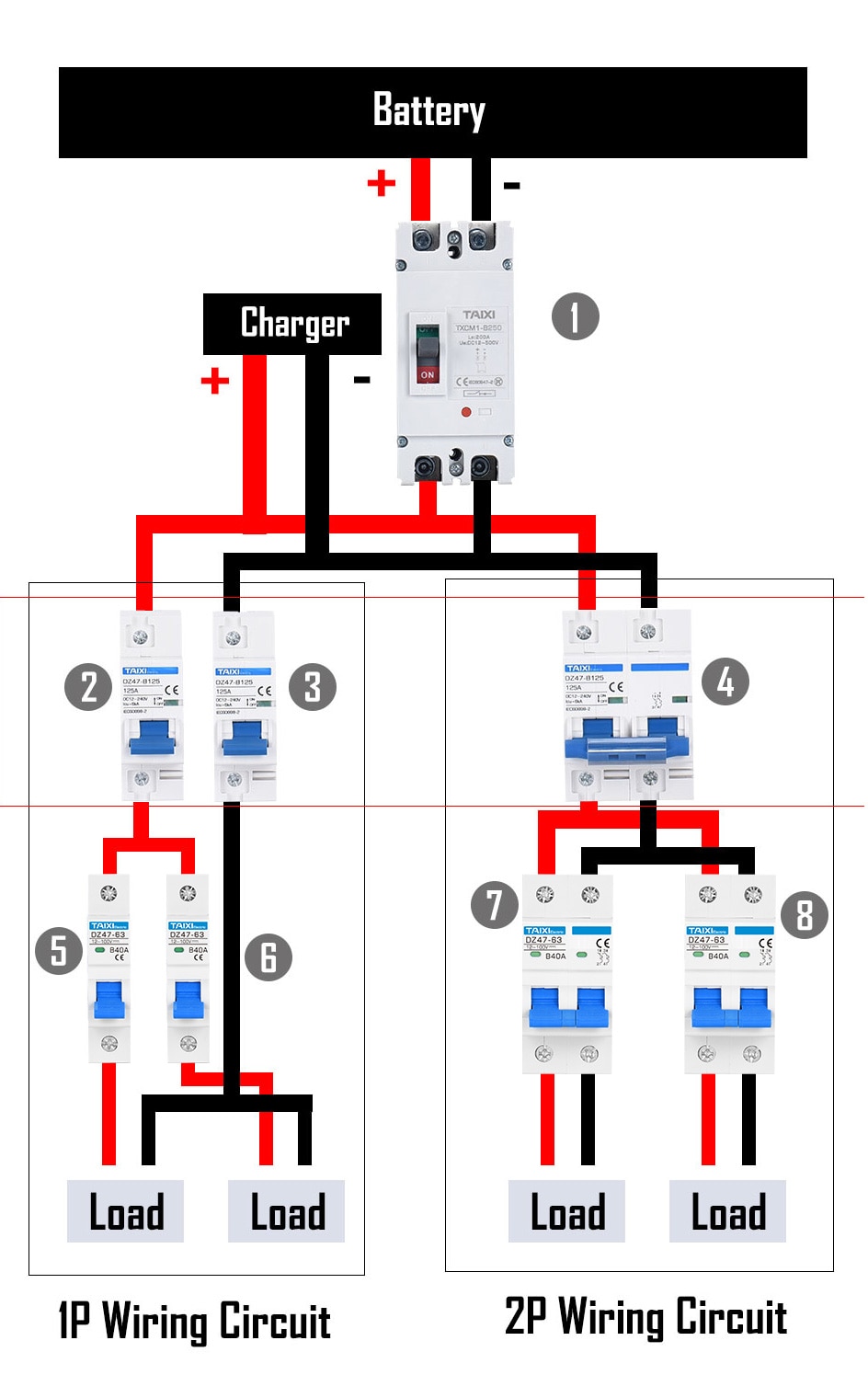

Circuit Wiring Recommend
1. Please use the protector in combination according to the actual load and circuit, and select an appropriate current Amp.
2. When charging the battery, please disconnect the protectors marked No. 2, 3, 4 (or the main switch at the load end of the line) so that the current does not flow to the load end. Can also add a seperate protector on the charger and battery terminals specifically for battery charging protection.
2. When charging the battery, please disconnect the protectors marked No. 2, 3, 4 (or the main switch at the load end of the line) so that the current does not flow to the load end. Can also add a seperate protector on the charger and battery terminals specifically for battery charging protection.
1P, 2P wiring circuit wiring recommendation, the number of circuit breakers can be increased and decreased as needed

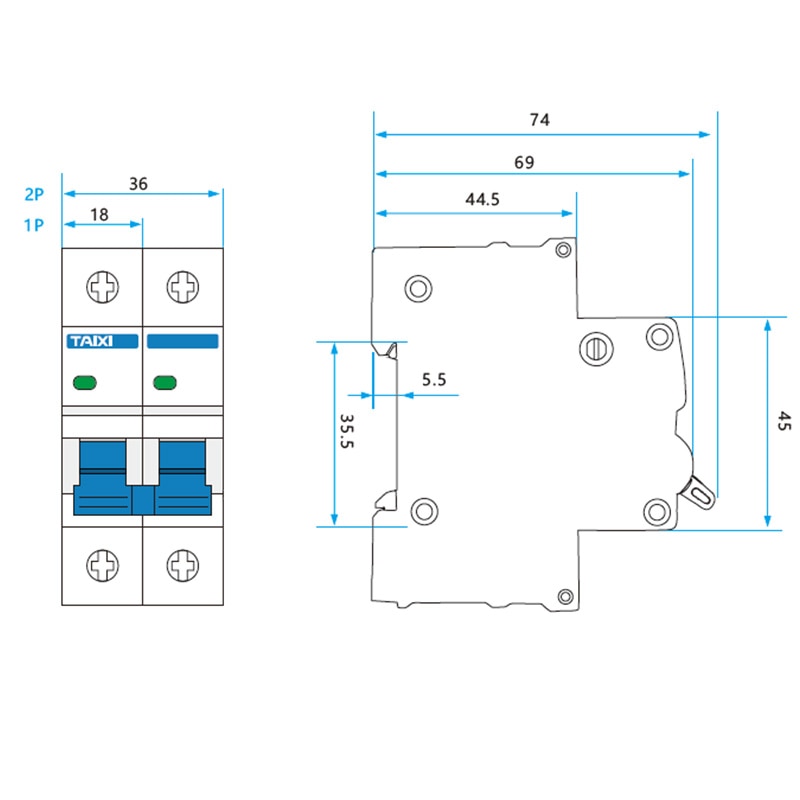

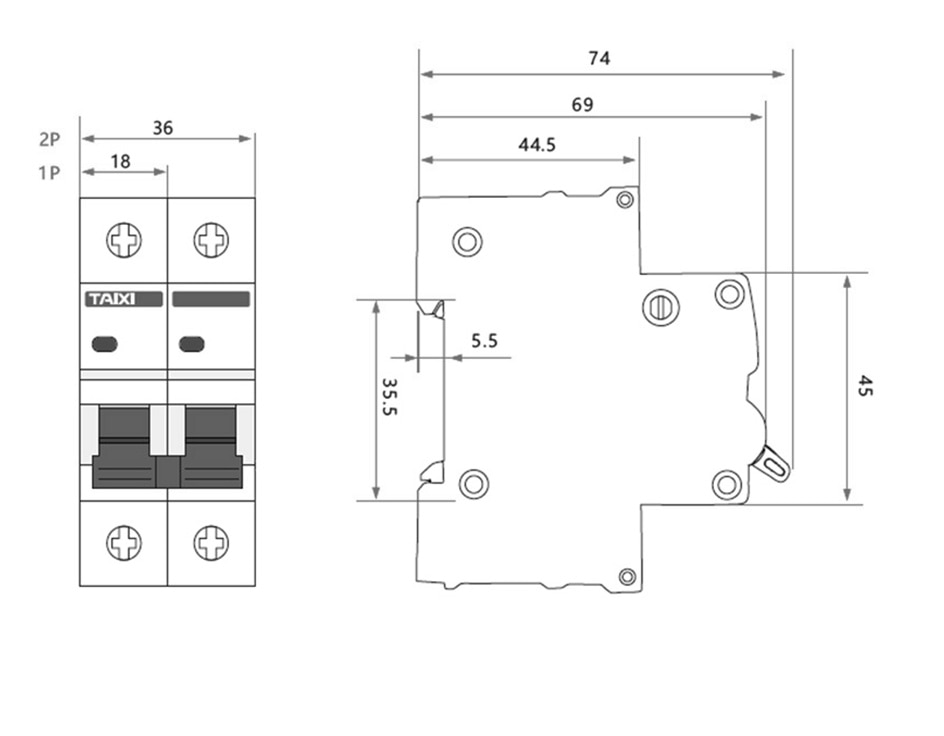

Product Size (Unit mm)

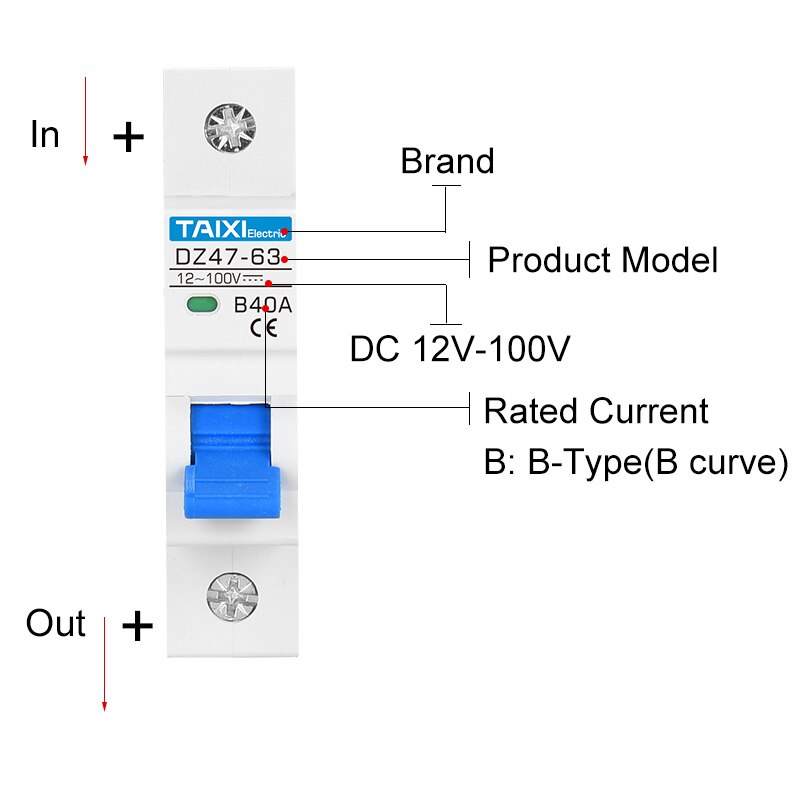

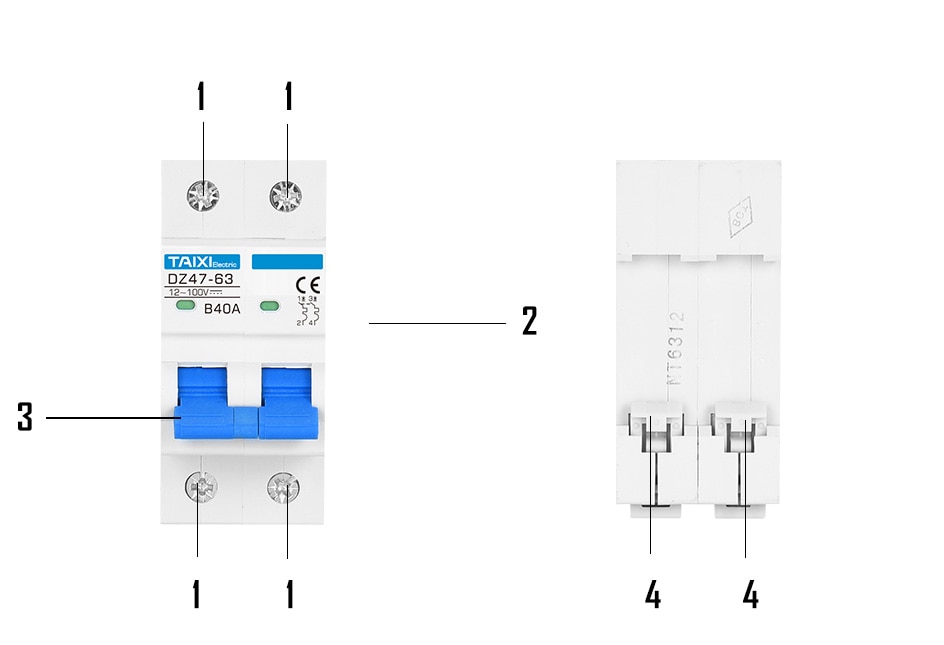

Structure Introduction

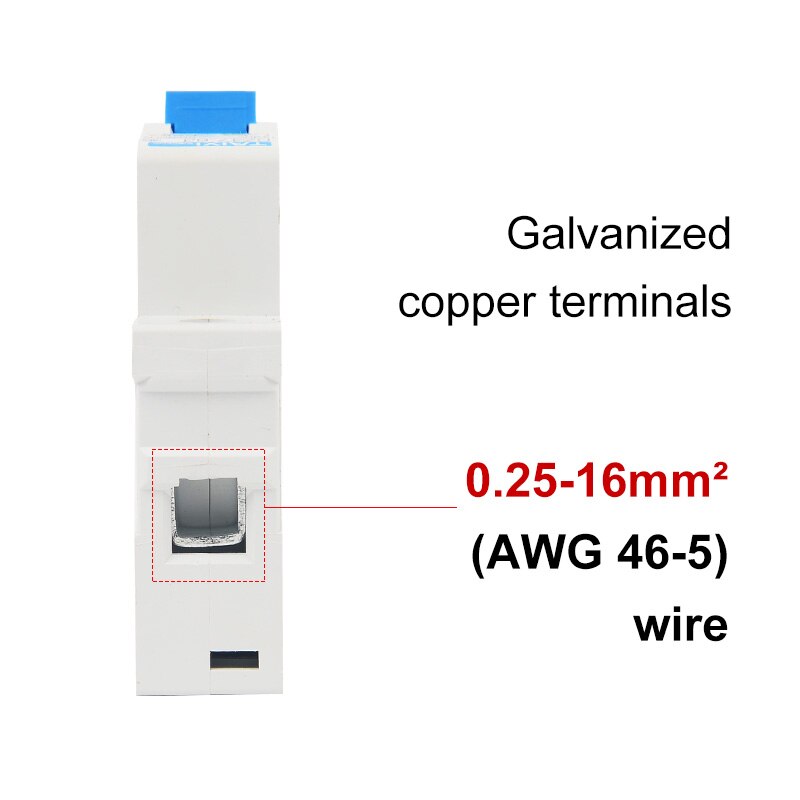

1: Terminals (Maximum 16mm2 (4 AWG) cable can be connected).
2: Status window, red means power is on, green means power is off (circuit breaker triped).
3: Manual opening and closing handle: turn up to turn on the power supply, turn down to turn off the power supply.
4: Rail mounting buckle, the circuit breaker can be directly installed on the DIN rail without screws
2: Status window, red means power is on, green means power is off (circuit breaker triped).
3: Manual opening and closing handle: turn up to turn on the power supply, turn down to turn off the power supply.
4: Rail mounting buckle, the circuit breaker can be directly installed on the DIN rail without screws

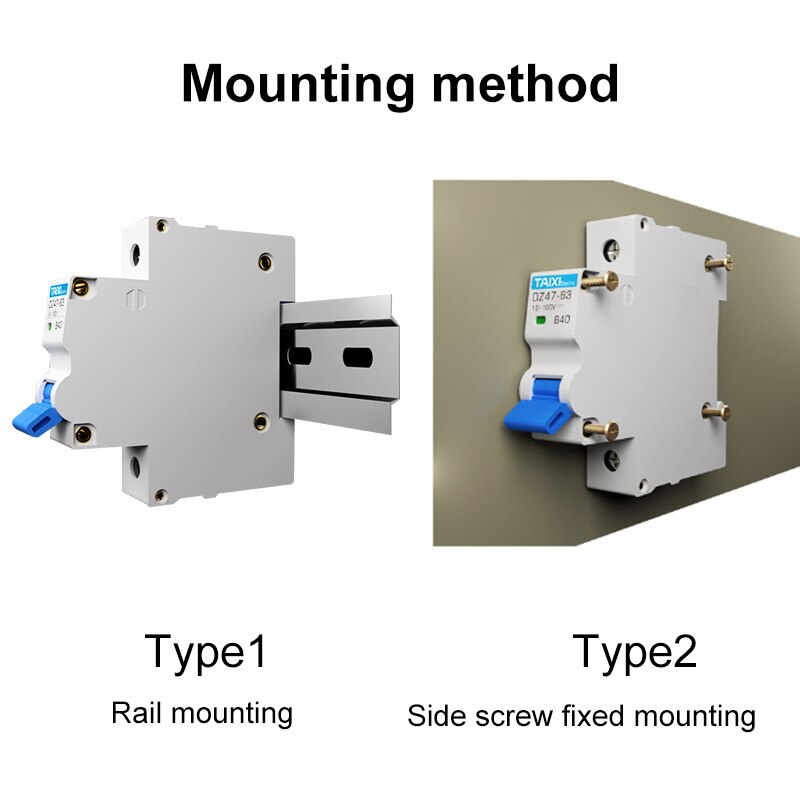

Mounting and Fixed
1, Method one: DZ47B63V can be fixed on DIN rail directly, can be placed in a distribution box
Please try to keep the vertical installation, and use the top-in and bottom-out wiring method, in order to obtain the best protection performance and the longest service life
2, Method two: screws fixed, use 3mm or belown screws to fix circuit to wall or distribution
panel
Please try to keep the vertical installation, and use the top-in and bottom-out wiring method, in order to obtain the best protection performance and the longest service life
2, Method two: screws fixed, use 3mm or belown screws to fix circuit to wall or distribution
panel
Notion
1. Even if there is a circuit breaker protection, there is still a certain danger, if the battery temperature is too high, please disconnect the charging power supply in time.
2. Please keep the terminal clean, please do not open and close the handle too quickly in a short time to avoid shortening the service life of the product.
2. Please keep the terminal clean, please do not open and close the handle too quickly in a short time to avoid shortening the service life of the product.
About Shipping
1, No more than 2kg weight:
Shipping by Hogaki Standard (20-35days)
Shipping by China Post (20-35days)
2, More than 2kg weight:
Shipping by Hogaki Standard (20-35days), China Post (20-35days), FEDEX (7-15days), UPS (7-15days), TNT (7-15days), other express direct lines (10-20days). We will choose the appropriate logistics according to the actual situation
3, Above delivery date is applicable for most cases. However sometimes parcels may be delayed fo holiday, festival, bad weather, custom, Etc. Besides Express shipping way may have tax issue. In those case, your comprehension and cooperation is highly appreciated

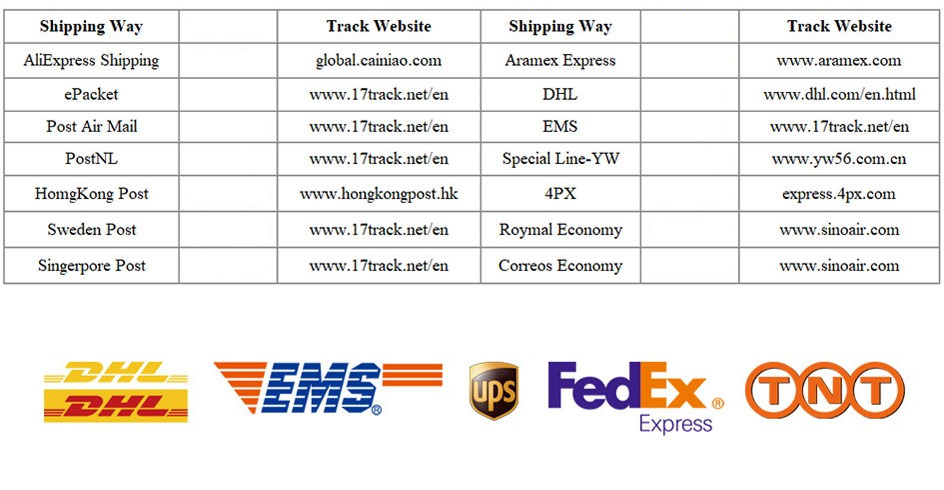

4, Shipping ways and track website:
Shipping by Hogaki Standard (20-35days)
Shipping by China Post (20-35days)
2, More than 2kg weight:
Shipping by Hogaki Standard (20-35days), China Post (20-35days), FEDEX (7-15days), UPS (7-15days), TNT (7-15days), other express direct lines (10-20days). We will choose the appropriate logistics according to the actual situation
3, Above delivery date is applicable for most cases. However sometimes parcels may be delayed fo holiday, festival, bad weather, custom, Etc. Besides Express shipping way may have tax issue. In those case, your comprehension and cooperation is highly appreciated
4, Shipping ways and track website:
Receiving and After-sales Service
1, Please check the tracking information on tracking website
2, Please contact us by message, e-mail, or trade manager
3, Check the Package and item carefully
4, All of our products are backed by a 12-18 month warranty In the event of non-human damage, please contact us and we will replace the product to you
2, Please contact us by message, e-mail, or trade manager
3, Check the Package and item carefully
4, All of our products are backed by a 12-18 month warranty In the event of non-human damage, please contact us and we will replace the product to you
We Need Your Support
1, If you visit our store for the first time, please click "Add Follow" button to collect our store, so that you can get the latest discount and new product notifications in time.
2, If your are satisfied with products and our service, please leave 5 stars feedback.
3, If your have any questions or problem, feel free to contact us first before you leave negative feedback. We will try our best to solve any problem and provide you with the best customer service
2, If your are satisfied with products and our service, please leave 5 stars feedback.
3, If your have any questions or problem, feel free to contact us first before you leave negative feedback. We will try our best to solve any problem and provide you with the best customer service
- is_customized: Yes
- Model Number: DZ47-B63
- Type: Mini
- Brand Name: CHTAIXI
- Origin: Mainland China
- Certification: NONE
- Voltage: DC 12-120V
