ID: 81174

DALI Dimmable 5W 10W 20W Flicker Free Boundless Anti-Glare Black Screen Magnetic Led Straight Fixture with Pre-embedded wing

0.0 ( votes)
Price: US $62.98 - 147.98 / piece
Discount Price:
US $ 56.68 - 133.18 / piece
-10%
Quantity



Feature


Easy to install, replace and maintain with magnetic parts on the top of the linear led lamp.

High-definition optics made of PC, integrated in ABS innovative black antiglare screen of luminance control UGR<10 only.

The special configuration of the optical system delivers a precise circular distribution without punctiform effect.

No main lighting solution, boundless led lighting suitable for comfortable modern life.

Description



Input:                           230V / 110V

LED driver:                  Isolated CE/TUV/SAA approval

Frequency range:        50Hz-60Hz

Power factor:                0.9

LEDs:                          Osram SMD 3030

Luminous efficency:     85lm/w


Beam angle                 15/30/45 degree( optional)

CRI 90Ra (3000K/4000K)

Color temperature:     2700-3200K; 3900-4200K; 5000-6000K

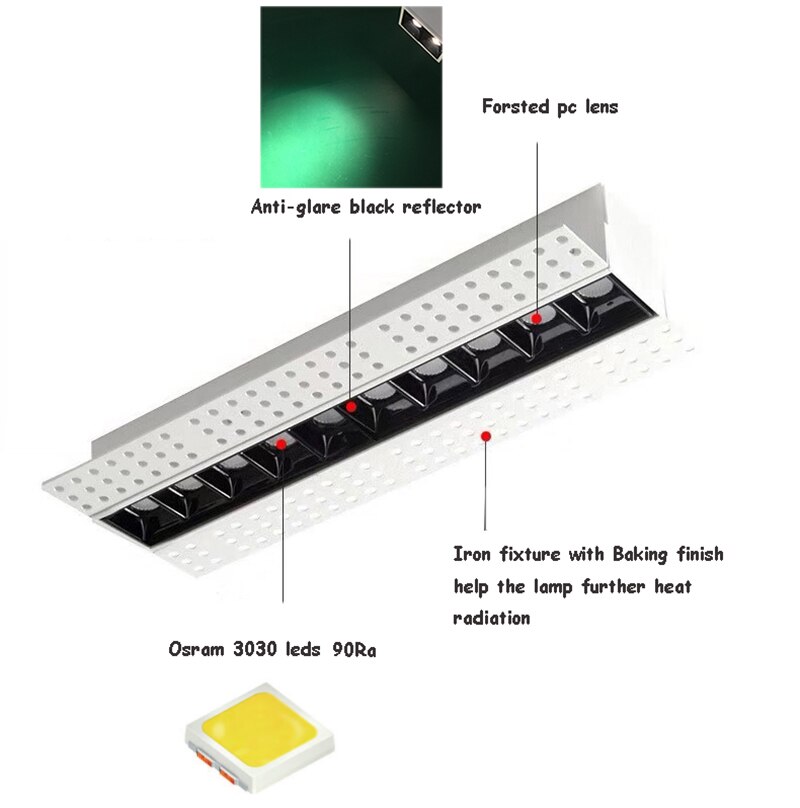

Light desgin:               LED + reflector + anit-glare black screen


Dimming mode:           DALI

Working temp.:           -40 ~ +45 degree Celsius

Finish:                          Fine coating white

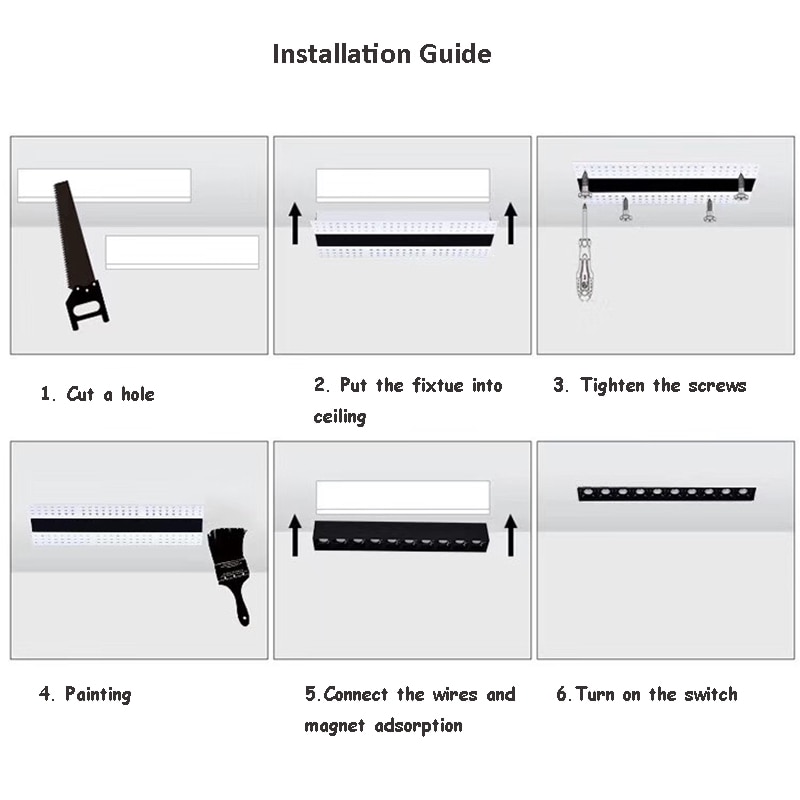

Installation method:     Embedded with magnet type



About DALI Dimmable


The driver applies DALI dimming module independently developed by our company, conforms to DALI communication protocol of international standard, and it is compatible with DALI system of Brands such as Rigo, Philips, Osram and GENERAL Electric. The dimming range is 3-100%, 0 off, the dimming curve is optional for index or linear mode, brightness changes smoothly during dimming, and it has the function of lamp drop detection.
















  • Model Number: OW-HYF05D 10D 20D
  • Features: Trimless and magnetic base
  • Ballast: electronic
  • Reflector: MIRROR
  • Install Style: Embeded
  • Light Source: LED Bulbs
  • Is Dimmable: No
  • Switch Type: Knob switch
  • Warranty: 3
  • Base Type: Wedge
  • Certification: ce,EMC,FCC,LVD,ROHS,SAA
  • Voltage: 110V,120V,130V,220V,230V,240V
  • Power Source: AC
  • Is Bulbs Included: Yes
  • Brand Name: ourving
  • Origin: Mainland China
  • Item Type: Grille Lamps
