Dahua Digital VTH VTH2421FB-P VTH2421FW-P IPC surveillance Alarm integration High performance & Cost-effective Support POE
0.0 ( votes) | 6 orders
Price:
US $327.05
Discount Price:
US $
268.19
-18%
- Color
-
-

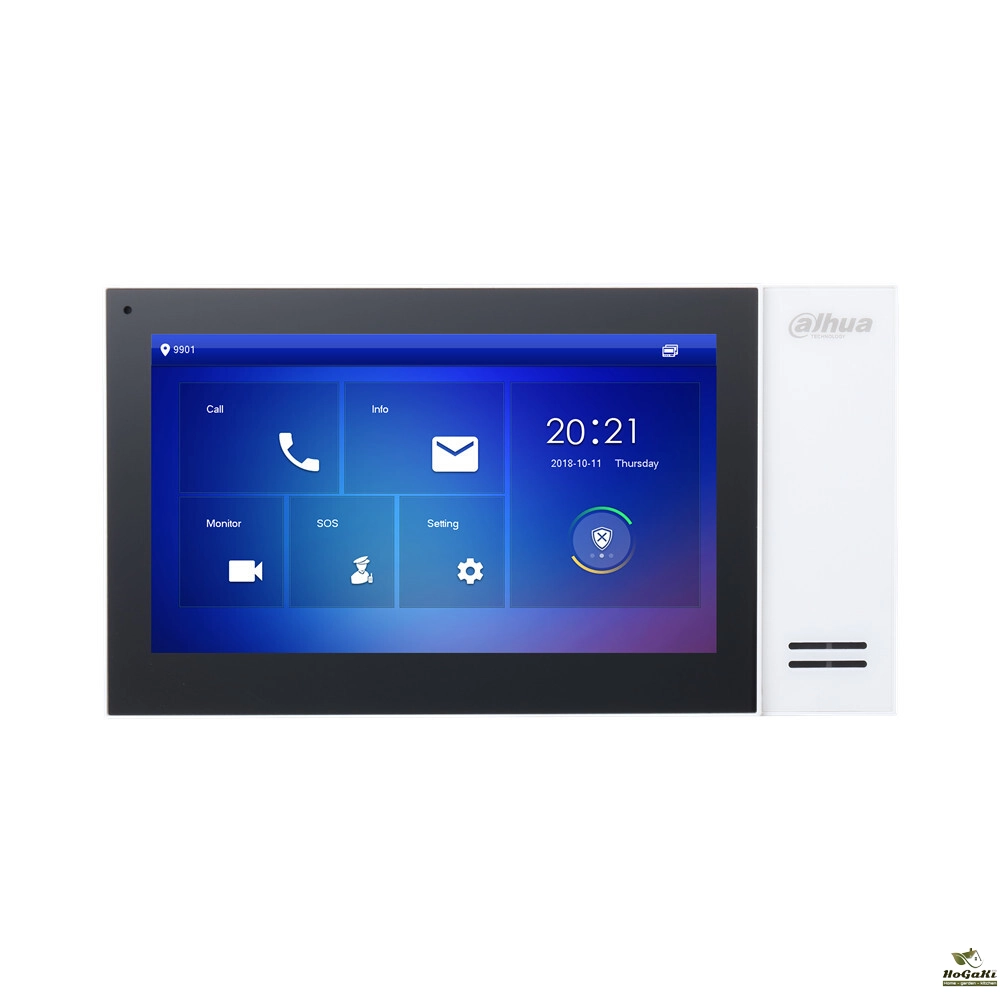

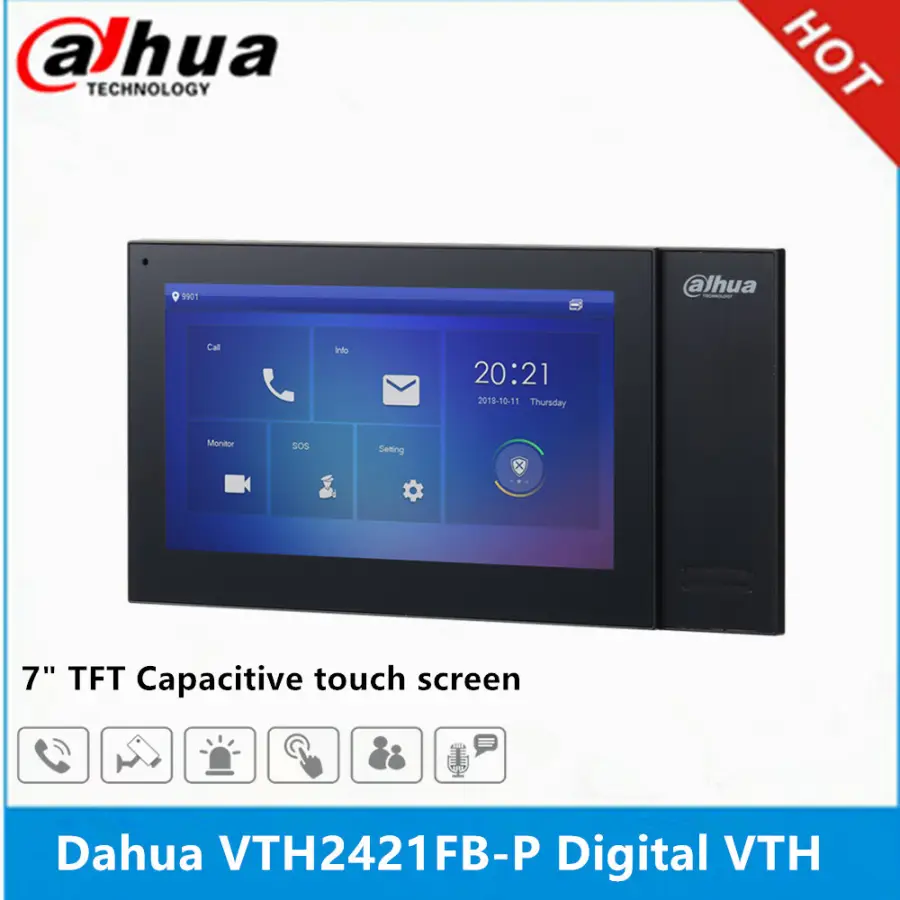

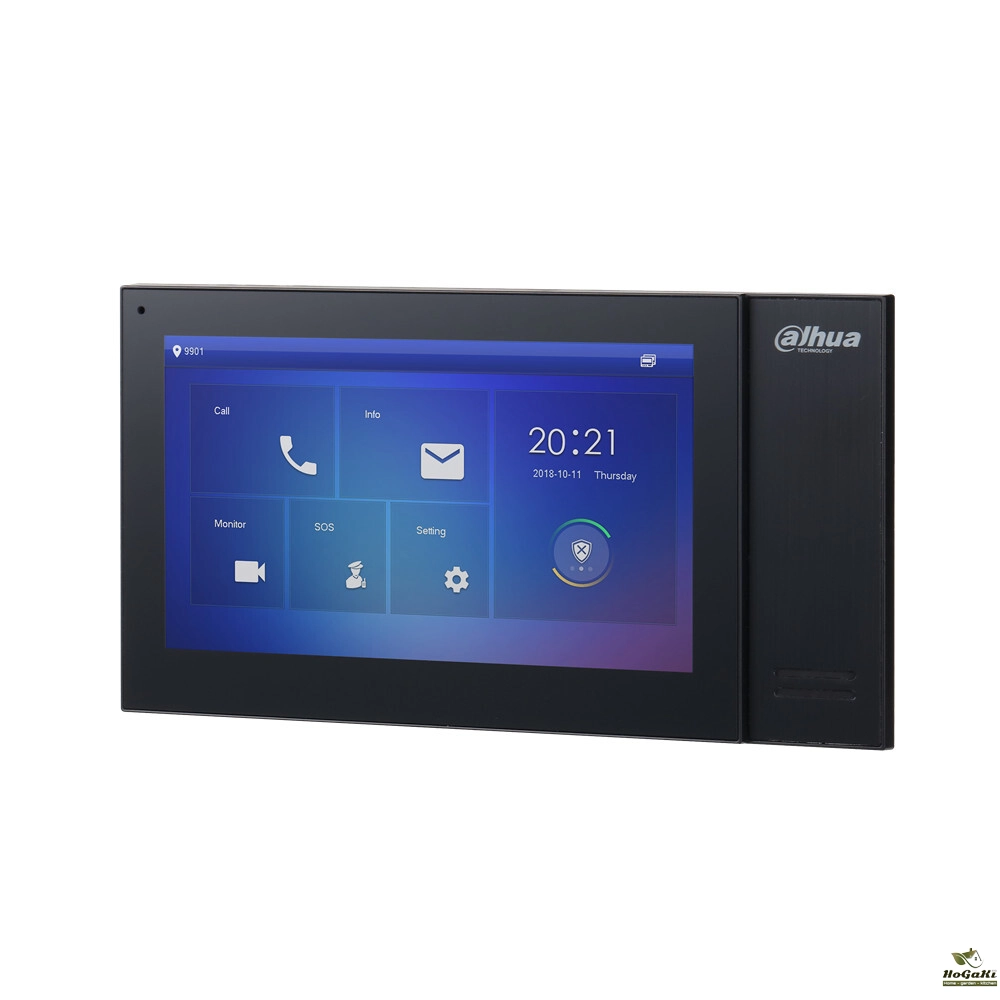

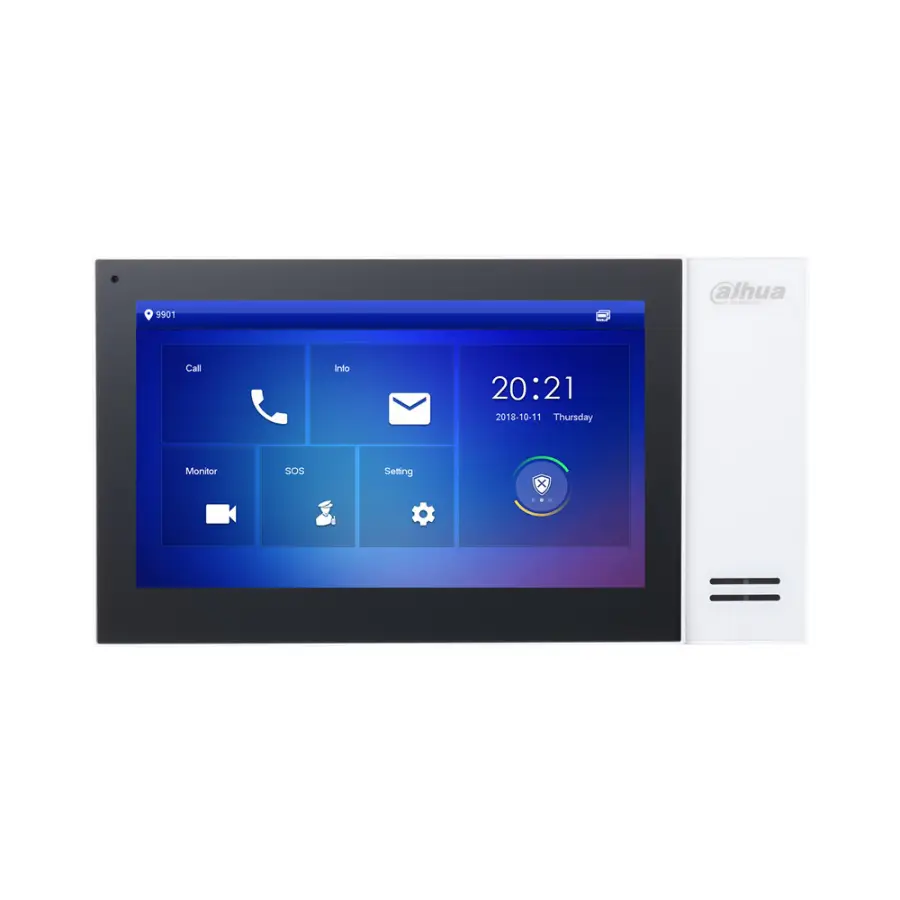

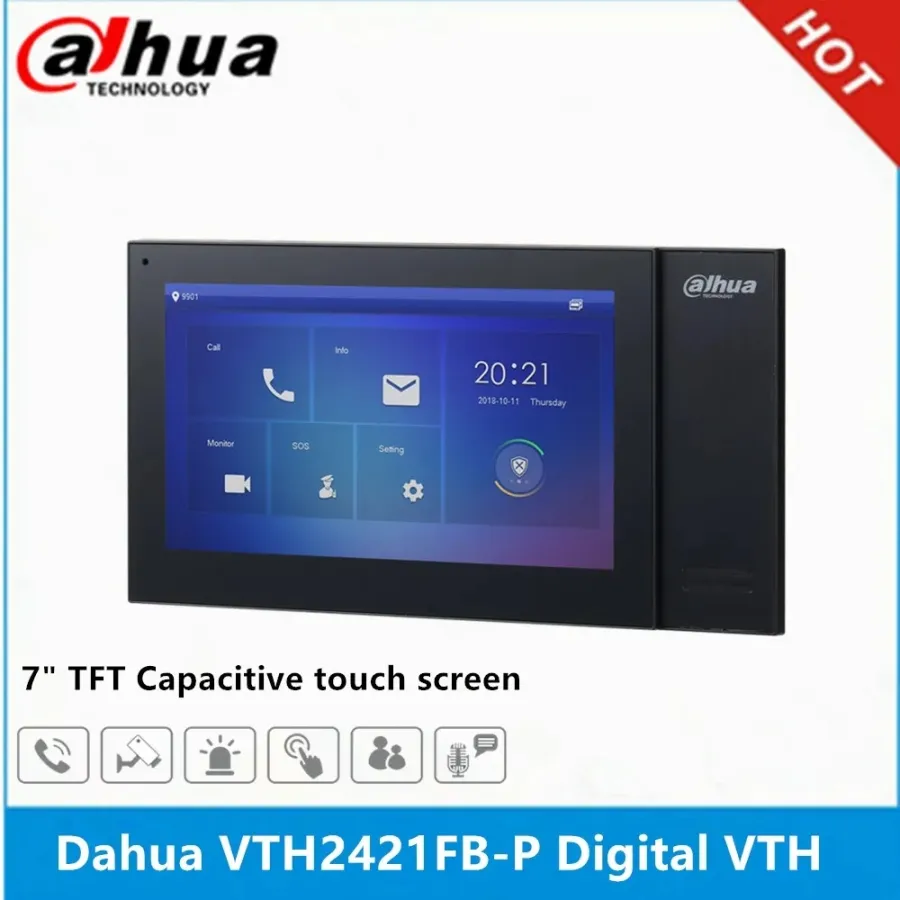

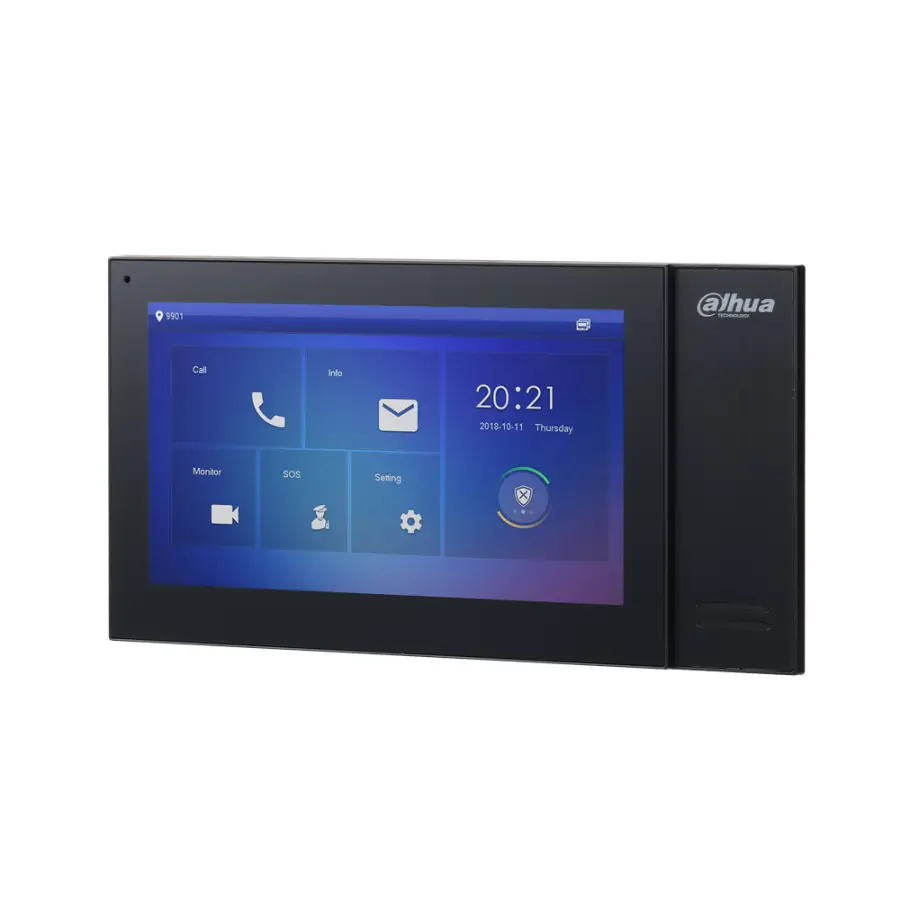

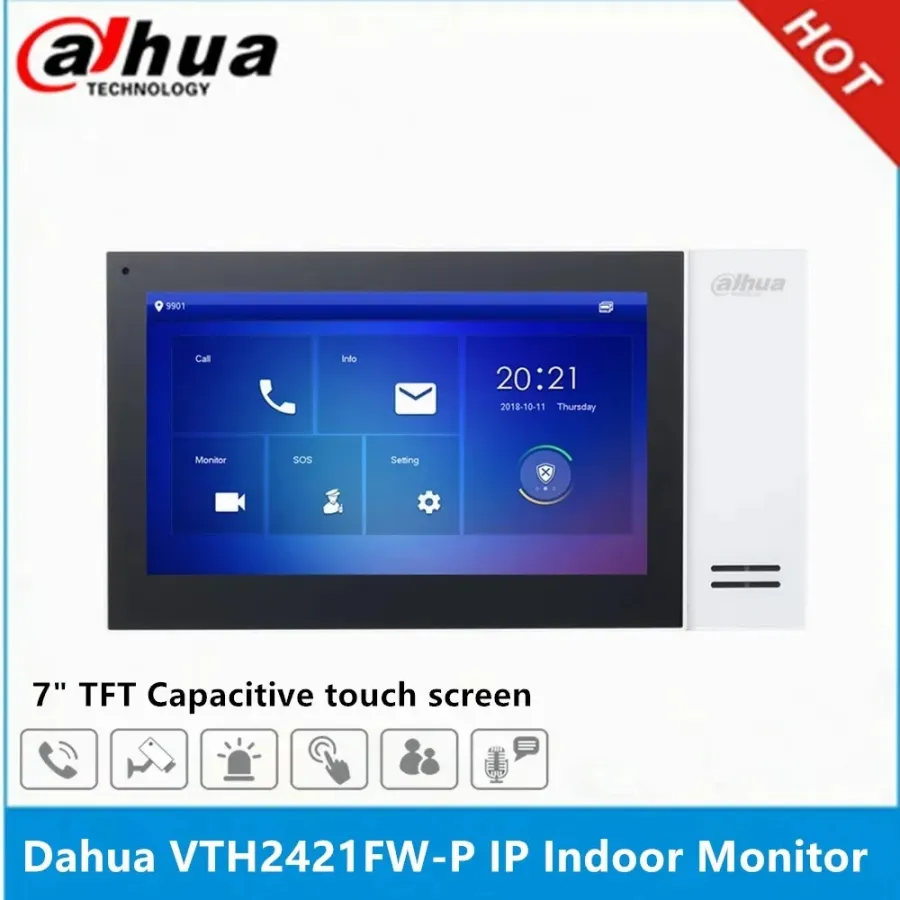

VTH2421FB(W)-P Digital VTH
> 7" TFT Capacitive touch screen, 1024 x 600
> IPC surveillance
> Alarm integration
> High performance & Cost-effective
> Embedded 8GB SD card
> Support standard PoE
> IPC surveillance
> Alarm integration
> High performance & Cost-effective
> Embedded 8GB SD card
> Support standard PoE
Technical Specification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor | High performace embedded processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System | Embedded LINUX OS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Screen Type | Capacitive screen | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display | 7-inch TFT screen | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 1024 × 600 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression | G.711A/G.711U/PCM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input | 1 channel all-direction microphone | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output | Built-in 1.5W loudspeaker | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Mode | Support dual-way bidirectional talk | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Enhancement | Support echo cancellation/DNR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Bit Rate | 16 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Mode | Full digital | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Information Release | Support to receive and view notifications issued by center | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Leave Videos or Text Messages | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DND Mode | Support to set DND period | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sub-station Quantity | 9 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input | 6 channel (switch quantity) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output | 1 channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | 1 RJ-45 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SOS Alarm | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing | PC+ABS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Appearance Color | Appearance Color | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | Standard PoE DC 12V 1A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation | Wall mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Accessories | Default bracket | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 119.6 mm × 221.5 mm × 21.5 mm (4.71" × 8.72" × 0.85") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | -10°C to +55°C (+14°F to +131°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | 10%RH-95%RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Standby≤4W, work≤6W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 0.35 Kg (0.77 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power supply mode | PoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | Support Micro SD, maximum memory capacity 32 G, standard memory capacity 8 G | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Details
- Unit Type:
- Package Weight: 0.850
- Package Size: 15x12x25
- Brand Name: Dahua
- Origin: Mainland China
- Certification: CE
- Certification: FCC
- Certification: UL
- Model Number: VTH2421FB-P & VTH2421FW-P
