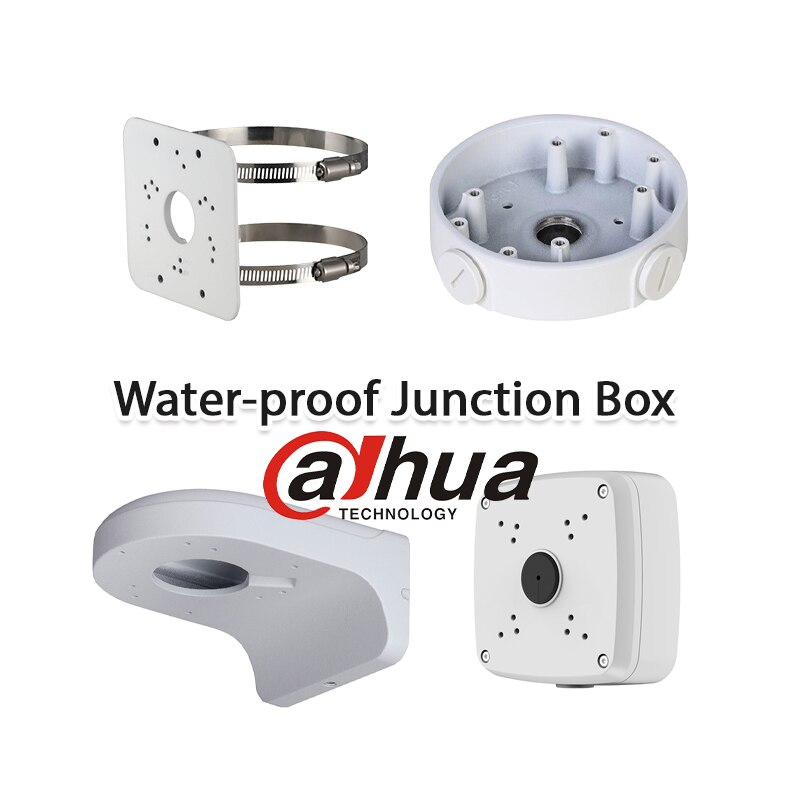

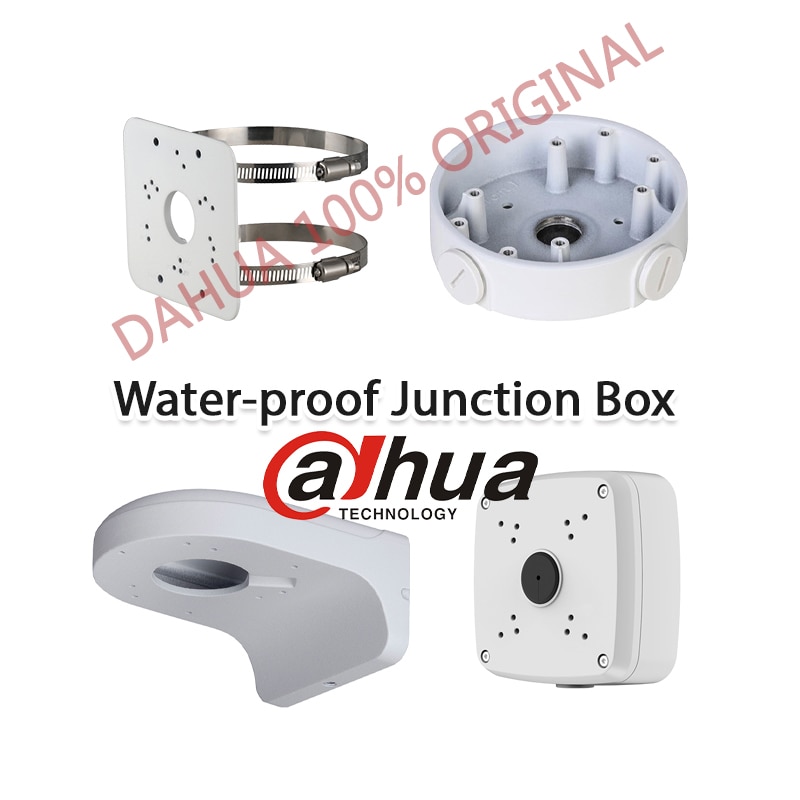

Dahua CCTV Camera Bracket Original DH Waterproof Junction Box PFA121 PFA136 PFA137 PFA139 PFA135 PFB203W PFB204W PFA134 PFA135
4.9 (24 votes) | 82 orders
Price:
US $54.83 - 180.84
/ piece
Discount Price:
US $
21.96 -
68.62
/ piece
-60%
- Color
-
-
Sorry! This item is out of stock

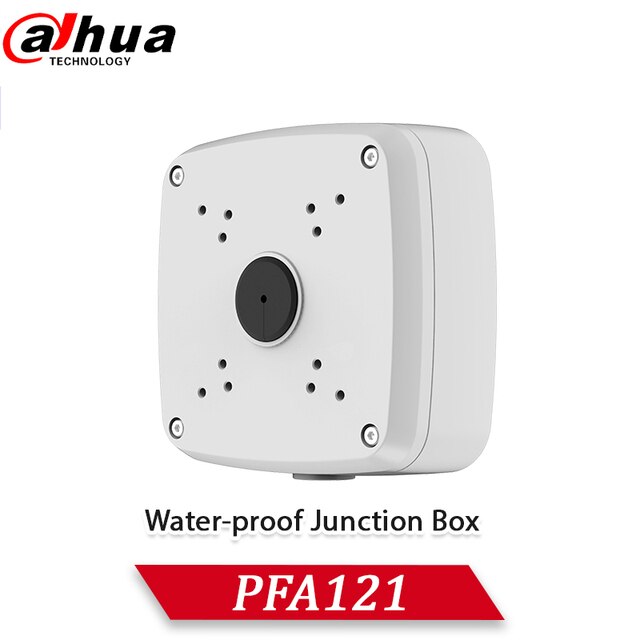

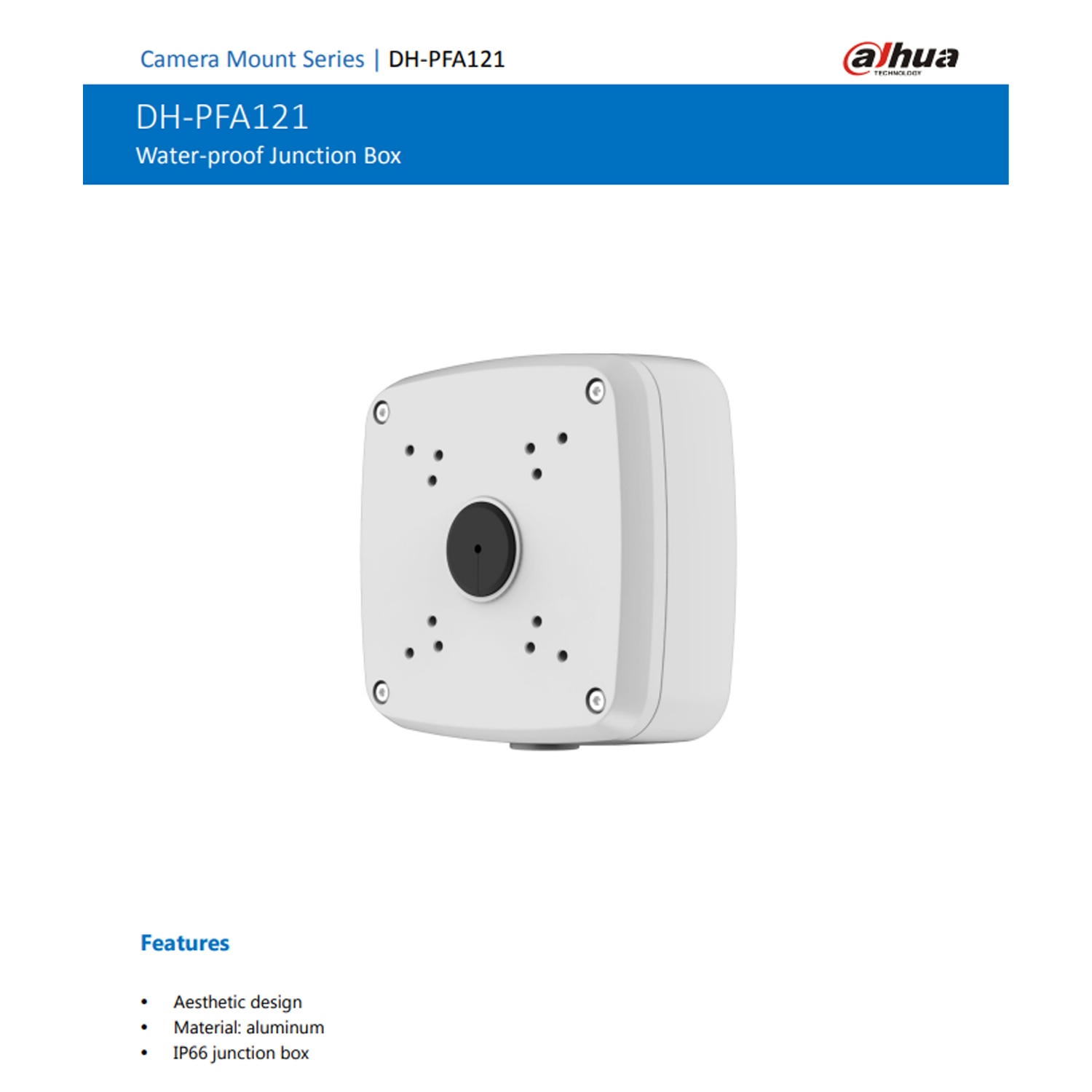

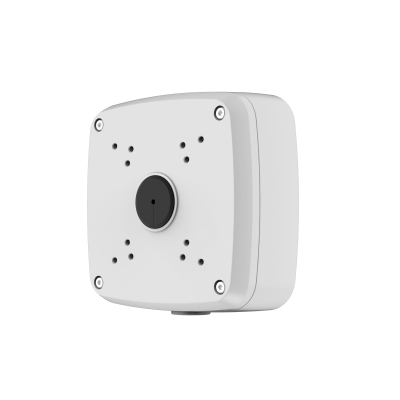

PFA121
Water-proof Junction Box
>Aesthetic design
>Material: aluminum
>IP66 junction box
Model | DH-PFA121 |
General | |
Material | Aluminum |
Dimension (WxHxD) | 134.0mmx133.5mmx56.0mm (5.28”x5.25”x2.20”) |
Pipe Thread | G3/4” |
Weight | 0.54kg(1.19lb) |
Load Bearing | 3.0kg(6.61lb) |
Color | White |
Protection | IP66 |
Operating Temperature | -40ºC~+60ºC(-40℉~+140℉) |
Humidity | 0~90% RH |
Applicable Model | Please see “Accessory Selection” |

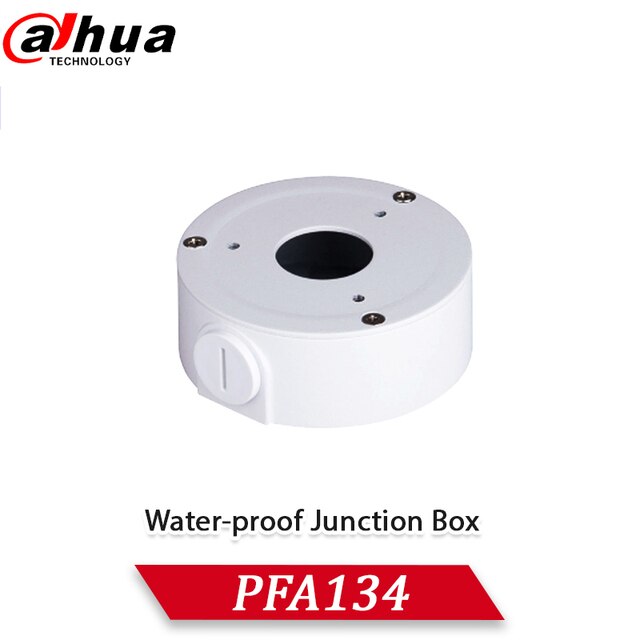

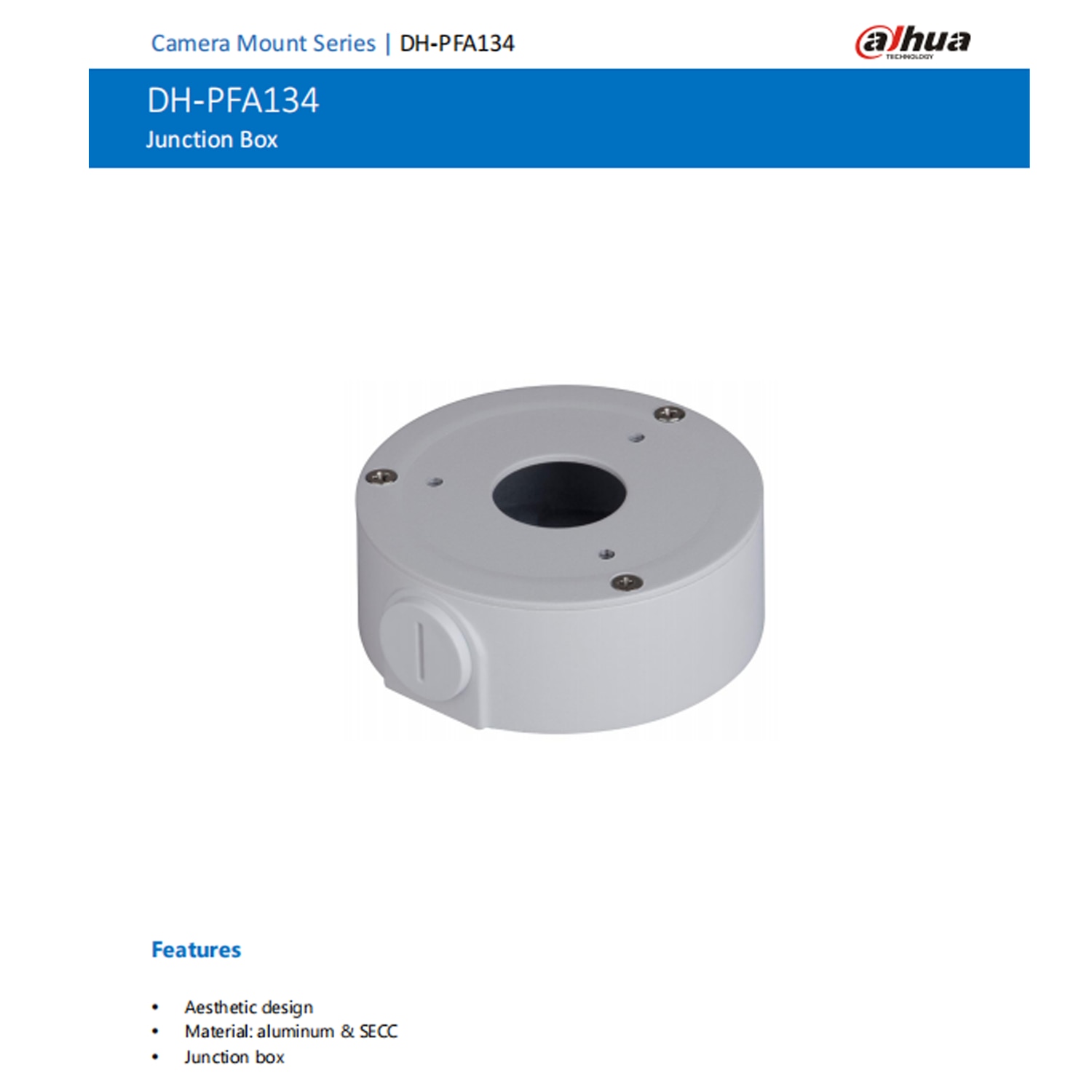

PFA134
Junction Box
> Aesthetic design
> Material: aluminum & SECC
> Junction box
Model | DH-PFA134 |
General | |
Material | Aluminum & SECC |
Dimension | Φ90.0mmx35.0mm (Φ3.54”x1.38”) |
Inch Thread | M20(G1/2”) |
Load Bearing | 1.0kg(2.2lb) |
Weight | 0.26kg(0.57lb) |
Color | White |
Operating Temperature | -40ºC~+60ºC(-40℉~+140℉) |
Humidity | 0~90% RH |
Applicable Model | Please see “Accessory Selection” |

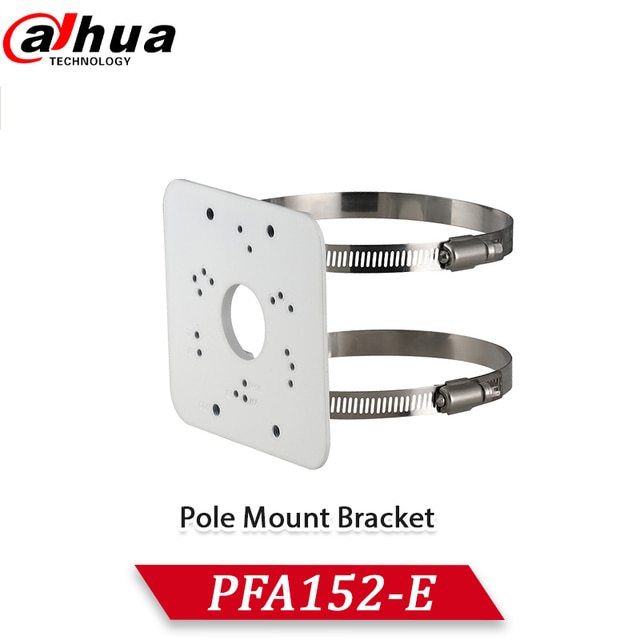

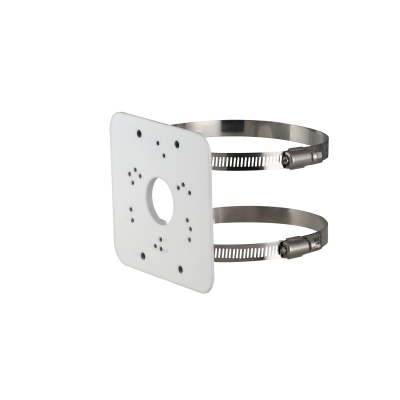

PFA152-E
Pole Mount Bracket
>Material: aluminum & SUS304
>Pole mount bracket
>Aesthetic design
Model | DH-PFA152-E |
General | |
Material | Aluminum & SUS304 |
Dimension(WxHxD) | 125.6mmx114mmx20mm (4.94”x4.49”x0.79”) |
Mast Diameter | ɸ80~150mm(ɸ3.15”~5.91”) |
Pipe Thread | N/A |
Operating Temperature | -40℃~+60℃ (-40℉~+140℉) |
Humidity | <90% RH |
Load Bearing | 3.0kg(6.61lb) |
Weight | 0.27kg(0.6lb) |
Color | White |
Applicable Model | Please see “Accessory Selection” |

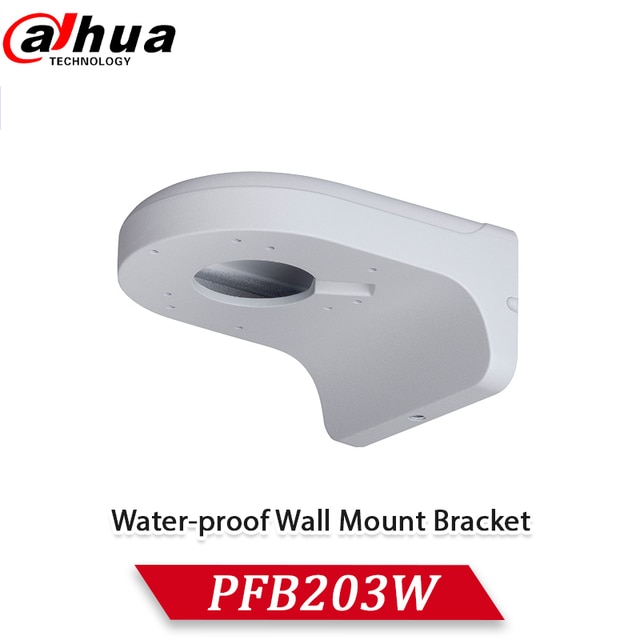

PFB203W
Wall Mount Bracket
> Aesthetic design
> Wall mount bracket
> Material: aluminum & SECC
Model | DH-PFB203W |
General | |
Material | Aluminum & SECC |
Dimension(WxHxD) | 160mmx122mmx76mm (6.30”x4.80”x2.99”) |
Weight | 0.5kg(1.1lb) |
Load Bearing | 1kg(2.2lb) |
Color | White |
Operating Temperature | -40ºC~+60ºC(-40℉~+140℉) |
Humidity | <90% RH |
Applicable Model | Please see ”Accessory Selection” |
PFB204W
Wall Mount Bracket
> Aesthetic design
> Wall mount bracket
> Material: aluminum & SECC
Model | DH-PFB204W |
General | |
Material | Aluminum & SECC |
Dimension(WxHxD) | 160mmx122mmx76mm (6.30”x4.80”x2.99”) |
Weight | 0.49kg(1.08lb) |
Load Bearing | 1kg(2.2lb) |
Color | White |
Operating Temperature | -40ºC~+60ºC(-40℉~+140℉) |
Humidity | <90% RH |
Applicable Model | Please see ”Accessory Selection” |

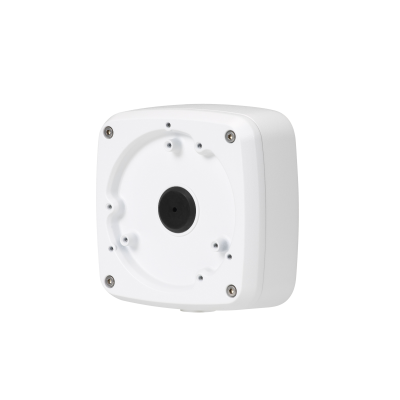

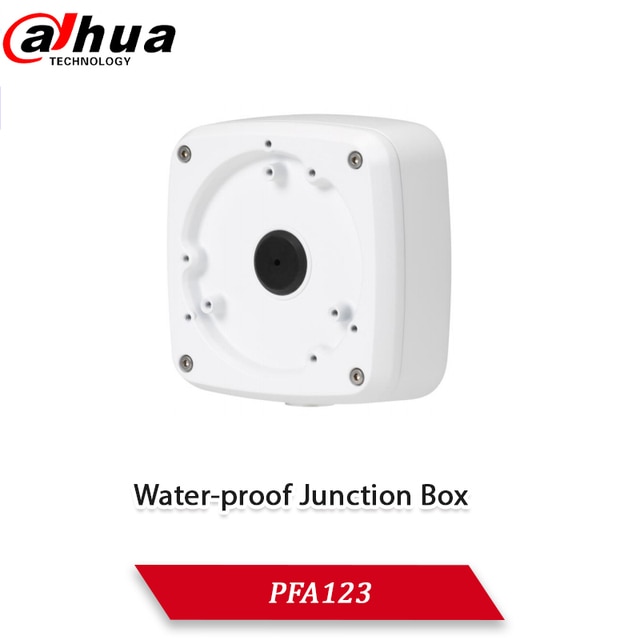

PFA123
Water-proof Junction Box
>Aesthetic design
>Material: aluminum
>IP66 junction box
Model | DH-PFA123 |
General | |
Material | Aluminum |
Dimension (WxHxD) | 134.0mmx133.5mmx52.0mm (5.28”x5.25”x2.05”) |
Pipe Thread | G3/4” |
Weight | 0.54kg(1.19lb) |
Load Bearing | 3.0kg(6.61lb) |
Color | White |
Protection | IP66 |
Operating Temperature | -40℃~+60℃(-40℉~+140℉) |
Humidity | 0~90% RH |
Applicable Model | Please see “Accessory Selection” |

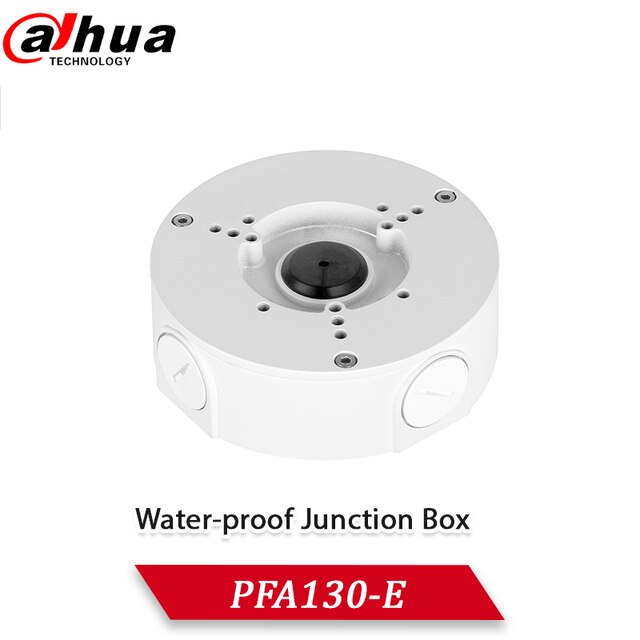

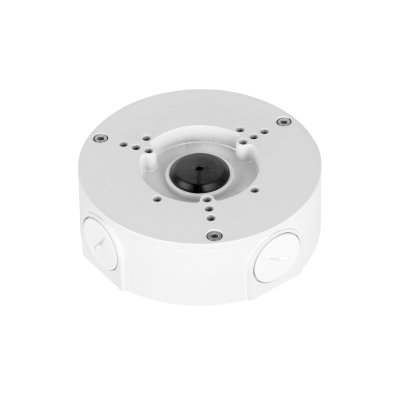

PFA130-E
Water-proof Junction Box
>Neat & Integrated design
>Material: Aluminum
>IP66 junction box
Model | DH-PFA130-E |
General | |
Material | Aluminum |
Dimension | Φ124mmx41mm(φ4.88”x1.61”) |
Pipe thread | G3/4” |
Weight | 0.35kg(0.77lb) |
Load bearing | 3.0kg(6.61lb) |
Color | White |
Protection | IP66 |
Operating temperature | -40ºC ~60ºC(-40℉~+140℉) |
Humidity | <90% RH |
Applicable model | Please see “Accessory Selection” |

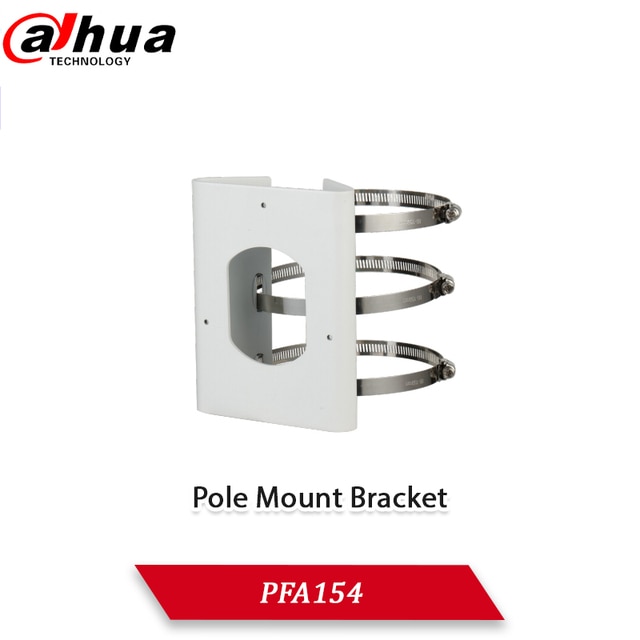

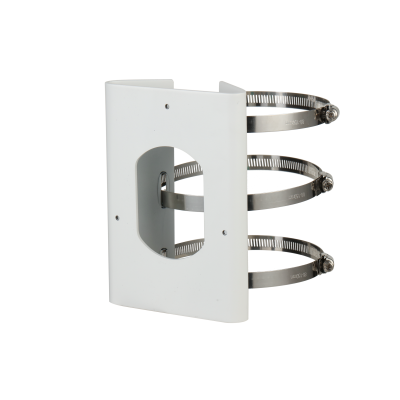

PFA154
Pole Mount Bracket
> Pole mount bracket
> Material: SECC & SUS304
> Aesthetic design
> Pole mount bracket *1
> M4 screw *3
> Wrench *1
> 80~150mm metal hoop: 3
Technical Specification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model | DH-PFA154 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Material | SECC & SUS304 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimension(WxHxD) | 130.4mmx170mmx45mm (5.13”x6.69”x1.77”) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mast Diameter | ɸ80~150mm(ɸ3.15”~5.91”) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pipe Thread | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | -40℃~+60℃ (-40℉~+140℉) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Humidity | 0~90% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Load Bearing | 7kg(15.4lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight | 0.85kg(1.87lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Applicable Model | Please see “Accessory Selector” | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PFA106
Adapter Plate of Mini Dome & Eyeball Camera
>Neat & Integrated design.
>Material: Aluminum.
Model | DH-PFA106 |
General | |
Material | Aluminum |
Dimension (W x H x D) | Φ134.1mmx83.5mm(Φ5.28”x3.29”) |
Weight | 0.29kg(0.64lb) |
Load Bearing | 1kg(2.2lb) |
Color | White |
Operating Temperature | -40ºC ~60ºC(-40℉~140℉) |
Humidity | <90% RH |
Applicable Model | DH-PFB305W, DH-PFB220C |

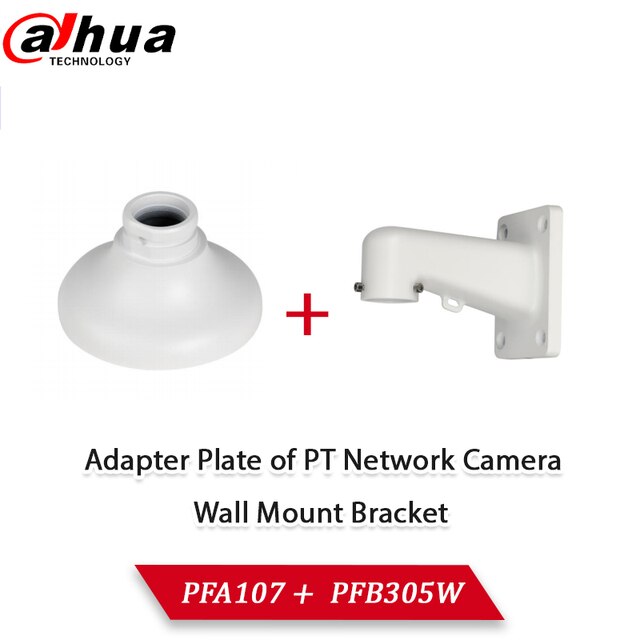

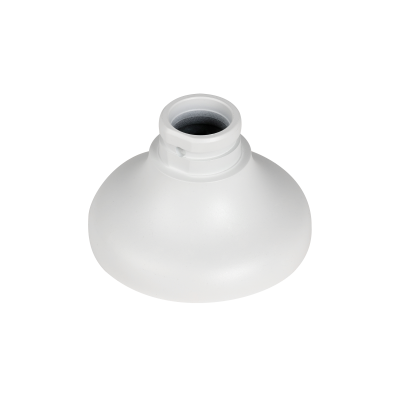

PFA107
Adapter Plate of PT Network Camera
>Neat & Integrated design.
>Material: Aluminum.
Model | DH-PFA107 |
General | |
Material | Aluminum |
Dimension (W x H x D) | Φ134.1mmx83.5mm(Φ5.28”x3.29”) |
Weight | 0.29kg(0.64lb) |
Load Bearing | 1kg(2.2lb) |
Color | White |
Operating Temperature | -40ºC ~60ºC(-40℉~140℉) |
Humidity | <90% RH |
Applicable Model | DH-PFB305W, DH-PFB220C |

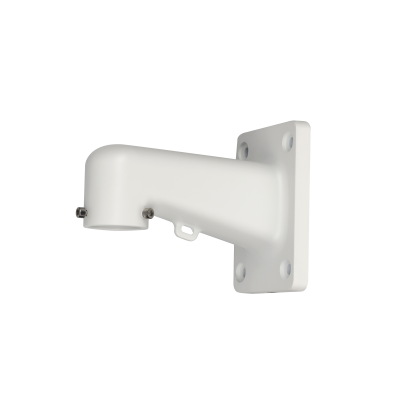

PFB305W
Wall Mount Bracket
>Neat & Integrated design.
>Wall mount bracket.
>Material: Aluminum.
>Safety rope hook attached, secure and reliable.
Model | DH-PFB305W |
General | |
Material | Aluminum |
Dimension(WXHXD) | 200mmx160mmx115mm(7.87”x6.3”x4.53”) |
Weight | 0.87kg(1.92lb) |
Load Bearing | 5.0kg(11.02lb) |
Color | White |
Operating Temperature | -40ºC ~60ºC(-40℉~140℉) |
Humidity | <90% RH |
Applicable Model | DH-PFA106, DH-PFA120, DH-PFA150, DH-PFA151 |

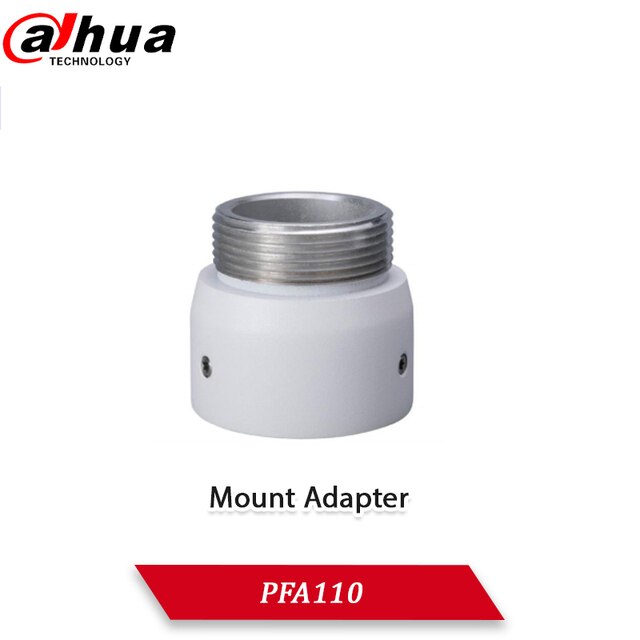

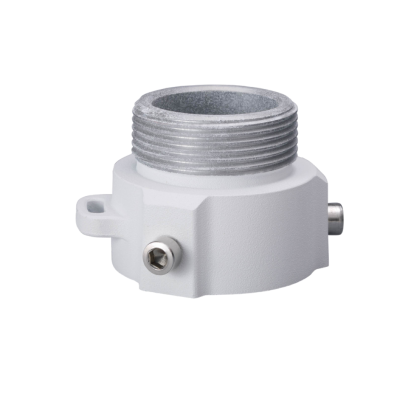

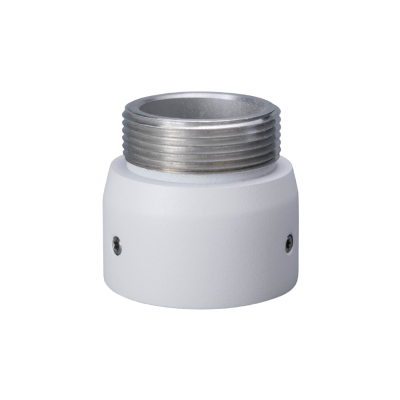

PFA110
Mount Adapter
>Aesthetic design
>Material: aluminum
>Mount adapter
Model | DH-PFA110 |
General | |
Material | Aluminum |
Dimension | Φ59mmx53mm (Φ2.32”x2.09”) |
Pipe Thread | G1 1/2’’ |
Load Bearing | 5.0kg(11.02lb) |
Weight | 0.2kg(0.44lb) |
Color | White |
Operating Temperature | -40℃~+60℃(-40℉~+140℉) |
Humidity | <90% RH |
Applicable Model | Please see “Accessory Selection” |
PFA111
Mount Adapter
>Aesthetic design
>Material: aluminum
>Mount adapter
Model | DH-PFA111 |
General | |
Material | Aluminum |
Dimension | Φ60mmx49mm (Φ2.36”x1.93”) |
Pipe Thread | G1 1/2’’ |
Load Bearing | 7.0kg(15.43lb) |
Weight | 0.25kg(0.55lb) |
Color | White |
Operating Temperature | -40℃~+60℃(-40℉~+140℉) |
Humidity | <90% RH |
Applicable Model | Please see “Accessory Selection” |

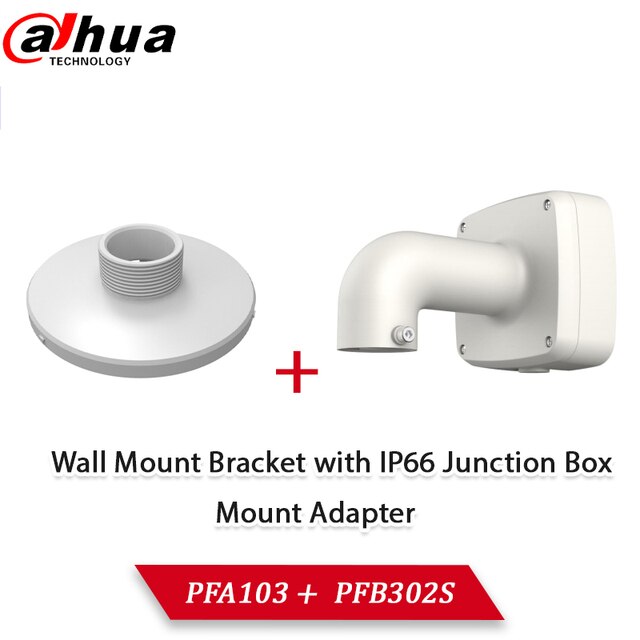

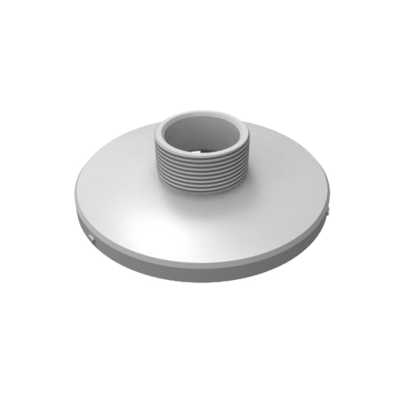

PFA103
Hanging Mount Adapter
>Aesthetic design
>Material: aluminum
>Hanging mount adapter
Model | DH-PFA103 |
General | |
Material | Aluminum |
Dimension | Φ133mmx37mm (Φ5.23”x1.46”) |
Pipe Thread | G1 1/2’’ |
Load Bearing | 3.0kg(6.61lb) |
Weight | 0.13kg(0.29lb) |
Color | White |
Operating Temperature | -40℃~+60℃(-40℉~+140℉) |
Humidity | <90% RH |
Applicable Model | Please see “Accessory Selection” |

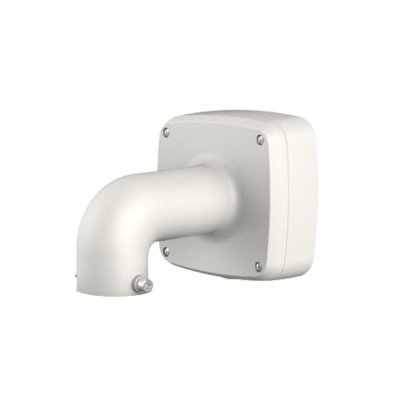

PFB302S
Wall Mount Bracket with IP66 Junction Box
> Neat & Integrated design
> Material: Aluminum
> Wall mount bracket with IP66 junction box
Model | DH-PFB302S |
General | |
Material | Aluminum |
Dimension (W x H x D) | 134.0mmx133.5mmx187.5mm (5.28”x5.25.”x7.38”) |
Pipe thread | G3/4” |
Weight | 0.7kg(1.54lb) |
Load bearing | 4.0kg(8.82lb) |
Color | White |
Protection | IP66 |
Operating temperature | -40ºC ~60ºC(-40℉~140℉) |
Humidity | 0~90% RH |
Applicable model | Please see “Accessory Selection” |
About Dahua bracket, we have a large inventory
The payment is completed, unless there is a holiday, we will arrange the shipping for you on the next day, and can receive the package soon
Regarding the bracket compatible camera, you can refer to the picture, but it is not necessarily accurate. It is best to check on the Dahua official website before purchasing. For non-quality problems, we will not accept a refund for the wrong model.
Dahua official website:
- Brand Name: Dahua
- Origin: Mainland China
