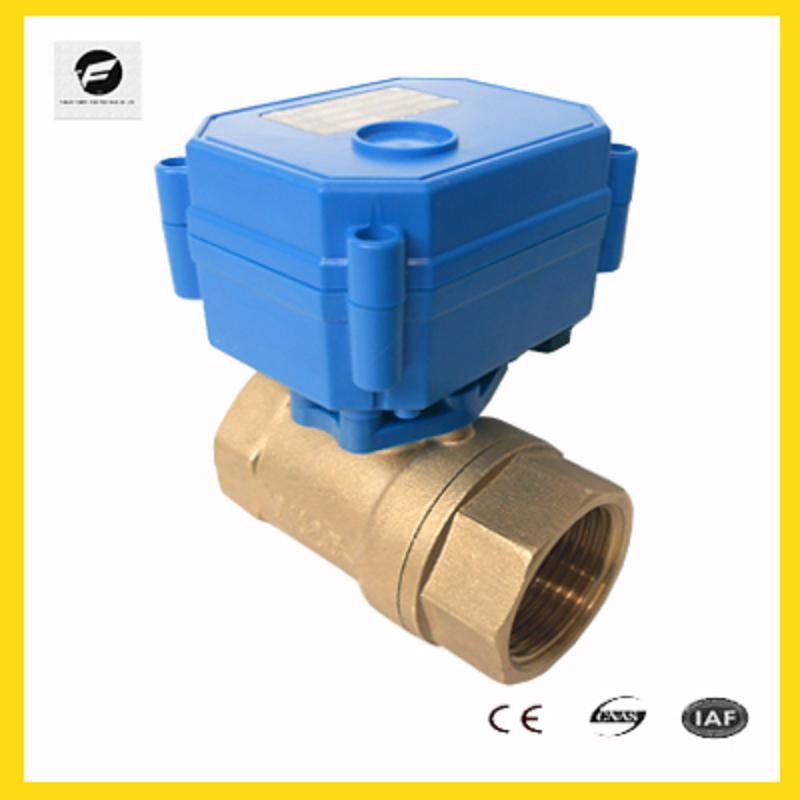

CWX-15 electric brass ball valve DN15 DN20 DN25 DC3-6v DC12v DC24v AC220v motorized valve for water
Details:
1.Model:CWX-15
2.Valve size:DN8-DN32
3.Valve material(body/ball/stem):brass
4.Working voltage:DC3-6v DC12v DC24v

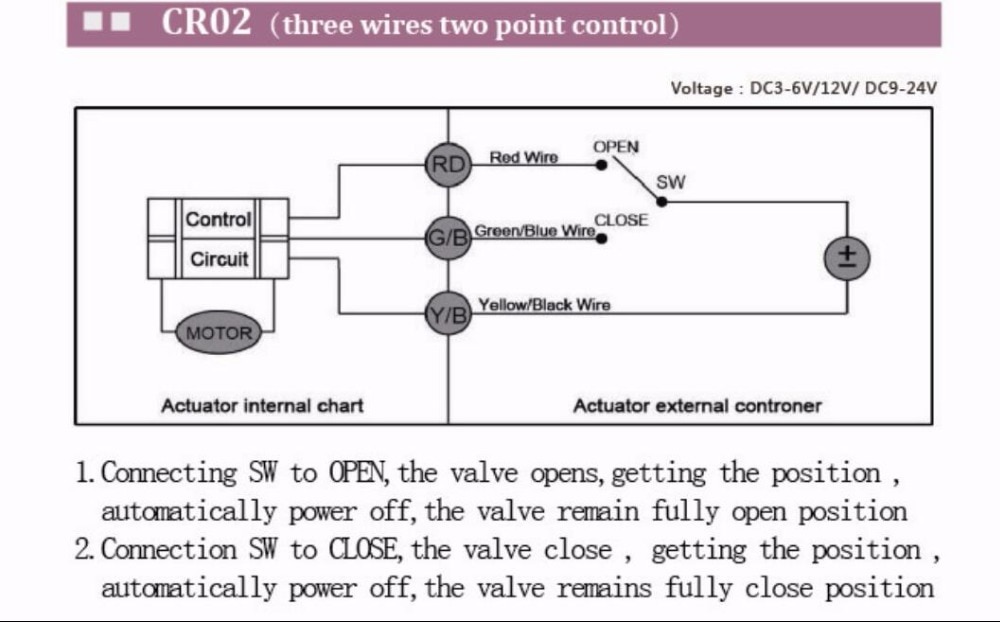

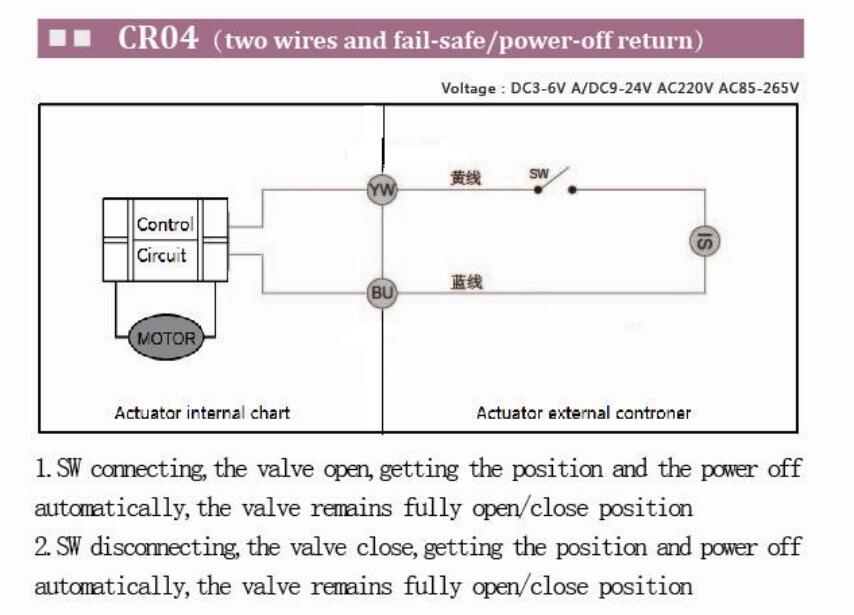

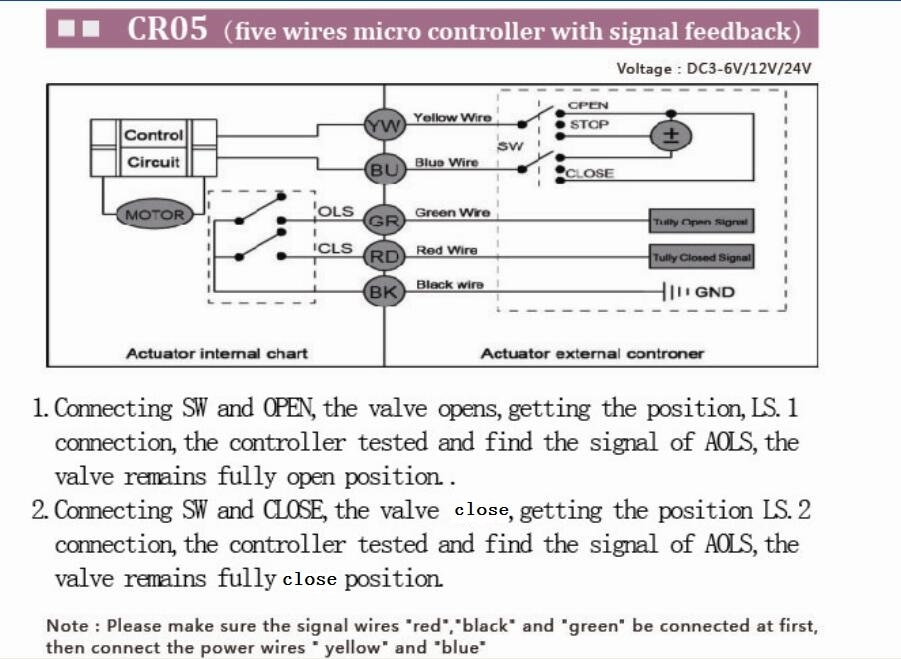

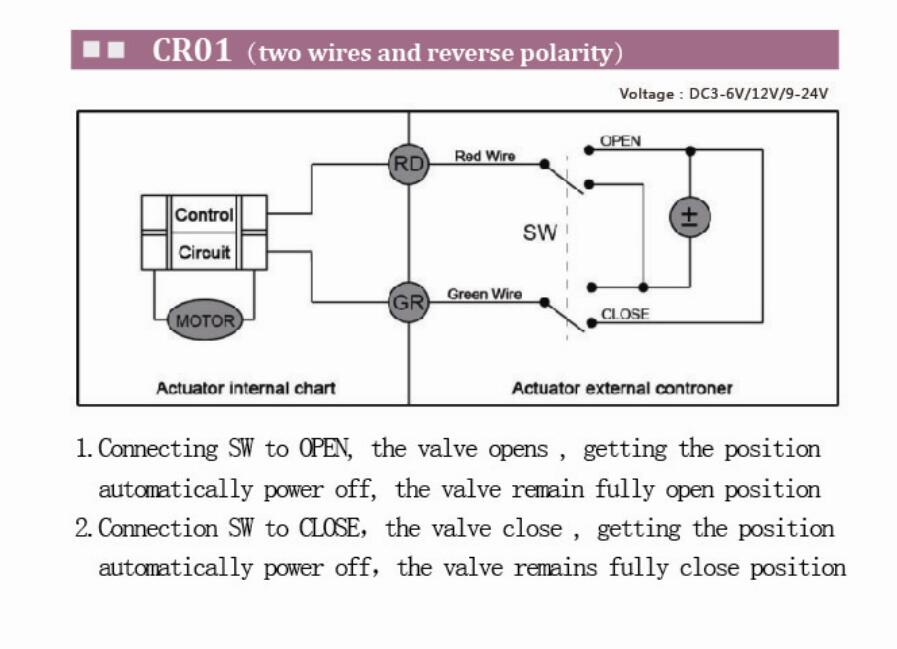

5.Wiring control mode:CR01 CR02 CR03 CR04 CR05
6.Connection end:BSP/NPT(NPT for North America)
7.Working current:<100mA
8.Power consumption:<2W
9.Working pressure:1.0MPa/145Psi/10Bar
10.Medium:Water,air,gas,fluid
11.Medium temperature:0-90℃
12.Environment temperature:-15-50℃
13.Actuator torque:1.5Nm/2.0Nm
14.Open/close time:3sec/5sec
15.Working life:100,000 times
16.Protection class:IP65
17.Actuator material:ABS Engineering plastic
18.Actuator rotation:90 degree
19.Sealing material:EPDM$PTFE
20.Cable length:38cm
21.Manual override function:No
22.Position indicator:No
23.Special function;OEM&ODM available
Features:
1. Smart shape,perform reliably,brass gear,PPO parts,large output torque,long product life for 100,000 times.
2. Electrical limit and machinery limit design,accurate position,avoid gear with switch.
3. Multi-angle assembling,easy to install.
4. Float ball structure,no leakage,especially suitable for heavy pollution conditions.
5.Good substitution for solenoid or pneumatic valve.
6. High protection class,can be worked in moist conditions. IP65.
Situable for :
1.IC card meters,heat energy meters
2.Air-warm valve.HVAC and fire works.
3.Water equipment,auto-control watersystem,industrial mini-auto equipment, Small equipment for automatic control
4.Irrigation equipment,drinking water equipment,solar water heaters,washing machines,water heaters,industrial humidifier.
5.Solar thermal,under-floor,rain water,irrigation,plumbing service,hot water heating and solar glycol loop,ideal for off-grid system.
6.Domestic water,Irrigation system,cooling/heating system,Low voltage plumbing system
7.Multiple voltage and control mode, applicable to a variety of occasions.
- Actuator Mode: Without Manual And Instruction
- Power Source: DC
- Port Size: 1/4''-11/4''
- Media: Water
- Temperature of Media: Normal Temperature
- Standard or Nonstandard: Standard
- Model Number: CWX-15
- Power: electric power
- Pressure: Medium Pressure
- Material: BRASS
- Structure: Ball
- Brand Name: CWX
