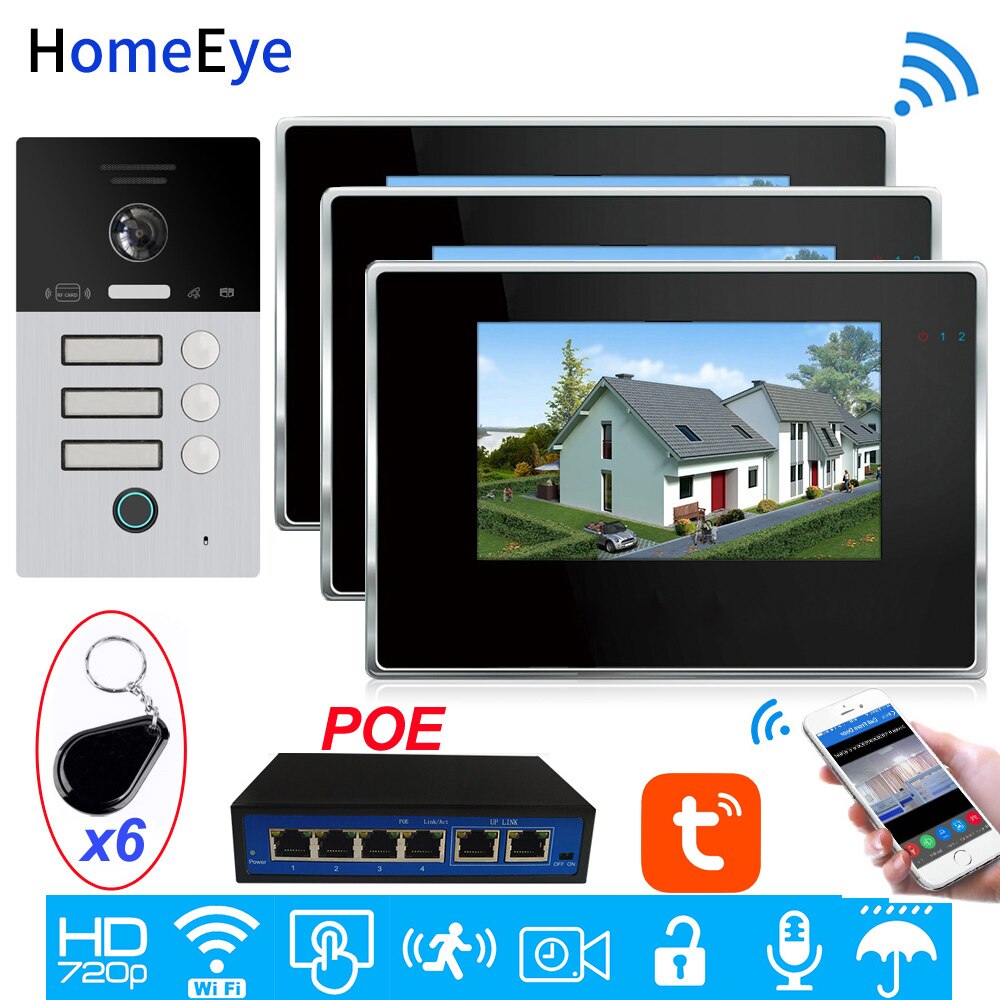

Code Keypad+RFID Card+Fingerprint Home Access Control TuyaSmart App Remote Unlock WiFi Video Intercom System IP Video Door Phone

0.0 ( votes)
Price: US $1250.00 / piece
Discount Price:
US $ 950.00 / piece
-24%
Quantity

Notice:

Our Product Just Works Well With Our Own Intercom System. We Could Not Guarantee It Could Be Compatible With Other Brand Indoor Monitor/Outdoor Camera. If You Need To Connect Other System ,Please Contact Us For Technical Support Before Buying.



villa ip intercom 1-3





3

Why Choose HomeEye SIP Digital Villa Video Intercom System?

 ♦ Support iOS & Android Free APP (TuyaSmart)

   Supp ort Code Keypad+RFID Card + Fingerprint Access Control

 ♦ Connected via TCP/IP protocol between intercoms, Connected via SIP protocol between intercom and smart phone.

 ♦ Digital system, CAT5 Network cable connection.

 ♦ 2-way communication between indoor and outdoor unit. Support  2 way communication between monitors

 ♦ 1.0MP Camera, wide view angle.

 ♦ The APP and indoor monitor will receive the call at the same time while some one call.

 ♦ Voice message and motion detection, supported Alarm Home System, can add 8 security zones alarm (such as: smoke sensor, gas sensor, PIR sensor...etc)

 ♦ WIFI Enabled or Wired Router

 ♦ Outdoor call panel support password (maximum support 200 password) and IC card unlock (frequency 13.56MHz)

Parameter



Indoor Monitor

Model

87714TM

Monitor

7" TFT touch screen

Resolution

720P

Connect Mode

CAT5 network cable

Intercom Mode

Duplex communication

Leave Message Time

30s/60s/90s optional

Conversation Duration

Max.180s

Ringtone

Customize supported

Power Consumption

400mA Max.

Power Supply

 DC12V

Memory

Support Max.32GB SD card

Material

ABS case

Operation Temp

-40℃ +50℃

Installation

Surface Mounted

Outdoor Unit

Model

87253-1FC

Leave Message Time

30s/60s/90s optional

Dimension

 210*116*35mm

Material

Aluminum alloy

Camera Sensor

1.0MP

View Angle

110 degrees

LED For Night Vision

White LED(120º)

Connection

CAT5 Network cable

Power Consumption

200mA Max.

Accessory

Embedded box

Operation Temp

-40℃ +50℃

Waterproof Rate

IP65

Installation

Surface Mount

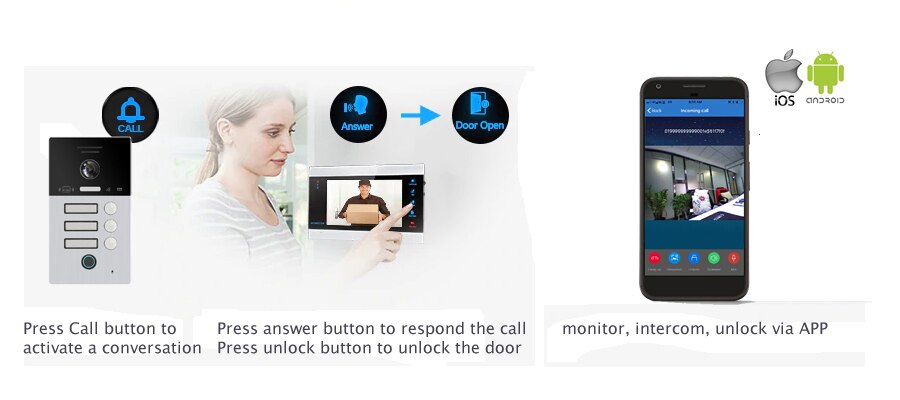

Never Miss a Visitor



When someone press the CALL button, you can monitor, unlock, intercom via the monitor, and you can also receive call message , intercom, unlock from smartphone, anywhere in the world,



2Supported Customize Your Own Ring Tone (MP3)

Copy your MP3 file to SD Card's folder, this folder need to be named as "ring".

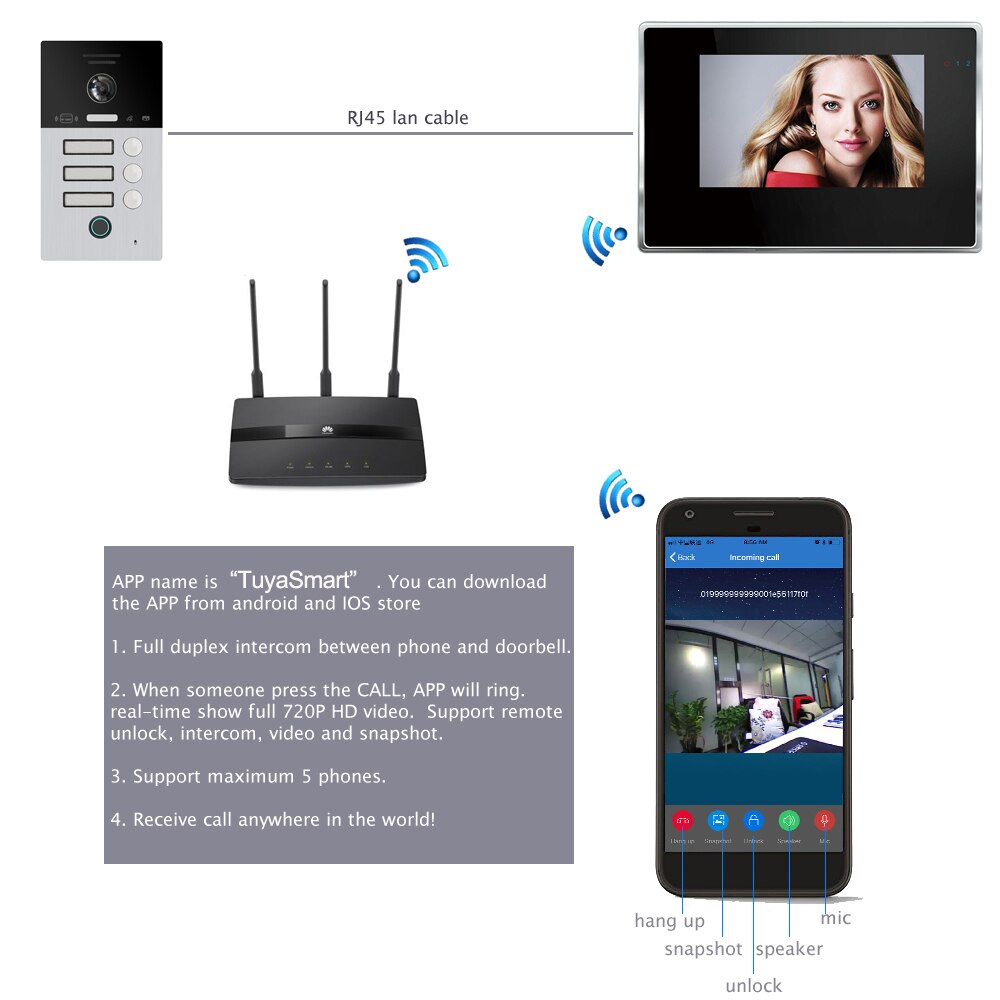

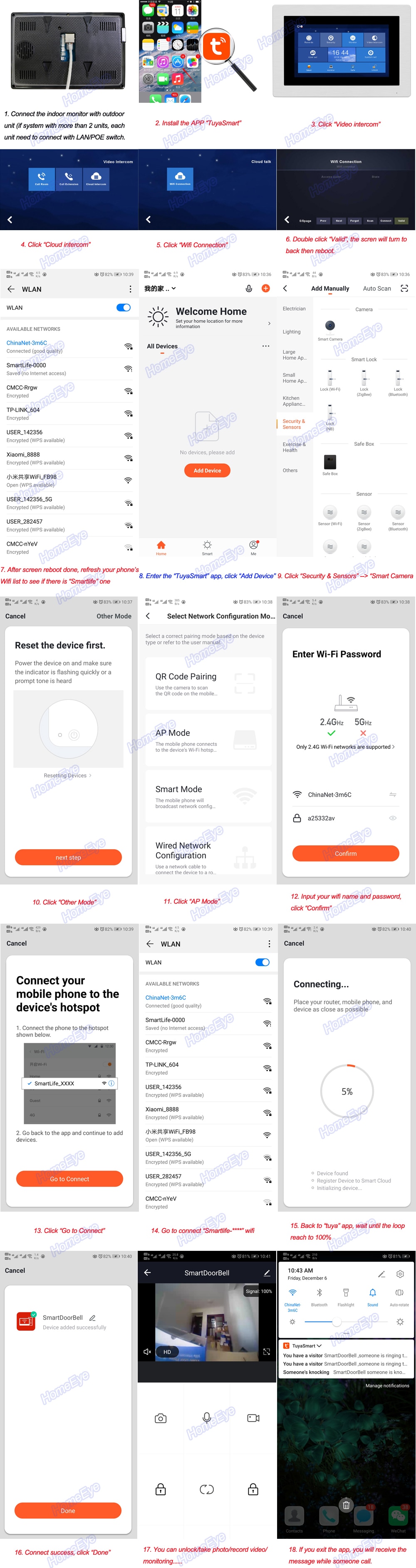

How to get the remote view?

WIFI-水印


Multi-languages OSD Menu

The System OSD Menu Supports Different Languages: English, Russian, Portuguese, Turkish, Spanish, German and so on.

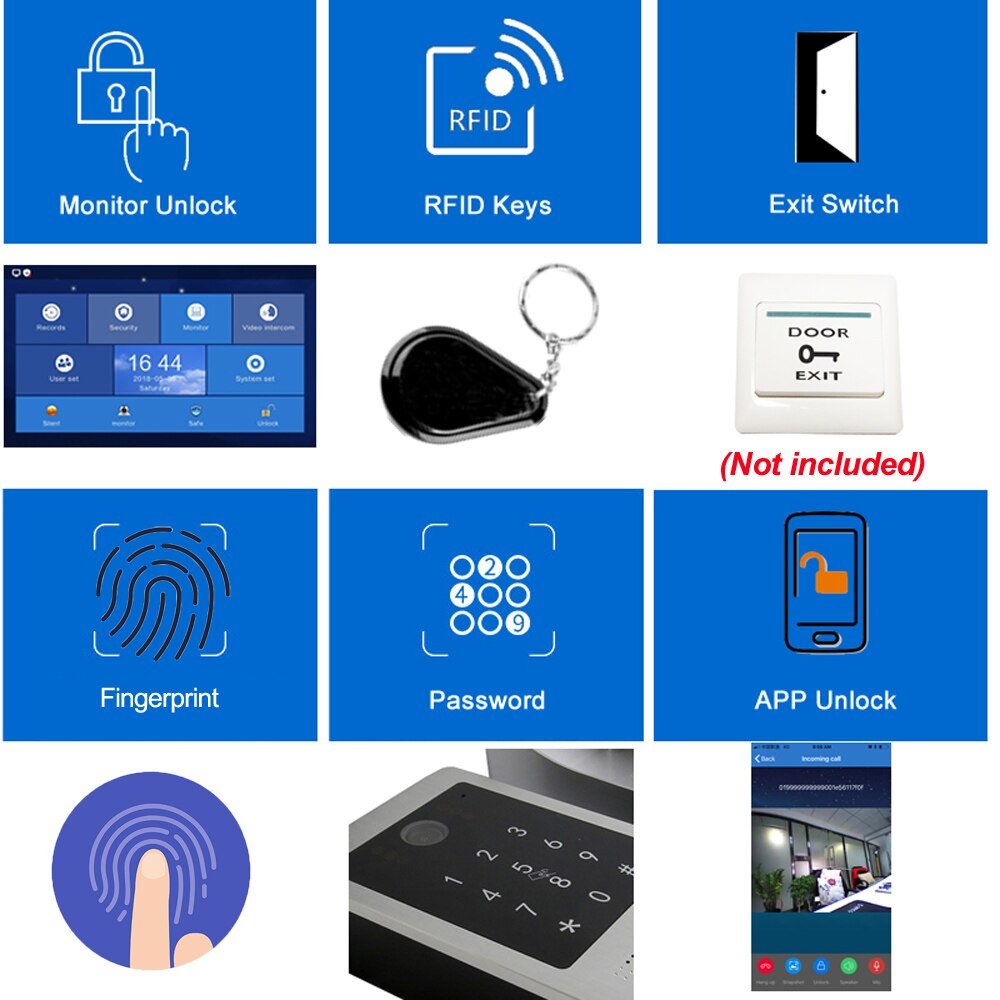

Multi-way to UNLOCK

5



IP65 Waterproof, Anti-thunderstorm Design
The outdoor panel can also works well even in bad weather.

waterproof

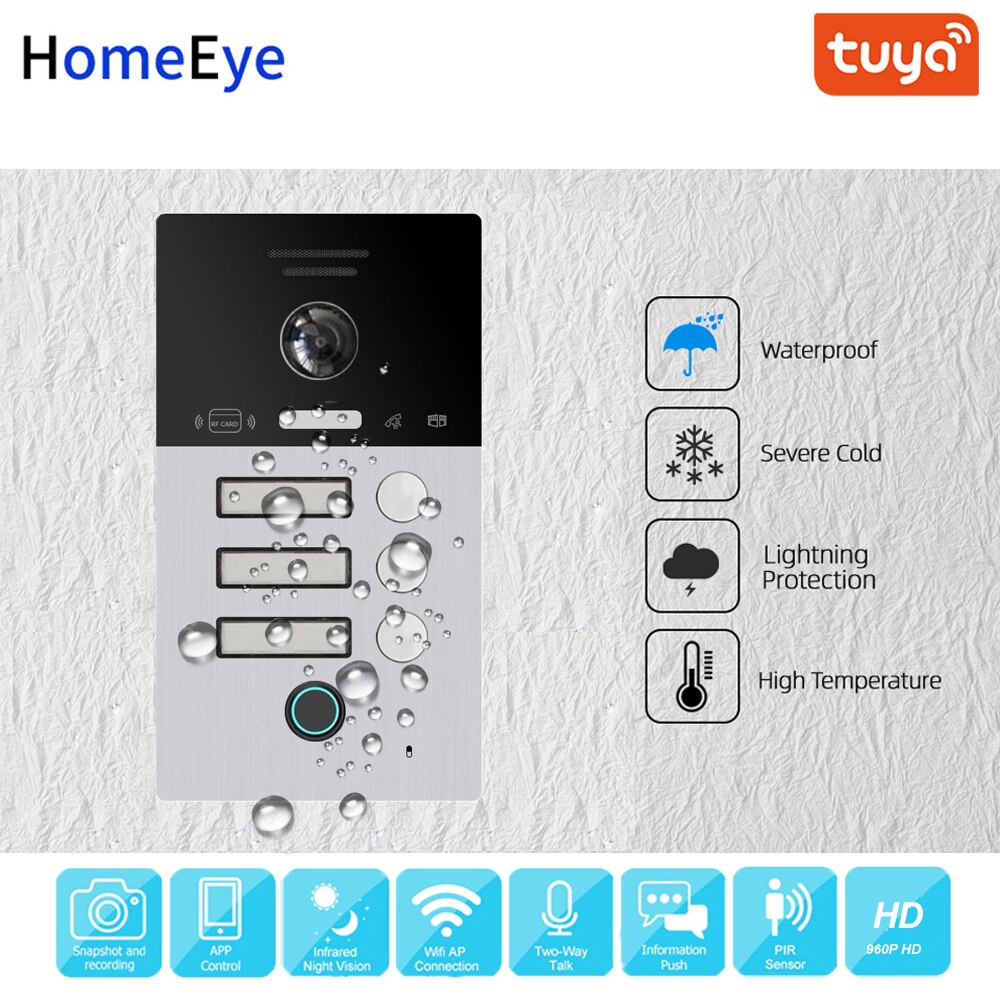

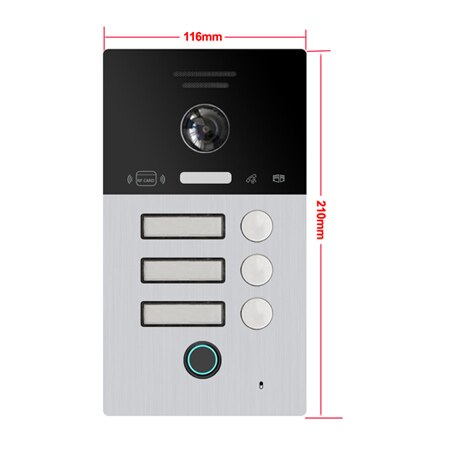

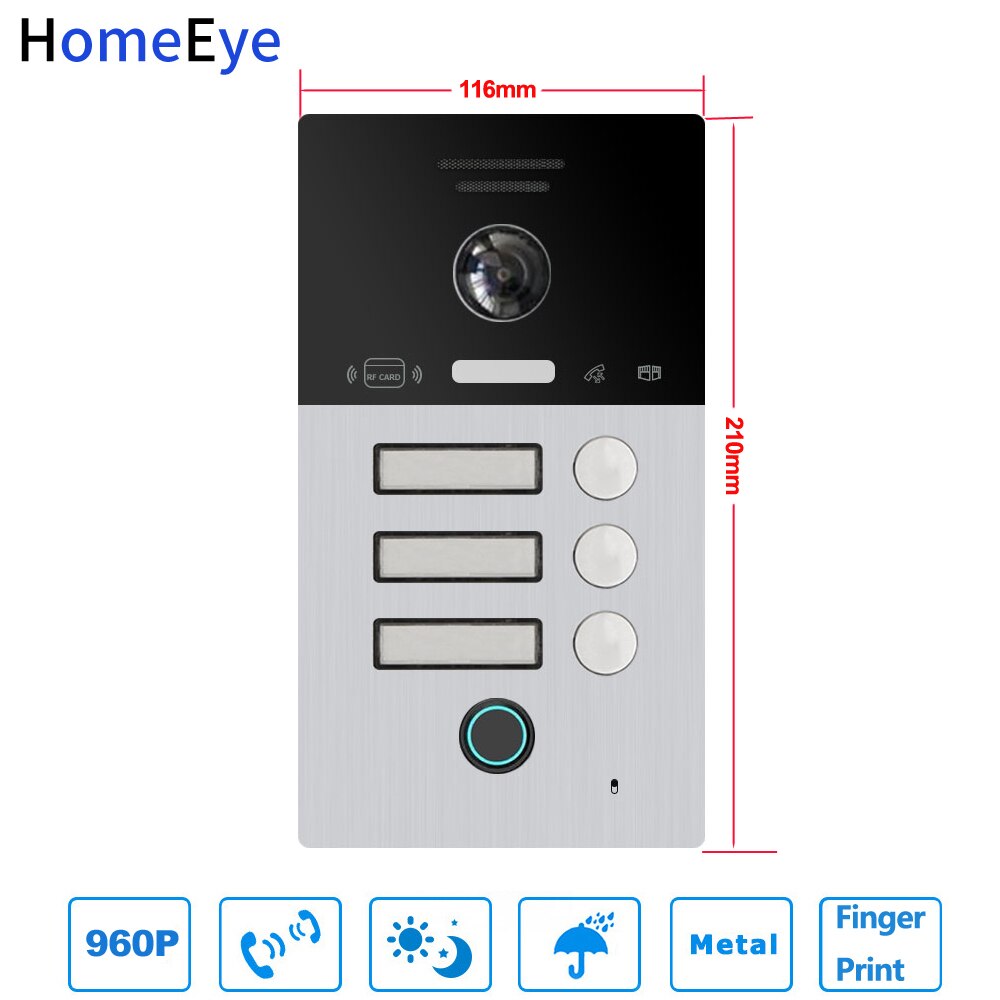

Outdoor Call Panel

♦960P Camera

♦Fingerprint supported

♦IR LEDs For Night Vision

♦Adjustable Intercom Volume

♦Dual-way Intercom

♦IR Sensor, Turn On/off IR LEDs Automatically

♦Easy To Install And DIY Installation

♦Rust-proof Aluminium Alloy Anti Vandal Panel

♦IP65 Weatherproof


87709-87203详情图_15_02
87714-87203详情图_14_02

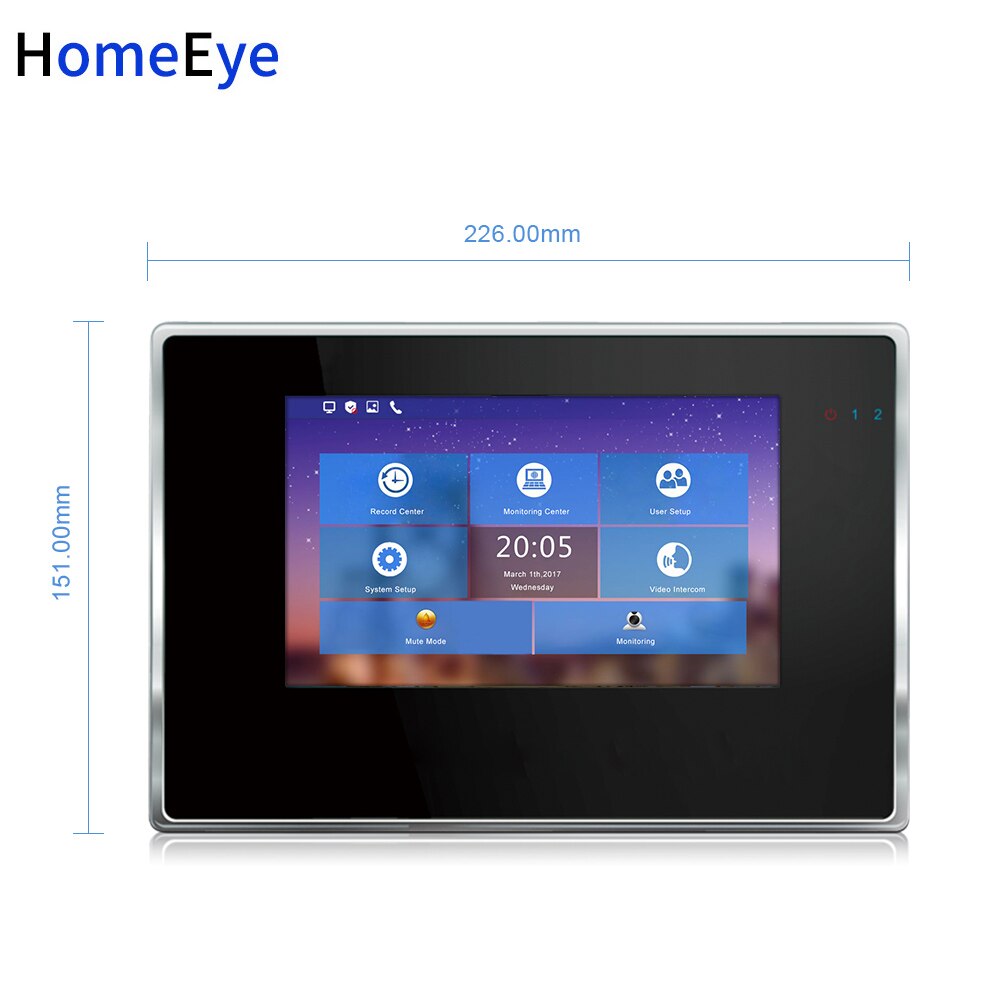

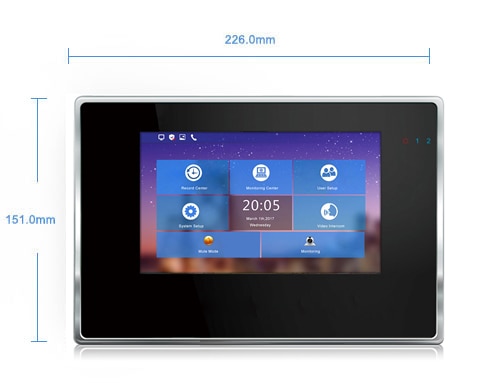

Indoor Monitor

♦ Digital system, use CAT5 network cable

♦ Supported TuyaSmart APP

♦ 2 way communication

♦ Same floor or different floor support monitor call monitor

♦ PC user as adminitor, can call all monitors

♦ 8 smart home security zone supported

♦ Between intercom use TCP/IP protocol, Intercom to smart phone use SIP protocol

♦ Support setting un-lock time, suitable for different electronic lock

♦ Max. support 3 smart phone to unlock the door account (never miss your call)

Package included:

3x SIP monitor
1x Outdoor call panel
1x POE Switch
1x Power adapter for POE switch
1x Manual
1x Accessories

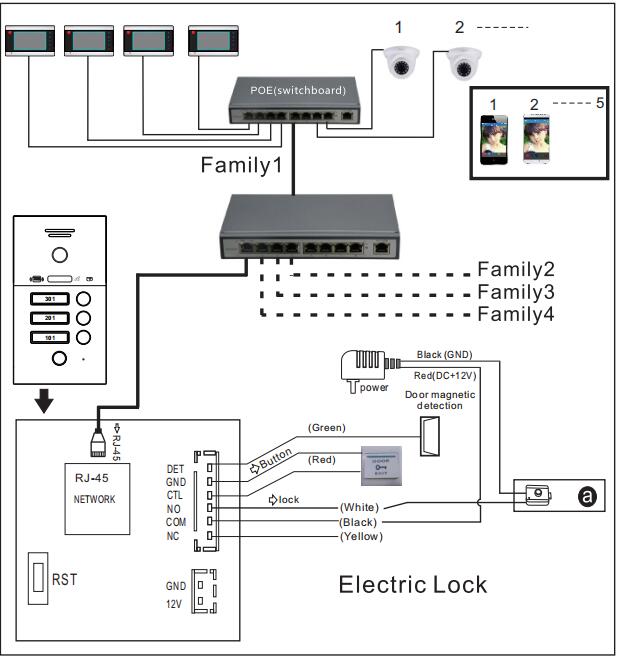

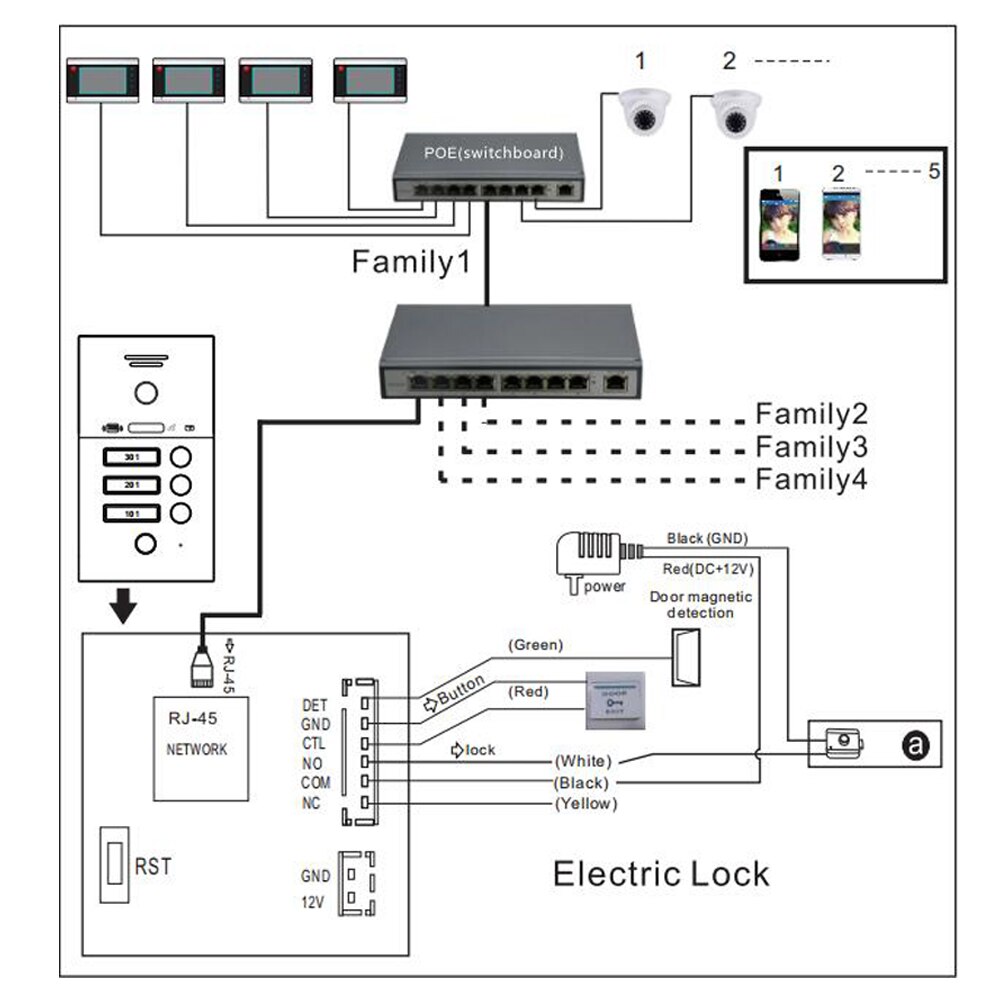

Wiring:

Free-Shipping-WIFI-IP-7-Touch-Screen-Video-Intercom-Door-Phone-Record-System-Phone-Remote-View

Please Notes:

The Cat5 Cable Is Not Included, You Need To Buy It Separately According To Your Needs

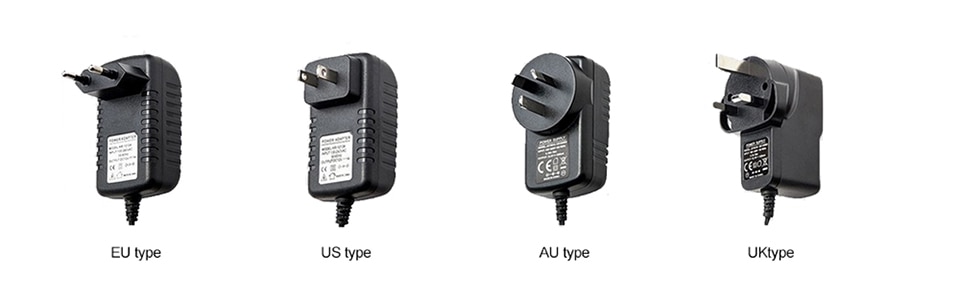

We Will Send Suitable Power Adapter To You According To Your Shipping Address.

706-201_31

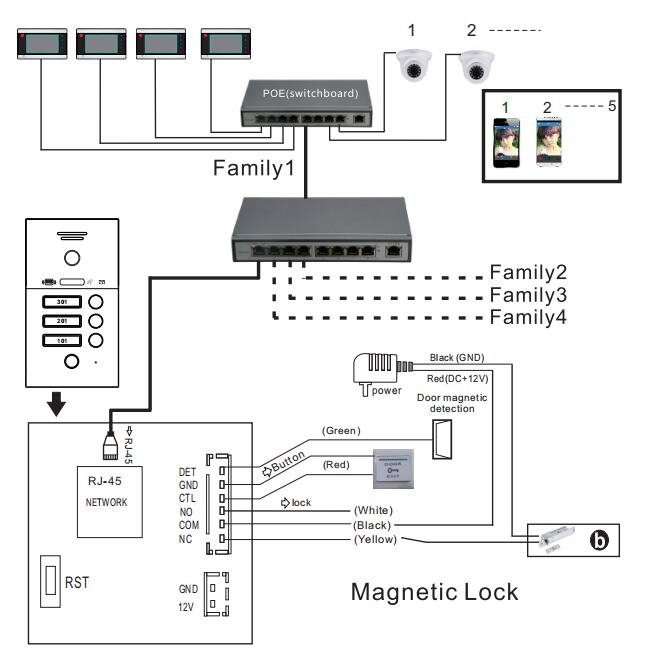

System Diagram

电子锁磁力锁




  • Model Number: P253-3FS1M714B3-87POE
  • Brand Name: homeeye
  • Certification: CE,RoHS
  • Origin: Mainland China
