CNC Non-HF Pilot Arc CUT55i CUT55X Digital Control Plasma Cutter Dual Voltage 110V/220V,Cutting machine Work with CNC table
ID: 13586

CNC Non-HF Pilot Arc CUT55i CUT55X Digital Control Plasma Cutter Dual Voltage 110V/220V,Cutting machine Work with CNC table

4.5 (23 votes) | 52 orders
Price:
US $ 1058.00 - 1098.00 / piece
Ships From

Sorry! This item is out of stock


Note:

1. The price for this machine is not include customer's local tax
2. Please read the words for the accessories and parameters before you place an order, Make sure it is what you want
3. Please contact us before you open a dispute or leave a negative feedback if you have any problem, We will try our best to help you.


Description:

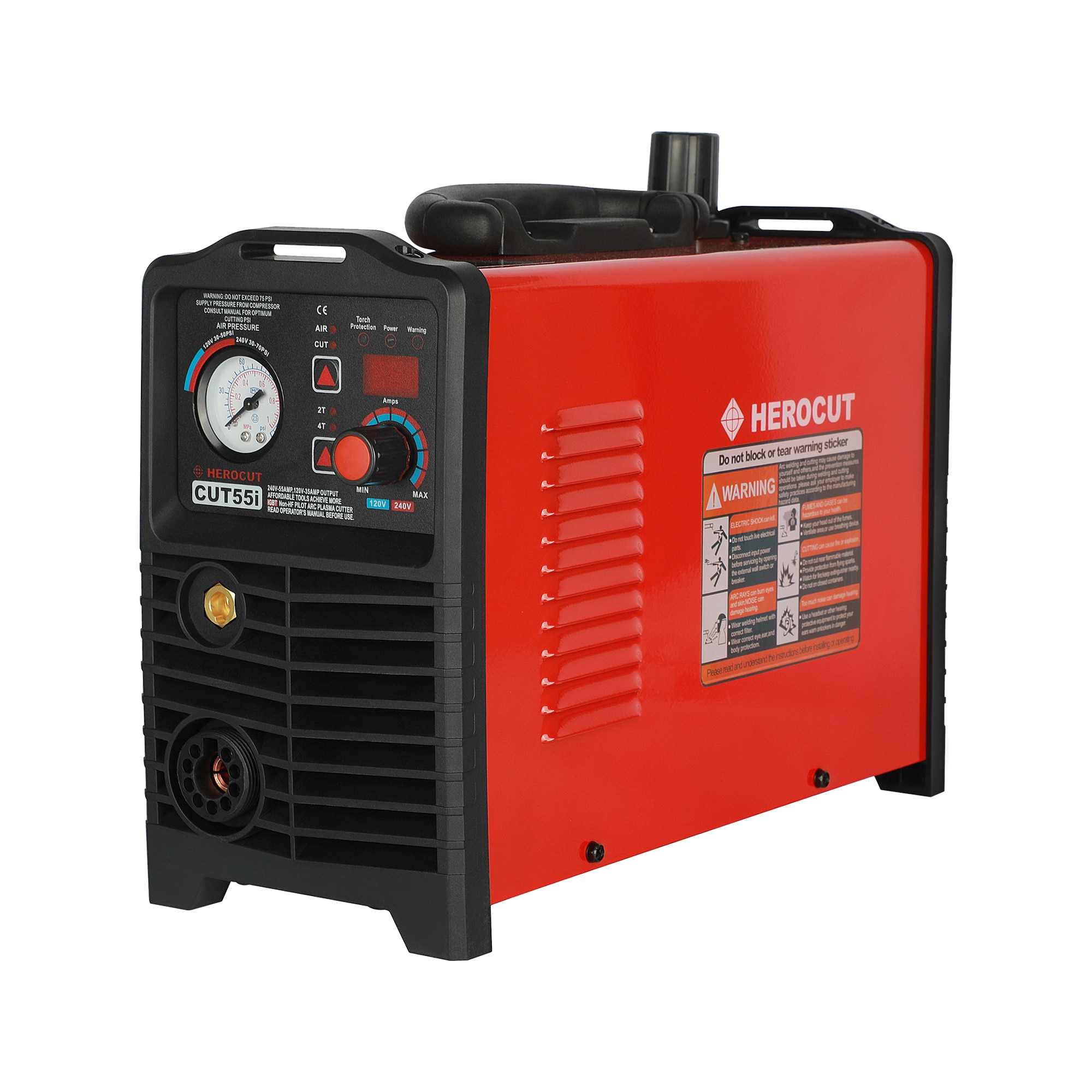

IGBTplasma cutting machine CUT55i/CUT55X is developed by HeroCut. Non-HF pilot arc, Small compact efficient IGBT base Digital controller. This machine is one of the most portable single phase inverter cutting machines on the market. With quality torch fixed safety plasma central plug, The fast connection quick to release torch and ground clamp. The machine is easy to operate in terms of settings, Machine comes with 2T/4T function, Air checks, Display show cutting amps help user adjust the current to cut different metal. Air pressure gauge can show air press help user adjust different air cut different thick metal. Cutting thickness for this machine is 3/4'' at 75 psi in good performance, Max cutting thickness can reach at 1'' if needed for a short run. Torch standoff and 2 set of consumables included.


  • Pilot Arc Non-HF & Non-Touch, 2T/4T function

  • Quality plasma torch fixed safety plug

  • Digital controller, Air pressure & Amps display

  • Dual voltage 110v / 220v;

  • Built in Regulator, Auto release water

  • Inverter 55Amps power supply, 60% Duty cycle at 55amps, 100% at 40amp

  • Good work with CNC system

  • The power plug in photo only supply for USA market, No power plug come with machine for other country.

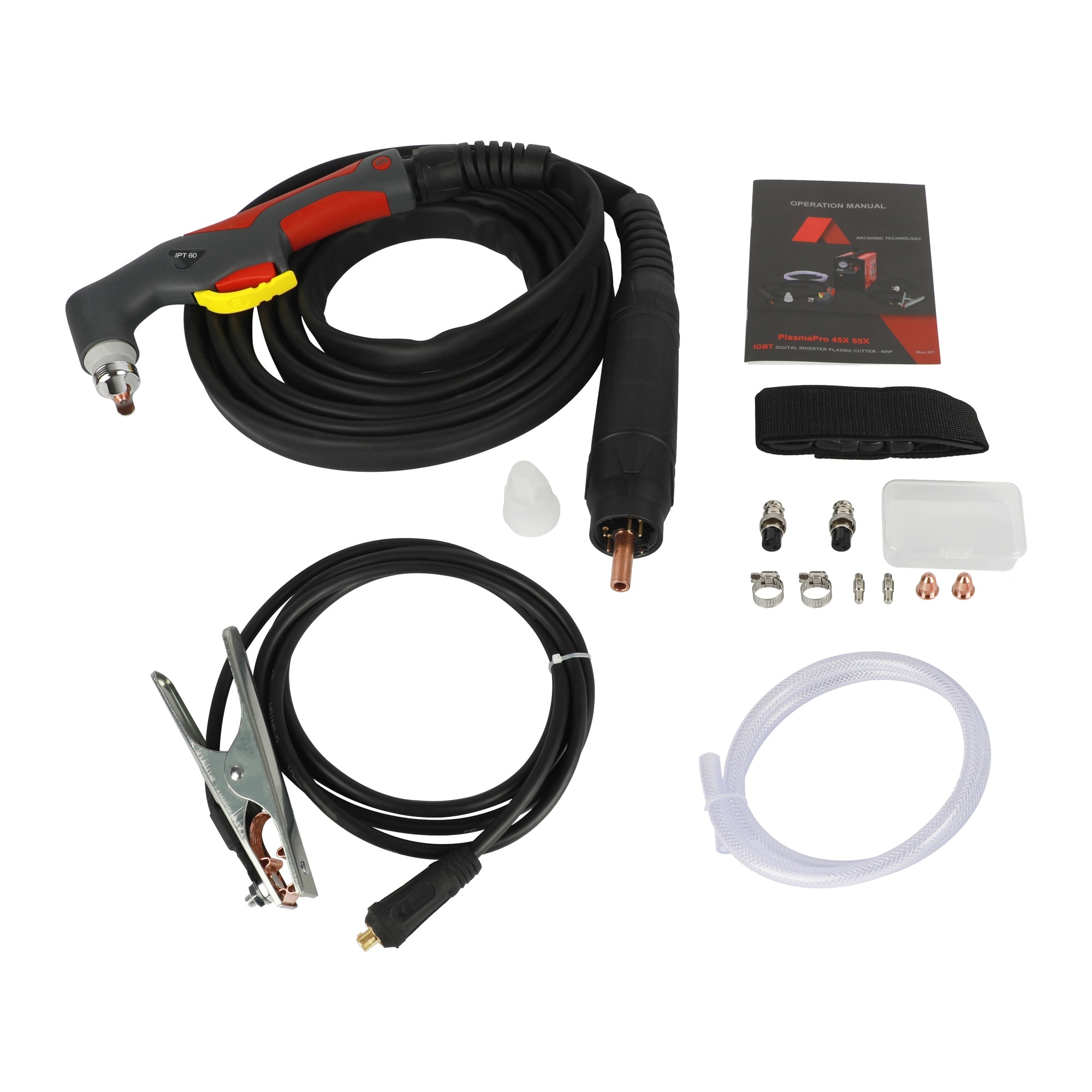

Accessories:

  • IPT60 Non HF Pilot Arc torch with 5 meters cable.

  • Earth clamp with 3 meters cable

  • 3 meters air hose

  • 2 tips & 2 electrode come with machine

  • 2 pcs hose clamp

  • Manual


Product information

Technical Details

Input power

110V / 220V +/- 10% 50/60 Hz

Package Dimensions

420 * 295 * 330 mm

Current

55Amps

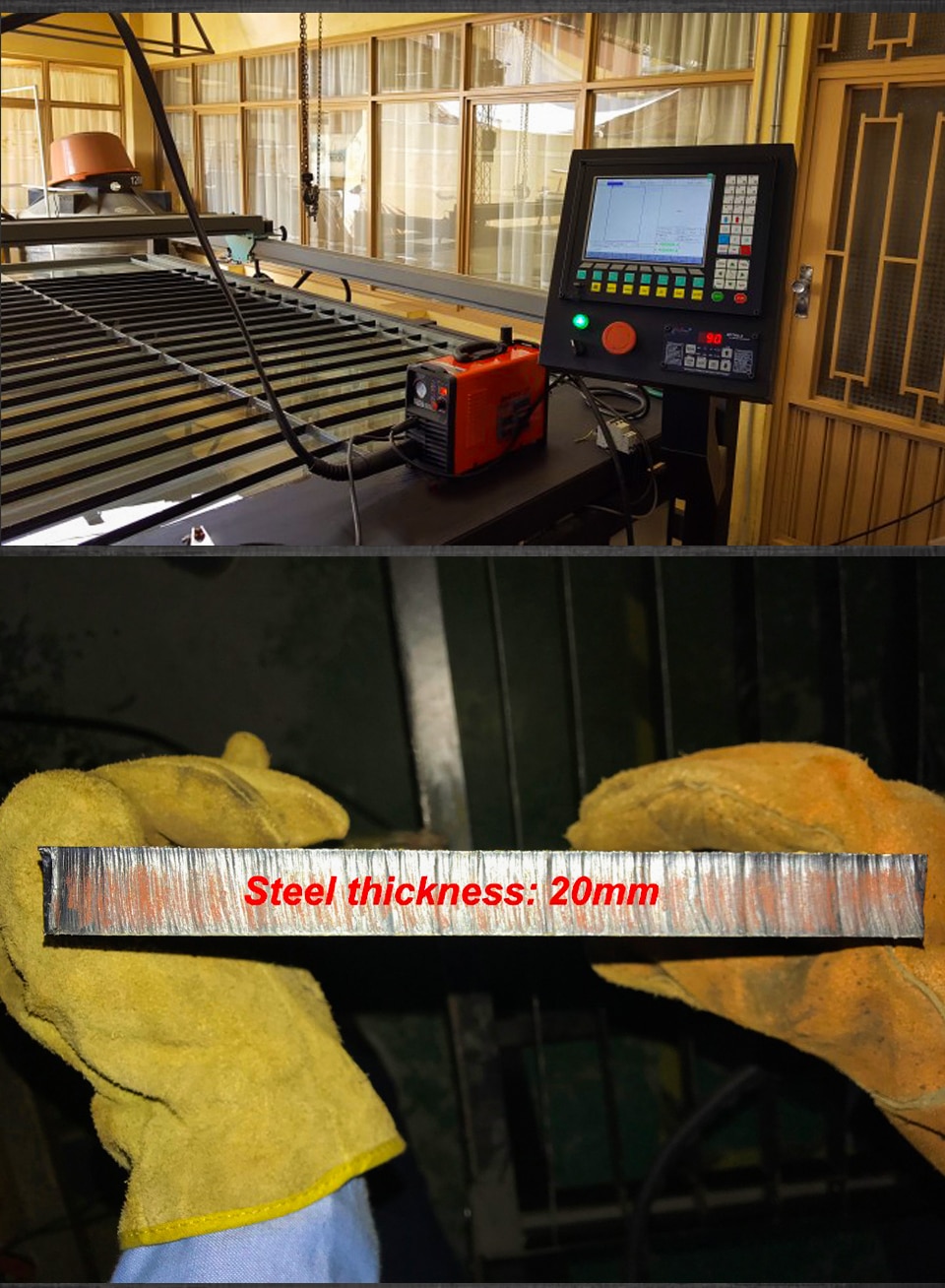

Cutting Thickness - clean cut

20mm @70 PSI

Max Cutting Thickness severance cut

25mm @ 70PSI

Cutting Speed ( 20mm metal )

120mm/min

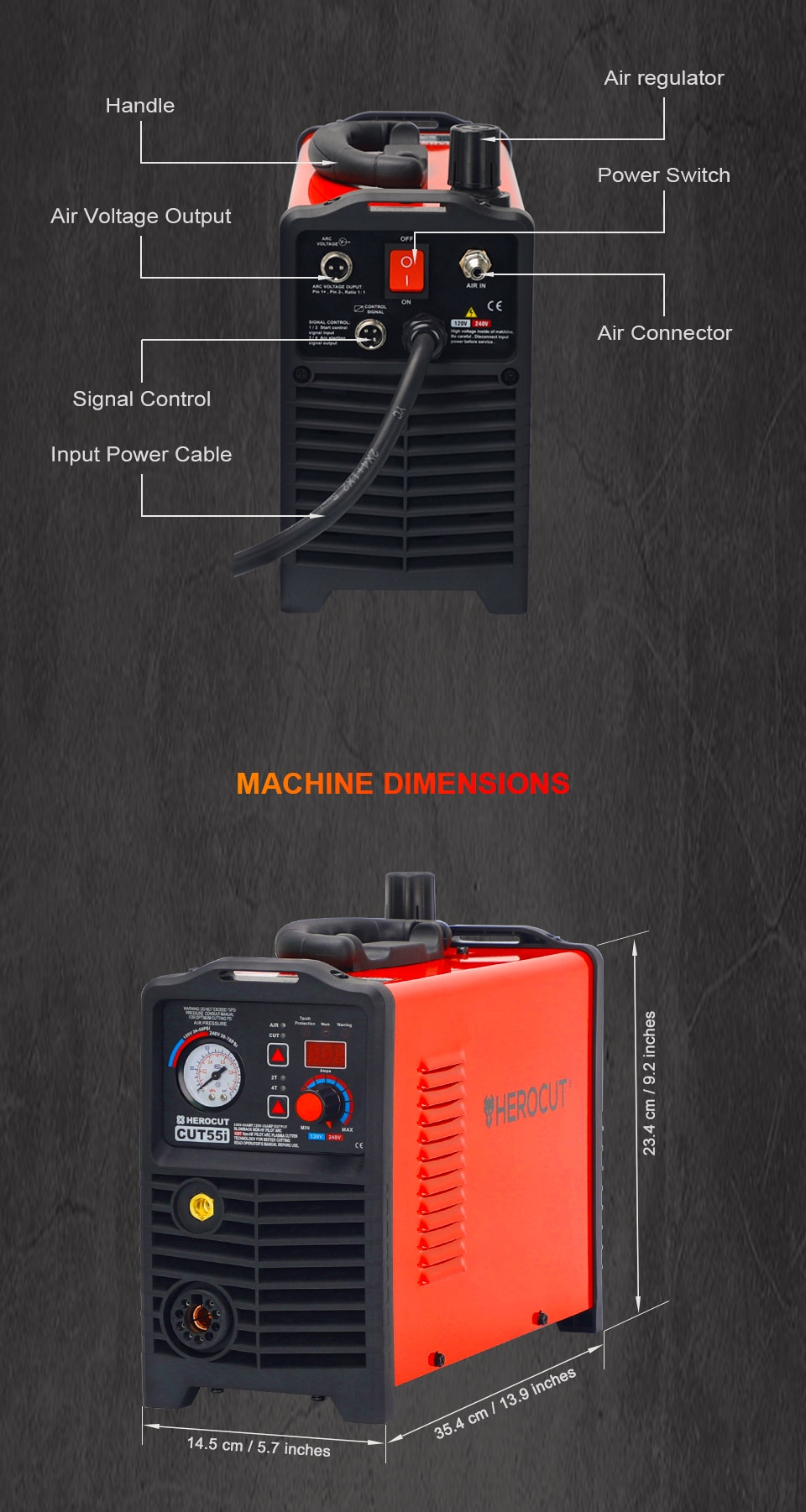

Machine size

352*144*279 mm

Duty cycle

100% @ 40Amps, 60% @55Amps


Additional Information

Cutting torch

IPT60  non HF plilot arc

Working

Non HF Pilot arc

Shipping Weight

9.5 kgs

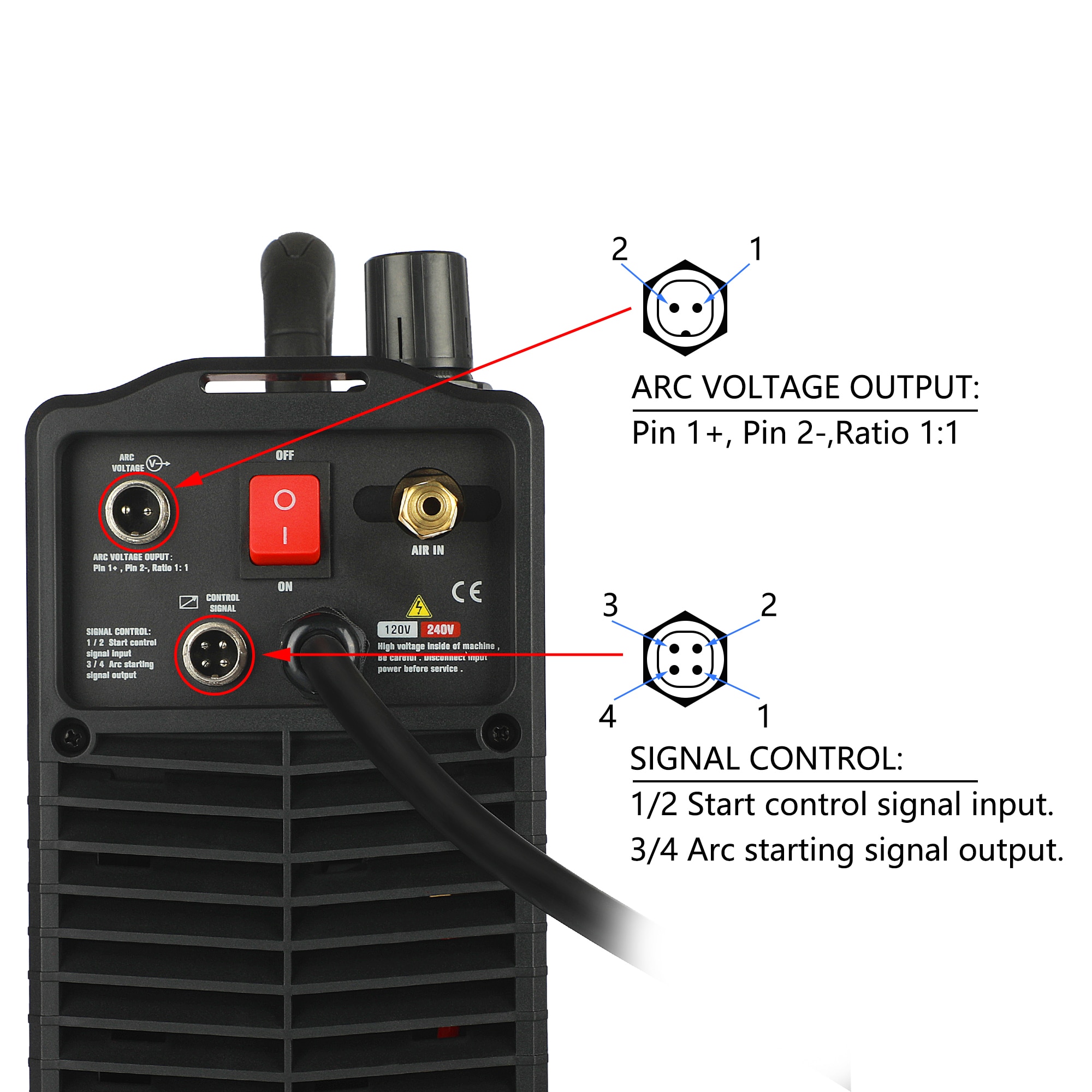

CNC system port

support


  • Brand Name: HeroCut
  • Origin: Mainland China
  • Model Number: CUT55i & CUT55X
  • Certification: CE
  • Is Smart Device: NO
  • Usage: Plasma cutting machine
  • Input Voltage: 110V/220V
  • Rated Current: 55A
  • Dimensions: 352*155*279 mm
  • Arc starting: Non HF Pilot arc
  • Clean Cutting Thickness: 20 mm @70PSI 220V
  • Air Pressure Range: 30-70 PSI
  • Cutting Thickness Severance: 25 mm @70PSI 220V
  • CNC port: Yes
  • Duty cycle: 40% @ 104 F
  • Pulse Frequency: 100Hz
  • Rated Duty Cycle: 60%
  • Pilot Arc Current: 14A
  • Cutting Speed ( 20mm metal ): 120mm/min
  • Torch: IPT60
