CNC HC8000 HC7000 HC6000 CUT80/70/60NP Non-HF Pilot Arc Digital Control Plasma Cutter 220V/380V Plasma Cutting Machine
5.0 (1 votes) | 10 orders
Price:
US $1398.00 - 1798.00
/ piece
Discount Price:
US $
1258.20 -
1618.20
/ piece
-10%
- Ships From
- Color
-
-
Sorry! This item is out of stock
Note:
1. We provide 2 years warranty for this model
2. The price for this machine is not include customer's local tax
3. Please read the words for the accessories and parameters before you place an order, Make sure it is what you want
4. Please contact us before you open a dispute or leave a negative feedback if you have any problem, We will try our best to help you.

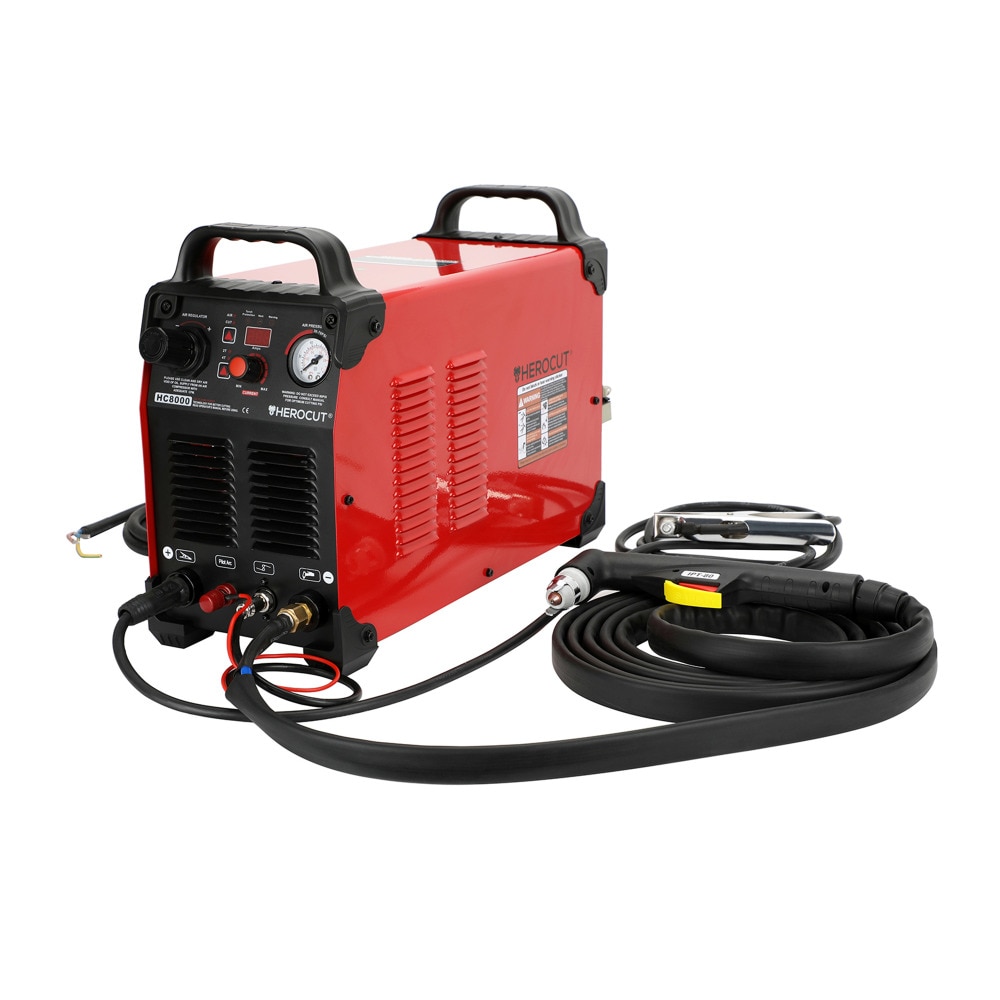

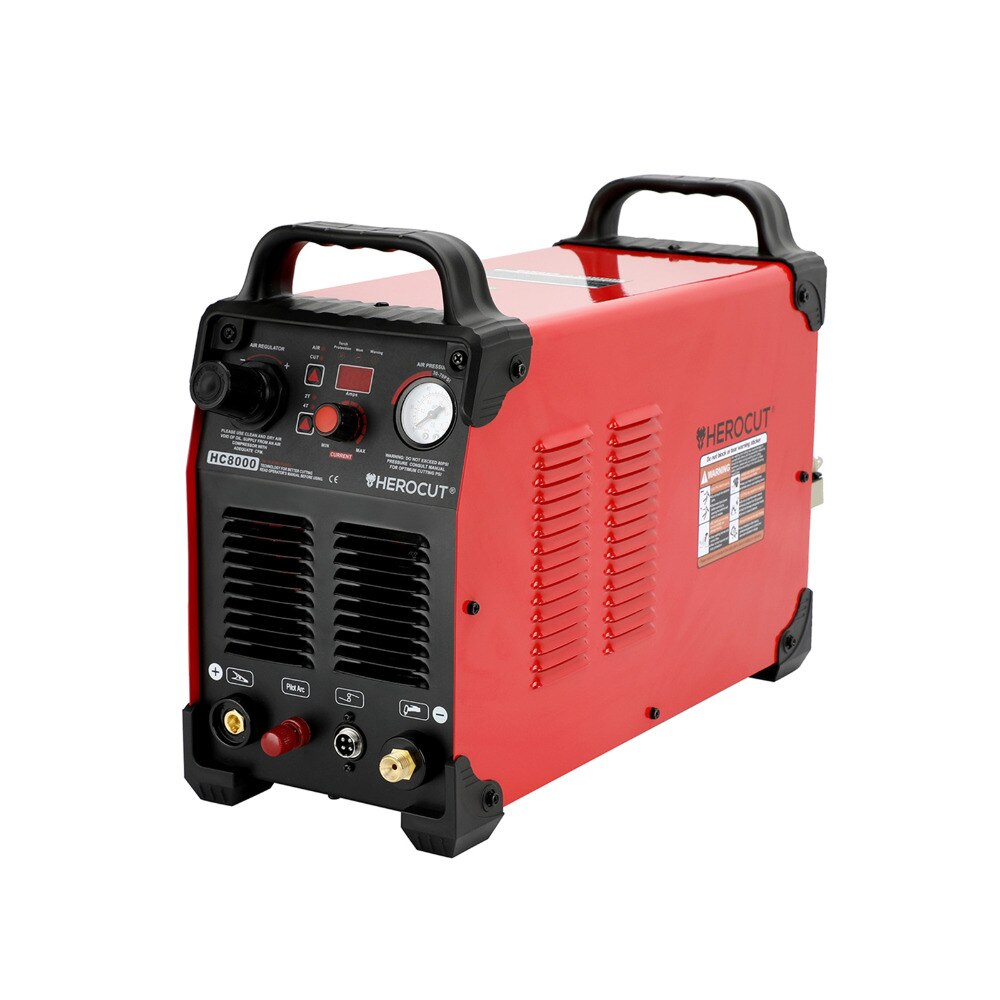

HC8000/CUT80NP Description:

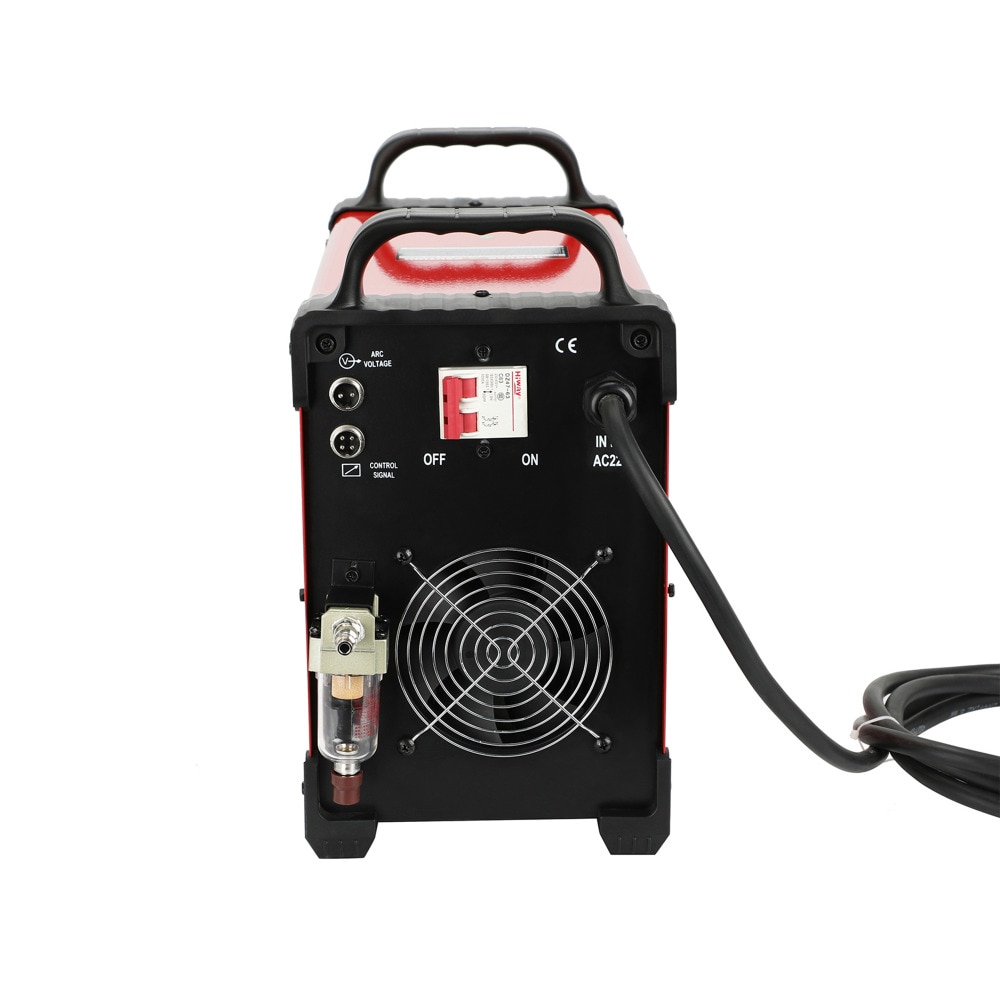

IGBT Plasma cutting machine HC8000 CUT80NP is developed by HeroCut, On rear of machine have CNC port, Can easy with CNC system. Non-HF pilot arc Heavy Duty efficient Digital controller. This machine is single phase inverter cutting machines on the market. With quality torch fixed safety plasma plug, The fast connection quick to release torch and ground clamp. The machine is easy to operate in terms of settings, Display show cutting amps help user adjust the current to cut different metal. Cutting thickness for this machine is 30mm at 70 psi with good performance, Max cutting thickness can reach at 35mm if needed for a short run. Torch standoff and 5 set of consumables included.
lIPT80 High quality plasma cutting torch.
lDigital display, Air pressure Display, 2T/4T, Air Check / Cutting function.
lInverter 80Amps power supply, 60% Duty cycle at 80amps, 100% at 70amp.
lIGBT Technology Non-HF Pilot Arc No Touch, With CNC port, Can easy with CNC system.

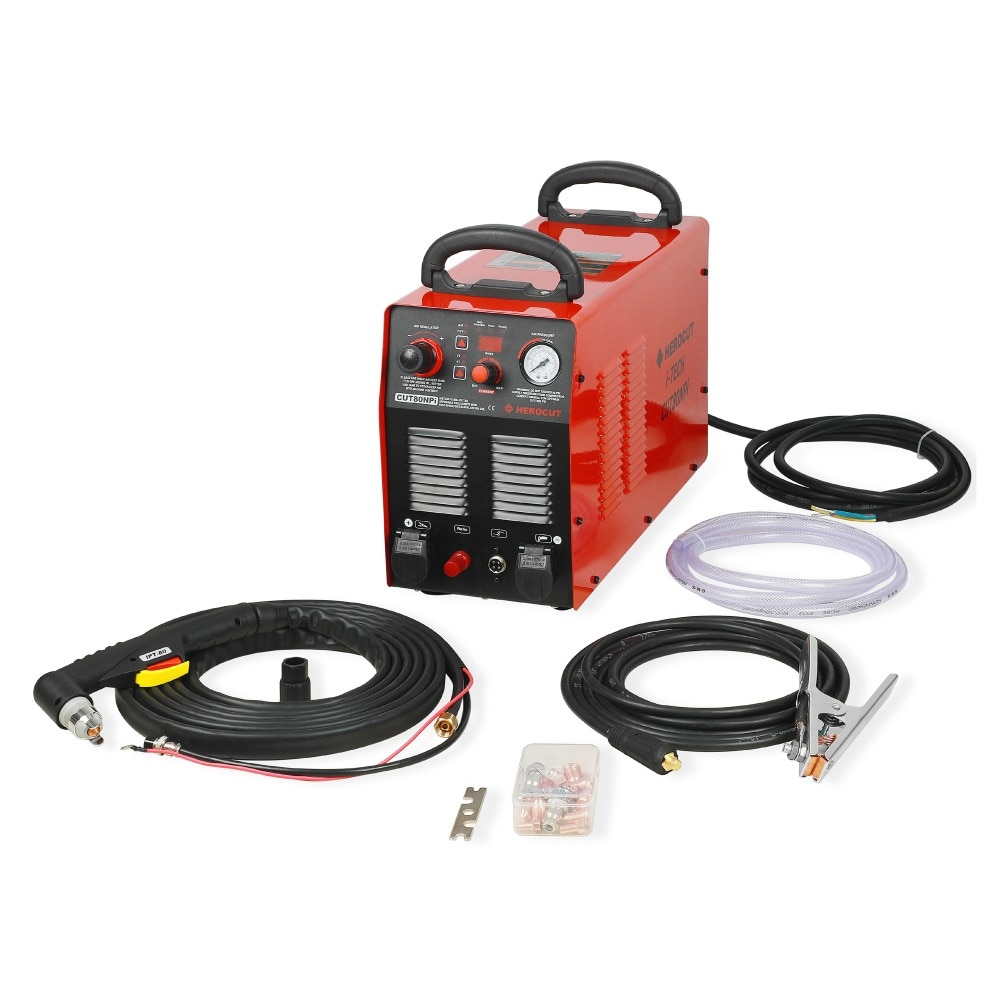

Accessories:
1.IPT80 Non-HF Pilot Arc Cutting torch with 5 meters cable
2.Earth clamp with 5 meters cable
3.2 meters air hose
4.2 pcs hose clamp
5.5 pcs #1.0 tips, 5 pcs #1.1 tips, 5 pcs electrodes
6.2 pcs CNC Female Connector
Technical Details:
Input power voltage | AC220 & 380V ±15% |
Rated input power capacity | 7.5 KVA |
Input voltage frequency | 50/60 HZ |
No-load voltage | 232V |
Output current range | 20-80 A |
Rated output voltage | 110 V |
Duty-cycle (35℃) | 60% |
No-load loss | 50 W |
Efficiency | 85% |
Power factor | 0.75 cosφ |
Insulation class | B |
Arc-starting | Non-HF Pilot arc |
Protection class | IP21S |
Size | 630*350*450 mm |
Max.Cutting thickness | 30 mm |
Weight | 18 KGS |
Air flow | 0.17 m3/m |
HC7000/CUT70NP Description:
IGBT Plasma cutting machine HC7000/CUT70GP is developed by HeroCut, On rear of machine have CNC port, Can easy with CNC system. Non-HF pilot arc Heavy Duty efficient Digital controller. This machine is single phase inverter cutting machines on the market. With quality torch fixed safety plasma plug, The fast connection quick to release torch and ground clamp. The machine is easy to operate in terms of settings, Display show cutting amps help user adjust the current to cut different metal. Cutting thickness for this machine is 23mm at 70 psi with good performance, Max cutting thickness can reach at 25mm if needed for a short run. Torch standoff and 5 set of consumables included.
lIPT60 High quality plasma cutting torch.
lDigital display, Air pressure Display, 2T/4T, Air Check / Cutting function.
lInverter 70Amps power supply, 60% Duty cycle at 70amps, 100% at 60amp.
lIGBT Technology Non-HF Pilot Arc No Touch, With CNC port, Can easy with CNC system..
Accessories:
1.IPT60 Non-HF Pilot Arc Cutting torch with 5 meters cable
2.Earth clamp with 5 meters cable
3.2 meters air hose
4.2 pcs hose clamp
5.5 pcs tips, 5 pcs electrodes
6.2 pcs CNC Female Connector
Technical Details：
Input power voltage | AC220V±15% |
Rated input power capacity | 7 KVA |
Input voltage frequency | 50/60 Hz |
No-load voltage | 232 V |
Output current range | 20-70 A |
Rated output voltage | 110 V |
Duty-cycle (35℃) | 60% |
No-load loss | 50 W |
Efficiency | 85% |
Power factor | 0.75 cosφ |
Insulation class | B |
Arc-starting | Non-HF Pilot arc |
Protection class | IP21S |
Size | 630*350*450 mm |
Max.Cutting thickness | 25 mm |
Weight | 18 KGS |
Air flow | 0.17 m3/m |

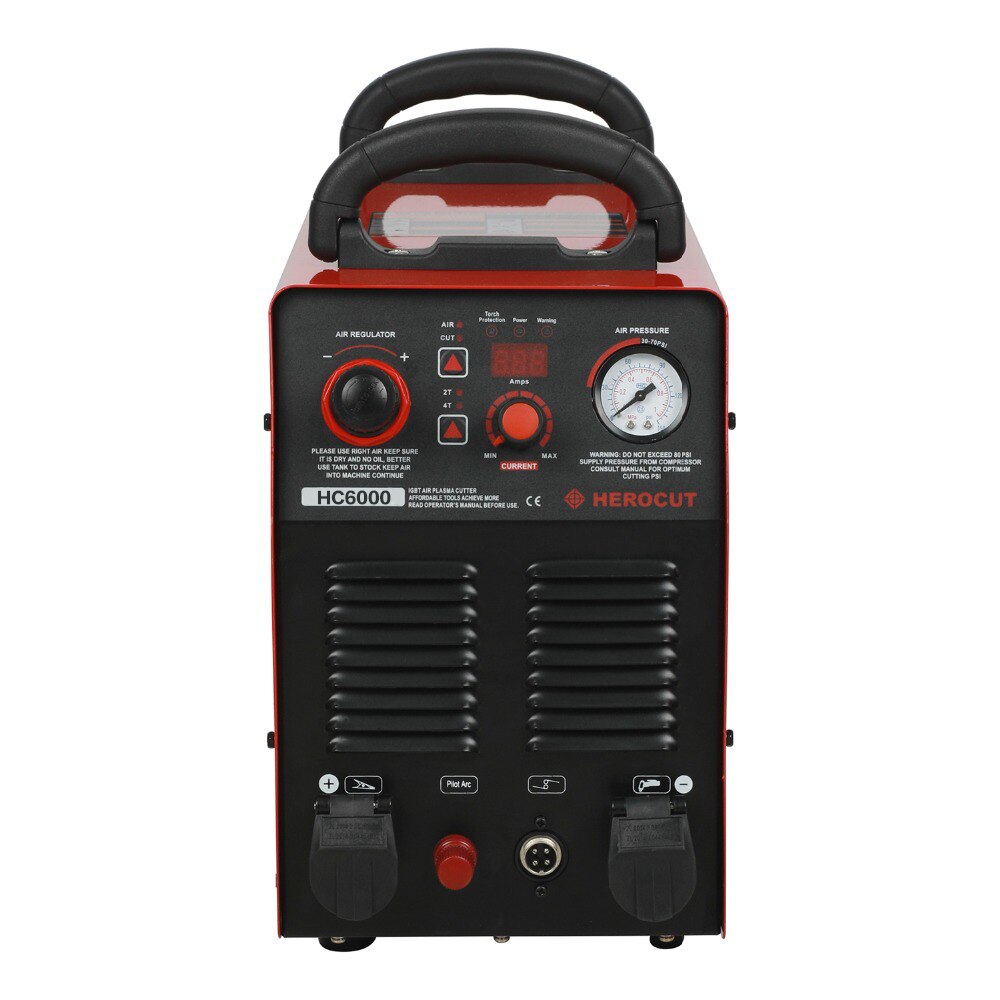

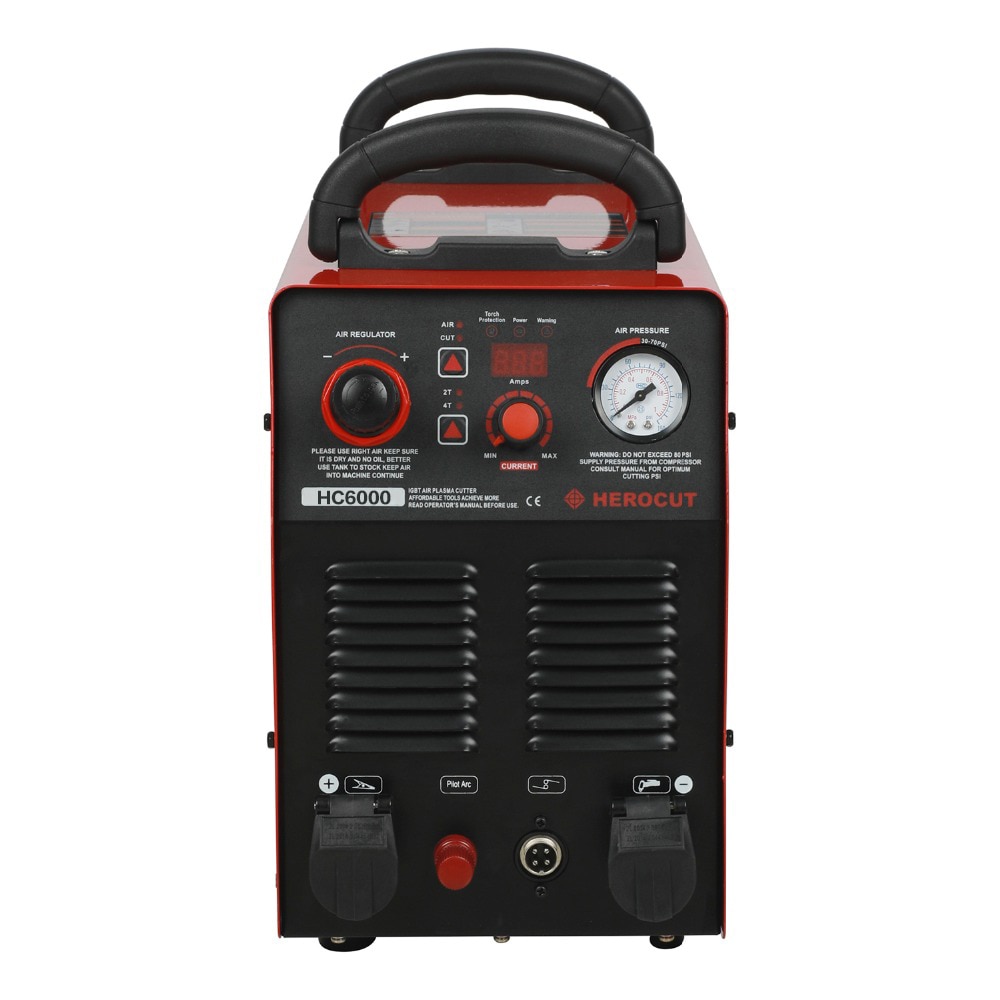

HC6000/CUT60NP Description:
IGBT Plasma cutting machine HC6000/CUT60NP is developed by HeroCut. On rear of machine have CNC port, Can easy with CNC system. Non-HF pilot arc Heavy Duty efficient Digital controller. Blow back Non-HF pilot arc Small compact efficient Digital controller. This machine is one of the most portable single phase inverter cutting machines on the market. With quality torch fixed safety plasma plug, The fast connection quick to release torch and ground clamp. The machine is easy to operate in terms of settings, Display show cutting amps help user adjust the current to cut different metal. Cutting thickness for this machine is 20mm at 70 psi in good performance, Max cutting thickness can reach at 25mm if needed for a short run. Torch standoff and 2 set of consumables included.
lIPT60 High quality plasma cutting torch.
lDigital display, Air pressure Display, 2T/4T, Air Check / Cutting function.
lInverter 60Amps power supply, 60% Duty cycle at 60amps, 100% at 50amp.
lIGBT Technology Non-HF Pilot Arc No Touch, With CNC port, Can easy with CNC system..
Accessories:
1.IPT60 Non-HF Pilot Arc Cutting torch with 5 meters cable
2.Earth clamp with 3 meters cable
3.2 meters air hose
4.2 pcs hose clamp
5.5 pcs tips, 5 pcs electrodes
6.2 pcs CNC Female Connector
Technical Details:
Input power voltage | AC220V ±15% |
Rated input power capacity | 7 KVA |
Input voltage frequency | 50/60 Hz |
No-load voltage | 232 V |
Output current range | 20-60 A |
Rated output voltage | 110 V |
Duty-cycle (35℃) | 60% |
No-load loss | 50 W |
Efficiency | 85% |
Power factor | 0.75 cosφ |
Insulation class | B |
Arc-starting | Non-HF Pilot arc |
Protection class | IP21S |
Size | 630*350*450 mm |
Max.Cutting thickness | 25 mm |
Weight | 17 KGS |
Air flow | 0.17 m3/m |
- Brand Name: HeroCut
- Origin: Mainland China
- Input Voltage: 220V/380V
- Rated Current: 60/70/80A
- Model Number: HC8000/HC7000/HC6000
- Certification: CE
- Usage: plasma cutting machine
- Dimensions: 630*350*450 mm
- Arc Starting: Non HF Pilot Arc
- Power Component: IGBT
- CNC Port: Support
- Max Cutting Thickness: 20-35mm @70PSI dry air
- Duty Cycle: 60% in 80Amps, 100% in 70Amps
- 2T/4T: Yes
- Earth clamp with cable: 4 meters
- Torch Length: 4 meters
