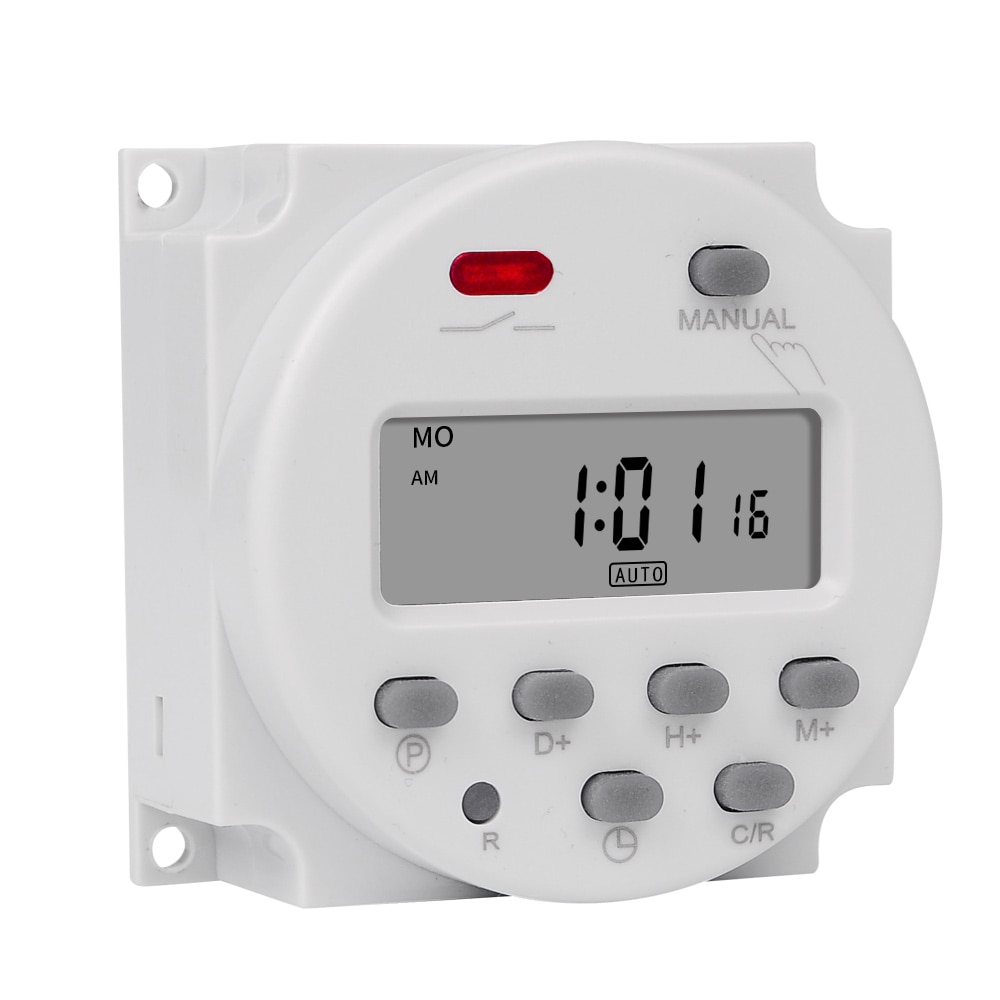

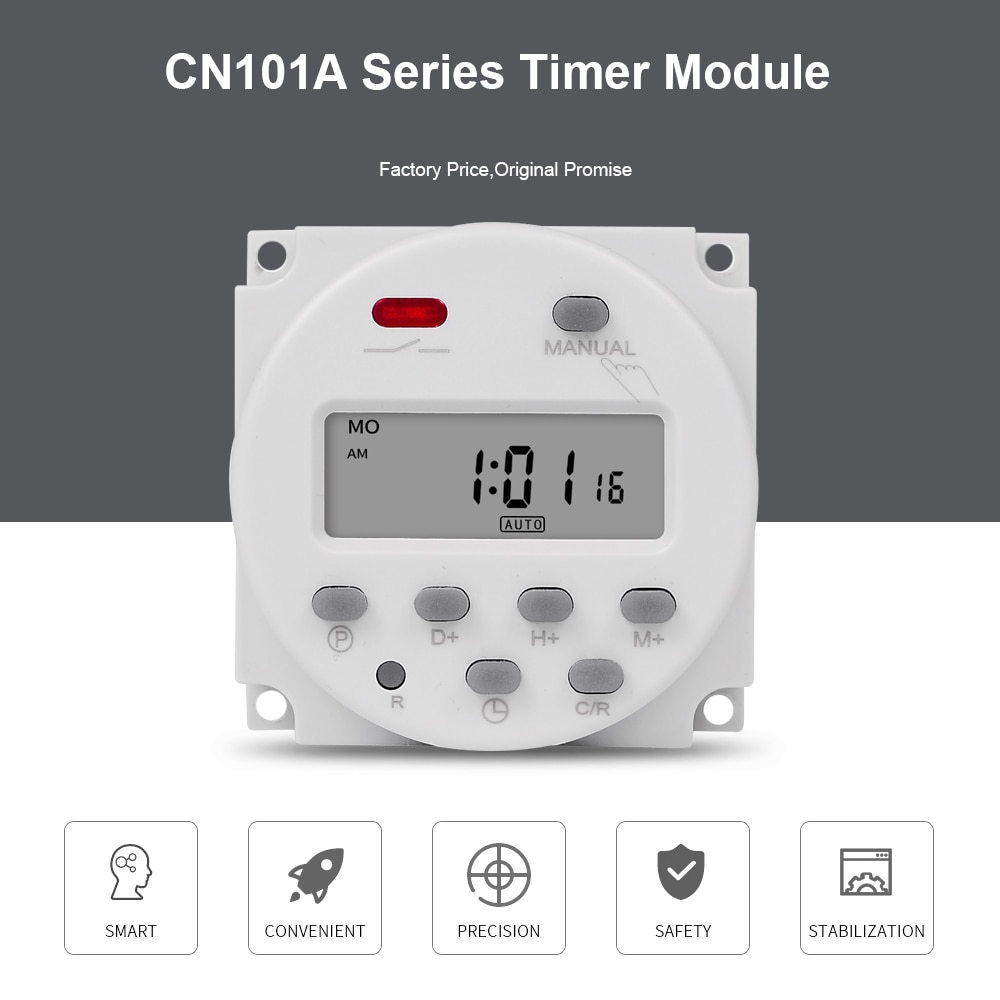

CN101A 5V 12V 24V 110V 220V Digital Timer Switch 7 Days Weekly Programmable Time Relay Programmer Built-in Rechargeable Battery

SALE

ID: 29152

CN101A 5V 12V 24V 110V 220V Digital Timer Switch 7 Days Weekly Programmable Time Relay Programmer Built-in Rechargeable Battery

4.8 (97 votes) | 275 orders

Price: ~~US $15.72 - 20.22 / piece~~

Discount Price:

US $ 14.63 - 18.41 / piece

-7%

Ships From

Color

Quantity

Buy Now

Add to Cart

Note:

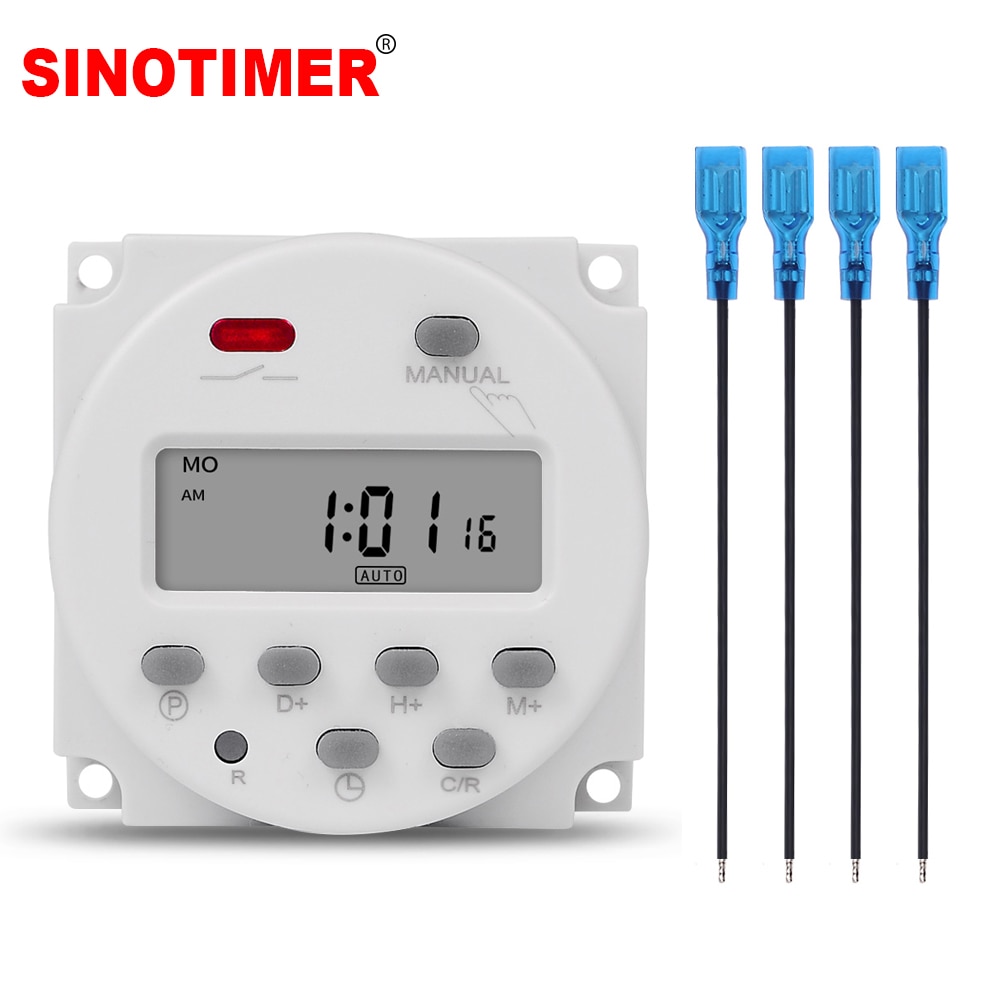

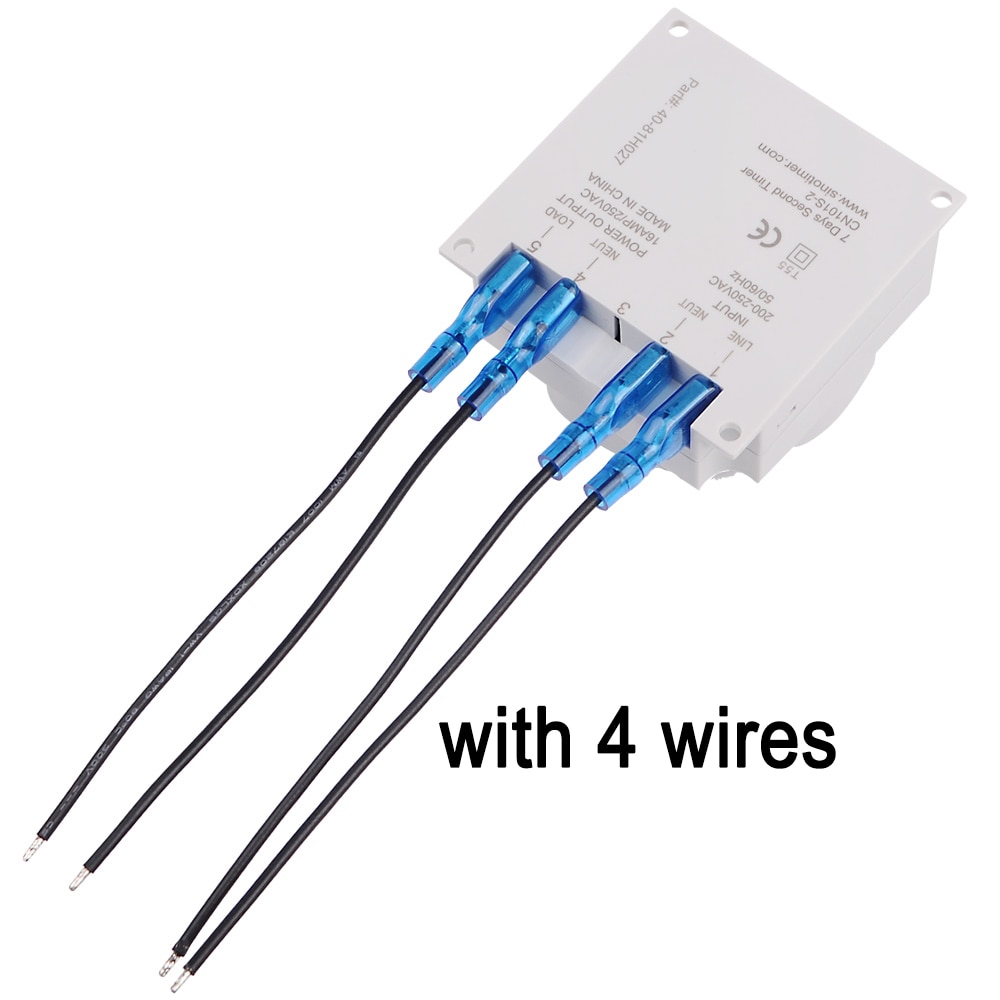

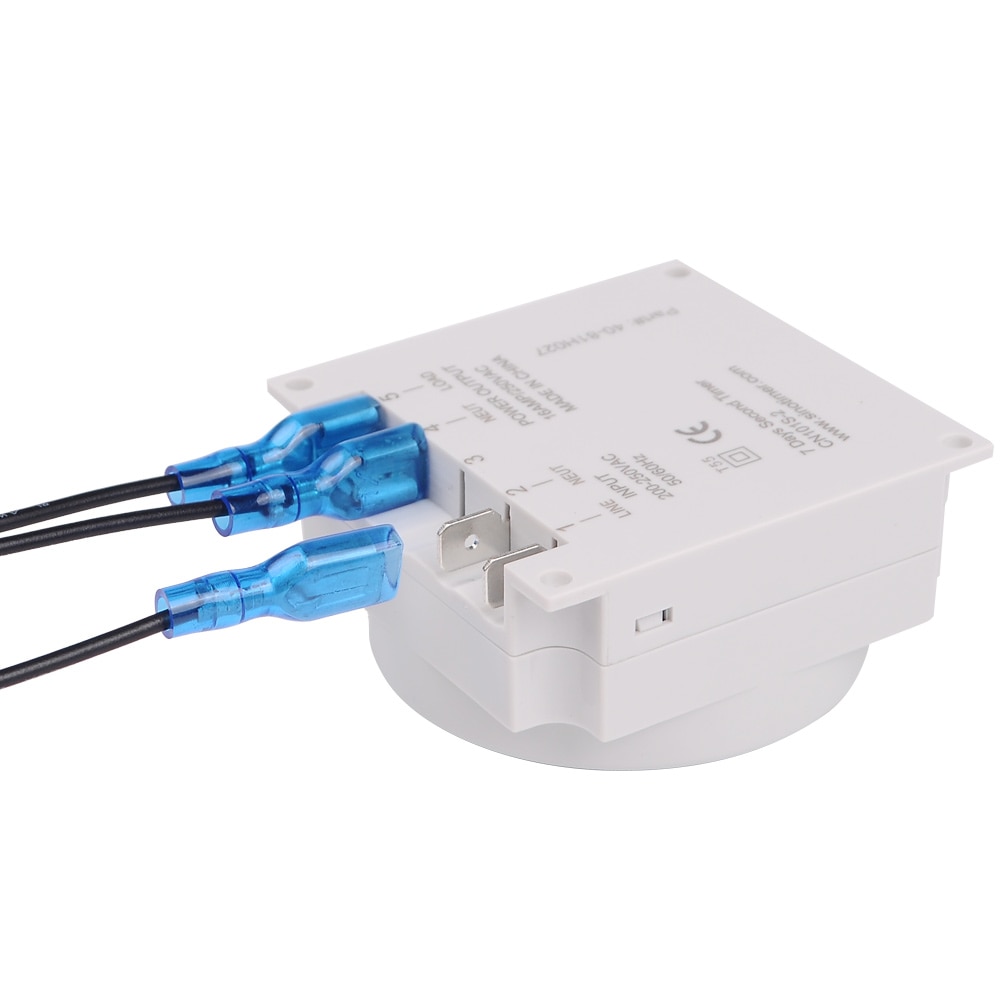

If you choose the color "with 4 wires",there will be a timer and 4 wires in the package.

If you choose the color "without 4 wires",there will be a timer but without wires.

Functions:

1.Clock display(12hr/24hr format)

2.Timer

3.Countdown

Features:

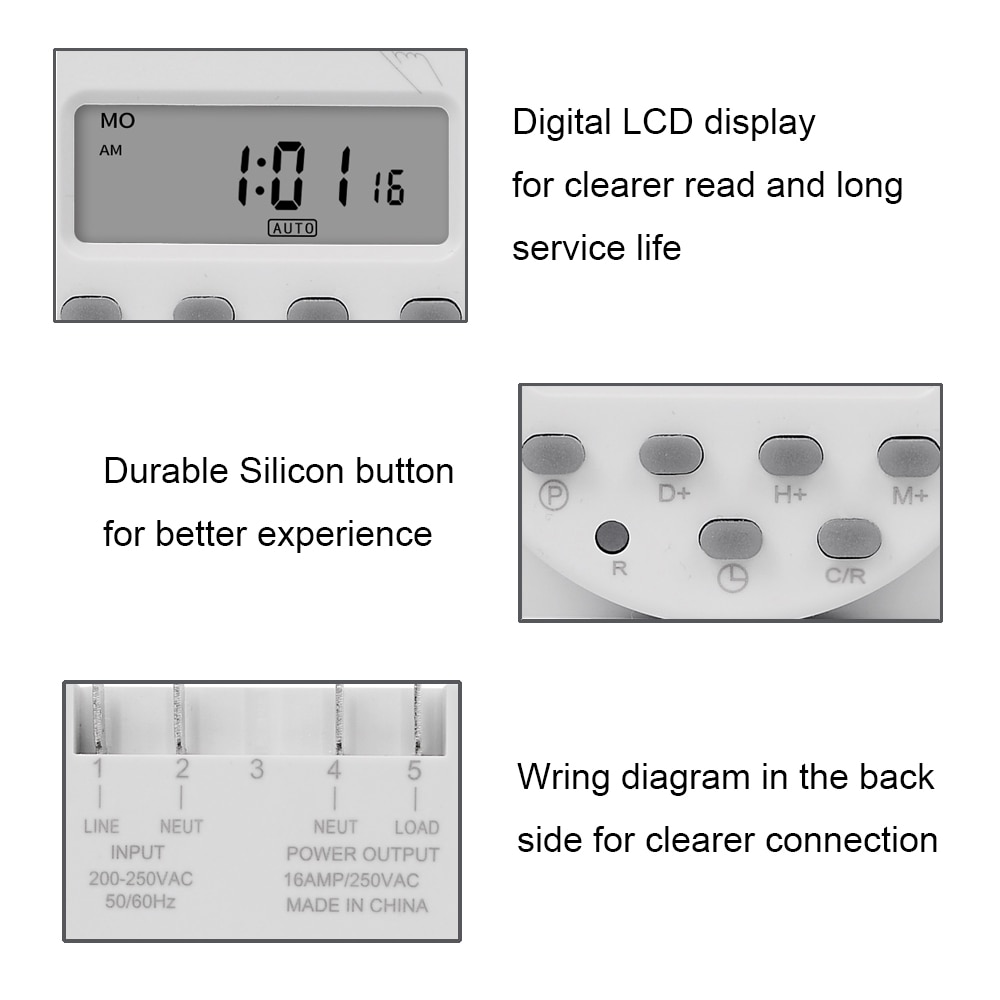

1.Easy to read LCD display, LED indicators.

2.16 ON/OFF programs per day, 15 combinations to a week.

3.24 hours / 7 days a week programmable.

4.Countdown function. Max 24 hours countdown to OFF.

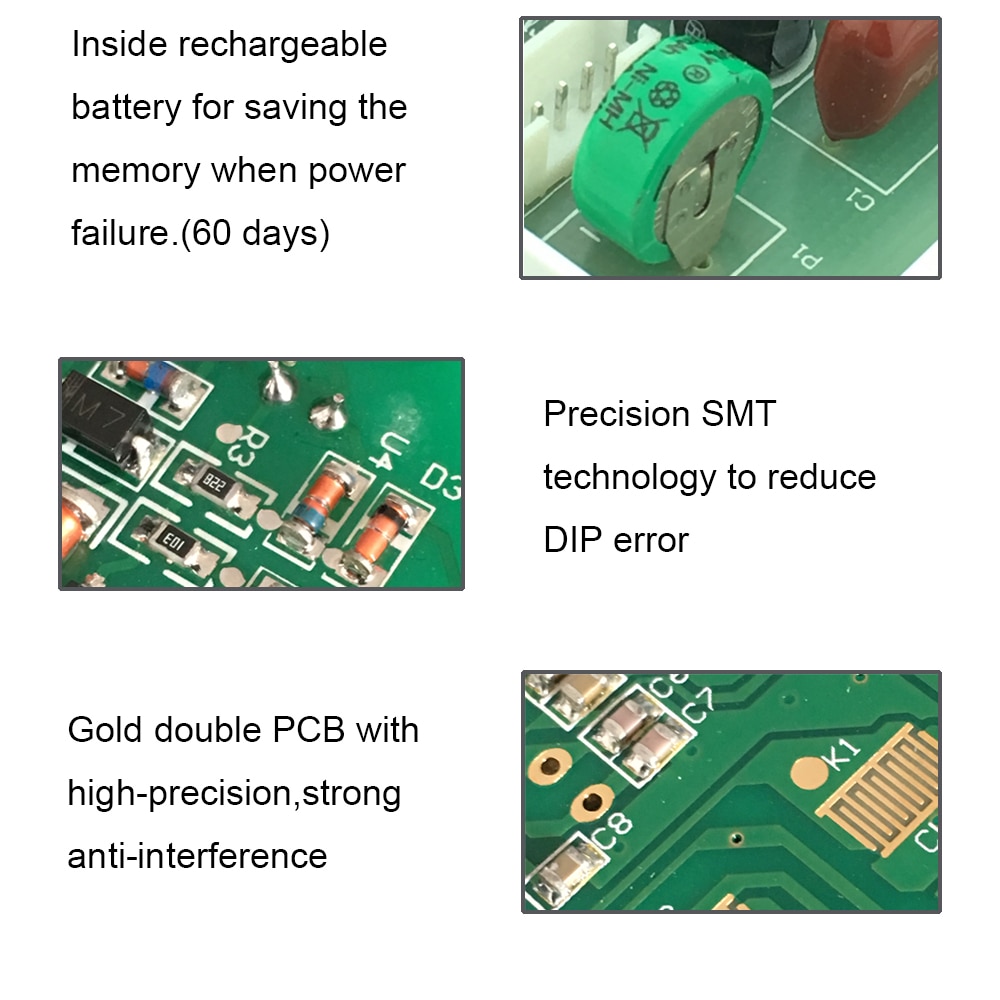

5.Built-in rechargeable battery for backup the memory (save the programs you set)when power failure.

6.Repeat programs with 16 on/off settings, and setting on/off manually.

7.Ideal for household use in pannel mounted.

Brand	SINOTIMER
Model number	CN101A
Power supply	5V,12V,24V,110V,220V 50/60Hz
Capacity	Resistive 16AMP,Inductive 8AMP
Min interval	1 minute
Timing range	1 minute to 168 hours
Setting groups	16 ON/OFF per day
Programs	15 Groups
Black-out	60 days
Power comsumption	<5VA
Average error	<± 2 sec/day
Battery type	1.2V,inside,rechargeable
Installation	Pannel/wall mounted

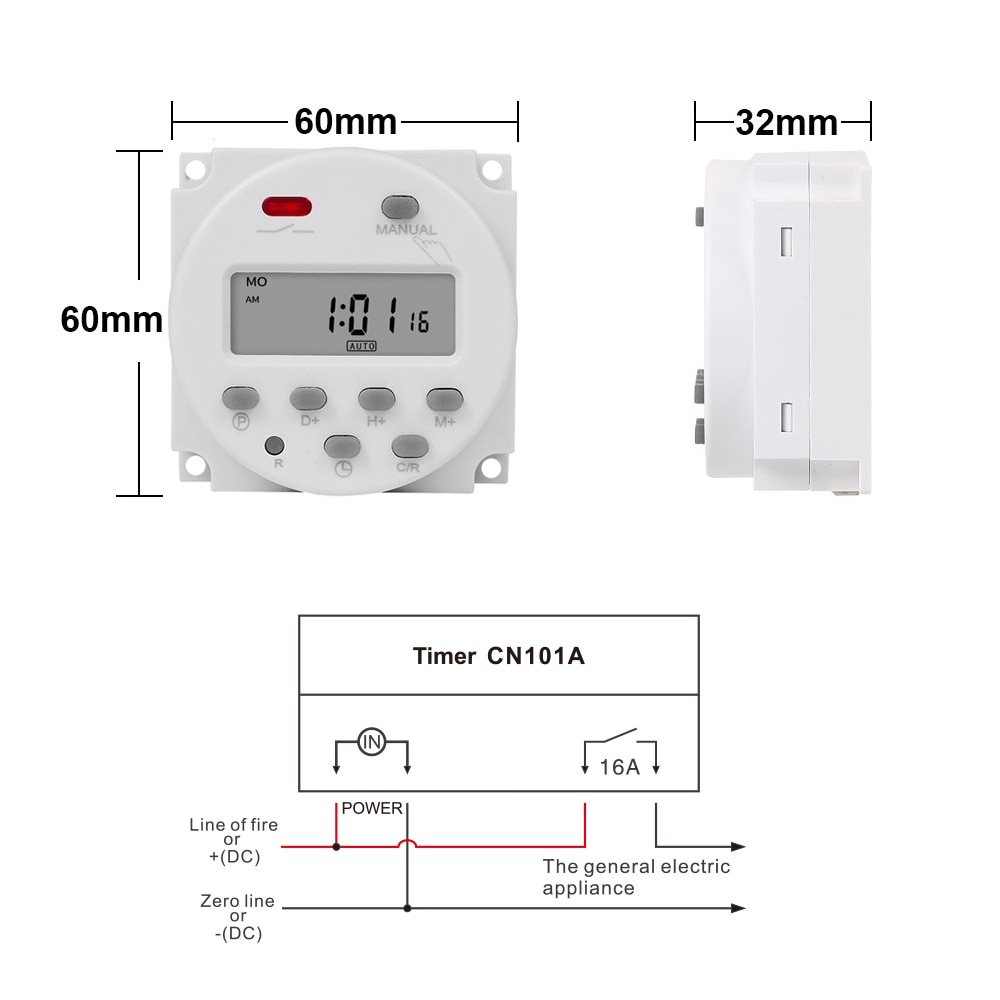

CN101A尺寸接线图

Package includes:

1* Timer Switch CN101A

1* Manual in Russian,Portuguese and English language

Note: The Instructions Manual is in Russian, Portuguese and English language.

1.Adjustment of the preset time

Steps	Operation	States
1	Press Clock and H+ together	Adjustment of the preset hour
2	Press Clock and M+ together	Adjustment of the preset minute
3	Press Clock and D+ together	Adjustment of the preset day

Hold S+ and M+ over 3 seconds ,it can shift from 24hr to 12hr format

2.Timer setting

Steps	Operation	States
1	Press P	Enter the 1st timer format (LCD displays 1ON)
2	Press H+ and M+ separately	Set 1st on time
3	Press D+	Set the days of 1 st on time,it can be set on same setting every day,different settings in a week.
4	Press P	LCD displays 1 OFF
5	Press H+ and M+ separately	Set 1st OFF time
6	Press D+	Set the day of 1st OFF day in a week
7	Repeat step 2-6	If necessary,it can set 2nd to 16 th ON/OFF
8	Press Clock	End

Cancel or recall the programs you set by pressing C/R button in programming status.

3.Countdown setting

Steps	Operation	States
1	Press Clock and P over 3 seconds together	Enter into countdown format
2	Press Clock and H+ or Clock and M+	Set the time value of countdown,the max setting range is 23hrs 59 mins
3	Press Manual	Start to countdown
4	Press P	Stop countdown,then back to the presetting countdown time,timer keeps OFF state.
5	Press Clock and P over 3seconds together at the window of countdown	Exit the countdown,back to clock format

why choose SINOTIMER(1)

1.SINOTIMER is not only an amazing brand since 2002 but  a symbol of power saver.

2.Full range of timer choice,best seller in Europe,USA,Brazil etc.

3.Easy program,everyone can program it after reading the manual JUST one time.

4.Stable performance because of professional manufacturing in power saver since 2002.

5.Confirm to CE RoHS standard,and with LVD,EMC certificate passed.

1.We will send your order within several days,please do not worry.

2.We will arrange the shipment according to your note.If you want to choose other logistics,please contact us ASAP.

3.Hogaki Saver Shipping and China Post Ordinary Air Mail,the TWO logistics canrsquot be tracked.Please pay attention on it.

4.If you do not receive your purchase within 60 days, you can ask for a full refund before order completion.

5.The shipping cost does not include any import taxes,buyers are responsible for customs duties.

6.If you have any question,please don’t hesitate to contact us.



If you are satisfied with our products,kindly leave your 5-STARS feedback and useful comments.Your feedback is very improtant for our store and other customers.

If you are not satisfied with our products kindly contact us before leaving negative feedback or opening a dispute.We will try our best to solve any problem for you.

Usage: Timer Switch
Theory: Digital
Model Number: CN101A
Type: Mini
Brand Name: SINOTIMER
Origin: Mainland China
Usage: 7 Days Programmable
Programs: 16 ON/OFF per Day
Programming Combinations: 15 Groups
Power Supply: 5V,12V,24V,110V,220V
Load: 16A,1NO
Inside Battery: 1.2V
Dimensions: 60*60*32mm
Interval: 1 minute
Installation: Panel or Screw
Certificates: CE RoHS EMC LVD
