CN101A 12Vdc 220Vac Digital Timer Switch 7 Days Weekly Programmable Time Relay Programmer with 4 Spade Connecting Wires
4.5 (13 votes) | 53 orders
Price:
US $16.83 - 17.02
/ piece
Discount Price:
US $
14.63 -
18.41
/ piece
-13%
- Color
-
-
Note:
If you choose the color "with 4 wires",there will be a timer and 4 wires in the package.
If you choose the color "without 4 wires",there will be a timer but without wires.
Functions:1.Clock display(12hr/24hr format)2.Timer3.Countdown
Features:1.Easy to read LCD display, LED indicators.2.16 ON/OFF programs per day, 15 combinations to a week.3.24 hours / 7 days a week programmable.4.Countdown function. Max 24 hours countdown to OFF.5.Built-in rechargeable battery for backup the memory (save the programs you set)when power failure.6.Repeat programs with 16 on/off settings, and setting on/off manually.7.Ideal for household use in pannel mounted.

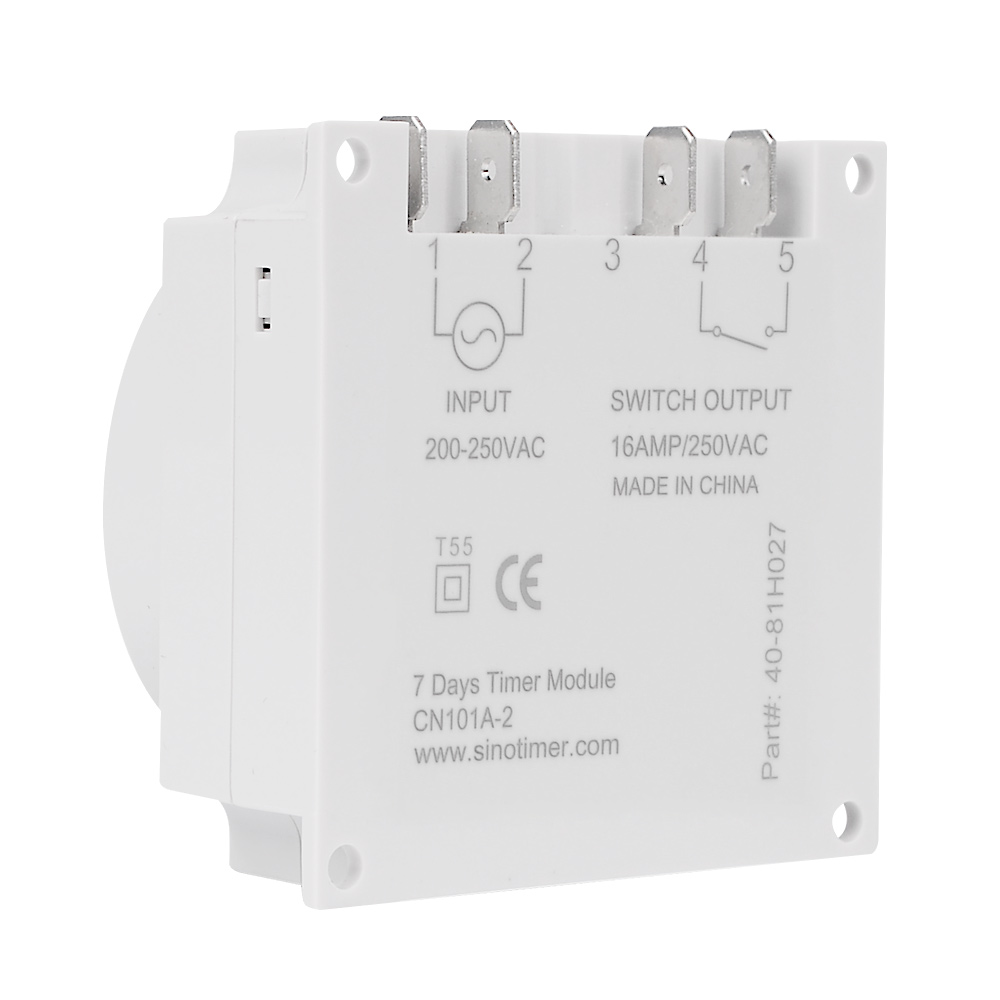

Brand | SINOTIMER |
Model number | CN101A |
Power supply | 5V,12V,24V,110V,220V 50/60Hz |
Capacity | Resistive 16AMP,Inductive 8AMP |
Min interval | 1 minute |
Timing range | 1 minute to 168 hours |
Setting groups | 16 ON/OFF per day |
Programs | 15 Groups |
Black-out | 60 days |
Power comsumption | <5VA |
Average error | <± 2 sec/day |
Battery type | 1.2V,inside,rechargeable |
Installation | Pannel/wall mounted |
Package includes:
1* Timer Switch CN101A1* Manual in Russian,Portuguese and English languageNote: The Instructions Manual is in Russian, Portuguese and English language.
1.Adjustment of the preset time
Steps | Operation | States |
1 | Press Clock and H+ together | Adjustment of the preset hour |
2 | Press Clock and M+ together | Adjustment of the preset minute |
3 | Press Clock and D+ together | Adjustment of the preset day |
Hold S+ and M+ over 3 seconds ,it can shift from 24hr to 12hr format
2.Timer setting
Steps | Operation | States |
1 | Press P | Enter the 1st timer format (LCD displays 1ON) |
2 | Press H+ and M+ separately | Set 1st on time |
3 | Press D+ | Set the days of 1 st on time,it can be set on same setting every day,different settings in a week. |
4 | Press P | LCD displays 1 OFF |
5 | Press H+ and M+ separately | Set 1st OFF time |
6 | Press D+ | Set the day of 1st OFF day in a week |
7 | Repeat step 2-6 | If necessary,it can set 2nd to 16 th ON/OFF |
8 | Press Clock | End |
Cancel or recall the programs you set by pressing C/R button in programming status.
3.Countdown setting
Steps | Operation | States |
1 | Press Clock and P over 3 seconds together | Enter into countdown format |
2 | Press Clock and H+ or Clock and M+ | Set the time value of countdown,the max setting range is 23hrs 59 mins |
3 | Press Manual | Start to countdown |
4 | Press P | Stop countdown,then back to the presetting countdown time,timer keeps OFF state. |
5 | Press Clock and P over 3seconds together at the window of countdown | Exit the countdown,back to clock format |
1.SINOTIMER is not only an amazing brand since 2002 but a symbol of power saver.2.Full range of timer choice,best seller in Europe,USA,Brazil etc.3.Easy program,everyone can program it after reading the manual JUST one time.4.Stable performance because of professional manufacturing in power saver since 2002.5.Confirm to CE RoHS standard,and with LVD,EMC certificate passed.
1.We will send your order within several days,please do not worry.2.We will arrange the shipment according to your note.If you want to choose other logistics,please contact us ASAP.3.Hogaki Saver Shipping and China Post Ordinary Air Mail,the TWO logistics canrsquot be tracked.Please pay attention on it.4.If you do not receive your purchase within 60 days, you can ask for a full refund before order completion.5.The shipping cost does not include any import taxes,buyers are responsible for customs duties. 6.If you have any question,please don’t hesitate to contact us.
If you are satisfied with our products,kindly leave your 5-STARS feedback and useful comments.Your feedback is very improtant for our store and other customers.If you are not satisfied with our products kindly contact us before leaving negative feedback or opening a dispute.We will try our best to solve any problem for you.
Packaging Details
- Unit Type: piece
- Package Weight: 0.100
- Package Size: 5x7x8
- Brand Name: SINOTIMER
- Battery Included: Yes
- Hign-concerned Chemical: None
- Origin: Mainland China
- Model Number: CN101A
- Theory: Digital
- Use: Timer Switch
- Type: Mini
- Usage: 7 Days Programmable
- Programs: 16 ON/OFF per Day
- Programming Combinations: 15 Groups
- Power Supply: 5V,12V,24V,110V,220V
- Load: 16A,1NO
- Inside Battery: 1.2V
- Dimensions: 60*60*32mm
- Interval: 1 minute
- Installation: Panel or Screw
- Certificates: CE RoHS EMC LVD
- Choice: yes
- semi_Choice: yes
