CE standard fiber laser cutter steel cutter fiber laser 500w 1000w 2000w

ID: 46479

CE standard fiber laser cutter steel cutter fiber laser 500w 1000w 2000w

0.0 ( votes)

Price:

US $ 29998.28 / Set

Quantity

Buy Now

Add to Cart

CE standard fiber laser cutter steel cutter fiber laser 500w 1000w 2000w

For more information, pls contact Bernice:

email: export03/at/linkcnc.com, wechat / whatsapp: +86 15562674307, skype: lingxiangcnc3

Product Description

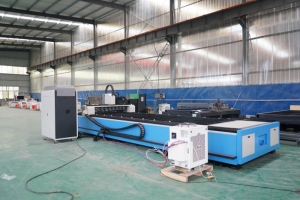

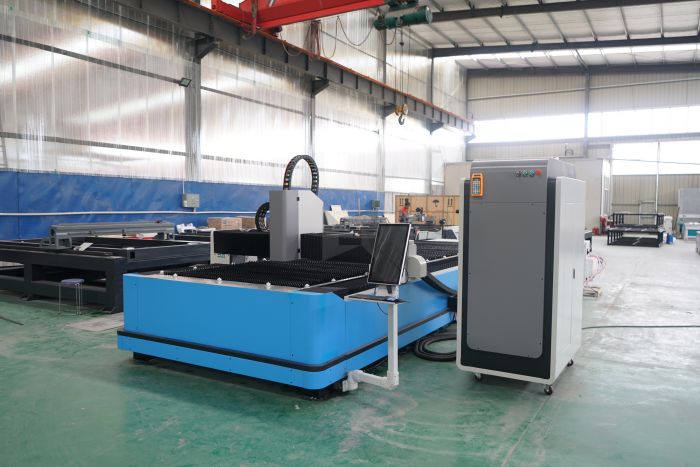

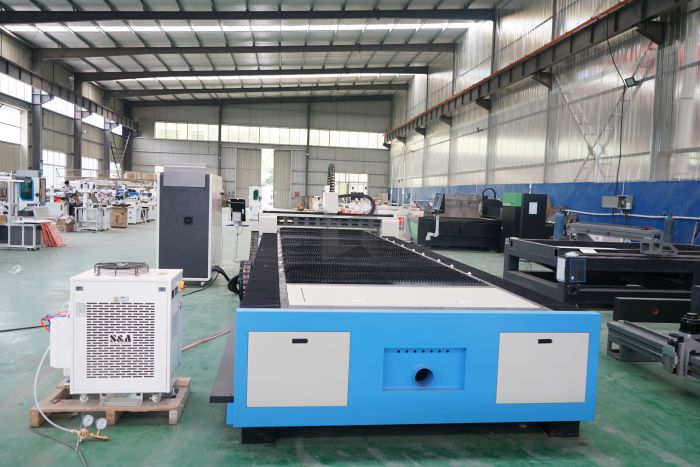

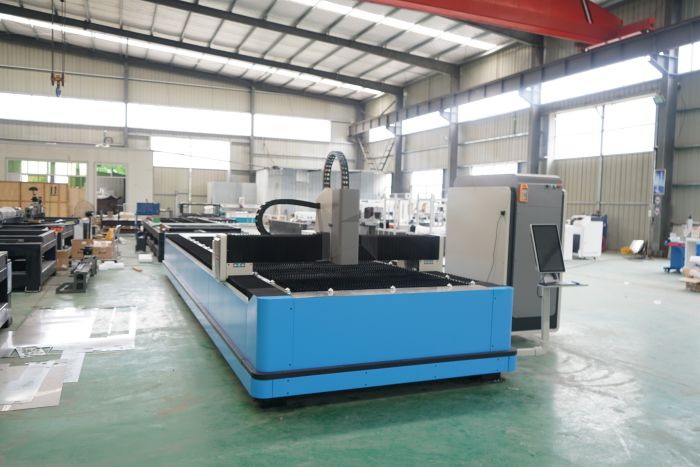

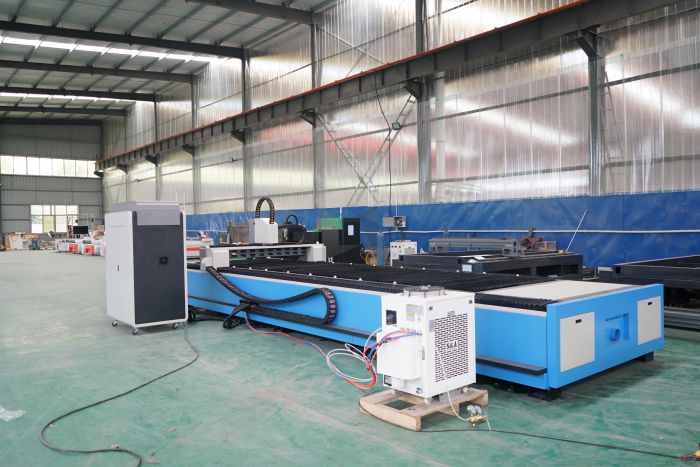

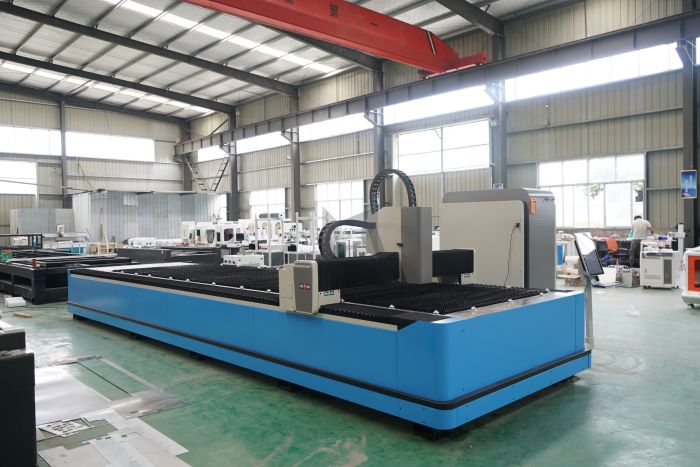

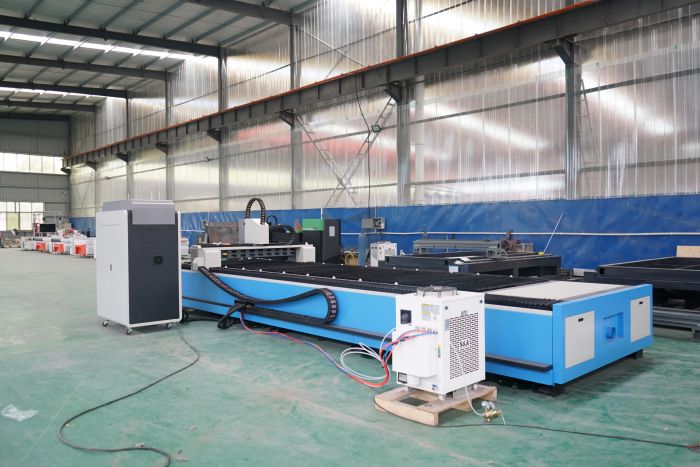

Machine real pictures in factory:

--More model for choose

Laser power:300w /500w /750w/1Kw /2Kw

Working area:1.3x2.5m,1.5x3m 2x4m 2x6m,etc.

Brief introduction:

LINKCNC LASER series fiber laser cutting machine integrates optical, mechanical and electrical in one,

which adopts laser technology, computer control technology and high-performance CNC laser power system

CYPCUT control system to process all kinds of metal sheet at high speed,high accurate,high

efficiently cutting. Its products have smooth edge,small kerf width and little heat effect.Cut the shape

of Circle, Triangle, Octagonal etc. on metal sheet or pipe.

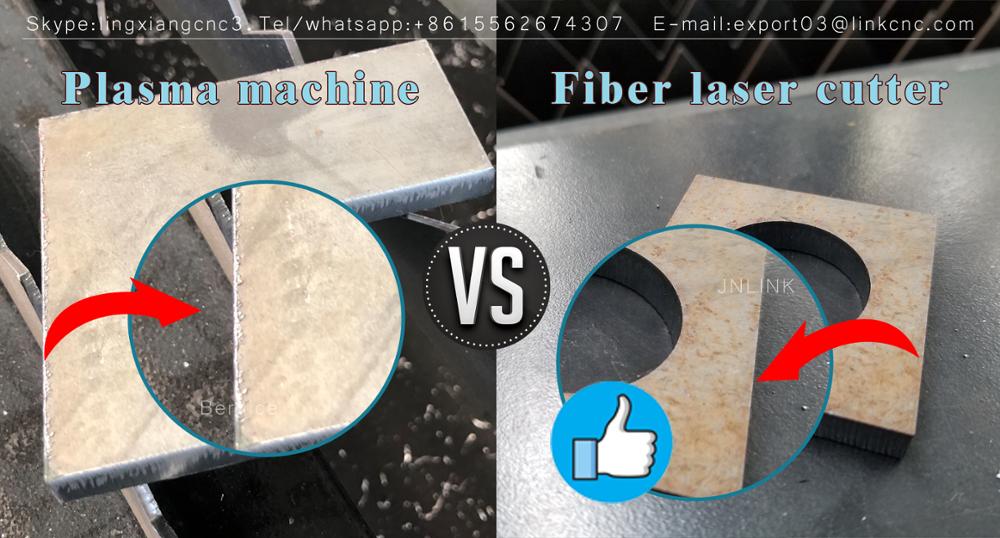

I SHOULD BUY PLASMA MACHINE OR FIBER LASER CUTTING MACHINE?

Requirement	PLASMA MACHINE	FIBER LASER CUTTING MACHINE
Thin metal		√
High accuracy		√
Fast speed		√
Low budget	√
Thick metal(steel≥20mm)	√
Low accurancy	√

If you require high performance ,fiber laser cutting machine will be a better choice!

Fiber cutting advantages:

1) The fiber laser series are LINKCNC Laser’s metal precise laser equipment powered by fiber laser

technology. The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared

to other cutting solutions. The key advantage of a fiber laser is its short beam wavelength (1,064nm).

The wavelength, which is ten times lower than that of a conventional C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting metal sheets of stainless steel,mild steel, aluminum, brass, etc.

(2) The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser. The fiber laser beam is

capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut.

The unit will consume little to no energy when not active.

(3) Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.

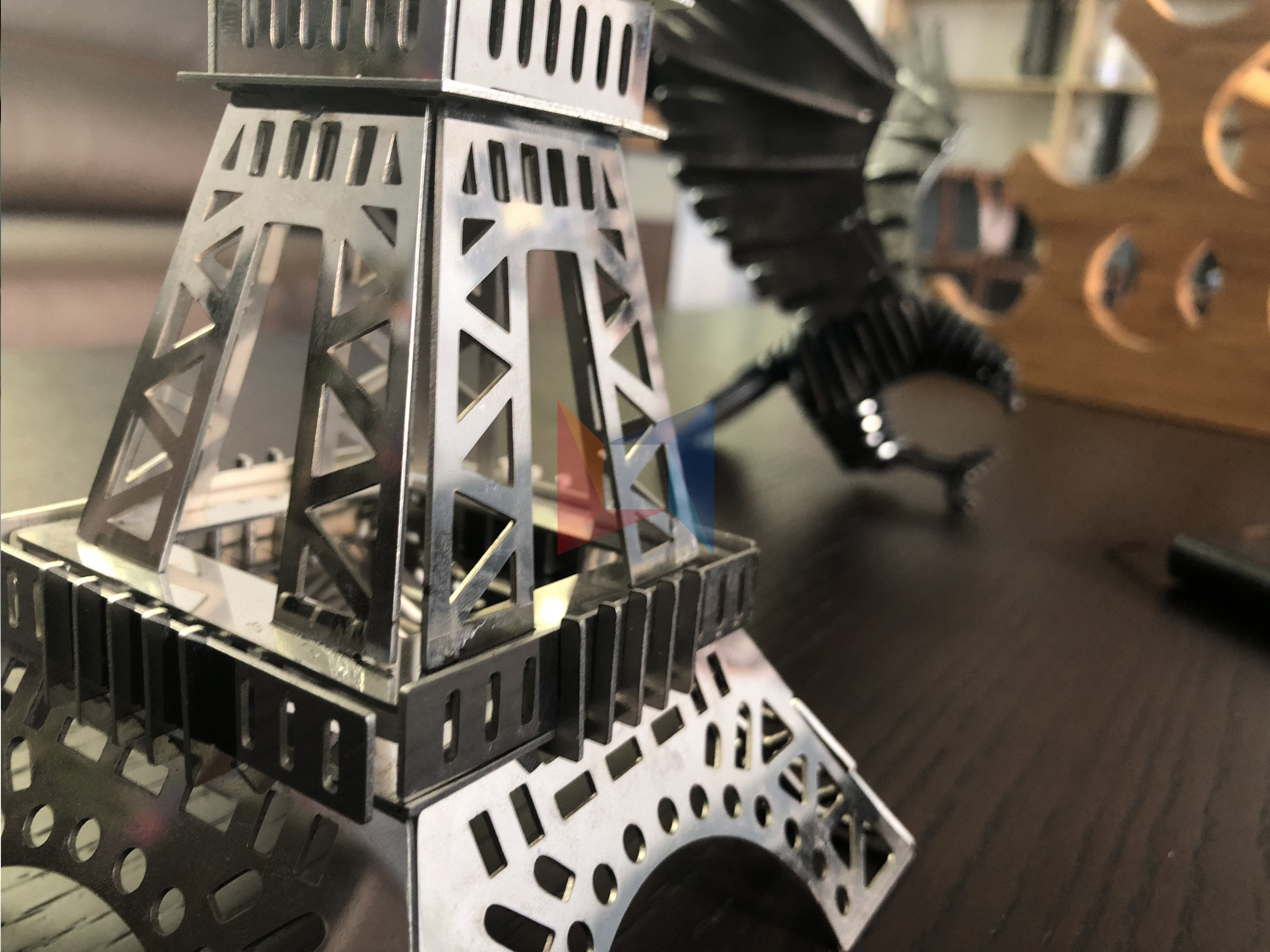

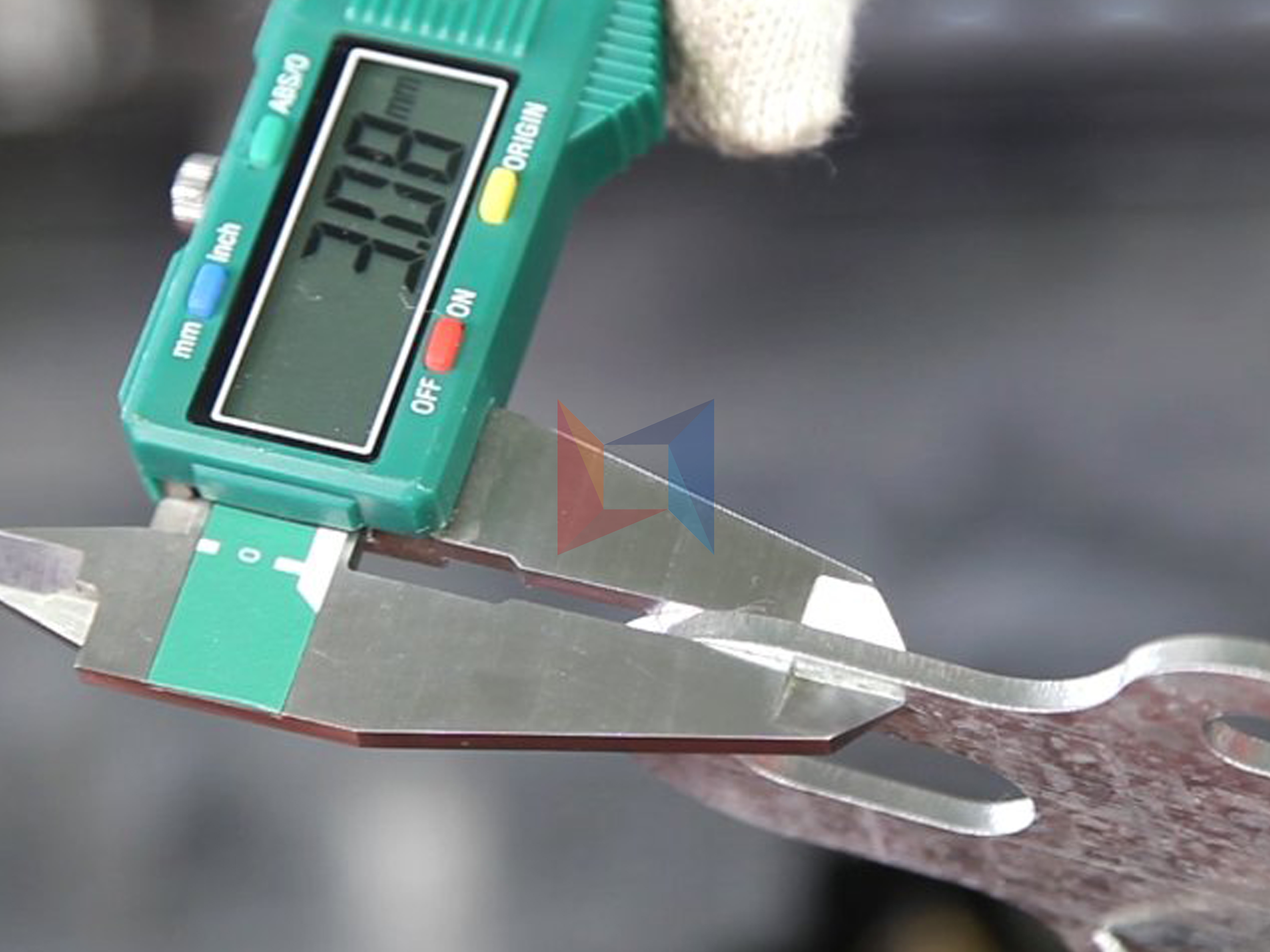

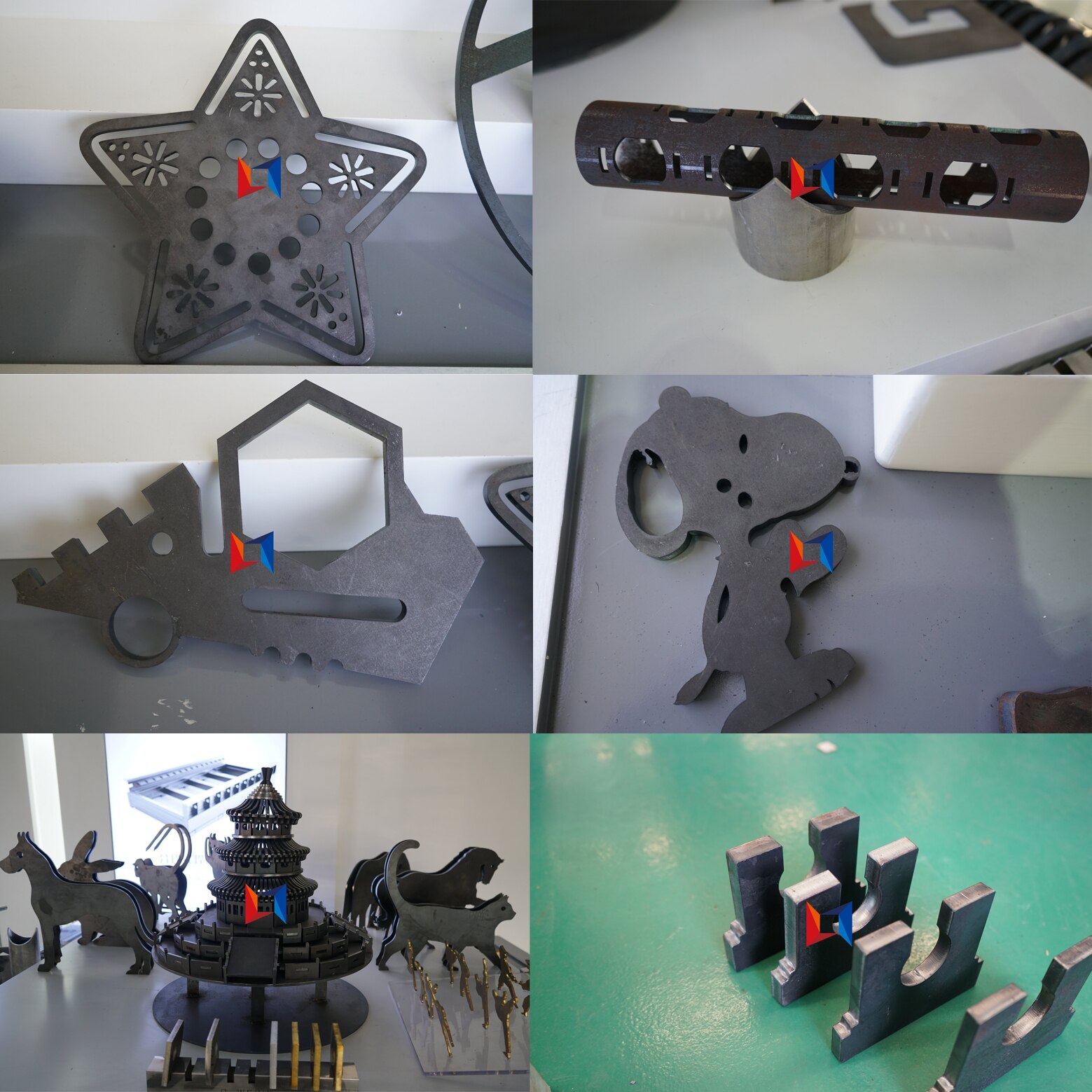

Samples


Machine part

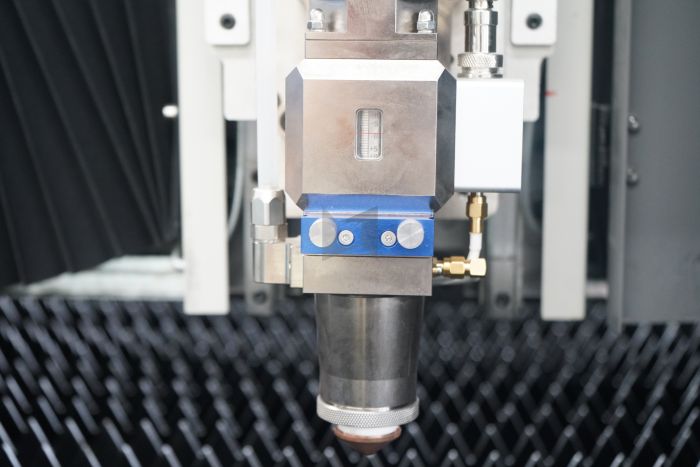

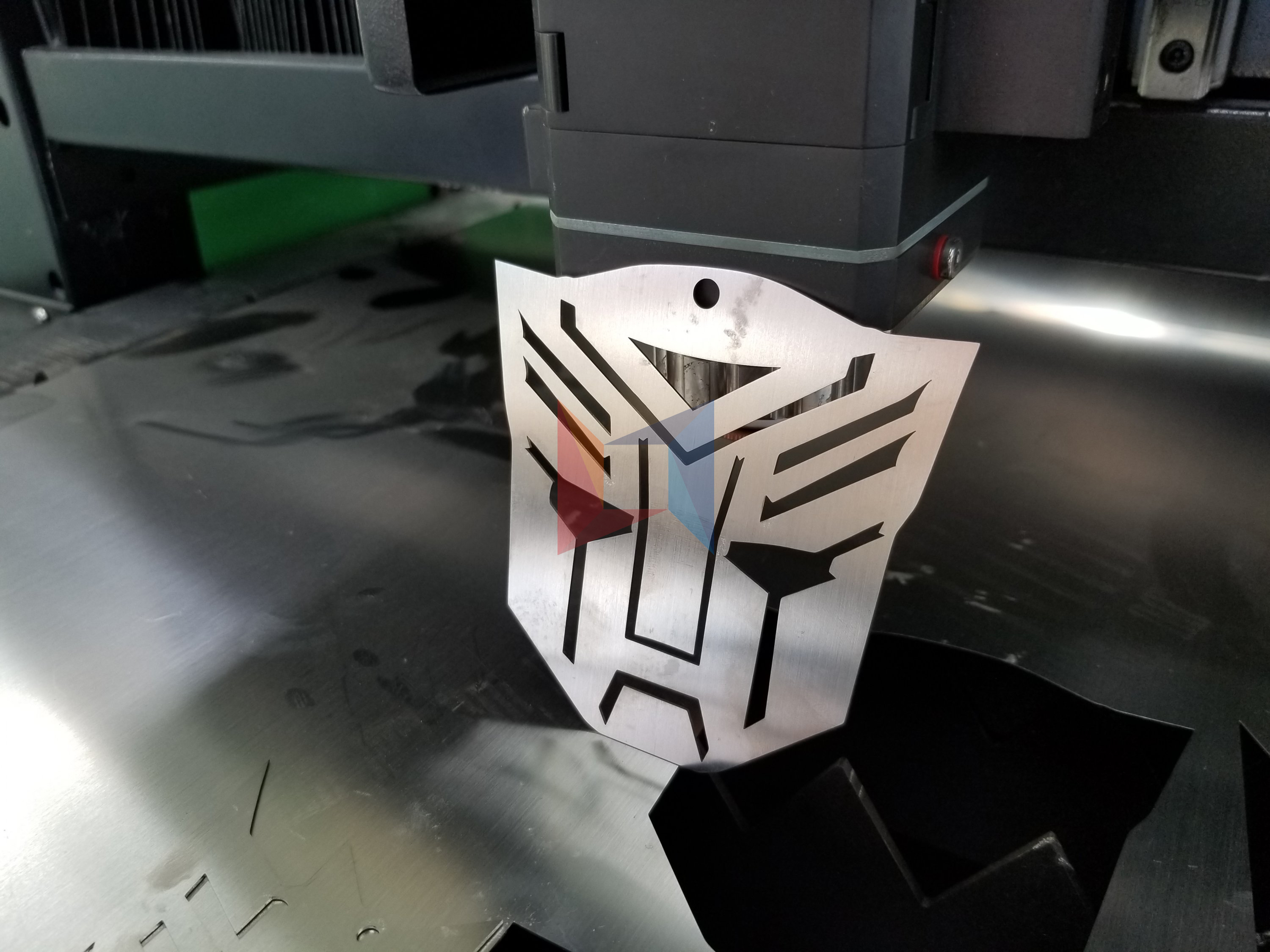

Fiber laser cutting head:

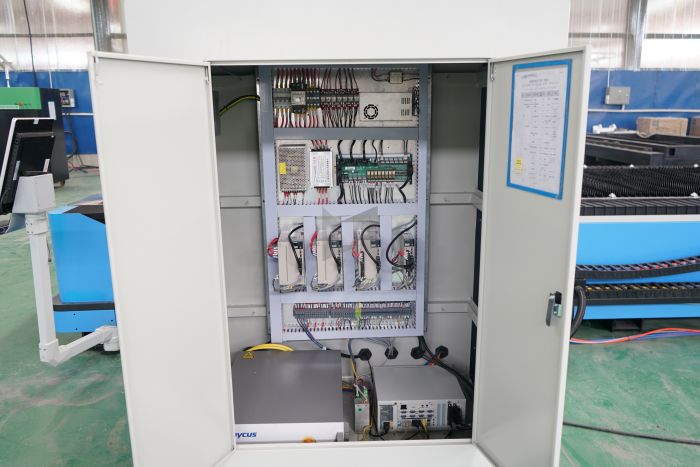

Control box

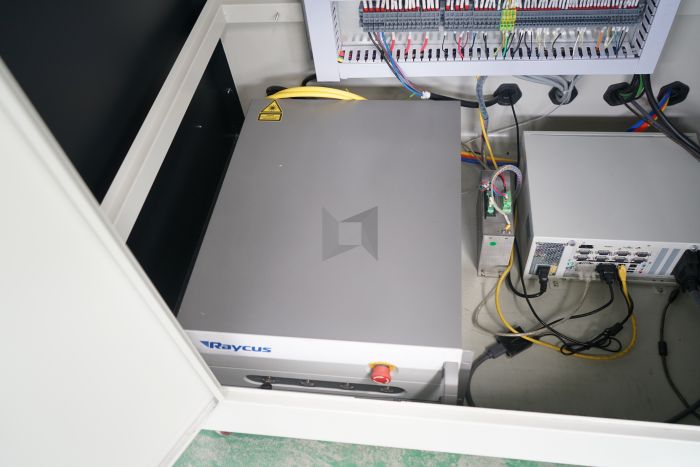

Raycus laser generator

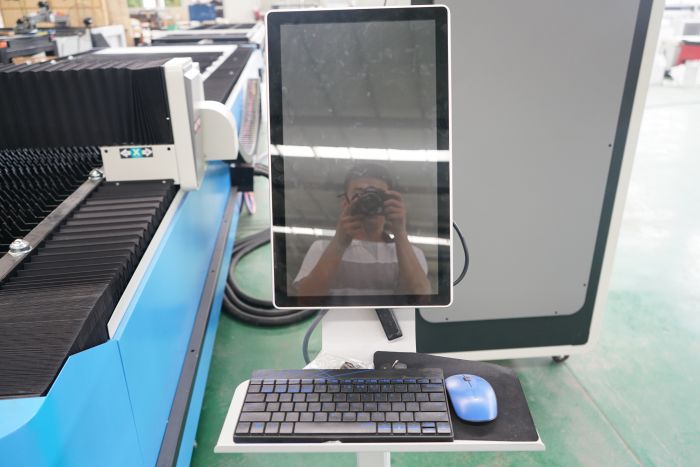

Control panel

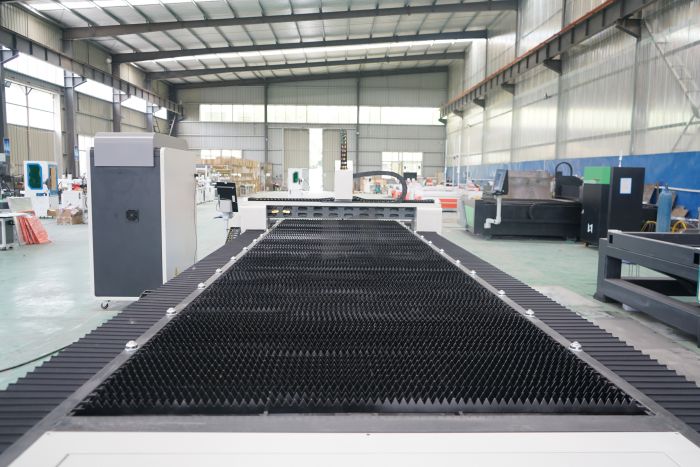

Heavy duty frame and sawtooth table

Fiber cutting Features:

GEAR AND RACK MECHANISM
Precision movement imparted through gear and rack mechanism. Supreme quality of gear and rack

to provide high accuracy and repeatability at high speed with low noise runner block.
USER FRIENDLY SOFTWAREUser-friendly software for laser power and pulse frequency, pulse duration along with position control.
NESTING
Nesting software to nest different types of jobs in single sheet and optimal use of raw material.

Accommodation of different types of jobs from scrap material & common edge cutting. Complete material management through user-friendly software.
HEIGHT SENSING UNIT
Adjusting preset height automatically. It helps to cut little sloppy (non-flat or non-linear) surface of sheet. Non-contact & contact types of versions are available.
STRUCTURAL DESIGN
Structural design is such that it can withstand heavy loads. Vibration pads are used for sustaining the structural damping.
REMOTE CONTROL
Flexible machine controls from remote place with emergency stop facility, easy to understand or

self-explanatory audio & video display machine.
SHEET LOADING & CLAMPING
Pneumatically actuated loader with ball on the top of it for easy sliding of the sheet. Pneumatically controlled firm clamping on the sheet. It can adjust the position of the clamp on the table. Safe loading and clamping for operator who is loading and un-loading the sheet.
DETACHABLE OPTICSReplacements of mirror without any change in linked alignments.
THERMAL OPTICS STABILITY
Parallel water-cooling system with temperature control. It eliminates the thermal expansion of optics and increases peak power life.

Fiber Laser Cutting Machine Technical Parameters
Laser Type	Fiber laser
Laser Brand	Raycus
Laser Power	500W / 750W/1000W / 2000W / 3000W
Working area	3000X2500mm/1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm
Working Table	Fixed Working Table
Control System	Bochu/Au3tech
Driving Mode	Double gear rack driving
Idle/Processing Speed	120m/min / 60m/min
Positioning Accuracy	0.03mm
Protection System	Enclosure protection
Laser Head	Raytools/WSX
Power Supply	AC380V ± 5% 50 / 60Hz
Total Power	6KW~20KW
Standard Collocation	Metal nesting software, dual-pressure gas route of 3 kind gas sources, dynamic focus, remote controller, etc.
Auxiliary System
Cooling System	Dual temperature dual control water chiller with purification system
Lubrication System	Automatic lubrication
Laser cooling system	Horizontal air conditioning
Auxiliary gas system	dual-pressure gas route of 3 kind gas sources
Laser cutting head	Dynamic focus
Circuit and protection system	Independent work station
Software System
Software	Cypcut/Au3tech
Supported Format	PLT, DXF, BMP, AI, DST, DWG, etc.

Training Service

Machine warranty is 3 years. Our technician is available to your factory and offer training of how to

use our machines. As well, you may send your technician to our company to learn how to operate machines.

email: export03/at/linkcnc.com

wechat / whatsapp: +86 15562674307

skype: lingxiangcnc3

Dimensions: 1300*2500mm
Wavelength: 1,064nm
Model Number: LF1325L
Usage: cutting metal
Laser source: Raycus / IPG
Laser cutting head: Raytools/WSX
Software: Cypcut/Au3tech
Lubrication System: Automatic lubrication
Servo motor: YASKAWA from Japan
Controller: Bochu/Au3tech
Guide rail: HIWIN
Driving mode: Dual drive
Power requirement: 3 phase 380v
Name: widely used fiber laser cutting machine
