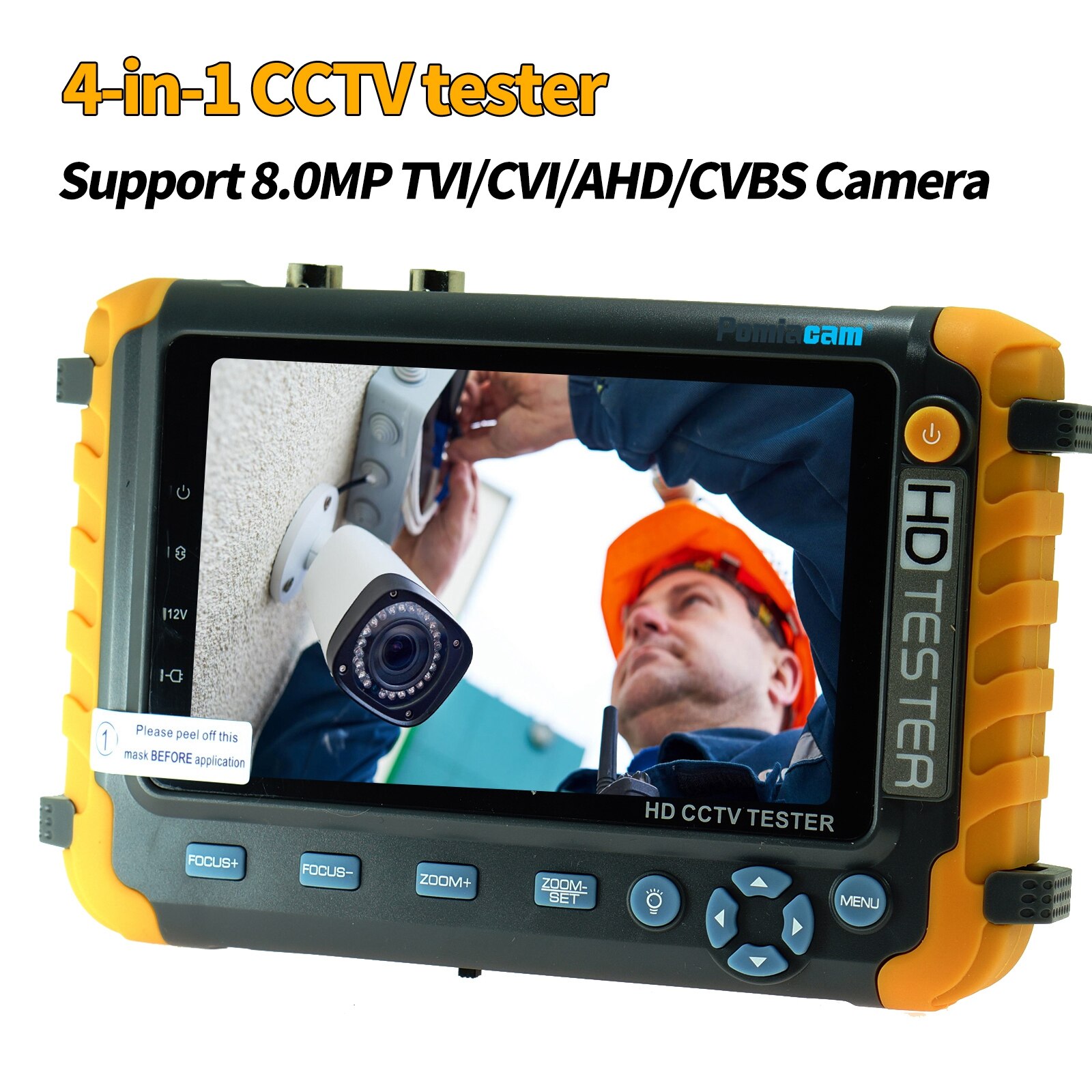

Cctv tester for security camera installation monitor, Support 8MP AHD TVI CVI CVBS Coaxial camera monitor .960 CVBS cctv Analog

5.0 (2 votes) | 5 orders
Price: US $264.10 - 284.05 / piece
Discount Price:
US $ 154.29 - 165.95 / piece
-42%
Ships From
Quantity



CCTV Camera Tester



cannot support IP camera

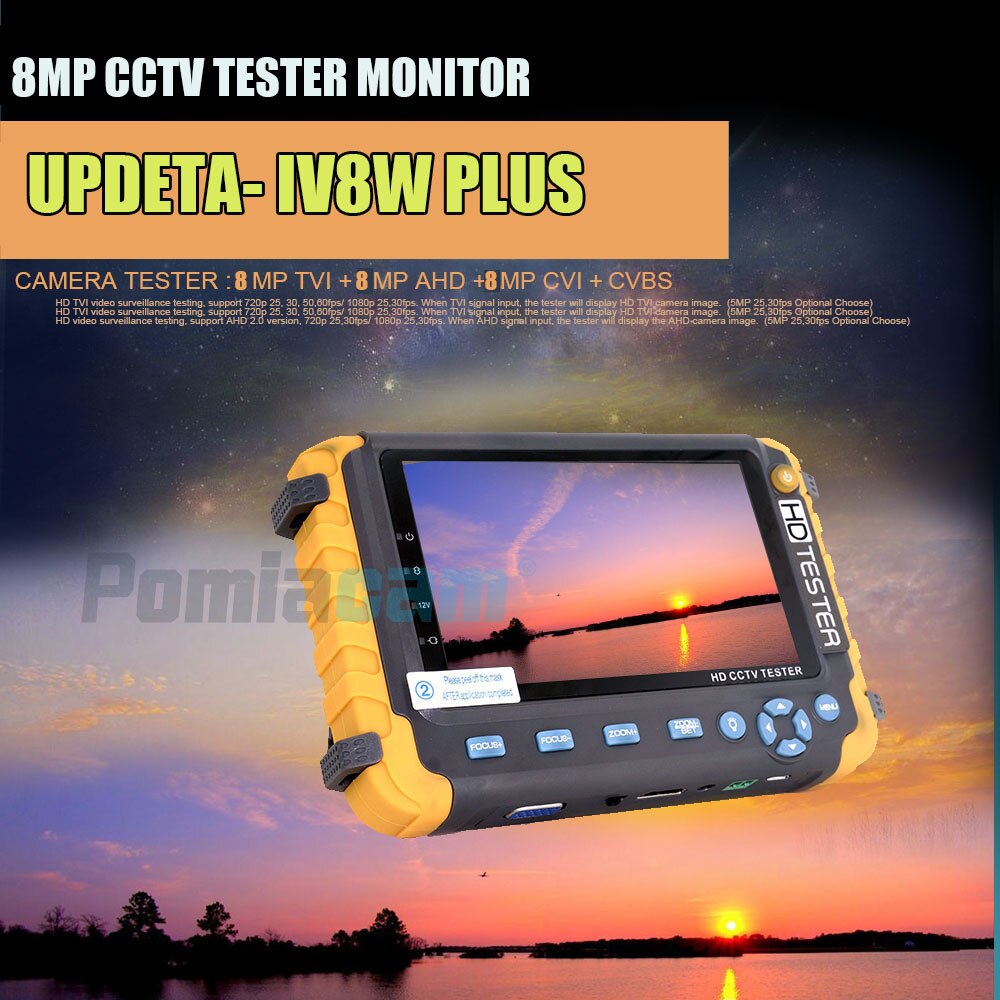

NEW - IV8W plus : Support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera + PTZ


 This CCTV tester not supported Digital Multimeter , can not test IP camera

The cctv Tester used for Analog/AHD/TVI/CVI CCTV tester:720P / 960P / 1080P / 3MP / 4MP / 5MP/ 8MP AHD cctv camera test, TVI & CVI camera; traditional CVBS analog camera like 960H 1000tvl 1200tvl cctv security camera tester.

It not used for IP cameras test



There's a 12v out on this cctv camera tester, it also gets 12v camera Power cable , plugged it into the tester, and powered the cctv camera straight from the cctv tester . It also gets USB power out port.

that way you can charge your mobile phone.PTZ testing that it can use the RS-485 port and an included attachment for the leads with your standard screw posts.

.

HDMI and VGA port for Video Into the cctv tester. That means you can test and set your cctv DVR or NVR as usd a monitor directly

UTP terminator dongle for testing network cables, on screen display for network cable testing result And it will show that all eight of the leads were right or wrong.



Dual 18650 batteries Supported, which are high capacity(2600mah*2pcs charging 3-4 hours, working time lasts 11 hours.) and cheap to replace.

Only about 4 x 6 x 1.5 inches with 5 inch diagnoal screen. It's encased on either side by thick rubber bumpers.

thoughtfully laid out design and a plethora of different cables and attachments that can help you perform technical diagnoses for cctv camera system tester


cctv tester monitor Troubleshoots

IP camera can not be tested.



cctv tester monitor not supports any IP cameras testing, it can only be used to test analog cameras.

The cctv tester can not produce pictures.



When the device is switched to CVI mode, only connected to CVI camera can it produce pictures. If the cctv camera is other TVI / AHD signal camera, the mode should be switched to TVI / AHD signal correspondingly, so that the connected cctv camera can produce pictures but not flicker.



Must this be plugged in, in order to turn on or does the batteries need to be charged?



This cctv tester is built-in battery, as long as the battery power is sufficient, you can turn it on normally, if not, that means that the battery power has been consumed, you need charge it, fully charge it and then you can unplug the power supply to use.



HDMI isn't recognized.



If HDMI is used as the cctv monitor input, it can only be connected to the cctv NVR or DVR which with an input signal of HDMI. If HDMI is a signal output, it needs to be connected to the display or TV.

4 in 1 CCTV Tester(Not Support IP Cameras)







Tips



●To avoid the battery can't charge next time. Don't recharge it until the battery was completely used



●This cctv tester NOT supports IP Camera tester



TVI camera test: HD TVI video surveillance testing, support 1MP, 2MP, 3MP, 4MP, 5MP 8MP. When TVI signal input, the tester will display HD TVI camera tester image.



AHD camera test: HD video surveillance testing, support 1MP, 2MP, 3MP, 4MP, 5MP 8MP. When AHD signal input, the tester will display the AHD camera tester image.



CVI camera test: HD video surveillance testing, support 1MP, 2MP, 3MP, 4MP. When CVI signal input, the tester will display the CVI camera tester image.



CVBS: PAL/NTSC, 960H Camera, 800tvl/1000tvl/1 200tvl analog camera tester

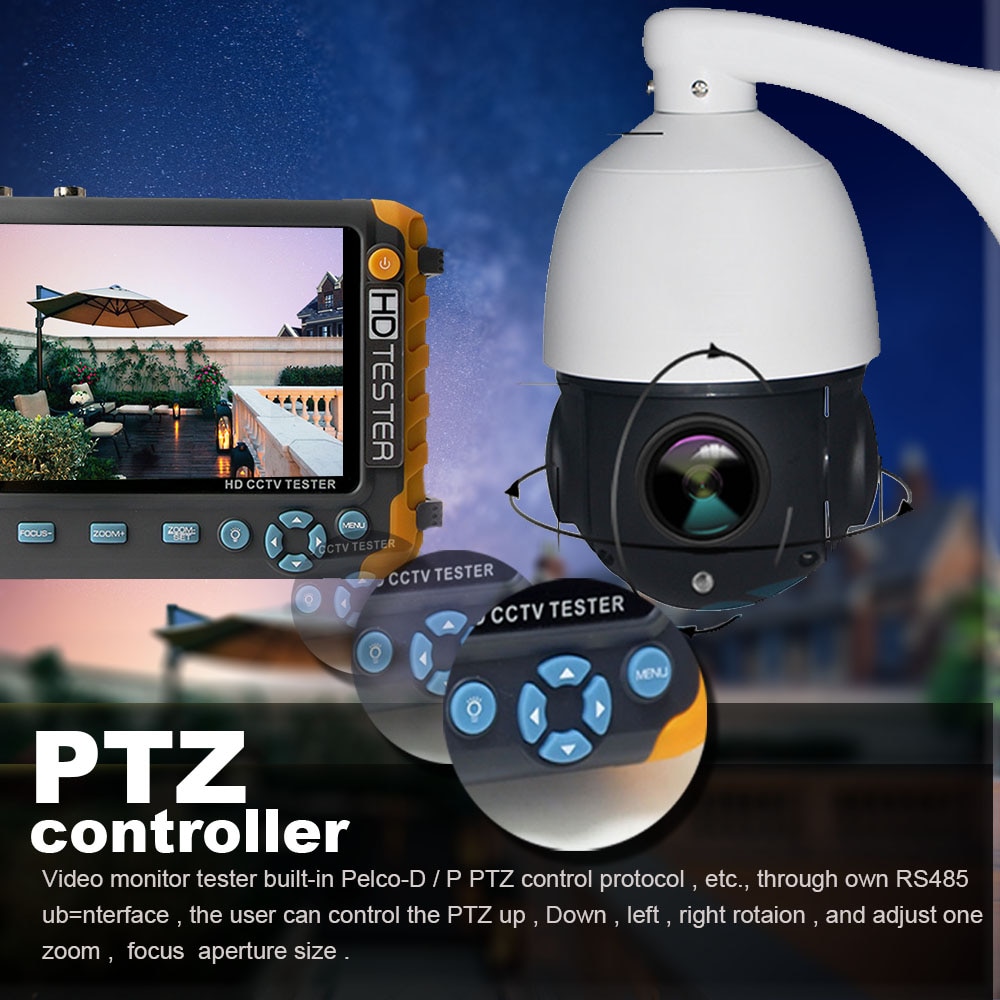

PTZ Controller



Support RS485, compatible with protocols



PELCO-D/P, you can control the ratation of PTZ, up or down, left or right, and you also can adjust zoom, focus, aperture size.



Rechargeable

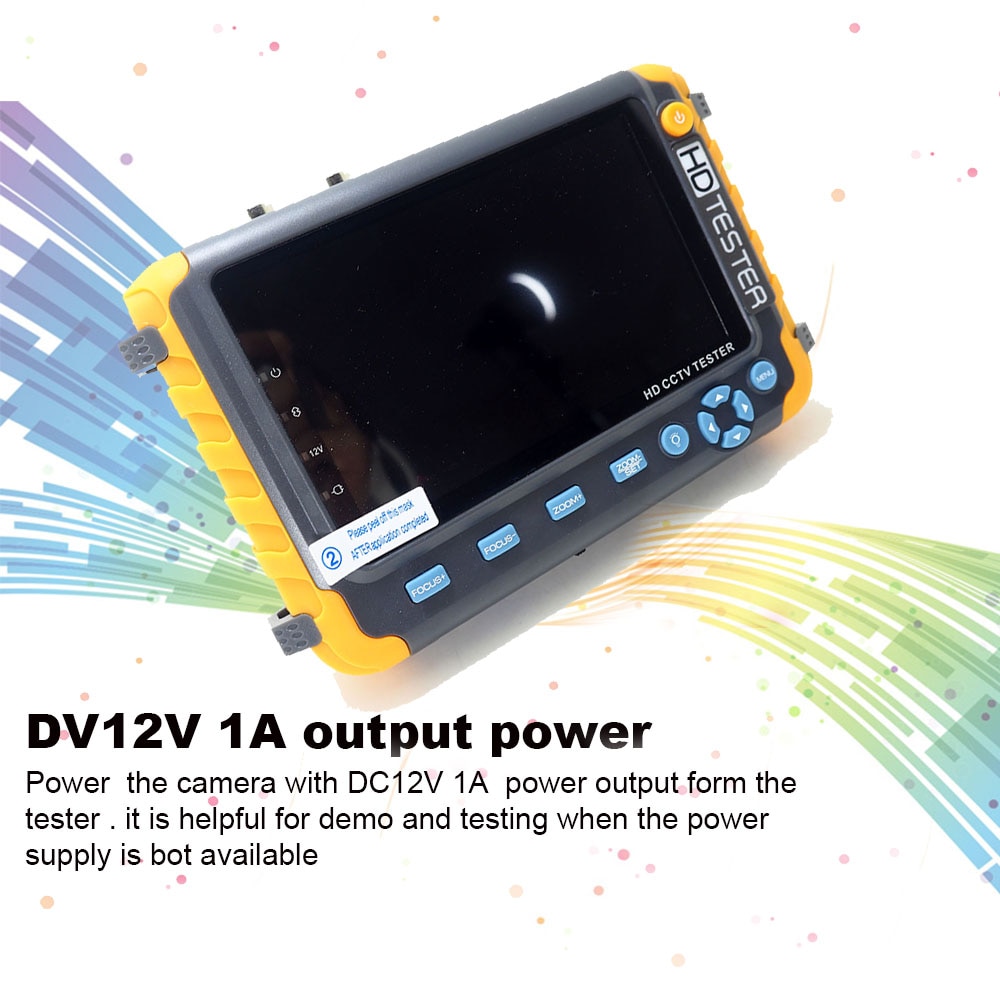

Power the camera with DC 12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available. Built-in 18650 2600mA battery, after charging 3-4 hours, working time lasts 11 hours.



Video Signal Testing

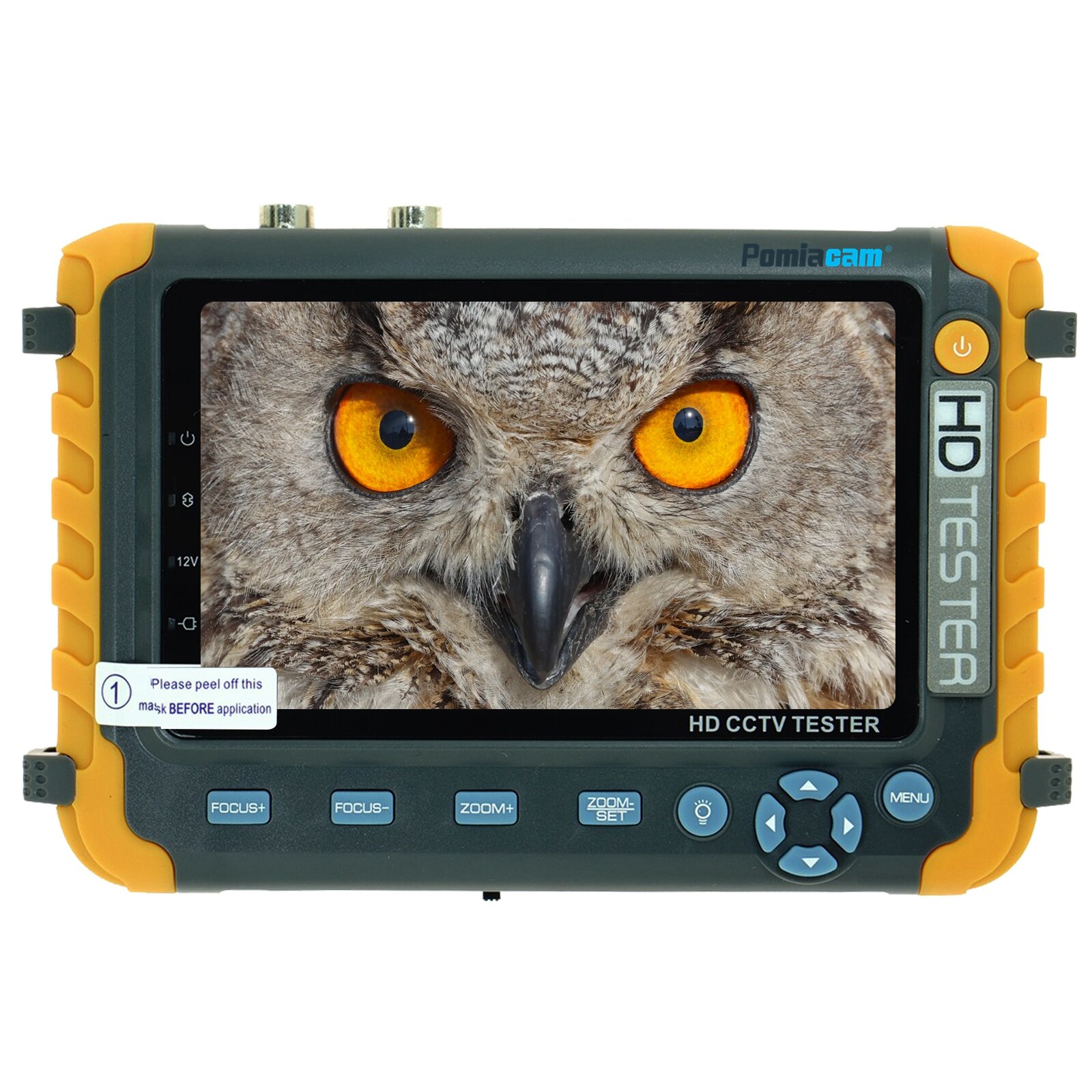

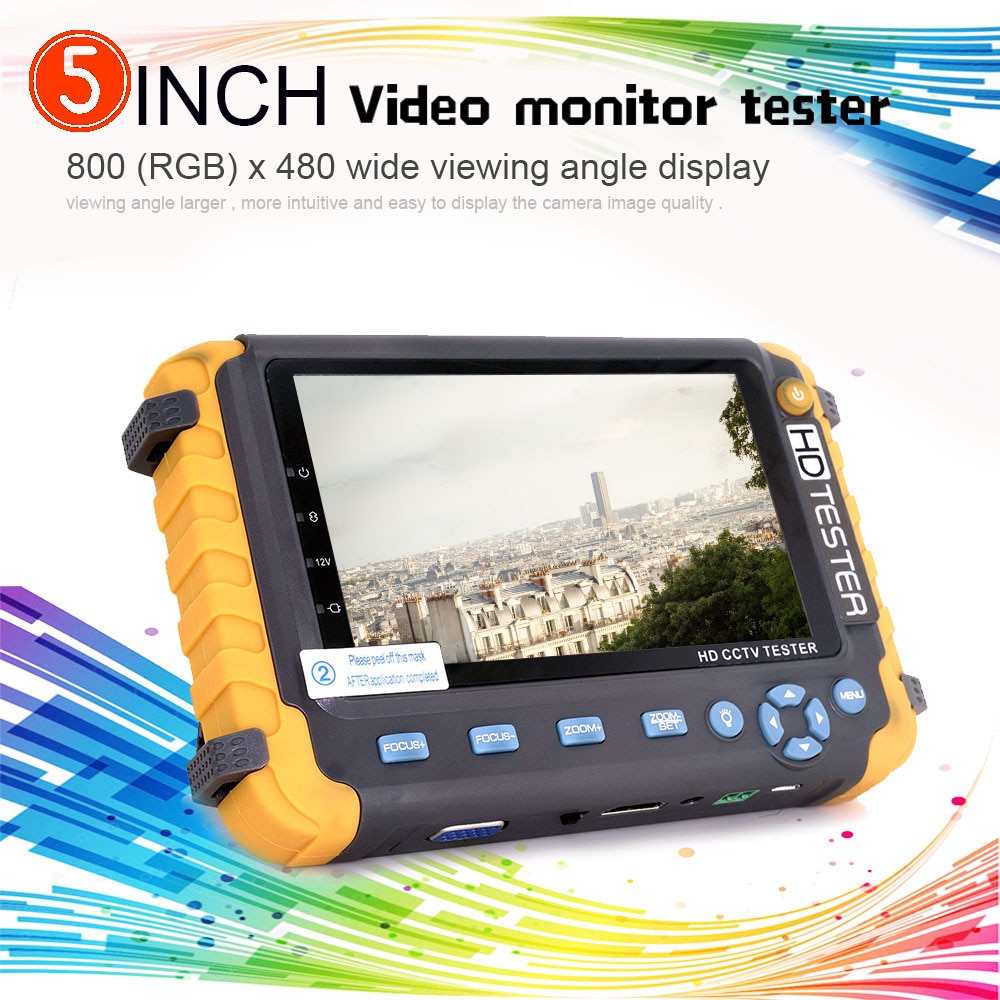

Video monitor tester, high-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality. Support PAL/NTSC standard video signal.

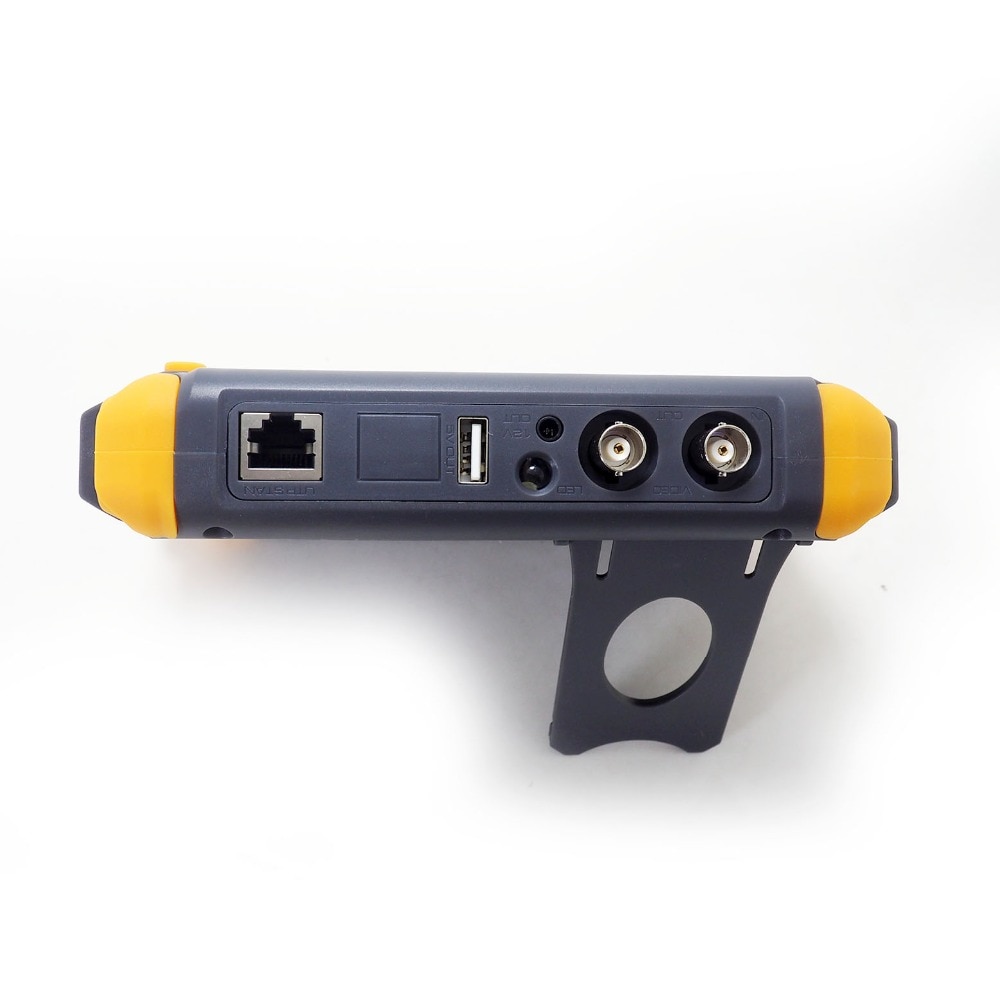

Enhanced network cable testing: By UTP CABLE TEST port on the meter, you can test the connection of network cable.



LED lamp: It is useful for the engineer to install and maintain security system at night; LED On/Off pressing button, easy to operate.

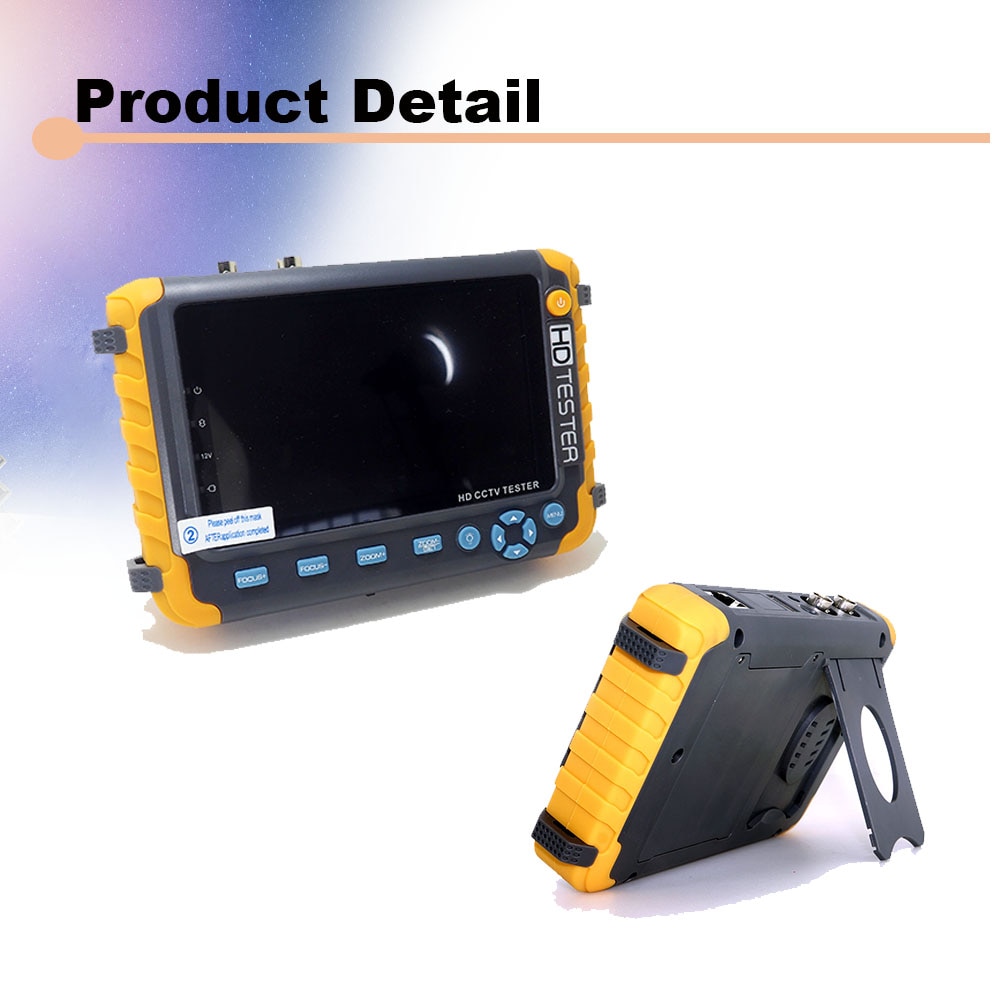

5 Inch CCTV Tester

Features



Audio testing: Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.



UTP cable test: Display UTP cable connection status, cable type and the sequence of wires as well as read the number of the test box.

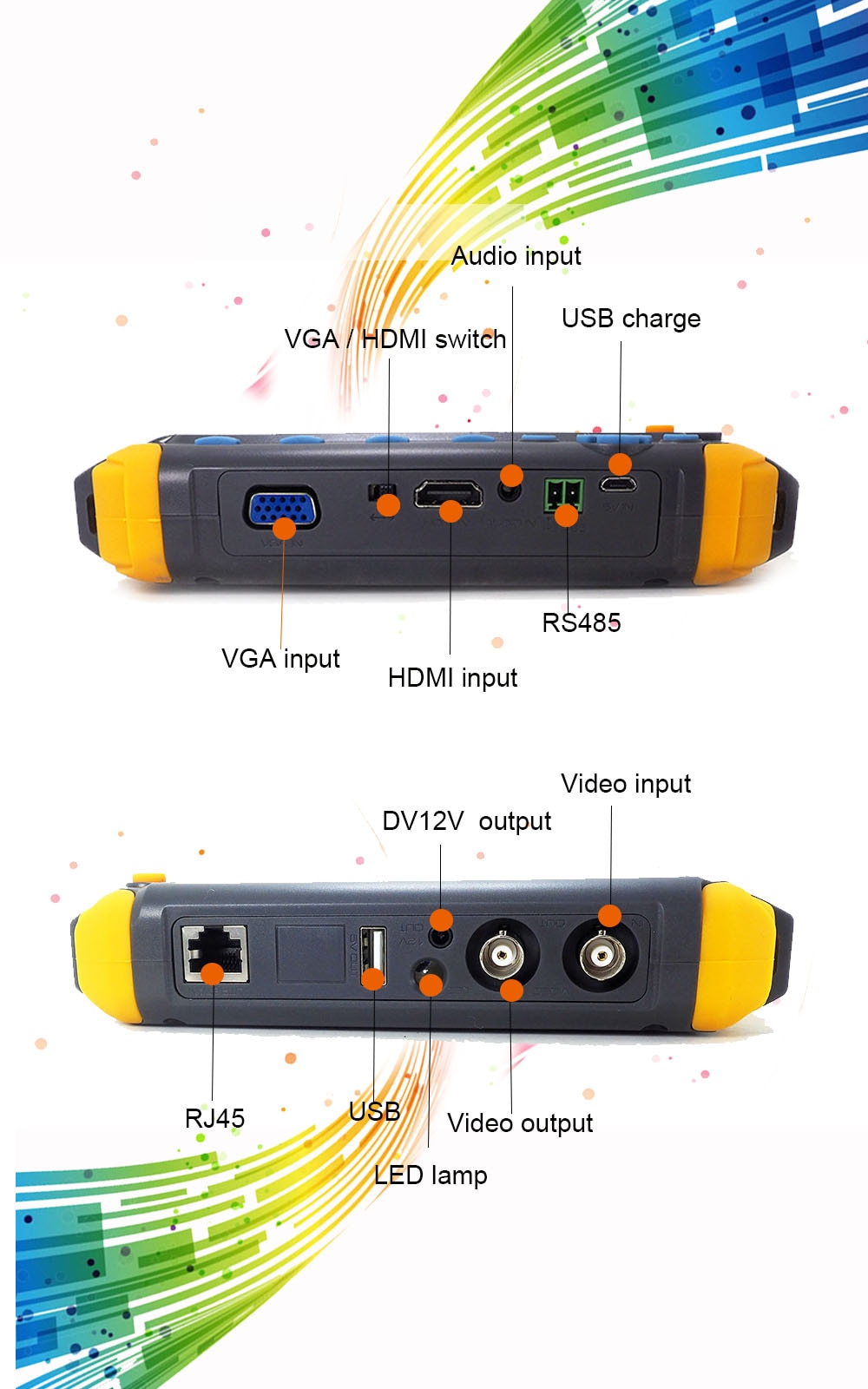

VGA/HDMI input: Support VGA/HDMI 1.1 Compliant Digital input, once connect VGA/HDMI video, please switch selector to select HDMI or VGA mode.



Auto power off: 1-30 (mins)

Working temperature: 14℉ ~ 122℉ (-10℃ ~ +50℃ )

Humidity: 30%-90% Rh

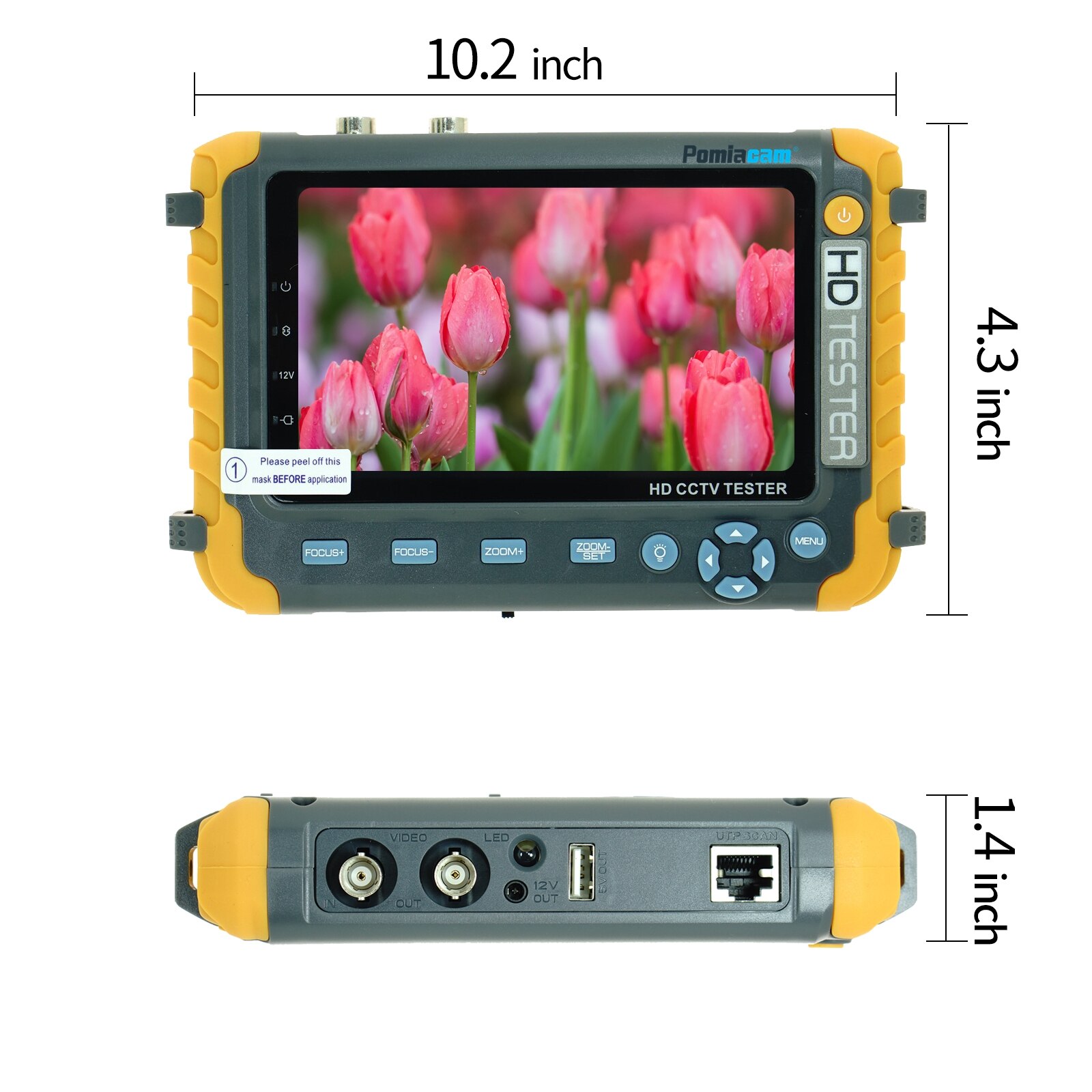

Dimension: 221mm x 175mm x 91mm

Weight: 1.65lb (0.75kg)


cctv tester monitor tips

IP camera can not be tested by the cctv monitor

The cctv tester monitor not supports any IP cameras testing, it can only be used to test analog cameras and TVI camera test AHD camera test CVI camera test



The cctv tester can not produce pictures.

When the device is switched to CVI mode, only connected to CVI camera can be tested.Please switch the Cctv tester mode yourself (Other mode ahd tvi cvbs)



Cctv monitor HDMI or VGA isn't recognized.

If HDMI is used as the cctv monitor input, because it can only be connected to the cctv NVR or DVR Do not connect the computer's or TVs hdmi signal output.once connect VGA/HDMI video, please switch and select HDMI or VGA mode.



PTZ Controller by the cctv tester

Support RS485, compatible with protocols



Video Signal Testing on the cctv test monitor Video Signal Testing on the cctv test monitor Video Signal Testing on the cctv test monitor Video Signal Testing on the cctv test monitor

Video monitor tester, high-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Support PAL/NTSC standard video signal.Video monitor tester, high-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Support PAL/NTSC standard video signal.

.

UTP cable test supported by the cctv camera tester



Keywords

cctv tester cctv monitor cctv tools portable camera cctv test analog cctv camera cctv test monitor monitor for security cameras camera tester coax signal tester security monitors & displays coaxial signal tester cctv tester|



Auto power off: 1-30 (mins)

Working temperature: 14℉ ~ 122℉ (-10℃ ~ +50℃ )

Humidity: 30%-90% Rh

Dimension: 221mm x 175mm x 91mm

Weight: 1.65lb (0.75kg)


Product overview

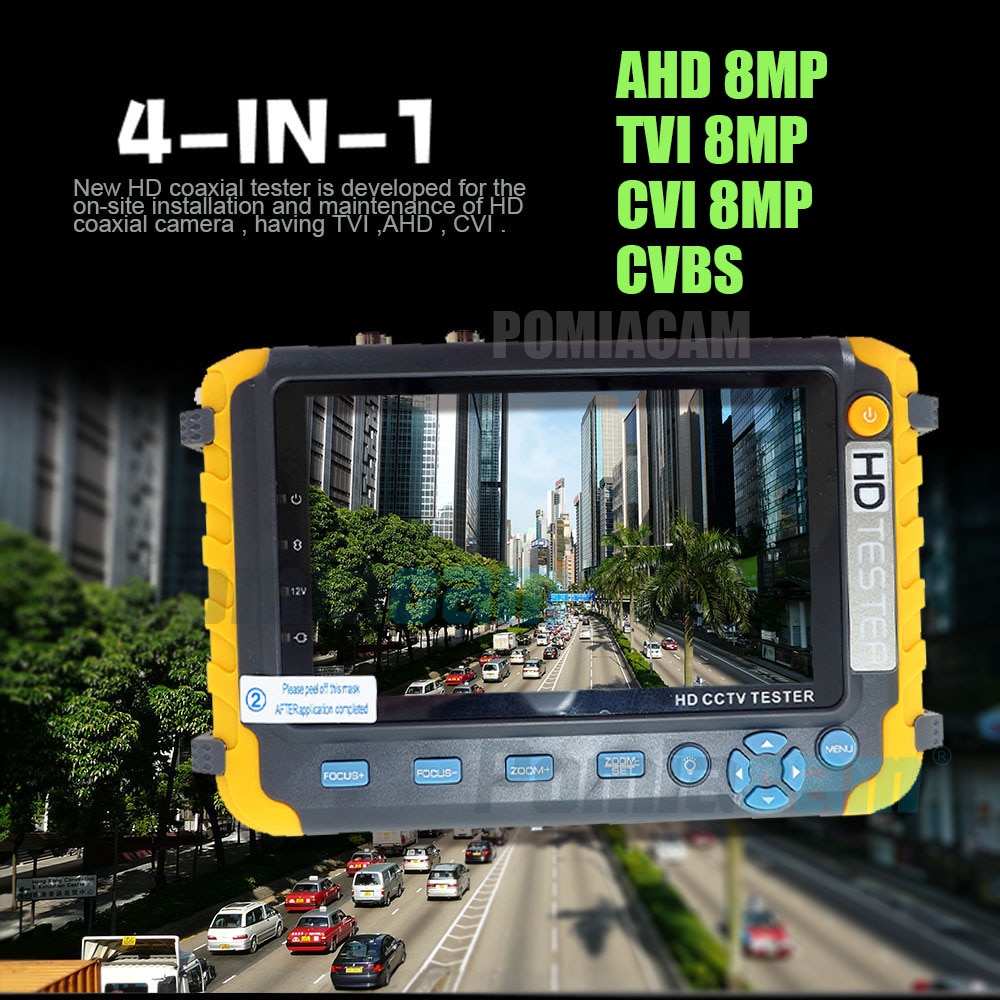

The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD,CVI. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc.
  • ❤ 【support CVBS + AHD (5MP) + TVI (5MP) + CVI (4MP) Camera VideoTest】-- Developed for the on-site installation and maintenance of Analog Camera (CVBS) and HD Coaxial Camera, having TVI,CVI, AHD. (NOT Support IP Camera).

  • ❤【5inchs High-resolution view angle display】High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality. Support PAL/NTSC standard video signal

  • ❤【 PTZ controller/ Image generator】] --Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size. Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section

  • ❤ 【 DC12V 1A output power/Improvement cable test】-Power the camera with DC12V (1A) power from the tester.UTP cable, telephone cable etc order and connectivity test, can save testing report

  • ❤【VGA/HDMI input】-Support VGA/HDMI 1.1 video input, once connect VGA/HDMI video, please switch selector to select HDMI or VGA mode. The maximum resolution is 1920 x 1440.

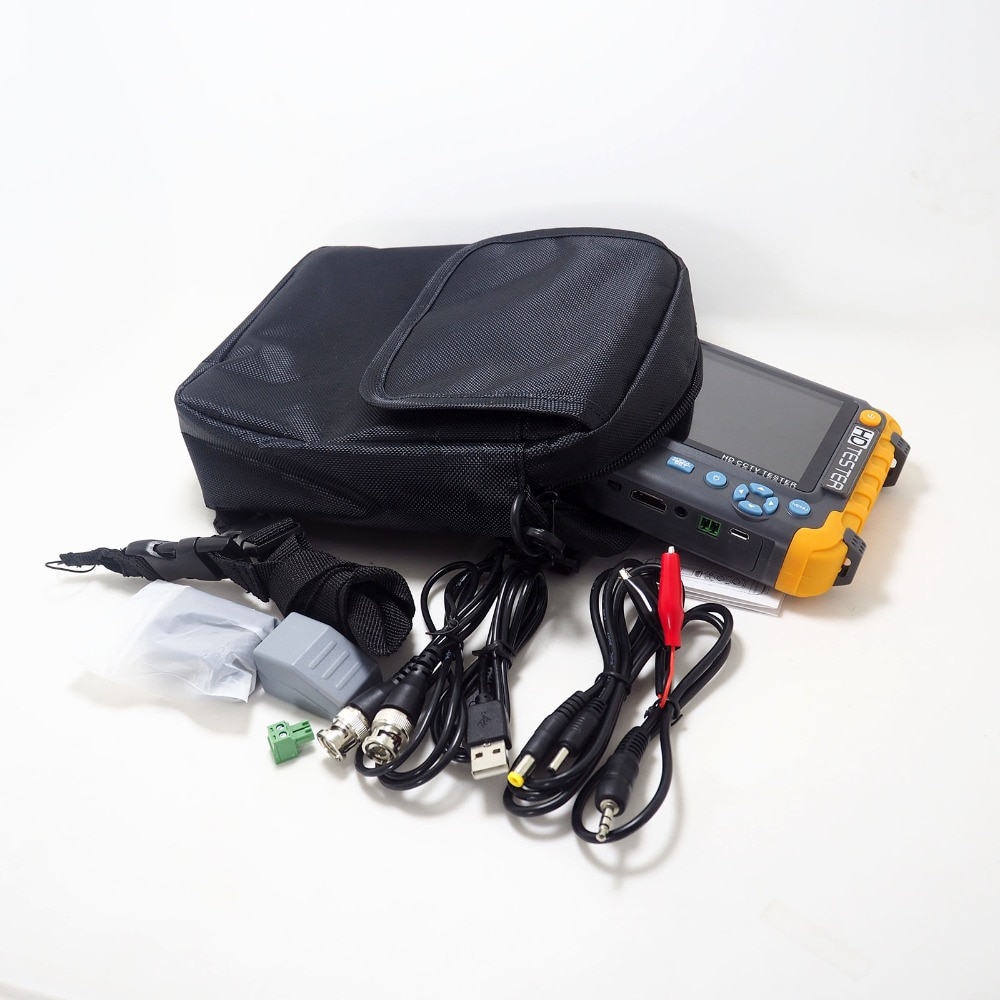

Packing list
● HD coaxial tester
● Adapter DC5V 1.5A(with USB cable)
● International Standard 18650 2600ma battery
● BNC cable
● RS485 connector
● Power output conversion cable
● Audio cable
●Lanyard
● Tool bag
● Instruction Manual



  • Plug Type: EU plug
  • Sensor Type: AHD 5MP+ TVI 5MP + CVI 4MP Camera tester
  • Model Number: IV8W plus
  • Maximum IR Distance(m): AHD 8MP+ TVI 8MP + CVI MP Camera tester
  • Sensor Size: AHD 8MP+ TVI 8MP + CVI 8MP Camera tester
  • Lens: AHD 8MP+ TVI 8MP + CVI 8MP Camera tester
  • Brand Name: POMIACAM
  • Origin: Mainland China
  • Certification: CE
  • IV8W plus: AHD 8MP+ TVI 8MP + CVI 8MP Camera tester
  • Video signal testing: Vedio monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide v
  • PTZ controller: Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. ,
  • Image generator: Multi-format video OUT port image generator, sending a variety of stan
  • DC12V 1A output power: Power the camera with DC12V (1A) power output from the tester. It is h
  • Audio testing: Test the audio input from pickup devices. Connect the tester and picku
  • Enhanced network cable testing: By UTP CABLE TEST port on the meter, you can test the connection of ne
  • VGA/HDMI input: upport VGA/HDMI 1.0 video input, once connect VGA/HDMI video, please s
  • LED lamp: It is useful for the engineer to install and maintain security system
  • The battery graphic display: The tester has advanced power control and protection circuit, low-powe
