Satellite Antenna Lighting Protector Coaxial Satellite TV Lightning Protection Devices Lightning Arrester 5-2150MHz DropShipping
12.09 10.88 $
SALE
ID: 96803

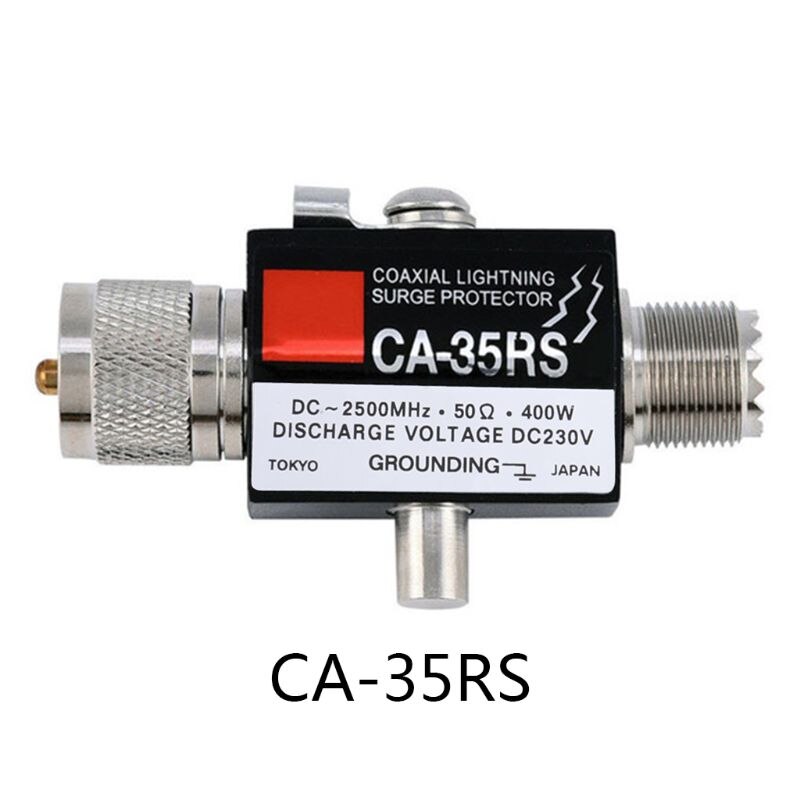

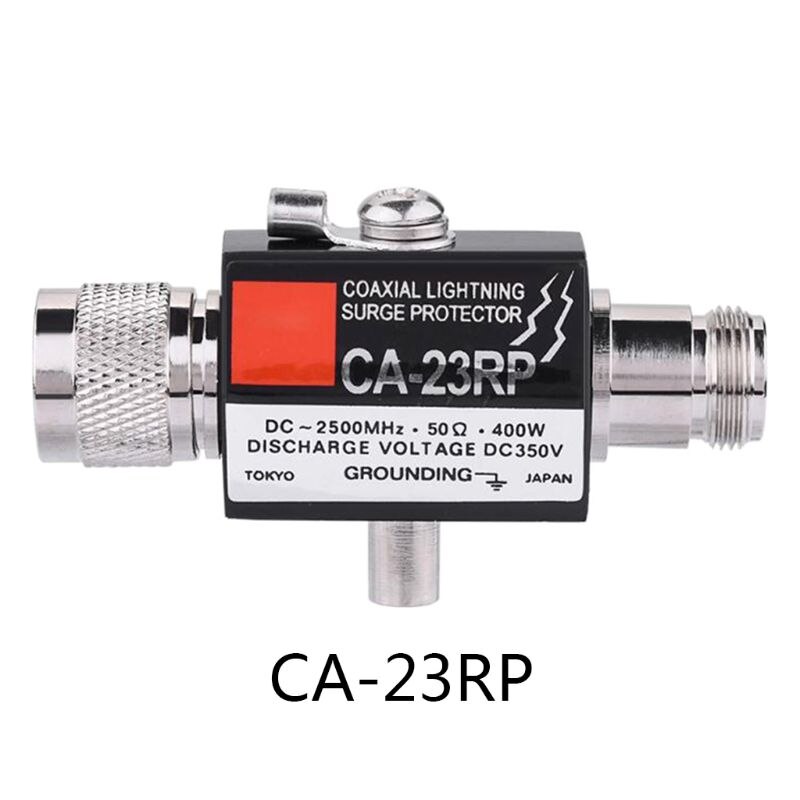

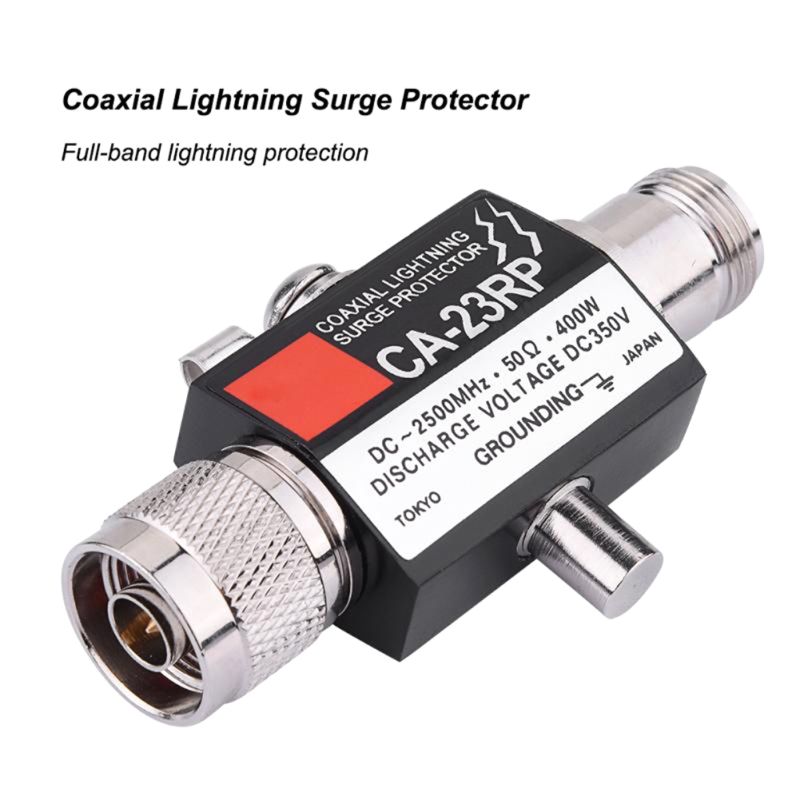

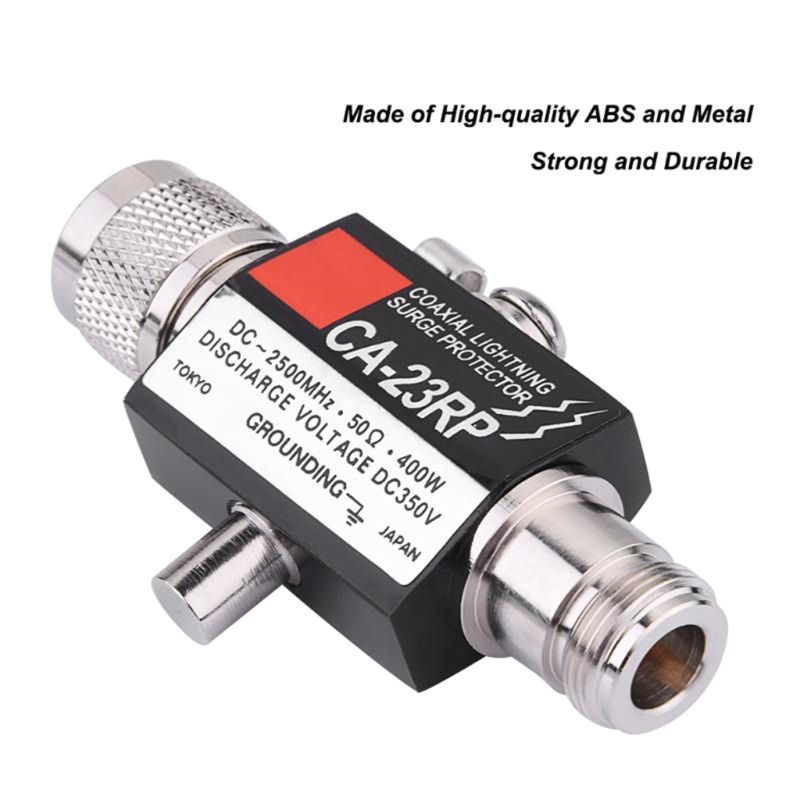

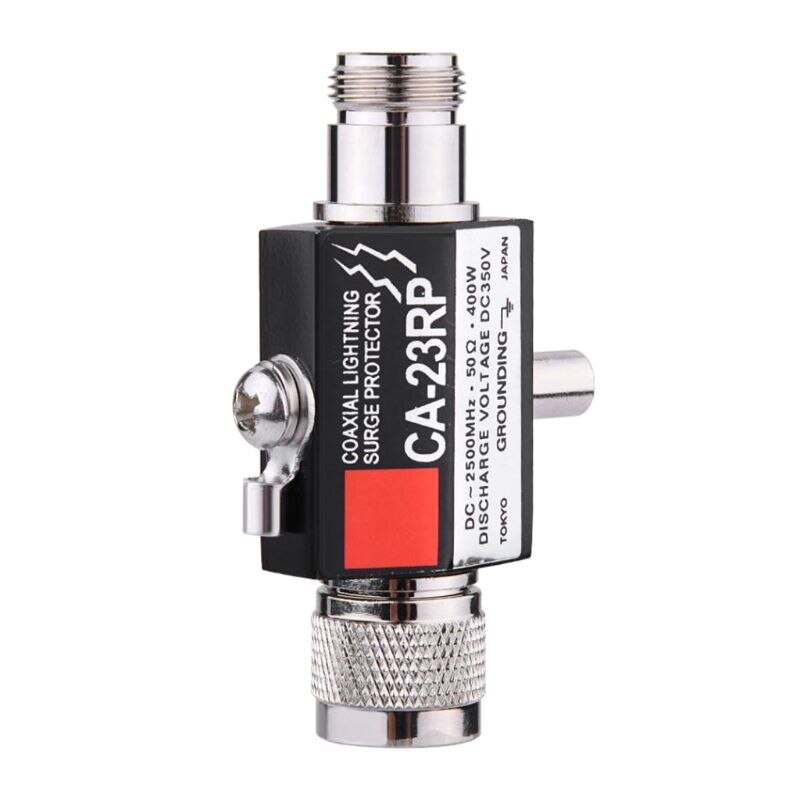

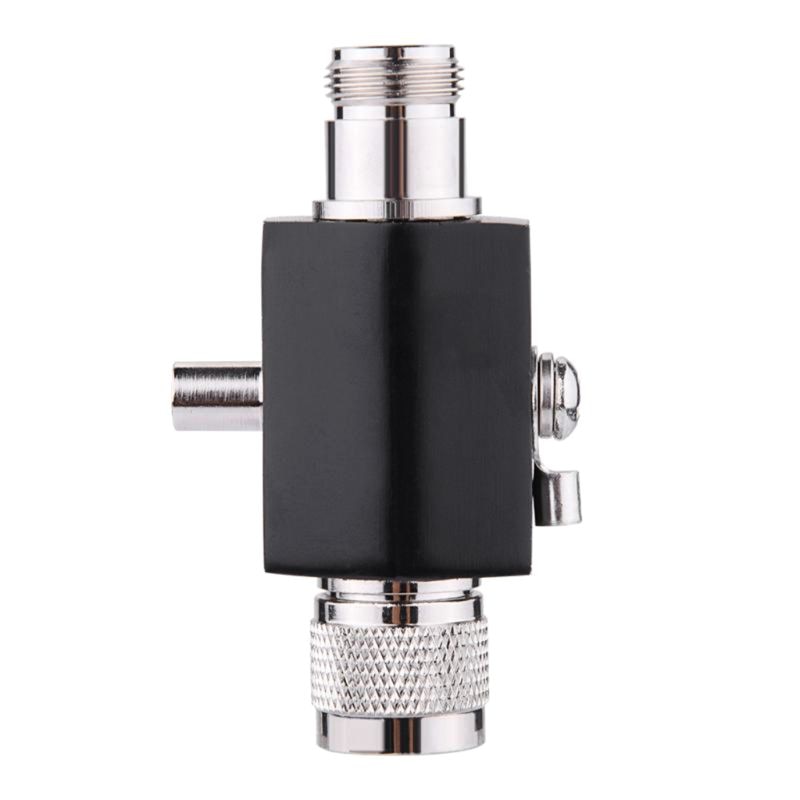

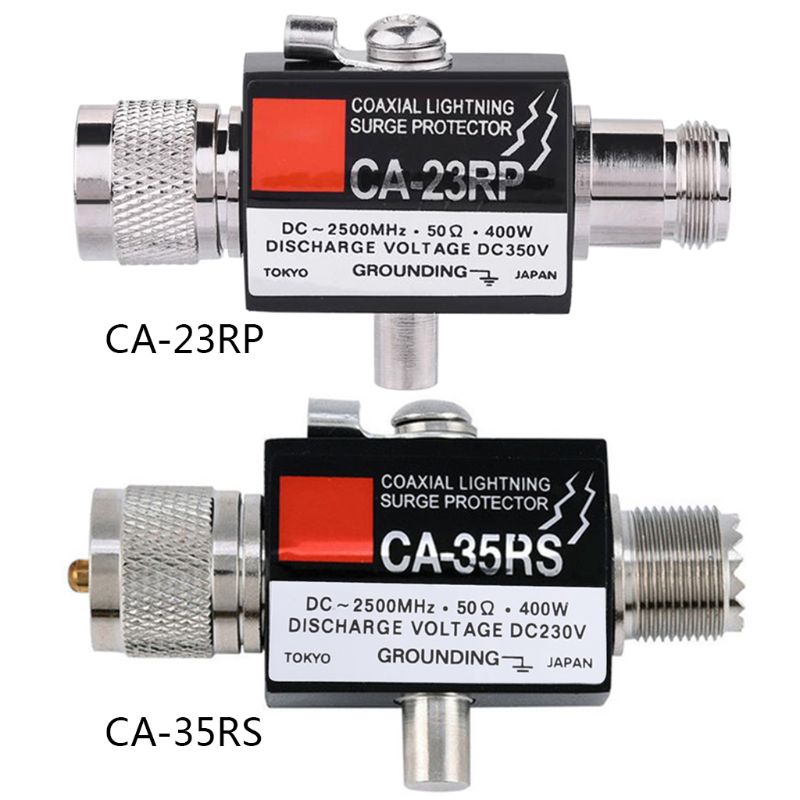

CA-35RS CA-23RP PL259 SO239 Radio Repeater Coaxial Antenna Surge Protector Dropship
0.0 ( votes)
Price:
US $28.98
/ piece
Discount Price:
US $
23.19
/ piece
-20%
Sorry! This item is out of stock
brand new and high quality
OOTDTY
Features:
This product adopts the principle of 1/4 short-circuit wavelength to achieve good protection effect. The arrester has a solid structure, beautiful appearance and convenient installation.
One end is connected to the antenna, and one end is connected to the feeder. The side of the arrester has a screw ring for grounding. It can be inserted into a thick copper wire and pressed tightly with a vise. Then the other end of the copper wire is connected to the protection net on the top of the building. The contact must be sufficient.
Specifications:
requency Range:DC-1000MHz
V.S.W.R≤1.1
Loss ≤0.2dB
Withstand power：400W PEP
Voltage at discharge start：DC350V+-15%
Discharge voltage of shock wave(1 x 40)uS：1,000V
Withstand current of shock wave(1 x 40)uS：6,000A
Repetitive discharge of shock wave(1 x 40)uS 500A,over 500 times：DC350V±20%
Insulating resistance DC 100V：Over 10,000M ohm
Size：7.5x4.5x2cm
Type:CA-23RP or CA-35RS
Notes:
1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Included:
1xCA-35RS or CA-23RP Arrester
OOTDTY
Features:
This product adopts the principle of 1/4 short-circuit wavelength to achieve good protection effect. The arrester has a solid structure, beautiful appearance and convenient installation.
One end is connected to the antenna, and one end is connected to the feeder. The side of the arrester has a screw ring for grounding. It can be inserted into a thick copper wire and pressed tightly with a vise. Then the other end of the copper wire is connected to the protection net on the top of the building. The contact must be sufficient.
Specifications:
requency Range:DC-1000MHz
V.S.W.R≤1.1
Loss ≤0.2dB
Withstand power：400W PEP
Voltage at discharge start：DC350V+-15%
Discharge voltage of shock wave(1 x 40)uS：1,000V
Withstand current of shock wave(1 x 40)uS：6,000A
Repetitive discharge of shock wave(1 x 40)uS 500A,over 500 times：DC350V±20%
Insulating resistance DC 100V：Over 10,000M ohm
Size：7.5x4.5x2cm
Type:CA-23RP or CA-35RS
Notes:
1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Included:
1xCA-35RS or CA-23RP Arrester
- Origin: Mainland China
- Certification: NONE
- Model Number: -
