Bridge Diode Rectifier Bridge Rectifier 3 Phase MDS100A for PWM

0.0 ( votes)
Price: US $38.04 / piece
Discount Price:
US $ 23.91 / piece
-37%
Quantity

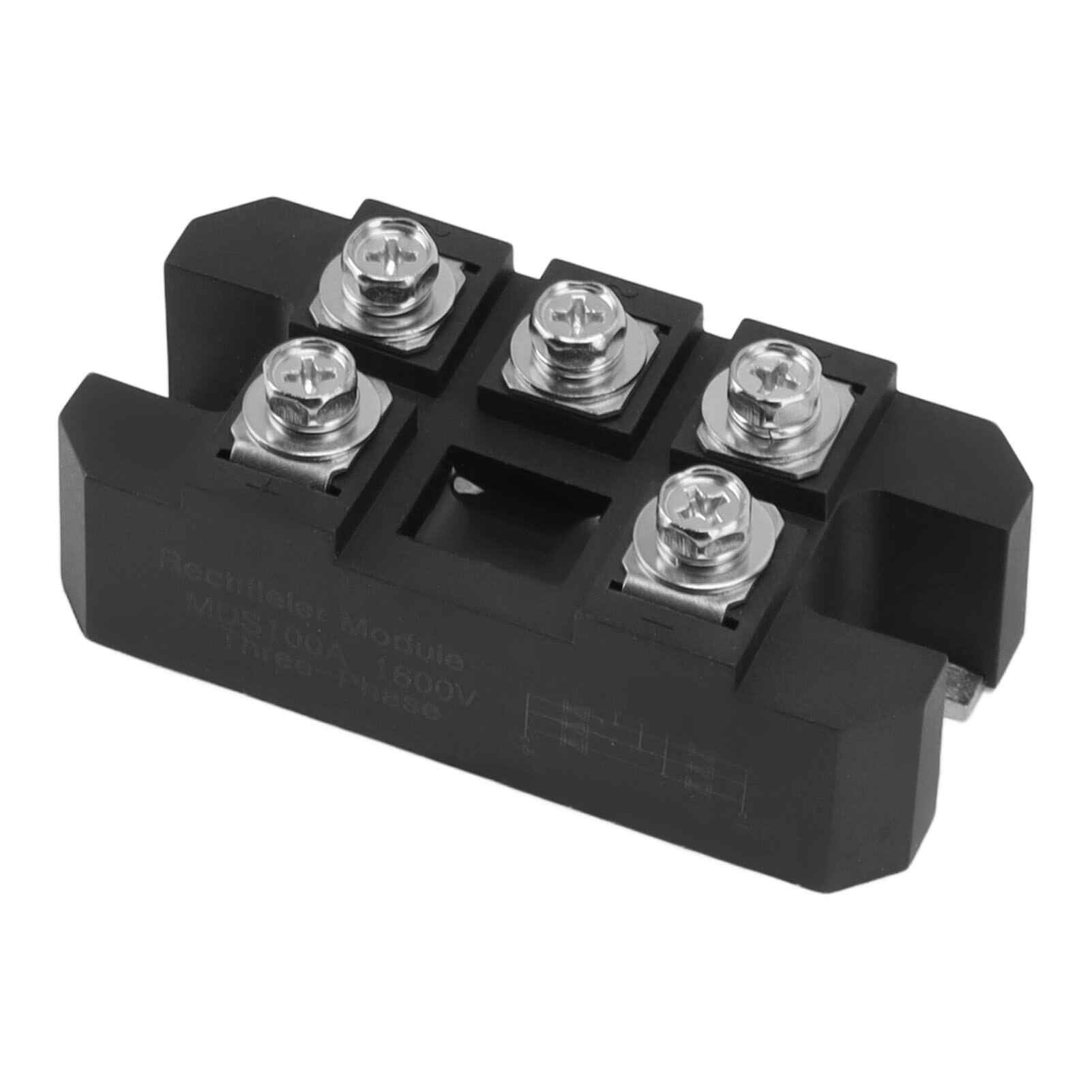

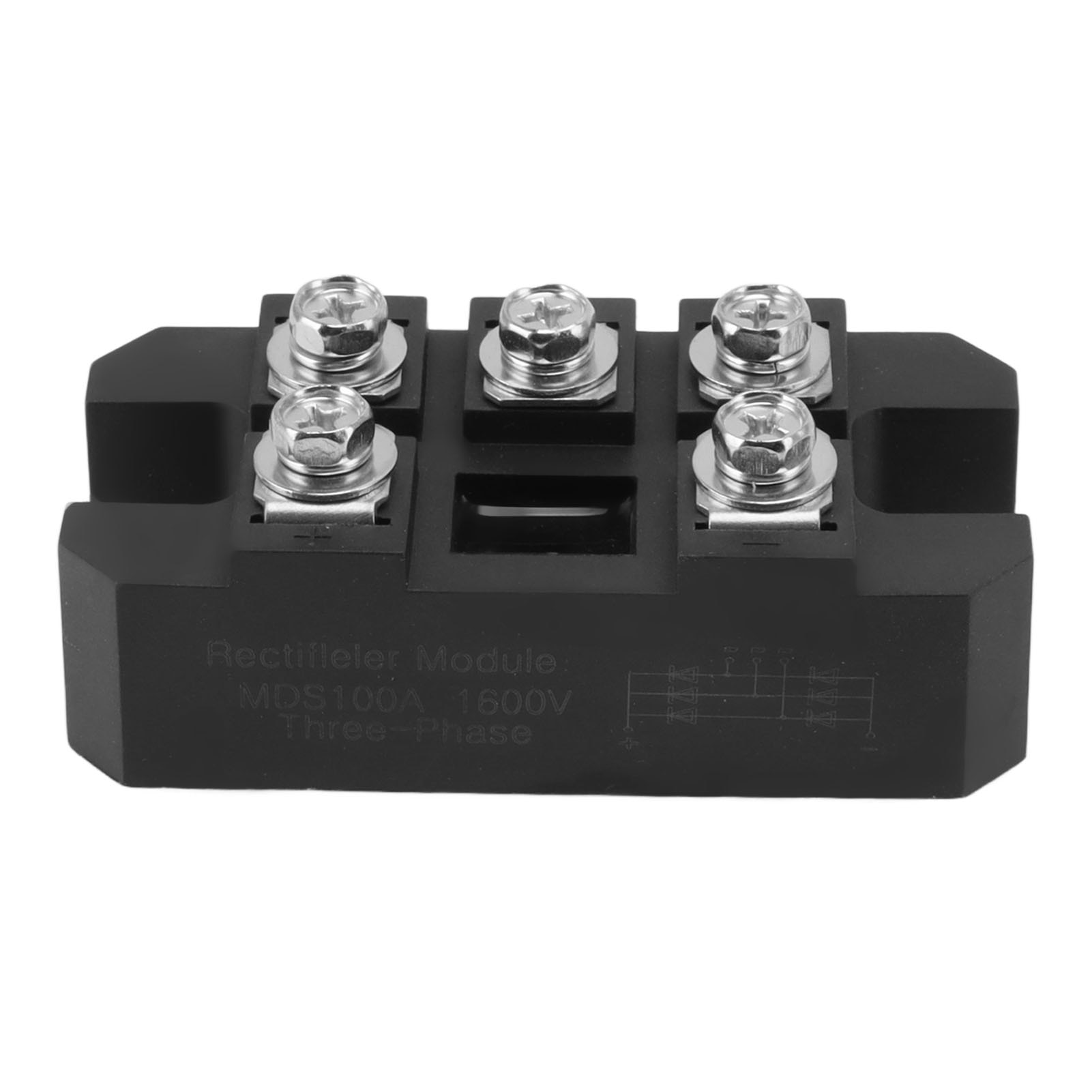

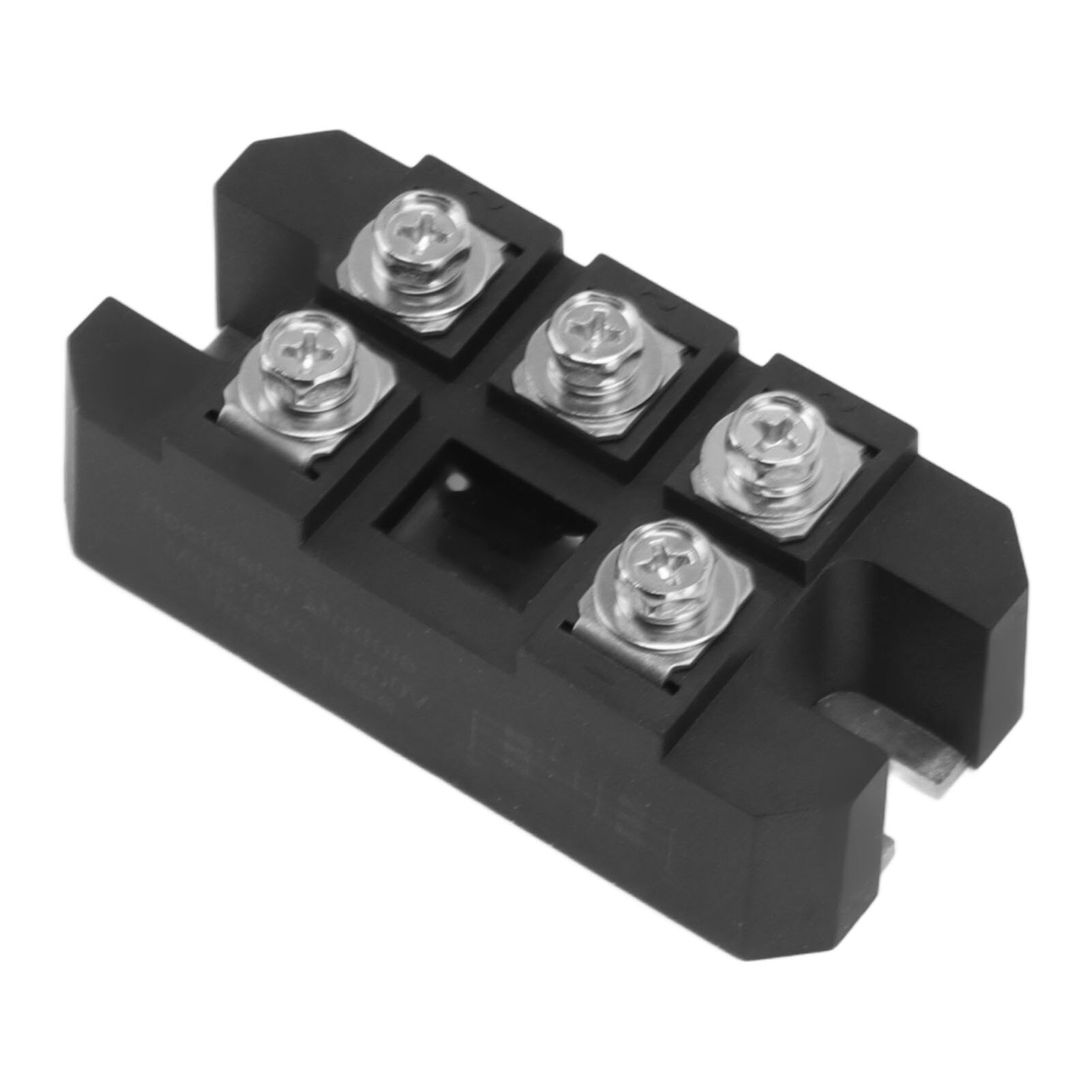

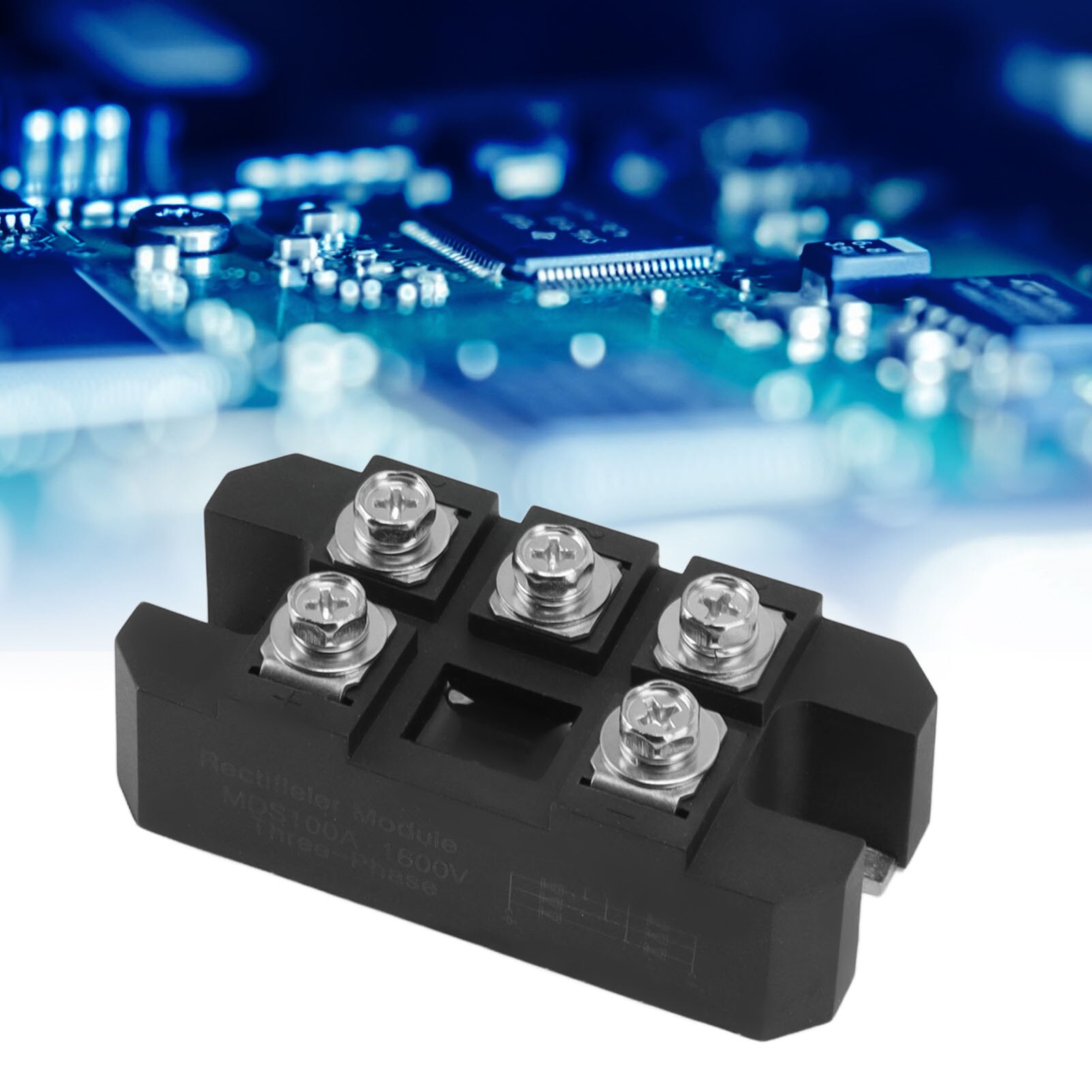

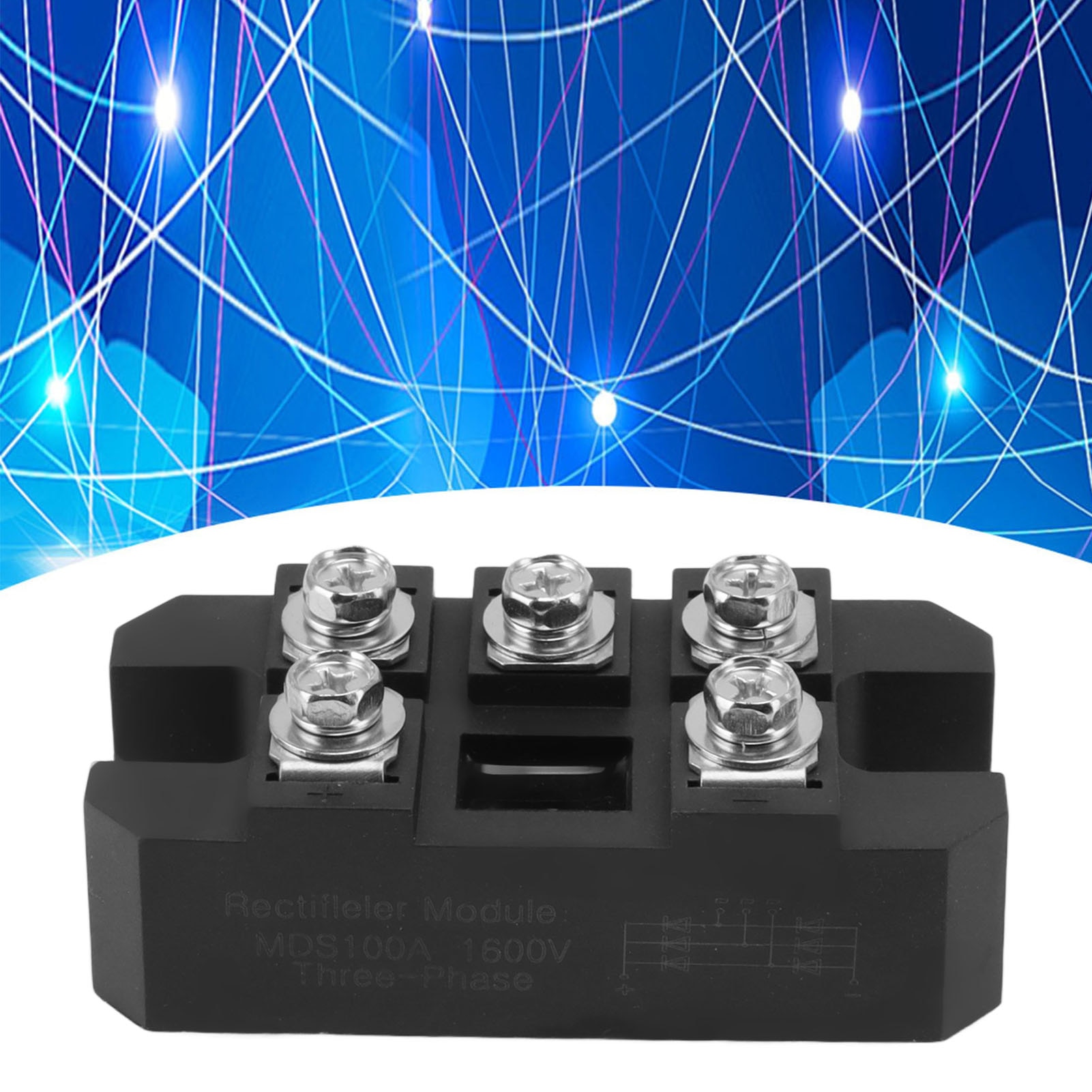

Bridge Rectifier 3 Phase Diode 5 Terminal 100A 1600V Rectifier Module MDS100A for Charging


1. Reliable Working: The power diode MDS 100A bridge rectifier module is designed for three phase full wave rectification and has six diodes connected in three phase bridge configuration.
2. Better in Design: High in both reverse withstand voltage and surge current, the output DC current is 100A, and the maximum voltage can get up to 1600V, very safe and reliable in the whole working process.

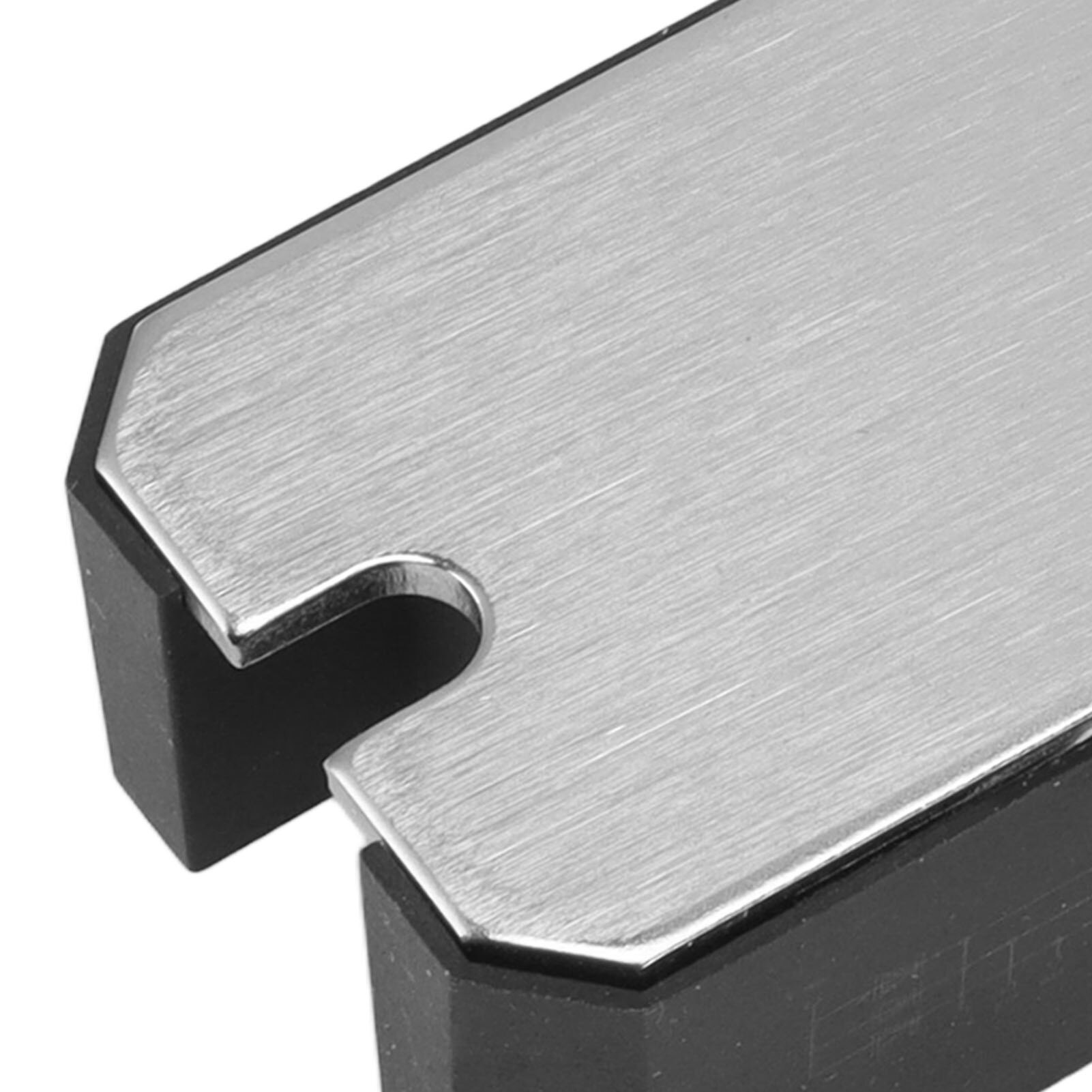

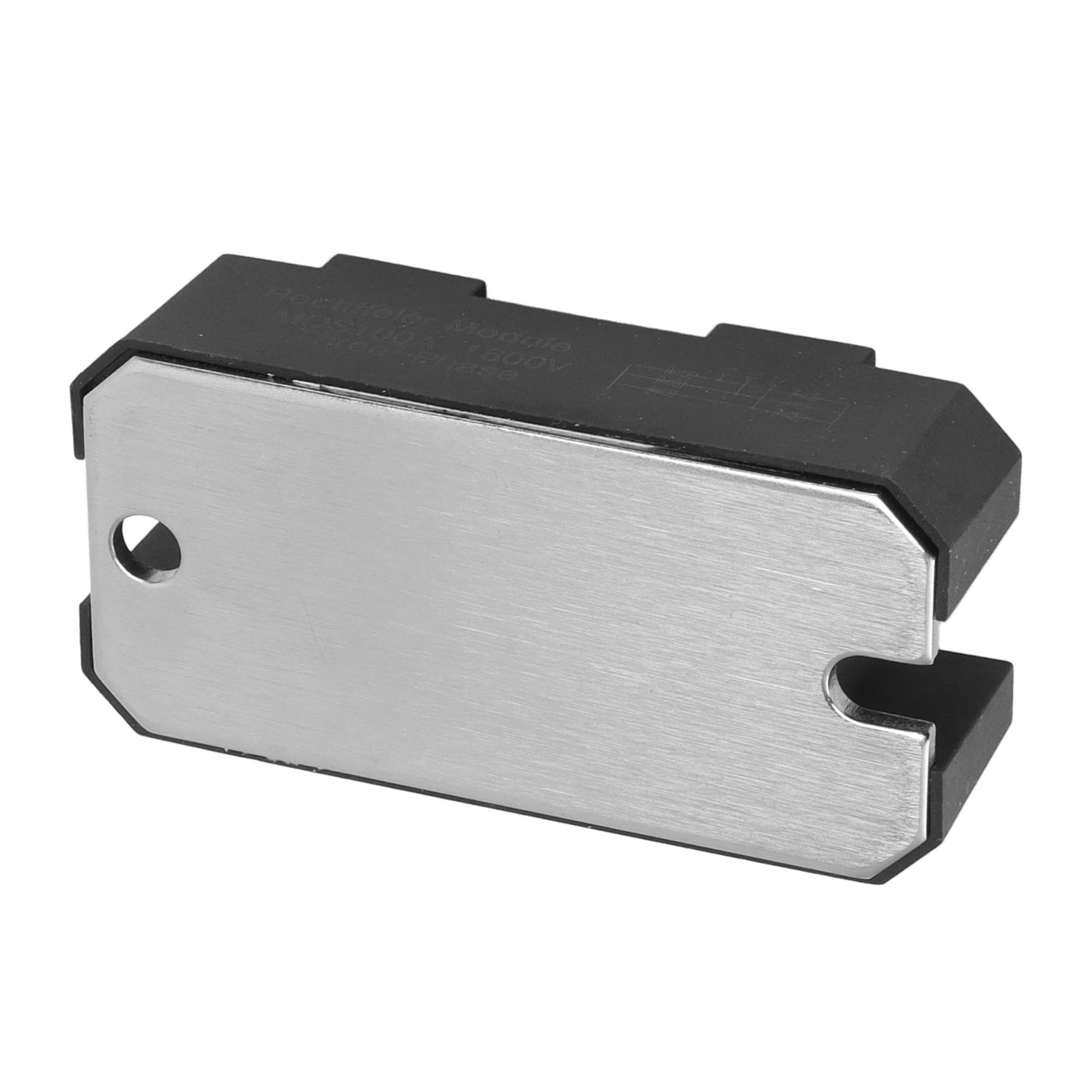

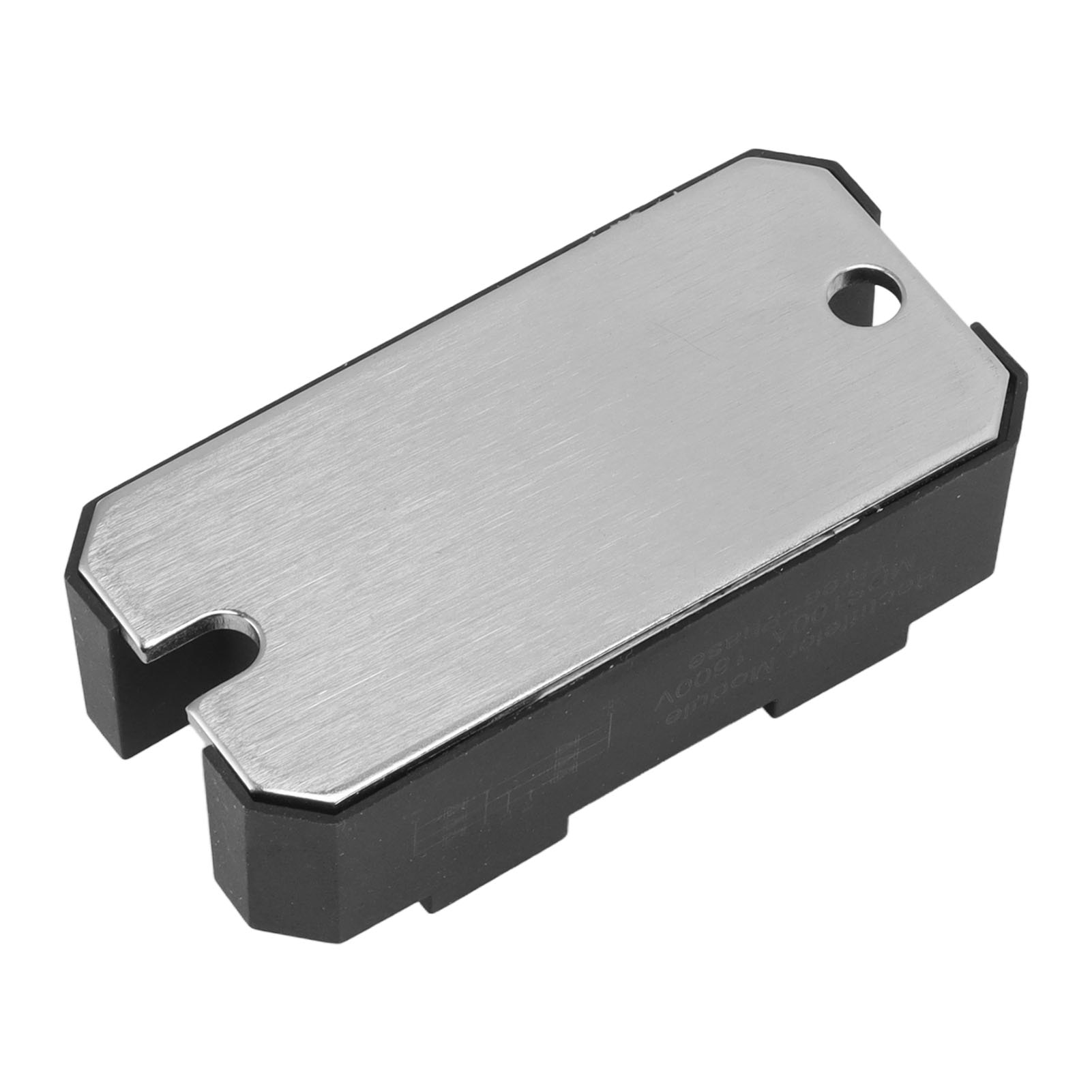

3. Fine Workmanship: The vacuum sintering is adopted for the chip and substrate, which effectively improves the AC insulation and withstand voltage, and also improves the heat dissipation effect of the chip.
4. Wide Application: Can be used in PWM inverter current input, battery charging, machinery, metallurgy, automobile, electric power, electroplating power supply, electrochemistry, electric drive and so on.

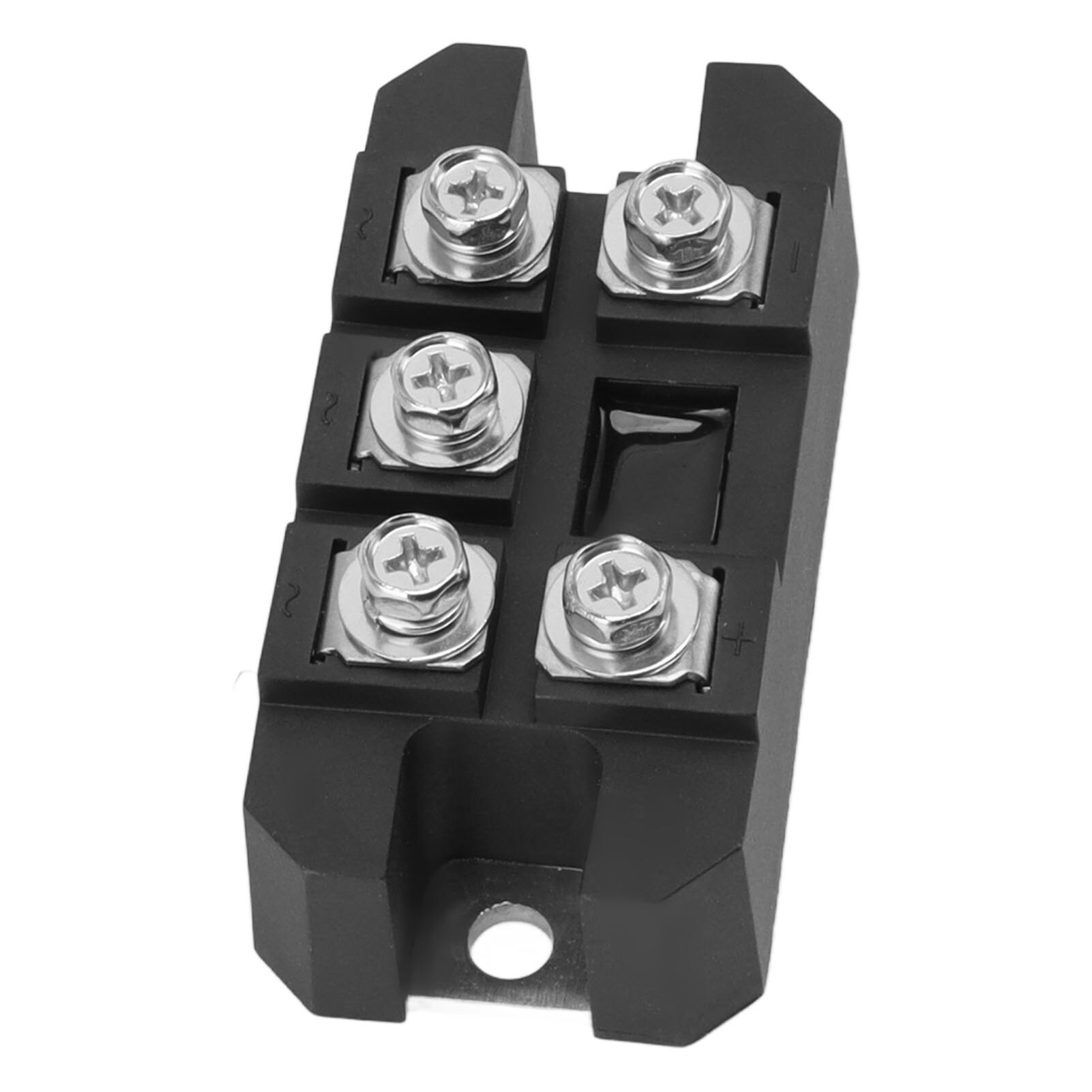

5. Quick to Install: 5 terminal design together with a light weight and a compact size can largely simplify the installation of this bridge rectifier.


Specification:

Item Type: Bridge Rectifier
Material: ABS, steel.
Forward Current: 100A
Forward Voltage: 1600V
Forward Peak Voltage: 1.60V
Reverse Repetitive Peak Voltage: 1800V
Reverse Repetitive Peak Current: 8A
Forward Peak Surge Current: 1000A
Rated Temperature: -60℃ ~ 175℃
Weight: 176 g / 6.21 oz(approx.)


Package List:

1 x Bridge Rectifier


  • Brand Name: Ashata
  • Origin: Mainland China
