AC 110V 220V 12V Digital Time Delay Relay Dual LED Display Cycle Timer Control Switch Adjustable Timing Relay Time Delay Switch
15.66 13.65 $
SALE
ID: 11055
Quantity

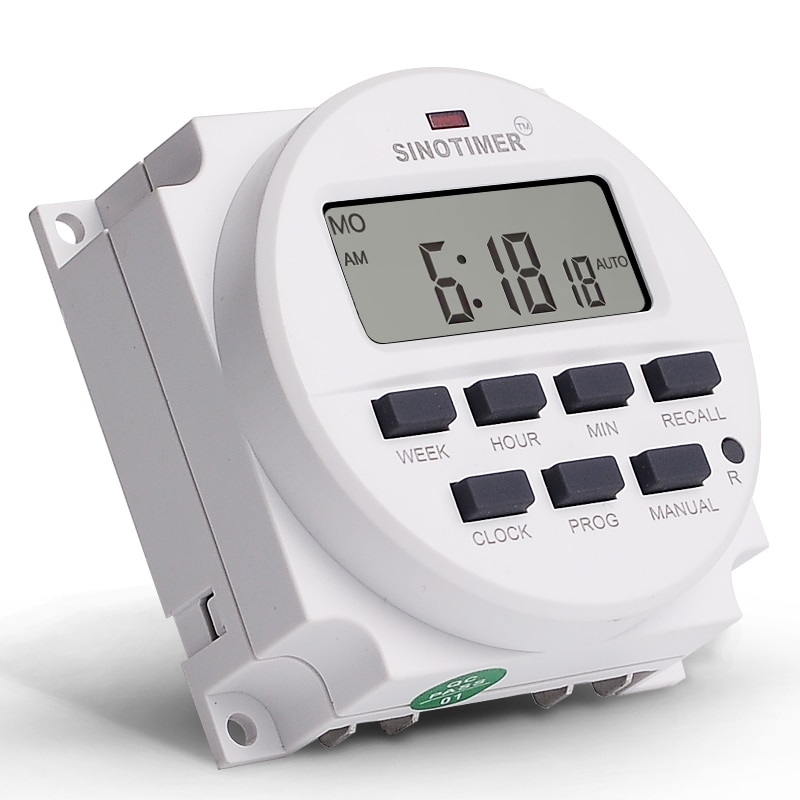

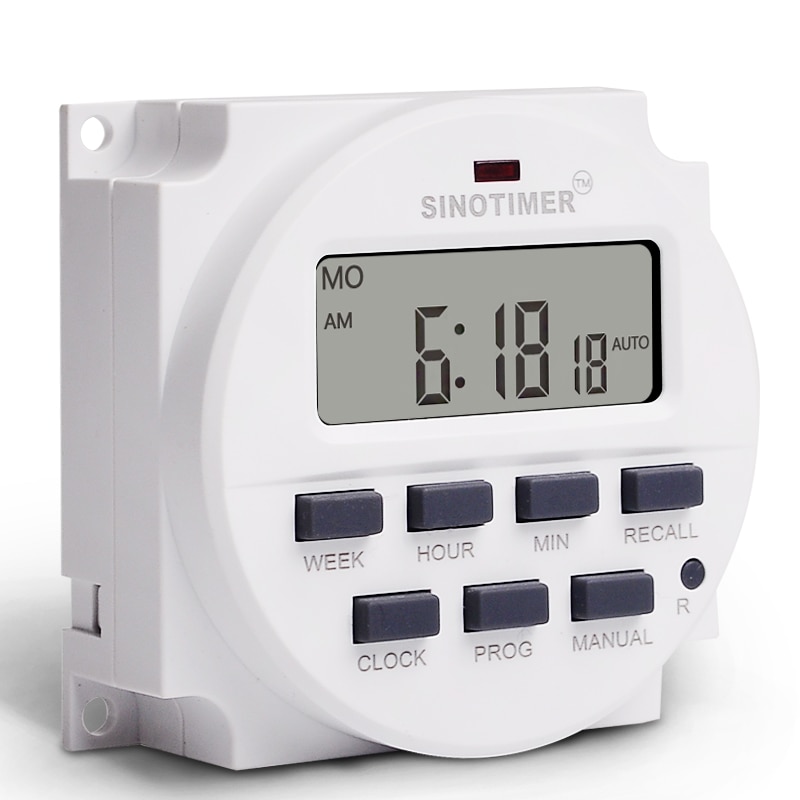

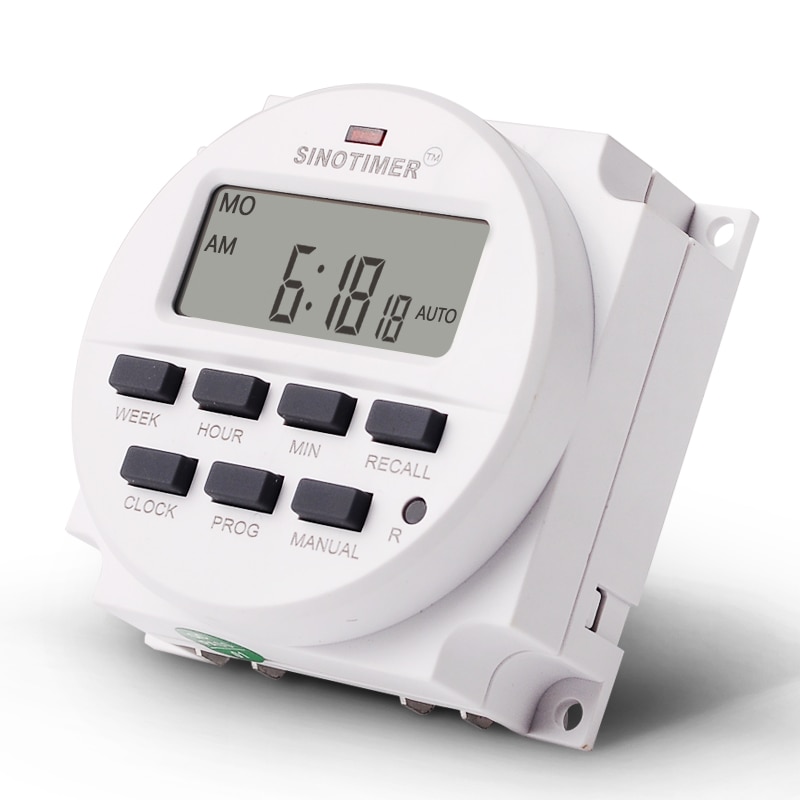

BIG LCD 1.6 Inch Digital 220V 230V AC 7 Days Programmable Timer Switch With UL Listed Relay Inside And Countdown Time Function
4.9 (82 votes) | 410 orders
Price:
US $26.62 - 28.71
/ piece
Discount Price:
US $
16.05 -
17.55
/ piece
-40%
- Ships From
MULTIPURPOSE 7 DAYS PROGRMMALBE TIMER SWITCH HAS FIVE FUNCTIONS:
1. CLOCK DISPLAY (12/24hr FORMAT)
2. TIMER (7 DAYS PROGRAMMABLE)
3. COUNTDOWN
4. AUTO TIME DEFLECTION CORRECTION, WEEKLY
5. SLEEP MODE
Usage:
The TM618 timer MODULE can open or close kinds of electrical apparatus and power automatically, according to the preset time,the items can be streetlight, neon light (sign), billboard, electrical appliances, broadcast equipments etc., the digital timer switch is within rechargeable battery, in 1.2V/40Ma, high-accuracy CMOS chip, strongly anti-jamming, easy to use.
Why choose SinoTimer TM618N?
1. 1.6 inch big LCD display,easy to read.
2. Excellent load capacity, 16amp@250vac.
3. Easy program, everyone can program it after he reads the manual JUST one time.
4. Stable performance because of professional manufacturing in power saver since 2002.
5. Confirm to CE standard, and with LVD, EMC,RoHS certificate passed
Characteristics:
* You can use the timer to SWITCH ON/OFF any electrical equipments at a preset timer
* 16 ON/OFF programs per day, 15 combinations to a week.
* 24 hours / 7 days a week programmable.
* Built-in battery for backup the memory (save the programs you set)when power failure
* Auto time error correction +/- 30 sec, weekly
* Repeat programs with 16 on/off settings, and setting on/off manually
* Easy to read LCD display, LED indicators
* Countdown OFF time range 1 minute to 24 hours
Voltage Choice:
6Vdc, 12Vdc,24Vdc,36Vdc, 48Vdc, 110Vac,230Vac
Techanical Data:
Model: | TM618N-2 220V AC TM618N-1 110V AC TM618N-4 12V DC/AC TM618N-3 24V DC/AC |
Temp.range: -20°C+50°C | Display: LCD |
Power consumption 4.5 VA (MAX) | Programs:16 on/off each day or week |

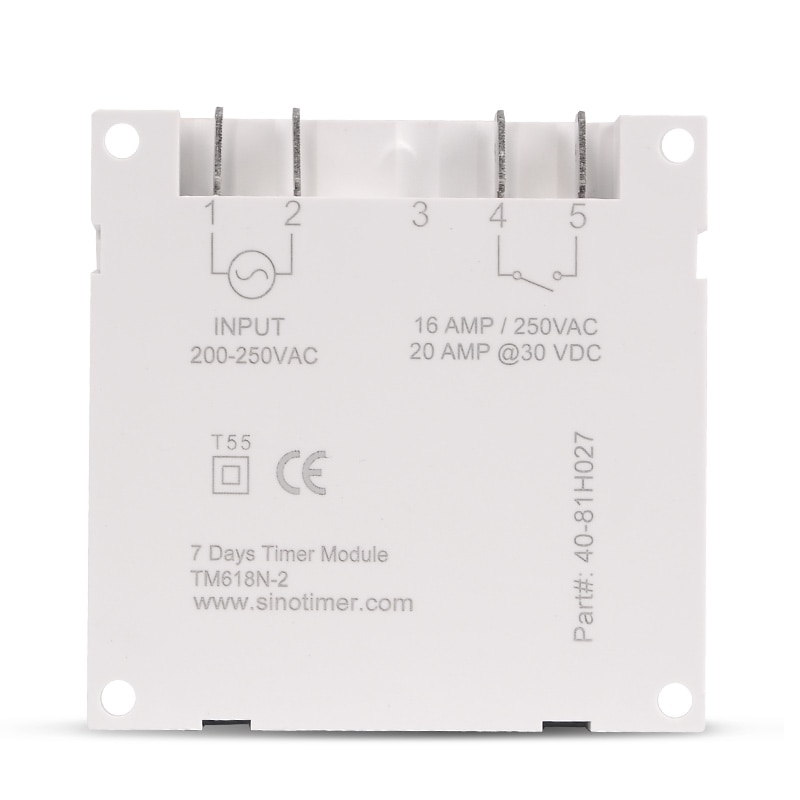

Switching contact: 1 changeover switch | Mini interval: 1min |
Hysteresis 2 sec/day (25°C) | Coundown OFF time range:1min~24hr |
Capacity: 16(8) 250V AC | Black-out: 60 days |
Timer range: 1min~168hr | Recharge battery: 1.2V 40Ma |
Average error: 1s/24h, 25°C | Weight: 0.08 kg |
Other Related Timers from SINOTIMER:
- Usage: Timer Switch
- Theory: Digital
- Model Number: TM618N-2
- Type: Mini
- Brand Name: SINOTIMER
- Origin: Mainland China
- Certification: CE,RoHS
- LCD SIZE: 1.6 INCH

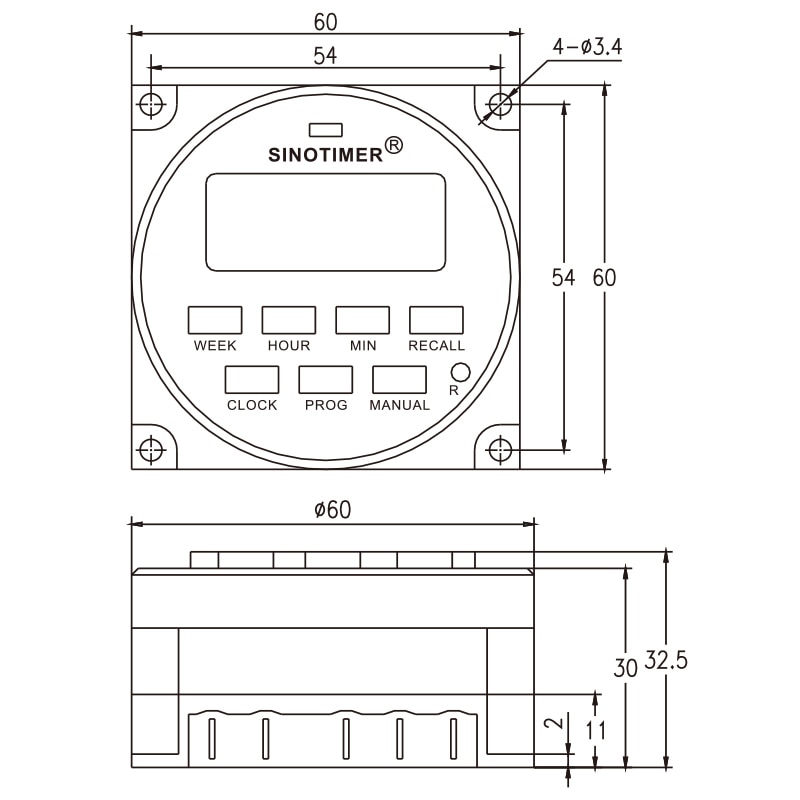

- DIMENSION: 60*60*30mm
- INSTALLATION: PANEL MOUNTED
- POWER SUPPLY: 220V AC

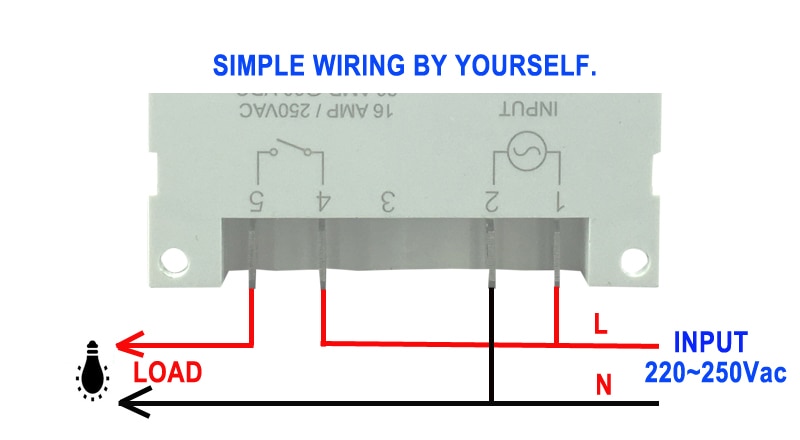

- OUTPUT: VOLT FREE OUTPUT (1NO)
- CERTIFICATES: CE ROHS EMC LVD
- Clock Format: 12/24Hr Format
- Mini interval: 1 minute
- Max interval: 7 days
- Countdown OFF time range: 1 min ~ 24 hours
