BB CNC Carbide Flat End Mill Tungsten Cutter 2 4 Flute Metal Steel Machining Tool Key Face Square Router Bit 6 8 12 Shank HRC55
5.0 (422 votes) | 1280 orders
Price:
US $11.44 - 322.91
/ piece
Discount Price:
US $
9.95 -
222.81
/ piece
-13%
- Dimensions
-
- 1x4x3x50
- 1.5x4x4x50
- 2x4x5x50
- 2.5x4x7x50
- 3x4x8x50
- 3.5x4x10x50
- 4x4x10x50
- 4x4x18x75
- 4x4x20x100
- 5x5x13x50
- 5x5x20x75
- 5x5x25x100
- 6x6x15x50
- 6x6x20x75
- 6x6x30x100
- 6x6x38x150
- 7x8x18x60
- 8x8x20x60
- 8x8x25x75
- 8x8x35x100
- 8x8x45x150
- 9x10x23x75
- 10x10x25x75
- 10x10x40x100
- 10x10x50x150
- 11x12x30x75
- 12x12x30x75
- 12x12x45x100
- 12x12x55x150
- 14x14x45x100
- 16x16x45x100
- 16x16x60x150
- 18x18x45x100
- 20x20x45x100
- 4.5x6x10x50
- 5.5x6x15x50
- 6.5x8x20x60
- 7.5x8x20x60
- 8.5x10x25x75
- 9.5x10x25x75
- 10.5x12x30x75

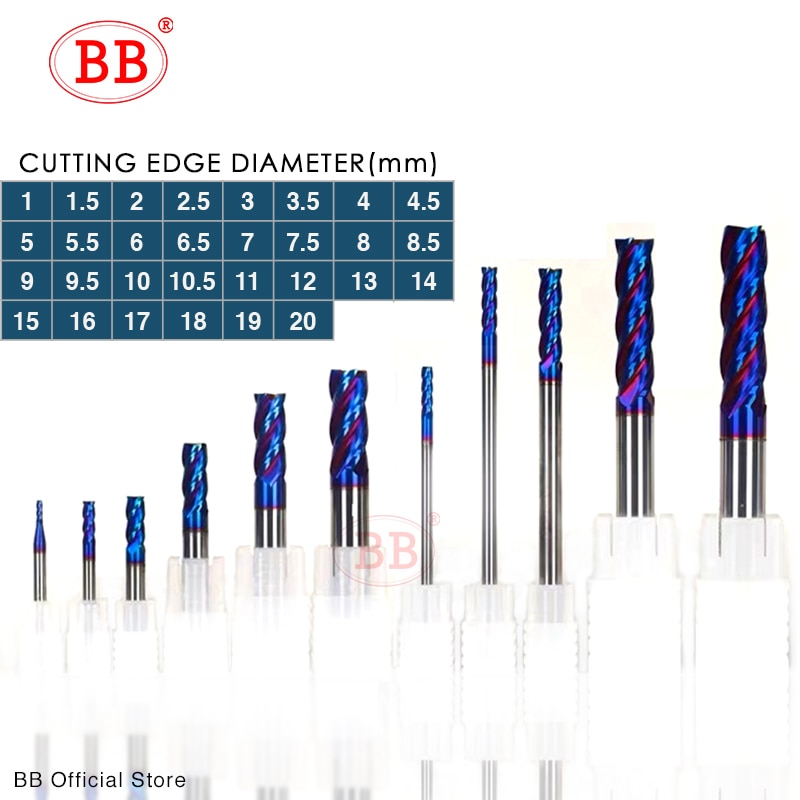

- Cutting Edge Length
-
-

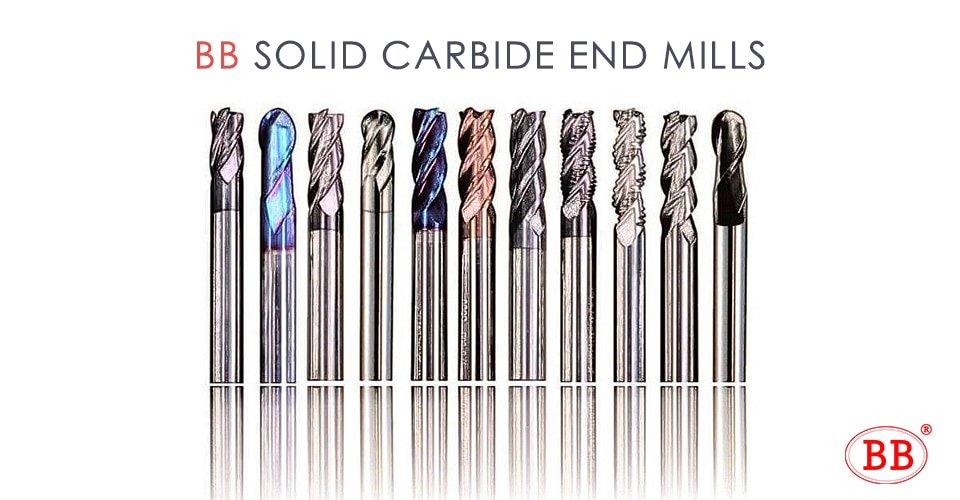

BB® Tungsten Steel Solid Carbide End Mills
Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid tool-holding systems.

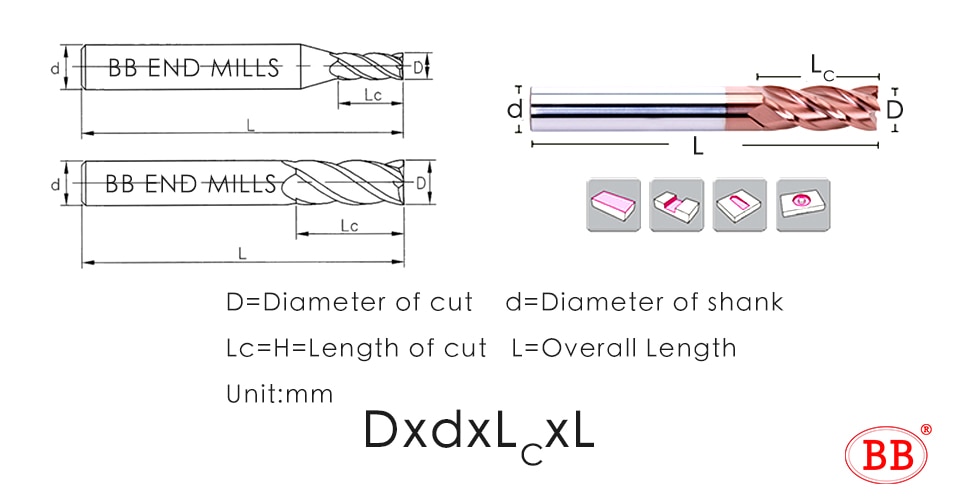

Dementions
Tolerance of End Mill Diameter:
1 < D≤6 -0.010 ~ -0.030
6 < D≤10 -0.015 ~ -0.040
10 < D≤ 20 -0.020~-0.050
Industrial Design
Negative front angle and large chip space.Easier roughing and finishing processing.
Decreasing the times of changing cutters,Saving production time.

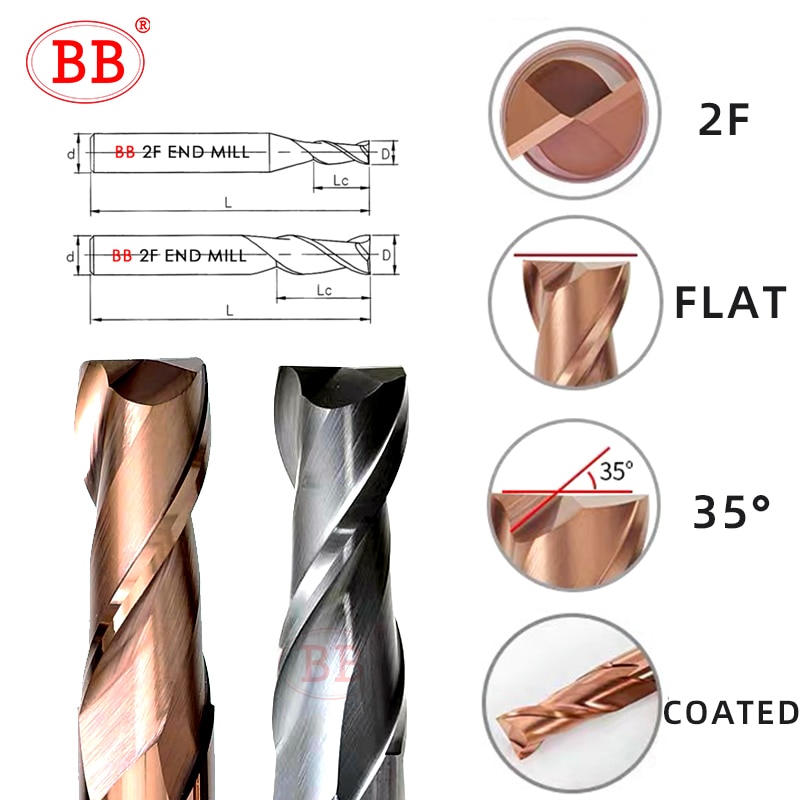

Helix Angle:35 deg, high adaptability to the material and hardness of workpieces, widely used to mold and product processing and cost efficient.
Coating:Good coating can improve tools life and production efficiency, as well as solve the cutting problems.

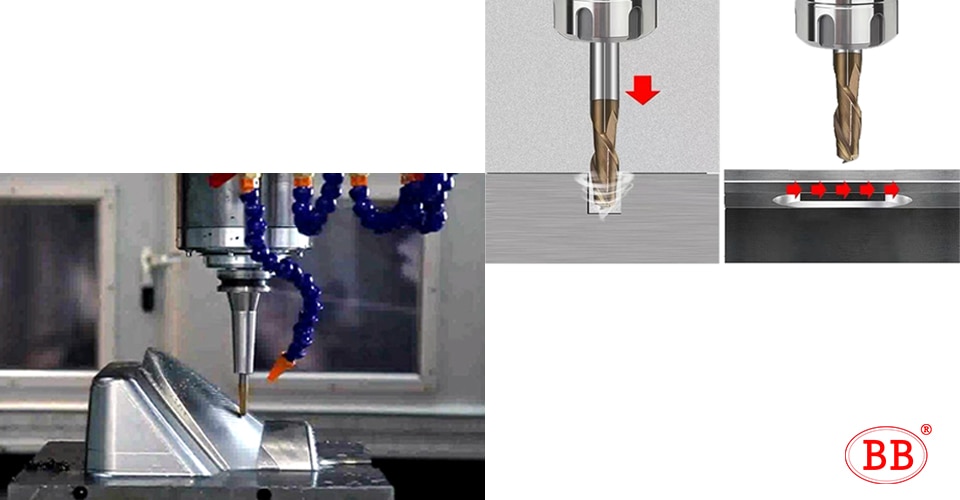

Application
Used in Milling Machine.,CNC,Drill press,Engraving machine. Metal, woodworking, alloy steel, stainless steel, etc

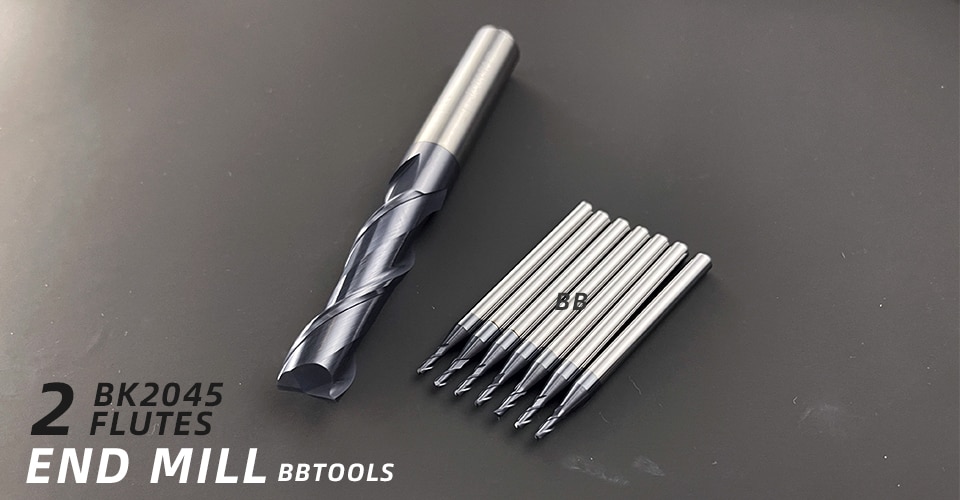

BB 2 flutes end mills is widely used in slotting, sinking etc.
3 flutes for aluminum，non-ferrous metal.
4 flutes, high rigidity, widely used in shallow slot, profile milling, and finish machining.

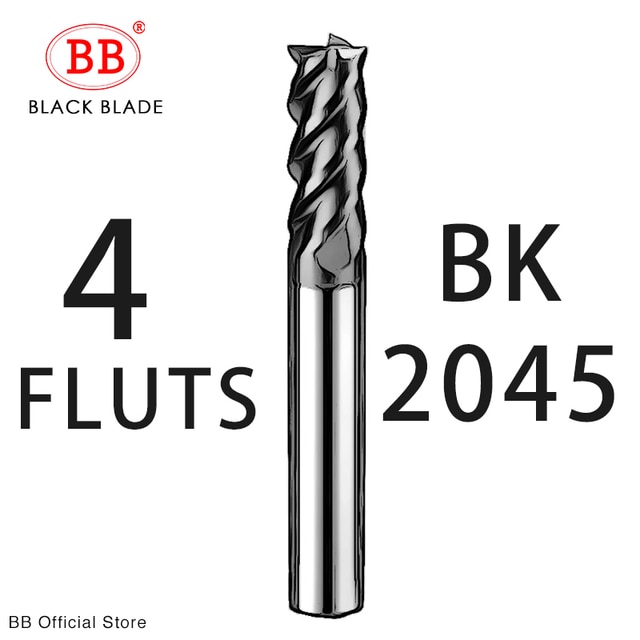

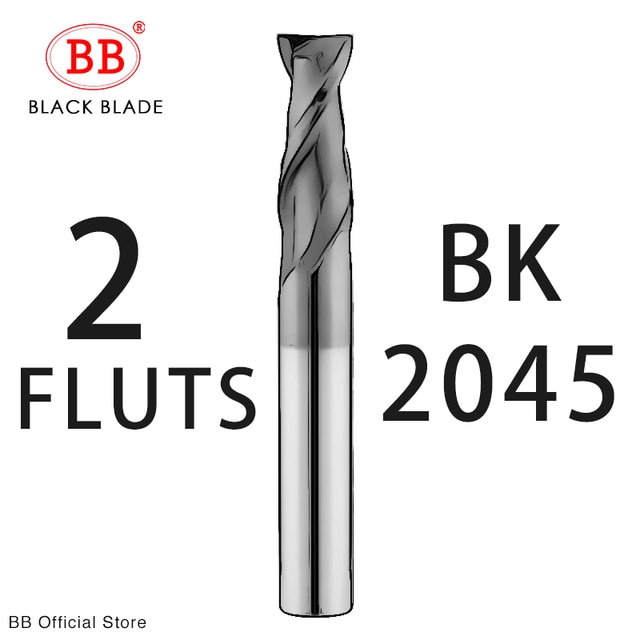

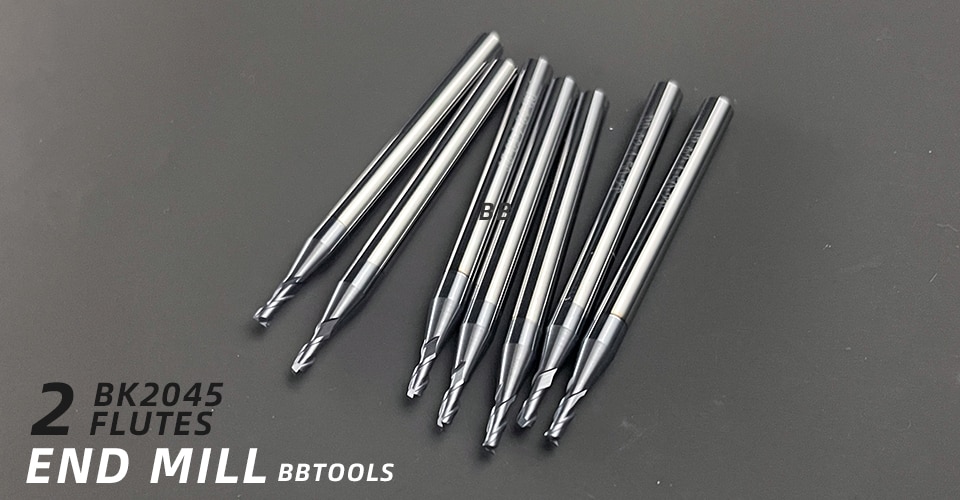

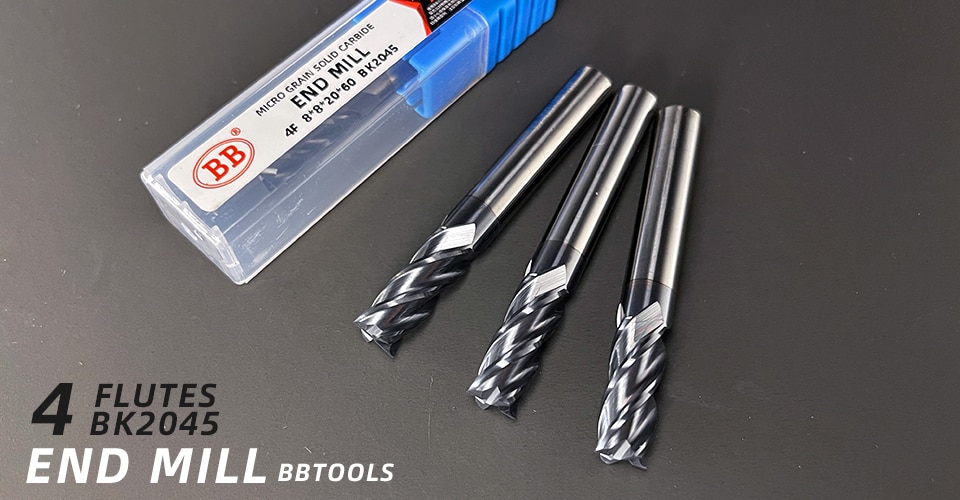

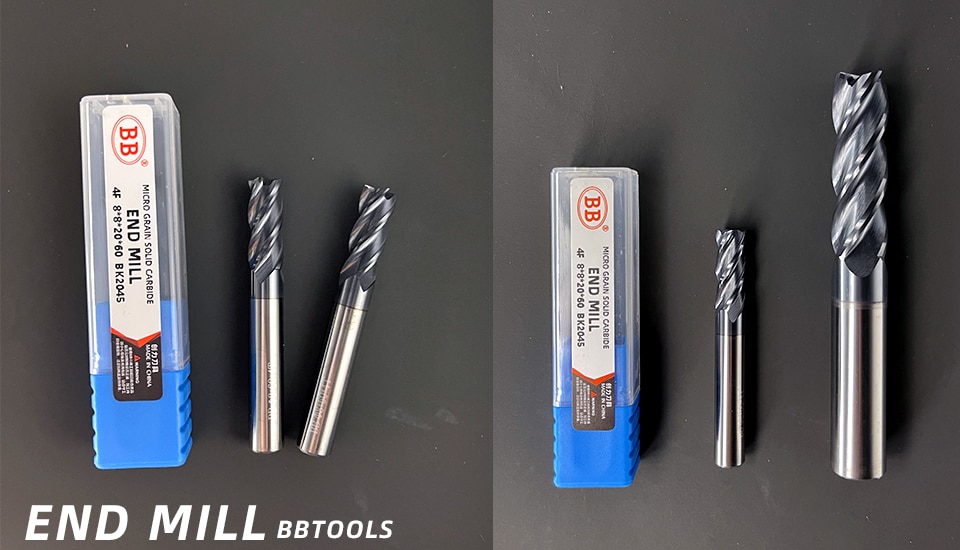

BB® BK2045 Carbide End Mills
Color: Dark grey.
Density: 14.5 g/cm3
Hardness: HRA 91.5
Grain Size: 0.8um
Bending Strength: 2800N/mm2
Raw material: Recycled material,YG10X with 10% Co content and 0.8um grain size. Because tungsten is a scarce resource, BK2045 series milling cutter is made of recycled tungsten steel.

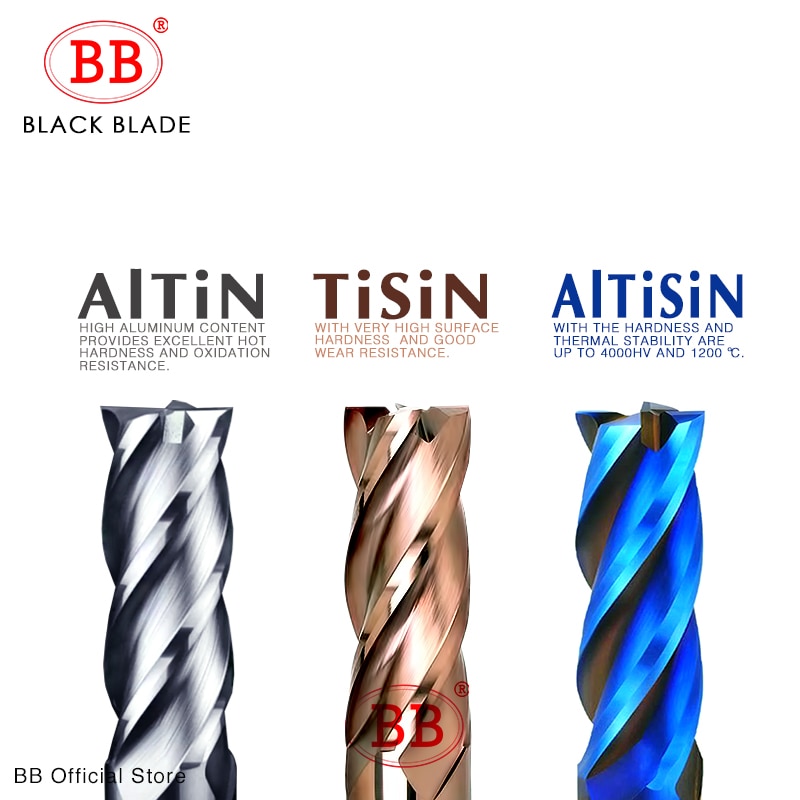

Coating: ALTiN,High aluminum content provides excellent hot hardness and oxidation resistance.
A good choice for milling general steels weaker than HRC 30.
But, because of the aluminum content, it is not good choice for aluminum.

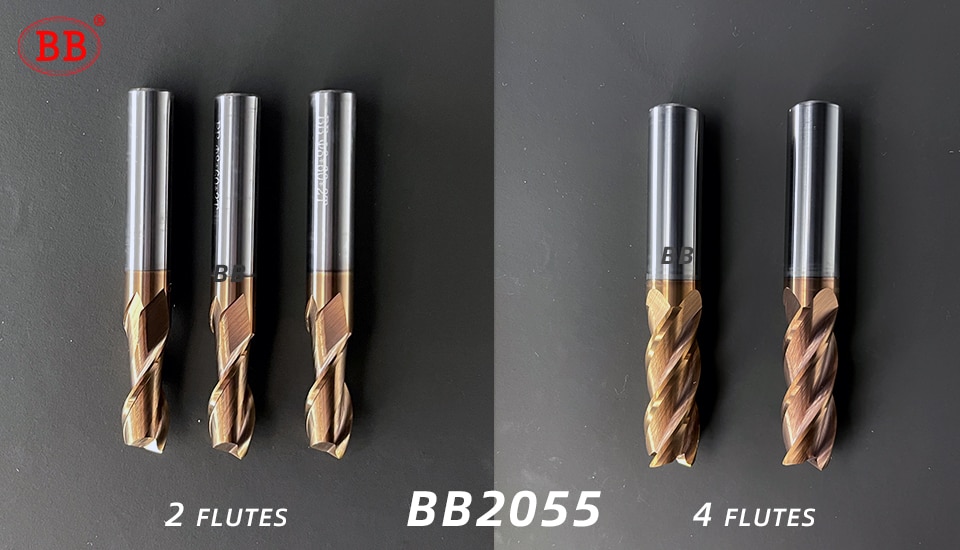

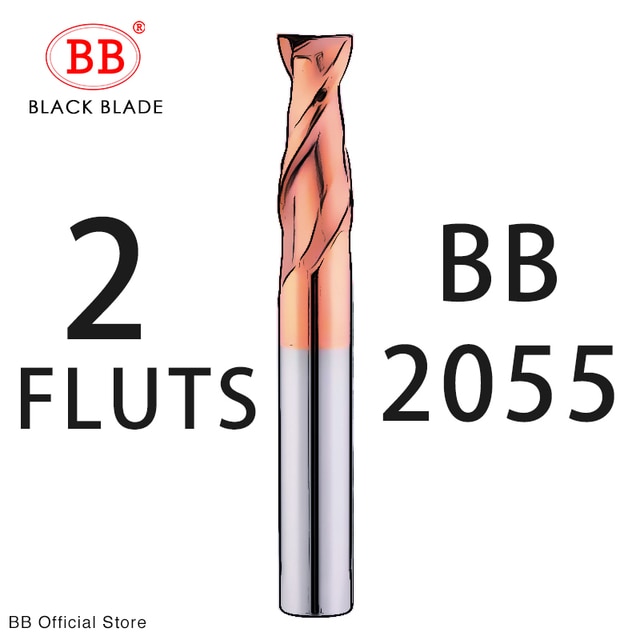

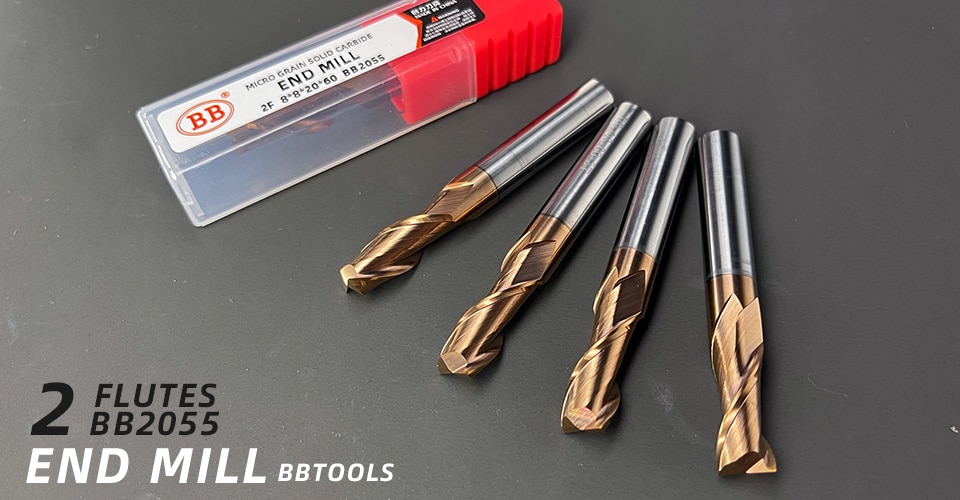

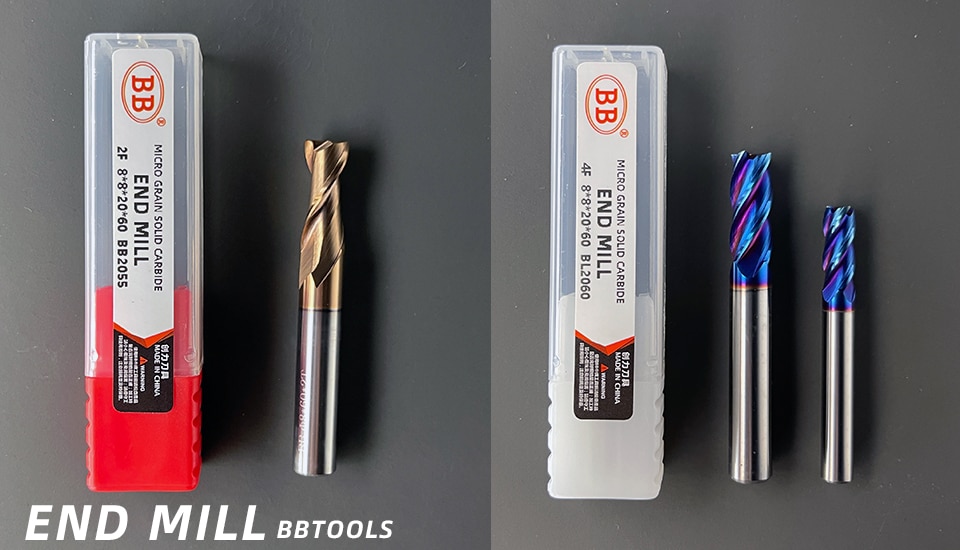

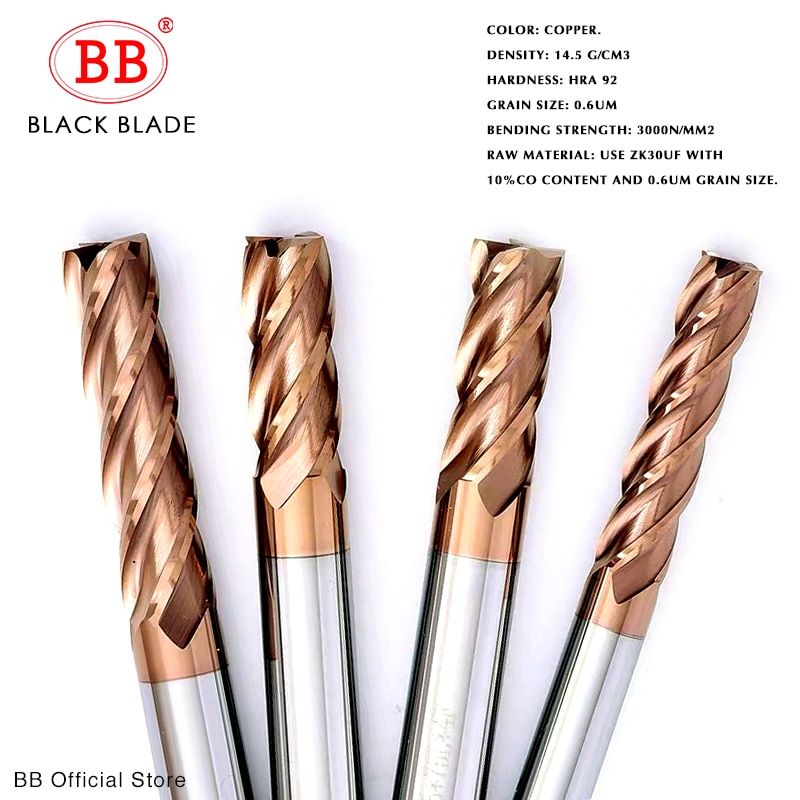

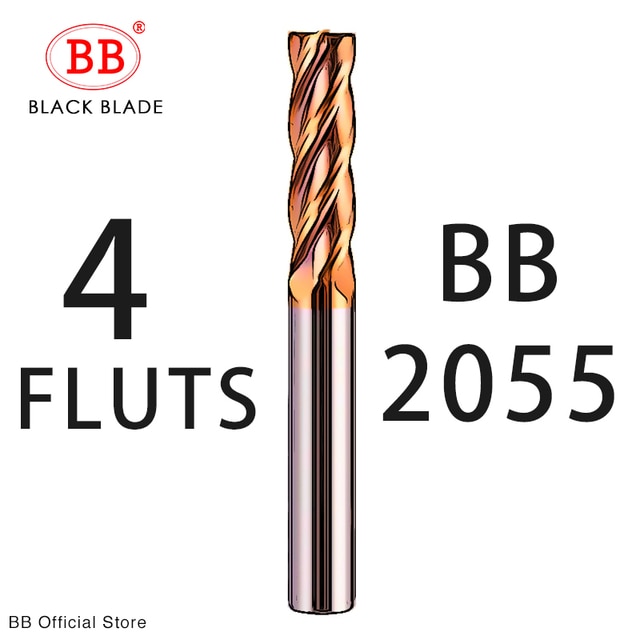

BB® BB2055 Carbide End Mills
Color: Copper.
Density: 14.5 g/cm3
Hardness: HRA 92
Grain Size: 0.6um
Bending Strength: 3000N/mm2
Raw material: Use ZK30UF with 10%Co content and 0.6um grain size.
Coating: TiSiN, with very high surface hardness and good wear resistance.
Suitable for milling general steel under HRC 45, stainless steel, hardened steel, etc

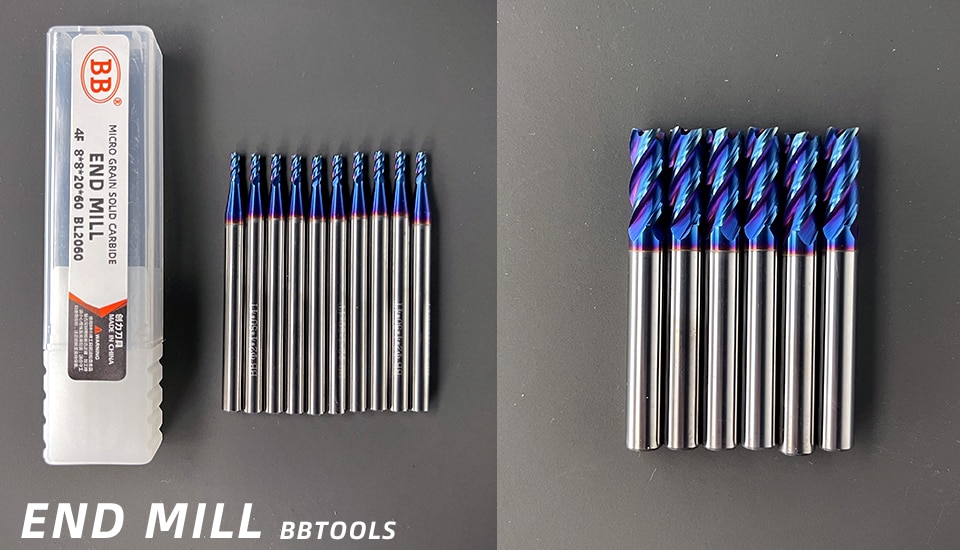

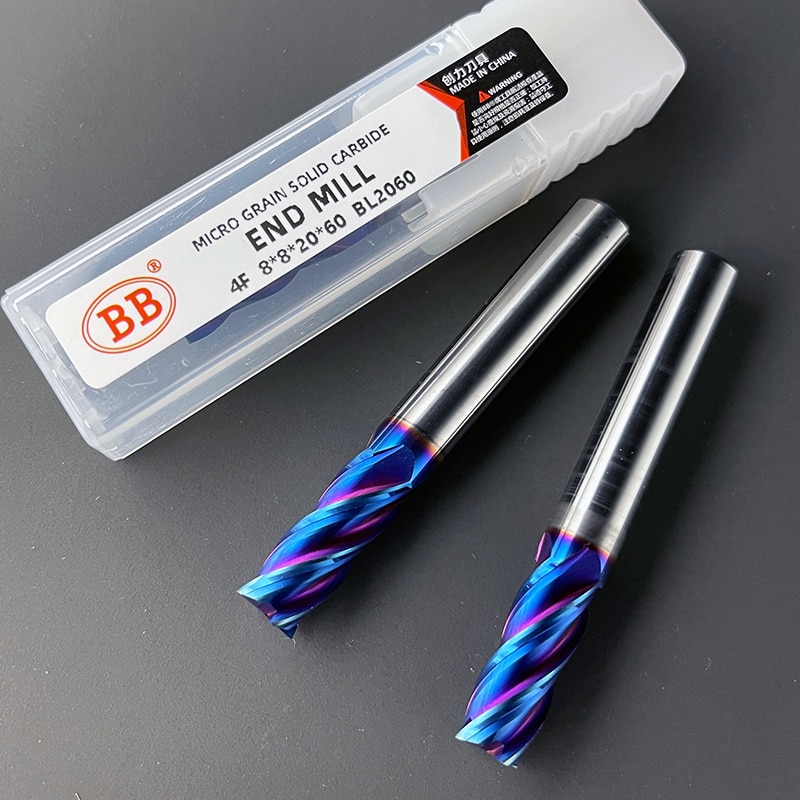

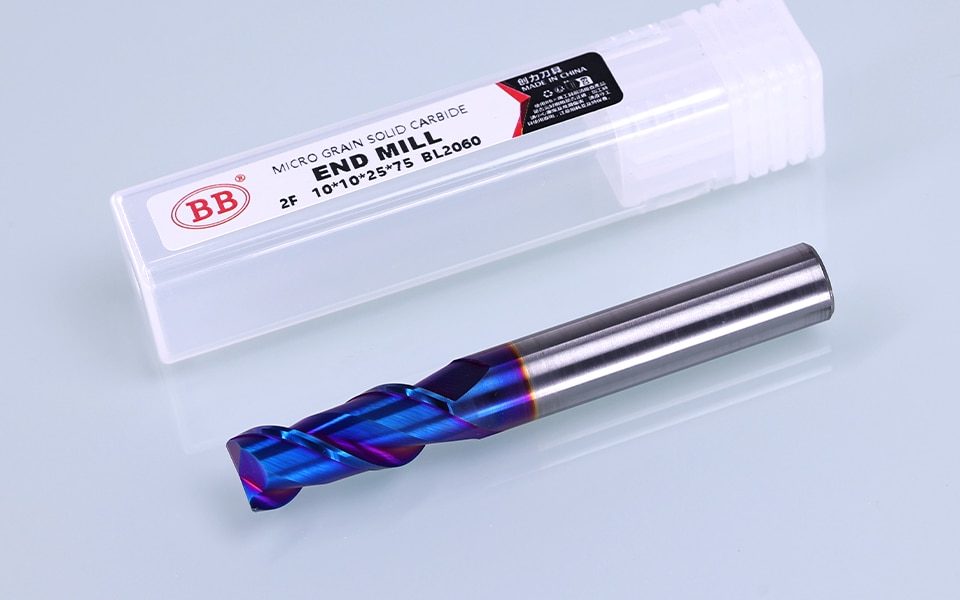

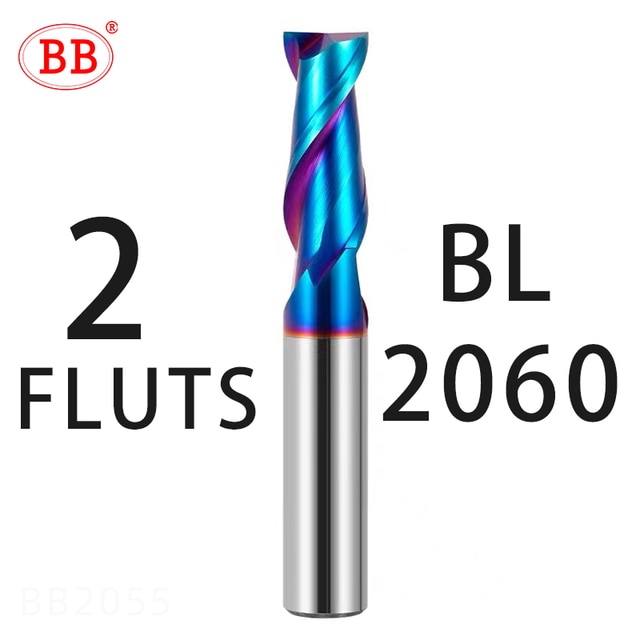

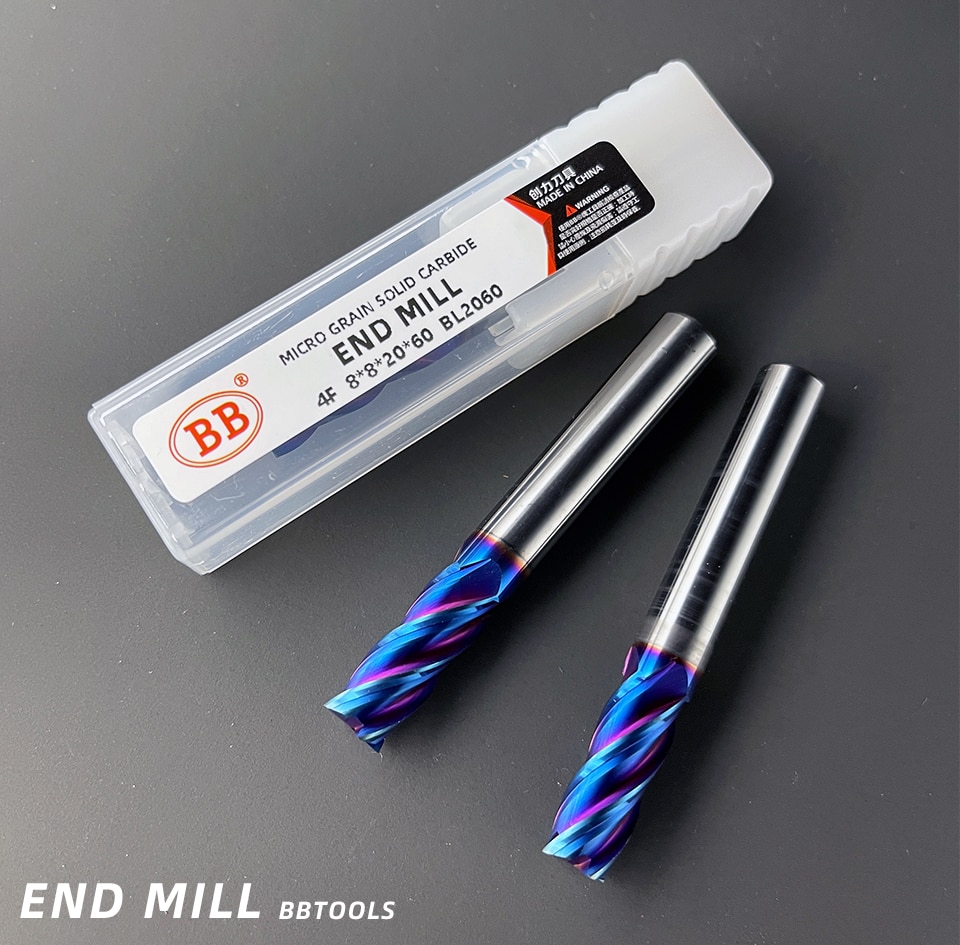

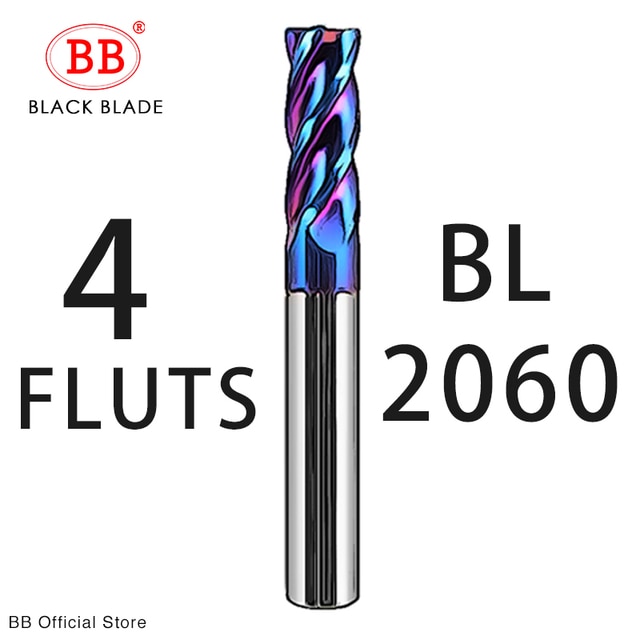

BB® BL2060 Carbide End Mills
Color: Blue.
Density: 14.5 g/cm3
Hardness: HRA 93
Grain Size: 0.4um
Bending Strength: 4000N/mm2
Raw material: Use GU25UF with 12% Co content and 0.4um grain size.
Coating: AlTiSiN, with the hardness and thermal stability are up to 4000HV and 1200 ℃, respectively.
Suitable for machining stainless steel, hardened steel, titanium alloy, etc.HRc＜55.

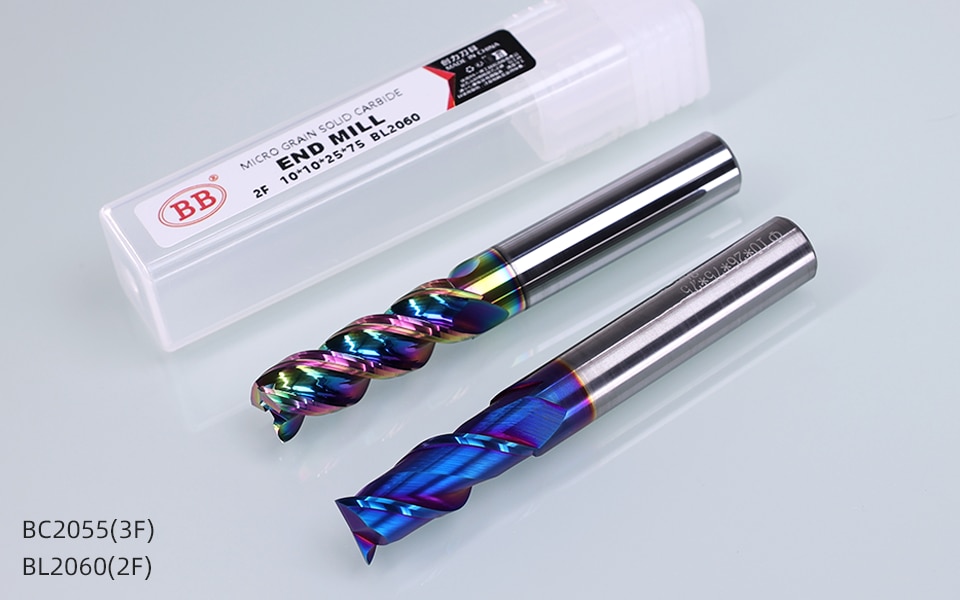

BB® 3 Flutes Carbide End Mills
BF2055 BC2055 BC3855 series
BB® BK2063 BK3060 Series
Unique coating technology, harder processing performance.At the same time, more stable processing conditions are also needed.
BK4055 Unequal spiral angle, asymmetric design, reduce vibration and improve stability.

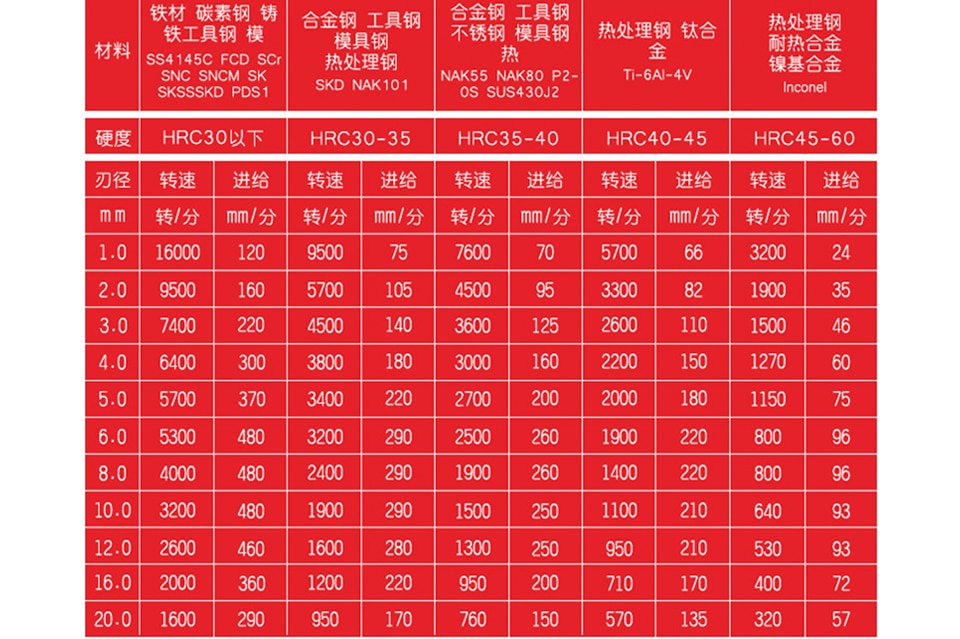

Cutting Parameters
ap=1/3D(1/8-1/2D)
ae=1/2D(1/4-1D)
fz=0.15mm(0.02-0.2)
！Please adjust the parameters accroding to the material and hardness of workpieces.

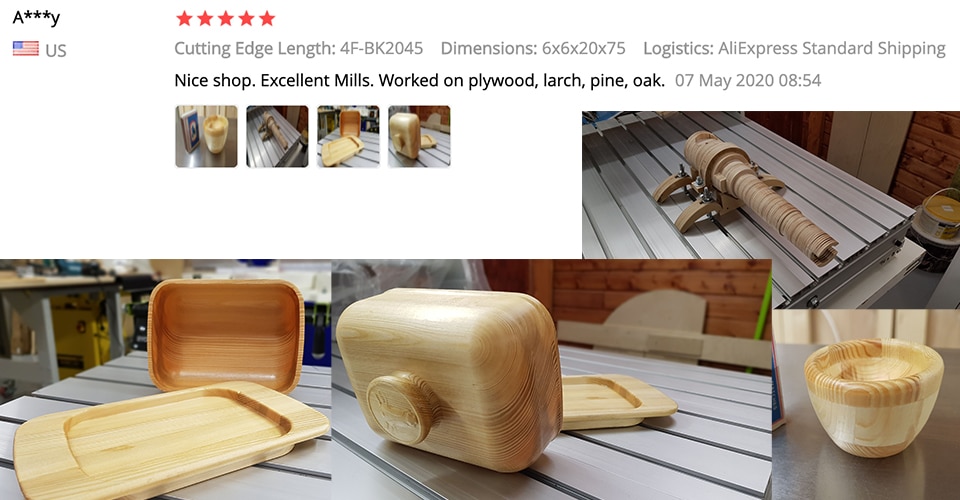

Works and reviews of clients (Thanks!）

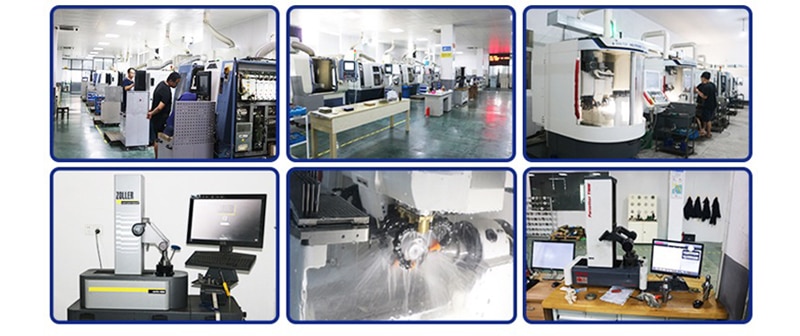

Our Factory
Precise Quality Control Policy - From raw materials to finished products, we insist on a high standard of inspection to make sure every product shares equivalent and stable quality.
BB® HSS End Mill
You can click on the picture to view details.
Imperial sizes
BB 6 Flutes Carbide End Mill-Finish machining
Click on the image for details
HI, welcome to BB official store.
-We are professional manufacturer ,development and production of milling tools.
-We provide various tools for you . You can follow us and see more.
-You have free choice of collocation, pick different specifications and other tools in our store to you cart and pay them together. We will send the products you have picked as a package.
-Take an additional 5~10% off when you buy 10 pieces or more.
SHIPMENT
-We have already paid 50% of delivery cost when you choose Hogaki Standard Shipping.And free shipping for sometime.
-Orders processed timely after the payment verification.We ship products within 3 working days.
-The trade is cross-border, and Airmail is cheapest post which take a long time for delivery.If you need the item urgently ,please choose Express way.
-If you have not received your shipment within 60 days from payment, please contact us. We will track the shipment and get a reply to you as soon as possible.
We sincerely hope that BB tools will meet your full requirements. Please enjoy your online shopping.
- Degree: R1.0
- Overall Length: 50~150mm
- Coating: TICN
- Diameter: 1mm 2mm 3mm 4mm 5mm 7mm 9mm 6mm 8mm 10mm 11mm 12mm 14mm 13mm 16mm 20mm
- Model Number: BK4055 BB2055 BL2060
- Type: End Mill
- Material: Carbide
- Brand Name: BB
- Origin: Mainland China
- Type: Flat End Mill
- Teeth: 2 Flutes 4 Flutes
