BB Ball Nose End Mill Tungsten Carbide Cutter CNC Router Bit Milling Tool R0.5 6mm 8mm 10mm HRC45 55 65 2 Flute
4.9 (232 votes) | 997 orders
Price:
US $11.44 - 347.95
/ piece
Discount Price:
US $
9.95 -
240.08
/ piece
-13%

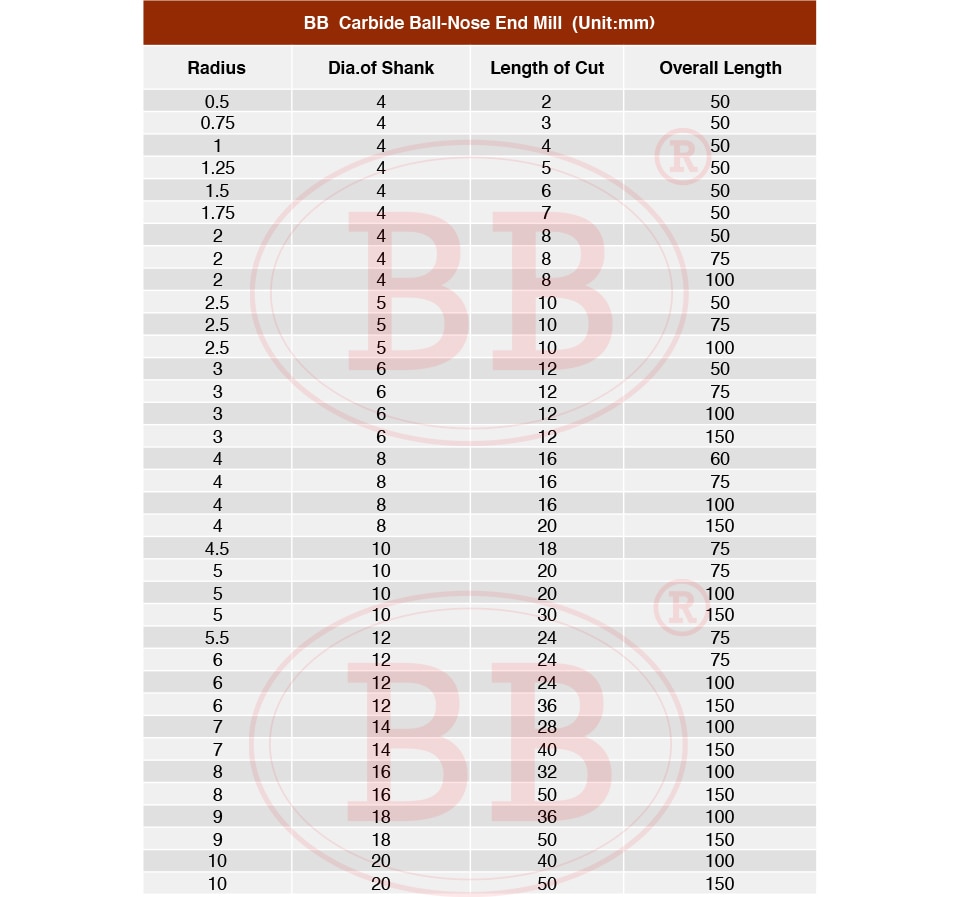

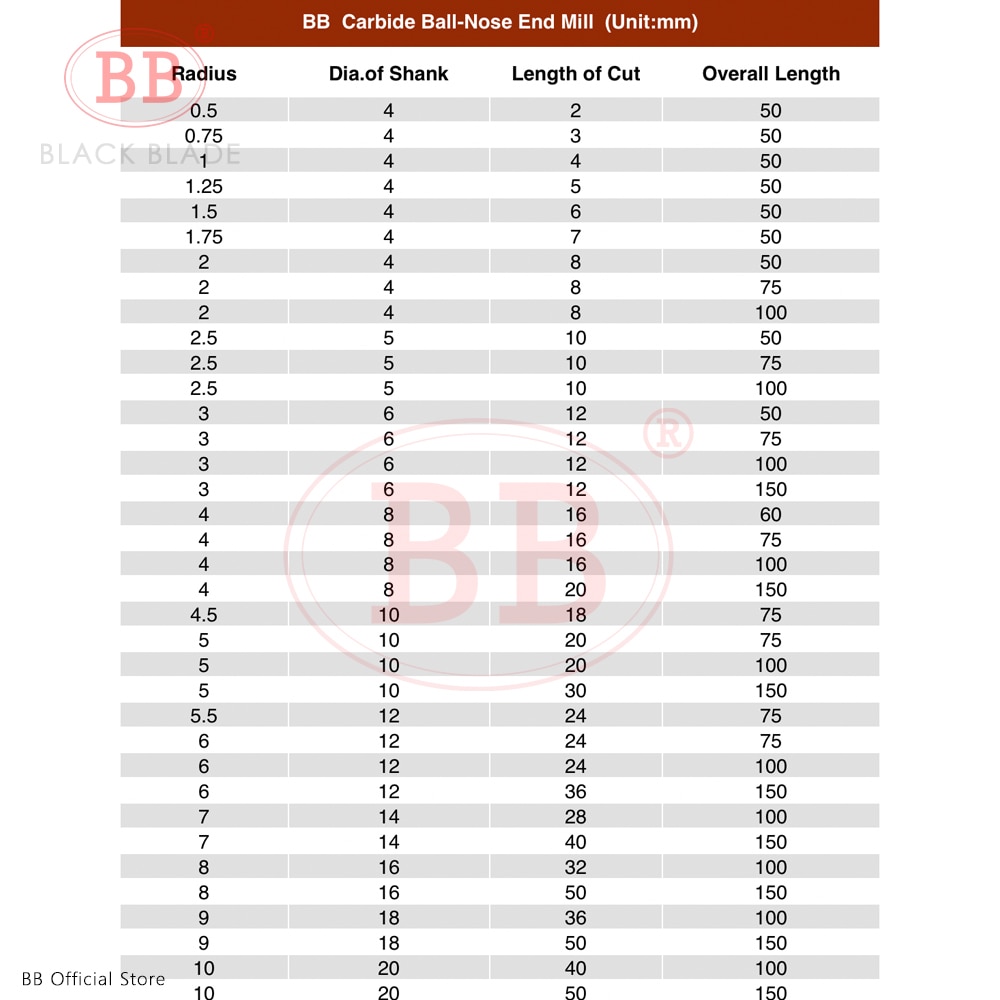

- Dimensions
-
- R0.5x4x2x50
- R0.75x4x3x50
- R1x4x4x50
- R1x4x4x75
- R1x4x4x100
- R1.25x4x5x50
- R1.5x4x6x50
- R1.5x4x6x75
- R1.5x4x6x100
- R1.75x4x7x50
- R2x4x8x50
- R2x4x8x75
- R2x4x8x100
- R2.25x6x8x50
- R2.5x5x10x50
- R2.5x5x10x75
- R2.5x5x10x100
- R2.75x6x8x50
- R3x6x12x50
- R3x6x12x75
- R3x6x12x100
- R3x6x12x150
- R3.25x8x16x60
- R3.5x8x16x60
- R3.75x8x16x60
- R4x8x16x60
- R4x8x16x75
- R4x8x16x100
- R4x8x20x150
- R4.25x10x18x75
- R4.5x10x18x75
- R5x10x20x75
- R5x10x20x100
- R5x10x30x150
- R5.25x12x20x75
- R6x12x24x75
- R6x12x24x100
- R6x12x36x150
- R7x14x28x100
- R7x14x40x150
- R8x16x32x100
- R8x16x50x150
- R9x18x36x100
- R10x20x40x100
- R10x20x50x150
- Cutting Edge Length
-
-

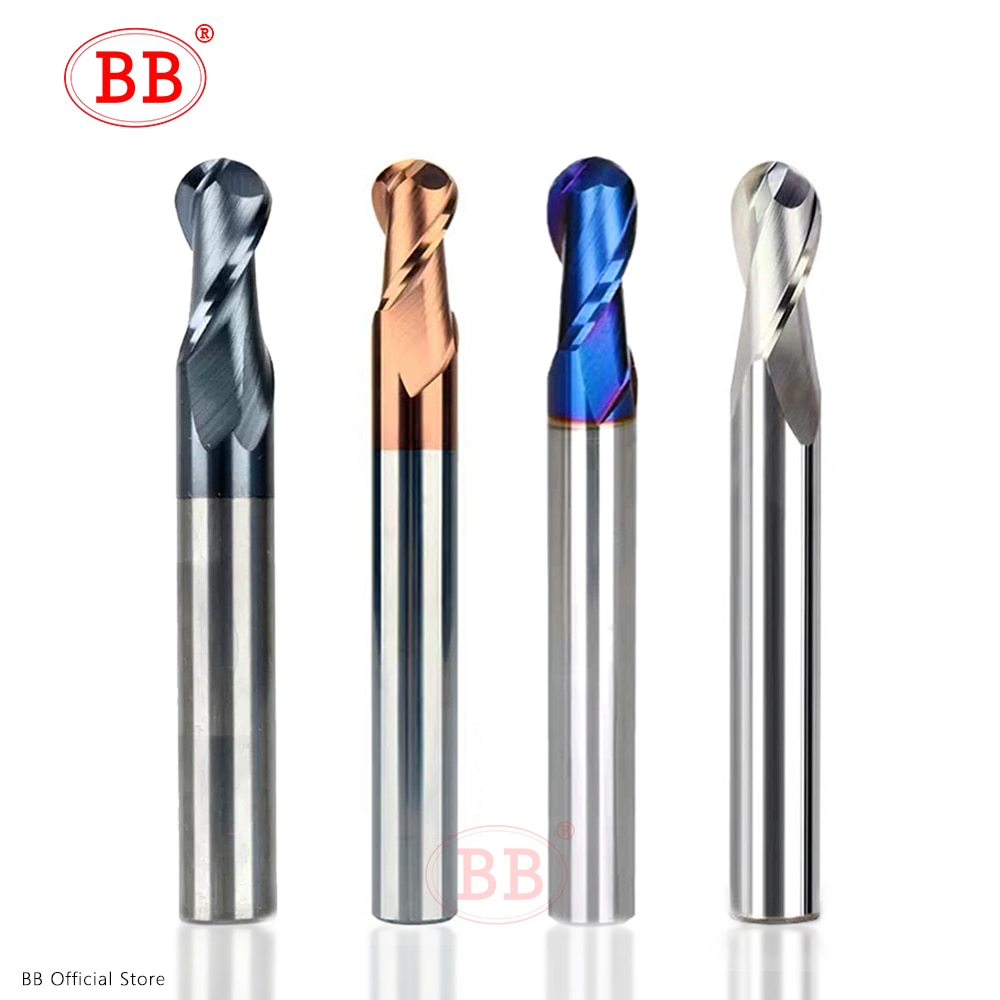

BB® Solid Carbide Ball Nose End Mills
Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid tool-holding systems.
Tolerance of End Mill Diameter:
1 < D≤6 -0.010 ~ -0.030
6 < D≤10 -0.015 ~ -0.040 10 < D≤ 20 -0.020~-0.050

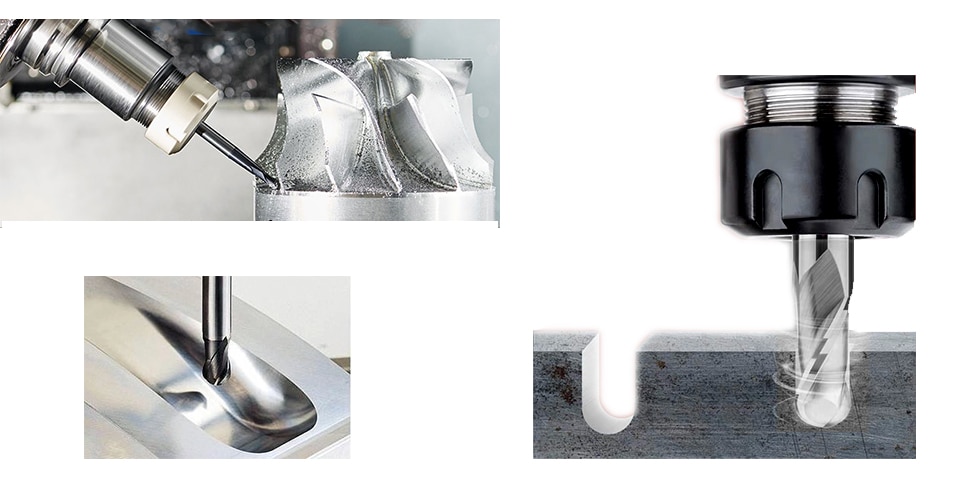

Double-edge design improves rigidity and surface finish effectively. Cutting edge over the center reduces the cutting resistance. High capacity of junk slot benefits chip removal and increases machining efficiency. 2 flutes design is good for chip removal, easy for vertical feed processing, widely used in slot, profile, and hole processing.
BB® Micro Ball End Mill (Click on the image below)
-R0.1~R1
-Regular length &Long neck length

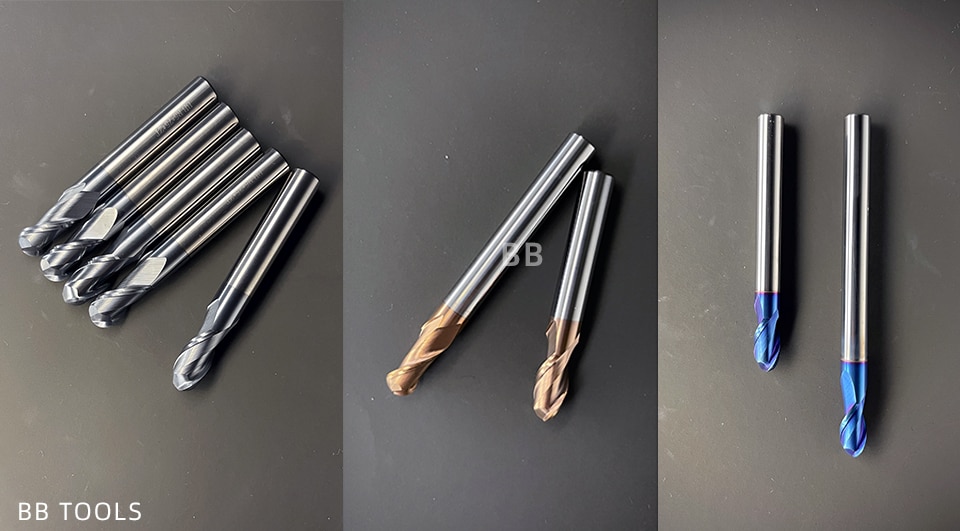

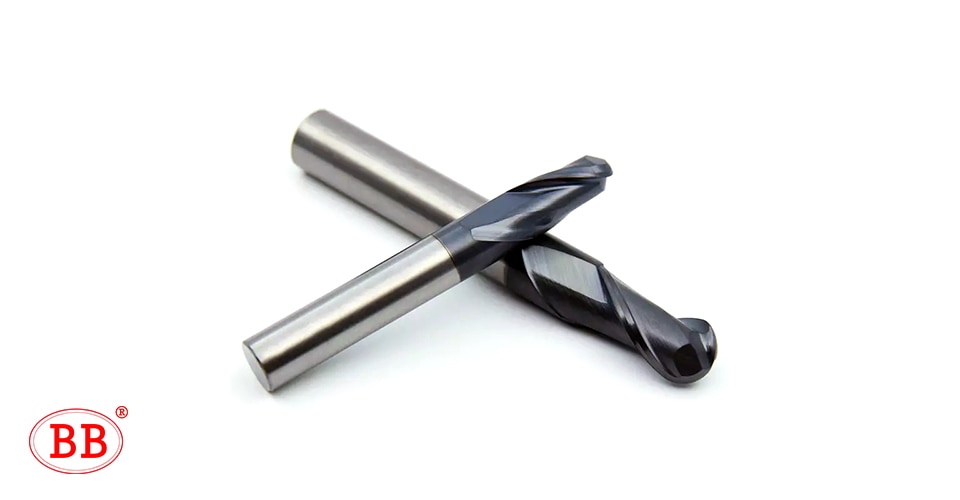

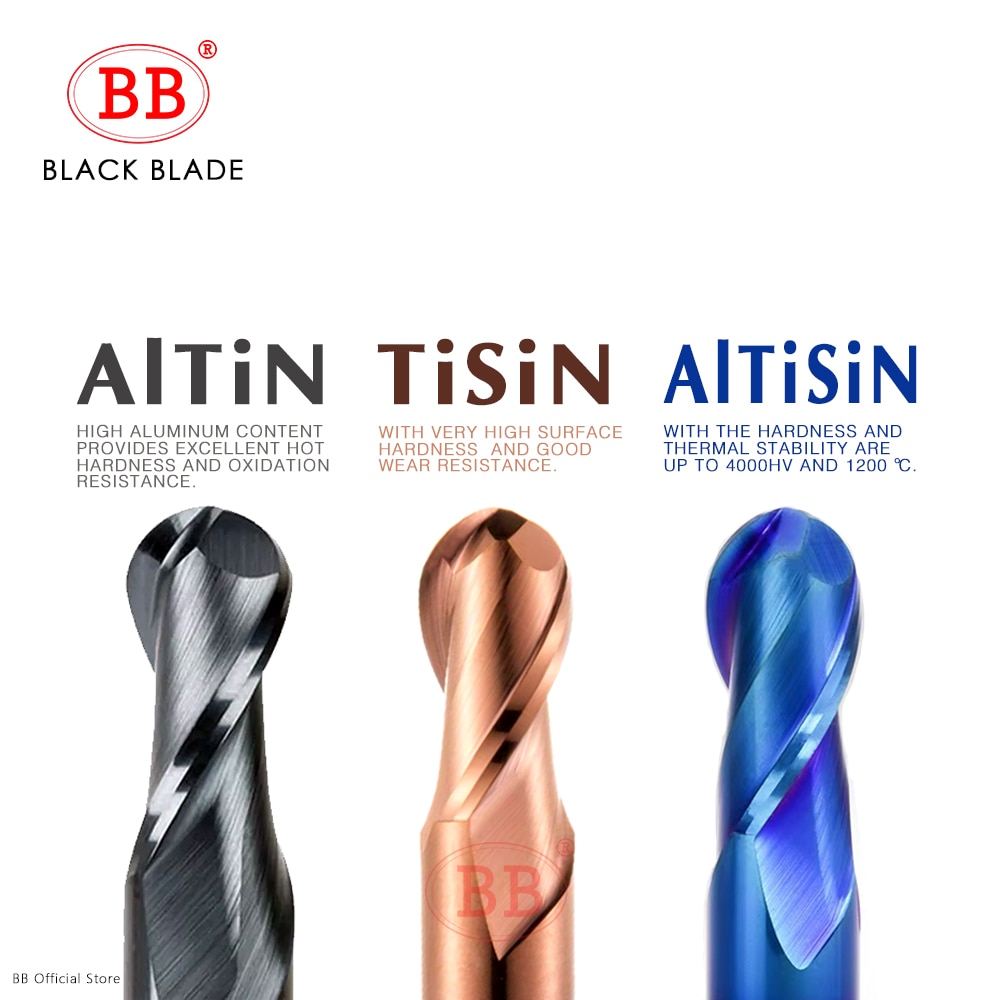

BB® BK2045 Ball Nose End Mills
Color: Dark grey. Density: 14.5 g/cm3
Hardness: HRA 91.5 Grain Size: 0.8um
Bending Strength: 2800N/mm2
Raw material: YG10X with 10% Co content and 0.8um grain size.
Coating: TiALN, high aluminum content provides excellent hot hardness and oxidation resistance.
A good choice for milling general steels weaker than HRc35. But, because of the aluminum content, it is not good choice for aluminum.

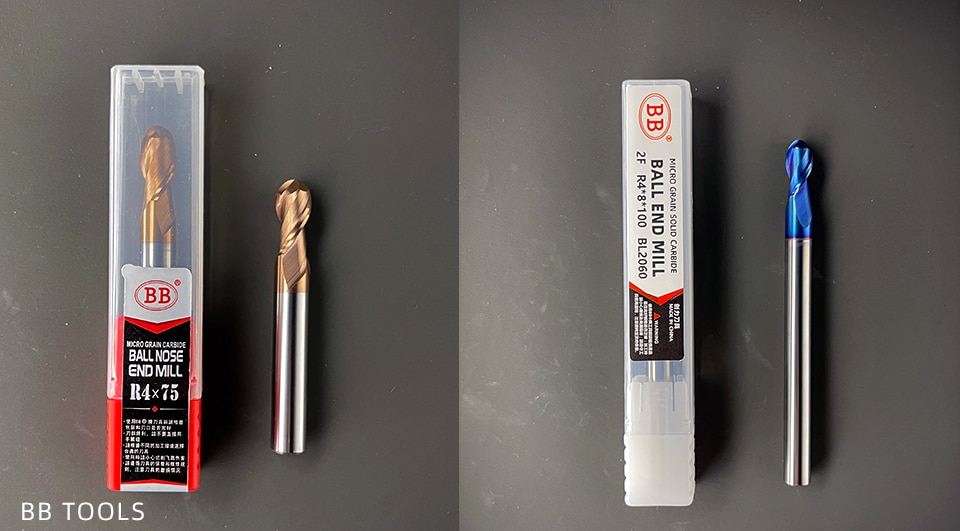

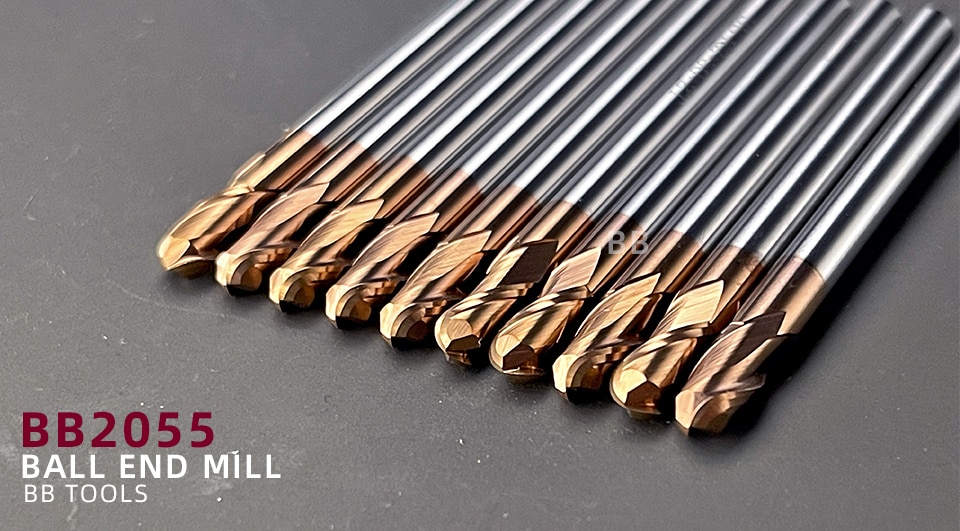

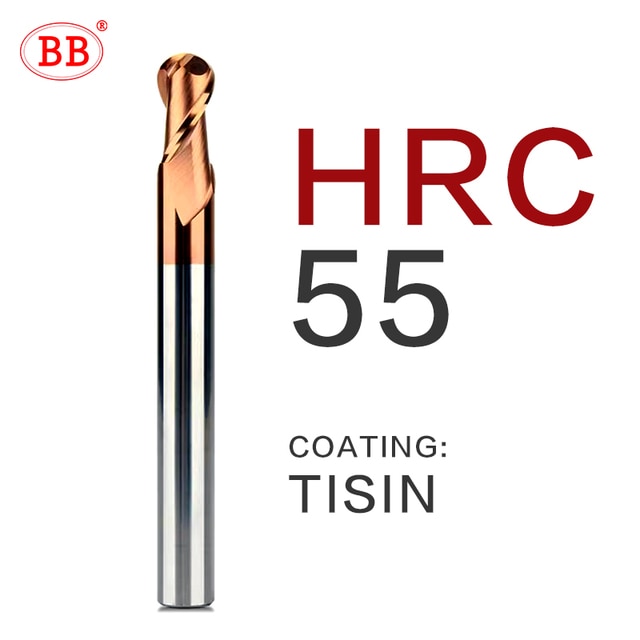

BB® BB2055 Ball Nose End Mill
Color: Copper Density: 14.5 g/cm3
Hardness: HRA 92 Grain Size: 0.6um
Bending Strength: 3000N/mm2
Raw material: Use ZK30UF with 10%Co content and 0.6um grain size.
Coating: TiSiN, with very high surface hardness and good wear resistance.
Suitable for milling general steel under HRc50, stainless steel, hardened steel, etc

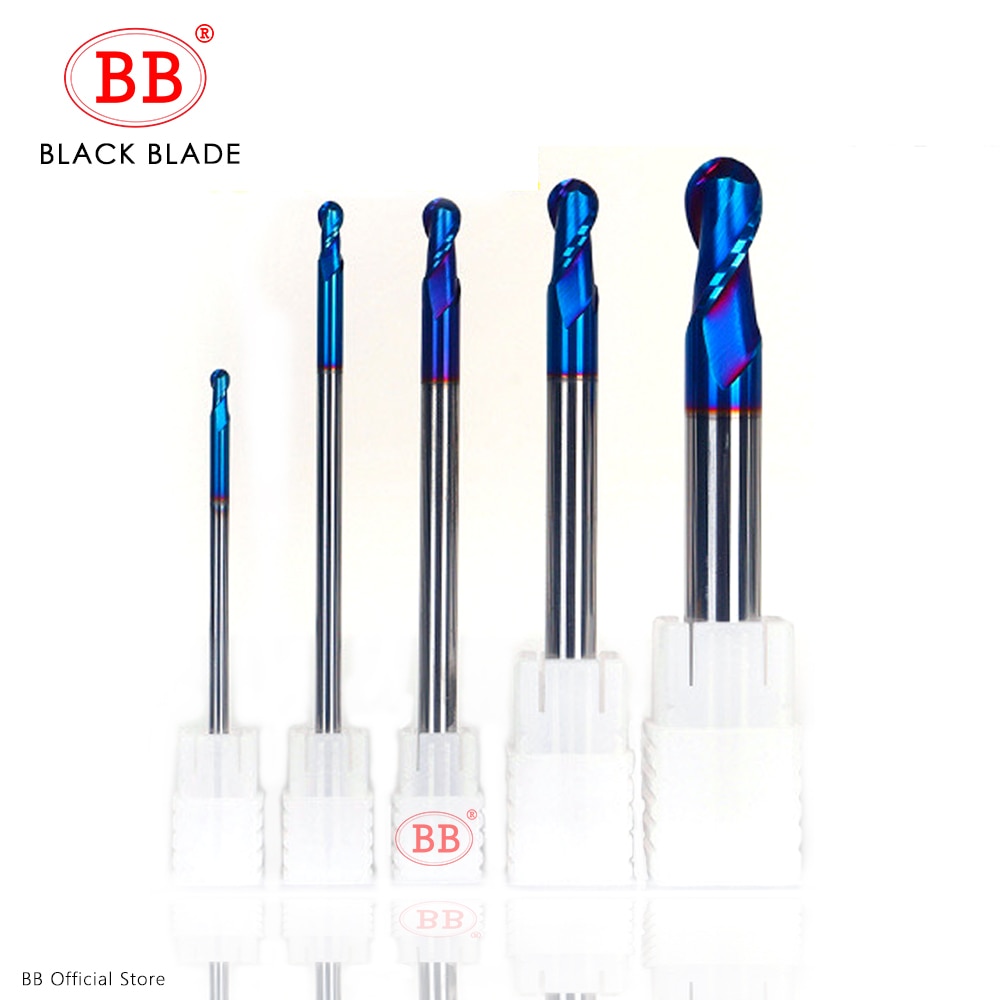

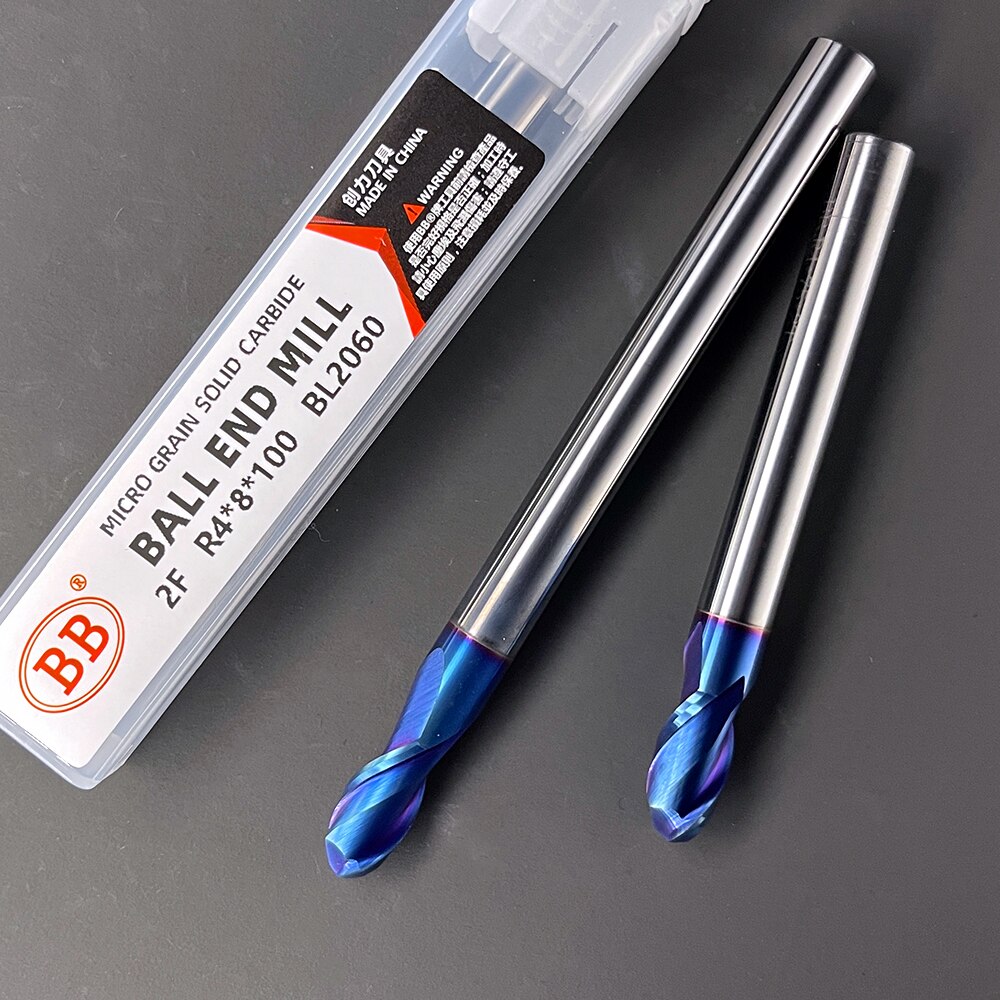

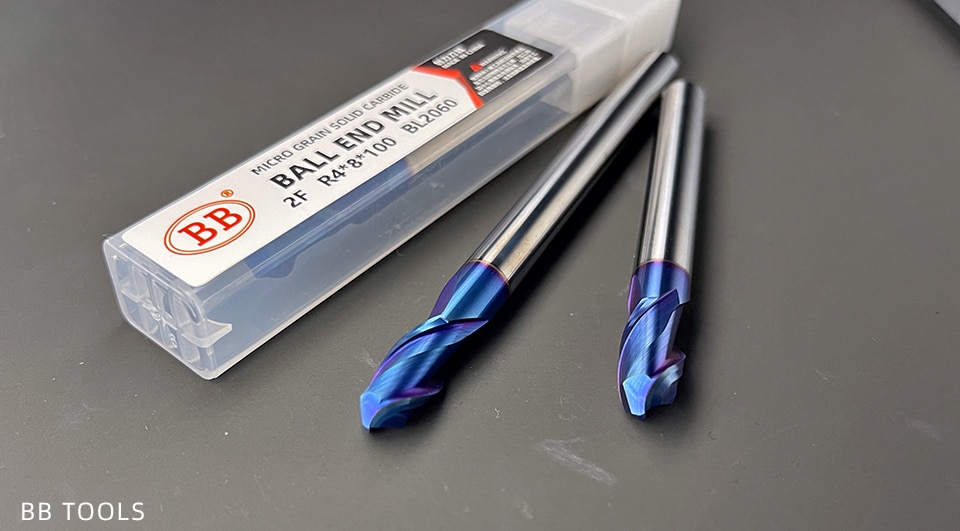

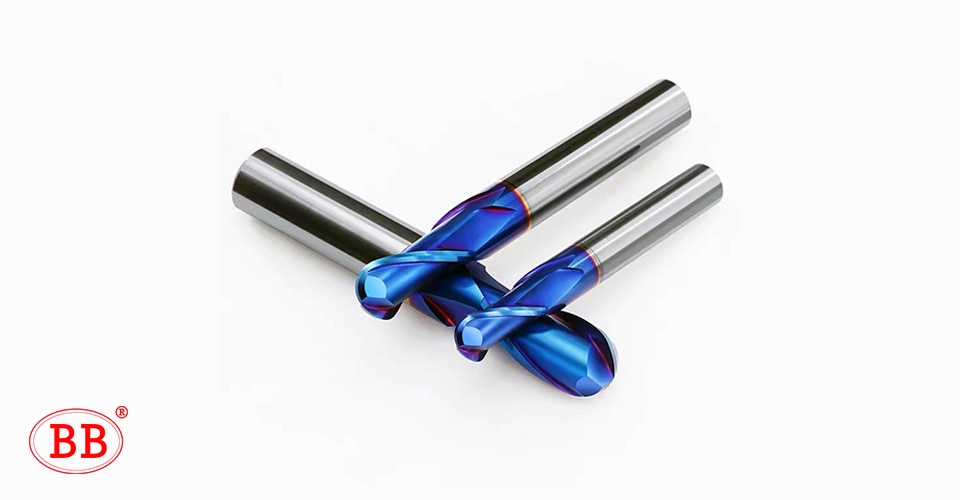

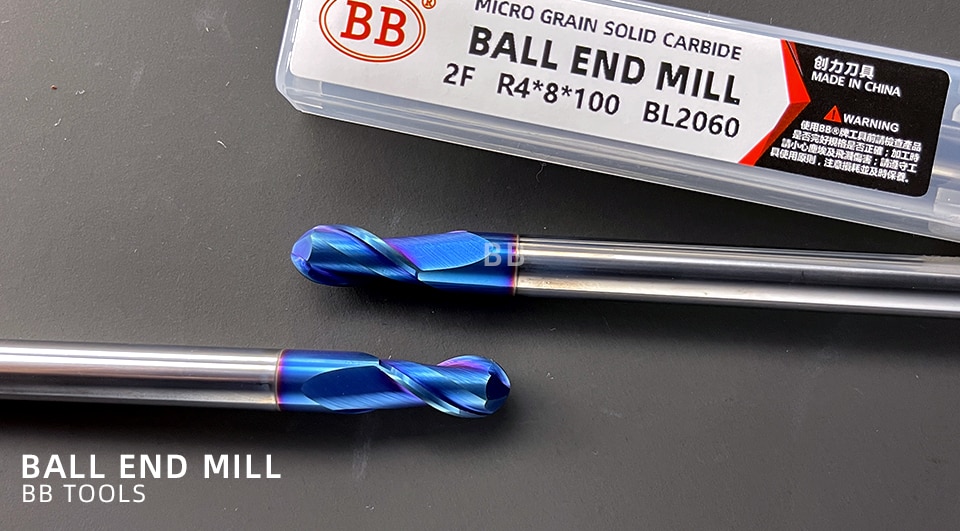

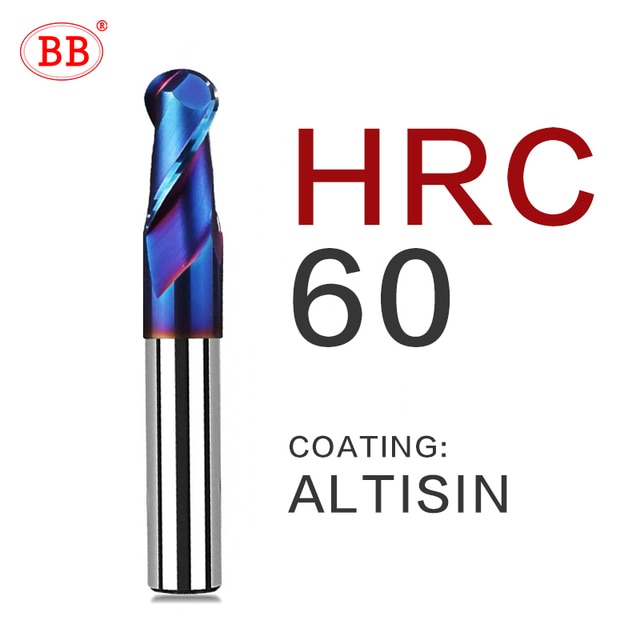

BB® BL2060 Ball Nose End Mills
Color: Blue. Density: 14.5 g/cm3
Hardness: HRA 93 Grain Size: 0.4um
Bending Strength: 4000N/mm2
Raw material: Use GU25UF with 12% Co content and 0.4um grain size.
Coating: AlTiSiN, with the hardness and thermal stability are up to 4000HV and 1200 ℃, respectively.
Suitable for milling stainless steel, hardened steel ,titanium alloy , etc

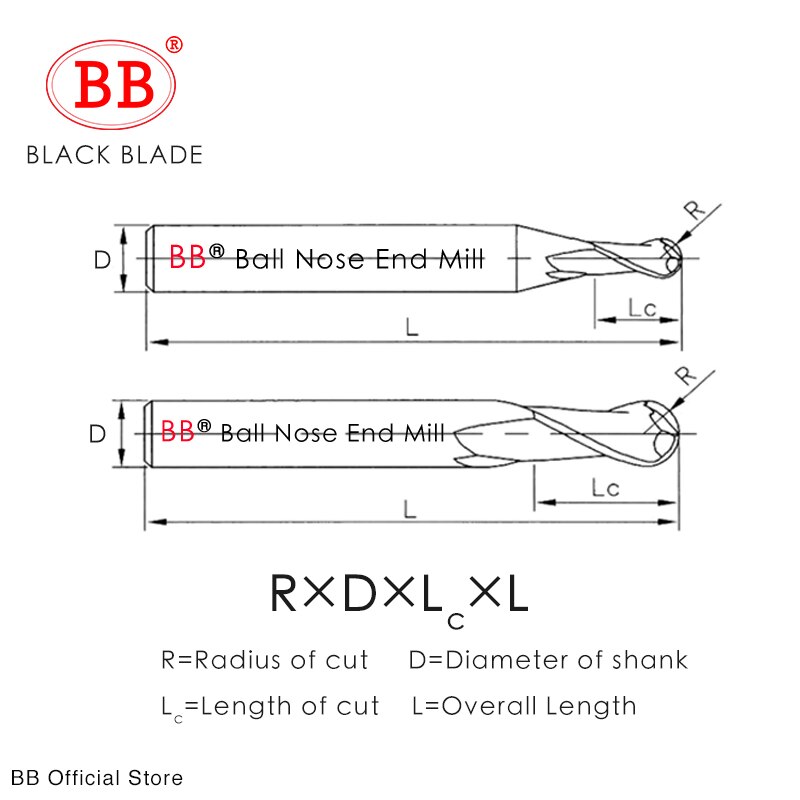

Dimensions:

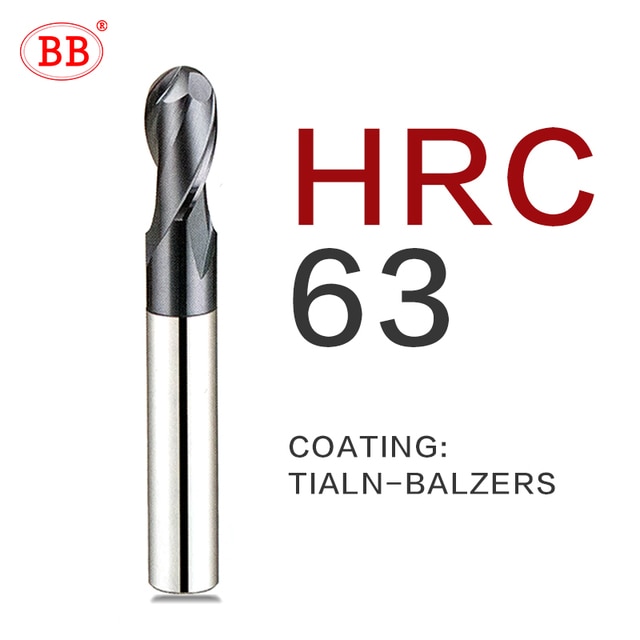

BB® BK2063 Ball Nose End Mills
The unique diamond coating enables the milling cutter to process harder materials. But at the same time, it should be noted that it is not suitable for soft material machining.

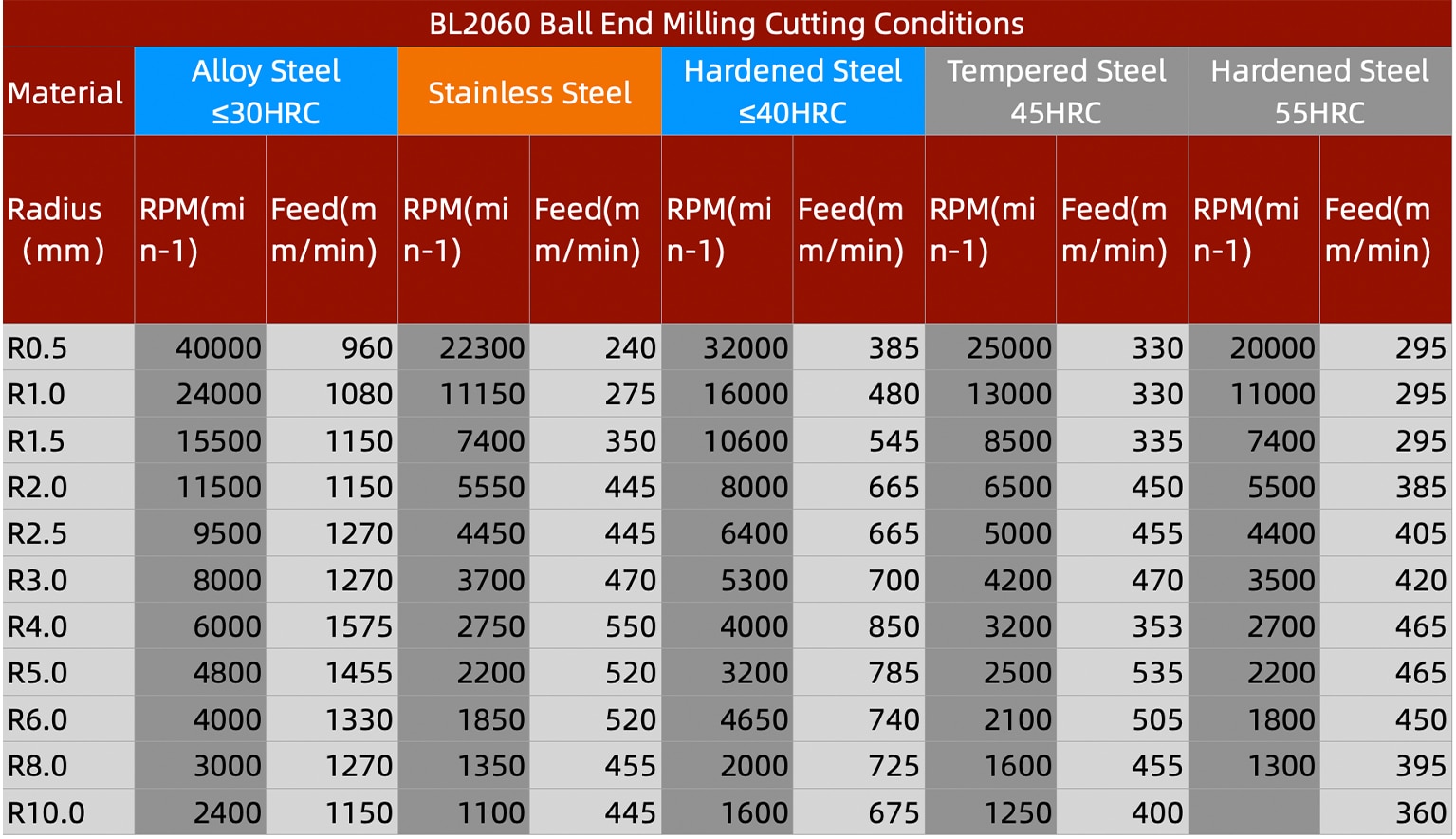

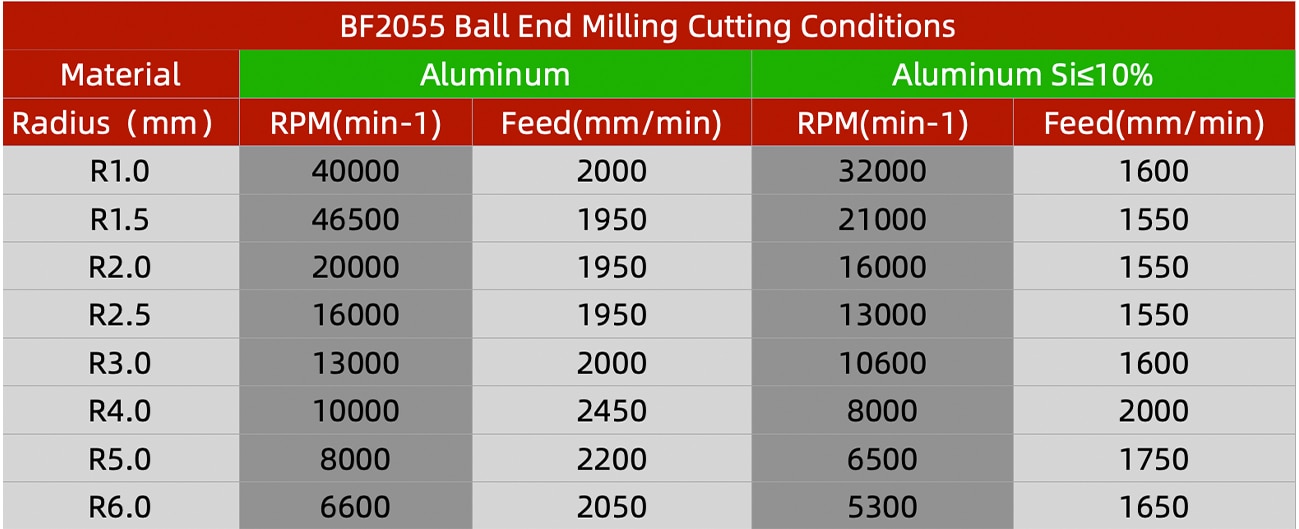

Cutting Parameters
vc=130 (120-180)m/min ap=1/3D(1/8-1/2D)
ae=1/2D(1/4-1D) fz=0.15mm(0.02-0.2)
Please adjust the parameters according to the material and hardness of workpieces.
HI, welcome to BB official store
-We are professional manufacturer, development and production of milling tools.
-We provide various tools for you . You can follow us and see more.
-You have free choice of collocation, pick different specifications and other tools in our store to you cart and pay them together. We will send the products you have picked as a package.
Show Your Works
We believe that the boring business relationship is not our pursuit, and we also believe that every tool has its suitable processing environment and meaning of existence. We encourage you to share your processing experience and show your works in the comments. Let everyone learn the appropriate processing method together.
SHIPMENT
-We have already paid 80% of delivery cost .And free shipping for sometimes.
-Orders processed timely after the payment verification.We ship products within 3 working days.
-The trade is cross-border, and Airmail is cheapest post which take a long time for delivery.If you need the item urgently ,please choose Express way.
-If you have not received your shipment within 60 days from payment, please contact us. We will track the shipment and get a reply to you as soon as possible.
We sincerely hope that BB tools will meet your full requirements. Please enjoy your online shopping.
- Degree: R1.0
- Overall Length: 50 60 75 100 150mm
- Coating: TICN
- Diameter: 1 1.5 20mm
- Model Number: HRC45 55 60
- Type: Ball Nose End Mills
- Material: Carbide
- Brand Name: BB
- Origin: Mainland China
- Certification: NONE
- Raw material: Tungsten Solid Carbide
